6-01 — FRONT BUMPER (#45710) — 130 parça

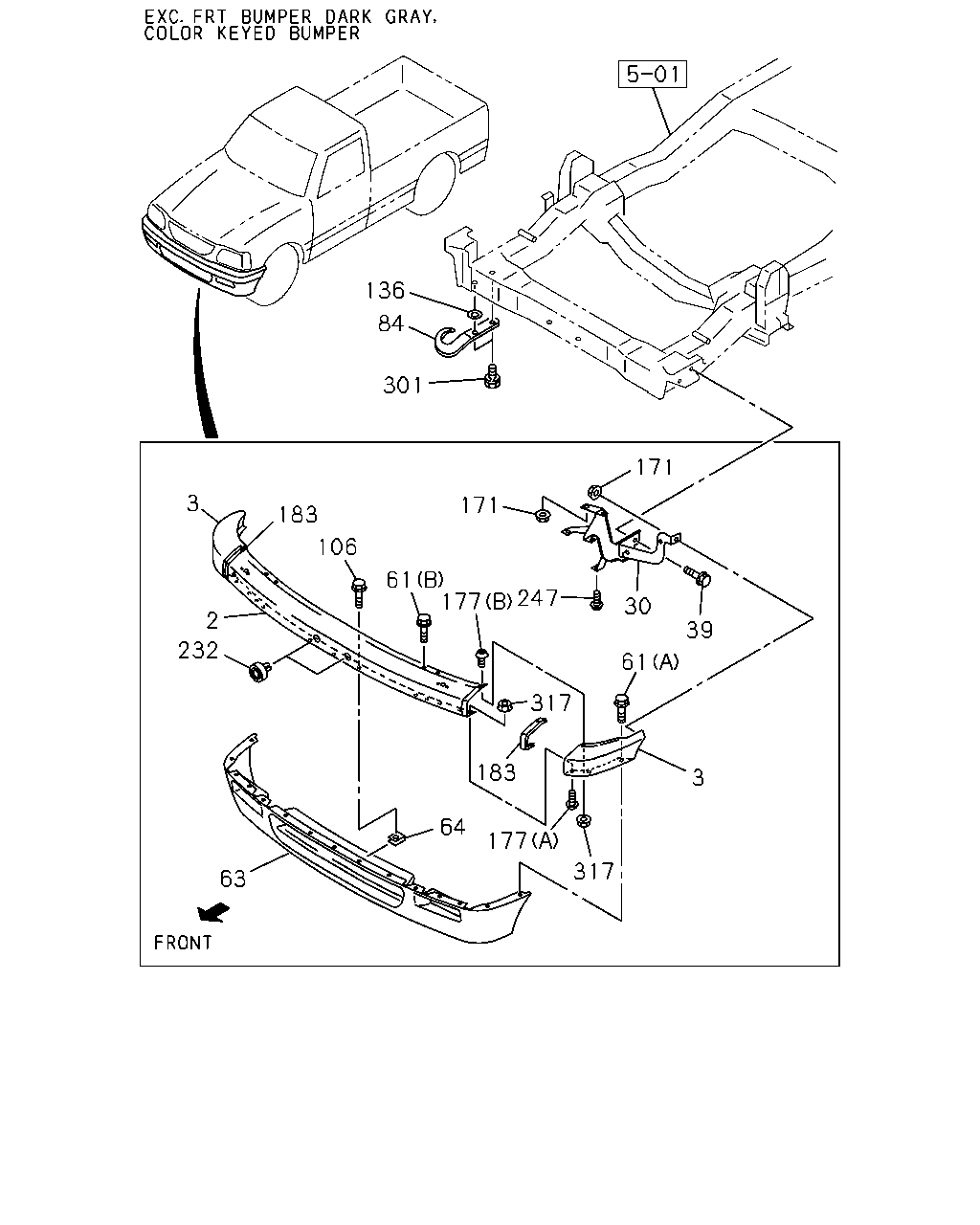

çizim 73657
136 84 301 171 3 171 183 106 61 177 247 30 2 232 39 61 317 183 3 64 177 317 63
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
2 07.831 BUMPER; FRT,CENTER
FRONT BUMPER CHROME<V46> 		8-97175-579-1 01 1 0101- ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
GRADE S(RBA) 		8-97175-578-1 01 1 9804-9909 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
GRADE S(RBA) 		8-97175-578-1 01 1 9910-0009 ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER 8-97175-578-1 01 1 9910-0009 ●
2 07.831 BUMPER; FRT,CENTER
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H),KD PREPARATORY PACK<6HF> 		8-97175-578-1 01 1 0010-0012 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
GRADE S(RBA) KD PREPARATORY PACK<6HF> 		8-97175-578-1 01 1 0010-0012 ● ● ● ● ● ● ●
2 07.831 BUMPER; FRT,CENTER
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H),FRONT BUMPER CHROME<V46> 		8-97175-578-1 01 1 0101- ● ● ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE
FRONT BUMPER CHROME<V46> 		8-97111-560-1 01 1 0101- ● ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE
FRONT BUMPER CHROME<V46> 		8-97111-557-1 01 1 0101- ● ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE
GRADE S(RBA) 		8-97111-559-1 01 1 9804-9909 ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE
GRADE S(RBA) 		8-97111-559-1 01 1 9910-0009 ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE 8-97111-559-1 01 1 9910-0009 ●
3 07.831 BUMPER; FRT,SIDE
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H),KD PREPARATORY PACK<6HF> 		8-97111-559-1 01 1 0010-0012 ● ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE
GRADE S(RBA) KD PREPARATORY PACK<6HF> 		8-97111-559-1 01 1 0010-0012 ● ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H),FRONT BUMPER CHROME<V46> 		8-97111-559-1 01 1 0101- ● ● ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE
GRADE S(RBA) 		8-97111-556-1 01 1 9804-9909 ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE
GRADE S(RBA) 		8-97111-556-1 01 1 9910-0009 ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE 8-97111-556-1 01 1 9910-0009 ●
3 07.831 BUMPER; FRT,SIDE
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H),KD PREPARATORY PACK<6HF> 		8-97111-556-1 01 1 0010-0012 ● ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE
GRADE S(RBA) KD PREPARATORY PACK<6HF> 		8-97111-556-1 01 1 0010-0012 ● ● ● ● ● ● ●
3 07.831 BUMPER; FRT,SIDE
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H),FRONT BUMPER CHROME<V46> 		8-97111-556-1 01 1 0101- ● ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 		8-97111-876-1 01 1 9804- ● ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 		8-97111-875-1 01 1 9804- ● ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97181-018-2 01 1 9804-9806 ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97210-979-0 01 1 9807-9901 ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97221-999-1 01 1 9902- ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97181-017-2 01 1 9804-9806 ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97210-978-0 01 1 9807-9901 ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97221-998-1 01 1 9902- ● ● ● ● ● ● ●
39 07.874 BOLT; BUMPER TO BODY
M12X30 FLANGE 		0-28691-230-0 04 1 9804- ● ● ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 07.874 (B) M8X20 BLACK-HEAD 		8-94241-820-0 04 1 9804-0012 ● ● ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H),FRONT BUMPER CHROME<V46> 07.874 (B) M8X20 BLACK-HEAD 		8-94241-820-0 04 1 0101- ● ● ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 07.874 (A) M8X20 DACRO-COATING 		8-94241-821-0 04 1 9804- ● ● ● ● ● ● ● ●
61 07.832 BOLT; BACK BAR
FRONT BUMPER CHROME<V46> 07.874 (B) M8X20 CR-PLATING 		8-94241-804-0 04 1 0101- ● ● ● ● ● ● ●
63 07.831 AIR DAM; FRT BUMPER
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 		8-97110-314-0 01 1 9804-0012 ● ● ● ● ● ● ● ●
63 07.831 AIR DAM; FRT BUMPER
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H),FRONT BUMPER CHROME<V46> 		8-97110-314-0 01 1 0101- ● ● ● ● ● ● ● ●
63 07.831 AIR DAM; FRT BUMPER
FRONT BUMPER CHROME<V46> 		8-97260-608-0 01 1 0101- ● ● ● ● ● ● ●
64 07.829 NUT; CLIP
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 		8-94471-330-2 15 1 9804- ● ● ● ● ● ● ● ●
84 07.068 HOOK
UNITED KINGDOM EQUIPMENT(EK3) TOW HOOK FRT ONLY<7TJ> EXC. HONG KONG EQUIPMENT(PQ1), CYPRUS EQUIPMENT(R4G),SINGAPORE EQUIPMEN T(S9Y) 		8-97041-464-2 01 1 0202-0203 ● ● ● ● ●
84 07.068 HOOK
UNITED KINGDOM EQUIPMENT(EK3) TOW HOOK FRT & RR<V70> 		8-94361-852-0 01 1 9804-9909 ● ● ● ●
84 07.068 HOOK
UNITED KINGDOM EQUIPMENT(EK3) TOW HOOK FRT ONLY<7TJ> 		8-94361-852-0 01 1 9910-0201 ● ● ● ● ●
84 07.068 HOOK
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1),CYPRUS EQUIPMENT(R4G),SINGAPORE EQUIPMENT(S9Y) TOW HOOK FRT ONLY<7TJ> 		8-94361-852-0 01 1 0202-0203 ● ● ● ● ●
84 07.068 HOOK
UNITED KINGDOM EQUIPMENT(EK3) TOW HOOK FRT ONLY<7TJ> 		8-94361-852-0 01 1 0204- ● ● ● ● ●
84 07.068 HOOK
TOW HOOK FRT ONLY<7TJ> EXC. UNITED KINGDOM EQUIPMENT(EK3) 07.330 		8-94183-262-0 01 1 9804- ● ● ● ●
106 07.829 BOLT; AIR DAM
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 12.187 M6X16 W/LK&PL WASHER 		0-50140-616-0 15 1 9804-9810 ● ● ● ● ● ● ● ●
106 07.829 BOLT; AIR DAM
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 04.686 M6X14 FLANGE 		0-28080-614-0 15 1 9811- ● ● ● ● ● ● ● ●
136 07.330 WASHER; PL,HOOK
TOW HOOK FRT & RR<V70> ID=12.5 		1-09503-021-0 01 1 9804-9909 ● ● ● ● ● ●
136 07.330 WASHER; PL,HOOK
TOW HOOK FRT ONLY<7TJ> ID=12.5 		1-09503-021-0 01 1 9910- ● ● ● ● ● ●
171 07.869 NUT; BACK BAR
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 07.833 M8 W/LK WASHER 		8-94327-073-0 10 1 9804- ● ● ● ● ● ● ● ●
177 07.869 BOLT
FRONT BUMPER CHROME<V46> 07.874 (B) M8X20 CR-PLATING 		8-94241-804-0 02 1 0101- ● ● ● ● ● ● ●
177 07.869 BOLT
GRADE S(RBA) 07.874 (B) M8X20 BLACK-HEAD 		8-94241-820-0 02 1 9804-9909 ● ● ● ● ● ●
177 07.869 BOLT
GRADE S(RBA) 07.874 (B) M8X20 BLACK-HEAD 		8-94241-820-0 02 1 9910-0009 ● ● ● ● ● ●
177 07.869 BOLT
07.874 (B) M8X20 BLACK-HEAD 		8-94241-820-0 02 1 9910-0009 ●
177 07.869 BOLT
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H),KD PREPARATORY PACK<6HF> 07.874 (B) M8X20 BLACK-HEAD 		8-94241-820-0 02 1 0010-0012 ● ● ● ● ● ● ●
177 07.869 BOLT
GRADE S(RBA) KD PREPARATORY PACK<6HF> 07.874 (B) M8X20 BLACK-HEAD 		8-94241-820-0 02 1 0010-0012 ● ● ● ● ● ● ●
177 07.869 BOLT
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H),FRONT BUMPER CHROME<V46> 07.874 (B) M8X20 BLACK-HEAD 		8-94241-820-0 02 1 0101- ● ● ● ● ● ● ● ●
177 07.869 BOLT
GRADE S(RBA) 07.874 (A) M8X20 DACRO-COATING 		8-94241-821-0 02 1 9804-9909 ● ● ● ● ● ●
177 07.869 BOLT
GRADE S(RBA) 07.874 (A) M8X20 DACRO-COATING 		8-94241-821-0 02 1 9910-0009 ● ● ● ● ● ●
177 07.869 BOLT
07.874 (A) M8X20 DACRO-COATING 		8-94241-821-0 02 1 9910-0009 ●
177 07.869 BOLT
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H),KD PREPARATORY PACK<6HF> 07.874 (A) M8X20 DACRO-COATING 		8-94241-821-0 02 1 0010-0012 ● ● ● ● ● ● ●
177 07.869 BOLT
GRADE S(RBA) KD PREPARATORY PACK<6HF> 07.874 (A) M8X20 DACRO-COATING 		8-94241-821-0 02 1 0010-0012 ● ● ● ● ● ● ●
177 07.869 BOLT
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 07.874 (A) M8X20 DACRO-COATING 		8-94241-821-0 02 1 0101- ● ● ● ● ● ● ● ●
183 07.832 FINISHER; FRT BUMPER
GRADE S(RBA) 		8-97111-562-0 02 1 9804-9909 ● ● ● ● ● ●
183 07.832 FINISHER; FRT BUMPER
GRADE S(RBA) 		8-97111-562-0 02 1 9910-0009 ● ● ● ● ● ●
183 07.832 FINISHER; FRT BUMPER 8-97111-562-0 02 1 9910-0009 ●
183 07.832 FINISHER; FRT BUMPER
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H),KD PREPARATORY PACK<6HF> 		8-97111-562-0 02 1 0010-0012 ● ● ● ● ● ● ●
183 07.832 FINISHER; FRT BUMPER
GRADE S(RBA) KD PREPARATORY PACK<6HF> 		8-97111-562-0 02 1 0010-0012 ● ● ● ● ● ● ●
183 07.832 FINISHER; FRT BUMPER
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 		8-97111-562-0 02 1 0101- ● ● ● ● ● ● ● ●
232 07.800 NUT; EXPANSION,LICENSE PLATE
GRADE S(RBA) 07.832 M6 EXPANSION NUT 		8-94215-358-1 02 1 9804-9909 ● ● ● ● ● ●
232 07.800 NUT; EXPANSION,LICENSE PLATE
GRADE S(RBA) 07.832 M6 EXPANSION NUT 		8-94215-358-1 02 1 9910-0009 ● ● ● ● ● ●
232 07.800 NUT; EXPANSION,LICENSE PLATE
07.832 M6 EXPANSION NUT 		8-94215-358-1 02 1 9910-0009 ●
232 07.800 NUT; EXPANSION,LICENSE PLATE
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H),KD PREPARATORY PACK<6HF> 07.832 M6 EXPANSION NUT 		8-94215-358-1 02 1 0010-0012 ● ● ● ● ● ● ●
232 07.800 NUT; EXPANSION,LICENSE PLATE
GRADE S(RBA) KD PREPARATORY PACK<6HF> 07.832 M6 EXPANSION NUT 		8-94215-358-1 02 1 0010-0012 ● ● ● ● ● ● ●
232 07.800 NUT; EXPANSION,LICENSE PLATE
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 07.832 M6 EXPANSION NUT 		8-94215-358-1 02 1 0101- ● ● ● ● ● ● ● ●
247 07.874 SCREW; BUMPER TO AIR DAM
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 08.155 		8-97032-653-0 02 1 9804- ● ● ● ● ● ● ● ●
301 07.068 BOLT; HOOK TO FRAME
UNITED KINGDOM EQUIPMENT(EK3) TOW HOOK FRT ONLY<7TJ> EXC. HONG KONG EQUIPMENT(PQ1), CYPRUS EQUIPMENT(R4G),SINGAPORE EQUIPMEN T(S9Y) M10X50 FLANGE 		0-28091-050-0 02 1 0202-0203 ● ● ● ● ●
301 07.068 BOLT; HOOK TO FRAME
TOW HOOK FRT & RR<V70> 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9804-9909 ● ● ● ● ● ●
301 07.068 BOLT; HOOK TO FRAME
TOW HOOK FRT ONLY<7TJ> 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9910-0201 ● ● ● ● ● ●
301 07.068 BOLT; HOOK TO FRAME
TOW HOOK FRT ONLY<7TJ> EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 0202-0203 ● ● ● ● ● ●
301 07.068 BOLT; HOOK TO FRAME
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1),CYPRUS EQUIPMENT(R4G),SINGAPORE EQUIPMENT(S9Y) TOW HOOK FRT ONLY<7TJ> 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 0202-0203 ● ● ● ● ●
301 07.068 BOLT; HOOK TO FRAME
00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 0204-0204 ● ● ● ● ● ● ● ●
301 07.068 BOLT; HOOK TO FRAME
TOW HOOK FRT ONLY<7TJ> 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 0205- ● ● ● ● ● ●
317 07.833 NUT; CENTER TO SIDE
GRADE S(RBA) M8 W/LK WASHER 		8-94327-073-0 04 1 9804-9909 ● ● ● ● ● ●
317 07.833 NUT; CENTER TO SIDE
GRADE S(RBA) M8 W/LK WASHER 		8-94327-073-0 04 1 9910-0009 ● ● ● ● ● ●
317 07.833 NUT; CENTER TO SIDE
M8 W/LK WASHER 		8-94327-073-0 04 1 9910-0009 ●
317 07.833 NUT; CENTER TO SIDE
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H),KD PREPARATORY PACK<6HF> M8 W/LK WASHER 		8-94327-073-0 04 1 0010-0012 ● ● ● ● ● ● ●
317 07.833 NUT; CENTER TO SIDE
GRADE S(RBA) KD PREPARATORY PACK<6HF> M8 W/LK WASHER 		8-94327-073-0 04 1 0010-0012 ● ● ● ● ● ● ●
317 07.833 NUT; CENTER TO SIDE
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) M8 W/LK WASHER 		8-94327-073-0 04 1 0101- ● ● ● ● ● ● ● ●

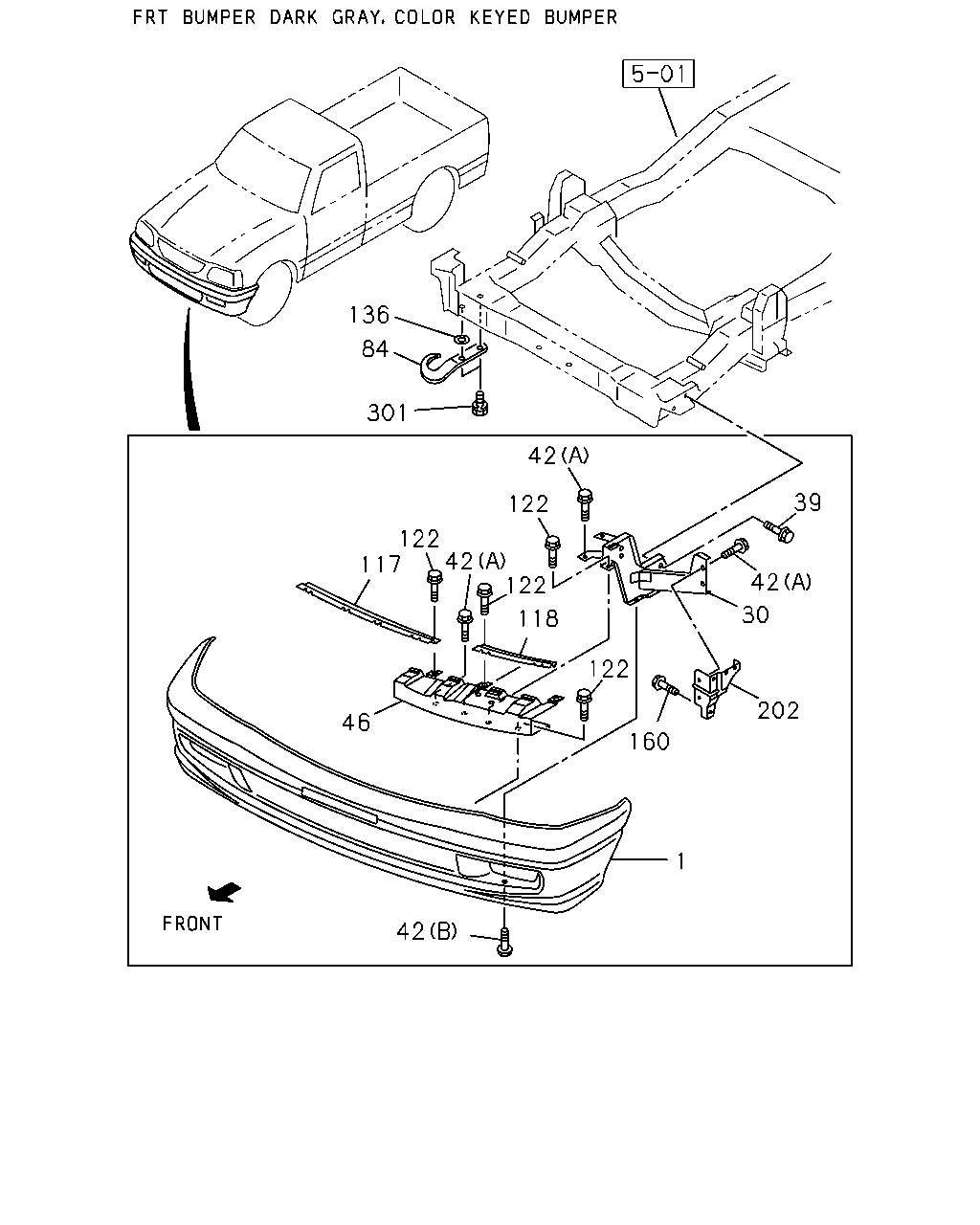

çizim 73684
136 84 301 42 39 122 122 117 42 122 118 42 30 122 202 46 160 1 42
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(S4H) PRIMER 		8-97209-201-0 01 1 9804-9909 ● ● ● ● ● ● ●
1 07.831 BUMPER ASM; FRT
COLOR KEYED BUMPER(S4H) PRIMER 		8-97213-188-0 01 1 9910- ● ● ● ● ● ● ●
1 07.831 BUMPER ASM; FRT
FRT BUMPER DARK GRAY(EQ9) 		8-97180-774-3 01 1 9804-0009 ● ● ● ● ● ● ●
1 07.831 BUMPER ASM; FRT
FRT BUMPER DARK GRAY(EQ9) 		8-97180-774-3 01 1 0010- ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 		8-97111-876-1 01 1 9804- ● ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
EXC. FRT BUMPER DARK GRAY(EQ9), COLOR KEYED BUMPER(S4H) 		8-97111-875-1 01 1 9804- ● ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97181-018-2 01 1 9804-9806 ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97210-979-0 01 1 9807-9901 ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97221-999-1 01 1 9902- ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97181-017-2 01 1 9804-9806 ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97210-978-0 01 1 9807-9901 ● ● ● ● ● ● ●
30 07.869 BRACKET; FRT BUMPER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97221-998-1 01 1 9902- ● ● ● ● ● ● ●
39 07.874 BOLT; BUMPER TO BODY
M12X30 FLANGE 		0-28691-230-0 04 1 9804- ● ● ● ● ● ● ● ●
42 07.874 BOLT; BUMPER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 08.155 (A) M8X16 FLANGE 		0-28480-816-0 12 1 9804-9909 ● ● ● ● ● ● ●
42 07.874 BOLT; BUMPER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 08.155 (A) M8X16 FLANGE 		0-28480-816-0 12 1 9910-0008 ● ● ● ● ● ● ●
42 07.874 BOLT; BUMPER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 08.155 (A) M8X16 FLANGE 		0-28480-816-0 08 1 0009- ● ● ● ● ● ● ●
42 07.874 BOLT; BUMPER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 07.875 (B) M6X16 FLANGE 		8-97804-671-1 02 1 9804- ● ● ● ● ● ● ●
42 07.874 BOLT; BUMPER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 08.155 (A) M8X20 W/LK&PL WASHER 		8-94243-012-1 04 1 0009- ● ● ● ● ● ● ●
46 07.840 REINFORCEMENT; BUMPER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97181-020-4 01 1 9804- ● ● ● ● ● ● ●
46 07.840 REINFORCEMENT; BUMPER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97181-019-4 01 1 9804- ● ● ● ● ● ● ●
84 07.068 HOOK
UNITED KINGDOM EQUIPMENT(EK3) TOW HOOK FRT ONLY<7TJ> EXC. HONG KONG EQUIPMENT(PQ1), CYPRUS EQUIPMENT(R4G),SINGAPORE EQUIPMEN T(S9Y) 		8-97041-464-2 01 1 0202-0203 ● ● ● ● ●
84 07.068 HOOK
UNITED KINGDOM EQUIPMENT(EK3) TOW HOOK FRT & RR<V70> 		8-94361-852-0 01 1 9804-9909 ● ● ● ●
84 07.068 HOOK
UNITED KINGDOM EQUIPMENT(EK3) TOW HOOK FRT ONLY<7TJ> 		8-94361-852-0 01 1 9910-0201 ● ● ● ● ●
84 07.068 HOOK
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1),CYPRUS EQUIPMENT(R4G),SINGAPORE EQUIPMENT(S9Y) TOW HOOK FRT ONLY<7TJ> 		8-94361-852-0 01 1 0202-0203 ● ● ● ● ●
84 07.068 HOOK
UNITED KINGDOM EQUIPMENT(EK3) TOW HOOK FRT ONLY<7TJ> 		8-94361-852-0 01 1 0204- ● ● ● ● ●
84 07.068 HOOK
TOW HOOK FRT ONLY<7TJ> EXC. UNITED KINGDOM EQUIPMENT(EK3) 07.330 		8-94183-262-0 01 1 9804- ● ● ● ●
117 07.831 RETAINER; BUMPER CENTER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97181-024-1 01 1 9804- ● ● ● ● ● ● ●
118 07.831 RETAINER; BUMPER SIDE
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97181-022-1 01 1 9804- ● ● ● ● ● ● ●
118 07.831 RETAINER; BUMPER SIDE
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97181-021-1 01 1 9804- ● ● ● ● ● ● ●
122 07.874 BOLT; RET,FRT BUMPER
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 06.635 M6X16 FLANGE 		0-28480-616-0 06 1 9804- ● ● ● ● ● ● ●
136 07.330 WASHER; PL,HOOK
TOW HOOK FRT & RR<V70> ID=12.5 		1-09503-021-0 01 1 9804-9909 ● ● ● ● ● ●
136 07.330 WASHER; PL,HOOK
TOW HOOK FRT ONLY<7TJ> ID=12.5 		1-09503-021-0 01 1 9910- ● ● ● ● ● ●
160 07.874 SCREW
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 08.900 M5X16 		8-94380-268-0 06 1 9804- ● ● ● ● ● ● ●
202 07.869 BRACKET; BUMPER SIDE
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97181-042-1 01 1 9804- ● ● ● ● ● ● ●
202 07.869 BRACKET; BUMPER SIDE
FRT BUMPER DARK GRAY(EQ9),COLOR KEYED BUMPER(S4H) 		8-97181-041-1 01 1 9804- ● ● ● ● ● ● ●
301 07.068 BOLT; HOOK TO FRAME
UNITED KINGDOM EQUIPMENT(EK3) TOW HOOK FRT ONLY<7TJ> EXC. HONG KONG EQUIPMENT(PQ1), CYPRUS EQUIPMENT(R4G),SINGAPORE EQUIPMEN T(S9Y) M10X50 FLANGE 		0-28091-050-0 02 1 0202-0203 ● ● ● ● ●
301 07.068 BOLT; HOOK TO FRAME
TOW HOOK FRT & RR<V70> 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9804-9909 ● ● ● ● ● ●
301 07.068 BOLT; HOOK TO FRAME
TOW HOOK FRT ONLY<7TJ> 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 9910-0201 ● ● ● ● ● ●
301 07.068 BOLT; HOOK TO FRAME
TOW HOOK FRT ONLY<7TJ> EXC. UNITED KINGDOM EQUIPMENT(EK3) 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 0202-0203 ● ● ● ● ● ●
301 07.068 BOLT; HOOK TO FRAME
UNITED KINGDOM EQUIPMENT(EK3) HONG KONG EQUIPMENT(PQ1),CYPRUS EQUIPMENT(R4G),SINGAPORE EQUIPMENT(S9Y) TOW HOOK FRT ONLY<7TJ> 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 0202-0203 ● ● ● ● ●
301 07.068 BOLT; HOOK TO FRAME
00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 0204-0204 ● ● ● ● ● ● ● ●
301 07.068 BOLT; HOOK TO FRAME
TOW HOOK FRT ONLY<7TJ> 00.004 M10X45 W/LK WASHER 		0-50041-045-0 02 1 0205- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
