10695 - LV233(THAI)
▶
3 - Brakes, Brake System
▶
3-20 - AIR TANK
▶

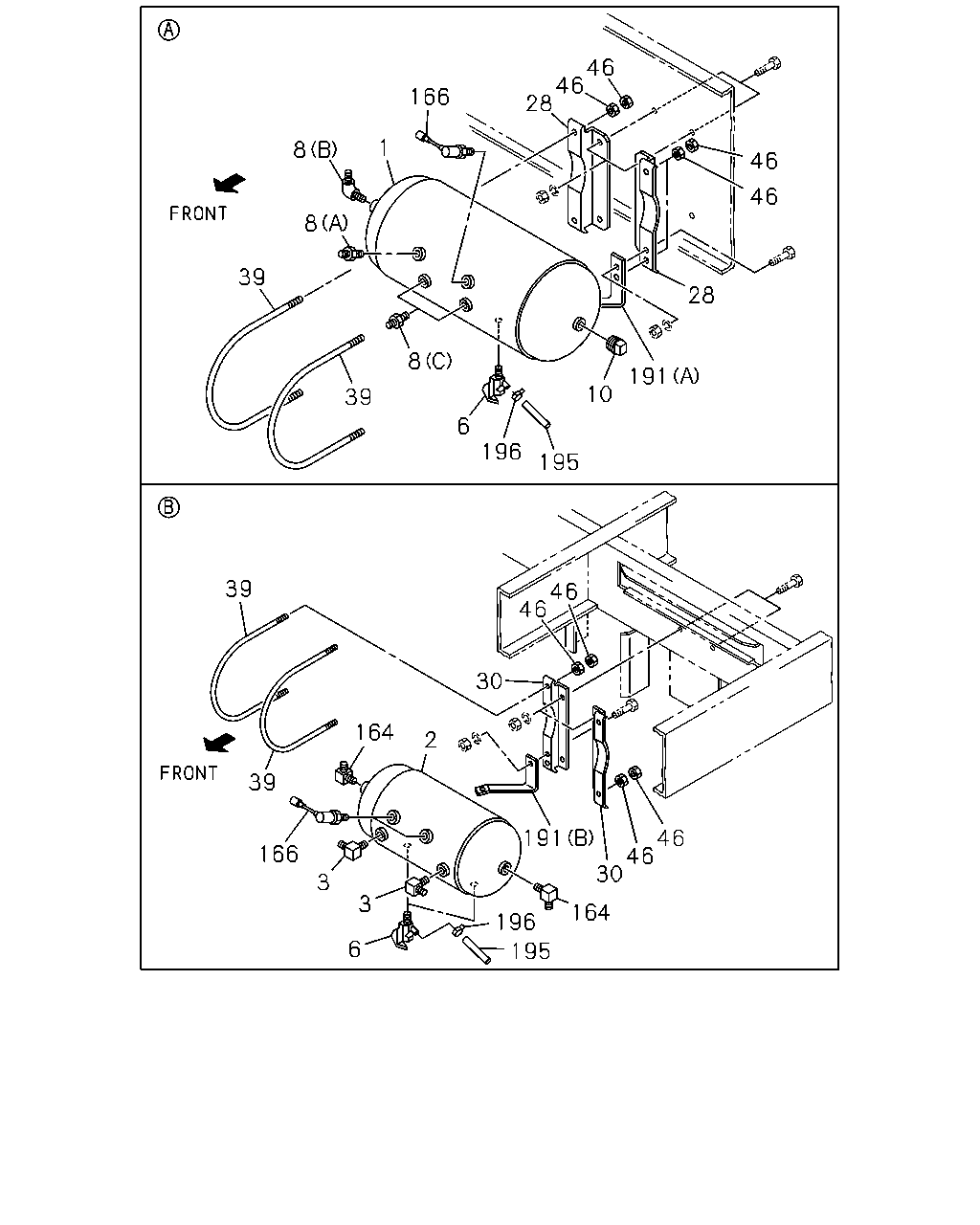

3-20 — AIR TANK
(#4571) — 84 parça
◀
[320A] NO.2 (22 parça)
[320A] NO.3 (38 parça)
[320A] NO.1 (24 parça)
▶
46
46
28
166
1
8
46
46
8
39
28
8
191
10
39
6
196
195
46
46
39
30
164
2
39
191
46
46
30
166
3
3
164
196
6
195
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK ASM; AIR
1-48310-930-0
01
1
9712-
2
TANK; AIR
30L
1-48310-701-1
01
1
9712-
3
VALVE; CHECK,AIR TANK
M20 & PT3/4 ELBOW
1-48410-412-0
02
1
9712-
6
COCK; DRAIN,AIR TANK
1-09680-052-1
03
1
9712-
8
CONNECTOR; AIR TANK
(B) M20 & PT3/8 ELBOW
1-09650-439-0
01
1
9712-
8
CONNECTOR; AIR TANK
(A)
1-09660-154-0
01
1
9712-
8
CONNECTOR; AIR TANK
(C) M16 & PT1/4 STRAIGHT
9-09231-810-1
02
1
9712-
10
PLUG; AIR TANK
PT3/8
9-09204-517-0
01
1
9712-
28
BRACKET; AIR TANK
L=360
1-48317-106-3
02
1
9712-
30
BRACKET; AIR TANK,SUB
L=360
1-48317-106-3
02
1
9712-
39
U-BOLT; AIR TANK
L=303
1-48317-087-1
04
1
9712-
46
NUT; U-BOLT
M8
9-09110-508-0
16
1
9712-
78
BOLT; STAY AIR MASTER
M8X20 FLANGE
0-28680-820-0
01
1
9804-
83
NUT; AIR MASTER
M10 FLANGE
0-91150-110-0
10
1
9804-
131
NUT; BRKT FIX
M8 FLANGE
0-91150-108-0
01
1
9804-
131
NUT; BRKT FIX
M10 FLANGE
0-91150-110-0
09
1
9804-
164
CONNECTOR; SUB AIR TANK
M16 & PT1/4 ELBOW
1-09650-434-0
02
1
9712-
166
SWITCH ASM; LOW PRESSURE,MAIN TANK
530KPA
1-48340-054-1
03
1
9712-
191
BRACKET; STOPPER,AIR TANK
(A)
1-48317-645-0
01
1
9712-
191
BRACKET; STOPPER,AIR TANK
(B)
1-48317-704-0
01
1
9712-
195
HOSE; AIR,DRAIN COCK
L=300 SERVICED BY L=10000
9-09913-866-0
01
1
9712-
196
CLIP; AIR HOSE,DRAIN COCK
ID=6
9-09915-163-0
03
1
9712-
11
198
199
201
200
349
216
199
200
202
215
220
219
209
42
180
208
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
VALVE; SAFETY,AIR TANK
1-48320-002-1
01
1
9712-
42
WASHER; PL
ID=6.4
9-09160-506-0
04
1
9802-
42
WASHER; PL
ID=8.4
9-09160-508-0
06
1
9802-
78
BOLT; STAY AIR MASTER
M8X20 FLANGE
0-28680-820-0
01
1
9804-
83
NUT; AIR MASTER
M10 FLANGE
0-91150-110-0
10
1
9804-
131
NUT; BRKT FIX
M8 FLANGE
0-91150-108-0
01
1
9804-
131
NUT; BRKT FIX
M10 FLANGE
0-91150-110-0
09
1
9804-
180
WASHER; LK
ID=6.1
9-09150-506-0
04
1
9802-
180
WASHER; LK
ID=8.2
9-09150-508-0
06
1
9802-
198
CHAMBER; AIR
1-48330-438-0
01
1
9712-
199
CONNECTOR; AIR PIPE,AIR CHAMBER
M20 & PT3/8 ELBOW
1-09650-439-0
02
1
9712-
200
RUBBER; CUSHION,AIR CHAMBER
1-33619-148-0
08
1
9712-
201
PIECE; DIST,AIR CHAMBER
1-48319-099-0
04
1
9712-
202
WASHER; PL,AIR CHAMBER
ID=8.4 OD=22
9-09160-708-0
04
1
9712-
208
BOLT; CLIP
M8X50 FLANGE
0-28080-850-0
75
1
9712-
208
BOLT; CLIP
M8X60 FLANGE
0-28080-860-0
04
1
9712-
208
BOLT; CLIP
M8X70 FLANGE
0-28080-870-0
06
1
9712-
208
BOLT; CLIP
M8X80 FLANGE
0-28080-880-0
13
1
9712-
208
BOLT; CLIP
M8X25 FLANGE
0-28680-825-0
07
1
9712-
208
BOLT; CLIP
M8X30 FLANGE
0-28680-830-0
06
1
9712-
208
BOLT; CLIP
M8X50
0-10805-850-0
06
1
9802-9803
208
BOLT; CLIP
M8X50
0-10805-850-0
07
1
9804-
208
BOLT; CLIP
M6X50 FLANGE
0-28080-650-0
04
1
9802-9803
208
BOLT; CLIP
M6X50 FLANGE
0-28080-650-0
07
1
9804-
209
NUT; CLIP
M8 FLANGE
0-91150-108-0
AR
1
9712-
209
NUT; CLIP
M6 FLANGE
0-91150-106-0
04
1
9802-9803
209
NUT; CLIP
M6 FLANGE
0-91150-106-0
07
1
9804-
209
NUT; CLIP
M8
9-09110-408-0
06
1
9802-9803
209
NUT; CLIP
M8
9-09110-408-0
07
1
9804-
215
PIPE; VINYL
L=770
1-09366-186-1
01
1
9712-0012
215
PIPE; VINYL
L=250
0-02115-250-0
01
1
0101-
216
CLIP; PIPE,VINYL
ID=19
8-94238-569-0
01
1
9712-9803
216
CLIP; PIPE,VINYL
ID=19
8-94238-569-0
02
1
9804-0104
216
CLIP; PIPE,VINYL
ID=21
8-94242-034-0
02
1
0105-
219
HOLDER; OIL
1-09669-083-1
01
1
9712-
220
FILTER; OIL
1-48359-039-0
01
1
9712-
349
VALVE; AIR CONT
1-48320-023-0
01
1
9712-9803
349
VALVE; AIR CONT
1-48320-030-0
01
1
9804-
155
270
126
155
81
125
155
270
125
126
81
155
138
237
139
238
239
240
145
86
125
145
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
78
BOLT; STAY AIR MASTER
M8X20 FLANGE
0-28680-820-0
01
1
9804-
81
AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT.
1-47800-463-0
02
1
9712-
83
NUT; AIR MASTER
M10 FLANGE
0-91150-110-0
10
1
9804-
86
SEAL; DUST
1-47529-019-0
01
1
9712-
125
HOSE; OIL TANK TO AIR MASTER
L=100 SERVICED BY L=1800
1-09360-320-0
03
1
9712-9803
125
HOSE; OIL TANK TO AIR MASTER
L=100 SERVICED BY L=1800
1-09360-320-0
01
1
9804-
125
HOSE; OIL TANK TO AIR MASTER
L=215 SERVICED BY L=1800
1-09360-320-0
01
1
9712-9803
125
HOSE; OIL TANK TO AIR MASTER
L=215 SERVICED BY L=1800
1-09360-320-0
03
1
9804-
126
CONNECTOR; ELBOW
M16 & PT1/2 ELBOW
1-09650-442-0
02
1
9712-
131
NUT; BRKT FIX
M8 FLANGE
0-91150-108-0
01
1
9804-
131
NUT; BRKT FIX
M10 FLANGE
0-91150-110-0
09
1
9804-
138
TANK ASM; OIL,AIR MASTER
1-47530-173-1
01
1
9712-
139
BRACKET; OIL TANK
1-47537-040-0
01
1
9712-
145
CLIP; OIL TANK TO AIR MASTER HOSE
ID=15
1-09704-018-1
08
1
9712-
155
PIPE; OIL,HOSE TO AIR MASTER
(A)
1-47429-762-0
01
1
9712-
155
PIPE; OIL,HOSE TO AIR MASTER
(B)
1-47429-763-0
01
1
9712-
155
PIPE; OIL,HOSE TO AIR MASTER
(C)
1-47429-764-0
01
1
9712-
155
PIPE; OIL,HOSE TO AIR MASTER
(D)
1-47429-765-0
01
1
9712-
237
CAP; OIL TANK
1-47525-019-2
01
1
9712-0010
237
CAP; OIL TANK
1-47525-030-0
01
1
0011-
238
PLATE; BAFFLE
1-47529-022-0
01
1
9712-
239
FILTER; DUST
1-47529-017-0
01
1
9712-
240
HOLDER; FILTER
1-47529-018-0
01
1
9712-
270
UNION; OIL PIPE
M16 L=42
9-09233-010-1
02
1
9712-
