5-45 — UNDER GUARD (#45709) — 67 parça

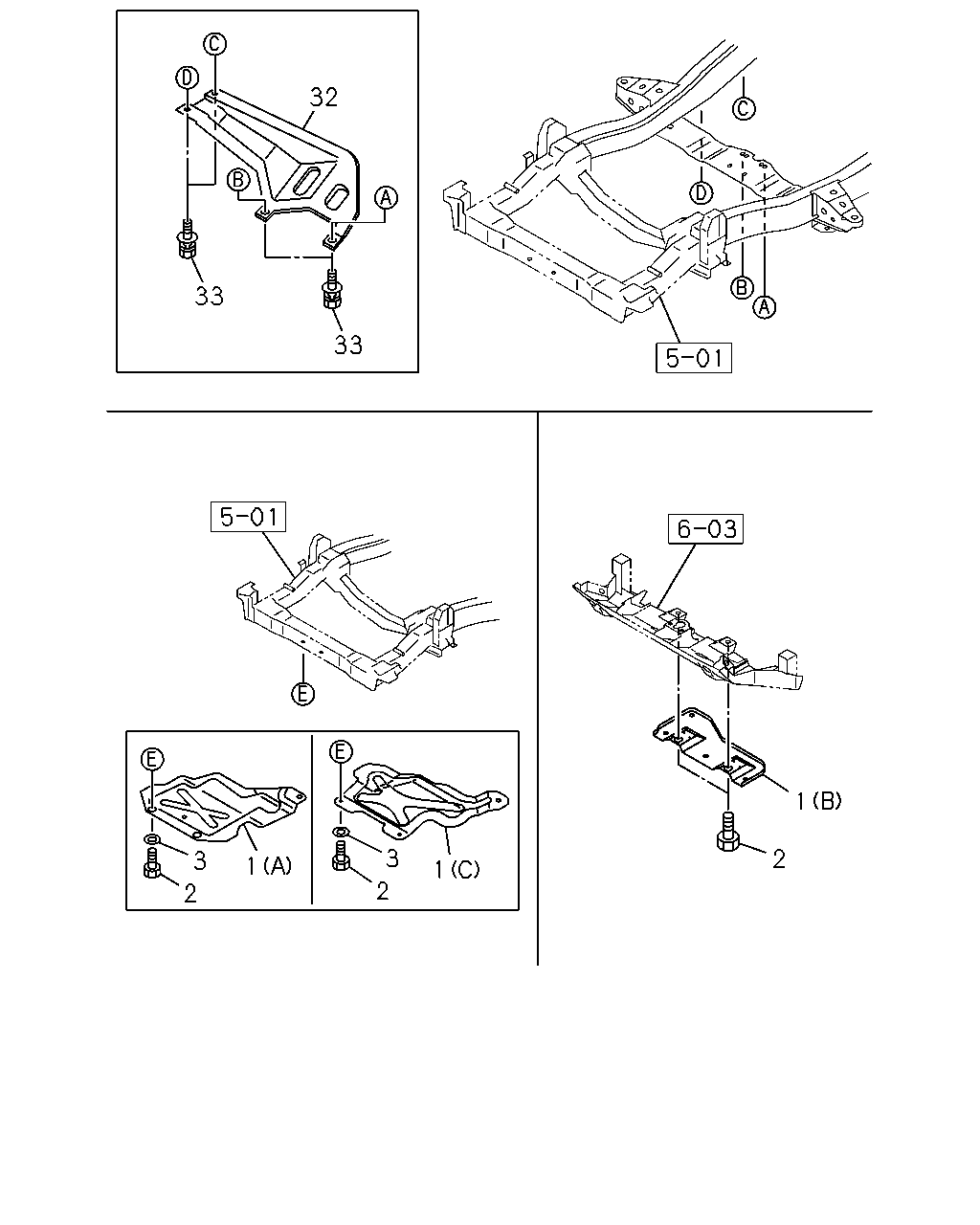

çizim 73718
32 33 33 1 3 2 3 2 2 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT) (A) 		8-97203-918-0 01 1 9804-0001 ● ● ● ●
1 08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (A) 		8-97203-918-0 01 1 0002-0012 ● ● ● ●
1 08.153 COVER; MUD,ENG
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (A) 		8-97203-918-0 01 1 0101- ● ● ● ●
1 08.153 COVER; MUD,ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-94389-359-0 01 1 9804-0001 ● ● ●
1 08.153 COVER; MUD,ENG
4JA1 ENG(RLE) (A) 		8-94389-359-0 01 1 9804-0001 ●
1 08.153 COVER; MUD,ENG
6VD1 ENG(RLV) (B) 		8-97132-305-0 01 1 9804-9909 ● ● ● ●
1 08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT) (B) 		8-97132-305-0 01 1 9804-9909 ●
1 08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) (B) 		8-97132-305-0 01 1 9804-9909 ● ●
1 08.153 COVER; MUD,ENG
6VD1 ENG(RLV) SKID PLATE<7WE> (B) 		8-97132-305-0 01 1 9910-0012 ● ● ●
1 08.153 COVER; MUD,ENG
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 6VD1 ENG(RLV) SKID PLATE<7WE> (B) 		8-97132-305-0 01 1 9910-0012 ● ● ● ●
1 08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT) 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97132-305-0 01 1 0101-0109 ● ● ●
1 08.153 COVER; MUD,ENG
6VD1 ENG(RLV) (B) 		8-97132-305-0 01 1 0101-0109 ● ● ●
1 08.153 COVER; MUD,ENG
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 6VD1 ENG(RLV) (B) 		8-97132-305-0 01 1 0101-0109 ● ● ● ●
1 08.153 COVER; MUD,ENG
22LE/C22NE ENG(RJT) 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97132-305-0 01 1 0110- ● ● ●
1 08.153 COVER; MUD,ENG
4JH1 ENG(RJX),6VD1 ENG(RLV) (B) 		8-97132-305-0 01 1 0110- ● ● ●
1 08.153 COVER; MUD,ENG
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),6VD1 ENG(RLV) (B) 		8-97132-305-0 01 1 0110- ● ● ● ●
1 08.153 COVER; MUD,ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) (C) 		8-97131-925-0 01 1 9804-9903 ● ● ●
1 08.153 COVER; MUD,ENG
4JA1 ENG(RLE) (C) 		8-97131-925-0 01 1 9804-9903 ●
1 08.153 COVER; MUD,ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) (C) 		8-97221-537-2 01 1 9904-0012 ● ● ●
1 08.153 COVER; MUD,ENG
4JA1 ENG(RLE) (C) 		8-97221-537-2 01 1 9904-0012 ●
1 08.153 COVER; MUD,ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) (C) 		8-97221-537-2 01 1 0101- ● ● ●
1 08.153 COVER; MUD,ENG
4JA1 ENG(RLE),4JB1 ENG(RLF) (C) 		8-97221-537-2 01 1 0101- ● ● ● ●
2 08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 9804-9909 ● ● ●
2 08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 9804-9909 ●
2 08.154 BOLT; MUD COVER
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. AUSTRALIAN EQUIPMENT(RR3) 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 9804-9909 ● ● ●
2 08.154 BOLT; MUD COVER
4JA1 ENG(RLE) 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 9804-9909 ●
2 08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 9910-0012 ● ● ● ●
2 08.154 BOLT; MUD COVER
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. AUSTRALIAN EQUIPMENT(RR3), SHIFT ON THE FLY(7EX) 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 9910-0012 ● ● ● ●
2 08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 0101- ● ● ● ●
2 08.154 BOLT; MUD COVER
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 0101- ● ● ● ●
2 08.154 BOLT; MUD COVER
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. AUSTRALIAN EQUIPMENT(RR3), SHIFT ON THE FLY(7EX) 04.439 M6X16 FLANGE 		0-28680-616-0 03 1 0101- ● ● ● ●
2 08.154 BOLT; MUD COVER
6VD1 ENG(RLV) 16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 9804-9909 ● ● ● ●
2 08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT) 16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 9804-9909 ●
2 08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 9804-9909 ● ●
2 08.154 BOLT; MUD COVER
6VD1 ENG(RLV) 16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 9910-0010 ● ● ●
2 08.154 BOLT; MUD COVER
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 6VD1 ENG(RLV) 16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 9910-0010 ● ● ● ●
2 08.154 BOLT; MUD COVER
6VD1 ENG(RLV) 16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 0011-0012 ● ● ●
2 08.154 BOLT; MUD COVER
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 6VD1 ENG(RLV) SKID PLATE<7WE> 16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 0011-0012 ● ● ● ●
2 08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT) 4X2 HIGH RIDE SUSPENSION(7YC) 16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 0101-0109 ● ● ●
2 08.154 BOLT; MUD COVER
6VD1 ENG(RLV) 16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 0101-0109 ● ● ●
2 08.154 BOLT; MUD COVER
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 6VD1 ENG(RLV) SKID PLATE<7WE> 16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 0101-0109 ● ● ● ●
2 08.154 BOLT; MUD COVER
22LE/C22NE ENG(RJT) SKID PLATE<7WE> 4X2 HIGH RIDE SUSPENSION(7YC) 16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 0110- ● ● ●
2 08.154 BOLT; MUD COVER
4JH1 ENG(RJX),6VD1 ENG(RLV) SKID PLATE<7WE> 16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 0110- ● ● ●
2 08.154 BOLT; MUD COVER
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),6VD1 ENG(RLV) SKID PLATE<7WE> 16.320 M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 0110- ● ● ● ●
2 08.154 BOLT; MUD COVER
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9804-9909 ● ● ●
2 08.154 BOLT; MUD COVER
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9910- ● ● ●
2 08.154 BOLT; MUD COVER
4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) EXC. AUSTRALIAN EQUIPMENT(RR3) 04.439 M6X16 FLANGE 		0-28680-616-0 02 1 9910- ● ● ●
3 08.154 WASHER; PL,MUD COVER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 02.334 ID=6.4 OD=22 		9-09164-806-0 03 1 9804-9902 ● ● ● ● ● ● ● ●
3 08.154 WASHER; PL,MUD COVER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 02.334 ID=6.4 OD=22 		9-09164-806-0 03 1 9903-0012 ● ● ● ●
3 08.154 WASHER; PL,MUD COVER
4JA1 ENG(RLE),4JB1 ENG(RLF) 02.334 ID=6.4 OD=22 		9-09164-806-0 03 1 9903-0012 ● ● ● ●
3 08.154 WASHER; PL,MUD COVER
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 02.334 ID=6.4 OD=22 		9-09164-806-0 03 1 0101-0109 ● ● ● ● ● ● ● ●
3 08.154 WASHER; PL,MUD COVER
22LE/C22NE ENG(RJT) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 02.334 ID=6.4 OD=22 		9-09164-806-0 03 1 0101-0109 ● ● ● ●
3 08.154 WASHER; PL,MUD COVER
22LE/C22NE ENG(RJT) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 02.334 ID=6.4 OD=22 		9-09164-806-0 03 1 0110- ● ● ● ●
3 08.154 WASHER; PL,MUD COVER
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 02.334 ID=6.4 OD=22 		9-09164-806-0 03 1 0110- ● ● ● ●
3 08.154 WASHER; PL,MUD COVER
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 02.334 ID=6.4 OD=22 		9-09164-806-0 03 1 0110- ● ● ● ●
32 04.510 PROTECTOR; TRANSFER
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97019-355-1 01 1 9804-9909 ● ● ● ●
32 04.510 PROTECTOR; TRANSFER
22LE/C22NE ENG(RJT) UNDER GUARD<ES7> EXC. AUSTRALIAN EQUIPMENT(RR3) 		8-97019-355-1 01 1 9804-9909 ● ● ●
32 04.510 PROTECTOR; TRANSFER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) GUARD TRANSFER<7EH> 		8-97019-355-2 01 1 9910- ● ● ● ●
32 04.510 PROTECTOR; TRANSFER
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-94375-527-2 01 1 9804-9909 ● ● ●
33 04.510 BOLT; PROTECTOR
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.706 M10X20 W/LK&PL WASHER 		0-50141-020-0 02 1 9804-9909 ● ● ● ●
33 04.510 BOLT; PROTECTOR
22LE/C22NE ENG(RJT) UNDER GUARD<ES7> EXC. AUSTRALIAN EQUIPMENT(RR3) 03.706 M10X20 W/LK&PL WASHER 		0-50141-020-0 02 1 9804-9909 ● ● ●
33 04.510 BOLT; PROTECTOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) GUARD TRANSFER<7EH> 03.706 M10X20 W/LK&PL WASHER 		0-50141-020-0 02 1 9910- ● ● ● ●
33 04.510 BOLT; PROTECTOR
4JA1 ENG(RLE),4JB1 ENG(RLF) 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 02 1 9804-9909 ● ● ● ●
33 04.510 BOLT; PROTECTOR
22LE/C22NE ENG(RJT) UNDER GUARD<ES7> EXC. AUSTRALIAN EQUIPMENT(RR3) 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 02 1 9804-9909 ● ● ●
33 04.510 BOLT; PROTECTOR
22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 02 1 9804-9909 ● ●
33 04.510 BOLT; PROTECTOR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M/T MSG 5 SPEED(M75) GUARD TRANSFER<7EH> 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-1 02 1 9910- ● ● ● ●
33 04.510 BOLT; PROTECTOR
6VD1 ENG(RLV) 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9804-9909 ● ● ●
