5-40 — ENGINE ROOM INSULATOR (#45708) — 41 parça

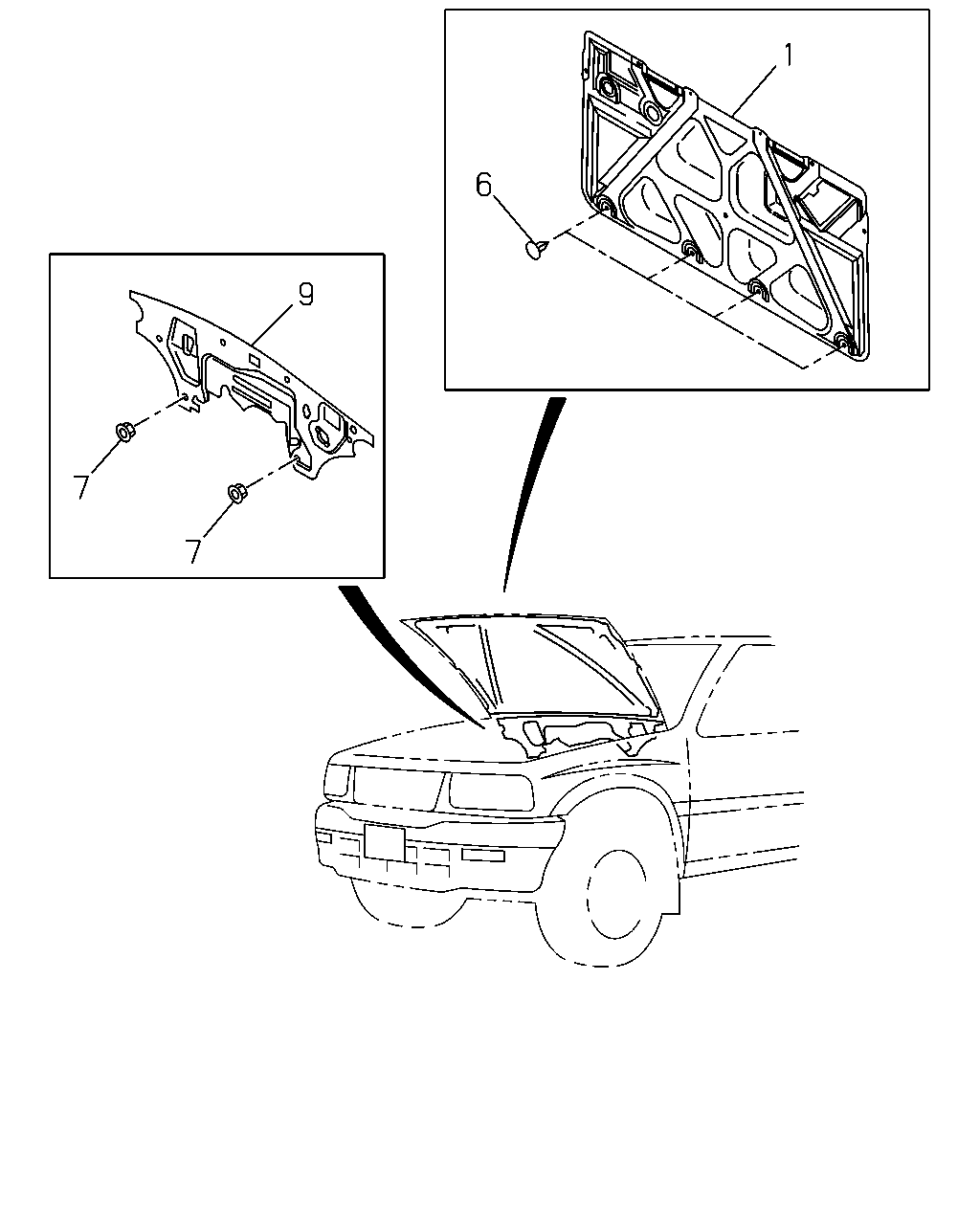

çizim 17527
1 6 9 7 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 08.021 INSULATION; ENG HOOD
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97111-847-0 01 1 9804-9807 ● ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) NOISE INSULATION PACK 2<7MW> 		8-97111-847-0 01 1 9804-9807 ● ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97213-768-0 01 1 9808-9909 ● ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) NOISE INSULATION PACK 2<7MW> 		8-97213-768-0 01 1 9808-9909 ● ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97213-768-0 01 1 9910-0109 ● ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) NOISE INSULATION PACK 2<7MW> 		8-97213-768-0 01 1 9910-0109 ● ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> 		8-97213-768-0 01 1 0110- ● ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
22LE/C22NE ENG(RJT),4JH1 ENG(RJX), 6VD1 ENG(RLV) NOISE INSULATION PACK 2<7MW> EXC. CHARGE AIR COOLER<6PL> 		8-97213-768-0 01 1 0110- ● ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
CHARGE AIR COOLER<6PL> 		8-97289-075-1 01 1 0110- ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
4JA1 ENG(RLE),4JB1 ENG(RLF) ID=6.2 L=11.4 		8-97808-623-0 13 1 9804-9909 ● ● ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) NOISE INSULATION PACK 2<7MW> ID=6.2 L=11.4 		8-97808-623-0 13 1 9804-9909 ● ● ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) ID=6.2 L=11.4 		8-97808-623-0 13 1 9910-0109 ● ● ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) NOISE INSULATION PACK 2<7MW> ID=6.2 L=11.4 		8-97808-623-0 13 1 9910-0109 ● ● ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> ID=6.2 L=11.4 		8-97808-623-0 13 1 0110- ● ● ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
22LE/C22NE ENG(RJT),4JH1 ENG(RJX), 6VD1 ENG(RLV) NOISE INSULATION PACK 2<7MW> EXC. CHARGE AIR COOLER<6PL> ID=6.2 L=11.4 		8-97808-623-0 13 1 0110- ● ● ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
CHARGE AIR COOLER<6PL> ID=6.2 L=11.4 		8-97808-623-0 12 1 0110- ● ● ● ● ●
7 08.021 CLIP; INSULATION
NOISE INSULATION PACK 2<7MW> 16.550 H=10.5 		8-94441-810-0 06 1 9804-9909 ● ● ● ● ● ● ● ●
7 08.021 CLIP; INSULATION
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQ UIPMENT(RR3) EXC. NOISE INSULATION PACK 2<7MW> 16.550 H=10.5 		8-94441-810-0 06 1 9804-9909 ● ● ● ● ● ●
7 08.021 CLIP; INSULATION
NOISE INSULATION PACK 2<7MW> 16.550 H=10.5 		8-94441-810-0 06 1 9910-0109 ● ● ● ● ● ● ● ●
7 08.021 CLIP; INSULATION
6VD1 ENG(RLV) EXC. NOISE INSULATION PACK 2<7MW> 16.550 H=10.5 		8-94441-810-0 06 1 9910-0109 ● ● ● ● ● ●
7 08.021 CLIP; INSULATION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQ UIPMENT(RR3) EXC. NOISE INSULATION PACK 2<7MW> 16.550 H=10.5 		8-94441-810-0 06 1 9910-0109 ● ● ● ● ● ●
7 08.021 CLIP; INSULATION
NOISE INSULATION PACK 2<7MW> 16.550 H=10.5 		8-94441-810-0 06 1 0110- ● ● ● ● ● ● ● ●
7 08.021 CLIP; INSULATION
6VD1 ENG(RLV) EXC. NOISE INSULATION PACK 2<7MW> 16.550 H=10.5 		8-94441-810-0 06 1 0110- ● ● ● ● ● ●
7 08.021 CLIP; INSULATION
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQ UIPMENT(RR3) EXC. NOISE INSULATION PACK 2<7MW> 16.550 H=10.5 		8-94441-810-0 06 1 0110- ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
NOISE INSULATION PACK 2<7MW> 		8-97147-024-3 01 1 9804-9909 ● ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQ UIPMENT(RR3) EXC. NOISE INSULATION PACK 2<7MW> 		8-97147-024-3 01 1 9804-9909 ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
NOISE INSULATION PACK 2<7MW> 		8-97147-024-3 01 1 9910-0109 ● ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
6VD1 ENG(RLV) EXC. NOISE INSULATION PACK 2<7MW> 		8-97147-024-3 01 1 9910-0109 ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQ UIPMENT(RR3) EXC. NOISE INSULATION PACK 2<7MW> 		8-97147-024-3 01 1 9910-0109 ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
KD PREPARATORY PACK<6HF> NOISE INSULATION PACK 2<7MW> 		8-97147-024-3 01 1 0110-0211 ● ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
6VD1 ENG(RLV) KD PREPARATORY PACK<6HF> EXC. NOISE INSULATION PACK 2<7MW> 		8-97147-024-3 01 1 0110-0211 ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQ UIPMENT(RR3) KD PREPARATORY PACK<6HF> EXC. NOISE INSULATION PACK 2<7MW> 		8-97147-024-3 01 1 0110-0211 ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
KD PREPARATORY PACK<6HF> NOISE INSULATION PACK 2<7MW> 		8-97361-157-0 01 1 0212- ● ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
6VD1 ENG(RLV) KD PREPARATORY PACK<6HF> EXC. NOISE INSULATION PACK 2<7MW> 		8-97361-157-0 01 1 0212- ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQ UIPMENT(RR3) KD PREPARATORY PACK<6HF> EXC. NOISE INSULATION PACK 2<7MW> 		8-97361-157-0 01 1 0212- ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
NOISE INSULATION PACK 2<7MW> EXC. KD PREPARATORY PACK<6HF> 		8-97311-547-0 01 1 0110-0211 ● ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
6VD1 ENG(RLV) EXC. KD PREPARATORY PACK<6HF>, NOISEINSULATION PACK 2<7MW> 		8-97311-547-0 01 1 0110-0211 ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQ UIPMENT(RR3) EXC. KD PREPARATORY PACK<6HF>, NOISEINSULATION PACK 2<7MW> 		8-97311-547-0 01 1 0110-0211 ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
NOISE INSULATION PACK 2<7MW> EXC. KD PREPARATORY PACK<6HF> 		8-97361-158-0 01 1 0212- ● ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
6VD1 ENG(RLV) EXC. KD PREPARATORY PACK<6HF>, NOISEINSULATION PACK 2<7MW> 		8-97361-158-0 01 1 0212- ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3),NEW ZEALAND EQUIPMENT(PK5),AUSTRALIAN EQ UIPMENT(RR3) EXC. KD PREPARATORY PACK<6HF>, NOISEINSULATION PACK 2<7MW> 		8-97361-158-0 01 1 0212- ● ● ● ● ● ●
