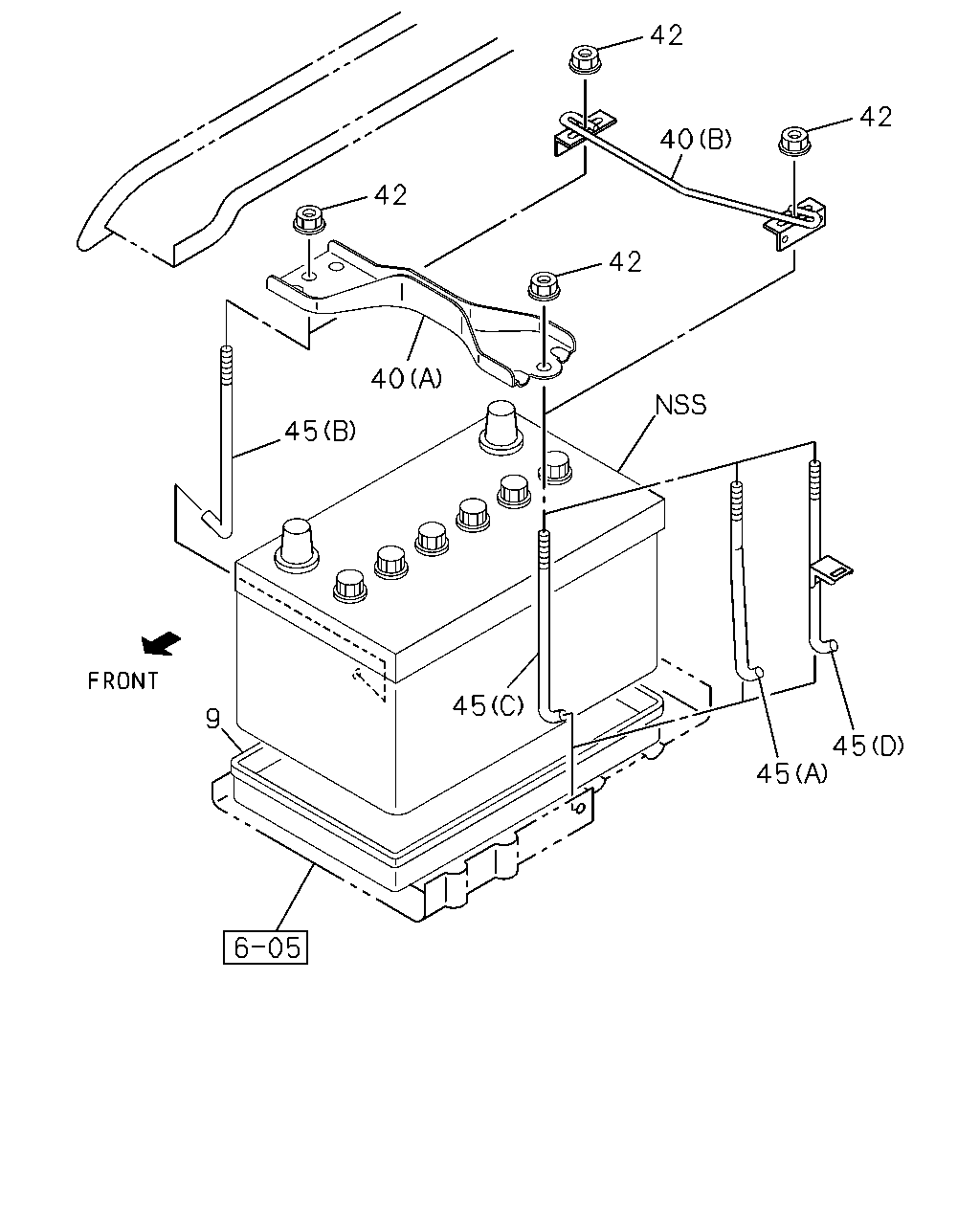

5-20 — BATTERY CARRIER (#45706) — 64 parça

42 42 40 42 42 40 45 45 9 45 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
9	02.333 SEAT; BATTERY BATTERY NX120-7 FRIGID ZONE(ES5), BATTERY 95D31R DRY(6TZ)	8-94405-030-0	01	1	9804-9909	●	●	●	●	●	●	●	●
9	02.333 SEAT; BATTERY 4JA1 ENG(RLE),4JB1 ENG(RLF) BATTERY 75D26R(6DM)	8-94405-030-0	01	1	9804-9909	●	●	●	●	●	●	●	●
9	02.333 SEAT; BATTERY BATTERY NX120-7 FRIGID ZONE(ES5), BATTERY 95D31L DRY(8BL)	8-94405-030-0	01	1	9910-0012	●	●	●	●	●	●	●	●
9	02.333 SEAT; BATTERY 4JA1 ENG(RLE),4JB1 ENG(RLF) BATTERY 75D26L(7TT)	8-94405-030-0	01	1	9910-0012	●	●	●	●	●	●	●	●
9	02.333 SEAT; BATTERY 4JG2 ENG(RJC)	8-94405-030-0	01	1	9910-0012					●		●	●
9	02.333 SEAT; BATTERY BATTERY NX120-7 FRIGID ZONE(ES5), BATTERY 95D31L DRY(8BL)	8-94405-030-0	01	1	0101-0105	●	●	●	●	●	●	●	●
9	02.333 SEAT; BATTERY 4JA1 ENG(RLE),4JB1 ENG(RLF) BATTERY 75D26L(7TT)	8-94405-030-0	01	1	0101-0105	●	●	●	●	●	●	●	●
9	02.333 SEAT; BATTERY 4JG2 ENG(RJC)	8-94405-030-0	01	1	0101-0105			●	●	●		●	●
9	02.333 SEAT; BATTERY BATTERY NX120-7 FRIGID ZONE(ES5), BATTERY 95D31L DRY(8BL)	8-94405-030-0	01	1	0106-0109	●	●	●	●	●	●	●	●
9	02.333 SEAT; BATTERY 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) BATTERY 75D26L(7TT)	8-94405-030-0	01	1	0106-0109	●	●	●	●	●	●	●	●
9	02.333 SEAT; BATTERY 4JG2 ENG(RJC)	8-94405-030-0	01	1	0106-0109			●	●	●		●	●
9	02.333 SEAT; BATTERY BATTERY NX120-7 FRIGID ZONE(ES5), BATTERY 95D31L DRY(8BL)	8-94405-030-1	01	1	0110-	●	●	●	●	●	●	●	●
9	02.333 SEAT; BATTERY 22LE/C22NE ENG(RJT),4JH1 ENG(RJX), 4JA1 ENG(RLE),4JB1 ENG(RLF) BATTERY 75D26L(7TT)	8-94405-030-1	01	1	0110-	●	●	●	●	●	●	●	●
9	02.333 SEAT; BATTERY 4JG2 ENG(RJC)	8-94405-030-1	01	1	0110-			●	●	●		●	●
9	02.333 SEAT; BATTERY 22LE/C22NE ENG(RJT) EXC. BATTERY 50D20L(7TS)	8-94407-453-0	01	1	9804-0105	●	●	●	●		●	●	●
9	02.333 SEAT; BATTERY 22LE/C22NE ENG(RJT) EXC. BATTERY 50D20L(7TS),BATTERY 75D26L(7TT)	8-94407-453-0	01	1	0106-0208	●	●	●	●		●	●	●
9	02.333 SEAT; BATTERY 22LE/C22NE ENG(RJT) EXC. BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT)	8-94407-453-0	01	1	0209-	●	●	●	●		●	●	●
9	02.333 SEAT; BATTERY 6VD1 ENG(RLV)	8-97174-512-0	01	1	9804-	●		●	●	●		●	●
9	02.333 SEAT; BATTERY 22LE/C22NE ENG(RJT) BATTERY 50D20L(7TS)	8-94405-031-0	01	1	9804-0208	●		●	●			●	●
9	02.333 SEAT; BATTERY 22LE/C22NE ENG(RJT) BATTERY 55D23L(TQ7)	8-94405-031-0	01	1	0209-	●	●	●	●		●	●	●
40	02.335 CLAMP; BATTERY 4JA1 ENG(RLE),4JB1 ENG(RLF) (A)	8-97125-377-0	01	1	9804-9905	●	●	●	●	●	●	●	●
40	02.335 CLAMP; BATTERY 22LE/C22NE ENG(RJT) BATTERY 50D20L(7TS) (A)	8-97125-377-0	01	1	9804-9905	●		●	●			●	●
40	02.335 CLAMP; BATTERY 4JA1 ENG(RLE),4JB1 ENG(RLF) (A)	8-97226-672-0	01	1	9906-9907	●	●	●	●	●	●	●	●
40	02.335 CLAMP; BATTERY 22LE/C22NE ENG(RJT) BATTERY 50D20L(7TS) (A)	8-97226-672-0	01	1	9906-9907	●		●	●			●	●
40	02.335 CLAMP; BATTERY 4JA1 ENG(RLE),4JB1 ENG(RLF) (A)	8-97125-377-0	01	1	9908-9909	●	●	●	●	●	●	●	●
40	02.335 CLAMP; BATTERY 22LE/C22NE ENG(RJT) BATTERY 50D20L(7TS) (A)	8-97125-377-0	01	1	9908-9909	●		●	●			●	●
40	02.335 CLAMP; BATTERY 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) (A)	8-97125-377-0	01	1	9910-0105	●	●	●	●	●	●	●	●
40	02.335 CLAMP; BATTERY 22LE/C22NE ENG(RJT) BATTERY 50D20L(7TS) (A)	8-97125-377-0	01	1	9910-0105	●		●	●			●	●
40	02.335 CLAMP; BATTERY 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) (A)	8-97125-377-0	01	1	0106-0109	●	●	●	●	●	●	●	●
40	02.335 CLAMP; BATTERY 22LE/C22NE ENG(RJT) BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) (A)	8-97125-377-0	01	1	0106-0109	●	●	●	●		●	●	●
40	02.335 CLAMP; BATTERY 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) (A)	8-97125-377-0	01	1	0110-0208	●	●	●	●	●	●	●	●
40	02.335 CLAMP; BATTERY 22LE/C22NE ENG(RJT) BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) (A)	8-97125-377-0	01	1	0110-0208	●	●	●	●		●	●	●
40	02.335 CLAMP; BATTERY 22LE/C22NE ENG(RJT) BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT) (A)	8-97125-377-0	01	1	0209-	●	●	●	●		●	●	●
40	02.335 CLAMP; BATTERY 4JA1 ENG(RLE),4JB1 ENG(RLF) (A)	8-97125-377-0	01	1	0209-	●
40	02.335 CLAMP; BATTERY 4JA1 ENG(RLE) (A)	8-97125-377-0	01	1	0209-		●				●
40	02.335 CLAMP; BATTERY 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) (A)	8-97125-377-0	01	1	0209-			●	●	●		●	●
40	02.335 CLAMP; BATTERY 22LE/C22NE ENG(RJT) EXC. BATTERY 50D20L(7TS) (A)	8-97137-524-0	01	1	9804-0105	●	●	●	●		●	●	●
40	02.335 CLAMP; BATTERY 22LE/C22NE ENG(RJT) EXC. BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) (A)	8-97137-524-0	01	1	0106-0208	●	●	●	●		●	●	●
40	02.335 CLAMP; BATTERY 22LE/C22NE ENG(RJT) EXC. BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT) (A)	8-97137-524-0	01	1	0209-	●	●	●	●		●	●	●
40	02.335 CLAMP; BATTERY 6VD1 ENG(RLV) (B) T=0.600	8-97174-146-0	01	1	9804-	●		●	●	●		●	●
42	02.334 NUT; CLAMP 07.833 M6 W/DISHED WASHER	8-94170-192-0	02	1	9804-	●	●	●	●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (D) L=202	8-97039-079-1	01	1	0301-			●	●	●		●	●
45	02.334 ROD; TENSION,BATTERY (B) L=180	8-94407-451-2	01	1	9804-	●	●	●	●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) L=204	8-94259-857-0	01	1	9804-0105	●	●	●	●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY 22LE/C22NE ENG(RJT) BATTERY 50D20L(7TS) (C) L=204	8-94259-857-0	01	1	9804-0105	●		●	●			●	●
45	02.334 ROD; TENSION,BATTERY 4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) L=204	8-94259-857-0	01	1	0106-0208	●	●	●	●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY 22LE/C22NE ENG(RJT) BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) (C) L=204	8-94259-857-0	01	1	0106-0208	●	●	●	●		●	●	●
45	02.334 ROD; TENSION,BATTERY 4JB1 ENG(RLF) (C) L=204	8-94259-857-0	01	1	0106-0208	●		●	●	●		●	●
45	02.334 ROD; TENSION,BATTERY 4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) L=204	8-94259-857-0	01	1	0209-	●	●	●	●	●	●	●	●
45	02.334 ROD; TENSION,BATTERY 22LE/C22NE ENG(RJT) BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT) (C) L=204	8-94259-857-0	01	1	0209-	●	●	●	●		●	●	●
45	02.334 ROD; TENSION,BATTERY 4JB1 ENG(RLF) (C) L=204	8-94259-857-0	01	1	0209-	●		●	●	●		●	●
45	02.334 ROD; TENSION,BATTERY 22LE/C22NE ENG(RJT) EXC. BATTERY 50D20L(7TS) (A) L=80+132	8-94407-452-1	01	1	9804-0105	●	●	●	●		●	●	●
45	02.334 ROD; TENSION,BATTERY 22LE/C22NE ENG(RJT) EXC. BATTERY 50D20L(7TS),BATTERY 75D26L(7TT) (A) L=80+132	8-94407-452-1	01	1	0106-0208	●	●	●	●		●	●	●
45	02.334 ROD; TENSION,BATTERY 22LE/C22NE ENG(RJT) EXC. BATTERY 55D23L(TQ7),BATTERY 75D26L(7TT) (A) L=80+132	8-94407-452-1	01	1	0209-	●	●	●	●		●	●	●
45	02.334 ROD; TENSION,BATTERY 6VD1 ENG(RLV) (D) L=202	8-97039-079-1	01	1	9804-9909	●		●	●	●		●	●
45	02.334 ROD; TENSION,BATTERY 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (D) L=202	8-97039-079-1	01	1	9804-9909			●	●			●	●
45	02.334 ROD; TENSION,BATTERY 4JG2 ENG(RJC),6VD1 ENG(RLV) (D) L=202	8-97039-079-1	01	1	9910-0109	●		●	●	●		●	●
45	02.334 ROD; TENSION,BATTERY 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (D) L=202	8-97039-079-1	01	1	9910-0109			●	●	●		●	●
45	02.334 ROD; TENSION,BATTERY 4JG2 ENG(RJC),4JH1 ENG(RJX),6VD1 ENG(RLV) (D) L=202	8-97039-079-1	01	1	0110-0211	●		●	●	●		●	●
45	02.334 ROD; TENSION,BATTERY 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (D) L=202	8-97039-079-1	01	1	0110-0211			●	●	●		●	●
45	02.334 ROD; TENSION,BATTERY 4JG2 ENG(RJC),4JH1 ENG(RJX),6VD1 ENG(RLV) (D) L=202	8-97221-728-0	01	1	0212-0212	●		●	●	●		●	●
45	02.334 ROD; TENSION,BATTERY 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (D) L=202	8-97221-728-0	01	1	0212-0212			●	●	●		●	●
45	02.334 ROD; TENSION,BATTERY 6VD1 ENG(RLV) (D) L=202	8-97221-728-0	01	1	0301-	●
45	02.334 ROD; TENSION,BATTERY 4JG2 ENG(RJC),4JH1 ENG(RJX),6VD1 ENG(RLV) (D) L=202	8-97221-728-0	01	1	0301-			●	●	●		●	●
