◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#45701) — 25 parça

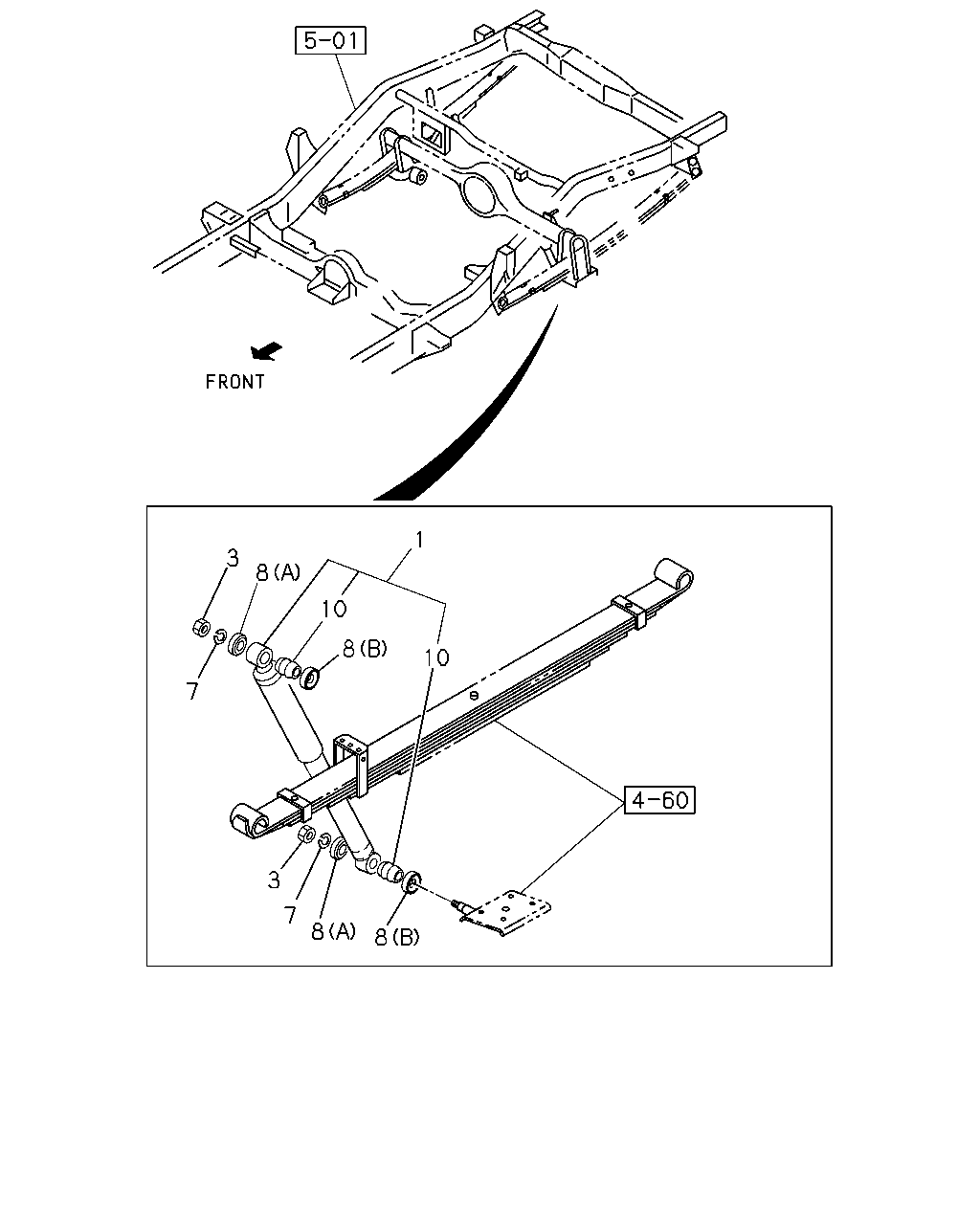

çizim 73661
1 3 8 10 8 10 7 3 7 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.395 ABSORBER ASM; SHOCK,RR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) SHOCK ABSORBER GAS FILLED(FG3) TOKICO 		8-94454-920-2 02 1 9804-0012 ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) SHOCK ABSORBER GAS FILLED(FG3) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) TOKICO 		8-94454-920-2 02 1 0101- ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. SHOCK ABSORBER GAS FILLED(FG3) 07.345 TOKICO 		8-94473-186-0 02 1 9804-0012 ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. SHOCK ABSORBER GAS FILLED(FG3) ,4X2 HIGH RIDE SUSPENSION(7YC) 07.345 TOKICO 		8-94473-186-0 02 1 0101- ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. SHOCK ABSORBER GAS FILLED(FG3) 07.345 KYB 		8-94473-187-0 02 1 9804-0012 ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. SHOCK ABSORBER GAS FILLED(FG3) ,4X2 HIGH RIDE SUSPENSION(7YC) 07.345 KYB 		8-94473-187-0 02 1 0101- ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
6VD1 ENG(RLV) SHOCK ABSORBER GAS FILLED(FG3) TOKICO 		8-97188-327-0 02 1 9804-9909 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
6VD1 ENG(RLV) TOKICO 		8-97188-327-0 02 1 9910- ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
6VD1 ENG(RLV) EXC. SHOCK ABSORBER GAS FILLED(FG3) TOKICO 		8-94433-697-0 02 1 9804-9909 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. SHOCK ABSORBER GAS FILLED(FG3) TOKICO 		8-94433-697-0 02 1 9804-9909 ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. SHOCK ABSORBER GAS FILLED(FG3) TOKICO 		8-94433-697-0 02 1 9910-0012 ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. SHOCK ABSORBER GAS FILLED(FG3) TOKICO 		8-94433-697-0 02 1 0101- ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. SHOCK ABSORBER GAS FILLED(FG3) TOKICO 		8-94433-697-0 02 1 0101- ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
SHOCK ABSORBER GAS FILLED(FG3) TOKICO 		8-94454-921-2 02 1 9804-0012 ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) SHOCK ABSORBER GAS FILLED(FG3) TOKICO 		8-94454-921-2 02 1 0101-0109 ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
SHOCK ABSORBER GAS FILLED(FG3) TOKICO 		8-94454-921-2 02 1 0101-0109 ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) SHOCK ABSORBER GAS FILLED(FG3) TOKICO 		8-94454-921-2 02 1 0110- ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
SHOCK ABSORBER GAS FILLED(FG3) TOKICO 		8-94454-921-2 02 1 0110- ● ● ● ●
3 07.347 NUT; S/ABS
M12 		9-99111-412-0 04 1 9804- ● ● ● ● ● ● ● ●
7 07.347 WASHER; LK,S/ABS
04.634 ID=12.2 		9-09150-512-0 04 1 9804- ● ● ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(B) ID=16.5 		8-94445-688-0 04 1 9804- ● ● ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(A) ID=12.5 		9-51679-022-0 04 1 9804- ● ● ● ● ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. SHOCK ABSORBER GAS FILLED(FG3) 07.347 KYB 		5-51631-016-0 04 1 9804-0012 ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. SHOCK ABSORBER GAS FILLED(FG3) ,4X2 HIGH RIDE SUSPENSION(7YC) 07.347 KYB 		5-51631-016-0 04 1 0101- ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
07.347 TOKICO 		8-94224-694-0 04 1 9804- ● ● ● ● ● ● ● ●
