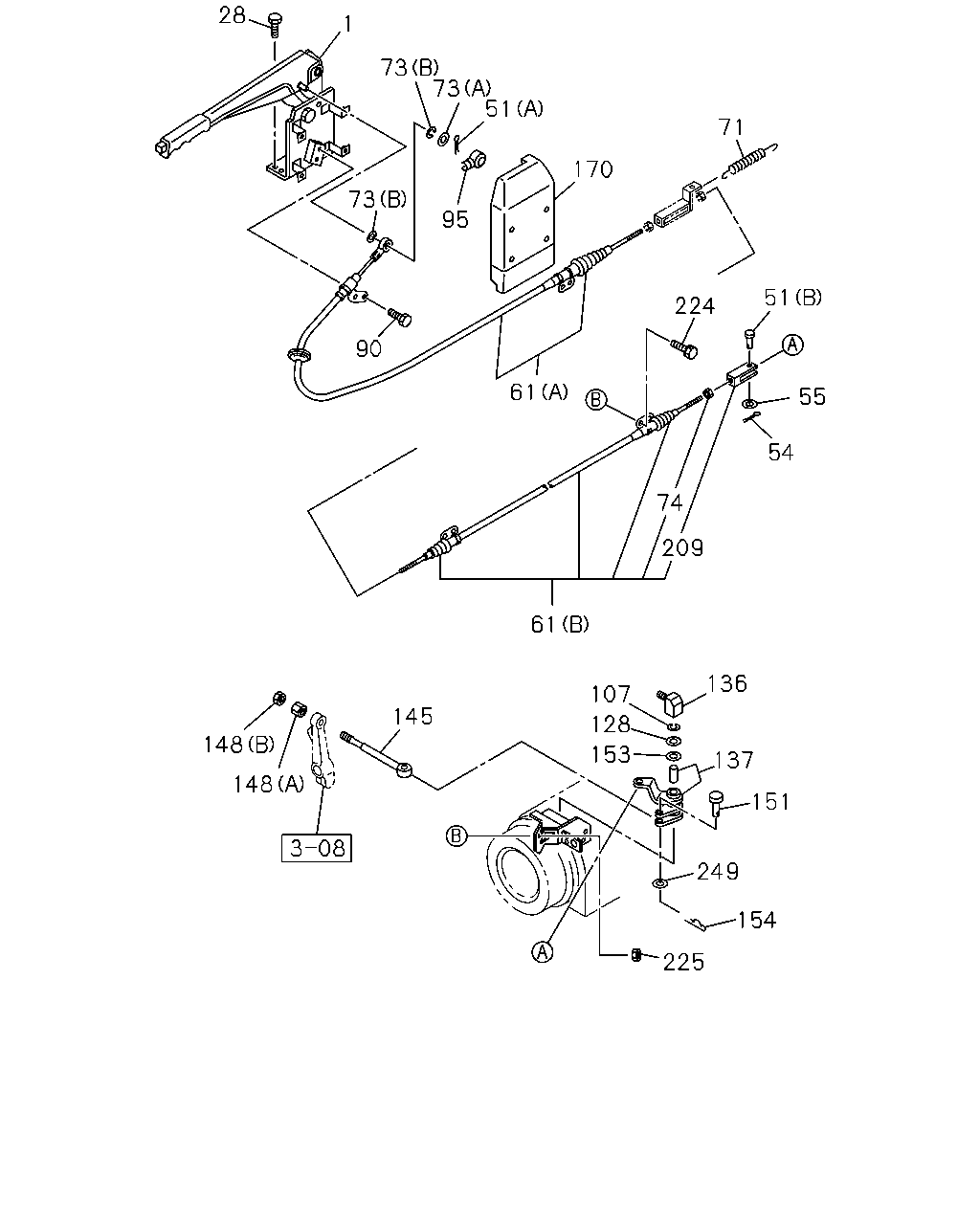

3-11 — PARKING BRAKE CONTROL (#4570) — 29 parça
çizim 37986
28 1 73 73 51 71 170 73 95 51 224 90 61 55 54 74 209 61 136 107 145 128 148 153 137 148 151 249 154 225
BalonParca AdiParca NoAdetTipApplied Date
1 STEM ASM; PARKING BRK 1-46120-101-0 01 1 9712-
28 BOLT; HAND BRK LEVER
M10X25 		0-28091-025-0 03 1 9712-
51 PIN; JOINT,RELAY LEVER
(A) OD=3.7 L=28 		9-08114-028-0 01 1 9712-
51 PIN; JOINT,RELAY LEVER
(B) OD=10 L=28 		9-08234-028-0 01 1 9712-
54 PIN; SNAP,CABLE TO LEVER
OD=2.8 L=18 		9-08113-018-0 01 1 9712-
55 WASHER; PL,PARK BRK CABLE
ID=10.5 OD=18 		9-09160-510-0 01 1 9712-
61 CABLE; PARKING BRK
(A) L=3430 		1-46151-720-1 01 1 9712-
61 CABLE; PARKING BRK
(B) L=5670 		1-46151-778-0 01 1 9712-
71 SPRING; RETURN,PARKING BRK TO BODY 9-09942-363-0 01 1 9712-
73 WASHER; PL,CABLE
(B) ID=19 		8-94206-429-1 02 1 9712-
73 WASHER; PL,CABLE
(A) ID=17 		9-09160-516-0 01 1 9712-
74 NUT; CONT WIRE
M8 		9-09110-408-0 01 1 9712-
90 BOLT; CABLE TO BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 9712-
95 CAP; CABLE,PARKING BRK 1-79997-140-2 01 1 9712-
107 RING; SNAP,LEVER
ID=12 		9-09185-412-0 01 1 9712-
128 WASHER; PL,LINK
ID=10.5 OD=18 		9-09160-510-0 01 1 9712-
136 NIPPLE; GREASE
PT1/8 STRAIGHT 		9-09031-010-0 01 1 9712-
137 LEVER ASM; W/BUSHING 1-46279-006-0 01 1 9712-
145 LINK; PARKING BRK CONT 1-46142-054-0 01 1 9712-
148 NUT; LK,LINK
(A) 		1-09445-001-0 01 1 9712-
148 NUT; LK,LINK
(B) M10 		9-09110-410-0 01 1 9712-
151 PIN; LINK TO LEVER 9-08234-030-0 01 1 9712-
153 WASHER; WAVE,LINK 9-09855-192-0 01 1 9712-
154 PIN; SPLIT,LINK
OD=2.8 L=18 		9-08113-018-0 01 1 9712-
170 COVER; PARKING BRK LEVER 1-46119-059-0 01 1 9712-
209 JOINT; JAW,CONT WIRE 1-09768-088-0 01 1 9712-
224 BOLT; CABLE CLIP
M10X30 W/LK WASHER 		0-50041-030-0 02 1 9712-
225 NUT; CABLE CLIP
M10 		9-09110-510-0 02 1 9712-
249 WASHER; PL,LEVER
ID=14.5 OD=30 		9-09851-946-0 01 1 9712-
