Sayfa 4-35 - Isuzu EPC

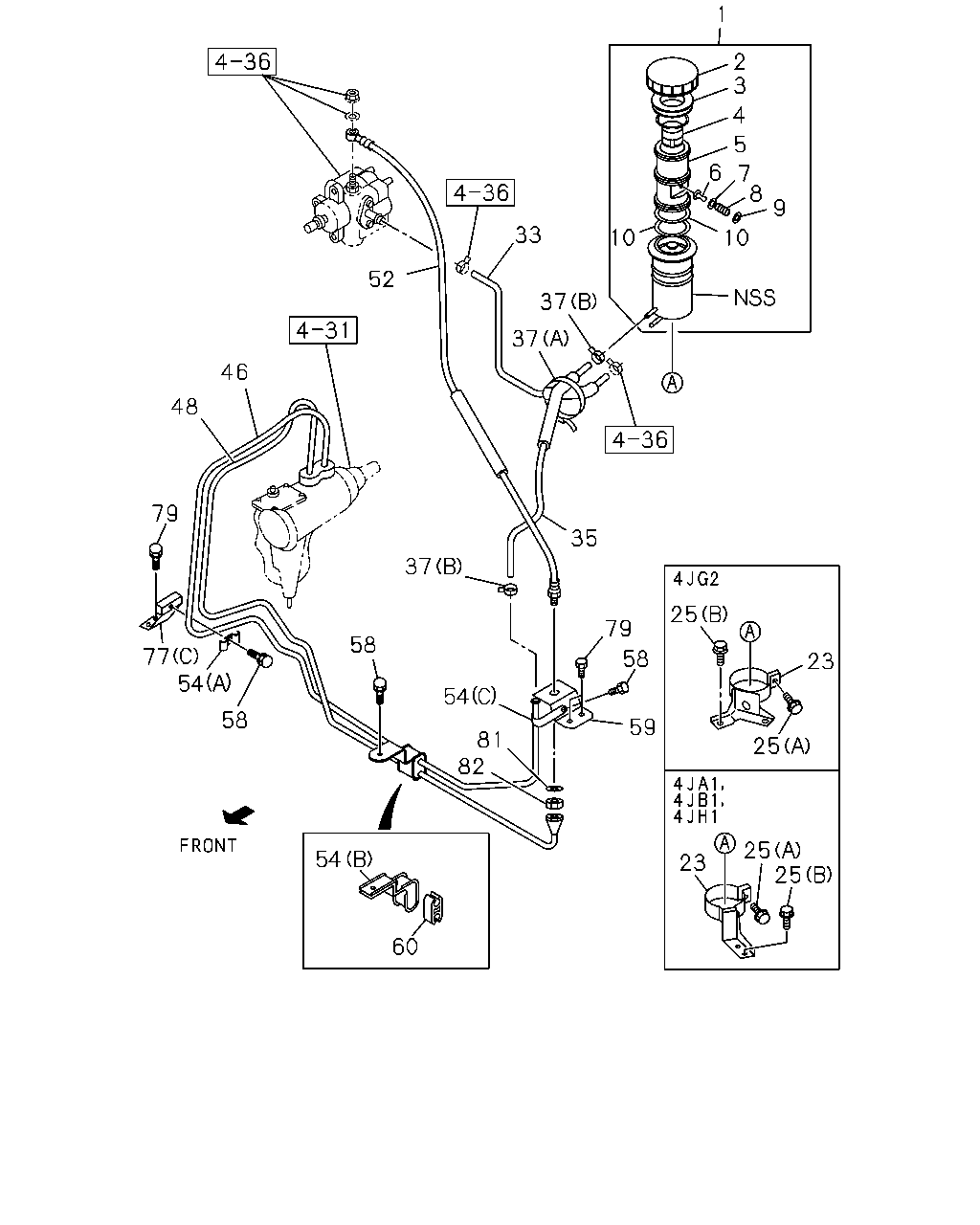

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#45695) — 389 parça

1 2 3 4 5 6 7 8 9 10 33 10 52 37 37 46 48 79 35 37 25 79 58 54 58 23 54 58 59 81 82 25 25 25 54 23 60 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.635 TANK ASM; OIL,P/S 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40>	8-97115-869-2	01	1	9804-	●	●	●	●	●	●	●	●
1	06.635 TANK ASM; OIL,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94105-282-6	01	1	9804-9909	●	●	●	●	●	●	●	●
1	06.635 TANK ASM; OIL,P/S 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94105-282-7	01	1	9910-0109	●	●	●	●	●	●	●	●
1	06.635 TANK ASM; OIL,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94105-282-8	01	1	0110-	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40>	8-94481-841-2	01	1	9804-	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-21241-001-1	01	1	9804-9909	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-21241-001-2	01	1	9910-0109	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-21241-001-2	01	1	0110-	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40>	8-94363-359-1	01	1	9804-	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	8-94246-510-0	01	1	9804-9909	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	8-94246-510-0	01	1	9910-0109	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	8-94246-510-0	01	1	0110-	●	●	●	●	●	●	●	●
4	06.635 FILTER; OIL TANK,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94204-441-1	01	1	9804-9909	●	●	●	●	●	●	●	●
4	06.635 FILTER; OIL TANK,P/S 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94204-441-1	01	1	9910-0109	●	●	●	●	●	●	●	●
4	06.635 FILTER; OIL TANK,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94204-441-1	01	1	0110-	●	●	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94405-458-1	01	1	9804-9909	●	●	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94405-458-1	01	1	9910-0109	●	●	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94405-458-1	01	1	0110-0208	●	●	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97351-631-0	01	1	0209-	●	●	●	●	●	●	●	●
6	06.672 HOLDER; GASKET,OIL TANK,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-21219-005-0	01	1	9804-9909	●	●	●	●	●	●	●	●
6	06.672 HOLDER; GASKET,OIL TANK,P/S 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-21219-005-0	01	1	9910-0109	●	●	●	●	●	●	●	●
6	06.672 HOLDER; GASKET,OIL TANK,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-21219-005-0	01	1	0110-0208	●	●	●	●	●	●	●	●
7	06.672 RING; GASKET,OIL TANK,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-21219-007-0	01	1	9804-9909	●	●	●	●	●	●	●	●
7	06.672 RING; GASKET,OIL TANK,P/S 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-21219-007-0	01	1	9910-0109	●	●	●	●	●	●	●	●
7	06.672 RING; GASKET,OIL TANK,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-21219-007-0	01	1	0110-0208	●	●	●	●	●	●	●	●
8	06.672 SPRING; OIL TANK,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-09580-088-1	01	1	9804-9909	●	●	●	●	●	●	●	●
8	06.672 SPRING; OIL TANK,P/S 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-09580-088-1	01	1	9910-0109	●	●	●	●	●	●	●	●
8	06.672 SPRING; OIL TANK,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-09580-088-1	01	1	0110-0208	●	●	●	●	●	●	●	●
9	06.672 COVER; SPR,OIL TANK,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-21219-006-0	01	1	9804-9909	●	●	●	●	●	●	●	●
9	06.672 COVER; SPR,OIL TANK,P/S 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-21219-006-0	01	1	9910-0109	●	●	●	●	●	●	●	●
9	06.672 COVER; SPR,OIL TANK,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-21219-006-0	01	1	0110-0208	●	●	●	●	●	●	●	●
10	06.672 SEAL; OIL TANK,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	8-94405-457-0	02	1	9804-9909	●	●	●	●	●	●	●	●
10	06.672 SEAL; OIL TANK,P/S 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	8-94405-457-0	02	1	9910-0109	●	●	●	●	●	●	●	●
10	06.672 SEAL; OIL TANK,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	8-94405-457-0	02	1	0110-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94440-403-1	01	1	9804-9905	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97224-312-0	01	1	9906-0109	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97224-312-0	01	1	0110-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 22LE/C22NE ENG(RJT) POWER STEERING<N40>	8-97181-416-1	01	1	9804-	●	●	●	●		●	●	●
23	06.672 BRACKET; OIL TANK,P/S 6VD1 ENG(RLV) POWER STEERING<N40>	8-97064-085-4	01	1	9804-9905	●		●	●	●		●	●
23	06.672 BRACKET; OIL TANK,P/S 6VD1 ENG(RLV) POWER STEERING<N40>	8-97224-313-0	01	1	9906-	●		●	●	●		●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC) POWER STEERING<N40>	8-97049-050-1	01	1	9910-0012					●		●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC) POWER STEERING<N40>	8-97049-050-1	01	1	0101-			●	●	●		●	●
25	06.635 BOLT; OIL TANK BRKT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) POWER STEERING<N40> (A) M6X16 FLANGE	0-28480-616-0	02	1	9804-9905	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 22LE/C22NE ENG(RJT) POWER STEERING<N40> (A) M6X16 FLANGE	0-28480-616-0	02	1	9906-	●	●	●	●		●	●	●
25	06.635 BOLT; OIL TANK BRKT 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40> (B) M6X16 FLANGE	0-28480-616-0	01	1	9804-9905	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M6X16 FLANGE	0-28480-616-0	01	1	9906-	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	9804-9909	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	9910-0109	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	0110-	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 6VD1 ENG(RLV) POWER STEERING<N40> 08.155 (A) M8X16 FLANGE	0-28480-816-0	01	1	9804-	●		●	●	●		●	●
33	06.672 HOSE; RUBBER,POWER STRG 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40>	8-97178-427-1	01	1	9804-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. UNITED KINGDOM EQUIPMENT(EK3) 06.673	8-94473-739-1	01	1	9804-0109	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. UNITED KINGDOM EQUIPMENT(EK3), CHARGE AIR COOLER<6PL> 06.673	8-94473-739-2	01	1	0110-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JH1 ENG(RJX),4JA1 ENG(RLE) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97312-923-0	01	1	0110-			●	●	●		●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) POWER STEERING<N40> 06.673	8-97021-234-1	01	1	9804-9909			●	●			●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) POWER STEERING<N40> 06.673	8-97021-234-1	01	1	9910-0109			●	●	●		●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL> 06.673	8-97021-234-2	01	1	0110-			●	●	●		●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> 06.670	8-97071-155-2	01	1	9910-0012					●		●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> 06.670	8-97071-155-3	01	1	0101-			●	●	●		●	●
35	06.671 HOSE; RETURN,P/S TANK 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94329-684-3	01	1	9804-0109	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94329-684-4	01	1	0110-	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 22LE/C22NE ENG(RJT) POWER STEERING<N40>	8-97181-502-2	01	1	9804-	●	●	●	●		●	●	●
35	06.671 HOSE; RETURN,P/S TANK 6VD1 ENG(RLV) POWER STEERING<N40>	8-97187-606-0	01	1	9804-	●		●	●	●		●	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC) POWER STEERING<N40>	8-97071-156-2	01	1	9910-0012					●		●	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC) POWER STEERING<N40>	8-97071-156-3	01	1	0101-			●	●	●		●	●
37	01.762 CLIP; HOSE,P/S 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) POWER STEERING<N40> 03.162 (A) L=170	5-09707-054-0	01	1	9804-9909	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 03.162 (A) L=170	5-09707-054-0	01	1	9910-0109	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 (A) L=250	5-09707-030-1	01	1	0110-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 04.681 (B) ID=16	8-97173-222-0	02	1	9804-9909	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 04.681 (B) ID=16	8-97173-222-0	02	1	9910-0109	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 04.681 (B) ID=16	8-97173-222-0	02	1	0110-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 22LE/C22NE ENG(RJT) POWER STEERING<N40> 03.280 (C) ID=17.1	8-94122-679-0	01	1	9804-	●	●	●	●		●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1 ENG(RLE) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97363-897-1	01	1	0301-			●	●	●		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97166-147-0	01	1	9804-9909	●	●	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97227-500-0	01	1	9910-9911	●	●	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97249-313-1	01	1	9912-0109	●	●	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97249-313-1	01	1	0110-0212	●	●	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40>	8-97249-313-1	01	1	0301-	●	●	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1 ENG(RLE) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97249-313-1	01	1	0301-			●	●	●		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 6VD1 ENG(RLV) POWER STEERING<N40>	8-97171-395-0	01	1	9804-	●		●	●	●		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JA1 ENG(RLE) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97363-894-1	01	1	0301-			●	●	●		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97166-146-0	01	1	9804-9909	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97166-146-0	01	1	9910-9911	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97248-859-0	01	1	9912-0109	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97248-859-0	01	1	0110-0212	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40>	8-97248-859-0	01	1	0301-	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JA1 ENG(RLE) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97248-859-0	01	1	0301-			●	●	●		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 22LE/C22NE ENG(RJT) POWER STEERING<N40>	8-97172-161-1	01	1	9804-	●	●	●	●		●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 ENG(RLV) POWER STEERING<N40>	8-97171-394-0	01	1	9804-	●		●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE) POWER STEERING<N40>	8-94473-740-2	01	1	9804-0109	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-94473-740-2	01	1	0110-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 22LE/C22NE ENG(RJT) POWER STEERING<N40>	8-97181-503-2	01	1	9804-9812	●	●	●	●		●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 22LE/C22NE ENG(RJT) POWER STEERING<N40>	8-97220-588-4	01	1	9901-0302	●	●	●	●		●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 22LE/C22NE ENG(RJT) POWER STEERING<N40>	8-97364-924-0	01	1	0303-	●	●	●	●		●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JB1 ENG(RLF) POWER STEERING<N40>	8-97147-694-1	01	1	9804-9909	●		●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97147-694-1	01	1	9910-	●		●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 6VD1 ENG(RLV) POWER STEERING<N40>	8-97191-252-0	01	1	9804-9812	●		●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 6VD1 ENG(RLV) POWER STEERING<N40>	8-97220-589-1	01	1	9901-0109	●		●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 6VD1 ENG(RLV) POWER STEERING<N40>	8-97304-156-3	01	1	0110-	●		●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97313-106-0	01	1	0110-			●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1 ENG(RJX),4JA1 ENG(RLE) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97300-983-0	01	1	0110-			●	●	●		●	●
54	06.672 CLIP; OIL PIPE 22LE/C22NE ENG(RJT) POWER STEERING<N40> 02.559 (D) ID=10 & 10	1-09709-221-0	01	1	0112-	●	●	●	●		●	●	●
54	06.672 CLIP; OIL PIPE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) POWER STEERING<N40> 04.342 (A)	8-94222-795-1	01	1	9804-9909	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.342 (A)	8-94222-795-1	01	1	9910-0109	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.342 (A)	8-94222-795-1	01	1	0110-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40> (B)	8-97026-703-0	01	1	9804-9804	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE POWER STEERING<N40> (B)	8-97026-703-0	01	1	9805-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C) ID=11 L=45	8-94296-897-1	01	1	9804-9909	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C) ID=11 H=34 L=27	1-09701-023-0	01	1	9910-0109	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C) ID=11 H=34 L=27	1-09701-023-0	01	1	0110-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (B)	8-94451-983-0	01	1	9804-9804	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 6VD1 ENG(RLV) POWER STEERING<N40> 04.342 (A)	8-94222-795-1	02	1	9804-	●		●	●	●		●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9804-9909	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9804-9909	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9910-9910	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9910-9910	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9911-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 22LE/C22NE ENG(RJT) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9911-	●	●	●	●		●	●	●
58	06.672 BOLT; CLIP 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9804-9909	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9910-0109	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	0110-	●	●	●	●	●	●	●	●
59	06.672 BRACKET; CLIP,OIL PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97087-533-1	01	1	9804-9909	●	●	●	●	●	●	●	●
59	06.672 BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97087-533-1	01	1	9910-0109	●	●	●	●	●	●	●	●
59	06.672 BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97087-533-1	01	1	0110-	●	●	●	●	●	●	●	●
59	06.672 BRACKET; CLIP,OIL PIPE 6VD1 ENG(RLV) POWER STEERING<N40>	8-97170-255-0	01	1	9804-	●		●	●	●		●	●
60	06.672 CLAMP; PIPE,RETURN POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	9804-	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40> (B)	8-97120-705-0	01	1	9804-0212	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40> (B)	8-97120-705-0	01	1	0301-	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JA1 ENG(RLE) POWER STEERING<N40> CHARGE AIR COOLER<6PL> (B)	8-97120-705-0	01	1	0301-			●	●	●		●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-97120-707-0	01	1	9804-9909	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-97120-707-0	01	1	9910-0109	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-97120-707-0	01	1	0110-	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 22LE/C22NE ENG(RJT) POWER STEERING<N40> (A)	8-97202-407-0	01	1	9804-0111	●	●	●	●		●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 6VD1 ENG(RLV) POWER STEERING<N40> (B)	8-97120-706-0	01	1	9804-	●		●	●	●		●	●
79	06.672 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9804-9909	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9804-9909	●		●	●	●		●	●
79	06.672 BOLT; BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9910-9910	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9910-9910	●		●	●	●		●	●
79	06.672 BOLT; BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9911-0109	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	03	1	0110-	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 22LE/C22NE ENG(RJT) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9804-	●	●	●	●		●	●	●
79	06.672 BOLT; BRKT 6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	04	1	9911-	●		●	●	●		●	●
81	06.672 WASHER; LK,FLEX HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9804-9909	●	●	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9910-0109	●	●	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0110-	●	●	●	●	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.681 M16	9-99111-416-0	01	1	9804-9909	●	●	●	●	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.681 M16	9-99111-416-0	01	1	9910-0109	●	●	●	●	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.681 M16	9-99111-416-0	01	1	0110-	●	●	●	●	●	●	●	●

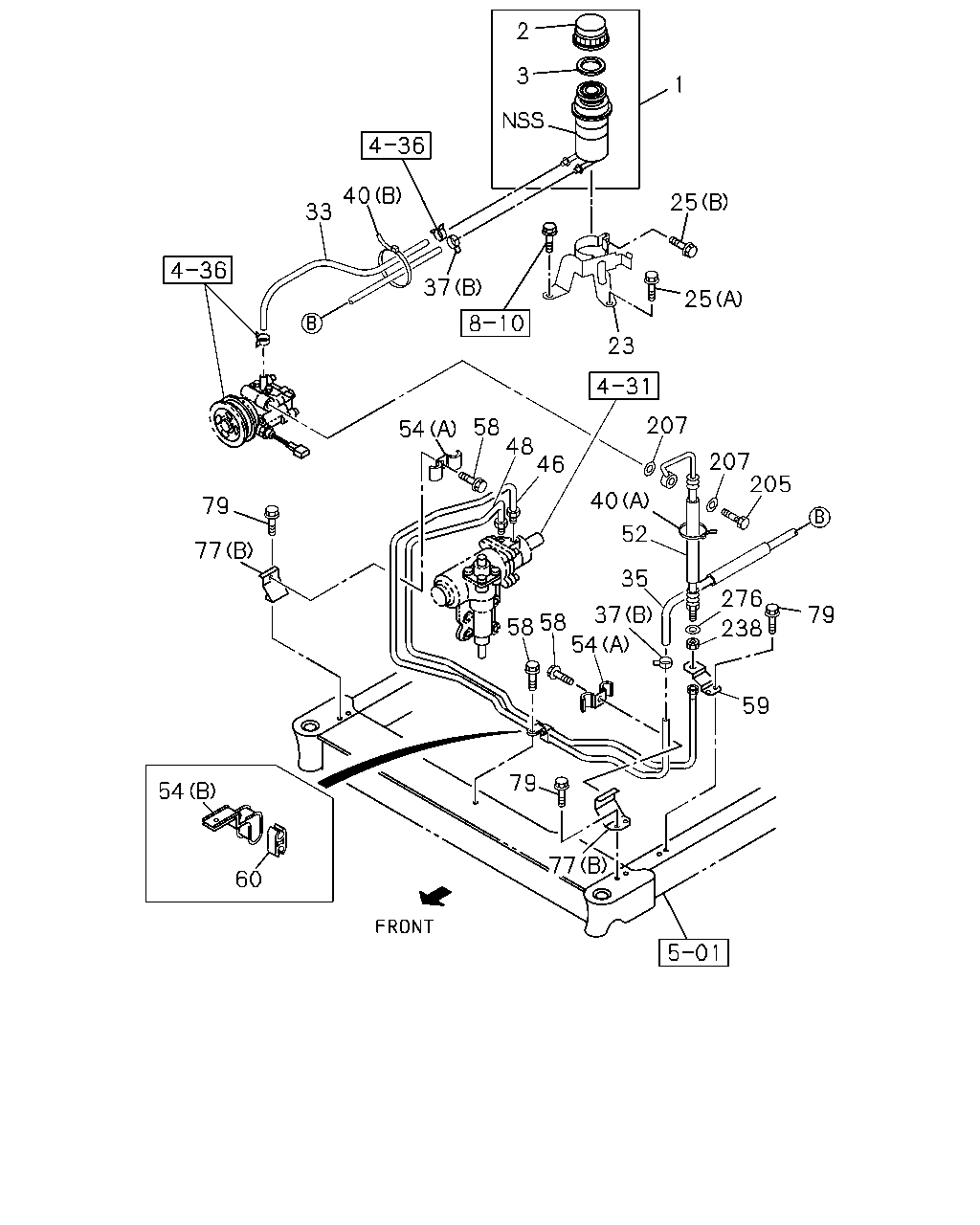

2 3 1 40 33 25 37 25 23 207 58 48 46 54 207 205 40 52 79 37 58 58 54 77 35 276 238 79 59 79 54 77 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.635 TANK ASM; OIL,P/S 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40>	8-97115-869-2	01	1	9804-	●	●	●	●	●	●	●	●
1	06.635 TANK ASM; OIL,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94105-282-6	01	1	9804-9909	●	●	●	●	●	●	●	●
1	06.635 TANK ASM; OIL,P/S 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94105-282-7	01	1	9910-0109	●	●	●	●	●	●	●	●
1	06.635 TANK ASM; OIL,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94105-282-8	01	1	0110-	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40>	8-94481-841-2	01	1	9804-	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-21241-001-1	01	1	9804-9909	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-21241-001-2	01	1	9910-0109	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-21241-001-2	01	1	0110-	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40>	8-94363-359-1	01	1	9804-	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	8-94246-510-0	01	1	9804-9909	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	8-94246-510-0	01	1	9910-0109	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	8-94246-510-0	01	1	0110-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94440-403-1	01	1	9804-9905	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97224-312-0	01	1	9906-0109	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97224-312-0	01	1	0110-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 22LE/C22NE ENG(RJT) POWER STEERING<N40>	8-97181-416-1	01	1	9804-	●	●	●	●		●	●	●
23	06.672 BRACKET; OIL TANK,P/S 6VD1 ENG(RLV) POWER STEERING<N40>	8-97064-085-4	01	1	9804-9905	●		●	●	●		●	●
23	06.672 BRACKET; OIL TANK,P/S 6VD1 ENG(RLV) POWER STEERING<N40>	8-97224-313-0	01	1	9906-	●		●	●	●		●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC) POWER STEERING<N40>	8-97049-050-1	01	1	9910-0012					●		●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC) POWER STEERING<N40>	8-97049-050-1	01	1	0101-			●	●	●		●	●
25	06.635 BOLT; OIL TANK BRKT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) POWER STEERING<N40> (A) M6X16 FLANGE	0-28480-616-0	02	1	9804-9905	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 22LE/C22NE ENG(RJT) POWER STEERING<N40> (A) M6X16 FLANGE	0-28480-616-0	02	1	9906-	●	●	●	●		●	●	●
25	06.635 BOLT; OIL TANK BRKT 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40> (B) M6X16 FLANGE	0-28480-616-0	01	1	9804-9905	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M6X16 FLANGE	0-28480-616-0	01	1	9906-	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	9804-9909	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	9910-0109	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	0110-	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 6VD1 ENG(RLV) POWER STEERING<N40> 08.155 (A) M8X16 FLANGE	0-28480-816-0	01	1	9804-	●		●	●	●		●	●
33	06.672 HOSE; RUBBER,POWER STRG 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40>	8-97178-427-1	01	1	9804-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. UNITED KINGDOM EQUIPMENT(EK3) 06.673	8-94473-739-1	01	1	9804-0109	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. UNITED KINGDOM EQUIPMENT(EK3), CHARGE AIR COOLER<6PL> 06.673	8-94473-739-2	01	1	0110-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JH1 ENG(RJX),4JA1 ENG(RLE) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97312-923-0	01	1	0110-			●	●	●		●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) POWER STEERING<N40> 06.673	8-97021-234-1	01	1	9804-9909			●	●			●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) POWER STEERING<N40> 06.673	8-97021-234-1	01	1	9910-0109			●	●	●		●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL> 06.673	8-97021-234-2	01	1	0110-			●	●	●		●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> 06.670	8-97071-155-2	01	1	9910-0012					●		●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> 06.670	8-97071-155-3	01	1	0101-			●	●	●		●	●
35	06.671 HOSE; RETURN,P/S TANK 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94329-684-3	01	1	9804-0109	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94329-684-4	01	1	0110-	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 22LE/C22NE ENG(RJT) POWER STEERING<N40>	8-97181-502-2	01	1	9804-	●	●	●	●		●	●	●
35	06.671 HOSE; RETURN,P/S TANK 6VD1 ENG(RLV) POWER STEERING<N40>	8-97187-606-0	01	1	9804-	●		●	●	●		●	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC) POWER STEERING<N40>	8-97071-156-2	01	1	9910-0012					●		●	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC) POWER STEERING<N40>	8-97071-156-3	01	1	0101-			●	●	●		●	●
37	01.762 CLIP; HOSE,P/S 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) POWER STEERING<N40> 03.162 (A) L=170	5-09707-054-0	01	1	9804-9909	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 03.162 (A) L=170	5-09707-054-0	01	1	9910-0109	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 (A) L=250	5-09707-030-1	01	1	0110-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 04.681 (B) ID=16	8-97173-222-0	02	1	9804-9909	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 04.681 (B) ID=16	8-97173-222-0	02	1	9910-0109	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 04.681 (B) ID=16	8-97173-222-0	02	1	0110-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 22LE/C22NE ENG(RJT) POWER STEERING<N40> 03.280 (C) ID=17.1	8-94122-679-0	01	1	9804-	●	●	●	●		●	●	●
40	06.672 CLIP; BAND 6VD1 ENG(RLV) POWER STEERING<N40> 03.162 (B) L=170	5-09707-054-0	01	1	9804-0109	●		●	●	●		●	●
40	06.672 CLIP; BAND 6VD1 ENG(RLV) POWER STEERING<N40> 02.559 (B) L=250	5-09707-030-1	01	1	0110-	●		●	●	●		●	●
40	06.672 CLIP; BAND 6VD1 ENG(RLV) POWER STEERING<N40> 16.716 (A) L=129.5	8-94368-493-0	01	1	9804-	●		●	●	●		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1 ENG(RLE) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97363-897-1	01	1	0301-			●	●	●		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97166-147-0	01	1	9804-9909	●	●	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97227-500-0	01	1	9910-9911	●	●	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97249-313-1	01	1	9912-0109	●	●	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97249-313-1	01	1	0110-0212	●	●	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40>	8-97249-313-1	01	1	0301-	●	●	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1 ENG(RLE) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97249-313-1	01	1	0301-			●	●	●		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 6VD1 ENG(RLV) POWER STEERING<N40>	8-97171-395-0	01	1	9804-	●		●	●	●		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JA1 ENG(RLE) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97363-894-1	01	1	0301-			●	●	●		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97166-146-0	01	1	9804-9909	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97166-146-0	01	1	9910-9911	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97248-859-0	01	1	9912-0109	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97248-859-0	01	1	0110-0212	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40>	8-97248-859-0	01	1	0301-	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JA1 ENG(RLE) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97248-859-0	01	1	0301-			●	●	●		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 22LE/C22NE ENG(RJT) POWER STEERING<N40>	8-97172-161-1	01	1	9804-	●	●	●	●		●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 ENG(RLV) POWER STEERING<N40>	8-97171-394-0	01	1	9804-	●		●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE) POWER STEERING<N40>	8-94473-740-2	01	1	9804-0109	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-94473-740-2	01	1	0110-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 22LE/C22NE ENG(RJT) POWER STEERING<N40>	8-97181-503-2	01	1	9804-9812	●	●	●	●		●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 22LE/C22NE ENG(RJT) POWER STEERING<N40>	8-97220-588-4	01	1	9901-0302	●	●	●	●		●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 22LE/C22NE ENG(RJT) POWER STEERING<N40>	8-97364-924-0	01	1	0303-	●	●	●	●		●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JB1 ENG(RLF) POWER STEERING<N40>	8-97147-694-1	01	1	9804-9909	●		●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97147-694-1	01	1	9910-	●		●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 6VD1 ENG(RLV) POWER STEERING<N40>	8-97191-252-0	01	1	9804-9812	●		●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 6VD1 ENG(RLV) POWER STEERING<N40>	8-97220-589-1	01	1	9901-0109	●		●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 6VD1 ENG(RLV) POWER STEERING<N40>	8-97304-156-3	01	1	0110-	●		●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97313-106-0	01	1	0110-			●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1 ENG(RJX),4JA1 ENG(RLE) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97300-983-0	01	1	0110-			●	●	●		●	●
54	06.672 CLIP; OIL PIPE 22LE/C22NE ENG(RJT) POWER STEERING<N40> 02.559 (D) ID=10 & 10	1-09709-221-0	01	1	0112-	●	●	●	●		●	●	●
54	06.672 CLIP; OIL PIPE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) POWER STEERING<N40> 04.342 (A)	8-94222-795-1	01	1	9804-9909	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.342 (A)	8-94222-795-1	01	1	9910-0109	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.342 (A)	8-94222-795-1	01	1	0110-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40> (B)	8-97026-703-0	01	1	9804-9804	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE POWER STEERING<N40> (B)	8-97026-703-0	01	1	9805-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C) ID=11 L=45	8-94296-897-1	01	1	9804-9909	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C) ID=11 H=34 L=27	1-09701-023-0	01	1	9910-0109	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C) ID=11 H=34 L=27	1-09701-023-0	01	1	0110-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (B)	8-94451-983-0	01	1	9804-9804	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 6VD1 ENG(RLV) POWER STEERING<N40> 04.342 (A)	8-94222-795-1	02	1	9804-	●		●	●	●		●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9804-9909	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9804-9909	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9910-9910	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9910-9910	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9911-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 22LE/C22NE ENG(RJT) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9911-	●	●	●	●		●	●	●
58	06.672 BOLT; CLIP 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9804-9909	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9910-0109	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	0110-	●	●	●	●	●	●	●	●
59	06.672 BRACKET; CLIP,OIL PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97087-533-1	01	1	9804-9909	●	●	●	●	●	●	●	●
59	06.672 BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97087-533-1	01	1	9910-0109	●	●	●	●	●	●	●	●
59	06.672 BRACKET; CLIP,OIL PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97087-533-1	01	1	0110-	●	●	●	●	●	●	●	●
59	06.672 BRACKET; CLIP,OIL PIPE 6VD1 ENG(RLV) POWER STEERING<N40>	8-97170-255-0	01	1	9804-	●		●	●	●		●	●
60	06.672 CLAMP; PIPE,RETURN POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	9804-	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40> (B)	8-97120-705-0	01	1	9804-0212	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40> (B)	8-97120-705-0	01	1	0301-	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JA1 ENG(RLE) POWER STEERING<N40> CHARGE AIR COOLER<6PL> (B)	8-97120-705-0	01	1	0301-			●	●	●		●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-97120-707-0	01	1	9804-9909	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-97120-707-0	01	1	9910-0109	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-97120-707-0	01	1	0110-	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 22LE/C22NE ENG(RJT) POWER STEERING<N40> (A)	8-97202-407-0	01	1	9804-0111	●	●	●	●		●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 6VD1 ENG(RLV) POWER STEERING<N40> (B)	8-97120-706-0	01	1	9804-	●		●	●	●		●	●
79	06.672 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9804-9909	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9804-9909	●		●	●	●		●	●
79	06.672 BOLT; BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9910-9910	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9910-9910	●		●	●	●		●	●
79	06.672 BOLT; BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9911-0109	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	03	1	0110-	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 22LE/C22NE ENG(RJT) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9804-	●	●	●	●		●	●	●
79	06.672 BOLT; BRKT 6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	04	1	9911-	●		●	●	●		●	●
205	06.673 BOLT; EYE,FLEX HOSE,P/S 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40> M16X28	8-94383-489-0	01	1	9804-	●	●	●	●	●	●	●	●
207	06.673 GASKET; FLEX HOSE,P/S PUMP 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40> 01.252 ID=16.2 OD=24	9-09571-416-0	02	1	9804-	●	●	●	●	●	●	●	●
238	06.670 NUT; FLEX HOSE 6VD1 ENG(RLV) POWER STEERING<N40> 04.681 M16	9-99111-416-0	01	1	9804-	●		●	●	●		●	●
276	06.672 WASHER; LK,CLIP 6VD1 ENG(RLV) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9804-	●		●	●	●		●	●

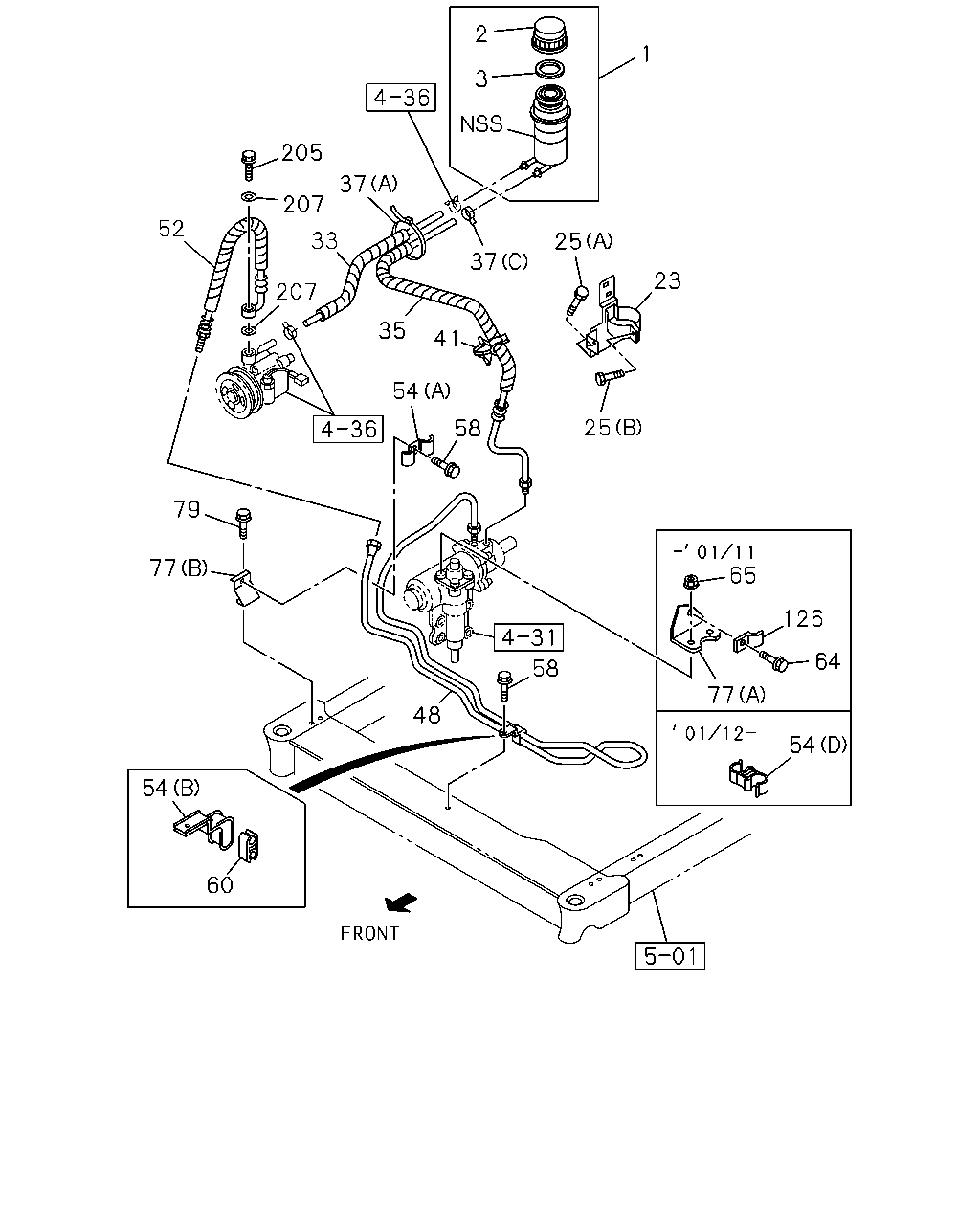

2 1 3 205 37 207 52 33 25 37 23 207 35 41 54 25 58 79 65 77 126 64 58 77 48 54 54 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.635 TANK ASM; OIL,P/S 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40>	8-97115-869-2	01	1	9804-	●	●	●	●	●	●	●	●
1	06.635 TANK ASM; OIL,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94105-282-6	01	1	9804-9909	●	●	●	●	●	●	●	●
1	06.635 TANK ASM; OIL,P/S 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94105-282-7	01	1	9910-0109	●	●	●	●	●	●	●	●
1	06.635 TANK ASM; OIL,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94105-282-8	01	1	0110-	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40>	8-94481-841-2	01	1	9804-	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-21241-001-1	01	1	9804-9909	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-21241-001-2	01	1	9910-0109	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	5-21241-001-2	01	1	0110-	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40>	8-94363-359-1	01	1	9804-	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	8-94246-510-0	01	1	9804-9909	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	8-94246-510-0	01	1	9910-0109	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635	8-94246-510-0	01	1	0110-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94440-403-1	01	1	9804-9905	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97224-312-0	01	1	9906-0109	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97224-312-0	01	1	0110-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 22LE/C22NE ENG(RJT) POWER STEERING<N40>	8-97181-416-1	01	1	9804-	●	●	●	●		●	●	●
23	06.672 BRACKET; OIL TANK,P/S 6VD1 ENG(RLV) POWER STEERING<N40>	8-97064-085-4	01	1	9804-9905	●		●	●	●		●	●
23	06.672 BRACKET; OIL TANK,P/S 6VD1 ENG(RLV) POWER STEERING<N40>	8-97224-313-0	01	1	9906-	●		●	●	●		●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC) POWER STEERING<N40>	8-97049-050-1	01	1	9910-0012					●		●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC) POWER STEERING<N40>	8-97049-050-1	01	1	0101-			●	●	●		●	●
25	06.635 BOLT; OIL TANK BRKT 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) POWER STEERING<N40> (A) M6X16 FLANGE	0-28480-616-0	02	1	9804-9905	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 22LE/C22NE ENG(RJT) POWER STEERING<N40> (A) M6X16 FLANGE	0-28480-616-0	02	1	9906-	●	●	●	●		●	●	●
25	06.635 BOLT; OIL TANK BRKT 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40> (B) M6X16 FLANGE	0-28480-616-0	01	1	9804-9905	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> (B) M6X16 FLANGE	0-28480-616-0	01	1	9906-	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	9804-9909	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	9910-0109	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	0110-	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 6VD1 ENG(RLV) POWER STEERING<N40> 08.155 (A) M8X16 FLANGE	0-28480-816-0	01	1	9804-	●		●	●	●		●	●
33	06.672 HOSE; RUBBER,POWER STRG 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40>	8-97178-427-1	01	1	9804-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. UNITED KINGDOM EQUIPMENT(EK3) 06.673	8-94473-739-1	01	1	9804-0109	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> EXC. UNITED KINGDOM EQUIPMENT(EK3), CHARGE AIR COOLER<6PL> 06.673	8-94473-739-2	01	1	0110-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JH1 ENG(RJX),4JA1 ENG(RLE) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97312-923-0	01	1	0110-			●	●	●		●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) POWER STEERING<N40> 06.673	8-97021-234-1	01	1	9804-9909			●	●			●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) POWER STEERING<N40> 06.673	8-97021-234-1	01	1	9910-0109			●	●	●		●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL> 06.673	8-97021-234-2	01	1	0110-			●	●	●		●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> 06.670	8-97071-155-2	01	1	9910-0012					●		●	●
33	06.672 HOSE; RUBBER,POWER STRG 4JG2 ENG(RJC) POWER STEERING<N40> 06.670	8-97071-155-3	01	1	0101-			●	●	●		●	●
35	06.671 HOSE; RETURN,P/S TANK 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94329-684-3	01	1	9804-0109	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94329-684-4	01	1	0110-	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 22LE/C22NE ENG(RJT) POWER STEERING<N40>	8-97181-502-2	01	1	9804-	●	●	●	●		●	●	●
35	06.671 HOSE; RETURN,P/S TANK 6VD1 ENG(RLV) POWER STEERING<N40>	8-97187-606-0	01	1	9804-	●		●	●	●		●	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC) POWER STEERING<N40>	8-97071-156-2	01	1	9910-0012					●		●	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC) POWER STEERING<N40>	8-97071-156-3	01	1	0101-			●	●	●		●	●
37	01.762 CLIP; HOSE,P/S 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) POWER STEERING<N40> 03.162 (A) L=170	5-09707-054-0	01	1	9804-9909	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 03.162 (A) L=170	5-09707-054-0	01	1	9910-0109	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 02.559 (A) L=250	5-09707-030-1	01	1	0110-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 04.681 (B) ID=16	8-97173-222-0	02	1	9804-9909	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 04.681 (B) ID=16	8-97173-222-0	02	1	9910-0109	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 04.681 (B) ID=16	8-97173-222-0	02	1	0110-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 22LE/C22NE ENG(RJT) POWER STEERING<N40> 03.280 (C) ID=17.1	8-94122-679-0	01	1	9804-	●	●	●	●		●	●	●
41	06.672 CLIP; HOSE,P/S 22LE/C22NE ENG(RJT) POWER STEERING<N40> ID=17	8-94382-792-1	01	1	9804-	●	●	●	●		●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JA1 ENG(RLE) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97363-894-1	01	1	0301-			●	●	●		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97166-146-0	01	1	9804-9909	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97166-146-0	01	1	9910-9911	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97248-859-0	01	1	9912-0109	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97248-859-0	01	1	0110-0212	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF) POWER STEERING<N40>	8-97248-859-0	01	1	0301-	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JA1 ENG(RLE) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-97248-859-0	01	1	0301-			●	●	●		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 22LE/C22NE ENG(RJT) POWER STEERING<N40>	8-97172-161-1	01	1	9804-	●	●	●	●		●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 ENG(RLV) POWER STEERING<N40>	8-97171-394-0	01	1	9804-	●		●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE) POWER STEERING<N40>	8-94473-740-2	01	1	9804-0109	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE) POWER STEERING<N40> EXC. CHARGE AIR COOLER<6PL>	8-94473-740-2	01	1	0110-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 22LE/C22NE ENG(RJT) POWER STEERING<N40>	8-97181-503-2	01	1	9804-9812	●	●	●	●		●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 22LE/C22NE ENG(RJT) POWER STEERING<N40>	8-97220-588-4	01	1	9901-0302	●	●	●	●		●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 22LE/C22NE ENG(RJT) POWER STEERING<N40>	8-97364-924-0	01	1	0303-	●	●	●	●		●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JB1 ENG(RLF) POWER STEERING<N40>	8-97147-694-1	01	1	9804-9909	●		●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) POWER STEERING<N40>	8-97147-694-1	01	1	9910-	●		●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 6VD1 ENG(RLV) POWER STEERING<N40>	8-97191-252-0	01	1	9804-9812	●		●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 6VD1 ENG(RLV) POWER STEERING<N40>	8-97220-589-1	01	1	9901-0109	●		●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 6VD1 ENG(RLV) POWER STEERING<N40>	8-97304-156-3	01	1	0110-	●		●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97313-106-0	01	1	0110-			●	●	●		●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JH1 ENG(RJX),4JA1 ENG(RLE) POWER STEERING<N40> CHARGE AIR COOLER<6PL>	8-97300-983-0	01	1	0110-			●	●	●		●	●
54	06.672 CLIP; OIL PIPE 22LE/C22NE ENG(RJT) POWER STEERING<N40> 02.559 (D) ID=10 & 10	1-09709-221-0	01	1	0112-	●	●	●	●		●	●	●
54	06.672 CLIP; OIL PIPE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) POWER STEERING<N40> 04.342 (A)	8-94222-795-1	01	1	9804-9909	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.342 (A)	8-94222-795-1	01	1	9910-0109	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.342 (A)	8-94222-795-1	01	1	0110-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40> (B)	8-97026-703-0	01	1	9804-9804	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE POWER STEERING<N40> (B)	8-97026-703-0	01	1	9805-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C) ID=11 L=45	8-94296-897-1	01	1	9804-9909	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C) ID=11 H=34 L=27	1-09701-023-0	01	1	9910-0109	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C) ID=11 H=34 L=27	1-09701-023-0	01	1	0110-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (B)	8-94451-983-0	01	1	9804-9804	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 6VD1 ENG(RLV) POWER STEERING<N40> 04.342 (A)	8-94222-795-1	02	1	9804-	●		●	●	●		●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9804-9909	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9804-9909	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9910-9910	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9910-9910	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9911-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 22LE/C22NE ENG(RJT) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9911-	●	●	●	●		●	●	●
58	06.672 BOLT; CLIP 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9804-9909	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9910-0109	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	0110-	●	●	●	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	9804-	●	●	●	●	●	●	●	●
64	06.672 BOLT; CLIP BRKT 22LE/C22NE ENG(RJT) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9804-0111	●	●	●	●		●	●	●
65	06.672 NUT; BRKT 22LE/C22NE ENG(RJT) POWER STEERING<N40> 04.785 M10 FLANGE	0-91150-110-0	02	1	9804-0111	●	●	●	●		●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40> (B)	8-97120-705-0	01	1	9804-0212	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40> (B)	8-97120-705-0	01	1	0301-	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JA1 ENG(RLE) POWER STEERING<N40> CHARGE AIR COOLER<6PL> (B)	8-97120-705-0	01	1	0301-			●	●	●		●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-97120-707-0	01	1	9804-9909	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-97120-707-0	01	1	9910-0109	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (C)	8-97120-707-0	01	1	0110-	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 22LE/C22NE ENG(RJT) POWER STEERING<N40> (A)	8-97202-407-0	01	1	9804-0111	●	●	●	●		●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 6VD1 ENG(RLV) POWER STEERING<N40> (B)	8-97120-706-0	01	1	9804-	●		●	●	●		●	●
79	06.672 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9804-9909	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9804-9909	●		●	●	●		●	●
79	06.672 BOLT; BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9910-9910	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	02	1	9910-9910	●		●	●	●		●	●
79	06.672 BOLT; BRKT 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9911-0109	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	03	1	0110-	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 22LE/C22NE ENG(RJT) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9804-	●	●	●	●		●	●	●
79	06.672 BOLT; BRKT 6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	04	1	9911-	●		●	●	●		●	●
126	06.671 CLIP; HOSE,POWER STRG RETURN 22LE/C22NE ENG(RJT) POWER STEERING<N40> 06.672	8-94363-358-0	01	1	9804-0111	●	●	●	●		●	●	●
205	06.673 BOLT; EYE,FLEX HOSE,P/S 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40> M16X28	8-94383-489-0	01	1	9804-	●	●	●	●	●	●	●	●
207	06.673 GASKET; FLEX HOSE,P/S PUMP 22LE/C22NE ENG(RJT),6VD1 ENG(RLV) POWER STEERING<N40> 01.252 ID=16.2 OD=24	9-09571-416-0	02	1	9804-	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
