4-33 — STEERING LINKAGE (#45694) — 174 parça

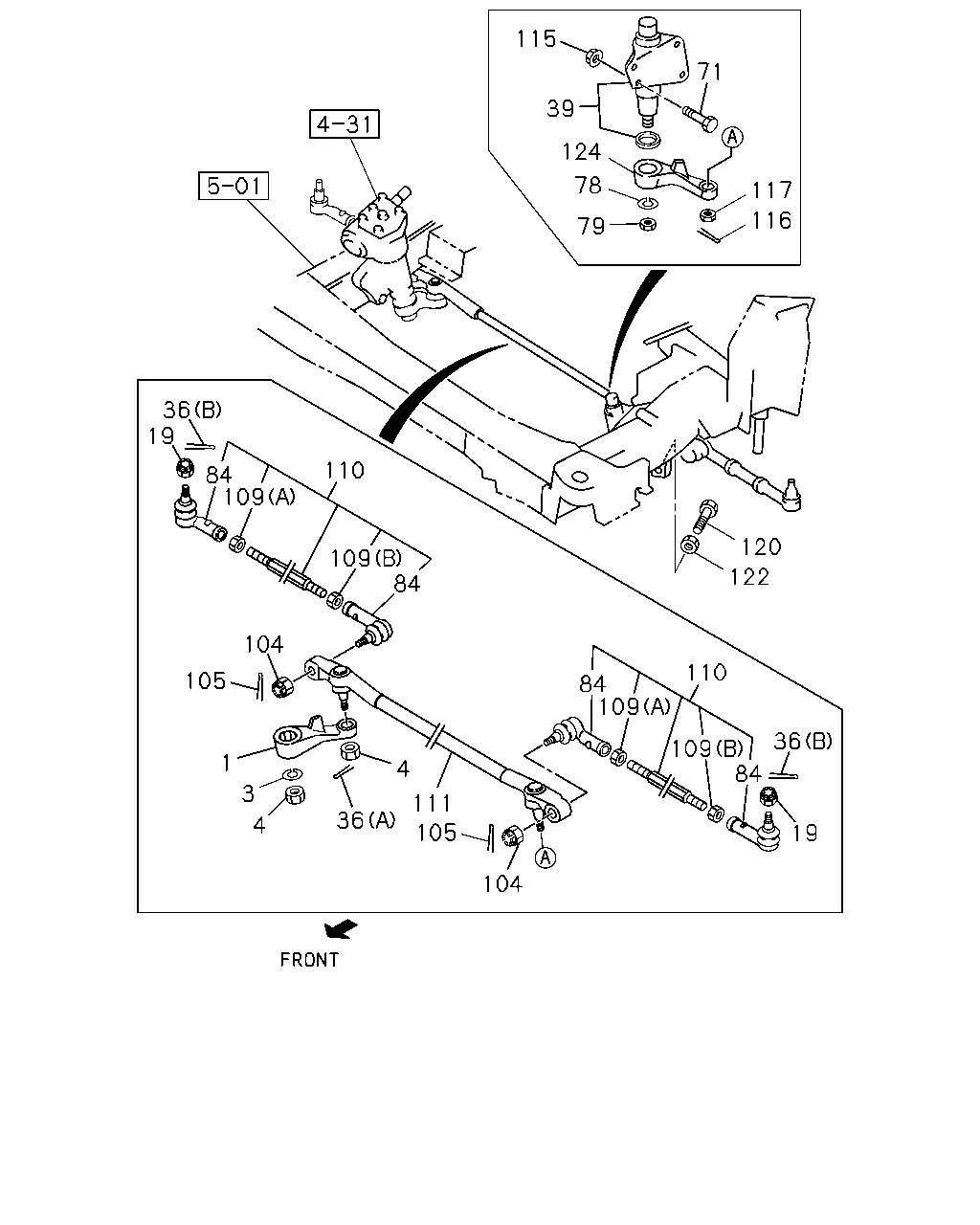

115 126 71 39 117 116 124 78 79 36 19 110 84 109 109 84 120 122 104 105 84 109 110 111 4 109 84 36 1 3 4 128 36 105 19 127 104 127 128 125

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.859 ARM; PITMAN,STRG 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF)	8-94440-892-3	01	1	9804-0012	●	●	●	●
1	06.859 ARM; PITMAN,STRG EXC. 4X2 HIGH RIDE SUSPENSION(7YC)	8-94440-892-3	01	1	0101-0105	●		●	●
1	06.859 ARM; PITMAN,STRG	8-94440-892-3	01	1	0101-0105		●
1	06.859 ARM; PITMAN,STRG EXC. 4X2 HIGH RIDE SUSPENSION(7YC)	8-97315-931-0	01	1	0106-	●		●	●
1	06.859 ARM; PITMAN,STRG	8-97315-931-0	01	1	0106-		●
1	06.859 ARM; PITMAN,STRG 6VD1 ENG(RLV)	8-97026-252-0	01	1	9804-0012	●		●	●
1	06.859 ARM; PITMAN,STRG	8-97026-252-0	01	1	9804-0012					●	●	●	●
1	06.859 ARM; PITMAN,STRG 4X2 HIGH RIDE SUSPENSION(7YC)	8-97026-252-0	01	1	0101-0105	●		●	●
1	06.859 ARM; PITMAN,STRG	8-97026-252-0	01	1	0101-0105					●	●	●	●
1	06.859 ARM; PITMAN,STRG 4X2 HIGH RIDE SUSPENSION(7YC)	8-97315-932-0	01	1	0106-	●		●	●
1	06.859 ARM; PITMAN,STRG	8-97315-932-0	01	1	0106-					●	●	●	●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	9-09150-522-0	01	1	9804-	●	●	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM 06.865 M14	8-94465-411-0	01	1	9804-	●	●	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM 08.915 M22	9-09111-522-0	01	1	9804-	●	●	●	●	●	●	●	●
19	06.865 NUT; PITMAN ARM,STOPPER M14	8-94465-411-0	02	1	9804-	●	●	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 06.865 (A) OD=2.8 L=25	9-08113-025-0	01	1	9804-9808	●	●	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 06.865 (A) OD=2.7 L=17	8-97171-453-0	01	1	9809-	●	●	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 06.865 (B) OD=2.8 L=25	9-08113-025-0	02	1	9804-	●	●	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-97106-663-0	01	1	9804-0108	●	●	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), POWER STEERING<N40>,KENYA EQUIPMENT(PT7),AUSTRALIAN EQUIPMENT(RR3)	8-97106-663-0	01	1	0109-	●	●	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW) ,FRT&RR 6.5-14-8 5JX14(9NY),FRT 6.5-15-6 RR 6.5-15-8 5.5KX15(9PA),FRT& RR 6.50-15-8 5.5KX15 STYLED WHL(9RE) POWER STEERING<N40> EXC. UNITED KINGDOM EQUIPMENT(EK3), KENYA EQUIPMENT(PT7),AUSTRALIAN EQUIPMENT(RR3)	8-97106-663-0	01	1	0109-	●	●	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE KENYA EQUIPMENT(PT7)	8-97106-663-0	01	1	0109-			●				●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-97039-325-1	01	1	9804-0108	●		●	●	●		●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE FRT 185R14-6 5.5JJ-20 RR 185R14-8 5 .5JJ-20(ANL),FRT&RR 195R14-8 5.5JJ-20 MICHELIN(ANN),FRT&RR 195R14-8 5. 5JJ-20 P RANGE STYLED(ANQ),FRT&RR 205SR16 6JJX16 REINF(AUZ),FRT&RR 205 /80R16 104T 6JJX16 ALUMI WHL(BRW), FRT&RR 205SR16 6JJX16 ALUMI WHL(BRZ) ,FRT&RR 205R16 6JJX16 STEEL WHL(BUP),FRT&RR 185R14-8 5.5JJX14(9PE),FRT &RR 215R15-6 5.5KX15 STYLED WHL(9RF) POWER STEERING<N40> EXC. KENYA EQUIPMENT(PT7)	8-97039-325-1	01	1	0109-0109	●	●	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-97039-325-1	01	1	0109-0109	●		●	●	●		●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE FRT 185R14-6 5.5JJ-20 RR 185R14-8 5 .5JJ-20(ANL),FRT&RR 195R14-8 5.5JJ-20 MICHELIN(ANN),FRT&RR 195R14-8 5. 5JJ-20 P RANGE STYLED(ANQ),FRT&RR 205SR16 6JJX16 REINF(AUZ),FRT&RR 205 SR16 6JJX16 ALUMI WHL(BRZ),FRT&RR 205R16 6JJX16 STEEL WHL(BUP), FRT&RR205/80R16 6JJX16 MICHELIN STYLED(BXZ),FRT&RR 205/80R16 6JJX16 MICHELINALUMI(BYA),FRT&RR 205R16 104S 6JJX 16 STYLED WHL LOW-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR(BYP),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT&RR 185R14-8 5.5JJX14(9PE) POWER STEERING<N40> EXC. KENYA EQUIPMENT(PT7)	8-97039-325-1	01	1	0110-0208	●	●	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-97039-325-1	01	1	0110-0208	●		●	●	●		●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE FRT 185R14-6 5.5JJ-20 RR 185R14-8 5 .5JJ-20(ANL),FRT&RR 195R14-8 5.5JJ-20 MICHELIN(ANN),FRT&RR 195R14-8 5. 5JJ-20 P RANGE STYLED(ANQ),FRT&RR 205SR16 6JJX16 ALUMI WHL(BRZ),FRT&RR 205R16 6JJX16 STEEL WHL(BUP),FRT&R R 205/80R16 6JJX16 MICHELIN STYLED(BXZ),FRT&RR 205/80R16 6JJX16 MICHEL IN ALUMI(BYA),FRT&RR 205R16 104S 6JJX16 STYLED WHL LOW-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR (BYP),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT&RR 185R14-8 5.5JJX14 (9PE) POWER STEERING<N40> EXC. KENYA EQUIPMENT(PT7)	8-97039-325-1	01	1	0209-	●	●	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-97039-325-1	01	1	0209-	●		●	●	●		●	●
71	06.896 BOLT; RELAY LEVER BRKT 06.509 M10X92 FLANGE	8-94313-798-1	04	1	9804-	●	●	●	●	●	●	●	●
78	06.897 WASHER; LINK,RELAY LEVER 07.247 ID=16.2	9-09150-816-0	01	1	9804-	●	●	●	●	●	●	●	●
79	06.897 NUT; RELAY LEVER 04.681 M16	9-99111-516-0	01	1	9804-	●	●	●	●	●	●	●	●
84	06.874 ROD END; TRACK ROD RH THREAD	8-97020-953-1	02	1	9804-	●	●	●	●	●	●	●	●
84	06.874 ROD END; TRACK ROD LH THREAD	8-97020-954-2	02	1	9804-	●	●	●	●	●	●	●	●
104	06.233 NUT; ROD END 06.865 M14	8-94465-411-0	02	1	9804-	●	●	●	●	●	●	●	●
105	06.865 PIN; SPLIT,ROD END OD=2.8 L=25	9-08113-025-0	02	1	9804-9808	●	●	●	●	●	●	●	●
105	06.865 PIN; SPLIT,ROD END OD=2.7 L=17	8-97171-453-0	02	1	9809-	●	●	●	●	●	●	●	●
109	06.897 NUT; ROD (A) M14 LH THREAD	5-09400-010-0	02	1	9804-	●	●	●	●	●	●	●	●
109	06.897 NUT; ROD 06.232 (B) M14	9-99110-414-0	02	1	9804-	●	●	●	●	●	●	●	●
110	06.870 ROD; TRACK,OUTER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) L=306.9	8-94459-478-2	02	1	9804-0012	●	●	●	●
110	06.870 ROD; TRACK,OUTER EXC. 4X2 HIGH RIDE SUSPENSION(7YC) L=306.9	8-94459-478-2	02	1	0101-	●		●	●
110	06.870 ROD; TRACK,OUTER L=306.9	8-94459-478-2	02	1	0101-		●
110	06.870 ROD; TRACK,OUTER 6VD1 ENG(RLV) L=262	8-94459-493-2	02	1	9804-0012	●		●	●
110	06.870 ROD; TRACK,OUTER L=262	8-94459-493-2	02	1	9804-0012					●	●	●	●
110	06.870 ROD; TRACK,OUTER 4X2 HIGH RIDE SUSPENSION(7YC) L=262	8-94459-493-2	02	1	0101-	●		●	●
110	06.870 ROD; TRACK,OUTER L=262	8-94459-493-2	02	1	0101-					●	●	●	●
111	06.870 ROD; TRACK,CENTER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-94389-209-2	01	1	9804-0012	●	●	●	●
111	06.870 ROD; TRACK,CENTER EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),4X2 HIGH RIDE SUSPENSION(7YC)	8-94389-209-2	01	1	0101-0203	●		●	●
111	06.870 ROD; TRACK,CENTER	8-94389-209-2	01	1	0101-0203		●
111	06.870 ROD; TRACK,CENTER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-94459-474-2	01	1	9804-0012	●		●	●
111	06.870 ROD; TRACK,CENTER UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. 4X2 HIGH RIDE SUSPENSION(7YC)	8-94459-474-2	01	1	0101-0203	●		●	●
111	06.870 ROD; TRACK,CENTER EXC. 4X2 HIGH RIDE SUSPENSION(7YC)	8-97316-966-1	01	1	0204-	●		●	●
111	06.870 ROD; TRACK,CENTER	8-97316-966-1	01	1	0204-		●
111	06.870 ROD; TRACK,CENTER 6VD1 ENG(RLV)	8-94389-221-2	01	1	9804-9909	●		●	●
111	06.870 ROD; TRACK,CENTER	8-94389-221-2	01	1	9804-9909					●	●
111	06.870 ROD; TRACK,CENTER EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94389-221-2	01	1	9804-9909							●	●
111	06.870 ROD; TRACK,CENTER 6VD1 ENG(RLV)	8-94389-221-2	01	1	9910-0012	●		●	●
111	06.870 ROD; TRACK,CENTER EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94389-221-2	01	1	9910-0012					●		●	●
111	06.870 ROD; TRACK,CENTER	8-94389-221-2	01	1	9910-0012						●
111	06.870 ROD; TRACK,CENTER 4X2 HIGH RIDE SUSPENSION(7YC)	8-94389-221-2	01	1	0101-0203	●		●	●
111	06.870 ROD; TRACK,CENTER EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94389-221-2	01	1	0101-0203					●		●	●
111	06.870 ROD; TRACK,CENTER	8-94389-221-2	01	1	0101-0203						●
111	06.870 ROD; TRACK,CENTER 4X2 HIGH RIDE SUSPENSION(7YC)	8-97316-968-1	01	1	0204-	●		●	●
111	06.870 ROD; TRACK,CENTER	8-97316-968-1	01	1	0204-					●	●	●	●
111	06.870 ROD; TRACK,CENTER UNITED KINGDOM EQUIPMENT(EK3)	8-94459-489-2	01	1	9804-9909							●	●
111	06.870 ROD; TRACK,CENTER UNITED KINGDOM EQUIPMENT(EK3)	8-94459-489-2	01	1	9910-0203					●		●	●
115	06.896 NUT; RELAY LEVER BRKT 06.509 M10 FLANGE	8-94313-797-0	04	1	9804-	●	●	●	●	●	●	●	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER 06.870 OD=2.8 L=20	9-08113-020-0	01	1	9804-9808	●	●	●	●	●	●	●	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER OD=2.7 L=15	8-97171-452-0	01	1	9809-	●	●	●	●	●	●	●	●
117	06.233 NUT; DRAG LINK M12 SLOTTED	9-99117-512-0	01	1	9804-	●	●	●	●	●	●	●	●
120	06.897 BOLT; RELAY LEVER STOPPER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 06.861 L=35	9-09802-280-0	02	1	9804-0012	●	●	●	●
120	06.897 BOLT; RELAY LEVER STOPPER EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 06.861 L=35	9-09802-280-0	02	1	0101-	●		●	●
120	06.897 BOLT; RELAY LEVER STOPPER 06.861 L=35	9-09802-280-0	02	1	0101-		●
120	06.897 BOLT; RELAY LEVER STOPPER 6VD1 ENG(RLV) L=57	8-94403-347-1	02	1	9804-0012	●		●	●
120	06.897 BOLT; RELAY LEVER STOPPER L=57	8-94403-347-1	02	1	9804-0012					●	●	●	●
120	06.897 BOLT; RELAY LEVER STOPPER 4X2 HIGH RIDE SUSPENSION(7YC) L=57	8-94403-347-1	02	1	0101-	●		●	●
120	06.897 BOLT; RELAY LEVER STOPPER L=57	8-94403-347-1	02	1	0101-					●	●	●	●
122	06.896 NUT; RELAY LEVER STOPPER 06.822 M10	9-09111-410-0	02	1	9804-	●	●	●	●	●	●	●	●
124	06.859 LEVER; RELAY,STRG LINKAGE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF)	8-94440-893-3	01	1	9804-0012	●	●	●	●
124	06.859 LEVER; RELAY,STRG LINKAGE EXC. 4X2 HIGH RIDE SUSPENSION(7YC)	8-94440-893-3	01	1	0101-	●		●	●
124	06.859 LEVER; RELAY,STRG LINKAGE	8-94440-893-3	01	1	0101-		●
124	06.859 LEVER; RELAY,STRG LINKAGE 6VD1 ENG(RLV)	8-94404-000-6	01	1	9804-0012	●		●	●
124	06.859 LEVER; RELAY,STRG LINKAGE	8-94404-000-6	01	1	9804-0012					●	●	●	●
124	06.859 LEVER; RELAY,STRG LINKAGE 4X2 HIGH RIDE SUSPENSION(7YC)	8-94404-000-6	01	1	0101-	●		●	●
124	06.859 LEVER; RELAY,STRG LINKAGE	8-94404-000-6	01	1	0101-					●	●	●	●
125	06.865 DAMPER; STEERING EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-97161-106-1	01	1	9804-	●	●	●	●	●	●	●	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-94241-456-0	01	1	9804-	●	●	●	●	●	●	●	●
127	06.865 NUT; STRG DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 05.511 M10	9-09116-510-0	02	1	9804-	●	●	●	●	●	●	●	●
128	06.865 PIN; SPLIT,STRG DAMPER EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 00.793 OD=1.8 L=15	9-08112-015-0	02	1	9804-	●	●	●	●	●	●	●	●

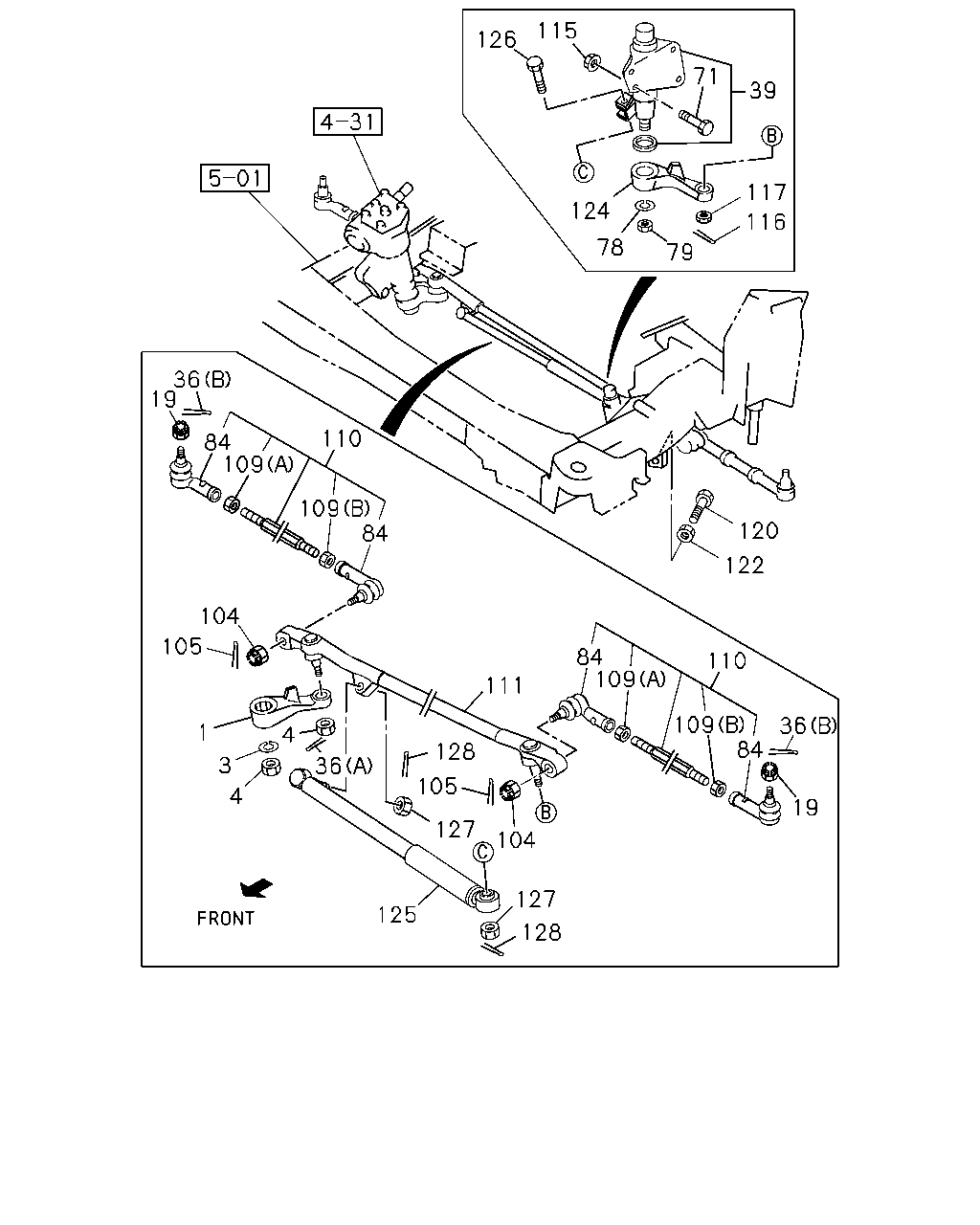

115 71 39 124 78 117 116 79 36 19 110 84 109 120 122 109 84 104 110 105 84 109 36 109 84 1 3 4 4 111 105 36 19 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.859 ARM; PITMAN,STRG 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF)	8-94440-892-3	01	1	9804-0012	●	●	●	●
1	06.859 ARM; PITMAN,STRG EXC. 4X2 HIGH RIDE SUSPENSION(7YC)	8-94440-892-3	01	1	0101-0105	●		●	●
1	06.859 ARM; PITMAN,STRG	8-94440-892-3	01	1	0101-0105		●
1	06.859 ARM; PITMAN,STRG EXC. 4X2 HIGH RIDE SUSPENSION(7YC)	8-97315-931-0	01	1	0106-	●		●	●
1	06.859 ARM; PITMAN,STRG	8-97315-931-0	01	1	0106-		●
1	06.859 ARM; PITMAN,STRG 6VD1 ENG(RLV)	8-97026-252-0	01	1	9804-0012	●		●	●
1	06.859 ARM; PITMAN,STRG	8-97026-252-0	01	1	9804-0012					●	●	●	●
1	06.859 ARM; PITMAN,STRG 4X2 HIGH RIDE SUSPENSION(7YC)	8-97026-252-0	01	1	0101-0105	●		●	●
1	06.859 ARM; PITMAN,STRG	8-97026-252-0	01	1	0101-0105					●	●	●	●
1	06.859 ARM; PITMAN,STRG 4X2 HIGH RIDE SUSPENSION(7YC)	8-97315-932-0	01	1	0106-	●		●	●
1	06.859 ARM; PITMAN,STRG	8-97315-932-0	01	1	0106-					●	●	●	●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	9-09150-522-0	01	1	9804-	●	●	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM 06.865 M14	8-94465-411-0	01	1	9804-	●	●	●	●	●	●	●	●
4	06.861 NUT; PITMAN ARM 08.915 M22	9-09111-522-0	01	1	9804-	●	●	●	●	●	●	●	●
19	06.865 NUT; PITMAN ARM,STOPPER M14	8-94465-411-0	02	1	9804-	●	●	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 06.865 (A) OD=2.8 L=25	9-08113-025-0	01	1	9804-9808	●	●	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 06.865 (A) OD=2.7 L=17	8-97171-453-0	01	1	9809-	●	●	●	●	●	●	●	●
36	06.881 PIN; SPLIT,DRAG LINK 06.865 (B) OD=2.8 L=25	9-08113-025-0	02	1	9804-	●	●	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-97106-663-0	01	1	9804-0108	●	●	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE EXC. UNITED KINGDOM EQUIPMENT(EK3), POWER STEERING<N40>,KENYA EQUIPMENT(PT7),AUSTRALIAN EQUIPMENT(RR3)	8-97106-663-0	01	1	0109-	●	●	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW) ,FRT&RR 6.5-14-8 5JX14(9NY),FRT 6.5-15-6 RR 6.5-15-8 5.5KX15(9PA),FRT& RR 6.50-15-8 5.5KX15 STYLED WHL(9RE) POWER STEERING<N40> EXC. UNITED KINGDOM EQUIPMENT(EK3), KENYA EQUIPMENT(PT7),AUSTRALIAN EQUIPMENT(RR3)	8-97106-663-0	01	1	0109-	●	●	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE KENYA EQUIPMENT(PT7)	8-97106-663-0	01	1	0109-			●				●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-97039-325-1	01	1	9804-0108	●		●	●	●		●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE FRT 185R14-6 5.5JJ-20 RR 185R14-8 5 .5JJ-20(ANL),FRT&RR 195R14-8 5.5JJ-20 MICHELIN(ANN),FRT&RR 195R14-8 5. 5JJ-20 P RANGE STYLED(ANQ),FRT&RR 205SR16 6JJX16 REINF(AUZ),FRT&RR 205 /80R16 104T 6JJX16 ALUMI WHL(BRW), FRT&RR 205SR16 6JJX16 ALUMI WHL(BRZ) ,FRT&RR 205R16 6JJX16 STEEL WHL(BUP),FRT&RR 185R14-8 5.5JJX14(9PE),FRT &RR 215R15-6 5.5KX15 STYLED WHL(9RF) POWER STEERING<N40> EXC. KENYA EQUIPMENT(PT7)	8-97039-325-1	01	1	0109-0109	●	●	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-97039-325-1	01	1	0109-0109	●		●	●	●		●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE FRT 185R14-6 5.5JJ-20 RR 185R14-8 5 .5JJ-20(ANL),FRT&RR 195R14-8 5.5JJ-20 MICHELIN(ANN),FRT&RR 195R14-8 5. 5JJ-20 P RANGE STYLED(ANQ),FRT&RR 205SR16 6JJX16 REINF(AUZ),FRT&RR 205 SR16 6JJX16 ALUMI WHL(BRZ),FRT&RR 205R16 6JJX16 STEEL WHL(BUP), FRT&RR205/80R16 6JJX16 MICHELIN STYLED(BXZ),FRT&RR 205/80R16 6JJX16 MICHELINALUMI(BYA),FRT&RR 205R16 104S 6JJX 16 STYLED WHL LOW-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR(BYP),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT&RR 185R14-8 5.5JJX14(9PE) POWER STEERING<N40> EXC. KENYA EQUIPMENT(PT7)	8-97039-325-1	01	1	0110-0208	●	●	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-97039-325-1	01	1	0110-0208	●		●	●	●		●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE FRT 185R14-6 5.5JJ-20 RR 185R14-8 5 .5JJ-20(ANL),FRT&RR 195R14-8 5.5JJ-20 MICHELIN(ANN),FRT&RR 195R14-8 5. 5JJ-20 P RANGE STYLED(ANQ),FRT&RR 205SR16 6JJX16 ALUMI WHL(BRZ),FRT&RR 205R16 6JJX16 STEEL WHL(BUP),FRT&R R 205/80R16 6JJX16 MICHELIN STYLED(BXZ),FRT&RR 205/80R16 6JJX16 MICHEL IN ALUMI(BYA),FRT&RR 205R16 104S 6JJX16 STYLED WHL LOW-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR (BYP),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT&RR 185R14-8 5.5JJX14 (9PE) POWER STEERING<N40> EXC. KENYA EQUIPMENT(PT7)	8-97039-325-1	01	1	0209-	●	●	●	●	●	●	●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-97039-325-1	01	1	0209-	●		●	●	●		●	●
71	06.896 BOLT; RELAY LEVER BRKT 06.509 M10X92 FLANGE	8-94313-798-1	04	1	9804-	●	●	●	●	●	●	●	●
78	06.897 WASHER; LINK,RELAY LEVER 07.247 ID=16.2	9-09150-816-0	01	1	9804-	●	●	●	●	●	●	●	●
79	06.897 NUT; RELAY LEVER 04.681 M16	9-99111-516-0	01	1	9804-	●	●	●	●	●	●	●	●
84	06.874 ROD END; TRACK ROD RH THREAD	8-97020-953-1	02	1	9804-	●	●	●	●	●	●	●	●
84	06.874 ROD END; TRACK ROD LH THREAD	8-97020-954-2	02	1	9804-	●	●	●	●	●	●	●	●
104	06.233 NUT; ROD END 06.865 M14	8-94465-411-0	02	1	9804-	●	●	●	●	●	●	●	●
105	06.865 PIN; SPLIT,ROD END OD=2.8 L=25	9-08113-025-0	02	1	9804-9808	●	●	●	●	●	●	●	●
105	06.865 PIN; SPLIT,ROD END OD=2.7 L=17	8-97171-453-0	02	1	9809-	●	●	●	●	●	●	●	●
109	06.897 NUT; ROD (A) M14 LH THREAD	5-09400-010-0	02	1	9804-	●	●	●	●	●	●	●	●
109	06.897 NUT; ROD 06.232 (B) M14	9-99110-414-0	02	1	9804-	●	●	●	●	●	●	●	●
110	06.870 ROD; TRACK,OUTER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) L=306.9	8-94459-478-2	02	1	9804-0012	●	●	●	●
110	06.870 ROD; TRACK,OUTER EXC. 4X2 HIGH RIDE SUSPENSION(7YC) L=306.9	8-94459-478-2	02	1	0101-	●		●	●
110	06.870 ROD; TRACK,OUTER L=306.9	8-94459-478-2	02	1	0101-		●
110	06.870 ROD; TRACK,OUTER 6VD1 ENG(RLV) L=262	8-94459-493-2	02	1	9804-0012	●		●	●
110	06.870 ROD; TRACK,OUTER L=262	8-94459-493-2	02	1	9804-0012					●	●	●	●
110	06.870 ROD; TRACK,OUTER 4X2 HIGH RIDE SUSPENSION(7YC) L=262	8-94459-493-2	02	1	0101-	●		●	●
110	06.870 ROD; TRACK,OUTER L=262	8-94459-493-2	02	1	0101-					●	●	●	●
111	06.870 ROD; TRACK,CENTER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-94389-209-2	01	1	9804-0012	●	●	●	●
111	06.870 ROD; TRACK,CENTER EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3),4X2 HIGH RIDE SUSPENSION(7YC)	8-94389-209-2	01	1	0101-0203	●		●	●
111	06.870 ROD; TRACK,CENTER	8-94389-209-2	01	1	0101-0203		●
111	06.870 ROD; TRACK,CENTER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3)	8-94459-474-2	01	1	9804-0012	●		●	●
111	06.870 ROD; TRACK,CENTER UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) EXC. 4X2 HIGH RIDE SUSPENSION(7YC)	8-94459-474-2	01	1	0101-0203	●		●	●
111	06.870 ROD; TRACK,CENTER EXC. 4X2 HIGH RIDE SUSPENSION(7YC)	8-97316-966-1	01	1	0204-	●		●	●
111	06.870 ROD; TRACK,CENTER	8-97316-966-1	01	1	0204-		●
111	06.870 ROD; TRACK,CENTER 6VD1 ENG(RLV)	8-94389-221-2	01	1	9804-9909	●		●	●
111	06.870 ROD; TRACK,CENTER	8-94389-221-2	01	1	9804-9909					●	●
111	06.870 ROD; TRACK,CENTER EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94389-221-2	01	1	9804-9909							●	●
111	06.870 ROD; TRACK,CENTER 6VD1 ENG(RLV)	8-94389-221-2	01	1	9910-0012	●		●	●
111	06.870 ROD; TRACK,CENTER EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94389-221-2	01	1	9910-0012					●		●	●
111	06.870 ROD; TRACK,CENTER	8-94389-221-2	01	1	9910-0012						●
111	06.870 ROD; TRACK,CENTER 4X2 HIGH RIDE SUSPENSION(7YC)	8-94389-221-2	01	1	0101-0203	●		●	●
111	06.870 ROD; TRACK,CENTER EXC. UNITED KINGDOM EQUIPMENT(EK3)	8-94389-221-2	01	1	0101-0203					●		●	●
111	06.870 ROD; TRACK,CENTER	8-94389-221-2	01	1	0101-0203						●
111	06.870 ROD; TRACK,CENTER 4X2 HIGH RIDE SUSPENSION(7YC)	8-97316-968-1	01	1	0204-	●		●	●
111	06.870 ROD; TRACK,CENTER	8-97316-968-1	01	1	0204-					●	●	●	●
111	06.870 ROD; TRACK,CENTER UNITED KINGDOM EQUIPMENT(EK3)	8-94459-489-2	01	1	9804-9909							●	●
111	06.870 ROD; TRACK,CENTER UNITED KINGDOM EQUIPMENT(EK3)	8-94459-489-2	01	1	9910-0203					●		●	●
115	06.896 NUT; RELAY LEVER BRKT 06.509 M10 FLANGE	8-94313-797-0	04	1	9804-	●	●	●	●	●	●	●	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER 06.870 OD=2.8 L=20	9-08113-020-0	01	1	9804-9808	●	●	●	●	●	●	●	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER OD=2.7 L=15	8-97171-452-0	01	1	9809-	●	●	●	●	●	●	●	●
117	06.233 NUT; DRAG LINK M12 SLOTTED	9-99117-512-0	01	1	9804-	●	●	●	●	●	●	●	●
120	06.897 BOLT; RELAY LEVER STOPPER 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 06.861 L=35	9-09802-280-0	02	1	9804-0012	●	●	●	●
120	06.897 BOLT; RELAY LEVER STOPPER EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 06.861 L=35	9-09802-280-0	02	1	0101-	●		●	●
120	06.897 BOLT; RELAY LEVER STOPPER 06.861 L=35	9-09802-280-0	02	1	0101-		●
120	06.897 BOLT; RELAY LEVER STOPPER 6VD1 ENG(RLV) L=57	8-94403-347-1	02	1	9804-0012	●		●	●
120	06.897 BOLT; RELAY LEVER STOPPER L=57	8-94403-347-1	02	1	9804-0012					●	●	●	●
120	06.897 BOLT; RELAY LEVER STOPPER 4X2 HIGH RIDE SUSPENSION(7YC) L=57	8-94403-347-1	02	1	0101-	●		●	●
120	06.897 BOLT; RELAY LEVER STOPPER L=57	8-94403-347-1	02	1	0101-					●	●	●	●
122	06.896 NUT; RELAY LEVER STOPPER 06.822 M10	9-09111-410-0	02	1	9804-	●	●	●	●	●	●	●	●
124	06.859 LEVER; RELAY,STRG LINKAGE 22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF)	8-94440-893-3	01	1	9804-0012	●	●	●	●
124	06.859 LEVER; RELAY,STRG LINKAGE EXC. 4X2 HIGH RIDE SUSPENSION(7YC)	8-94440-893-3	01	1	0101-	●		●	●
124	06.859 LEVER; RELAY,STRG LINKAGE	8-94440-893-3	01	1	0101-		●
124	06.859 LEVER; RELAY,STRG LINKAGE 6VD1 ENG(RLV)	8-94404-000-6	01	1	9804-0012	●		●	●
124	06.859 LEVER; RELAY,STRG LINKAGE	8-94404-000-6	01	1	9804-0012					●	●	●	●
124	06.859 LEVER; RELAY,STRG LINKAGE 4X2 HIGH RIDE SUSPENSION(7YC)	8-94404-000-6	01	1	0101-	●		●	●
124	06.859 LEVER; RELAY,STRG LINKAGE	8-94404-000-6	01	1	0101-					●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
