◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-12 - FRONT DRIVE SHAFT ▶
4-12 — FRONT DRIVE SHAFT (#45687) — 717 parça

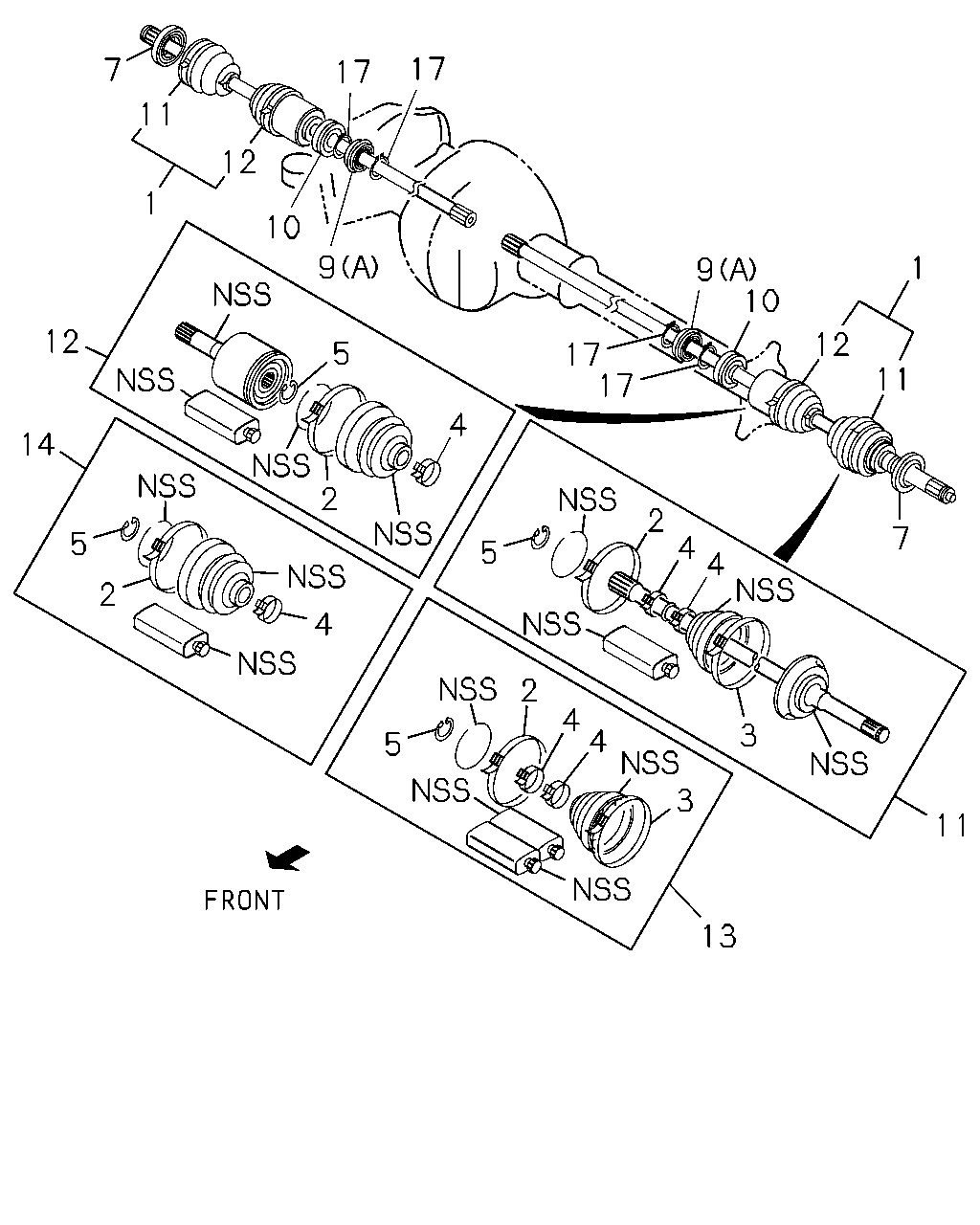

çizim 18708
17 7 11 17 12 1 10 9 1 9 10 17 17 12 12 5 11 4 14 2 2 4 4 7 5 5 4 2 2 4 4 3 3 5 11 13
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 06.055 SHAFT ASM; FRT DRIVE
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94453-694-3 01 1 9804-9806 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94453-694-3 01 1 9804-9806 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94453-694-3 01 1 9807-9909 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94453-694-3 01 1 9807-9909 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94453-694-3 01 1 9910-0109 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX) 		8-94453-694-3 01 1 9910-0109 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) EXC. SHIFT ON THE FLY(7EX) 		8-94453-694-4 01 1 0110- ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX) 		8-94453-694-4 01 1 0110- ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94453-693-3 01 1 9804-9806 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94453-693-3 01 1 9804-9806 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94453-693-3 01 1 9807-9909 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94453-693-3 01 1 9807-9909 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94453-693-3 01 1 9910-0109 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX) 		8-94453-693-3 01 1 9910-0109 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) EXC. SHIFT ON THE FLY(7EX) 		8-94453-693-4 01 1 0110- ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX) 		8-94453-693-4 01 1 0110- ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94453-696-1 01 1 9804-9806 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> 		8-94453-696-1 01 1 9804-9806 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94453-696-1 01 1 9807-9909 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF) 		8-94453-696-1 01 1 9807-9909 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94453-696-2 01 1 9910- ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94453-696-2 01 1 9910- ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94453-695-1 01 1 9804-9806 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> 		8-94453-695-1 01 1 9804-9806 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94453-695-1 01 1 9807-9909 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF) 		8-94453-695-1 01 1 9807-9909 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94453-695-2 01 1 9910- ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94453-695-2 01 1 9910- ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94423-038-1 01 1 9804-9806 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-94423-038-1 01 1 9804-9806 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94423-038-1 01 1 9807-0012 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94423-038-1 01 1 0101-0109 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,CHARGE AIR COOLER<6PL>,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94423-038-1 01 1 0110-0212 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,CHARGE AIR COOLER<6PL>,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-97361-344-0 01 1 0301- ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94423-037-1 01 1 9804-9806 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-94423-037-1 01 1 9804-9806 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94423-037-1 01 1 9807-0012 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94423-037-1 01 1 0101-0109 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,CHARGE AIR COOLER<6PL>,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94423-037-1 01 1 0110-0212 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,CHARGE AIR COOLER<6PL>,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-97361-343-0 01 1 0301- ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97139-096-0 01 1 9804-9806 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97139-096-0 01 1 9804-9806 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97139-096-0 01 1 9807-9909 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97139-096-0 01 1 9807-9909 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97139-096-0 01 1 9910-0109 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97139-096-0 01 1 9910-0109 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JG2 ENG(RJC) 		8-97139-096-0 01 1 9910-0109 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97139-096-0 01 1 0110-0212 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JG2 ENG(RJC) 		8-97139-096-0 01 1 0110-0212 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97139-096-0 01 1 0110-0212 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX) 		8-97139-096-0 01 1 0110-0212 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97361-346-0 01 1 0301- ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JG2 ENG(RJC) 		8-97361-346-0 01 1 0301- ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97361-346-0 01 1 0301- ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX) 		8-97361-346-0 01 1 0301- ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97139-095-0 01 1 9804-9806 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97139-095-0 01 1 9804-9806 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97139-095-0 01 1 9807-9909 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97139-095-0 01 1 9807-9909 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97139-095-0 01 1 9910-0109 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97139-095-0 01 1 9910-0109 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JG2 ENG(RJC) 		8-97139-095-0 01 1 9910-0109 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97139-095-0 01 1 0110-0212 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JG2 ENG(RJC) 		8-97139-095-0 01 1 0110-0212 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97139-095-0 01 1 0110-0212 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX) 		8-97139-095-0 01 1 0110-0212 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97361-345-0 01 1 0301- ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JG2 ENG(RJC) 		8-97361-345-0 01 1 0301- ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97361-345-0 01 1 0301- ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX) 		8-97361-345-0 01 1 0301- ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> SHIFT ON THE FLY(7EX) 		8-94453-693-3 02 1 9910-0109 ● ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> SHIFT ON THE FLY(7EX) 		8-94453-693-4 02 1 0110- ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97139-095-0 02 1 9910-0109 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) 		8-97139-095-0 02 1 0110-0212 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97139-095-0 02 1 0110-0212 ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) 		8-97361-345-0 02 1 0301- ● ● ●
1 06.055 SHAFT ASM; FRT DRIVE
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97361-345-0 02 1 0301- ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94313-085-0 02 1 9804-9806 ● ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-085-0 02 1 9804-9806 ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94313-085-0 02 1 9807-0109 ● ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-085-0 02 1 9807-0109 ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) EXC. SHIFT ON THE FLY(7EX) 		8-94313-085-0 02 1 0110- ● ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-085-0 02 1 0110- ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94312-683-0 02 1 9804-9806 ● ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> 		8-94312-683-0 02 1 9804-9806 ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94312-683-0 02 1 9807-9909 ● ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF) 		8-94312-683-0 02 1 9807-9909 ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-683-0 02 1 9910- ● ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-683-0 02 1 9910- ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94312-682-0 02 1 9804-9806 ● ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-94312-682-0 02 1 9804-9806 ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94312-682-0 02 1 9807-0012 ● ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-682-0 02 1 0101-0109 ● ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,CHARGE AIR COOLER<6PL>,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-682-0 02 1 0110- ● ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-401-0 02 1 9804-9806 ● ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-401-0 02 1 9804-9806 ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-401-0 02 1 9807-9909 ● ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-401-0 02 1 9807-9909 ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
4JG2 ENG(RJC) 		8-97131-401-0 02 1 9910-0109 ● ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-401-0 02 1 9910-0109 ● ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-401-0 02 1 9910-0109 ● ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97131-401-0 02 1 0110- ● ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
4JG2 ENG(RJC) 		8-97131-401-0 02 1 0110- ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-401-0 02 1 0110- ● ● ●
2 06.061 BAND; "A",FRT DRIVE SHAFT
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97131-401-0 02 1 0110- ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94313-083-0 02 1 9804-9806 ● ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-083-0 02 1 9804-9806 ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94313-083-0 02 1 9807-0109 ● ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-083-0 02 1 9807-0109 ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) EXC. SHIFT ON THE FLY(7EX) 		8-94313-083-0 02 1 0110- ● ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-083-0 02 1 0110- ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94462-594-0 02 1 9804-9806 ● ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> 		8-94462-594-0 02 1 9804-9806 ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94462-594-0 02 1 9807-9909 ● ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF) 		8-94462-594-0 02 1 9807-9909 ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94462-594-0 02 1 9910- ● ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94462-594-0 02 1 9910- ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94462-593-0 02 1 9804-9806 ● ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-94462-593-0 02 1 9804-9806 ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94462-593-0 02 1 9807-0012 ● ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94462-593-0 02 1 0101-0109 ● ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,CHARGE AIR COOLER<6PL>,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94462-593-0 02 1 0110- ● ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-94312-929-0 02 1 9804-9806 ● ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-94312-929-0 02 1 9804-9806 ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-94312-929-0 02 1 9807-9909 ● ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-94312-929-0 02 1 9807-9909 ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
4JG2 ENG(RJC) 		8-94312-929-0 02 1 9910-0109 ● ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-94312-929-0 02 1 9910-0109 ● ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-94312-929-0 02 1 9910-0109 ● ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-94312-929-0 02 1 0110- ● ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
4JG2 ENG(RJC) 		8-94312-929-0 02 1 0110- ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-94312-929-0 02 1 0110- ● ● ●
3 06.061 BAND; "B",FRT DRIVE SHAFT
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-94312-929-0 02 1 0110- ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94310-658-0 04 1 9804-9806 ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94310-658-0 04 1 9804-9806 ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94310-658-0 04 1 9807-0109 ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94310-658-0 04 1 9807-0109 ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) EXC. SHIFT ON THE FLY(7EX) 		8-94310-658-0 04 1 0110- ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94310-658-0 04 1 0110- ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94462-598-0 04 1 9804-9806 ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> 		8-94462-598-0 04 1 9804-9806 ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94462-598-0 04 1 9807-9909 ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF) 		8-94462-598-0 04 1 9807-9909 ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94462-598-0 04 1 9910- ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94462-598-0 04 1 9910- ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94462-597-0 04 1 9804-9806 ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-94462-597-0 04 1 9804-9806 ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94462-597-0 04 1 9807-0012 ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94462-597-0 04 1 0101-0109 ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,CHARGE AIR COOLER<6PL>,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94462-597-0 04 1 0110- ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> OUTSIDE 		8-94312-931-0 02 1 9804-9806 ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> OUTSIDE 		8-94312-931-0 02 1 9804-9806 ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> OUTSIDE 		8-94312-931-0 02 1 9807-9909 ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> OUTSIDE 		8-94312-931-0 02 1 9807-9909 ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JG2 ENG(RJC) OUTSIDE 		8-94312-931-0 02 1 9910-0109 ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> OUTSIDE 		8-94312-931-0 02 1 9910-0109 ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> OUTSIDE 		8-94312-931-0 02 1 9910-0109 ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) OUTSIDE 		8-94312-931-0 02 1 0110- ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JG2 ENG(RJC) OUTSIDE 		8-94312-931-0 02 1 0110- ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> OUTSIDE 		8-94312-931-0 02 1 0110- ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> OUTSIDE 		8-94312-931-0 02 1 0110- ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> INSIDE 		8-97138-938-0 02 1 9804-9806 ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> INSIDE 		8-97138-938-0 02 1 9804-9806 ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> INSIDE 		8-97138-938-0 02 1 9807-9909 ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> INSIDE 		8-97138-938-0 02 1 9807-9909 ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JG2 ENG(RJC) INSIDE 		8-97138-938-0 02 1 9910-0109 ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> INSIDE 		8-97138-938-0 02 1 9910-0109 ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> INSIDE 		8-97138-938-0 02 1 9910-0109 ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) INSIDE 		8-97138-938-0 02 1 0110- ● ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JG2 ENG(RJC) INSIDE 		8-97138-938-0 02 1 0110- ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> INSIDE 		8-97138-938-0 02 1 0110- ● ● ●
4 06.061 BAND; "C",FRT DRIVE SHAFT
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> INSIDE 		8-97138-938-0 02 1 0110- ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) ID=26.9 		9-09180-029-0 02 1 9804-9806 ● ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> ID=26.9 		9-09180-029-0 02 1 9804-9806 ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) ID=26.9 		9-09180-029-0 02 1 9807-0109 ● ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> ID=26.9 		9-09180-029-0 02 1 9807-0109 ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) EXC. SHIFT ON THE FLY(7EX) ID=26.9 		9-09180-029-0 02 1 0110- ● ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> ID=26.9 		9-09180-029-0 02 1 0110- ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-402-0 02 1 9804-9806 ● ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-402-0 02 1 9804-9806 ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-402-0 02 1 9807-9909 ● ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-402-0 02 1 9807-9909 ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
4JG2 ENG(RJC) 		8-97131-402-0 02 1 9910-0109 ● ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-402-0 02 1 9910-0109 ● ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-402-0 02 1 9910-0109 ● ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97131-402-0 02 1 0110- ● ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
4JG2 ENG(RJC) 		8-97131-402-0 02 1 0110- ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-402-0 02 1 0110- ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97131-402-0 02 1 0110- ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) ID=24.2 		9-09180-026-0 02 1 9804-0109 ● ● ● ●
5 06.061 RING; RET,FRT DRIVE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>,M/T LOWGEARED(6WF) ID=24.2 		9-09180-026-0 02 1 0110- ● ● ● ●
7 06.061 SEAL; DUST,DRIVE SHAFT 8-97123-692-0 02 1 9804- ● ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (A) 		8-94407-724-0 02 1 9804-9909 ● ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
4JB1 ENG(RLF),6VD1 ENG(RLV) (A) 		8-94407-724-0 02 1 9804-9909 ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF),6VD1 ENG(RLV) (A) 		8-94407-724-0 02 1 9910-0109 ● ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (A) 		8-94407-724-0 02 1 9910-0109 ● ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) (A) 		8-94407-724-0 02 1 0110- ● ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (A) 		8-94407-724-0 02 1 0110- ● ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (A) 		8-94407-724-0 02 1 0110- ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 06.061 (A) NSK 		5-09800-045-1 02 1 9804-0109 ● ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>,M/T LOWGEARED(6WF) 06.061 (A) NSK 		5-09800-045-1 02 1 0110- ● ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
SHIFT ON THE FLY(7EX) (B) 		8-97101-878-0 01 1 9910- ● ● ●
10 06.061 SEAL; OIL,AXLE SHAFT,INNER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 		8-94366-610-0 02 1 9804-9909 ● ● ● ●
10 06.061 SEAL; OIL,AXLE SHAFT,INNER
4JB1 ENG(RLF),6VD1 ENG(RLV) 		8-94366-610-0 02 1 9804-9909 ● ● ●
10 06.061 SEAL; OIL,AXLE SHAFT,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF),6VD1 ENG(RLV) 		8-94366-610-0 02 1 9910-0109 ● ● ● ●
10 06.061 SEAL; OIL,AXLE SHAFT,INNER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 		8-94366-610-0 02 1 9910-0109 ● ● ● ●
10 06.061 SEAL; OIL,AXLE SHAFT,INNER
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) 		8-94366-610-0 02 1 0110- ● ● ● ●
10 06.061 SEAL; OIL,AXLE SHAFT,INNER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 		8-94366-610-0 02 1 0110- ● ● ● ●
10 06.061 SEAL; OIL,AXLE SHAFT,INNER
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-94366-610-0 02 1 0110- ● ● ●
10 06.061 SEAL; OIL,AXLE SHAFT,INNER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 		8-94366-611-0 02 1 9804-0109 ● ● ● ●
10 06.061 SEAL; OIL,AXLE SHAFT,INNER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>,M/T LOWGEARED(6WF) 		8-94366-611-0 02 1 0110- ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94313-098-1 01 1 9804-9806 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-098-1 01 1 9804-9806 ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94313-098-1 01 1 9807-9909 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-098-1 01 1 9807-9909 ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94313-098-1 01 1 9910-0109 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX) 		8-94313-098-1 01 1 9910-0109 ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) EXC. SHIFT ON THE FLY(7EX) 		8-94313-098-1 01 1 0110-0301 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX) 		8-94313-098-1 01 1 0110-0301 ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94313-097-1 01 1 9804-9806 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-097-1 01 1 9804-9806 ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94313-097-1 01 1 9807-9909 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-097-1 01 1 9807-9909 ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94313-097-1 01 1 9910-0109 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX) 		8-94313-097-1 01 1 9910-0109 ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) EXC. SHIFT ON THE FLY(7EX) 		8-94313-097-1 01 1 0110-0301 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX) 		8-94313-097-1 01 1 0110-0301 ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94312-675-0 01 1 9804-9806 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> 		8-94312-675-0 01 1 9804-9806 ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94312-675-0 01 1 9807-9909 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF) 		8-94312-675-0 01 1 9807-9909 ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-675-0 01 1 9910-0301 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-675-0 01 1 9910-0301 ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94312-674-0 01 1 9804-9806 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> 		8-94312-674-0 01 1 9804-9806 ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94312-674-0 01 1 9807-9909 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF) 		8-94312-674-0 01 1 9807-9909 ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-674-0 01 1 9910-0301 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-674-0 01 1 9910-0301 ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-674-1 02 1 0302- ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-674-1 02 1 0302- ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94312-673-0 01 1 9804-9806 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-94312-673-0 01 1 9804-9806 ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94312-673-0 01 1 9807-0012 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-673-0 01 1 0101-0109 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,CHARGE AIR COOLER<6PL>,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-673-0 01 1 0110-0212 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94312-672-0 01 1 9804-9806 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-94312-672-0 01 1 9804-9806 ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94312-672-0 01 1 9807-0012 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-672-0 01 1 0101-0109 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,CHARGE AIR COOLER<6PL>,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-672-0 01 1 0110-0212 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,CHARGE AIR COOLER<6PL>,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-672-1 02 1 0301- ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-396-0 02 1 9804-9806 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-396-0 02 1 9804-9806 ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-396-0 02 1 9807-9909 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-396-0 02 1 9807-9909 ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JG2 ENG(RJC) 		8-97131-396-0 02 1 9910-0109 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-396-0 02 1 9910-0109 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-396-0 02 1 9910-0109 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97131-396-1 02 1 0110- ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JG2 ENG(RJC) 		8-97131-396-1 02 1 0110- ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97131-396-1 02 1 0110- ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97131-396-1 02 1 0110- ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> SHIFT ON THE FLY(7EX) 		8-94313-097-1 02 1 9910-0109 ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> SHIFT ON THE FLY(7EX) 		8-94313-097-1 02 1 0110-0301 ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) EXC. SHIFT ON THE FLY(7EX) 		8-94313-097-2 02 1 0302- ● ● ● ●
11 06.060 JOINT ASM; OUTSIDE,FRT DRIVE SHA
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-097-2 02 1 0302- ● ● ●
12 06.060 JOINT ASM
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94313-102-1 01 1 9804-9806 ● ● ● ●
12 06.060 JOINT ASM
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-102-1 01 1 9804-9806 ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94313-102-1 01 1 9807-9909 ● ● ● ●
12 06.060 JOINT ASM
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-102-1 01 1 9807-9909 ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94313-102-1 01 1 9910-0109 ● ● ● ●
12 06.060 JOINT ASM
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX) 		8-94313-102-1 01 1 9910-0109 ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) EXC. SHIFT ON THE FLY(7EX) 		8-94313-102-2 01 1 0110- ● ● ● ●
12 06.060 JOINT ASM
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX) 		8-94313-102-2 01 1 0110- ● ● ●
12 06.060 JOINT ASM
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94313-101-1 01 1 9804-9806 ● ● ● ●
12 06.060 JOINT ASM
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-101-1 01 1 9804-9806 ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94313-101-1 01 1 9807-9909 ● ● ● ●
12 06.060 JOINT ASM
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-101-1 01 1 9807-9909 ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94313-101-1 01 1 9910-0109 ● ● ● ●
12 06.060 JOINT ASM
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX) 		8-94313-101-1 01 1 9910-0109 ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) EXC. SHIFT ON THE FLY(7EX) 		8-94313-101-1 01 1 0110-0301 ● ● ● ●
12 06.060 JOINT ASM
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX) 		8-94313-101-1 01 1 0110-0301 ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) EXC. SHIFT ON THE FLY(7EX) 		8-97136-897-1 01 1 0302- ● ● ● ●
12 06.060 JOINT ASM
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> EXC. SHIFT ON THE FLY(7EX) 		8-97136-897-1 01 1 0302- ● ● ●
12 06.060 JOINT ASM
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94313-104-0 01 1 9804-9806 ● ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-104-0 01 1 9804-9806 ● ● ●
12 06.060 JOINT ASM
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94313-104-0 01 1 9807-9909 ● ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF) 		8-94313-104-0 01 1 9807-9909 ● ● ●
12 06.060 JOINT ASM
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94313-104-1 01 1 9910- ● ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94313-104-1 01 1 9910- ● ● ●
12 06.060 JOINT ASM
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94312-677-0 01 1 9804-9806 ● ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> 		8-94312-677-0 01 1 9804-9806 ● ● ●
12 06.060 JOINT ASM
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94312-677-0 01 1 9807-9909 ● ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF) 		8-94312-677-0 01 1 9807-9909 ● ● ●
12 06.060 JOINT ASM
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-677-1 01 1 9910- ● ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-677-1 01 1 9910- ● ● ●
12 06.060 JOINT ASM
4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94313-103-0 01 1 9804-9806 ● ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-103-0 01 1 9804-9806 ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94313-103-0 01 1 9807-0012 ● ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94313-103-0 01 1 0101-0109 ● ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,CHARGE AIR COOLER<6PL>,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94313-103-1 01 1 0110- ● ● ● ●
12 06.060 JOINT ASM
4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94312-676-0 01 1 9804-9806 ● ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-94312-676-0 01 1 9804-9806 ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94312-676-0 01 1 9807-0012 ● ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-676-0 01 1 0101-0109 ● ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,CHARGE AIR COOLER<6PL>,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-676-1 01 1 0110- ● ● ● ●
12 06.060 JOINT ASM
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-979-0 01 1 9804-9806 ● ● ● ●
12 06.060 JOINT ASM
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-979-0 01 1 9804-9806 ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-979-0 01 1 9807-9909 ● ● ● ●
12 06.060 JOINT ASM
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-979-0 01 1 9807-9909 ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97138-979-0 01 1 9910-0109 ● ● ● ●
12 06.060 JOINT ASM
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97138-979-0 01 1 9910-0109 ● ● ●
12 06.060 JOINT ASM
4JG2 ENG(RJC) 		8-97138-979-0 01 1 9910-0109 ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97138-979-0 01 1 0110-0212 ● ● ● ●
12 06.060 JOINT ASM
4JG2 ENG(RJC) 		8-97138-979-0 01 1 0110-0212 ● ● ●
12 06.060 JOINT ASM
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97138-979-0 01 1 0110-0212 ● ● ●
12 06.060 JOINT ASM
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX) 		8-97138-979-0 01 1 0110-0212 ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97201-315-1 01 1 0301- ● ● ● ●
12 06.060 JOINT ASM
4JG2 ENG(RJC) 		8-97201-315-1 01 1 0301- ● ● ●
12 06.060 JOINT ASM
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97201-315-1 01 1 0301- ● ● ●
12 06.060 JOINT ASM
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX) 		8-97201-315-1 01 1 0301- ● ● ●
12 06.060 JOINT ASM
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-978-0 01 1 9804-9806 ● ● ● ●
12 06.060 JOINT ASM
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-978-0 01 1 9804-9806 ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-978-0 01 1 9807-9909 ● ● ● ●
12 06.060 JOINT ASM
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-978-0 01 1 9807-9909 ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97138-978-0 01 1 9910-0109 ● ● ● ●
12 06.060 JOINT ASM
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97138-978-0 01 1 9910-0109 ● ● ●
12 06.060 JOINT ASM
4JG2 ENG(RJC) 		8-97138-978-0 01 1 9910-0109 ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97138-978-0 01 1 0110-0212 ● ● ● ●
12 06.060 JOINT ASM
4JG2 ENG(RJC) 		8-97138-978-0 01 1 0110-0212 ● ● ●
12 06.060 JOINT ASM
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97138-978-0 01 1 0110-0212 ● ● ●
12 06.060 JOINT ASM
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX) 		8-97138-978-0 01 1 0110-0212 ● ● ●
12 06.060 JOINT ASM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97201-316-1 01 1 0301- ● ● ● ●
12 06.060 JOINT ASM
4JG2 ENG(RJC) 		8-97201-316-1 01 1 0301- ● ● ●
12 06.060 JOINT ASM
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97201-316-1 01 1 0301- ● ● ●
12 06.060 JOINT ASM
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> EXC. SHIFT ON THE FLY(7EX) 		8-97201-316-1 01 1 0301- ● ● ●
12 06.060 JOINT ASM
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> SHIFT ON THE FLY(7EX) 		8-94313-101-1 02 1 9910-0109 ● ● ● ●
12 06.060 JOINT ASM
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> SHIFT ON THE FLY(7EX) 		8-94313-101-1 02 1 0110-0301 ● ● ●
12 06.060 JOINT ASM
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> SHIFT ON THE FLY(7EX) 		8-97136-897-1 02 1 0302- ● ● ●
12 06.060 JOINT ASM
4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-978-0 02 1 9910-0109 ● ● ●
12 06.060 JOINT ASM
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) 		8-97138-978-0 02 1 0110-0212 ● ● ●
12 06.060 JOINT ASM
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-978-0 02 1 0110-0212 ● ● ●
12 06.060 JOINT ASM
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) 		8-97201-316-1 02 1 0301- ● ● ●
12 06.060 JOINT ASM
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97201-316-1 02 1 0301- ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94313-106-0 02 1 9804-9806 ● ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-106-0 02 1 9804-9806 ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94313-106-0 02 1 9807-0109 ● ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-106-0 02 1 9807-0109 ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) EXC. SHIFT ON THE FLY(7EX) 		8-94313-106-1 02 1 0110- ● ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-106-1 02 1 0110- ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94312-679-0 02 1 9804-9806 ● ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> 		8-94312-679-0 02 1 9804-9806 ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94312-679-0 02 1 9807-9909 ● ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF) 		8-94312-679-0 02 1 9807-9909 ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-679-1 02 1 9910- ● ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-679-1 02 1 9910- ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94312-678-0 02 1 9804-9806 ● ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-94312-678-0 02 1 9804-9806 ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94312-678-0 02 1 9807-0012 ● ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-678-0 02 1 0101-0109 ● ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,CHARGE AIR COOLER<6PL>,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-678-1 02 1 0110- ● ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-981-0 02 1 9804-9806 ● ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-981-0 02 1 9804-9806 ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-981-0 02 1 9807-9909 ● ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-981-0 02 1 9807-9909 ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
4JG2 ENG(RJC) 		8-97138-981-0 02 1 9910-0109 ● ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-981-0 02 1 9910-0109 ● ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-981-0 02 1 9910-0109 ● ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97138-981-1 02 1 0110- ● ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
4JG2 ENG(RJC) 		8-97138-981-1 02 1 0110- ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-981-1 02 1 0110- ● ● ●
13 06.061 BOOT KIT; OUTSIDE,FRT DRIVE SHAF
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97138-981-1 02 1 0110- ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94313-081-0 02 1 9804-9806 ● ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-081-0 02 1 9804-9806 ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) 		8-94313-081-0 02 1 9807-0109 ● ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-081-0 02 1 9807-0109 ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> M/T LOW GEARED(6WF) EXC. SHIFT ON THE FLY(7EX) 		8-94313-081-1 02 1 0110- ● ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) FRONT AXLE URETHANE BOOTS<6HV> 		8-94313-081-1 02 1 0110- ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94312-681-0 02 1 9804-9806 ● ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> 		8-94312-681-0 02 1 9804-9806 ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 		8-94312-681-0 02 1 9807-9909 ● ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF) 		8-94312-681-0 02 1 9807-9909 ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JA1 ENG(RLE) FRONT AXLE URETHANE BOOTS<6HV> EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-681-1 02 1 9910- ● ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT) FRONT AXLE URETHANE BOOTS<6HV> EXC. M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-681-1 02 1 9910- ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94312-680-0 02 1 9804-9806 ● ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-94312-680-0 02 1 9804-9806 ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF) 		8-94312-680-0 02 1 9807-0012 ● ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-680-0 02 1 0101-0109 ● ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,CHARGE AIR COOLER<6PL>,M/T LOW GEARED(6WF),SHIFT ON THE FLY(7EX) 		8-94312-680-1 02 1 0110- ● ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-980-0 02 1 9804-9806 ● ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-980-0 02 1 9804-9806 ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-980-0 02 1 9807-9909 ● ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-980-0 02 1 9807-9909 ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JG2 ENG(RJC) 		8-97138-980-0 02 1 9910-0109 ● ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-980-0 02 1 9910-0109 ● ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-980-0 02 1 9910-0109 ● ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97138-980-0 02 1 0110-0212 ● ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JG2 ENG(RJC) 		8-97138-980-0 02 1 0110-0212 ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97138-980-0 02 1 0110-0212 ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97138-980-0 02 1 0110-0212 ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. FRONT AXLE URETHANE BOOTS<6HV> ,SHIFT ON THE FLY(7EX) 		8-97201-314-1 02 1 0301- ● ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JG2 ENG(RJC) 		8-97201-314-1 02 1 0301- ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. FRONT AXLE URETHANE BOOTS<6HV> 		8-97201-314-1 02 1 0301- ● ● ●
14 06.061 BOOT KIT; IN SIDE,FRT DRIVE SHAF
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 		8-97201-314-1 02 1 0301- ● ● ●
17 06.061 RING; SNAP,DRIVE SHAFT TO TRANS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 04.416 ID=27.9 		9-09180-030-0 04 1 9804-9909 ● ● ● ●
17 06.061 RING; SNAP,DRIVE SHAFT TO TRANS
4JB1 ENG(RLF),6VD1 ENG(RLV) 04.416 ID=27.9 		9-09180-030-0 04 1 9804-9909 ● ● ●
17 06.061 RING; SNAP,DRIVE SHAFT TO TRANS
4JG2 ENG(RJC),4JB1 ENG(RLF),6VD1 ENG(RLV) 04.416 ID=27.9 		9-09180-030-0 04 1 9910-0109 ● ● ● ●
17 06.061 RING; SNAP,DRIVE SHAFT TO TRANS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 04.416 ID=27.9 		9-09180-030-0 04 1 9910-0109 ● ● ● ●
17 06.061 RING; SNAP,DRIVE SHAFT TO TRANS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) 04.416 ID=27.9 		9-09180-030-0 04 1 0110- ● ● ● ●
17 06.061 RING; SNAP,DRIVE SHAFT TO TRANS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) 04.416 ID=27.9 		9-09180-030-0 04 1 0110- ● ● ● ●
17 06.061 RING; SNAP,DRIVE SHAFT TO TRANS
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> 04.416 ID=27.9 		9-09180-030-0 04 1 0110- ● ● ●
17 06.061 RING; SNAP,DRIVE SHAFT TO TRANS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 08.934 ID=25.9 		9-09180-028-0 04 1 9804-0109 ● ● ● ●
17 06.061 RING; SNAP,DRIVE SHAFT TO TRANS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>,M/T LOWGEARED(6WF) 08.934 ID=25.9 		9-09180-028-0 04 1 0110- ● ● ● ●

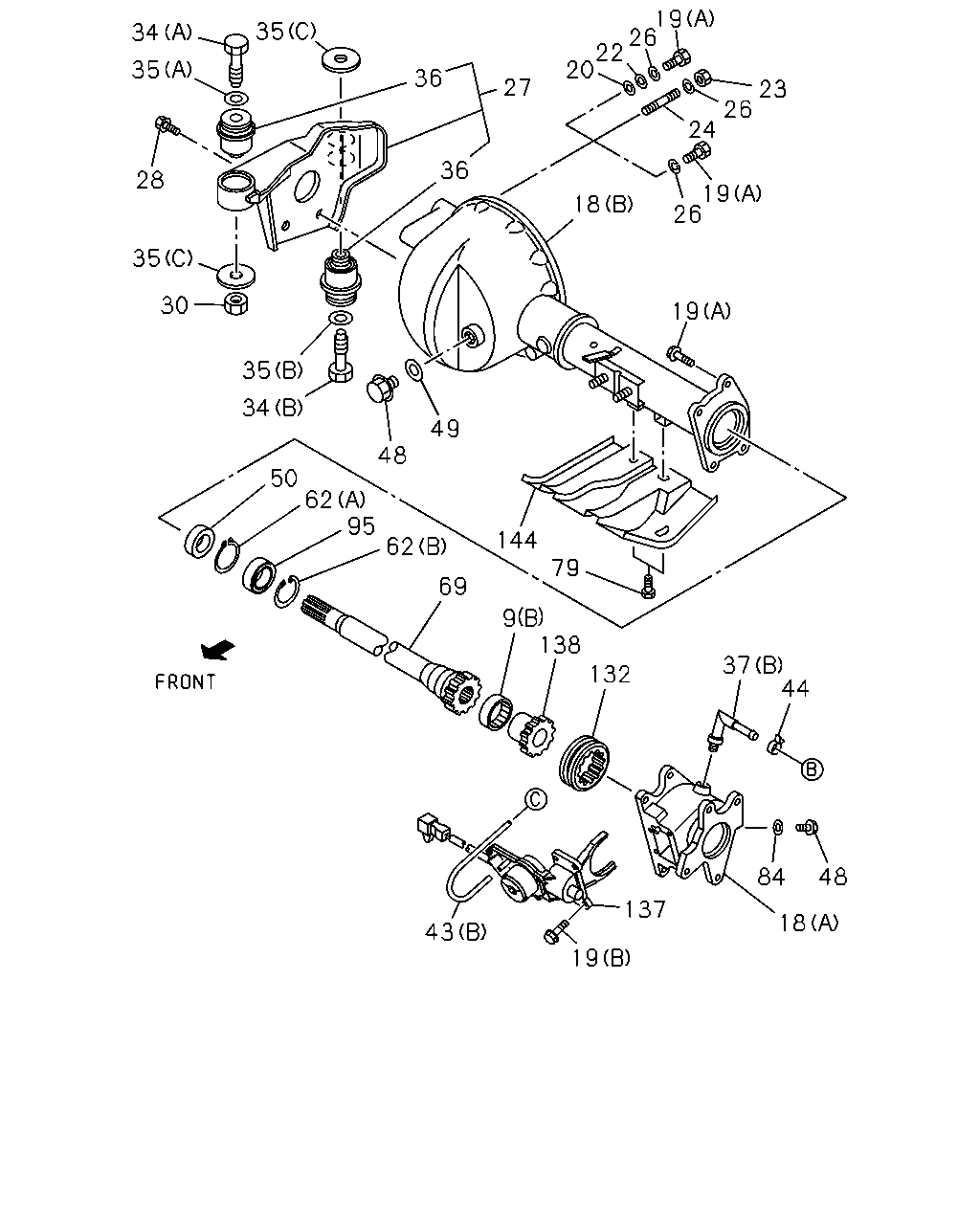

çizim 18811
19 26 22 20 35 34 35 36 27 23 26 24 36 28 19 26 18 35 30 19 35 34 49 48 50 62 95 62 144 79 69 9 138 132 37 44 84 48 137 18 43 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
9 06.056 BEARING; AXLE SHAFT,INNER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (A) 		8-94407-724-0 02 1 9804-9909 ● ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
4JB1 ENG(RLF),6VD1 ENG(RLV) (A) 		8-94407-724-0 02 1 9804-9909 ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
4JG2 ENG(RJC),4JB1 ENG(RLF),6VD1 ENG(RLV) (A) 		8-94407-724-0 02 1 9910-0109 ● ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (A) 		8-94407-724-0 02 1 9910-0109 ● ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) (A) 		8-94407-724-0 02 1 0110- ● ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (A) 		8-94407-724-0 02 1 0110- ● ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (A) 		8-94407-724-0 02 1 0110- ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 06.061 (A) NSK 		5-09800-045-1 02 1 9804-0109 ● ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>,M/T LOWGEARED(6WF) 06.061 (A) NSK 		5-09800-045-1 02 1 0110- ● ● ● ●
9 06.056 BEARING; AXLE SHAFT,INNER
SHIFT ON THE FLY(7EX) (B) 		8-97101-878-0 01 1 9910- ● ● ●
18 06.008 CASE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (B) 		8-97018-230-0 01 1 9804-9909 ● ● ● ●
18 06.008 CASE; FRT AXLE
4JB1 ENG(RLF),6VD1 ENG(RLV) (B) 		8-97018-230-0 01 1 9804-9909 ● ● ●
18 06.008 CASE; FRT AXLE
4JG2 ENG(RJC) (B) 		8-97018-230-0 01 1 9910-0109 ● ● ● ●
18 06.008 CASE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (B) 		8-97018-230-0 01 1 9910-0109 ● ● ● ●
18 06.008 CASE; FRT AXLE
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. SHIFT ON THE FLY(7EX) (B) 		8-97018-230-0 01 1 9910-0109 ● ● ● ●
18 06.008 CASE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. SHIFT ON THE FLY(7EX) (B) 		8-97018-230-0 01 1 0110- ● ● ● ●
18 06.008 CASE; FRT AXLE
4JG2 ENG(RJC) (B) 		8-97018-230-0 01 1 0110- ● ● ●
18 06.008 CASE; FRT AXLE
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. SHIFT ON THE FLY(7EX) (B) 		8-97018-230-0 01 1 0110- ● ● ●
18 06.008 CASE; FRT AXLE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (B) 		8-97018-230-0 01 1 0110- ● ● ●
18 06.008 CASE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) (B) 		5-43212-001-1 01 1 9804-0109 ● ● ● ●
18 06.008 CASE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>,M/T LOWGEARED(6WF) (B) 		5-43212-001-1 01 1 0110- ● ● ● ●
18 06.008 CASE; FRT AXLE
SHIFT ON THE FLY(7EX) (A) 		8-97081-658-3 01 1 9910- ● ● ●
18 06.008 CASE; FRT AXLE
SHIFT ON THE FLY(7EX) (B) 		8-97217-847-0 01 1 9910- ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (C) M8X25 W/LK WASHER 		8-97093-664-0 06 1 9804-9909 ● ● ● ●
19 06.156 BOLT; FRT AXLE
4JB1 ENG(RLF),6VD1 ENG(RLV) (C) M8X25 W/LK WASHER 		8-97093-664-0 06 1 9804-9909 ● ● ●
19 06.156 BOLT; FRT AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF),6VD1 ENG(RLV) (C) M8X25 W/LK WASHER 		8-97093-664-0 06 1 9910-0109 ● ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (C) M8X25 W/LK WASHER 		8-97093-664-0 06 1 9910-0109 ● ● ● ●
19 06.156 BOLT; FRT AXLE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) (C) M8X25 W/LK WASHER 		8-97093-664-1 06 1 0110- ● ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (C) M8X25 W/LK WASHER 		8-97093-664-1 06 1 0110- ● ● ● ●
19 06.156 BOLT; FRT AXLE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (C) M8X25 W/LK WASHER 		8-97093-664-1 06 1 0110- ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (C) M8X30 W/LK WASHER 		8-97093-665-0 02 1 9804-9909 ● ● ● ●
19 06.156 BOLT; FRT AXLE
4JB1 ENG(RLF),6VD1 ENG(RLV) (C) M8X30 W/LK WASHER 		8-97093-665-0 02 1 9804-9909 ● ● ●
19 06.156 BOLT; FRT AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF),6VD1 ENG(RLV) (C) M8X30 W/LK WASHER 		8-97093-665-0 02 1 9910-0109 ● ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (C) M8X30 W/LK WASHER 		8-97093-665-0 02 1 9910-0109 ● ● ● ●
19 06.156 BOLT; FRT AXLE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) (C) M8X30 W/LK WASHER 		8-97093-665-1 02 1 0110- ● ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (C) M8X30 W/LK WASHER 		8-97093-665-1 02 1 0110- ● ● ● ●
19 06.156 BOLT; FRT AXLE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (C) M8X30 W/LK WASHER 		8-97093-665-1 02 1 0110- ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (C) M8X90 W/LK WASHER 		8-97093-666-0 02 1 9804-9909 ● ● ● ●
19 06.156 BOLT; FRT AXLE
4JB1 ENG(RLF),6VD1 ENG(RLV) (C) M8X90 W/LK WASHER 		8-97093-666-0 02 1 9804-9909 ● ● ●
19 06.156 BOLT; FRT AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF),6VD1 ENG(RLV) (C) M8X90 W/LK WASHER 		8-97093-666-0 02 1 9910-0109 ● ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (C) M8X90 W/LK WASHER 		8-97093-666-0 02 1 9910-0109 ● ● ● ●
19 06.156 BOLT; FRT AXLE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) (C) M8X90 W/LK WASHER 		8-97093-666-1 02 1 0110- ● ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (C) M8X90 W/LK WASHER 		8-97093-666-1 02 1 0110- ● ● ● ●
19 06.156 BOLT; FRT AXLE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (C) M8X90 W/LK WASHER 		8-97093-666-1 02 1 0110- ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 01.428 (C) M8X18 W/LK&PL WASHER 		1-09030-004-0 06 1 9804-0109 ● ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>,M/T LOWGEARED(6WF) 01.428 (C) M8X18 W/LK&PL WASHER 		1-09030-004-0 06 1 0110- ● ● ● ●
19 06.156 BOLT; FRT AXLE
SHIFT ON THE FLY(7EX) 06.056 (A) M12X22 FLANGE 		0-28081-222-0 04 1 9910- ● ● ●
19 06.156 BOLT; FRT AXLE
SHIFT ON THE FLY(7EX) 16.335 (B) M8X20 FLANGE 		0-28280-820-0 04 1 9910- ● ● ●
20 06.156 GASKET; AXLE CASE
05.398 ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 9804- ● ● ● ●
22 06.056 WASHER; PL,AXLE CASE
00.206 ID=8.4 		9-09164-508-0 01 1 9804- ● ● ● ●
23 06.056 NUT; FRT AXLE
00.002 M8 		9-09110-508-0 02 1 9804- ● ● ● ●
24 06.056 STUD; CASE,FRT AXLE
03.901 M8X25 L=37 		9-04110-825-0 02 1 9804- ● ● ● ●
26 06.056 WASHER; LK,CASE,FRT AXLE
00.002 ID=8.2 		9-09150-608-0 02 1 9804- ● ● ● ●
27 06.056 BRACKET; AXLE CASE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) W/BUSHING 		8-94462-170-2 01 1 9804-0109 ● ● ● ●
27 06.056 BRACKET; AXLE CASE
4JB1 ENG(RLF) W/BUSHING 		8-94462-170-2 01 1 9804-0109 ● ● ●
27 06.056 BRACKET; AXLE CASE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. SHIFT ON THE FLY(7EX) W/BUSHING 		8-94462-170-3 01 1 0110- ● ● ● ●
27 06.056 BRACKET; AXLE CASE
4JH1 ENG(RJX),4JB1 ENG(RLF) W/BUSHING 		8-94462-170-3 01 1 0110- ● ● ●
27 06.056 BRACKET; AXLE CASE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> W/BUSHING 		8-94462-170-3 01 1 0110- ● ● ●
27 06.056 BRACKET; AXLE CASE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) W/BUSHING 		8-94462-169-2 01 1 9804-0109 ● ● ● ●
27 06.056 BRACKET; AXLE CASE
4JB1 ENG(RLF) W/BUSHING 		8-94462-169-2 01 1 9804-0109 ● ● ●
27 06.056 BRACKET; AXLE CASE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. SHIFT ON THE FLY(7EX) W/BUSHING 		8-94462-169-3 01 1 0110- ● ● ● ●
27 06.056 BRACKET; AXLE CASE
4JH1 ENG(RJX),4JB1 ENG(RLF) W/BUSHING 		8-94462-169-3 01 1 0110- ● ● ●
27 06.056 BRACKET; AXLE CASE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> W/BUSHING 		8-94462-169-3 01 1 0110- ● ● ●
27 06.056 BRACKET; AXLE CASE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 		8-94462-172-1 01 1 9804-0109 ● ● ● ●
27 06.056 BRACKET; AXLE CASE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>,M/T LOWGEARED(6WF) 		8-94462-172-2 01 1 0110- ● ● ● ●
27 06.056 BRACKET; AXLE CASE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 		8-94462-171-1 01 1 9804-0109 ● ● ● ●
27 06.056 BRACKET; AXLE CASE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>,M/T LOWGEARED(6WF) 		8-94462-171-2 01 1 0110- ● ● ● ●
27 06.056 BRACKET; AXLE CASE
6VD1 ENG(RLV) 		8-97113-948-1 01 1 9804-9909 ● ● ●
27 06.056 BRACKET; AXLE CASE
4JG2 ENG(RJC),6VD1 ENG(RLV) 		8-97113-948-1 01 1 9910- ● ● ●
27 06.056 BRACKET; AXLE CASE
6VD1 ENG(RLV) 		8-94382-042-1 01 1 9804-9909 ● ● ●
27 06.056 BRACKET; AXLE CASE
4JG2 ENG(RJC),6VD1 ENG(RLV) 		8-94382-042-1 01 1 9910- ● ● ●
28 06.056 BOLT; BRKT TO AXLE CASE
M12X22 FLANGE 		0-28081-222-0 08 1 9804- ● ● ● ●
30 06.008 NUT; FRT AXLE MTG
07.529 M14 		9-99110-514-0 02 1 9804- ● ● ● ●
34 06.008 BOLT; FRT AXLE MTG
(B) M14X84 		8-94452-339-2 02 1 9804- ● ● ● ●
34 06.008 BOLT; FRT AXLE MTG
(A) M14X75 		9-91066-475-0 02 1 9804-9804 ● ● ● ●
34 06.008 BOLT; FRT AXLE MTG
00.029 (A) M14X80 		9-91066-480-0 02 1 9805- ● ● ● ●
35 06.008 WASHER; FRT AXLE MTG
(A) ID=14 OD=40 		8-94457-273-0 02 1 9804- ● ● ● ●
35 06.008 WASHER; FRT AXLE MTG
(C) ID=14 OD=50 		8-97093-581-0 04 1 9804- ● ● ● ●
35 06.008 WASHER; FRT AXLE MTG
08.929 (B) ID=15 OD=36 		9-09164-714-0 02 1 9804- ● ● ● ●
36 06.008 BUSHING; RUBBER,FRT AXLE MTG
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) ID=15 L=49.3 		8-94481-466-0 04 1 9804-0109 ● ● ● ●
36 06.008 BUSHING; RUBBER,FRT AXLE MTG
22LE/C22NE ENG(RJT),4JH1 ENG(RJX), 4JA1 ENG(RLE),4JB1 ENG(RLF) ID=15 L=49.3 		8-94481-466-0 04 1 0110-0303 ● ● ● ●
36 06.008 BUSHING; RUBBER,FRT AXLE MTG
6VD1 ENG(RLV) 		8-97018-240-0 04 1 9804-9909 ● ● ●
36 06.008 BUSHING; RUBBER,FRT AXLE MTG
4JG2 ENG(RJC),6VD1 ENG(RLV) 		8-97018-240-0 04 1 9910-0303 ● ● ●
36 06.008 BUSHING; RUBBER,FRT AXLE MTG 8-97018-240-0 04 1 0304- ● ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) (A) 		8-94311-349-0 01 1 9804-9909 ● ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
4JB1 ENG(RLF) EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-94311-349-0 01 1 9804-9909 ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE) (A) 		8-94311-349-0 01 1 9910- ● ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
4JB1 ENG(RLF) EXC. AUSTRALIAN EQUIPMENT(RR3), SHIFT ON THE FLY(7EX) (A) 		8-94311-349-0 01 1 9910- ● ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) (B) 		8-94226-943-0 01 1 9804-9909 ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
6VD1 ENG(RLV) (B) 		8-94226-943-0 01 1 9804-9909 ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B) 		8-94226-943-0 01 1 9910-0109 ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) MANUAL LOCKING HUB(ED2) (B) 		8-94226-943-0 01 1 9910-0109 ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
SHIFT ON THE FLY(7EX) (B) 		8-94226-943-0 01 1 9910-0109 ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
SHIFT ON THE FLY(7EX) (B) 		8-94226-943-0 01 1 0110- ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
4JH1 ENG(RJX),6VD1 ENG(RLV) (B) 		8-94226-943-0 01 1 0110- ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
4JA1 ENG(RLE),4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) (B) 		8-94226-943-0 01 1 0110- ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2) AUSTRALIAN EQUIPMENT(RR3) (B) 		8-94226-943-0 01 1 0110- ● ● ●
43 06.008 HOSE; RUBBER,AIR BREATHER
4JB1 ENG(RLF),6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 08.962 (A) L=1100 SERVICED BY L=3000 		0-04750-300-0 01 1 9804-9909 ● ● ●
43 06.008 HOSE; RUBBER,AIR BREATHER
4JB1 ENG(RLF),6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 08.962 (A) L=1100 SERVICED BY L=3000 		0-04750-300-0 01 1 9910-0109 ● ● ●
43 06.008 HOSE; RUBBER,AIR BREATHER
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 08.962 (A) L=1100 SERVICED BY L=3000 		0-04750-300-0 01 1 0110- ● ● ●
43 06.008 HOSE; RUBBER,AIR BREATHER
4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B) 		8-97216-718-3 01 1 9910-0006 ● ● ●
43 06.008 HOSE; RUBBER,AIR BREATHER
4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B) 		8-97260-166-0 01 1 0007-0109 ● ● ●
43 06.008 HOSE; RUBBER,AIR BREATHER
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B) 		8-97260-166-0 01 1 0110- ● ● ●
44 06.008 CLIP; AIR BREATHER HOSE
AUSTRALIAN EQUIPMENT(RR3) 03.163 ID=11 		8-97173-219-0 01 1 9804-9909 ● ● ●
44 06.008 CLIP; AIR BREATHER HOSE
SHIFT ON THE FLY(7EX) 03.163 ID=11 		8-97173-219-0 01 1 9910- ● ● ●
44 06.008 CLIP; AIR BREATHER HOSE
AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 03.163 ID=11 		8-97173-219-0 01 1 9910- ● ● ●
44 06.008 CLIP; AIR BREATHER HOSE
SHIFT ON THE FLY(7EX) 03.163 ID=11 		8-97173-219-0 01 1 9910- ● ● ●
48 05.400 PLUG; DRAIN,AXLE CASE
04.103 M20X10.5 		9-09662-005-0 01 1 9804-9909 ● ● ● ●
48 05.400 PLUG; DRAIN,AXLE CASE
EXC. SHIFT ON THE FLY(7EX) 04.103 M20X10.5 		9-09662-005-0 01 1 9910- ● ● ● ●
48 05.400 PLUG; DRAIN,AXLE CASE
SHIFT ON THE FLY(7EX) 04.103 M20X10.5 		9-09662-005-0 02 1 9910- ● ● ●
49 05.400 GASKET; DRAIN PLUG
ID=20 OD=30 		8-94462-734-0 01 1 9804- ● ● ● ●
50 06.061 SEAL; OIL,SHAFT,FRT AXLE
SHIFT ON THE FLY(7EX) 		8-97084-507-0 01 1 9910- ● ● ●
62 06.061 RING; SNAP,AXLE SHAFT
SHIFT ON THE FLY(7EX) 08.934 (A) ID=37.0 		9-09180-040-0 01 1 9910- ● ● ●
62 06.061 RING; SNAP,AXLE SHAFT
SHIFT ON THE FLY(7EX) 01.105 (B) ID=57.9 		9-09180-162-0 01 1 9910- ● ● ●
69 06.055 SHAFT; AXLE,FRT INNER
SHIFT ON THE FLY(7EX) 		8-97188-174-1 01 1 9910- ● ● ●
79 06.008 BOLT; BRKT
SHIFT ON THE FLY(7EX) 		0-28481-016-0 02 1 9910- ● ● ●
84 06.326 GASKET; PLUG,OIL FILLER
SHIFT ON THE FLY(7EX) 05.400 ID=20 OD=30 		8-94462-734-0 01 1 9910- ● ● ●
95 06.008 BEARING; AXLE SHAFT,FRT
SHIFT ON THE FLY(7EX) 		8-97103-392-0 01 1 9910- ● ● ●
132 06.008 SLEEVE; RUBBER,HOSE
SHIFT ON THE FLY(7EX) 		8-97130-567-1 01 1 9910- ● ● ●
137 06.008 ACTUATOR; AXLE
SHIFT ON THE FLY(7EX) 		8-97208-683-8 01 1 9910- ● ● ●
138 06.008 GEAR; CLUTCH
SHIFT ON THE FLY(7EX) Z=17 		8-97134-857-1 01 1 9910- ● ● ●
144 06.008 PROTECTOR
SHIFT ON THE FLY(7EX) 02.440 		8-97220-537-2 01 1 9910- ● ● ●
çizim 73634
45 181 45 45 45 31 43 40 38 43 45
BalonParca AdiParca NoAdetTipApplied Date A B C D
31 06.008 NUT; MUD COVER TO BRKT
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9804-9909 ● ● ●
31 06.008 NUT; MUD COVER TO BRKT
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9910-0109 ● ● ●
31 06.008 NUT; MUD COVER TO BRKT
4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) EXC. AUSTRALIAN EQUIPMENT(RR3) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9910-0109 ● ● ●
31 06.008 NUT; MUD COVER TO BRKT
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) EXC. AUSTRALIAN EQUIPMENT(RR3) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0110- ● ● ●
31 06.008 NUT; MUD COVER TO BRKT
4JH1 ENG(RJX),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0110- ● ● ●
38 06.008 BOLT; AIR BREATHER,FRT AXLE
6VD1 ENG(RLV) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9804-9909 ● ● ●
38 06.008 BOLT; AIR BREATHER,FRT AXLE
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9910- ● ● ●
38 06.008 BOLT; AIR BREATHER,FRT AXLE
6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9910- ● ● ●
40 06.008 CLIP; BAND,AIR BREATHER HOSE
4JH1 ENG(RJX) SHIFT ON THE FLY(7EX) 03.162 L=170 		5-09707-054-0 01 1 0110-0110 ● ● ●
40 06.008 CLIP; BAND,AIR BREATHER HOSE
4JH1 ENG(RJX) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 03.162 L=170 		5-09707-054-0 01 1 0111- ● ● ●
40 06.008 CLIP; BAND,AIR BREATHER HOSE
4JH1 ENG(RJX) SHIFT ON THE FLY(7EX) 03.162 L=170 		5-09707-054-0 01 1 0111- ● ● ●
40 06.008 CLIP; BAND,AIR BREATHER HOSE
6VD1 ENG(RLV) 02.587 L=172 		8-94232-620-0 01 1 9804-9909 ● ● ●
40 06.008 CLIP; BAND,AIR BREATHER HOSE
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 02.587 L=172 		8-94232-620-0 01 1 9910- ● ● ●
40 06.008 CLIP; BAND,AIR BREATHER HOSE
4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 02.587 L=172 		8-94232-620-0 01 1 9910- ● ● ●
43 06.008 HOSE; RUBBER,AIR BREATHER
4JB1 ENG(RLF),6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 08.962 (A) L=1100 SERVICED BY L=3000 		0-04750-300-0 01 1 9804-9909 ● ● ●
43 06.008 HOSE; RUBBER,AIR BREATHER
4JB1 ENG(RLF),6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 08.962 (A) L=1100 SERVICED BY L=3000 		0-04750-300-0 01 1 9910-0109 ● ● ●
43 06.008 HOSE; RUBBER,AIR BREATHER
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 08.962 (A) L=1100 SERVICED BY L=3000 		0-04750-300-0 01 1 0110- ● ● ●
43 06.008 HOSE; RUBBER,AIR BREATHER
4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B) 		8-97216-718-3 01 1 9910-0006 ● ● ●
43 06.008 HOSE; RUBBER,AIR BREATHER
4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B) 		8-97260-166-0 01 1 0007-0109 ● ● ●
43 06.008 HOSE; RUBBER,AIR BREATHER
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B) 		8-97260-166-0 01 1 0110- ● ● ●
45 06.008 CLIP
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 04.686 (B) ID=11 H=20 L=20 		5-09700-351-0 01 1 9804-9909 ● ● ●
45 06.008 CLIP
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 04.686 (B) ID=11 H=20 L=20 		5-09700-351-0 01 1 9910- ● ● ●
45 06.008 CLIP
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) (C) 		8-94343-613-0 01 1 9804-0109 ● ● ●
45 06.008 CLIP
4JH1 ENG(RJX),4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) 02.559 (F) L=135 		8-94473-399-0 01 1 0110- ● ● ●
45 06.008 CLIP
4JH1 ENG(RJX) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 02.559 (F) L=135 		8-94473-399-0 01 1 0110- ● ● ●
45 06.008 CLIP
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 02.343 (A) ID=13 H=24 L=20 		9-09527-012-0 01 1 9804-9909 ● ● ●
45 06.008 CLIP
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 02.343 (A) ID=13 H=24 L=20 		9-09527-012-0 01 1 9910-0109 ● ● ●
45 06.008 CLIP
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) (C) 		8-94343-613-0 01 1 0110- ● ● ●
45 06.008 CLIP
4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) 02.559 (A) 		8-94121-003-0 01 1 9910-0109 ● ● ●
45 06.008 CLIP
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) 02.559 (A) 		8-94121-003-0 01 1 0110- ● ● ●
45 06.008 CLIP
4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 03.162 (E) L=170 		5-09707-054-0 01 1 9910-0109 ● ● ●
45 06.008 CLIP
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 03.162 (E) L=170 		5-09707-054-0 01 1 0110- ● ● ●
45 06.008 CLIP
4JH1 ENG(RJX) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 03.162 (E) L=170 		5-09707-054-0 01 1 0110- ● ● ●
45 06.008 CLIP
4JH1 ENG(RJX),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 02.343 (A) ID=13 H=24 L=20 		9-09527-012-0 01 1 0110- ● ● ●
45 06.008 CLIP
6VD1 ENG(RLV) 04.785 (D) ID=11 L=40 		9-09525-073-0 01 1 9804-9812 ● ● ●
45 06.008 CLIP
6VD1 ENG(RLV) 02.559 (D) ID=11 L=28 		9-09525-052-0 01 1 9901-9909 ● ● ●
45 06.008 CLIP
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 02.559 (D) ID=11 L=28 		9-09525-052-0 01 1 9910- ● ● ●
45 06.008 CLIP
6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 02.559 (D) ID=21 L=28 		1-09700-673-1 01 1 9910- ● ● ●
181 06.008 BOLT; CLIP TO BRKT
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 01.540 M6X25 W/LK&PL WASHER 		0-50140-625-0 01 1 9804-9909 ● ● ●
181 06.008 BOLT; CLIP TO BRKT
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9910-0109 ● ● ●
181 06.008 BOLT; CLIP TO BRKT
4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) EXC. AUSTRALIAN EQUIPMENT(RR3) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9910-0109 ● ● ●
181 06.008 BOLT; CLIP TO BRKT
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) EXC. AUSTRALIAN EQUIPMENT(RR3) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0110- ● ● ●
181 06.008 BOLT; CLIP TO BRKT
4JH1 ENG(RJX),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0110- ● ● ●
çizim 74089
19 26 22 20 27 35 34 35 36 23 26 24 36 28 19 26 18 35 35 30 34 49 48 37 37 44
BalonParca AdiParca NoAdetTipApplied Date A B C D
18 06.008 CASE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (B) 		8-97018-230-0 01 1 9804-9909 ● ● ● ●
18 06.008 CASE; FRT AXLE
4JB1 ENG(RLF),6VD1 ENG(RLV) (B) 		8-97018-230-0 01 1 9804-9909 ● ● ●
18 06.008 CASE; FRT AXLE
4JG2 ENG(RJC) (B) 		8-97018-230-0 01 1 9910-0109 ● ● ● ●
18 06.008 CASE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (B) 		8-97018-230-0 01 1 9910-0109 ● ● ● ●
18 06.008 CASE; FRT AXLE
4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. SHIFT ON THE FLY(7EX) (B) 		8-97018-230-0 01 1 9910-0109 ● ● ● ●
18 06.008 CASE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. SHIFT ON THE FLY(7EX) (B) 		8-97018-230-0 01 1 0110- ● ● ● ●
18 06.008 CASE; FRT AXLE
4JG2 ENG(RJC) (B) 		8-97018-230-0 01 1 0110- ● ● ●
18 06.008 CASE; FRT AXLE
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. SHIFT ON THE FLY(7EX) (B) 		8-97018-230-0 01 1 0110- ● ● ●
18 06.008 CASE; FRT AXLE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (B) 		8-97018-230-0 01 1 0110- ● ● ●
18 06.008 CASE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) (B) 		5-43212-001-1 01 1 9804-0109 ● ● ● ●
18 06.008 CASE; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>,M/T LOWGEARED(6WF) (B) 		5-43212-001-1 01 1 0110- ● ● ● ●
18 06.008 CASE; FRT AXLE
SHIFT ON THE FLY(7EX) (A) 		8-97081-658-3 01 1 9910- ● ● ●
18 06.008 CASE; FRT AXLE
SHIFT ON THE FLY(7EX) (B) 		8-97217-847-0 01 1 9910- ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (C) M8X25 W/LK WASHER 		8-97093-664-0 06 1 9804-9909 ● ● ● ●
19 06.156 BOLT; FRT AXLE
4JB1 ENG(RLF),6VD1 ENG(RLV) (C) M8X25 W/LK WASHER 		8-97093-664-0 06 1 9804-9909 ● ● ●
19 06.156 BOLT; FRT AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF),6VD1 ENG(RLV) (C) M8X25 W/LK WASHER 		8-97093-664-0 06 1 9910-0109 ● ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (C) M8X25 W/LK WASHER 		8-97093-664-0 06 1 9910-0109 ● ● ● ●
19 06.156 BOLT; FRT AXLE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) (C) M8X25 W/LK WASHER 		8-97093-664-1 06 1 0110- ● ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (C) M8X25 W/LK WASHER 		8-97093-664-1 06 1 0110- ● ● ● ●
19 06.156 BOLT; FRT AXLE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (C) M8X25 W/LK WASHER 		8-97093-664-1 06 1 0110- ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (C) M8X30 W/LK WASHER 		8-97093-665-0 02 1 9804-9909 ● ● ● ●
19 06.156 BOLT; FRT AXLE
4JB1 ENG(RLF),6VD1 ENG(RLV) (C) M8X30 W/LK WASHER 		8-97093-665-0 02 1 9804-9909 ● ● ●
19 06.156 BOLT; FRT AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF),6VD1 ENG(RLV) (C) M8X30 W/LK WASHER 		8-97093-665-0 02 1 9910-0109 ● ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (C) M8X30 W/LK WASHER 		8-97093-665-0 02 1 9910-0109 ● ● ● ●
19 06.156 BOLT; FRT AXLE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) (C) M8X30 W/LK WASHER 		8-97093-665-1 02 1 0110- ● ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (C) M8X30 W/LK WASHER 		8-97093-665-1 02 1 0110- ● ● ● ●
19 06.156 BOLT; FRT AXLE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (C) M8X30 W/LK WASHER 		8-97093-665-1 02 1 0110- ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (C) M8X90 W/LK WASHER 		8-97093-666-0 02 1 9804-9909 ● ● ● ●
19 06.156 BOLT; FRT AXLE
4JB1 ENG(RLF),6VD1 ENG(RLV) (C) M8X90 W/LK WASHER 		8-97093-666-0 02 1 9804-9909 ● ● ●
19 06.156 BOLT; FRT AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF),6VD1 ENG(RLV) (C) M8X90 W/LK WASHER 		8-97093-666-0 02 1 9910-0109 ● ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (C) M8X90 W/LK WASHER 		8-97093-666-0 02 1 9910-0109 ● ● ● ●
19 06.156 BOLT; FRT AXLE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) (C) M8X90 W/LK WASHER 		8-97093-666-1 02 1 0110- ● ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) (C) M8X90 W/LK WASHER 		8-97093-666-1 02 1 0110- ● ● ● ●
19 06.156 BOLT; FRT AXLE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> (C) M8X90 W/LK WASHER 		8-97093-666-1 02 1 0110- ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 01.428 (C) M8X18 W/LK&PL WASHER 		1-09030-004-0 06 1 9804-0109 ● ● ● ●
19 06.156 BOLT; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>,M/T LOWGEARED(6WF) 01.428 (C) M8X18 W/LK&PL WASHER 		1-09030-004-0 06 1 0110- ● ● ● ●
19 06.156 BOLT; FRT AXLE
SHIFT ON THE FLY(7EX) 06.056 (A) M12X22 FLANGE 		0-28081-222-0 04 1 9910- ● ● ●
19 06.156 BOLT; FRT AXLE
SHIFT ON THE FLY(7EX) 16.335 (B) M8X20 FLANGE 		0-28280-820-0 04 1 9910- ● ● ●
20 06.156 GASKET; AXLE CASE
05.398 ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 01 1 9804- ● ● ● ●
22 06.056 WASHER; PL,AXLE CASE
00.206 ID=8.4 		9-09164-508-0 01 1 9804- ● ● ● ●
23 06.056 NUT; FRT AXLE
00.002 M8 		9-09110-508-0 02 1 9804- ● ● ● ●
24 06.056 STUD; CASE,FRT AXLE
03.901 M8X25 L=37 		9-04110-825-0 02 1 9804- ● ● ● ●
26 06.056 WASHER; LK,CASE,FRT AXLE
00.002 ID=8.2 		9-09150-608-0 02 1 9804- ● ● ● ●
27 06.056 BRACKET; AXLE CASE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) W/BUSHING 		8-94462-170-2 01 1 9804-0109 ● ● ● ●
27 06.056 BRACKET; AXLE CASE
4JB1 ENG(RLF) W/BUSHING 		8-94462-170-2 01 1 9804-0109 ● ● ●
27 06.056 BRACKET; AXLE CASE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. SHIFT ON THE FLY(7EX) W/BUSHING 		8-94462-170-3 01 1 0110- ● ● ● ●
27 06.056 BRACKET; AXLE CASE
4JH1 ENG(RJX),4JB1 ENG(RLF) W/BUSHING 		8-94462-170-3 01 1 0110- ● ● ●
27 06.056 BRACKET; AXLE CASE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> W/BUSHING 		8-94462-170-3 01 1 0110- ● ● ●
27 06.056 BRACKET; AXLE CASE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) W/BUSHING 		8-94462-169-2 01 1 9804-0109 ● ● ● ●
27 06.056 BRACKET; AXLE CASE
4JB1 ENG(RLF) W/BUSHING 		8-94462-169-2 01 1 9804-0109 ● ● ●
27 06.056 BRACKET; AXLE CASE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. SHIFT ON THE FLY(7EX) W/BUSHING 		8-94462-169-3 01 1 0110- ● ● ● ●
27 06.056 BRACKET; AXLE CASE
4JH1 ENG(RJX),4JB1 ENG(RLF) W/BUSHING 		8-94462-169-3 01 1 0110- ● ● ●
27 06.056 BRACKET; AXLE CASE
4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> W/BUSHING 		8-94462-169-3 01 1 0110- ● ● ●
27 06.056 BRACKET; AXLE CASE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 		8-94462-172-1 01 1 9804-0109 ● ● ● ●
27 06.056 BRACKET; AXLE CASE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>,M/T LOWGEARED(6WF) 		8-94462-172-2 01 1 0110- ● ● ● ●
27 06.056 BRACKET; AXLE CASE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 		8-94462-171-1 01 1 9804-0109 ● ● ● ●
27 06.056 BRACKET; AXLE CASE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. CHARGE AIR COOLER<6PL>,M/T LOWGEARED(6WF) 		8-94462-171-2 01 1 0110- ● ● ● ●
27 06.056 BRACKET; AXLE CASE
6VD1 ENG(RLV) 		8-97113-948-1 01 1 9804-9909 ● ● ●
27 06.056 BRACKET; AXLE CASE
4JG2 ENG(RJC),6VD1 ENG(RLV) 		8-97113-948-1 01 1 9910- ● ● ●
27 06.056 BRACKET; AXLE CASE
6VD1 ENG(RLV) 		8-94382-042-1 01 1 9804-9909 ● ● ●
27 06.056 BRACKET; AXLE CASE
4JG2 ENG(RJC),6VD1 ENG(RLV) 		8-94382-042-1 01 1 9910- ● ● ●
28 06.056 BOLT; BRKT TO AXLE CASE
M12X22 FLANGE 		0-28081-222-0 08 1 9804- ● ● ● ●
30 06.008 NUT; FRT AXLE MTG
07.529 M14 		9-99110-514-0 02 1 9804- ● ● ● ●
34 06.008 BOLT; FRT AXLE MTG
(B) M14X84 		8-94452-339-2 02 1 9804- ● ● ● ●
34 06.008 BOLT; FRT AXLE MTG
(A) M14X75 		9-91066-475-0 02 1 9804-9804 ● ● ● ●
34 06.008 BOLT; FRT AXLE MTG
00.029 (A) M14X80 		9-91066-480-0 02 1 9805- ● ● ● ●
35 06.008 WASHER; FRT AXLE MTG
(A) ID=14 OD=40 		8-94457-273-0 02 1 9804- ● ● ● ●
35 06.008 WASHER; FRT AXLE MTG
(C) ID=14 OD=50 		8-97093-581-0 04 1 9804- ● ● ● ●
35 06.008 WASHER; FRT AXLE MTG
08.929 (B) ID=15 OD=36 		9-09164-714-0 02 1 9804- ● ● ● ●
36 06.008 BUSHING; RUBBER,FRT AXLE MTG
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) ID=15 L=49.3 		8-94481-466-0 04 1 9804-0109 ● ● ● ●
36 06.008 BUSHING; RUBBER,FRT AXLE MTG
22LE/C22NE ENG(RJT),4JH1 ENG(RJX), 4JA1 ENG(RLE),4JB1 ENG(RLF) ID=15 L=49.3 		8-94481-466-0 04 1 0110-0303 ● ● ● ●
36 06.008 BUSHING; RUBBER,FRT AXLE MTG
6VD1 ENG(RLV) 		8-97018-240-0 04 1 9804-9909 ● ● ●
36 06.008 BUSHING; RUBBER,FRT AXLE MTG
4JG2 ENG(RJC),6VD1 ENG(RLV) 		8-97018-240-0 04 1 9910-0303 ● ● ●
36 06.008 BUSHING; RUBBER,FRT AXLE MTG 8-97018-240-0 04 1 0304- ● ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) (A) 		8-94311-349-0 01 1 9804-9909 ● ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
4JB1 ENG(RLF) EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-94311-349-0 01 1 9804-9909 ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE) (A) 		8-94311-349-0 01 1 9910- ● ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
4JB1 ENG(RLF) EXC. AUSTRALIAN EQUIPMENT(RR3), SHIFT ON THE FLY(7EX) (A) 		8-94311-349-0 01 1 9910- ● ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) (B) 		8-94226-943-0 01 1 9804-9909 ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
6VD1 ENG(RLV) (B) 		8-94226-943-0 01 1 9804-9909 ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B) 		8-94226-943-0 01 1 9910-0109 ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) MANUAL LOCKING HUB(ED2) (B) 		8-94226-943-0 01 1 9910-0109 ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
SHIFT ON THE FLY(7EX) (B) 		8-94226-943-0 01 1 9910-0109 ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
SHIFT ON THE FLY(7EX) (B) 		8-94226-943-0 01 1 0110- ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
4JH1 ENG(RJX),6VD1 ENG(RLV) (B) 		8-94226-943-0 01 1 0110- ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
4JA1 ENG(RLE),4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) (B) 		8-94226-943-0 01 1 0110- ● ● ●
37 06.008 BREATHER; FRT AXLE CASE
4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2) AUSTRALIAN EQUIPMENT(RR3) (B) 		8-94226-943-0 01 1 0110- ● ● ●
44 06.008 CLIP; AIR BREATHER HOSE
AUSTRALIAN EQUIPMENT(RR3) 03.163 ID=11 		8-97173-219-0 01 1 9804-9909 ● ● ●
44 06.008 CLIP; AIR BREATHER HOSE
SHIFT ON THE FLY(7EX) 03.163 ID=11 		8-97173-219-0 01 1 9910- ● ● ●
44 06.008 CLIP; AIR BREATHER HOSE
AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 03.163 ID=11 		8-97173-219-0 01 1 9910- ● ● ●
44 06.008 CLIP; AIR BREATHER HOSE
SHIFT ON THE FLY(7EX) 03.163 ID=11 		8-97173-219-0 01 1 9910- ● ● ●
48 05.400 PLUG; DRAIN,AXLE CASE
04.103 M20X10.5 		9-09662-005-0 01 1 9804-9909 ● ● ● ●
48 05.400 PLUG; DRAIN,AXLE CASE
EXC. SHIFT ON THE FLY(7EX) 04.103 M20X10.5 		9-09662-005-0 01 1 9910- ● ● ● ●
48 05.400 PLUG; DRAIN,AXLE CASE
SHIFT ON THE FLY(7EX) 04.103 M20X10.5 		9-09662-005-0 02 1 9910- ● ● ●
49 05.400 GASKET; DRAIN PLUG
ID=20 OD=30 		8-94462-734-0 01 1 9804- ● ● ● ●
çizim 74250
45 43 45 45 181 45 31 40 43 40 43 45 38 43 45
BalonParca AdiParca NoAdetTipApplied Date A B C D
31 06.008 NUT; MUD COVER TO BRKT
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9804-9909 ● ● ●
31 06.008 NUT; MUD COVER TO BRKT
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9910-0109 ● ● ●
31 06.008 NUT; MUD COVER TO BRKT
4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) EXC. AUSTRALIAN EQUIPMENT(RR3) 04.594 M6 FLANGE 		0-91150-106-0 01 1 9910-0109 ● ● ●
31 06.008 NUT; MUD COVER TO BRKT
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) EXC. AUSTRALIAN EQUIPMENT(RR3) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0110- ● ● ●
31 06.008 NUT; MUD COVER TO BRKT
4JH1 ENG(RJX),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 04.594 M6 FLANGE 		0-91150-106-0 01 1 0110- ● ● ●
38 06.008 BOLT; AIR BREATHER,FRT AXLE
6VD1 ENG(RLV) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9804-9909 ● ● ●
38 06.008 BOLT; AIR BREATHER,FRT AXLE
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9910- ● ● ●
38 06.008 BOLT; AIR BREATHER,FRT AXLE
6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 04.930 M6X20 FLANGE 		0-28680-620-0 01 1 9910- ● ● ●
40 06.008 CLIP; BAND,AIR BREATHER HOSE
4JH1 ENG(RJX) SHIFT ON THE FLY(7EX) 03.162 L=170 		5-09707-054-0 01 1 0110-0110 ● ● ●
40 06.008 CLIP; BAND,AIR BREATHER HOSE
4JH1 ENG(RJX) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 03.162 L=170 		5-09707-054-0 01 1 0111- ● ● ●
40 06.008 CLIP; BAND,AIR BREATHER HOSE
4JH1 ENG(RJX) SHIFT ON THE FLY(7EX) 03.162 L=170 		5-09707-054-0 01 1 0111- ● ● ●
40 06.008 CLIP; BAND,AIR BREATHER HOSE
6VD1 ENG(RLV) 02.587 L=172 		8-94232-620-0 01 1 9804-9909 ● ● ●
40 06.008 CLIP; BAND,AIR BREATHER HOSE
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 02.587 L=172 		8-94232-620-0 01 1 9910- ● ● ●
40 06.008 CLIP; BAND,AIR BREATHER HOSE
4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 02.587 L=172 		8-94232-620-0 01 1 9910- ● ● ●
43 06.008 HOSE; RUBBER,AIR BREATHER
4JB1 ENG(RLF),6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 08.962 (A) L=1100 SERVICED BY L=3000 		0-04750-300-0 01 1 9804-9909 ● ● ●
43 06.008 HOSE; RUBBER,AIR BREATHER
4JB1 ENG(RLF),6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 08.962 (A) L=1100 SERVICED BY L=3000 		0-04750-300-0 01 1 9910-0109 ● ● ●
43 06.008 HOSE; RUBBER,AIR BREATHER
4JH1 ENG(RJX),4JB1 ENG(RLF),6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 08.962 (A) L=1100 SERVICED BY L=3000 		0-04750-300-0 01 1 0110- ● ● ●
43 06.008 HOSE; RUBBER,AIR BREATHER
4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B) 		8-97216-718-3 01 1 9910-0006 ● ● ●
43 06.008 HOSE; RUBBER,AIR BREATHER
4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B) 		8-97260-166-0 01 1 0007-0109 ● ● ●
43 06.008 HOSE; RUBBER,AIR BREATHER
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) (B) 		8-97260-166-0 01 1 0110- ● ● ●
45 06.008 CLIP
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 04.686 (B) ID=11 H=20 L=20 		5-09700-351-0 01 1 9804-9909 ● ● ●
45 06.008 CLIP
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 04.686 (B) ID=11 H=20 L=20 		5-09700-351-0 01 1 9910- ● ● ●
45 06.008 CLIP
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) (C) 		8-94343-613-0 01 1 9804-0109 ● ● ●
45 06.008 CLIP
4JH1 ENG(RJX),4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) 02.559 (F) L=135 		8-94473-399-0 01 1 0110- ● ● ●
45 06.008 CLIP
4JH1 ENG(RJX) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 02.559 (F) L=135 		8-94473-399-0 01 1 0110- ● ● ●
45 06.008 CLIP
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 02.343 (A) ID=13 H=24 L=20 		9-09527-012-0 01 1 9804-9909 ● ● ●
45 06.008 CLIP
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 02.343 (A) ID=13 H=24 L=20 		9-09527-012-0 01 1 9910-0109 ● ● ●
45 06.008 CLIP
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) (C) 		8-94343-613-0 01 1 0110- ● ● ●
45 06.008 CLIP
4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) 02.559 (A) 		8-94121-003-0 01 1 9910-0109 ● ● ●
45 06.008 CLIP
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) 02.559 (A) 		8-94121-003-0 01 1 0110- ● ● ●
45 06.008 CLIP
4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 03.162 (E) L=170 		5-09707-054-0 01 1 9910-0109 ● ● ●
45 06.008 CLIP
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 03.162 (E) L=170 		5-09707-054-0 01 1 0110- ● ● ●
45 06.008 CLIP
4JH1 ENG(RJX) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 03.162 (E) L=170 		5-09707-054-0 01 1 0110- ● ● ●
45 06.008 CLIP
4JH1 ENG(RJX),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 02.343 (A) ID=13 H=24 L=20 		9-09527-012-0 01 1 0110- ● ● ●
45 06.008 CLIP
6VD1 ENG(RLV) 04.785 (D) ID=11 L=40 		9-09525-073-0 01 1 9804-9812 ● ● ●
45 06.008 CLIP
6VD1 ENG(RLV) 02.559 (D) ID=11 L=28 		9-09525-052-0 01 1 9901-9909 ● ● ●
45 06.008 CLIP
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) EXC. SHIFT ON THE FLY(7EX) 02.559 (D) ID=11 L=28 		9-09525-052-0 01 1 9910- ● ● ●
45 06.008 CLIP
6VD1 ENG(RLV) SHIFT ON THE FLY(7EX) 02.559 (D) ID=21 L=28 		1-09700-673-1 01 1 9910- ● ● ●
181 06.008 BOLT; CLIP TO BRKT
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 01.540 M6X25 W/LK&PL WASHER 		0-50140-625-0 01 1 9804-9909 ● ● ●
181 06.008 BOLT; CLIP TO BRKT
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9910-0109 ● ● ●
181 06.008 BOLT; CLIP TO BRKT
4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) EXC. AUSTRALIAN EQUIPMENT(RR3) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 9910-0109 ● ● ●
181 06.008 BOLT; CLIP TO BRKT
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) EXC. AUSTRALIAN EQUIPMENT(RR3) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0110- ● ● ●
181 06.008 BOLT; CLIP TO BRKT
4JH1 ENG(RJX),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) 02.334 M6X25 FLANGE 		0-28680-625-0 01 1 0110- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
