4-11 — FRONT HUB AND DRUM OR ROTOR (#45686) — 263 parça

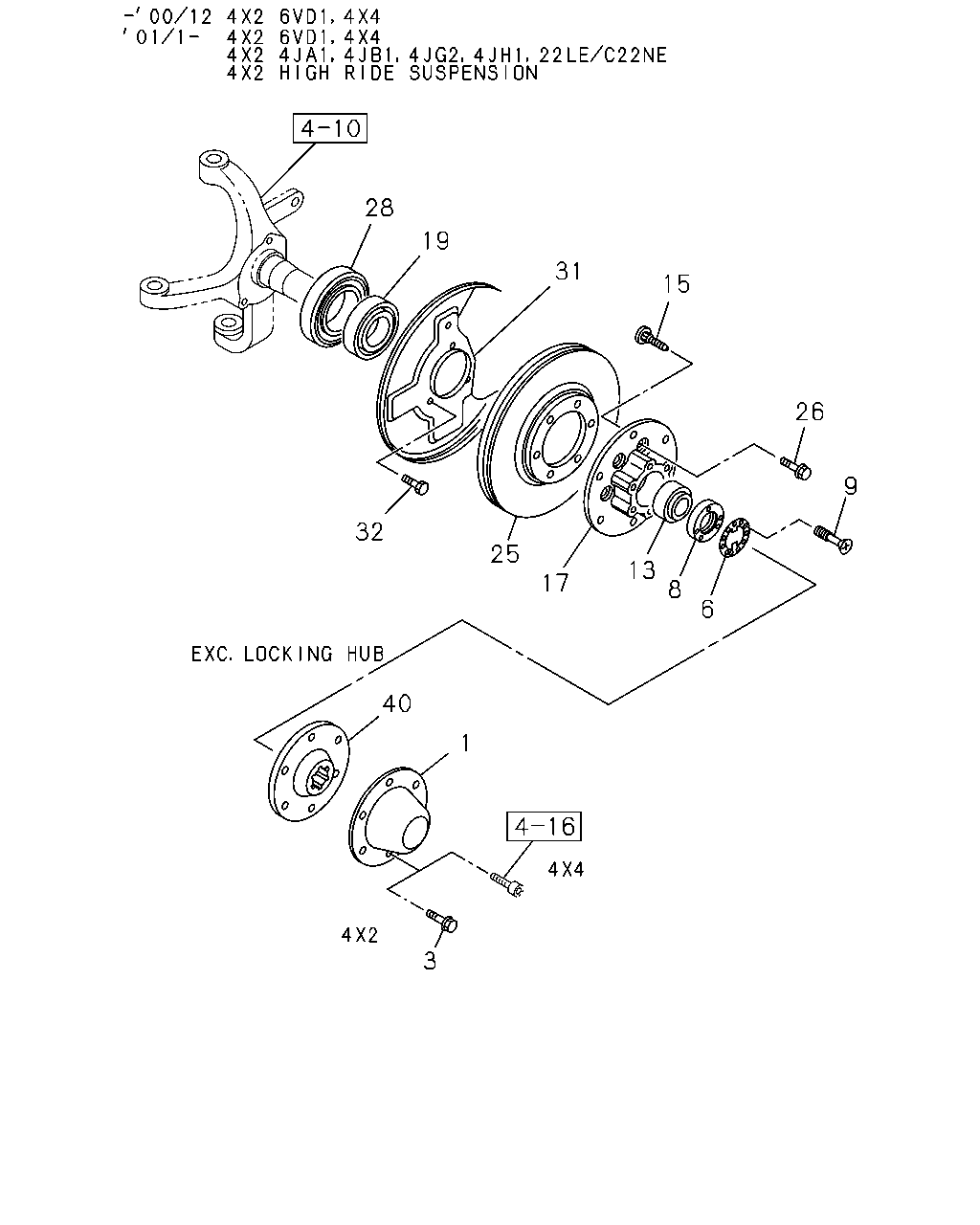

çizim 71645
28 19 31 15 26 9 32 25 13 17 8 6 40 1 3
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 06.330 CAP; HUB,FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		9-42313-080-1 02 1 9804-0012 ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		9-42313-080-1 02 1 0101- ● ● ●
1 06.330 CAP; HUB,FRT AXLE 9-42313-080-1 02 1 0101- ●
1 06.330 CAP; HUB,FRT AXLE
6VD1 ENG(RLV) 		8-94173-314-1 02 1 9804-0012 ● ● ●
1 06.330 CAP; HUB,FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) 		8-94173-314-1 02 1 9804-0012 ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE
6VD1 ENG(RLV) 		8-94173-314-2 02 1 0101-0109 ● ● ●
1 06.330 CAP; HUB,FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94173-314-2 02 1 0101-0109 ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) 		8-94173-314-2 02 1 0101-0109 ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE
6VD1 ENG(RLV) 		8-94173-314-2 02 1 0110- ● ● ●
1 06.330 CAP; HUB,FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94173-314-2 02 1 0110- ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) 		8-94173-314-2 02 1 0110- ● ● ● ●
3 06.330 BOLT; HUB CAP,FRT WHEEL
6VD1 ENG(RLV) 00.002 M10X22 		9-02061-022-0 12 1 9804-0012 ● ● ●
3 06.330 BOLT; HUB CAP,FRT WHEEL
6VD1 ENG(RLV) 00.002 M10X22 		9-02061-022-0 12 1 0101-0109 ● ● ●
3 06.330 BOLT; HUB CAP,FRT WHEEL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 00.002 M10X22 		9-02061-022-0 12 1 0101-0109 ● ● ●
3 06.330 BOLT; HUB CAP,FRT WHEEL
6VD1 ENG(RLV) 00.002 M10X20 		9-02061-020-0 12 1 0110- ● ● ●
3 06.330 BOLT; HUB CAP,FRT WHEEL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 00.002 M10X20 		9-02061-020-0 12 1 0110- ● ● ●
6 05.812 WASHER; LK,FRT HUB
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) T=3.2 OD=35 		8-94256-973-0 02 1 9804-0012 ● ● ● ●
6 05.812 WASHER; LK,FRT HUB
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35 		8-94256-973-0 02 1 0101- ● ● ●
6 05.812 WASHER; LK,FRT HUB
T=3.2 OD=35 		8-94256-973-0 02 1 0101- ●
6 05.812 WASHER; LK,FRT HUB
6VD1 ENG(RLV) T=1.8 OD=65 		8-94442-398-0 02 1 9804-0012 ● ● ●
6 05.812 WASHER; LK,FRT HUB
T=1.8 OD=65 		8-94442-398-0 02 1 9804-0012 ● ● ● ●
6 05.812 WASHER; LK,FRT HUB
6VD1 ENG(RLV) T=1.8 OD=65 		8-94442-398-0 02 1 0101-0109 ● ● ●
6 05.812 WASHER; LK,FRT HUB
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) T=1.8 OD=65 		8-94442-398-0 02 1 0101-0109 ● ● ●
6 05.812 WASHER; LK,FRT HUB
T=1.8 OD=65 		8-94442-398-0 02 1 0101-0109 ● ● ● ●
6 05.812 WASHER; LK,FRT HUB
4JH1 ENG(RJX),6VD1 ENG(RLV) T=1.8 OD=65 		8-94442-398-0 02 1 0110- ● ● ●
6 05.812 WASHER; LK,FRT HUB
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) T=1.8 OD=65 		8-94442-398-0 02 1 0110- ● ● ●
6 05.812 WASHER; LK,FRT HUB
T=1.8 OD=65 		8-94442-398-0 02 1 0110- ● ● ● ●
8 05.812 NUT; ADJ,FRT HUB
6VD1 ENG(RLV) ID=40 OD=65 T=8 		8-94442-399-1 02 1 9804-0012 ● ● ●
8 05.812 NUT; ADJ,FRT HUB
ID=40 OD=65 T=8 		8-94442-399-1 02 1 9804-0012 ● ● ● ●
8 05.812 NUT; ADJ,FRT HUB
6VD1 ENG(RLV) ID=40 OD=65 T=8 		8-94442-399-1 02 1 0101-0109 ● ● ●
8 05.812 NUT; ADJ,FRT HUB
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) ID=40 OD=65 T=8 		8-94442-399-1 02 1 0101-0109 ● ● ●
8 05.812 NUT; ADJ,FRT HUB
ID=40 OD=65 T=8 		8-94442-399-1 02 1 0101-0109 ● ● ● ●
8 05.812 NUT; ADJ,FRT HUB
4JH1 ENG(RJX),6VD1 ENG(RLV) ID=40 OD=65 T=8 		8-94442-399-1 02 1 0110- ● ● ●
8 05.812 NUT; ADJ,FRT HUB
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) ID=40 OD=65 T=8 		8-94442-399-1 02 1 0110- ● ● ●
8 05.812 NUT; ADJ,FRT HUB
ID=40 OD=65 T=8 		8-94442-399-1 02 1 0110- ● ● ● ●
9 05.812 SCREW; ADJ,NUT
6VD1 ENG(RLV) 08.913 M4X8 CK-HEAD 		9-93090-408-0 06 1 9804-0012 ● ● ●
9 05.812 SCREW; ADJ,NUT
08.913 M4X8 CK-HEAD 		9-93090-408-0 06 1 9804-0012 ● ● ● ●
9 05.812 SCREW; ADJ,NUT
6VD1 ENG(RLV) 08.913 M4X8 CK-HEAD 		9-93090-408-0 06 1 0101-0109 ● ● ●
9 05.812 SCREW; ADJ,NUT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 08.913 M4X8 CK-HEAD 		9-93090-408-0 06 1 0101-0109 ● ● ●
9 05.812 SCREW; ADJ,NUT
08.913 M4X8 CK-HEAD 		9-93090-408-0 06 1 0101-0109 ● ● ● ●
9 05.812 SCREW; ADJ,NUT
4JH1 ENG(RJX),6VD1 ENG(RLV) 08.913 M4X8 CK-HEAD 		9-93090-408-0 06 1 0110- ● ● ●
9 05.812 SCREW; ADJ,NUT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 08.913 M4X8 CK-HEAD 		9-93090-408-0 06 1 0110- ● ● ●
9 05.812 SCREW; ADJ,NUT
08.913 M4X8 CK-HEAD 		9-93090-408-0 06 1 0110- ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) TIMKEN 		8-94361-801-0 02 1 9804-0012 ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) TIMKEN 		8-94361-801-0 02 1 0101- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
TIMKEN 		8-94361-801-0 02 1 0101- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
6VD1 ENG(RLV) 06.311 NSK 		8-94227-041-0 02 1 9804-0012 ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK 		8-94227-041-0 02 1 9804-0012 ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
6VD1 ENG(RLV) 06.311 NSK 		8-94227-041-0 02 1 0101-0109 ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 06.311 NSK 		8-94227-041-0 02 1 0101-0109 ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK 		8-94227-041-0 02 1 0101-0109 ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
4JH1 ENG(RJX),6VD1 ENG(RLV) 06.311 NSK 		8-94227-041-0 02 1 0110- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 06.311 NSK 		8-94227-041-0 02 1 0110- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK 		8-94227-041-0 02 1 0110- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE 8-94223-200-0 12 1 9804-9901 ● ● ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M12X37.5 		8-97213-871-0 12 1 9902- ● ● ● ● ● ● ● ●
17 06.307 HUB; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94433-669-1 02 1 9804-0012 ● ● ● ●
17 06.307 HUB; FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94433-669-1 02 1 0101- ● ● ●
17 06.307 HUB; FRT AXLE 8-94433-669-1 02 1 0101- ●
17 06.307 HUB; FRT AXLE
6VD1 ENG(RLV) 		8-94381-084-2 02 1 9804-0012 ● ● ●
17 06.307 HUB; FRT AXLE 8-94381-084-2 02 1 9804-0012 ● ● ● ●
17 06.307 HUB; FRT AXLE
6VD1 ENG(RLV) 		8-94381-084-2 02 1 0101-0109 ● ● ●
17 06.307 HUB; FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94381-084-2 02 1 0101-0109 ● ● ●
17 06.307 HUB; FRT AXLE 8-94381-084-2 02 1 0101-0109 ● ● ● ●
17 06.307 HUB; FRT AXLE
4JH1 ENG(RJX),6VD1 ENG(RLV) 		8-94381-084-2 02 1 0110- ● ● ●
17 06.307 HUB; FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94381-084-2 02 1 0110- ● ● ●
17 06.307 HUB; FRT AXLE 8-94381-084-2 02 1 0110- ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) NSK 		8-94242-683-0 02 1 9804-0012 ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) NSK 		8-94242-683-0 02 1 0101- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		8-94242-683-0 02 1 0101- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) TIMKEN 		8-94361-804-0 02 1 9804-0012 ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) TIMKEN 		8-94361-804-0 02 1 0101- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
TIMKEN 		8-94361-804-0 02 1 0101- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
6VD1 ENG(RLV) 06.314 NSK 		8-94258-819-0 02 1 9804-0012 ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
06.314 NSK 		8-94258-819-0 02 1 9804-0012 ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
6VD1 ENG(RLV) 06.314 NSK 		8-94258-819-0 02 1 0101-0109 ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 06.314 NSK 		8-94258-819-0 02 1 0101-0109 ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
06.314 NSK 		8-94258-819-0 02 1 0101-0109 ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
4JH1 ENG(RJX),6VD1 ENG(RLV) 06.314 NSK 		8-94258-819-0 02 1 0110- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 06.314 NSK 		8-94258-819-0 02 1 0110- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
06.314 NSK 		8-94258-819-0 02 1 0110- ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94172-376-1 02 1 9804-9909 ● ● ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94172-376-1 02 1 9910-0009 ● ● ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94172-376-1 02 1 0010-0012 ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94172-376-1 02 1 0010-0012 ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94172-376-1 02 1 0101-0109 ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT) 		8-94172-376-1 02 1 0101-0109 ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
4JA1 ENG(RLE),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) EXC. M/T LOW GEARED(6WF),ROAD SIDE ASSIST PACK(7LU) 		8-94172-376-1 02 1 0101-0109 ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94172-376-1 02 1 0110- ● ● ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
6VD1 ENG(RLV) 		8-94375-533-4 02 1 9804-0012 ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
6VD1 ENG(RLV) 		8-94375-533-4 02 1 0101-0109 ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-94375-533-4 02 1 0101-0109 ●
25 05.809 ROTOR; DISC BRK,FRT
6VD1 ENG(RLV) 		8-94375-533-4 02 1 0110-0206 ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
6VD1 ENG(RLV) 		8-97034-035-4 02 1 0207- ● ● ● ● ● ●
26 05.812 BOLT; BRK,DISC TO HUB
M12X31.5 		8-94409-921-0 12 1 9804- ● ● ● ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94433-718-0 02 1 9804-0012 ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94433-718-0 02 1 0101- ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94433-718-0 02 1 0101- ●
28 06.326 SEAL; OIL,FRT HUB
6VD1 ENG(RLV) 06.308 		8-94407-711-0 02 1 9804-0012 ● ● ●
28 06.326 SEAL; OIL,FRT HUB
06.308 		8-94407-711-0 02 1 9804-0012 ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
6VD1 ENG(RLV) 06.308 		8-94407-711-0 02 1 0101-0109 ● ● ●
28 06.326 SEAL; OIL,FRT HUB
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 06.308 		8-94407-711-0 02 1 0101-0109 ● ● ●
28 06.326 SEAL; OIL,FRT HUB
06.308 		8-94407-711-0 02 1 0101-0109 ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
4JH1 ENG(RJX),6VD1 ENG(RLV) 06.308 		8-94407-711-0 02 1 0110- ● ● ●
28 06.326 SEAL; OIL,FRT HUB
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 06.308 		8-94407-711-0 02 1 0110- ● ● ●
28 06.326 SEAL; OIL,FRT HUB
06.308 		8-94407-711-0 02 1 0110- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94317-628-0 01 1 9804-0012 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94317-628-0 01 1 0101- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-94317-628-0 01 1 0101- ●
31 04.665 COVER; DUST,FRT BRAKE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94317-627-0 01 1 9804-0012 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94317-627-0 01 1 0101- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-94317-627-0 01 1 0101- ●
31 04.665 COVER; DUST,FRT BRAKE
6VD1 ENG(RLV) 		8-97101-933-0 01 1 9804- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
6VD1 ENG(RLV) 		8-97101-932-0 01 1 9804- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94173-247-0 01 1 9804-9901 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94173-247-1 01 1 9902-9909 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94173-247-1 01 1 9910-0012 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94173-247-1 01 1 0101-0109 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94173-247-1 01 1 0101-0109 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94173-247-1 01 1 0110- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94173-247-1 01 1 0110- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94173-246-0 01 1 9804-9901 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94173-246-1 01 1 9902-9909 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94173-246-1 01 1 9910-0012 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94173-246-1 01 1 0101-0109 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94173-246-1 01 1 0101-0109 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94173-246-1 01 1 0110- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94173-246-1 01 1 0110- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
6VD1 ENG(RLV) 		8-94375-418-0 01 1 9804-9901 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
6VD1 ENG(RLV) 		8-94375-418-0 01 1 9902-0109 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-94375-418-0 01 1 9902-0109 ●
31 04.665 COVER; DUST,FRT BRAKE
6VD1 ENG(RLV) 		8-94375-418-0 01 1 0110- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
6VD1 ENG(RLV) 		8-94375-417-0 01 1 9804-9901 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
6VD1 ENG(RLV) 		8-94375-417-0 01 1 9902-0109 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-94375-417-0 01 1 9902-0109 ●
31 04.665 COVER; DUST,FRT BRAKE
6VD1 ENG(RLV) 		8-94375-417-0 01 1 0110- ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER 		8-97025-916-0 06 1 9804- ● ● ● ● ● ● ● ●
40 06.308 FLANGE; FRT WHEEL HUB
EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) 		8-94173-313-0 02 1 9804- ● ● ● ●

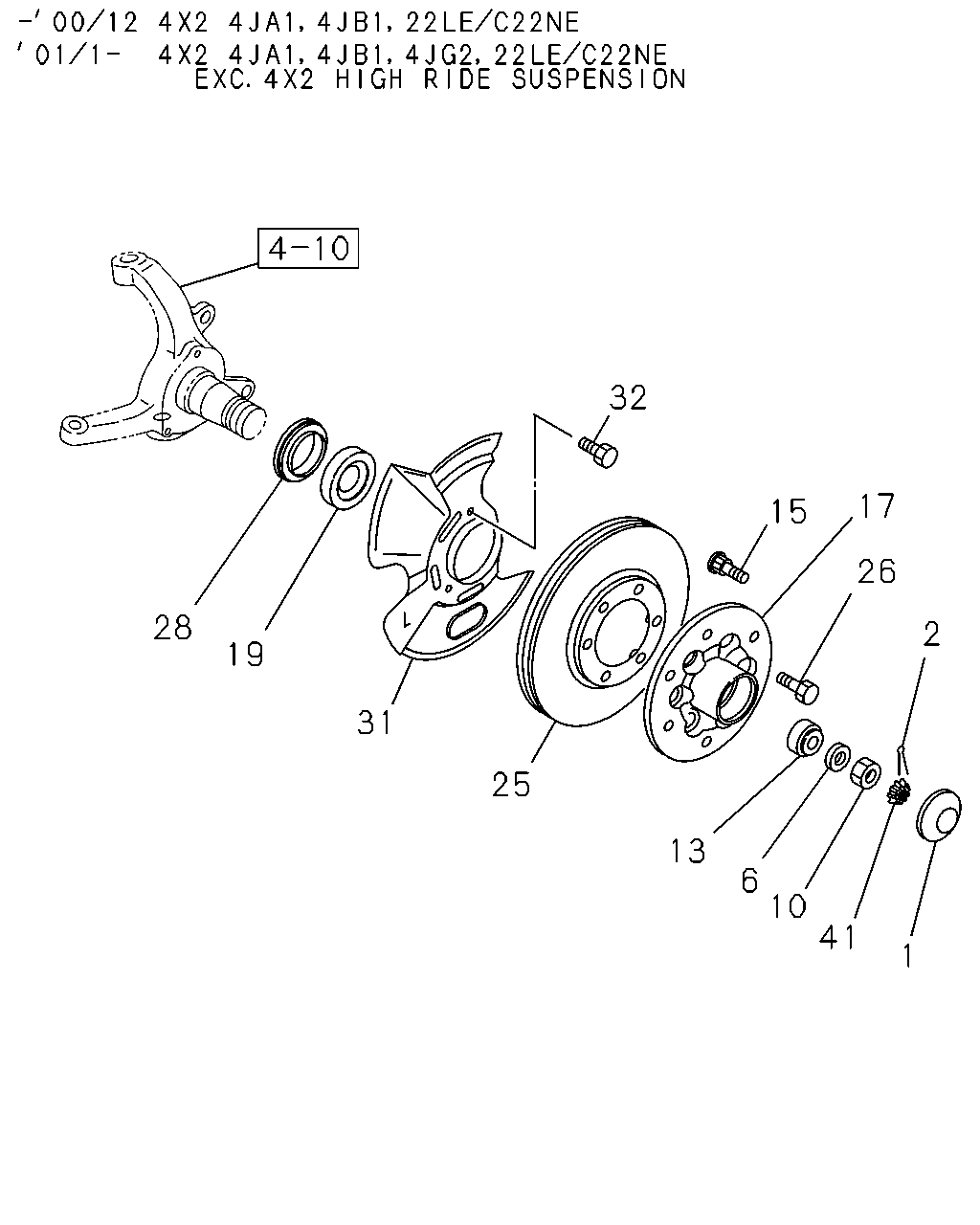

çizim 74057
32 17 15 26 28 2 19 31 25 13 6 10 41 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 06.330 CAP; HUB,FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		9-42313-080-1 02 1 9804-0012 ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		9-42313-080-1 02 1 0101- ● ● ●
1 06.330 CAP; HUB,FRT AXLE 9-42313-080-1 02 1 0101- ●
1 06.330 CAP; HUB,FRT AXLE
6VD1 ENG(RLV) 		8-94173-314-1 02 1 9804-0012 ● ● ●
1 06.330 CAP; HUB,FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) 		8-94173-314-1 02 1 9804-0012 ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE
6VD1 ENG(RLV) 		8-94173-314-2 02 1 0101-0109 ● ● ●
1 06.330 CAP; HUB,FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94173-314-2 02 1 0101-0109 ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) 		8-94173-314-2 02 1 0101-0109 ● ● ● ●
1 06.330 CAP; HUB,FRT AXLE
6VD1 ENG(RLV) 		8-94173-314-2 02 1 0110- ● ● ●
1 06.330 CAP; HUB,FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94173-314-2 02 1 0110- ● ● ●
1 06.330 CAP; HUB,FRT AXLE
EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) 		8-94173-314-2 02 1 0110- ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 09.023 OD=3.7 L=30 		9-08114-030-0 02 1 9804-0012 ● ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 09.023 OD=3.7 L=30 		9-08114-030-0 02 1 0101- ● ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
09.023 OD=3.7 L=30 		9-08114-030-0 02 1 0101- ●
6 05.812 WASHER; LK,FRT HUB
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) T=3.2 OD=35 		8-94256-973-0 02 1 9804-0012 ● ● ● ●
6 05.812 WASHER; LK,FRT HUB
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) T=3.2 OD=35 		8-94256-973-0 02 1 0101- ● ● ●
6 05.812 WASHER; LK,FRT HUB
T=3.2 OD=35 		8-94256-973-0 02 1 0101- ●
6 05.812 WASHER; LK,FRT HUB
6VD1 ENG(RLV) T=1.8 OD=65 		8-94442-398-0 02 1 9804-0012 ● ● ●
6 05.812 WASHER; LK,FRT HUB
T=1.8 OD=65 		8-94442-398-0 02 1 9804-0012 ● ● ● ●
6 05.812 WASHER; LK,FRT HUB
6VD1 ENG(RLV) T=1.8 OD=65 		8-94442-398-0 02 1 0101-0109 ● ● ●
6 05.812 WASHER; LK,FRT HUB
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) T=1.8 OD=65 		8-94442-398-0 02 1 0101-0109 ● ● ●
6 05.812 WASHER; LK,FRT HUB
T=1.8 OD=65 		8-94442-398-0 02 1 0101-0109 ● ● ● ●
6 05.812 WASHER; LK,FRT HUB
4JH1 ENG(RJX),6VD1 ENG(RLV) T=1.8 OD=65 		8-94442-398-0 02 1 0110- ● ● ●
6 05.812 WASHER; LK,FRT HUB
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) T=1.8 OD=65 		8-94442-398-0 02 1 0110- ● ● ●
6 05.812 WASHER; LK,FRT HUB
T=1.8 OD=65 		8-94442-398-0 02 1 0110- ● ● ● ●
10 05.812 NUT; FRT HUB BRG
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M18 		8-94243-927-1 02 1 9804-0012 ● ● ● ●
10 05.812 NUT; FRT HUB BRG
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) M18 		8-94243-927-1 02 1 0101- ● ● ●
10 05.812 NUT; FRT HUB BRG
M18 		8-94243-927-1 02 1 0101- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) TIMKEN 		8-94361-801-0 02 1 9804-0012 ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) TIMKEN 		8-94361-801-0 02 1 0101- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
TIMKEN 		8-94361-801-0 02 1 0101- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
6VD1 ENG(RLV) 06.311 NSK 		8-94227-041-0 02 1 9804-0012 ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK 		8-94227-041-0 02 1 9804-0012 ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
6VD1 ENG(RLV) 06.311 NSK 		8-94227-041-0 02 1 0101-0109 ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 06.311 NSK 		8-94227-041-0 02 1 0101-0109 ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK 		8-94227-041-0 02 1 0101-0109 ● ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
4JH1 ENG(RJX),6VD1 ENG(RLV) 06.311 NSK 		8-94227-041-0 02 1 0110- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 06.311 NSK 		8-94227-041-0 02 1 0110- ● ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK 		8-94227-041-0 02 1 0110- ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE 8-94223-200-0 12 1 9804-9901 ● ● ● ● ● ● ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M12X37.5 		8-97213-871-0 12 1 9902- ● ● ● ● ● ● ● ●
17 06.307 HUB; FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94433-669-1 02 1 9804-0012 ● ● ● ●
17 06.307 HUB; FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94433-669-1 02 1 0101- ● ● ●
17 06.307 HUB; FRT AXLE 8-94433-669-1 02 1 0101- ●
17 06.307 HUB; FRT AXLE
6VD1 ENG(RLV) 		8-94381-084-2 02 1 9804-0012 ● ● ●
17 06.307 HUB; FRT AXLE 8-94381-084-2 02 1 9804-0012 ● ● ● ●
17 06.307 HUB; FRT AXLE
6VD1 ENG(RLV) 		8-94381-084-2 02 1 0101-0109 ● ● ●
17 06.307 HUB; FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94381-084-2 02 1 0101-0109 ● ● ●
17 06.307 HUB; FRT AXLE 8-94381-084-2 02 1 0101-0109 ● ● ● ●
17 06.307 HUB; FRT AXLE
4JH1 ENG(RJX),6VD1 ENG(RLV) 		8-94381-084-2 02 1 0110- ● ● ●
17 06.307 HUB; FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94381-084-2 02 1 0110- ● ● ●
17 06.307 HUB; FRT AXLE 8-94381-084-2 02 1 0110- ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) NSK 		8-94242-683-0 02 1 9804-0012 ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) NSK 		8-94242-683-0 02 1 0101- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		8-94242-683-0 02 1 0101- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) TIMKEN 		8-94361-804-0 02 1 9804-0012 ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) TIMKEN 		8-94361-804-0 02 1 0101- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
TIMKEN 		8-94361-804-0 02 1 0101- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
6VD1 ENG(RLV) 06.314 NSK 		8-94258-819-0 02 1 9804-0012 ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
06.314 NSK 		8-94258-819-0 02 1 9804-0012 ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
6VD1 ENG(RLV) 06.314 NSK 		8-94258-819-0 02 1 0101-0109 ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 06.314 NSK 		8-94258-819-0 02 1 0101-0109 ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
06.314 NSK 		8-94258-819-0 02 1 0101-0109 ● ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
4JH1 ENG(RJX),6VD1 ENG(RLV) 06.314 NSK 		8-94258-819-0 02 1 0110- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 06.314 NSK 		8-94258-819-0 02 1 0110- ● ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
06.314 NSK 		8-94258-819-0 02 1 0110- ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94172-376-1 02 1 9804-9909 ● ● ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94172-376-1 02 1 9910-0009 ● ● ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94172-376-1 02 1 0010-0012 ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94172-376-1 02 1 0010-0012 ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94172-376-1 02 1 0101-0109 ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT) 		8-94172-376-1 02 1 0101-0109 ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
4JA1 ENG(RLE),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) EXC. M/T LOW GEARED(6WF),ROAD SIDE ASSIST PACK(7LU) 		8-94172-376-1 02 1 0101-0109 ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94172-376-1 02 1 0110- ● ● ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
6VD1 ENG(RLV) 		8-94375-533-4 02 1 9804-0012 ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
6VD1 ENG(RLV) 		8-94375-533-4 02 1 0101-0109 ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-94375-533-4 02 1 0101-0109 ●
25 05.809 ROTOR; DISC BRK,FRT
6VD1 ENG(RLV) 		8-94375-533-4 02 1 0110-0206 ● ● ● ● ● ●
25 05.809 ROTOR; DISC BRK,FRT
6VD1 ENG(RLV) 		8-97034-035-4 02 1 0207- ● ● ● ● ● ●
26 05.812 BOLT; BRK,DISC TO HUB
M12X31.5 		8-94409-921-0 12 1 9804- ● ● ● ● ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94433-718-0 02 1 9804-0012 ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94433-718-0 02 1 0101- ● ● ●
28 06.326 SEAL; OIL,FRT HUB 8-94433-718-0 02 1 0101- ●
28 06.326 SEAL; OIL,FRT HUB
6VD1 ENG(RLV) 06.308 		8-94407-711-0 02 1 9804-0012 ● ● ●
28 06.326 SEAL; OIL,FRT HUB
06.308 		8-94407-711-0 02 1 9804-0012 ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
6VD1 ENG(RLV) 06.308 		8-94407-711-0 02 1 0101-0109 ● ● ●
28 06.326 SEAL; OIL,FRT HUB
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 06.308 		8-94407-711-0 02 1 0101-0109 ● ● ●
28 06.326 SEAL; OIL,FRT HUB
06.308 		8-94407-711-0 02 1 0101-0109 ● ● ● ●
28 06.326 SEAL; OIL,FRT HUB
4JH1 ENG(RJX),6VD1 ENG(RLV) 06.308 		8-94407-711-0 02 1 0110- ● ● ●
28 06.326 SEAL; OIL,FRT HUB
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 06.308 		8-94407-711-0 02 1 0110- ● ● ●
28 06.326 SEAL; OIL,FRT HUB
06.308 		8-94407-711-0 02 1 0110- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94317-628-0 01 1 9804-0012 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94317-628-0 01 1 0101- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-94317-628-0 01 1 0101- ●
31 04.665 COVER; DUST,FRT BRAKE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94317-627-0 01 1 9804-0012 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94317-627-0 01 1 0101- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-94317-627-0 01 1 0101- ●
31 04.665 COVER; DUST,FRT BRAKE
6VD1 ENG(RLV) 		8-97101-933-0 01 1 9804- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
6VD1 ENG(RLV) 		8-97101-932-0 01 1 9804- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94173-247-0 01 1 9804-9901 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94173-247-1 01 1 9902-9909 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94173-247-1 01 1 9910-0012 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94173-247-1 01 1 0101-0109 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94173-247-1 01 1 0101-0109 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94173-247-1 01 1 0110- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94173-247-1 01 1 0110- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94173-246-0 01 1 9804-9901 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94173-246-1 01 1 9902-9909 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94173-246-1 01 1 9910-0012 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94173-246-1 01 1 0101-0109 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94173-246-1 01 1 0101-0109 ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94173-246-1 01 1 0110- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94173-246-1 01 1 0110- ● ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
6VD1 ENG(RLV) 		8-94375-418-0 01 1 9804-9901 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
6VD1 ENG(RLV) 		8-94375-418-0 01 1 9902-0109 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-94375-418-0 01 1 9902-0109 ●
31 04.665 COVER; DUST,FRT BRAKE
6VD1 ENG(RLV) 		8-94375-418-0 01 1 0110- ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
6VD1 ENG(RLV) 		8-94375-417-0 01 1 9804-9901 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
6VD1 ENG(RLV) 		8-94375-417-0 01 1 9902-0109 ● ● ●
31 04.665 COVER; DUST,FRT BRAKE
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-94375-417-0 01 1 9902-0109 ●
31 04.665 COVER; DUST,FRT BRAKE
6VD1 ENG(RLV) 		8-94375-417-0 01 1 0110- ● ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER 		8-97025-916-0 06 1 9804- ● ● ● ● ● ● ● ●
41 05.812 RETAINER; NUT,FRT HUB
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94243-928-1 02 1 9804-0012 ● ● ● ●
41 05.812 RETAINER; NUT,FRT HUB
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94243-928-1 02 1 0101- ● ● ●
41 05.812 RETAINER; NUT,FRT HUB 8-94243-928-1 02 1 0101- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
