3-60 — BRAKE PIPING; VACUUM (#45683) — 59 parça

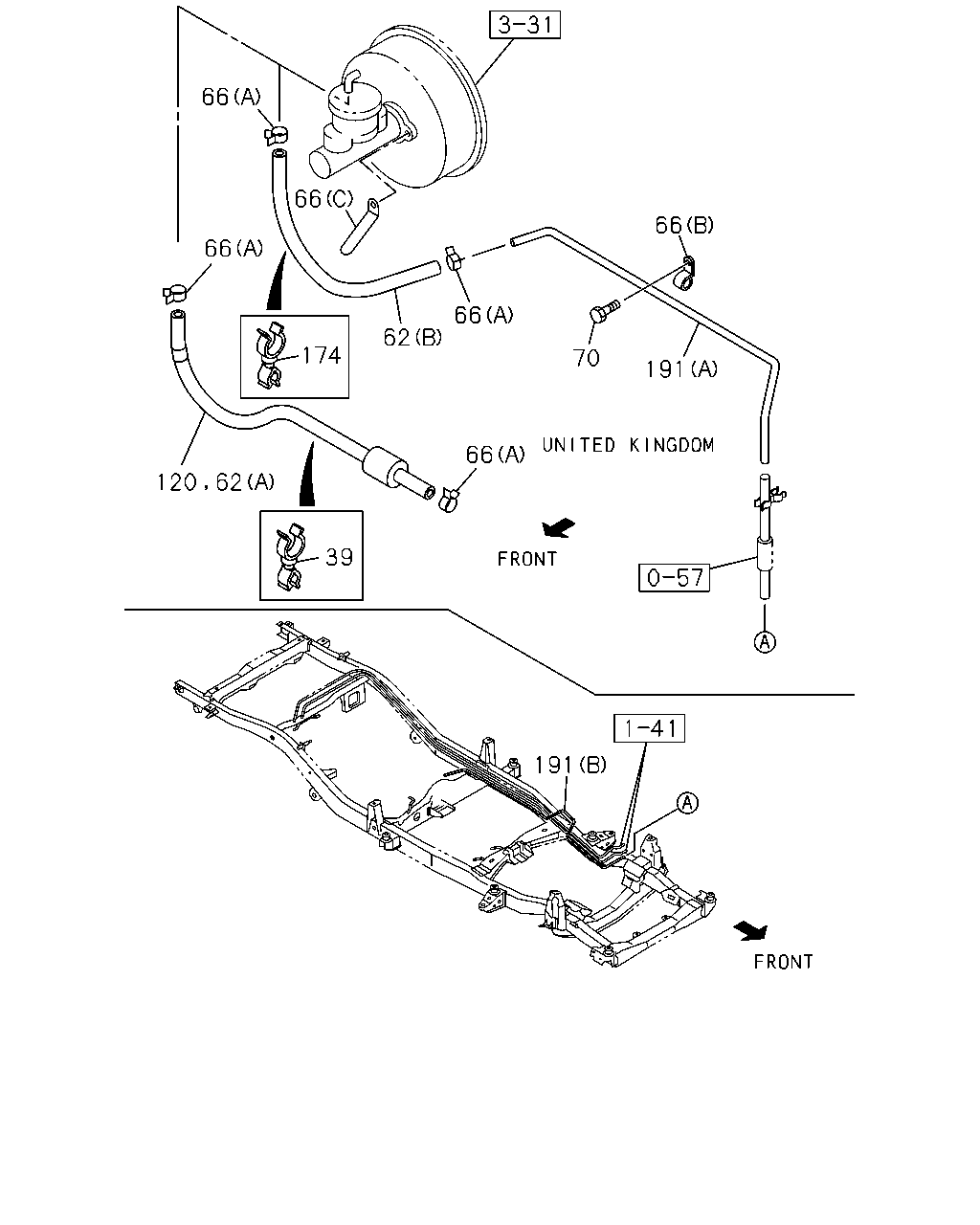

çizim 72777
66 66 66 66 66 62 174 70 191 66 39 191 120 62
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
39 04.681 CLIP; HOSE,VAC
22LE/C22NE ENG(RJT) 03.430 ID=6 & 16.5 		8-94165-402-0 02 1 9804-0211 ● ● ● ● ● ● ●
39 04.681 CLIP; HOSE,VAC
22LE/C22NE ENG(RJT) 03.430 ID=6 & 16.5 		8-94165-402-0 03 1 0212- ● ● ● ● ● ● ●
62 04.931 HOSE; VAC,M/VAC TO VAC PUMP
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) (A) L=560 		0-08108-560-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
62 04.931 HOSE; VAC,M/VAC TO VAC PUMP
4JA1 ENG(RLE) EXC. TURBOCHARGER<K51> (A) L=560 		0-08108-560-0 01 1 9910-0012 ● ● ● ● ● ●
62 04.931 HOSE; VAC,M/VAC TO VAC PUMP
4JA1 ENG(RLE) (A) L=560 		0-08108-560-0 01 1 9910-0012 ● ●
62 04.931 HOSE; VAC,M/VAC TO VAC PUMP
4JB1 ENG(RLF) (B) L=520 		8-97109-466-1 01 1 9804-9909 ● ● ● ● ● ●
62 04.931 HOSE; VAC,M/VAC TO VAC PUMP
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) L=520 		8-97109-466-1 01 1 9804-9909 ● ● ● ●
62 04.931 HOSE; VAC,M/VAC TO VAC PUMP
4JA1 ENG(RLE),4JB1 ENG(RLF) TURBOCHARGER<K51> (B) 		8-97231-309-0 01 1 9910-0012 ● ● ●
62 04.931 HOSE; VAC,M/VAC TO VAC PUMP
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) TURBOCHARGER<K51> (B) 		8-97231-309-0 01 1 9910-0012 ● ● ●
62 04.931 HOSE; VAC,M/VAC TO VAC PUMP
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-97231-309-2 01 1 0101-0109 ● ● ● ● ● ● ● ●
62 04.931 HOSE; VAC,M/VAC TO VAC PUMP
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-97322-376-1 01 1 0110- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (C) L=91 ID=8.5 		8-94329-956-0 01 1 9804-9901 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) (C) L=91 ID=8.5 		8-94329-956-0 01 1 9902-9907 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1 ENG(RLE),4JB1 ENG(RLF) (C) L=91 ID=8.5 		8-94329-956-0 01 1 9908-0012 ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JB1 ENG(RLF) (C) L=91 ID=8.5 		8-94329-956-0 01 1 9908-0012 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) L=91 ID=8.5 		8-94329-956-0 01 1 9908-0012 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) (C) L=91 ID=8.5 		8-94329-956-0 01 1 9908-0012 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) (C) L=91 ID=8.5 		8-94329-956-0 01 1 0101-0109 ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JG2 ENG(RJC),4JB1 ENG(RLF) (C) L=91 ID=8.5 		8-94329-956-0 01 1 0101-0109 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) L=91 ID=8.5 		8-94329-956-0 01 1 0101-0109 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) (C) L=91 ID=8.5 		8-94329-956-0 01 1 0101-0109 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) (C) L=91 ID=8.5 		8-94329-956-0 01 1 0110- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 04.681 (A) ID=16 		8-97173-222-0 01 1 9804- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) 04.681 (A) ID=16 		8-97173-222-0 01 1 9804- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1 ENG(RLE),4JB1 ENG(RLF) 04.681 (A) ID=16 		8-97173-222-0 02 1 9804-9909 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 04.681 (A) ID=16 		8-97173-222-0 02 1 9910-0109 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 04.681 (A) ID=16 		8-97173-222-0 02 1 0110- ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JB1 ENG(RLF) 03.630 (B) ID=19 H=40 L=25 		1-09700-909-0 01 1 9804-9909 ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 03.630 (B) ID=19 H=40 L=25 		1-09700-909-0 01 1 9804-9909 ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JA1 ENG(RLE),4JB1 ENG(RLF) TURBOCHARGER<K51> 03.630 (B) ID=19 H=40 L=25 		1-09700-909-0 01 1 9910-0012 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) TURBOCHARGER<K51> 03.630 (B) ID=19 H=40 L=25 		1-09700-909-0 01 1 9910-0012 ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.630 (B) ID=19 H=40 L=25 		1-09700-909-0 01 1 0101-0109 ● ● ● ● ● ● ● ●
66 04.930 CLIP; VAC HOSE,M/VAC
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 03.630 (B) ID=19 H=40 L=25 		1-09700-909-0 01 1 0110- ● ● ● ● ● ● ● ●
70 04.930 BOLT; CLIP FIX
4JB1 ENG(RLF) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9804-9909 ● ● ● ● ● ●
70 04.930 BOLT; CLIP FIX
4JA1 ENG(RLE),4JB1 ENG(RLF) TURBOCHARGER<K51> 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9910-0012 ●
70 04.930 BOLT; CLIP FIX
4JA1 ENG(RLE),4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. UNITED KINGDOM EQUIPMENT(EK3) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 9910-0012 ● ● ● ● ●
70 04.930 BOLT; CLIP FIX
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 0101- ● ● ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
22LE/C22NE ENG(RJT) 		8-97181-180-3 01 1 9804- ● ● ● ● ● ● ●
120 04.931 HOSE; VAC,M/VAC,W/CHECK VALVE
6VD1 ENG(RLV) 		8-97169-071-3 01 1 9804- ● ● ● ● ● ●
174 04.930 CLIP; VAC HOSE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 02.183 ID=16.5 & 4.8 		8-94415-087-0 01 1 0110-0208 ● ● ● ● ● ● ● ●
191 04.685 PIPE; VAC
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97061-335-2 01 1 9804-9909 ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97225-226-0 01 1 9910-0012 ● ●
191 04.685 PIPE; VAC
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97225-226-0 01 1 0101-0101 ● ●
191 04.685 PIPE; VAC
4JG2 ENG(RJC) (B) 		8-97225-226-1 01 1 0101-0109 ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97225-226-1 01 1 0101-0109 ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97225-226-1 01 1 0110- ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (B) 		8-97301-002-1 01 1 0110- ● ●
191 04.685 PIPE; VAC
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97088-564-2 01 1 9804-9909 ● ● ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-97088-564-2 01 1 9910-0109 ● ● ● ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (A) 		8-97088-564-2 01 1 0110- ● ● ● ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (A) 		8-97088-564-2 01 1 0110- ● ● ● ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) ENG QUICK WARM UP SYSTEM<6JZ> CHARGE AIR COOLER<6PL> (B) 		8-97301-003-1 01 1 0110- ● ● ●
191 04.685 PIPE; VAC
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97189-642-0 01 1 9804-9904 ● ●
191 04.685 PIPE; VAC
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97219-158-0 01 1 9905-9909 ● ●
191 04.685 PIPE; VAC
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97225-227-0 01 1 9910-0012 ● ● ●
191 04.685 PIPE; VAC
4JG2 ENG(RJC) (B) 		8-97225-227-1 01 1 0101-0109 ● ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97225-227-1 01 1 0101-0109 ● ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97225-227-1 01 1 0110-0302 ● ● ●
191 04.685 PIPE; VAC
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. CHARGE AIR COOLER<6PL> (B) 		8-97365-523-0 01 1 0303- ● ● ●
