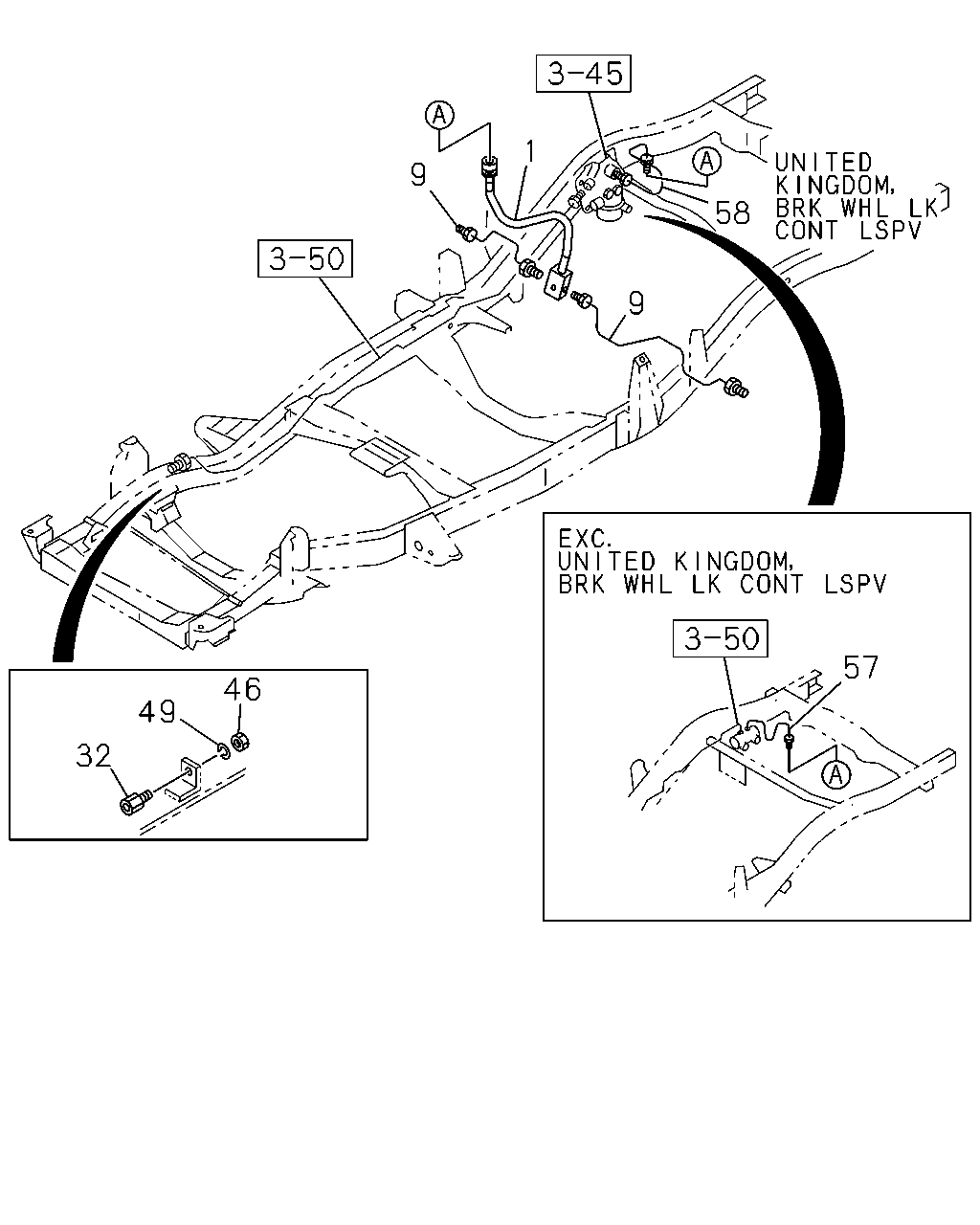

1 |
04.680 HOSE; FLEX,RR BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE),
4JB1 ENG(RLF)
EXC. UNITED KINGDOM EQUIPMENT(EK3)
|
8-97134-832-0 |
01 |
1 |
9804-0001 |
● |
● |
● |
● |
|
|
|
|
| |
1 |
04.680 HOSE; FLEX,RR BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE),
4JB1 ENG(RLF)
EXC. UNITED KINGDOM EQUIPMENT(EK3),
BRK WHL LK CONT LSPV<6PH>
|
8-97134-832-0 |
01 |
1 |
0002-0012 |
● |
● |
● |
● |
|
|
|
|
| |
1 |
04.680 HOSE; FLEX,RR BRK
EXC. BRK WHL LK CONT LSPV<6PH>,4X2
HIGH RIDE SUSPENSION(7YC)
|
8-97134-832-0 |
01 |
1 |
0101- |
● |
|
● |
● |
|
|
|
|
| |
1 |
04.680 HOSE; FLEX,RR BRK
|
8-97134-832-0 |
01 |
1 |
0101- |
|
● |
|
|
|
|
|
|
| |
1 |
04.680 HOSE; FLEX,RR BRK
6VD1 ENG(RLV)
L=479.5
|
8-97134-831-0 |
01 |
1 |
9804-0001 |
● |
|
● |
● |
|
|
|
|
| |
1 |
04.680 HOSE; FLEX,RR BRK
UNITED KINGDOM EQUIPMENT(EK3)
L=479.5
|
8-97134-831-0 |
01 |
1 |
9804-0001 |
|
|
● |
● |
|
|
|
|
| |
1 |
04.680 HOSE; FLEX,RR BRK
L=479.5
|
8-97134-831-0 |
01 |
1 |
9804-0001 |
|
|
|
|
● |
● |
● |
● |
| |
1 |
04.680 HOSE; FLEX,RR BRK
6VD1 ENG(RLV)
EXC. BRK WHL LK CONT LSPV<6PH>
L=479.5
|
8-97134-831-0 |
01 |
1 |
0002-0012 |
● |
|
|
|
|
|
|
|
| |
1 |
04.680 HOSE; FLEX,RR BRK
BRK WHL LK CONT LSPV<6PH>
L=479.5
|
8-97134-831-0 |
01 |
1 |
0002-0012 |
● |
|
|
|
|
|
|
|
| |
1 |
04.680 HOSE; FLEX,RR BRK
6VD1 ENG(RLV)
EXC. UNITED KINGDOM EQUIPMENT(EK3),
BRK WHL LK CONT LSPV<6PH>
L=479.5
|
8-97134-831-0 |
01 |
1 |
0002-0012 |
|
|
● |
● |
|
|
|
|
| |
1 |
04.680 HOSE; FLEX,RR BRK
UNITED KINGDOM EQUIPMENT(EK3)
L=479.5
|
8-97134-831-0 |
01 |
1 |
0002-0012 |
|
|
● |
● |
|
|
|
|
| |
1 |
04.680 HOSE; FLEX,RR BRK
BRK WHL LK CONT LSPV<6PH>
EXC. UNITED KINGDOM EQUIPMENT(EK3)
L=479.5
|
8-97134-831-0 |
01 |
1 |
0002-0012 |
|
|
● |
● |
|
|
|
|
| |
1 |
04.680 HOSE; FLEX,RR BRK
L=479.5
|
8-97134-831-0 |
01 |
1 |
0002-0012 |
|
|
|
|
● |
● |
● |
● |
| |
1 |
04.680 HOSE; FLEX,RR BRK
BRK WHL LK CONT LSPV<6PH>
L=479.5
|
8-97134-831-0 |
01 |
1 |
0101- |
● |
|
● |
● |
|
|
|
|
| |
1 |
04.680 HOSE; FLEX,RR BRK
4X2 HIGH RIDE SUSPENSION(7YC)
EXC. BRK WHL LK CONT LSPV<6PH>
L=479.5
|
8-97134-831-0 |
01 |
1 |
0101- |
● |
|
● |
● |
|
|
|
|
| |
1 |
04.680 HOSE; FLEX,RR BRK
L=479.5
|
8-97134-831-0 |
01 |
1 |
0101- |
|
|
|
|
● |
● |
● |
● |
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE)
EXC. AUSTRALIAN EQUIPMENT(RR3)
|
8-94375-048-1 |
01 |
1 |
9804-9901 |
● |
● |
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE)
|
8-94375-048-2 |
01 |
1 |
9902-9907 |
● |
● |
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT)
EXC. AUSTRALIAN EQUIPMENT(RR3),M/T
LOW GEARED(6WF)
|
8-94375-048-2 |
01 |
1 |
9902-9907 |
● |
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT)
EXC. M/T LOW GEARED(6WF)
|
8-94375-048-2 |
01 |
1 |
9902-9907 |
|
● |
|
|
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE)
|
8-97231-411-1 |
01 |
1 |
9908-0012 |
● |
● |
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT)
EXC. AUSTRALIAN EQUIPMENT(RR3),M/T
LOW GEARED(6WF)
|
8-97231-411-1 |
01 |
1 |
9908-0012 |
● |
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT)
EXC. M/T LOW GEARED(6WF)
|
8-97231-411-1 |
01 |
1 |
9908-0012 |
|
● |
|
|
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT)
EXC. AUSTRALIAN EQUIPMENT(RR3),M/T
LOW GEARED(6WF)
|
8-97231-411-2 |
01 |
1 |
0101-0109 |
● |
● |
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE)
EXC. 4X2 HIGH RIDE SUSPENSION(7YC)
|
8-97231-411-2 |
01 |
1 |
0101-0109 |
● |
● |
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE)
4X2 HIGH RIDE SUSPENSION(7YC)
EXC. M/T LOW GEARED(6WF)
|
8-97231-411-2 |
01 |
1 |
0101-0109 |
● |
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT)
EXC. AUSTRALIAN EQUIPMENT(RR3),M/T
LOW GEARED(6WF)
|
8-97231-411-2 |
01 |
1 |
0110- |
● |
● |
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE)
EXC. CHARGE AIR COOLER<6PL>,4X2
HIGH RIDE SUSPENSION(7YC)
|
8-97231-411-2 |
01 |
1 |
0110- |
● |
● |
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE)
4X2 HIGH RIDE SUSPENSION(7YC)
EXC. M/T LOW GEARED(6WF)
|
8-97231-411-2 |
01 |
1 |
0110- |
● |
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE),
4JB1 ENG(RLF)
|
8-94375-046-2 |
01 |
1 |
9804-0012 |
● |
● |
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),
4JA1 ENG(RLE),4JB1 ENG(RLF)
|
8-94375-046-3 |
01 |
1 |
0101-0109 |
● |
● |
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1
ENG(RLF)
|
8-94375-046-3 |
01 |
1 |
0110- |
● |
● |
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JB1 ENG(RLF)
|
8-94375-047-3 |
01 |
1 |
9804-9901 |
● |
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT)
AUSTRALIAN EQUIPMENT(RR3)
|
8-94375-047-3 |
01 |
1 |
9804-9901 |
● |
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT)
M/T LOW GEARED(6WF)
|
8-94375-047-4 |
01 |
1 |
9902-9907 |
● |
● |
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JB1 ENG(RLF)
|
8-94375-047-4 |
01 |
1 |
9902-9907 |
● |
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT)
AUSTRALIAN EQUIPMENT(RR3)
|
8-94375-047-4 |
01 |
1 |
9902-9907 |
● |
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT)
M/T LOW GEARED(6WF)
|
8-97231-410-1 |
01 |
1 |
9908-0012 |
● |
● |
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JB1 ENG(RLF)
|
8-97231-410-1 |
01 |
1 |
9908-0012 |
● |
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT)
AUSTRALIAN EQUIPMENT(RR3)
|
8-97231-410-1 |
01 |
1 |
9908-0012 |
● |
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT)
M/T LOW GEARED(6WF)
|
8-97231-410-2 |
01 |
1 |
0101-0109 |
● |
● |
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT)
AUSTRALIAN EQUIPMENT(RR3)
EXC. M/T LOW GEARED(6WF)
|
8-97231-410-2 |
01 |
1 |
0101-0109 |
● |
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
4X2 HIGH RIDE SUSPENSION(7YC)
|
8-97231-410-2 |
01 |
1 |
0101-0109 |
● |
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JB1 ENG(RLF)
|
8-97231-410-2 |
01 |
1 |
0101-0109 |
● |
|
|
|
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF)
|
8-97231-410-2 |
01 |
1 |
0101-0109 |
|
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT)
M/T LOW GEARED(6WF)
|
8-97231-410-2 |
01 |
1 |
0110- |
● |
● |
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT)
AUSTRALIAN EQUIPMENT(RR3)
EXC. M/T LOW GEARED(6WF)
|
8-97231-410-2 |
01 |
1 |
0110- |
● |
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
4X2 HIGH RIDE SUSPENSION(7YC)
|
8-97231-410-2 |
01 |
1 |
0110- |
● |
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JB1 ENG(RLF)
|
8-97231-410-2 |
01 |
1 |
0110- |
● |
|
|
|
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1
ENG(RLF)
|
8-97231-410-2 |
01 |
1 |
0110- |
|
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE)
CHARGE AIR COOLER<6PL>
|
8-97231-410-2 |
01 |
1 |
0110- |
|
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
6VD1 ENG(RLV)
|
8-97113-094-2 |
01 |
1 |
9804-9901 |
● |
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
|
8-97113-094-2 |
01 |
1 |
9804-9901 |
|
|
|
|
● |
● |
● |
● |
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JB1 ENG(RLF),6VD1 ENG(RLV)
|
8-97113-094-2 |
01 |
1 |
9804-9901 |
|
|
|
|
● |
|
● |
● |
| |
9 |
04.685 PIPE; BRK,RR AXLE
6VD1 ENG(RLV)
|
8-97113-094-3 |
01 |
1 |
9902-9907 |
● |
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JB1 ENG(RLF),6VD1 ENG(RLV)
|
8-97113-094-3 |
01 |
1 |
9902-9907 |
|
|
|
|
● |
|
● |
● |
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
|
8-97113-094-3 |
01 |
1 |
9902-9907 |
|
|
|
|
● |
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
|
8-97113-094-3 |
01 |
1 |
9902-9907 |
|
|
|
|
|
● |
● |
● |
| |
9 |
04.685 PIPE; BRK,RR AXLE
6VD1 ENG(RLV)
|
8-97231-409-0 |
01 |
1 |
9908-9909 |
● |
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JB1 ENG(RLF),6VD1 ENG(RLV)
|
8-97231-409-0 |
01 |
1 |
9908-9909 |
|
|
|
|
● |
|
● |
● |
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
|
8-97231-409-0 |
01 |
1 |
9908-9909 |
|
|
|
|
● |
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
|
8-97231-409-0 |
01 |
1 |
9908-9909 |
|
|
|
|
|
● |
● |
● |
| |
9 |
04.685 PIPE; BRK,RR AXLE
6VD1 ENG(RLV)
|
8-97231-409-3 |
01 |
1 |
9910-0109 |
● |
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JG2 ENG(RJC),4JB1 ENG(RLF),6VD1
ENG(RLV)
|
8-97231-409-3 |
01 |
1 |
9910-0109 |
|
|
|
|
● |
|
● |
● |
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
|
8-97231-409-3 |
01 |
1 |
9910-0109 |
|
|
|
|
● |
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
|
8-97231-409-3 |
01 |
1 |
9910-0109 |
|
|
|
|
|
● |
● |
● |
| |
9 |
04.685 PIPE; BRK,RR AXLE
6VD1 ENG(RLV)
|
8-97231-409-3 |
01 |
1 |
0110- |
● |
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE)
M/T LOW GEARED(6WF)
|
8-97231-409-3 |
01 |
1 |
0110- |
|
|
|
|
● |
● |
● |
● |
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JB1
ENG(RLF),6VD1 ENG(RLV)
|
8-97231-409-3 |
01 |
1 |
0110- |
|
|
|
|
● |
|
● |
● |
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE)
CHARGE AIR COOLER<6PL>
|
8-97231-409-3 |
01 |
1 |
0110- |
|
|
|
|
● |
|
● |
● |
| |
9 |
04.685 PIPE; BRK,RR AXLE
6VD1 ENG(RLV)
|
8-97113-093-4 |
01 |
1 |
9804- |
● |
|
● |
● |
|
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
|
8-97113-093-4 |
01 |
1 |
9804- |
|
|
|
|
● |
● |
● |
● |
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
|
8-97113-095-1 |
01 |
1 |
9804-9901 |
|
|
|
|
● |
● |
● |
● |
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT)
|
8-97113-095-1 |
01 |
1 |
9804-9901 |
|
|
|
|
|
● |
● |
● |
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
|
8-97113-095-2 |
01 |
1 |
9902-9907 |
|
|
|
|
● |
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
|
8-97113-095-2 |
01 |
1 |
9902-9907 |
|
|
|
|
|
● |
● |
● |
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
|
8-97231-408-0 |
01 |
1 |
9908-9909 |
|
|
|
|
● |
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
|
8-97231-408-0 |
01 |
1 |
9908-9909 |
|
|
|
|
|
● |
● |
● |
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
|
8-97231-408-0 |
01 |
1 |
9910-9912 |
|
|
|
|
● |
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT)
|
8-97231-408-0 |
01 |
1 |
9910-9912 |
|
|
|
|
|
● |
● |
● |
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
|
8-97231-408-0 |
01 |
1 |
9910-9912 |
|
|
|
|
|
● |
● |
● |
| |
9 |
04.685 PIPE; BRK,RR AXLE
4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
|
8-97231-408-1 |
01 |
1 |
0001-0109 |
|
|
|
|
● |
|
|
|
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE)
EXC. M/T LOW GEARED(6WF)
|
8-97231-408-1 |
01 |
1 |
0001-0109 |
|
|
|
|
|
● |
● |
● |
| |
9 |
04.685 PIPE; BRK,RR AXLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE)
EXC. CHARGE AIR COOLER<6PL>,M/T
LOWGEARED(6WF)
|
8-97231-408-1 |
01 |
1 |
0110- |
|
|
|
|
● |
● |
● |
● |
| |
32 |
04.686 UNION; OIL PIPE
M10 STRAIGHT OUTER M16X21
|
9-09227-055-0 |
01 |
1 |
9804- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
46 |
04.686 NUT; UNION,OIL PIPE
04.681
M16
|
9-99111-416-0 |
01 |
1 |
9804- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
49 |
04.686 WASHER; LK,UNION,OIL PIPE
06.897
ID=16.2
|
9-09150-516-0 |
01 |
1 |
9804- |
● |
● |
● |
● |
● |
● |
● |
● |
| |
57 |
04.685 PIPE; BRK,BYPASS VALVE TO RR AXL
|
8-94435-256-0 |
01 |
1 |
9804-9909 |
● |
● |
|
|
● |
● |
|
|
| |
57 |
04.685 PIPE; BRK,BYPASS VALVE TO RR AXL
EXC. UNITED KINGDOM EQUIPMENT(EK3)
|
8-94435-256-0 |
01 |
1 |
9804-9909 |
|
|
● |
● |
|
|
● |
● |
| |
57 |
04.685 PIPE; BRK,BYPASS VALVE TO RR AXL
|
8-94435-256-0 |
01 |
1 |
9910-9910 |
● |
● |
|
|
|
● |
|
|
| |
57 |
04.685 PIPE; BRK,BYPASS VALVE TO RR AXL
EXC. UNITED KINGDOM EQUIPMENT(EK3)
|
8-94435-256-0 |
01 |
1 |
9910-9910 |
|
|
● |
● |
● |
|
● |
● |
| |
57 |
04.685 PIPE; BRK,BYPASS VALVE TO RR AXL
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-94435-256-0 |
01 |
1 |
9911-0012 |
● |
|
|
|
|
|
|
|
| |
57 |
04.685 PIPE; BRK,BYPASS VALVE TO RR AXL
|
8-94435-256-0 |
01 |
1 |
9911-0012 |
|
● |
|
|
|
● |
|
|
| |
57 |
04.685 PIPE; BRK,BYPASS VALVE TO RR AXL
EXC. UNITED KINGDOM EQUIPMENT(EK3),
BRK WHL LK CONT LSPV<6PH>
|
8-94435-256-0 |
01 |
1 |
9911-0012 |
|
|
● |
● |
● |
|
● |
● |
| |
57 |
04.685 PIPE; BRK,BYPASS VALVE TO RR AXL
EXC. BRK WHL LK CONT LSPV<6PH>
|
8-94435-256-1 |
01 |
1 |
0101- |
● |
|
● |
● |
● |
|
● |
● |
| |
57 |
04.685 PIPE; BRK,BYPASS VALVE TO RR AXL
|
8-94435-256-1 |
01 |
1 |
0101- |
|
● |
|
|
|
● |
|
|
| |
58 |
04.686 PIPE; BRK,LSV TO RR AXLE
UNITED KINGDOM EQUIPMENT(EK3)
|
8-94318-699-1 |
01 |
1 |
9804-9909 |
|
|
● |
● |
|
|
● |
● |
| |
58 |
04.686 PIPE; BRK,LSV TO RR AXLE
UNITED KINGDOM EQUIPMENT(EK3)
|
8-94318-699-1 |
01 |
1 |
9910-9910 |
|
|
● |
● |
● |
|
● |
● |
| |
58 |
04.686 PIPE; BRK,LSV TO RR AXLE
AUSTRALIAN EQUIPMENT(RR3)
BRK WHL LK CONT LSPV<6PH>
|
8-94318-699-1 |
01 |
1 |
9911-0012 |
● |
|
● |
● |
● |
|
● |
● |
| |
58 |
04.686 PIPE; BRK,LSV TO RR AXLE
UNITED KINGDOM EQUIPMENT(EK3)
|
8-94318-699-1 |
01 |
1 |
9911-0012 |
|
|
● |
● |
● |
|
● |
● |
| |
58 |
04.686 PIPE; BRK,LSV TO RR AXLE
BRK WHL LK CONT LSPV<6PH>
|
8-94318-699-2 |
01 |
1 |
0101- |
● |
|
● |
● |
● |
|
● |
● |
