3-52 — BRAKE PIPING; OIL,FRONT (#45680) — 385 parça

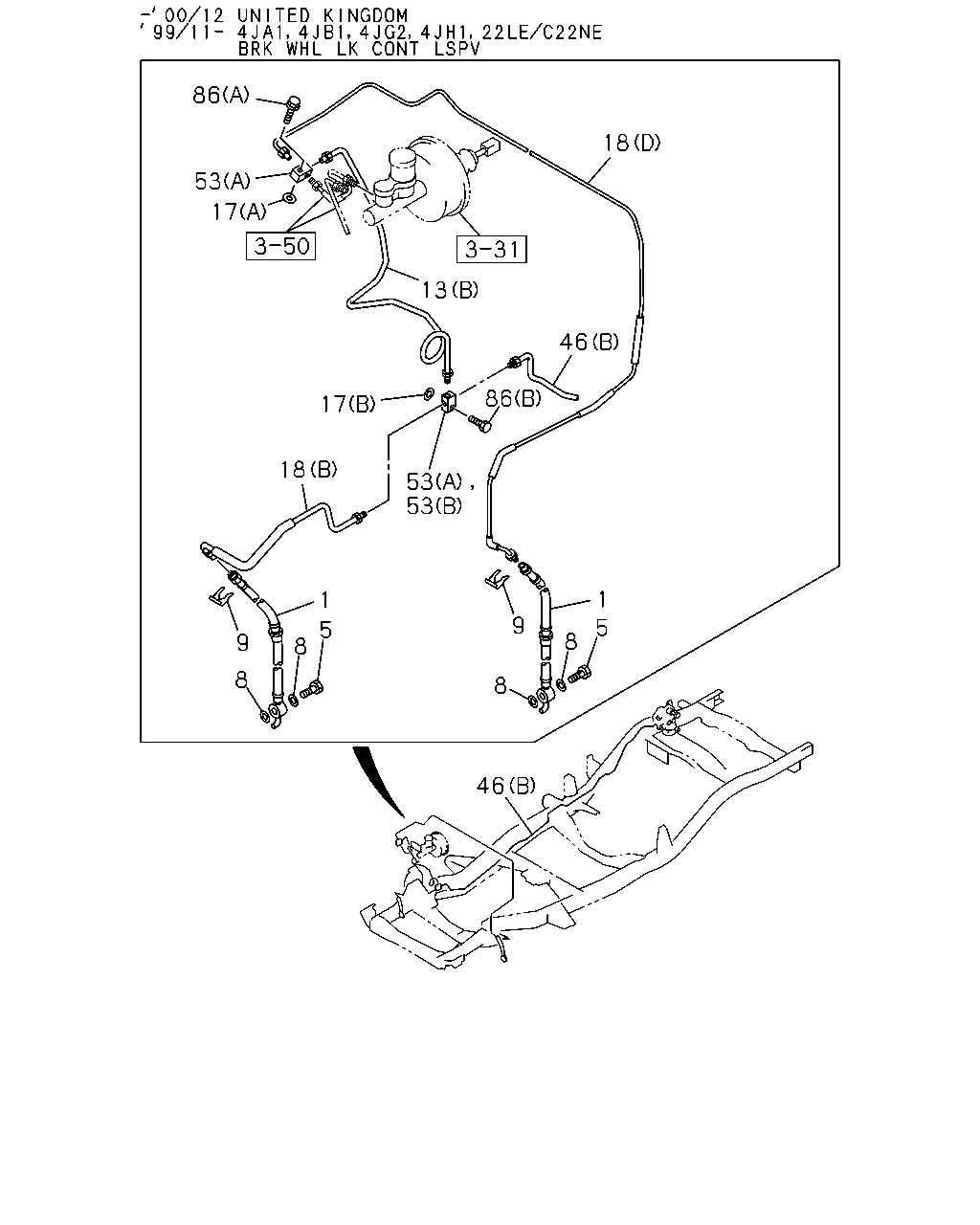

çizim 72839
86 18 53 17 13 46 86 17 18 53 53 1 5 1 9 5 8 9 8 8 8 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-829-0 02 1 9804-0012 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-829-0 02 1 0101-0109 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97134-829-0 02 1 0101-0109 ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-829-1 02 1 0110- ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) 		8-97069-650-0 02 1 9804-9901 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) 		8-97069-650-0 02 1 9902-0012 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97069-650-0 02 1 9902-0012 ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) 		8-97069-650-0 02 1 0101-0109 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-97069-650-0 02 1 0101-0109 ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) 		8-97069-650-1 02 1 0110- ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-830-0 02 1 9804-9901 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97134-830-0 02 1 9902-9909 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97134-830-0 02 1 9910-0012 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-830-0 02 1 0101-0109 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97134-830-0 02 1 0101-0109 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JB1 ENG(RLF) 		8-97134-830-0 02 1 0101-0109 ●
1 04.680 HOSE; FLEX,FRT BRK
4JA1 ENG(RLE) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97134-830-0 02 1 0101-0109 ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-830-1 02 1 0110- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97134-830-1 02 1 0110- ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
04.665 M10X22 		5-09675-017-0 02 1 9804- ● ● ● ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9804- ● ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 05 1 9804- ● ● ● ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97232-147-2 01 1 9911- ● ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97084-570-0 01 1 9804-9910 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) 		8-97084-570-0 01 1 9911-0012 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97084-570-0 01 1 9911-0012 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97084-570-1 01 1 0101- ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94333-042-1 01 1 9804-9909 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94333-042-1 01 1 9910-9910 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) 		8-94333-042-1 01 1 9911-0012 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94333-042-1 01 1 9911-0012 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-94333-042-2 01 1 0101-0109 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-94333-042-2 01 1 0101-0109 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-94333-042-2 01 1 0110- ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-94333-042-2 01 1 0110- ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
(A) ID=6.4 		1-09985-038-0 01 1 9804- ● ● ● ● ● ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
UNITED KINGDOM EQUIPMENT(EK3) (B) ID=8.2 		8-94312-733-0 01 1 9804-9910 ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) ID=8.2 		8-94312-733-0 01 1 9911-0012 ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
UNITED KINGDOM EQUIPMENT(EK3) (B) ID=8.2 		8-94312-733-0 01 1 9911-0012 ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) ID=8.2 		8-94312-733-0 01 1 0101- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-94450-591-3 01 1 9804-9812 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97212-625-0 01 1 9901-9907 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97230-486-0 01 1 9908-9910 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) 		8-97230-486-0 01 1 9911-0012 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97230-486-0 01 1 9911-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97230-486-1 01 1 0101- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (D) 		8-97185-189-0 01 1 9804-9909 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (D) 		8-97228-038-0 01 1 9910-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97228-038-0 01 1 0101-0101 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) (D) 		8-97228-038-0 01 1 0101-0101 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97228-038-1 01 1 0102-0109 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(D) 		8-97228-038-1 01 1 0102-0109 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97228-038-1 01 1 0110-0205 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(D) 		8-97228-038-1 01 1 0110-0205 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. CHARGE AIR COOLER<6PL>,4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97228-038-1 01 1 0110-0205 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97349-466-0 01 1 0206- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(D) 		8-97349-466-0 01 1 0206- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. CHARGE AIR COOLER<6PL>,4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97349-466-0 01 1 0206- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97115-645-1 01 1 0101-0109 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-97115-645-1 01 1 0101-0109 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97115-645-1 01 1 0110- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-97115-645-1 01 1 0110- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (D) 		8-97175-539-2 01 1 9804-9909 ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (D) 		8-97228-321-0 01 1 9910-0012 ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97228-321-1 01 1 0101-0109 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(D) 		8-97228-321-1 01 1 0101-0109 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97228-321-1 01 1 0110- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4X2 HIGH RIDE SUSPENSION(7YC) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97228-321-1 01 1 0110- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. CHARGE AIR COOLER<6PL> (D) 		8-97228-321-1 01 1 0110- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(D) 		8-97228-321-1 01 1 0110- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (C) 		8-97179-621-0 01 1 9804-9903 ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (C) 		8-97225-585-0 01 1 9904-9910 ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> (C) 		8-97225-585-0 01 1 9911-0012 ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97232-148-1 01 1 9911- ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
CHARGE AIR COOLER<6PL> 4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97310-995-2 01 1 0110- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
CHARGE AIR COOLER<6PL> (D) 		8-97310-995-2 01 1 0110- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
CHARGE AIR COOLER<6PL> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97310-994-0 01 1 0110- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97086-043-0 01 1 9804-9812 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-97212-621-0 01 1 9901-9910 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), BRK WHL LK CONT LSPV<6PH> (C) 		8-97212-621-0 01 1 9911-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,4X2 HIGH RIDE SUSPENSION(7YC) (C) 		8-97212-621-1 01 1 0101- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) (C) 		8-97212-621-1 01 1 0101- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-97104-394-0 01 1 9804-9910 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), BRK WHL LK CONT LSPV<6PH> (C) 		8-97104-394-0 01 1 9911-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> (C) 		8-97104-394-1 01 1 0101- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (C) 		8-97104-394-1 01 1 0101- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(C) 		8-97104-394-1 01 1 0101- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (D) 		8-97020-999-1 01 1 9804-9909 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) (D) 		8-97228-039-0 01 1 9910-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97115-645-0 01 1 9804-9909 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97115-645-0 01 1 9910-9910 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) 		8-97115-645-0 01 1 9911-0012 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97115-645-0 01 1 9911-0012 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) 		8-97132-347-0 01 1 9911-0012 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97132-347-1 01 1 0101-0206 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97355-808-0 01 1 0207- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97132-346-1 01 1 0101- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> (B) 		8-97132-346-1 01 1 0101- ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97232-149-3 01 1 9911- ● ● ● ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97117-623-0 01 1 9804-9910 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) 		8-97117-623-0 01 1 9911-0012 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97117-623-0 01 1 9911-0012 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97117-623-1 01 1 0101-0109 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97300-999-1 01 1 0110- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97117-624-0 01 1 9804-9909 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97216-857-0 01 1 9910-9910 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97216-857-0 01 1 9911-0012 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) 		8-97216-857-0 01 1 9911-0012 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97216-857-1 01 1 0101-0109 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-97216-857-1 01 1 0101-0109 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97301-000-1 01 1 0110- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-97301-000-1 01 1 0110- ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94406-895-0 01 1 9804-9909 ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9910-9910 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94406-895-0 01 1 9910-9910 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9911-0012 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (A) 		8-94406-895-0 01 1 9911-0012 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94406-895-0 01 1 9911-0012 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 0101-0109 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (A) 		8-94406-895-0 01 1 0101-0109 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) 		8-94406-895-0 01 1 0101-0109 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 0110- ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (A) 		8-94406-895-0 01 1 0110- ● ● ●
53 04.686 CONNECTOR; OIL PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) 		8-94406-895-0 01 1 0110- ● ● ●
53 04.686 CONNECTOR; OIL PIPE
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (C) 		8-97232-314-2 01 1 9911- ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94328-125-0 01 1 9804-9910 ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) 		8-94328-125-0 01 1 9911-0012 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94328-125-0 01 1 9911-0012 ● ●
53 04.686 CONNECTOR; OIL PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-94328-125-0 01 1 0101- ● ● ●
86 04.686 BOLT; BRK PIPE
03.634 (A) M6X30 W/LK&PL WASHER 		0-50140-630-0 01 1 9804-0109 ● ● ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
00.206 (A) M6X35 W/LK&PL WASHER 		0-50140-635-0 01 1 0110- ● ● ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 04.439 (C) M6X16 FLANGE 		0-28680-616-0 02 1 9911-9912 ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> 06.635 (C) M6X16 FLANGE 		0-28480-616-0 02 1 0001- ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
UNITED KINGDOM EQUIPMENT(EK3) 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9804-9910 ● ●
86 04.686 BOLT; BRK PIPE
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9911-0012 ● ● ●
86 04.686 BOLT; BRK PIPE
UNITED KINGDOM EQUIPMENT(EK3) 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9911-0012 ● ●
86 04.686 BOLT; BRK PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 0101-0210 ● ● ●
86 04.686 BOLT; BRK PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 0211- ● ● ●

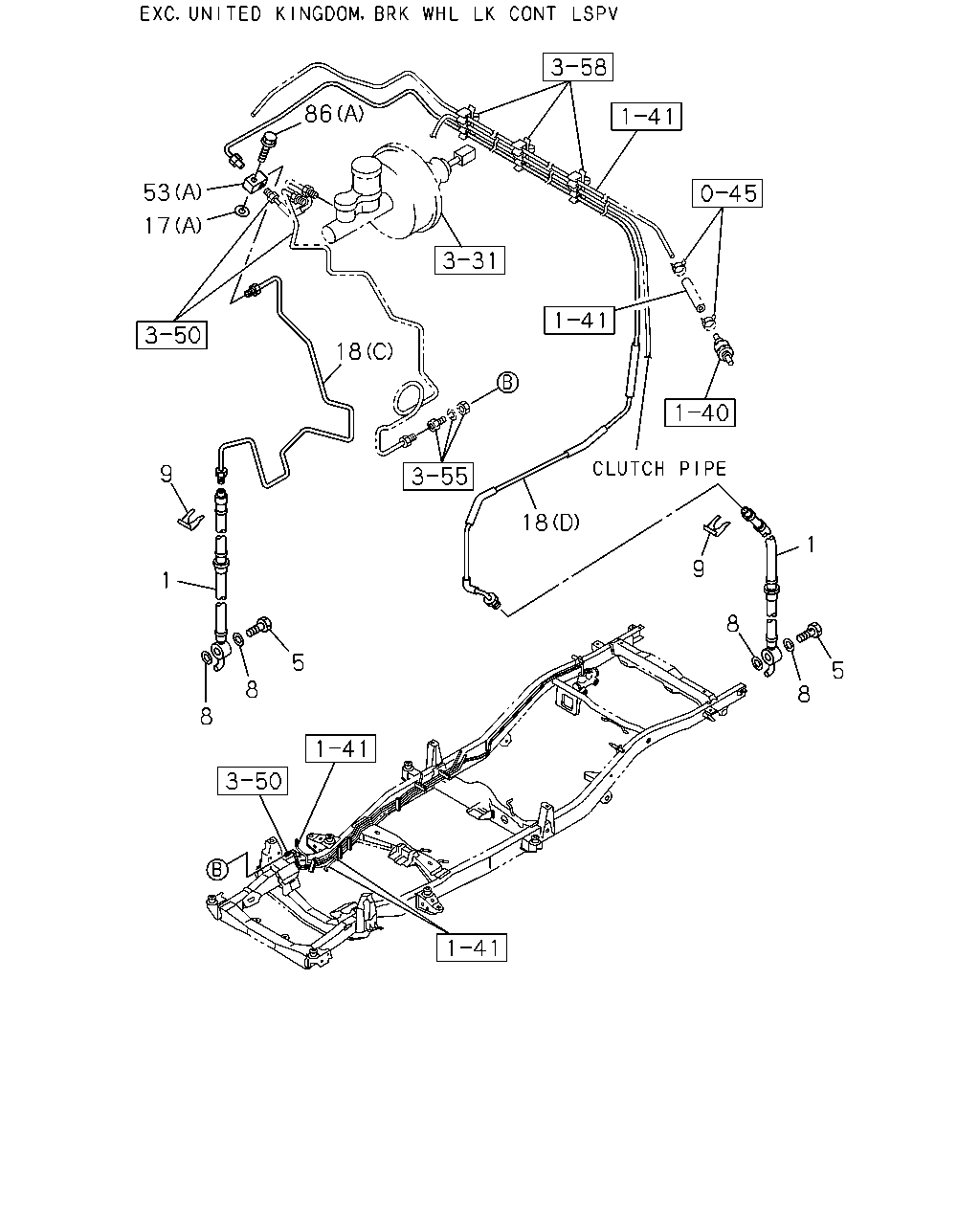

çizim 73941
86 53 17 18 9 18 1 9 1 8 5 5 8 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-829-0 02 1 9804-0012 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-829-0 02 1 0101-0109 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97134-829-0 02 1 0101-0109 ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-829-1 02 1 0110- ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) 		8-97069-650-0 02 1 9804-9901 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) 		8-97069-650-0 02 1 9902-0012 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97069-650-0 02 1 9902-0012 ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) 		8-97069-650-0 02 1 0101-0109 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-97069-650-0 02 1 0101-0109 ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) 		8-97069-650-1 02 1 0110- ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-830-0 02 1 9804-9901 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97134-830-0 02 1 9902-9909 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97134-830-0 02 1 9910-0012 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-830-0 02 1 0101-0109 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97134-830-0 02 1 0101-0109 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JB1 ENG(RLF) 		8-97134-830-0 02 1 0101-0109 ●
1 04.680 HOSE; FLEX,FRT BRK
4JA1 ENG(RLE) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97134-830-0 02 1 0101-0109 ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-830-1 02 1 0110- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97134-830-1 02 1 0110- ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
04.665 M10X22 		5-09675-017-0 02 1 9804- ● ● ● ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9804- ● ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 05 1 9804- ● ● ● ● ● ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
(A) ID=6.4 		1-09985-038-0 01 1 9804- ● ● ● ● ● ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
UNITED KINGDOM EQUIPMENT(EK3) (B) ID=8.2 		8-94312-733-0 01 1 9804-9910 ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) ID=8.2 		8-94312-733-0 01 1 9911-0012 ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
UNITED KINGDOM EQUIPMENT(EK3) (B) ID=8.2 		8-94312-733-0 01 1 9911-0012 ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) ID=8.2 		8-94312-733-0 01 1 0101- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-94450-591-3 01 1 9804-9812 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97212-625-0 01 1 9901-9907 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97230-486-0 01 1 9908-9910 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) 		8-97230-486-0 01 1 9911-0012 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97230-486-0 01 1 9911-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97230-486-1 01 1 0101- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (D) 		8-97185-189-0 01 1 9804-9909 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (D) 		8-97228-038-0 01 1 9910-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97228-038-0 01 1 0101-0101 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) (D) 		8-97228-038-0 01 1 0101-0101 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97228-038-1 01 1 0102-0109 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(D) 		8-97228-038-1 01 1 0102-0109 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97228-038-1 01 1 0110-0205 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(D) 		8-97228-038-1 01 1 0110-0205 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. CHARGE AIR COOLER<6PL>,4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97228-038-1 01 1 0110-0205 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97349-466-0 01 1 0206- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(D) 		8-97349-466-0 01 1 0206- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. CHARGE AIR COOLER<6PL>,4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97349-466-0 01 1 0206- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97115-645-1 01 1 0101-0109 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-97115-645-1 01 1 0101-0109 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97115-645-1 01 1 0110- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-97115-645-1 01 1 0110- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (D) 		8-97175-539-2 01 1 9804-9909 ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (D) 		8-97228-321-0 01 1 9910-0012 ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97228-321-1 01 1 0101-0109 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(D) 		8-97228-321-1 01 1 0101-0109 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97228-321-1 01 1 0110- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4X2 HIGH RIDE SUSPENSION(7YC) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97228-321-1 01 1 0110- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. CHARGE AIR COOLER<6PL> (D) 		8-97228-321-1 01 1 0110- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(D) 		8-97228-321-1 01 1 0110- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (C) 		8-97179-621-0 01 1 9804-9903 ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (C) 		8-97225-585-0 01 1 9904-9910 ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> (C) 		8-97225-585-0 01 1 9911-0012 ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97232-148-1 01 1 9911- ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
CHARGE AIR COOLER<6PL> 4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97310-995-2 01 1 0110- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
CHARGE AIR COOLER<6PL> (D) 		8-97310-995-2 01 1 0110- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
CHARGE AIR COOLER<6PL> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97310-994-0 01 1 0110- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97086-043-0 01 1 9804-9812 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-97212-621-0 01 1 9901-9910 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), BRK WHL LK CONT LSPV<6PH> (C) 		8-97212-621-0 01 1 9911-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,4X2 HIGH RIDE SUSPENSION(7YC) (C) 		8-97212-621-1 01 1 0101- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) (C) 		8-97212-621-1 01 1 0101- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-97104-394-0 01 1 9804-9910 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), BRK WHL LK CONT LSPV<6PH> (C) 		8-97104-394-0 01 1 9911-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> (C) 		8-97104-394-1 01 1 0101- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (C) 		8-97104-394-1 01 1 0101- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(C) 		8-97104-394-1 01 1 0101- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (D) 		8-97020-999-1 01 1 9804-9909 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) (D) 		8-97228-039-0 01 1 9910-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97115-645-0 01 1 9804-9909 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97115-645-0 01 1 9910-9910 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) 		8-97115-645-0 01 1 9911-0012 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97115-645-0 01 1 9911-0012 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94406-895-0 01 1 9804-9909 ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9910-9910 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94406-895-0 01 1 9910-9910 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9911-0012 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (A) 		8-94406-895-0 01 1 9911-0012 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94406-895-0 01 1 9911-0012 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 0101-0109 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (A) 		8-94406-895-0 01 1 0101-0109 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) 		8-94406-895-0 01 1 0101-0109 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 0110- ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (A) 		8-94406-895-0 01 1 0110- ● ● ●
53 04.686 CONNECTOR; OIL PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) 		8-94406-895-0 01 1 0110- ● ● ●
53 04.686 CONNECTOR; OIL PIPE
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (C) 		8-97232-314-2 01 1 9911- ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94328-125-0 01 1 9804-9910 ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) 		8-94328-125-0 01 1 9911-0012 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94328-125-0 01 1 9911-0012 ● ●
53 04.686 CONNECTOR; OIL PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-94328-125-0 01 1 0101- ● ● ●
86 04.686 BOLT; BRK PIPE
03.634 (A) M6X30 W/LK&PL WASHER 		0-50140-630-0 01 1 9804-0109 ● ● ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
00.206 (A) M6X35 W/LK&PL WASHER 		0-50140-635-0 01 1 0110- ● ● ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 04.439 (C) M6X16 FLANGE 		0-28680-616-0 02 1 9911-9912 ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> 06.635 (C) M6X16 FLANGE 		0-28480-616-0 02 1 0001- ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
UNITED KINGDOM EQUIPMENT(EK3) 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9804-9910 ● ●
86 04.686 BOLT; BRK PIPE
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9911-0012 ● ● ●
86 04.686 BOLT; BRK PIPE
UNITED KINGDOM EQUIPMENT(EK3) 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9911-0012 ● ●
86 04.686 BOLT; BRK PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 0101-0210 ● ● ●
86 04.686 BOLT; BRK PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 0211- ● ● ●

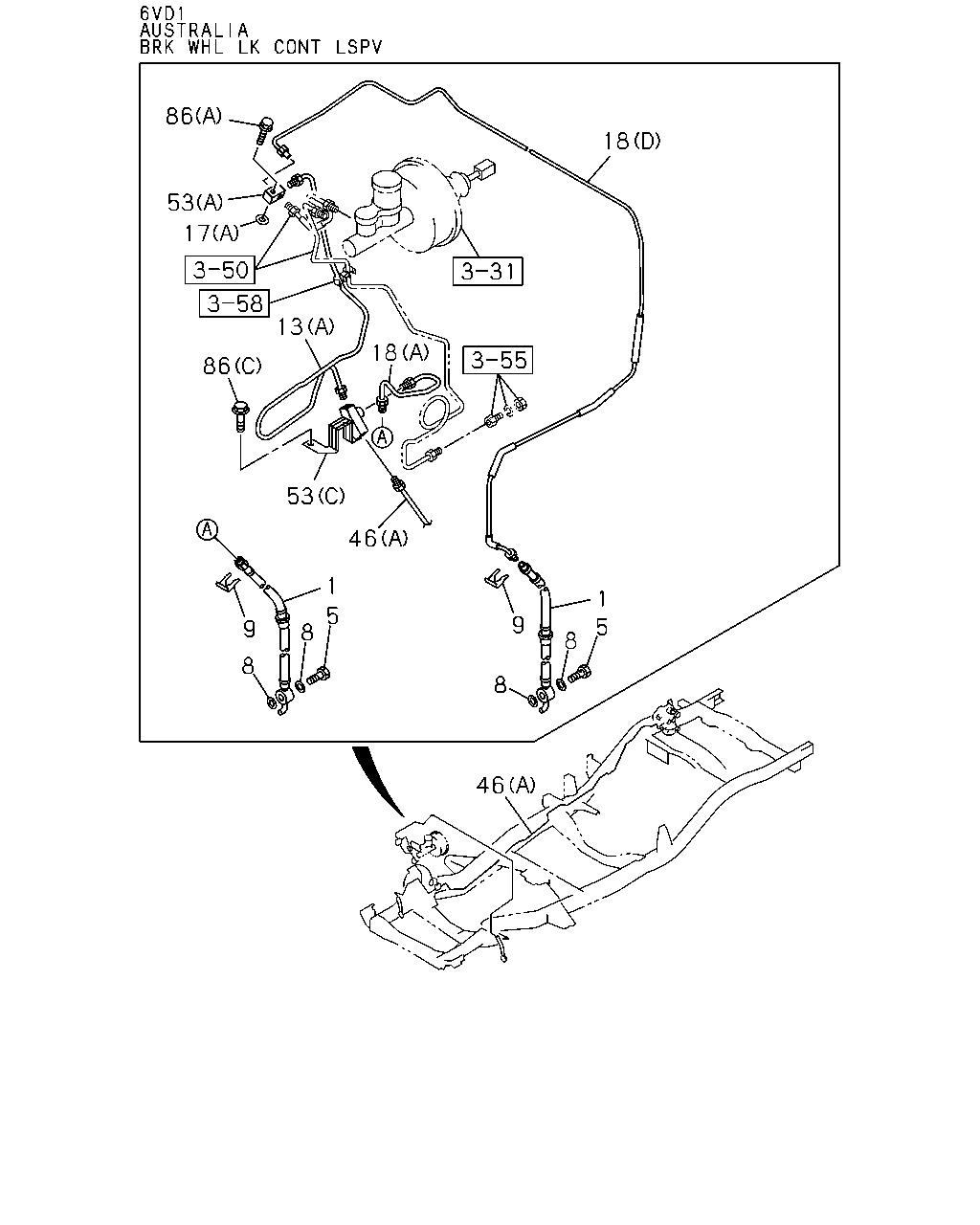

çizim 74058
86 18 53 17 13 18 86 53 46 1 1 5 5 9 9 8 8 8 8 46
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-829-0 02 1 9804-0012 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-829-0 02 1 0101-0109 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK 8-97134-829-0 02 1 0101-0109 ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-829-1 02 1 0110- ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) 		8-97069-650-0 02 1 9804-9901 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) 		8-97069-650-0 02 1 9902-0012 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97069-650-0 02 1 9902-0012 ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) 		8-97069-650-0 02 1 0101-0109 ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-97069-650-0 02 1 0101-0109 ●
1 04.680 HOSE; FLEX,FRT BRK
6VD1 ENG(RLV) 		8-97069-650-1 02 1 0110- ● ● ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-830-0 02 1 9804-9901 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97134-830-0 02 1 9902-9909 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97134-830-0 02 1 9910-0012 ● ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-830-0 02 1 0101-0109 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97134-830-0 02 1 0101-0109 ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JB1 ENG(RLF) 		8-97134-830-0 02 1 0101-0109 ●
1 04.680 HOSE; FLEX,FRT BRK
4JA1 ENG(RLE) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97134-830-0 02 1 0101-0109 ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97134-830-1 02 1 0110- ● ● ●
1 04.680 HOSE; FLEX,FRT BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97134-830-1 02 1 0110- ● ● ● ●
5 04.681 BOLT; EYE,FLEX HOSE,FRT BRK
04.665 M10X22 		5-09675-017-0 02 1 9804- ● ● ● ● ● ● ● ●
8 04.681 GASKET; FLEX HOSE,FRT BRK
08.955 ID=10.2 OD=16.0 		9-09571-410-0 04 1 9804- ● ● ● ● ● ● ● ●
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 05 1 9804- ● ● ● ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97232-147-2 01 1 9911- ● ● ● ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97084-570-0 01 1 9804-9910 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) 		8-97084-570-0 01 1 9911-0012 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97084-570-0 01 1 9911-0012 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97084-570-1 01 1 0101- ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94333-042-1 01 1 9804-9909 ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94333-042-1 01 1 9910-9910 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) 		8-94333-042-1 01 1 9911-0012 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94333-042-1 01 1 9911-0012 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-94333-042-2 01 1 0101-0109 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-94333-042-2 01 1 0101-0109 ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-94333-042-2 01 1 0110- ● ● ●
13 04.685 PIPE; OIL,UNION TO UNION
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-94333-042-2 01 1 0110- ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
(A) ID=6.4 		1-09985-038-0 01 1 9804- ● ● ● ● ● ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
UNITED KINGDOM EQUIPMENT(EK3) (B) ID=8.2 		8-94312-733-0 01 1 9804-9910 ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) ID=8.2 		8-94312-733-0 01 1 9911-0012 ● ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
UNITED KINGDOM EQUIPMENT(EK3) (B) ID=8.2 		8-94312-733-0 01 1 9911-0012 ● ●
17 04.686 WASHER; PL,3 WAY CONNECTOR
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) ID=8.2 		8-94312-733-0 01 1 0101- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-94450-591-3 01 1 9804-9812 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97212-625-0 01 1 9901-9907 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97230-486-0 01 1 9908-9910 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) 		8-97230-486-0 01 1 9911-0012 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97230-486-0 01 1 9911-0012 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97230-486-1 01 1 0101- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (D) 		8-97185-189-0 01 1 9804-9909 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (D) 		8-97228-038-0 01 1 9910-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97228-038-0 01 1 0101-0101 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) (D) 		8-97228-038-0 01 1 0101-0101 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97228-038-1 01 1 0102-0109 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(D) 		8-97228-038-1 01 1 0102-0109 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97228-038-1 01 1 0110-0205 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(D) 		8-97228-038-1 01 1 0110-0205 ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. CHARGE AIR COOLER<6PL>,4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97228-038-1 01 1 0110-0205 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97349-466-0 01 1 0206- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(D) 		8-97349-466-0 01 1 0206- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. CHARGE AIR COOLER<6PL>,4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97349-466-0 01 1 0206- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97115-645-1 01 1 0101-0109 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-97115-645-1 01 1 0101-0109 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97115-645-1 01 1 0110- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-97115-645-1 01 1 0110- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (D) 		8-97175-539-2 01 1 9804-9909 ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (D) 		8-97228-321-0 01 1 9910-0012 ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97228-321-1 01 1 0101-0109 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(D) 		8-97228-321-1 01 1 0101-0109 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97228-321-1 01 1 0110- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4X2 HIGH RIDE SUSPENSION(7YC) EXC. CHARGE AIR COOLER<6PL> (D) 		8-97228-321-1 01 1 0110- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. CHARGE AIR COOLER<6PL> (D) 		8-97228-321-1 01 1 0110- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(D) 		8-97228-321-1 01 1 0110- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (C) 		8-97179-621-0 01 1 9804-9903 ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) (C) 		8-97225-585-0 01 1 9904-9910 ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> (C) 		8-97225-585-0 01 1 9911-0012 ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97232-148-1 01 1 9911- ● ● ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
CHARGE AIR COOLER<6PL> 4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97310-995-2 01 1 0110- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
CHARGE AIR COOLER<6PL> (D) 		8-97310-995-2 01 1 0110- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
CHARGE AIR COOLER<6PL> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (D) 		8-97310-994-0 01 1 0110- ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97086-043-0 01 1 9804-9812 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-97212-621-0 01 1 9901-9910 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), BRK WHL LK CONT LSPV<6PH> (C) 		8-97212-621-0 01 1 9911-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,4X2 HIGH RIDE SUSPENSION(7YC) (C) 		8-97212-621-1 01 1 0101- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) (C) 		8-97212-621-1 01 1 0101- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) (C) 		8-97104-394-0 01 1 9804-9910 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), BRK WHL LK CONT LSPV<6PH> (C) 		8-97104-394-0 01 1 9911-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> (C) 		8-97104-394-1 01 1 0101- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> (C) 		8-97104-394-1 01 1 0101- ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
(C) 		8-97104-394-1 01 1 0101- ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) (D) 		8-97020-999-1 01 1 9804-9909 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) (D) 		8-97228-039-0 01 1 9910-0012 ● ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97115-645-0 01 1 9804-9909 ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97115-645-0 01 1 9910-9910 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) 		8-97115-645-0 01 1 9911-0012 ● ● ●
18 04.685 PIPE; OIL,UNION TO FRT FLEX HOSE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97115-645-0 01 1 9911-0012 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) 		8-97132-347-0 01 1 9911-0012 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97132-347-1 01 1 0101-0206 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97355-808-0 01 1 0207- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97132-346-1 01 1 0101- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> (B) 		8-97132-346-1 01 1 0101- ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (A) 		8-97232-149-3 01 1 9911- ● ● ● ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97117-623-0 01 1 9804-9910 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) 		8-97117-623-0 01 1 9911-0012 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97117-623-0 01 1 9911-0012 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97117-623-1 01 1 0101-0109 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97300-999-1 01 1 0110- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97117-624-0 01 1 9804-9909 ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97216-857-0 01 1 9910-9910 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-97216-857-0 01 1 9911-0012 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) 		8-97216-857-0 01 1 9911-0012 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97216-857-1 01 1 0101-0109 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-97216-857-1 01 1 0101-0109 ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-97301-000-1 01 1 0110- ● ● ●
46 04.685 PIPE; BRK,JOINT TO VLV
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (B) 		8-97301-000-1 01 1 0110- ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94406-895-0 01 1 9804-9909 ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9910-9910 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94406-895-0 01 1 9910-9910 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 9911-0012 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (A) 		8-94406-895-0 01 1 9911-0012 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
UNITED KINGDOM EQUIPMENT(EK3) (A) 		8-94406-895-0 01 1 9911-0012 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 0101-0109 ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (A) 		8-94406-895-0 01 1 0101-0109 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) 		8-94406-895-0 01 1 0101-0109 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
(A) 		8-94406-895-0 01 1 0110- ● ● ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) (A) 		8-94406-895-0 01 1 0110- ● ● ●
53 04.686 CONNECTOR; OIL PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> (A) 		8-94406-895-0 01 1 0110- ● ● ●
53 04.686 CONNECTOR; OIL PIPE
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> (C) 		8-97232-314-2 01 1 9911- ● ● ● ● ● ●
53 04.686 CONNECTOR; OIL PIPE
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94328-125-0 01 1 9804-9910 ● ●
53 04.686 CONNECTOR; OIL PIPE
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> (B) 		8-94328-125-0 01 1 9911-0012 ● ● ●
53 04.686 CONNECTOR; OIL PIPE
UNITED KINGDOM EQUIPMENT(EK3) (B) 		8-94328-125-0 01 1 9911-0012 ● ●
53 04.686 CONNECTOR; OIL PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) (B) 		8-94328-125-0 01 1 0101- ● ● ●
86 04.686 BOLT; BRK PIPE
03.634 (A) M6X30 W/LK&PL WASHER 		0-50140-630-0 01 1 9804-0109 ● ● ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
00.206 (A) M6X35 W/LK&PL WASHER 		0-50140-635-0 01 1 0110- ● ● ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 04.439 (C) M6X16 FLANGE 		0-28680-616-0 02 1 9911-9912 ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> 06.635 (C) M6X16 FLANGE 		0-28480-616-0 02 1 0001- ● ● ● ● ● ●
86 04.686 BOLT; BRK PIPE
UNITED KINGDOM EQUIPMENT(EK3) 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9804-9910 ● ●
86 04.686 BOLT; BRK PIPE
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9911-0012 ● ● ●
86 04.686 BOLT; BRK PIPE
UNITED KINGDOM EQUIPMENT(EK3) 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 9911-0012 ● ●
86 04.686 BOLT; BRK PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 02.334 (B) M8X40 W/LK&PL WASHER 		0-51240-840-0 01 1 0101-0210 ● ● ●
86 04.686 BOLT; BRK PIPE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 02.183 (B) M8X35 FLANGE 		0-28680-835-0 01 1 0211- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
