◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 3 - Brakes, Brake System ▶ 3-50 - BRAKE PIPING; OIL,MASTER CYLINDER ▶
3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#45679) — 317 parça

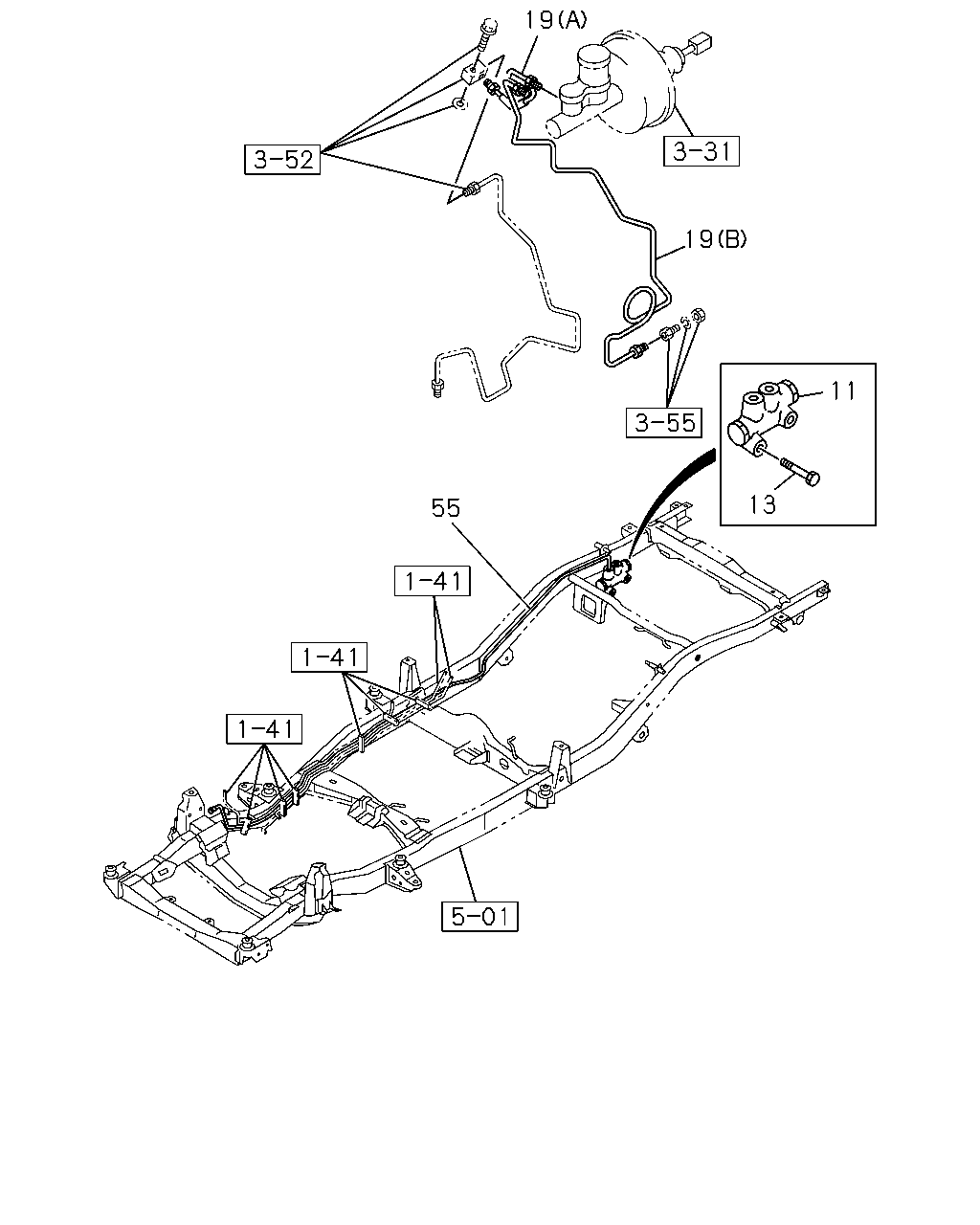

çizim 17061
19 19 11 13 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 04.686 VALVE; BRK CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94126-764-3 01 1 9804-9910 ● ● ● ●
11 04.686 VALVE; BRK CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-94126-764-3 01 1 9911-0012 ● ● ● ●
11 04.686 VALVE; BRK CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 		8-94126-764-3 01 1 9911-0012 ● ●
11 04.686 VALVE; BRK CONT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,4X2 HIGH RIDE SUSPENSION(7YC) 		8-94126-764-3 01 1 0101- ● ● ●
11 04.686 VALVE; BRK CONT 8-94126-764-3 01 1 0101- ●
11 04.686 VALVE; BRK CONT
6VD1 ENG(RLV) 		8-97179-791-0 01 1 9804-9910 ● ● ● ● ● ●
11 04.686 VALVE; BRK CONT
6VD1 ENG(RLV) EXC. AUSTRALIAN EQUIPMENT(RR3) 		8-97179-791-0 01 1 9911-0012 ● ● ● ● ● ●
11 04.686 VALVE; BRK CONT
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97179-791-0 01 1 9911-0012 ● ● ● ● ● ●
11 04.686 VALVE; BRK CONT
6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97179-791-0 01 1 0101- ● ● ● ● ● ●
11 04.686 VALVE; BRK CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97171-502-0 01 1 9804-9909 ● ● ● ●
11 04.686 VALVE; BRK CONT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97171-502-0 01 1 9910-9910 ● ● ● ●
11 04.686 VALVE; BRK CONT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 		8-97171-502-0 01 1 9911-0012 ● ● ● ●
11 04.686 VALVE; BRK CONT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97171-502-0 01 1 9911-0012 ● ● ●
11 04.686 VALVE; BRK CONT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97171-502-0 01 1 0101- ● ● ●
11 04.686 VALVE; BRK CONT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97171-502-0 01 1 0101- ● ● ●
11 04.686 VALVE; BRK CONT 8-97171-502-0 01 1 0101- ●
13 04.686 BOLT; VLV TO BRKT
01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9804-9805 ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9804-9805 ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9806-9909 ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9806-9909 ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9910-9910 ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9910-9910 ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
AUSTRALIAN EQUIPMENT(RR3) EXC. BRK WHL LK CONT LSPV<6PH> 01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9911-0012 ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. AUSTRALIAN EQUIPMENT(RR3) 01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9911-0012 ●
13 04.686 BOLT; VLV TO BRKT
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9911-0012 ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9911-0012 ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. BRK WHL LK CONT LSPV<6PH> 01.540 M8X45 FLANGE 		0-28080-845-0 02 1 0101- ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 0101- ● ●
13 04.686 BOLT; VLV TO BRKT
UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9804-9909 ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9910-9910 ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9911-0012 ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9911-0012 ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
BRK WHL LK CONT LSPV<6PH> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 0101-0106 ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0107- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-94450-598-0 01 1 9804-9902 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-94450-598-0 01 1 9804-9902 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-94450-598-0 01 1 9903-9909 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-94450-598-0 01 1 9903-9909 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) (A) 		8-94450-598-0 01 1 9903-9909 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-94450-598-1 01 1 9910-0109 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-94450-598-1 01 1 9910-0109 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) (A) 		8-94450-598-1 01 1 9910-0109 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-94450-598-1 01 1 0110- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-94450-598-1 01 1 0110- ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-97075-994-0 01 1 9804-9902 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97075-994-0 01 1 9804-9902 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97075-994-0 01 1 9903-9909 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-97075-994-0 01 1 9903-9909 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) (B) 		8-97075-994-0 01 1 9903-9909 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-97075-994-1 01 1 9910-0109 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97075-994-1 01 1 9910-0109 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) (B) 		8-97075-994-1 01 1 9910-0109 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-97075-994-1 01 1 0110-0205 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97075-994-1 01 1 0110-0205 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-97349-468-0 01 1 0206- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97349-468-0 01 1 0206- ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VD1 ENG(RLV) 04.686 (A) 		8-97175-537-1 01 1 9804-9902 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VD1 ENG(RLV) 04.686 (B) 		8-97175-538-2 01 1 9804- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VD1 ENG(RLV) 04.686 (A) 		8-97175-537-2 01 1 9903-0109 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.686 (A) 		8-97175-537-2 01 1 9903-0109 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VD1 ENG(RLV) 04.686 (A) 		8-97175-537-2 01 1 0110- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) (A) 		8-97173-099-1 01 1 9804- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97173-100-2 01 1 9804- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) (B) 		8-97223-752-1 01 1 9903-0109 ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97165-363-1 01 1 0101- ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97165-362-0 01 1 9804-9910 ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97165-362-0 01 1 9911-0012 ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,4X2 HIGH RIDE SUSPENSION(7YC) 		8-97165-362-1 01 1 0101- ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 		8-97132-344-0 01 1 9911-0012 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97132-344-1 01 1 0101-0206 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97355-807-0 01 1 0207- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97132-343-1 01 1 0101- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> 		8-97132-343-1 01 1 0101- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 		8-97179-628-1 01 1 9911-0012 ● ● ● ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> 		8-97179-628-2 01 1 0101- ● ● ● ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
6VD1 ENG(RLV) 04.685 		8-97179-627-0 01 1 9804-9910 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> 04.685 		8-97179-627-1 01 1 9911- ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97122-660-1 01 1 9804- ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-625-0 01 1 9804-9910 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), BRK WHL LK CONT LSPV<6PH> 		8-97117-625-0 01 1 9911-0012 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,4X2 HIGH RIDE SUSPENSION(7YC) 		8-97117-625-1 01 1 0101- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-616-0 01 1 9804-9910 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 		8-97117-616-0 01 1 9911-0012 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-616-0 01 1 9911-0012 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97117-616-1 01 1 0101-0109 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97300-996-2 01 1 0110- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
6VD1 ENG(RLV) 04.685 		8-97179-626-1 01 1 9804-9910 ● ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> 04.685 		8-97179-626-2 01 1 9911- ● ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97165-363-0 01 1 9804-9909 ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97216-859-1 01 1 9910-9910 ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), BRK WHL LK CONT LSPV<6PH> 		8-97216-859-1 01 1 9911-0012 ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97216-859-2 01 1 0101- ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97216-859-2 01 1 0101- ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97136-730-1 01 1 9804- ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-626-0 01 1 9804-9909 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-626-0 01 1 9910-9910 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) EXC. UNITED KINGDOM EQUIPMENT(EK3), BRK WHL LK CONT LSPV<6PH> 		8-97117-626-0 01 1 9911-0012 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97117-626-1 01 1 0101- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97117-626-1 01 1 0101- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-617-0 01 1 9804-9909 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97216-846-0 01 1 9910-9910 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97216-846-0 01 1 9911-0012 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 		8-97216-846-0 01 1 9911-0012 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97216-846-1 01 1 0101-0109 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 		8-97216-846-1 01 1 0101-0109 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97300-997-2 01 1 0110- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 		8-97300-997-2 01 1 0110- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97216-858-1 01 1 9910-9910 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), BRK WHL LK CONT LSPV<6PH> 		8-97216-858-1 01 1 9911-0012 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97216-858-2 01 1 0101- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97216-858-2 01 1 0101- ● ●

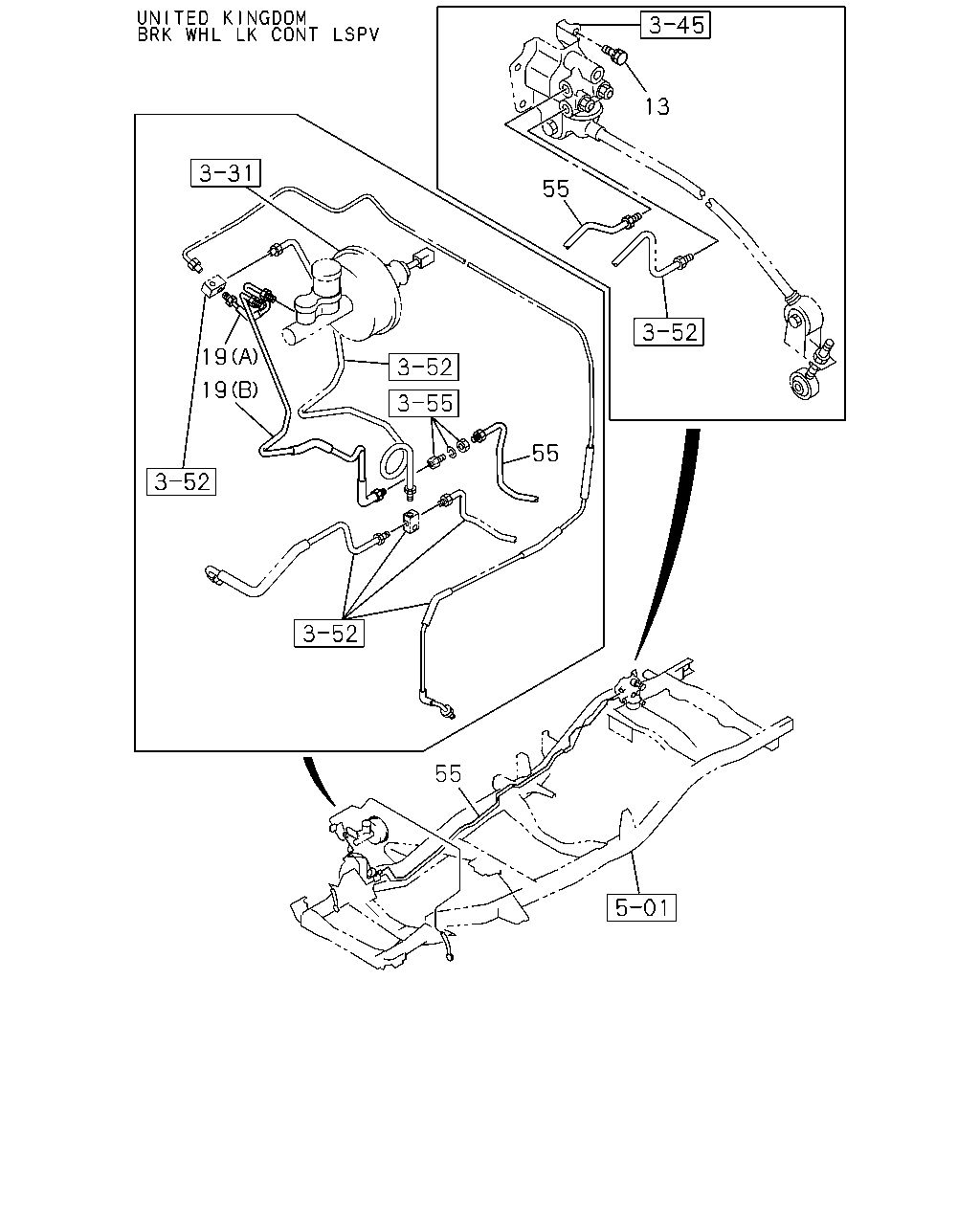

çizim 19265
19 19 11 13 55 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
11 04.686 VALVE; BRK CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94126-764-3 01 1 9804-9910 ● ● ● ●
11 04.686 VALVE; BRK CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-94126-764-3 01 1 9911-0012 ● ● ● ●
11 04.686 VALVE; BRK CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 		8-94126-764-3 01 1 9911-0012 ● ●
11 04.686 VALVE; BRK CONT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,4X2 HIGH RIDE SUSPENSION(7YC) 		8-94126-764-3 01 1 0101- ● ● ●
11 04.686 VALVE; BRK CONT 8-94126-764-3 01 1 0101- ●
11 04.686 VALVE; BRK CONT
6VD1 ENG(RLV) 		8-97179-791-0 01 1 9804-9910 ● ● ● ● ● ●
11 04.686 VALVE; BRK CONT
6VD1 ENG(RLV) EXC. AUSTRALIAN EQUIPMENT(RR3) 		8-97179-791-0 01 1 9911-0012 ● ● ● ● ● ●
11 04.686 VALVE; BRK CONT
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97179-791-0 01 1 9911-0012 ● ● ● ● ● ●
11 04.686 VALVE; BRK CONT
6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97179-791-0 01 1 0101- ● ● ● ● ● ●
11 04.686 VALVE; BRK CONT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97171-502-0 01 1 9804-9909 ● ● ● ●
11 04.686 VALVE; BRK CONT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97171-502-0 01 1 9910-9910 ● ● ● ●
11 04.686 VALVE; BRK CONT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 		8-97171-502-0 01 1 9911-0012 ● ● ● ●
11 04.686 VALVE; BRK CONT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97171-502-0 01 1 9911-0012 ● ● ●
11 04.686 VALVE; BRK CONT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97171-502-0 01 1 0101- ● ● ●
11 04.686 VALVE; BRK CONT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97171-502-0 01 1 0101- ● ● ●
11 04.686 VALVE; BRK CONT 8-97171-502-0 01 1 0101- ●
13 04.686 BOLT; VLV TO BRKT
01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9804-9805 ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9804-9805 ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9806-9909 ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9806-9909 ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9910-9910 ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9910-9910 ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
AUSTRALIAN EQUIPMENT(RR3) EXC. BRK WHL LK CONT LSPV<6PH> 01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9911-0012 ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. AUSTRALIAN EQUIPMENT(RR3) 01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9911-0012 ●
13 04.686 BOLT; VLV TO BRKT
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9911-0012 ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9911-0012 ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. BRK WHL LK CONT LSPV<6PH> 01.540 M8X45 FLANGE 		0-28080-845-0 02 1 0101- ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 0101- ● ●
13 04.686 BOLT; VLV TO BRKT
UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9804-9909 ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9910-9910 ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9911-0012 ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9911-0012 ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
BRK WHL LK CONT LSPV<6PH> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 0101-0106 ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0107- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-94450-598-0 01 1 9804-9902 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-94450-598-0 01 1 9804-9902 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-94450-598-0 01 1 9903-9909 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-94450-598-0 01 1 9903-9909 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) (A) 		8-94450-598-0 01 1 9903-9909 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-94450-598-1 01 1 9910-0109 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-94450-598-1 01 1 9910-0109 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) (A) 		8-94450-598-1 01 1 9910-0109 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-94450-598-1 01 1 0110- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-94450-598-1 01 1 0110- ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-97075-994-0 01 1 9804-9902 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97075-994-0 01 1 9804-9902 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97075-994-0 01 1 9903-9909 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-97075-994-0 01 1 9903-9909 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) (B) 		8-97075-994-0 01 1 9903-9909 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-97075-994-1 01 1 9910-0109 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97075-994-1 01 1 9910-0109 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) (B) 		8-97075-994-1 01 1 9910-0109 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-97075-994-1 01 1 0110-0205 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97075-994-1 01 1 0110-0205 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-97349-468-0 01 1 0206- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97349-468-0 01 1 0206- ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VD1 ENG(RLV) 04.686 (A) 		8-97175-537-1 01 1 9804-9902 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VD1 ENG(RLV) 04.686 (B) 		8-97175-538-2 01 1 9804- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VD1 ENG(RLV) 04.686 (A) 		8-97175-537-2 01 1 9903-0109 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.686 (A) 		8-97175-537-2 01 1 9903-0109 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VD1 ENG(RLV) 04.686 (A) 		8-97175-537-2 01 1 0110- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) (A) 		8-97173-099-1 01 1 9804- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97173-100-2 01 1 9804- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) (B) 		8-97223-752-1 01 1 9903-0109 ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97165-363-1 01 1 0101- ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97165-362-0 01 1 9804-9910 ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97165-362-0 01 1 9911-0012 ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,4X2 HIGH RIDE SUSPENSION(7YC) 		8-97165-362-1 01 1 0101- ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 		8-97132-344-0 01 1 9911-0012 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97132-344-1 01 1 0101-0206 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97355-807-0 01 1 0207- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97132-343-1 01 1 0101- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> 		8-97132-343-1 01 1 0101- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 		8-97179-628-1 01 1 9911-0012 ● ● ● ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> 		8-97179-628-2 01 1 0101- ● ● ● ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
6VD1 ENG(RLV) 04.685 		8-97179-627-0 01 1 9804-9910 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> 04.685 		8-97179-627-1 01 1 9911- ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97122-660-1 01 1 9804- ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-625-0 01 1 9804-9910 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), BRK WHL LK CONT LSPV<6PH> 		8-97117-625-0 01 1 9911-0012 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,4X2 HIGH RIDE SUSPENSION(7YC) 		8-97117-625-1 01 1 0101- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-616-0 01 1 9804-9910 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 		8-97117-616-0 01 1 9911-0012 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-616-0 01 1 9911-0012 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97117-616-1 01 1 0101-0109 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97300-996-2 01 1 0110- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
6VD1 ENG(RLV) 04.685 		8-97179-626-1 01 1 9804-9910 ● ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> 04.685 		8-97179-626-2 01 1 9911- ● ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97165-363-0 01 1 9804-9909 ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97216-859-1 01 1 9910-9910 ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), BRK WHL LK CONT LSPV<6PH> 		8-97216-859-1 01 1 9911-0012 ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97216-859-2 01 1 0101- ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97216-859-2 01 1 0101- ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97136-730-1 01 1 9804- ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-626-0 01 1 9804-9909 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-626-0 01 1 9910-9910 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) EXC. UNITED KINGDOM EQUIPMENT(EK3), BRK WHL LK CONT LSPV<6PH> 		8-97117-626-0 01 1 9911-0012 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97117-626-1 01 1 0101- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97117-626-1 01 1 0101- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-617-0 01 1 9804-9909 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97216-846-0 01 1 9910-9910 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97216-846-0 01 1 9911-0012 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 		8-97216-846-0 01 1 9911-0012 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97216-846-1 01 1 0101-0109 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 		8-97216-846-1 01 1 0101-0109 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97300-997-2 01 1 0110- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 		8-97300-997-2 01 1 0110- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97216-858-1 01 1 9910-9910 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), BRK WHL LK CONT LSPV<6PH> 		8-97216-858-1 01 1 9911-0012 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97216-858-2 01 1 0101- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97216-858-2 01 1 0101- ● ●
çizim 74281
13 55 19 19 55 55
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
13 04.686 BOLT; VLV TO BRKT
01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9804-9805 ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.780 M8X50 FLANGE 		0-28080-850-0 02 1 9804-9805 ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9806-9909 ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9806-9909 ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9910-9910 ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3) 01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9910-9910 ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
AUSTRALIAN EQUIPMENT(RR3) EXC. BRK WHL LK CONT LSPV<6PH> 01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9911-0012 ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. AUSTRALIAN EQUIPMENT(RR3) 01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9911-0012 ●
13 04.686 BOLT; VLV TO BRKT
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9911-0012 ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. UNITED KINGDOM EQUIPMENT(EK3), AUSTRALIAN EQUIPMENT(RR3) 01.540 M8X45 FLANGE 		0-28080-845-0 02 1 9911-0012 ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
EXC. BRK WHL LK CONT LSPV<6PH> 01.540 M8X45 FLANGE 		0-28080-845-0 02 1 0101- ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
01.540 M8X45 FLANGE 		0-28080-845-0 02 1 0101- ● ●
13 04.686 BOLT; VLV TO BRKT
UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9804-9909 ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9910-9910 ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9911-0012 ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
UNITED KINGDOM EQUIPMENT(EK3) 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 9911-0012 ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
BRK WHL LK CONT LSPV<6PH> 03.704 M8X16 W/LK WASHER 		0-50040-816-0 04 1 0101-0106 ● ● ● ● ● ●
13 04.686 BOLT; VLV TO BRKT
BRK WHL LK CONT LSPV<6PH> 01.062 M8X16 FLANGE 		0-28080-816-0 04 1 0107- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-94450-598-0 01 1 9804-9902 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-94450-598-0 01 1 9804-9902 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-94450-598-0 01 1 9903-9909 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-94450-598-0 01 1 9903-9909 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) (A) 		8-94450-598-0 01 1 9903-9909 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-94450-598-1 01 1 9910-0109 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-94450-598-1 01 1 9910-0109 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) (A) 		8-94450-598-1 01 1 9910-0109 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) (A) 		8-94450-598-1 01 1 0110- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (A) 		8-94450-598-1 01 1 0110- ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-97075-994-0 01 1 9804-9902 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97075-994-0 01 1 9804-9902 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97075-994-0 01 1 9903-9909 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-97075-994-0 01 1 9903-9909 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) (B) 		8-97075-994-0 01 1 9903-9909 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-97075-994-1 01 1 9910-0109 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97075-994-1 01 1 9910-0109 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) (B) 		8-97075-994-1 01 1 9910-0109 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-97075-994-1 01 1 0110-0205 ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97075-994-1 01 1 0110-0205 ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) (B) 		8-97349-468-0 01 1 0206- ● ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97349-468-0 01 1 0206- ● ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VD1 ENG(RLV) 04.686 (A) 		8-97175-537-1 01 1 9804-9902 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VD1 ENG(RLV) 04.686 (B) 		8-97175-538-2 01 1 9804- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VD1 ENG(RLV) 04.686 (A) 		8-97175-537-2 01 1 9903-0109 ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 04.686 (A) 		8-97175-537-2 01 1 9903-0109 ●
19 04.685 PIPE; BRK,M/CYL TO UNION
6VD1 ENG(RLV) 04.686 (A) 		8-97175-537-2 01 1 0110- ● ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) (A) 		8-97173-099-1 01 1 9804- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97173-100-2 01 1 9804- ● ● ● ● ●
19 04.685 PIPE; BRK,M/CYL TO UNION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) (B) 		8-97223-752-1 01 1 9903-0109 ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97165-363-1 01 1 0101- ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97165-362-0 01 1 9804-9910 ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97165-362-0 01 1 9911-0012 ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,4X2 HIGH RIDE SUSPENSION(7YC) 		8-97165-362-1 01 1 0101- ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 		8-97132-344-0 01 1 9911-0012 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97132-344-1 01 1 0101-0206 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97355-807-0 01 1 0207- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97132-343-1 01 1 0101- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) BRK WHL LK CONT LSPV<6PH> 		8-97132-343-1 01 1 0101- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 		8-97179-628-1 01 1 9911-0012 ● ● ● ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
6VD1 ENG(RLV) BRK WHL LK CONT LSPV<6PH> 		8-97179-628-2 01 1 0101- ● ● ● ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
6VD1 ENG(RLV) 04.685 		8-97179-627-0 01 1 9804-9910 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> 04.685 		8-97179-627-1 01 1 9911- ● ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97122-660-1 01 1 9804- ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-625-0 01 1 9804-9910 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), BRK WHL LK CONT LSPV<6PH> 		8-97117-625-0 01 1 9911-0012 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH>,4X2 HIGH RIDE SUSPENSION(7YC) 		8-97117-625-1 01 1 0101- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-616-0 01 1 9804-9910 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 		8-97117-616-0 01 1 9911-0012 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-616-0 01 1 9911-0012 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97117-616-1 01 1 0101-0109 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97300-996-2 01 1 0110- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
6VD1 ENG(RLV) 04.685 		8-97179-626-1 01 1 9804-9910 ● ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
6VD1 ENG(RLV) EXC. BRK WHL LK CONT LSPV<6PH> 04.685 		8-97179-626-2 01 1 9911- ● ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97165-363-0 01 1 9804-9909 ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97216-859-1 01 1 9910-9910 ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), BRK WHL LK CONT LSPV<6PH> 		8-97216-859-1 01 1 9911-0012 ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97216-859-2 01 1 0101- ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97216-859-2 01 1 0101- ●
55 04.686 PIPE; BRK,VLV TO UNION 8-97136-730-1 01 1 9804- ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-626-0 01 1 9804-9909 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-626-0 01 1 9910-9910 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) EXC. UNITED KINGDOM EQUIPMENT(EK3), BRK WHL LK CONT LSPV<6PH> 		8-97117-626-0 01 1 9911-0012 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97117-626-1 01 1 0101- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
22LE/C22NE ENG(RJT) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97117-626-1 01 1 0101- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97117-617-0 01 1 9804-9909 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97216-846-0 01 1 9910-9910 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97216-846-0 01 1 9911-0012 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) BRK WHL LK CONT LSPV<6PH> 		8-97216-846-0 01 1 9911-0012 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97216-846-1 01 1 0101-0109 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 		8-97216-846-1 01 1 0101-0109 ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97300-997-2 01 1 0110- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) BRK WHL LK CONT LSPV<6PH> 		8-97300-997-2 01 1 0110- ● ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97216-858-1 01 1 9910-9910 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), BRK WHL LK CONT LSPV<6PH> 		8-97216-858-1 01 1 9911-0012 ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97216-858-2 01 1 0101- ● ●
55 04.686 PIPE; BRK,VLV TO UNION
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. BRK WHL LK CONT LSPV<6PH> 		8-97216-858-2 01 1 0101- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
