◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 3 - Brakes, Brake System ▶ 3-30 - BRAKE MASTER CYLINDER ▶

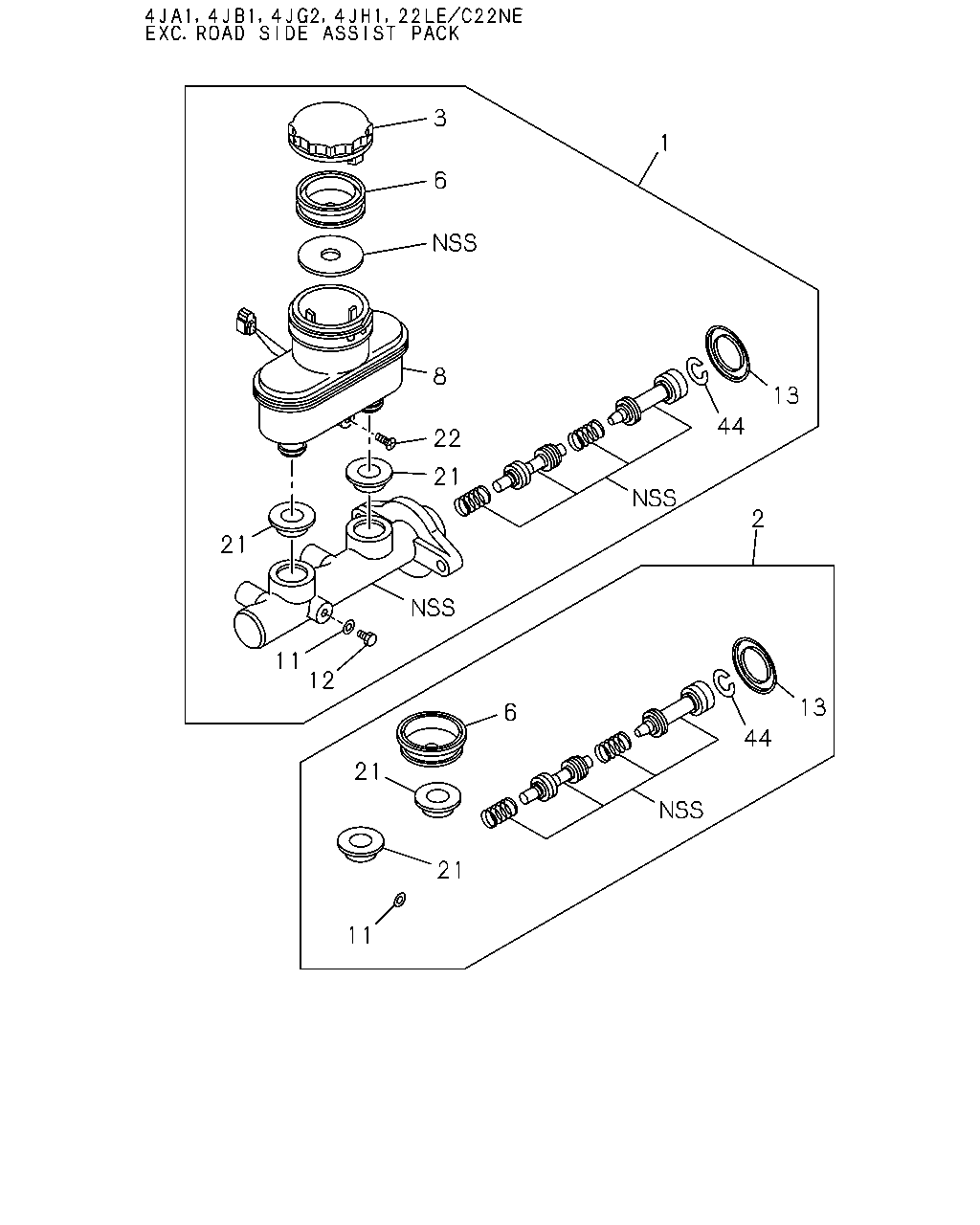

3-30 — BRAKE MASTER CYLINDER (#45676) — 220 parça
çizim 69290
3 1 6 8 13 44 22 21 2 21 11 12 13 6 44 21 21 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.650 CYLINDER ASM; BRK MASTER
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) 		8-97148-431-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97148-431-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97148-431-0 01 1 9910-0012 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97148-431-0 01 1 9910-0012 ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
22LE/C22NE ENG(RJT) 		8-97148-431-0 01 1 9910-0012 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97148-431-0 01 1 0101-0109 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97148-431-0 01 1 0101-0109 ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
22LE/C22NE ENG(RJT) 		8-97148-431-0 01 1 0101-0109 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97148-431-0 01 1 0110- ● ● ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
22LE/C22NE ENG(RJT) 		8-97148-431-0 01 1 0110- ● ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97178-010-0 01 1 9804-0010 ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97302-964-0 01 1 0011-0104 ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97309-954-0 01 1 0105- ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97148-432-0 01 1 9804-9901 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97148-432-0 01 1 9902-9909 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97148-432-0 01 1 9902-9909 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97148-432-0 01 1 9910-0109 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97148-432-0 01 1 9910-0109 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97148-432-0 01 1 0110- ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97178-011-0 01 1 9902-0011 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97255-852-0 01 1 0012-0104 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97309-953-0 01 1 0105-0109 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97160-707-0 01 1 9804-9901 ● ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97160-707-0 01 1 9902-9909 ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) 		8-97160-707-0 01 1 9902-9909 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97160-707-0 01 1 9902-9909 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97160-707-0 01 1 9902-9909 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97160-707-0 01 1 9910-0109 ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JB1 ENG(RLF) 		8-97160-707-0 01 1 9910-0109 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97160-707-0 01 1 9910-0109 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97160-707-0 01 1 9910-0109 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97160-707-0 01 1 0110- ● ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97178-913-0 01 1 9804-9901 ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97178-913-0 01 1 9902-0104 ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97178-913-0 01 1 9902-0104 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97311-076-0 01 1 0105-0109 ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97311-076-0 01 1 0105-0109 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97311-076-0 01 1 0110- ● ● ● ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94124-872-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94124-872-0 01 1 9910-0012 ● ● ●
3 04.651 CAP; OIL TANK
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94124-872-0 01 1 9910-0012 ● ● ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT) 		8-94124-872-0 01 1 9910-0012 ● ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94124-872-0 01 1 0101-0109 ● ● ●
3 04.651 CAP; OIL TANK
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94124-872-0 01 1 0101-0109 ● ● ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT) 		8-94124-872-0 01 1 0101-0109 ● ● ● ●
3 04.651 CAP; OIL TANK
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94124-872-0 01 1 0110- ● ● ● ● ● ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT) 		8-94124-872-0 01 1 0110- ● ● ● ● ● ● ●
3 04.651 CAP; OIL TANK
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97289-099-0 01 1 0011- ● ● ● ● ● ●
3 04.651 CAP; OIL TANK
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97138-667-0 01 1 9804-9901 ● ● ● ●
3 04.651 CAP; OIL TANK
4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97138-667-0 01 1 9902-0012 ● ● ●
3 04.651 CAP; OIL TANK
4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97138-667-0 01 1 9902-0012 ● ●
3 04.651 CAP; OIL TANK
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97138-667-0 01 1 0101-0109 ● ● ●
3 04.651 CAP; OIL TANK
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97138-667-0 01 1 0101-0109 ● ●
3 04.651 CAP; OIL TANK
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97138-667-0 01 1 0110- ● ● ● ● ●
6 04.651 DIAPHRAGM; BRK M/CYL
04.657 		8-94124-873-0 01 1 9804- ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97071-797-0 01 1 9804-9901 ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97071-797-0 01 1 9902-9909 ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) 		8-97071-797-0 01 1 9902-9909 ● ● ●
8 04.651 TANK; OIL,M/CYL
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97071-797-0 01 1 9902-9909 ● ● ●
8 04.651 TANK; OIL,M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97071-797-0 01 1 9902-9909 ● ● ●
8 04.651 TANK; OIL,M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97071-797-0 01 1 9910-0109 ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JB1 ENG(RLF) 		8-97071-797-0 01 1 9910-0109 ● ● ●
8 04.651 TANK; OIL,M/CYL
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97071-797-0 01 1 9910-0109 ● ● ●
8 04.651 TANK; OIL,M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97071-797-0 01 1 9910-0109 ● ● ●
8 04.651 TANK; OIL,M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97071-797-0 01 1 0110- ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97061-565-0 01 1 9804-9901 ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97061-565-0 01 1 9902-0109 ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97061-565-0 01 1 9902-0109 ● ● ●
8 04.651 TANK; OIL,M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97061-565-0 01 1 0110- ● ● ● ● ● ●
11 04.653 GASKET; STOPPER BOLT TO BRK M/CY
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94107-675-0 01 1 9804-9901 ● ● ● ● ● ● ● ●
11 04.653 GASKET; STOPPER BOLT TO BRK M/CY
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94107-675-0 01 1 9902-9909 ● ● ● ● ●
11 04.653 GASKET; STOPPER BOLT TO BRK M/CY
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) 		8-94107-675-0 01 1 9902-9909 ● ● ●
11 04.653 GASKET; STOPPER BOLT TO BRK M/CY
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94107-675-0 01 1 9902-9909 ● ● ●
11 04.653 GASKET; STOPPER BOLT TO BRK M/CY
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94107-675-0 01 1 9902-9909 ● ● ●
11 04.653 GASKET; STOPPER BOLT TO BRK M/CY
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94107-675-0 01 1 9910-0109 ● ● ● ● ●
11 04.653 GASKET; STOPPER BOLT TO BRK M/CY
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JB1 ENG(RLF) 		8-94107-675-0 01 1 9910-0109 ● ● ●
11 04.653 GASKET; STOPPER BOLT TO BRK M/CY
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94107-675-0 01 1 9910-0109 ● ● ●
11 04.653 GASKET; STOPPER BOLT TO BRK M/CY
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94107-675-0 01 1 9910-0109 ● ● ●
11 04.653 GASKET; STOPPER BOLT TO BRK M/CY
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94107-675-0 01 1 0110- ● ● ● ● ● ● ● ●
12 04.653 BOLT; STOPPER,BRK M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M6X13 		8-94107-674-0 01 1 9804-9901 ● ● ● ● ● ● ● ●
12 04.653 BOLT; STOPPER,BRK M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M6X13 		8-94107-674-0 01 1 9902-9909 ● ● ● ● ●
12 04.653 BOLT; STOPPER,BRK M/CYL
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) M6X13 		8-94107-674-0 01 1 9902-9909 ● ● ●
12 04.653 BOLT; STOPPER,BRK M/CYL
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) M6X13 		8-94107-674-0 01 1 9902-9909 ● ● ●
12 04.653 BOLT; STOPPER,BRK M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) M6X13 		8-94107-674-0 01 1 9902-9909 ● ● ●
12 04.653 BOLT; STOPPER,BRK M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) M6X13 		8-94107-674-0 01 1 9910-0109 ● ● ● ● ●
12 04.653 BOLT; STOPPER,BRK M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JB1 ENG(RLF) M6X13 		8-94107-674-0 01 1 9910-0109 ● ● ●
12 04.653 BOLT; STOPPER,BRK M/CYL
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) M6X13 		8-94107-674-0 01 1 9910-0109 ● ● ●
12 04.653 BOLT; STOPPER,BRK M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) M6X13 		8-94107-674-0 01 1 9910-0109 ● ● ●
12 04.653 BOLT; STOPPER,BRK M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) M6X13 		8-94107-674-0 01 1 0110- ● ● ● ● ● ● ● ●
13 04.648 SEAL; DUST,BRK M/CYL TO M/VAC
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94132-833-0 01 1 9804-9901 ● ● ● ● ● ● ● ●
13 04.648 SEAL; DUST,BRK M/CYL TO M/VAC
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94132-833-0 01 1 9902-9909 ● ● ● ● ●
13 04.648 SEAL; DUST,BRK M/CYL TO M/VAC
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) 		8-94132-833-0 01 1 9902-9909 ● ● ●
13 04.648 SEAL; DUST,BRK M/CYL TO M/VAC
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94132-833-0 01 1 9902-9909 ● ● ●
13 04.648 SEAL; DUST,BRK M/CYL TO M/VAC
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94132-833-0 01 1 9902-9909 ● ● ●
13 04.648 SEAL; DUST,BRK M/CYL TO M/VAC
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94132-833-0 01 1 9910-0109 ● ● ● ● ●
13 04.648 SEAL; DUST,BRK M/CYL TO M/VAC
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JB1 ENG(RLF) 		8-94132-833-0 01 1 9910-0109 ● ● ●
13 04.648 SEAL; DUST,BRK M/CYL TO M/VAC
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94132-833-0 01 1 9910-0109 ● ● ●
13 04.648 SEAL; DUST,BRK M/CYL TO M/VAC
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94132-833-0 01 1 9910-0109 ● ● ●
13 04.648 SEAL; DUST,BRK M/CYL TO M/VAC
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94132-833-0 01 1 0110- ● ● ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94133-716-0 02 1 9804-9901 ● ● ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94133-716-0 02 1 9902-9909 ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) 		8-94133-716-0 02 1 9902-9909 ● ● ●
21 04.651 GROMMET; BRK M/CYL
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94133-716-0 02 1 9902-9909 ● ● ●
21 04.651 GROMMET; BRK M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94133-716-0 02 1 9902-9909 ● ● ●
21 04.651 GROMMET; BRK M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94133-716-0 02 1 9910-0109 ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JB1 ENG(RLF) 		8-94133-716-0 02 1 9910-0109 ● ● ●
21 04.651 GROMMET; BRK M/CYL
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94133-716-0 02 1 9910-0109 ● ● ●
21 04.651 GROMMET; BRK M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94133-716-0 02 1 9910-0109 ● ● ●
21 04.651 GROMMET; BRK M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94133-716-0 02 1 0110- ● ● ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97061-567-0 02 1 9804-9901 ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97061-567-0 02 1 9902-0109 ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97061-567-0 02 1 9902-0109 ● ● ●
21 04.651 GROMMET; BRK M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97061-567-0 02 1 0110- ● ● ● ● ● ●
22 04.651 SCREW; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94230-600-1 01 1 9804-9901 ● ● ● ● ● ● ● ●
22 04.651 SCREW; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94230-600-1 01 1 9902-9909 ● ● ● ● ●
22 04.651 SCREW; OIL TANK
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) 		8-94230-600-1 01 1 9902-9909 ● ● ●
22 04.651 SCREW; OIL TANK
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94230-600-1 01 1 9902-9909 ● ● ●
22 04.651 SCREW; OIL TANK
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94230-600-1 01 1 9902-9909 ● ● ●
22 04.651 SCREW; OIL TANK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94230-600-1 01 1 9910-0109 ● ● ● ● ●
22 04.651 SCREW; OIL TANK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JB1 ENG(RLF) 		8-94230-600-1 01 1 9910-0109 ● ● ●
22 04.651 SCREW; OIL TANK
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94230-600-1 01 1 9910-0109 ● ● ●
22 04.651 SCREW; OIL TANK
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94230-600-1 01 1 9910-0109 ● ● ●
22 04.651 SCREW; OIL TANK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94230-600-1 01 1 0110- ● ● ● ● ● ● ● ●
44 04.656 RING; SNAP,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.017 OD=27.9 		9-09180-126-0 01 1 9804-9901 ● ● ● ● ● ● ● ●
44 04.656 RING; SNAP,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.017 OD=27.9 		9-09180-126-0 01 1 9902-9909 ● ● ● ● ●
44 04.656 RING; SNAP,M/CYL
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) 04.017 OD=27.9 		9-09180-126-0 01 1 9902-9909 ● ● ●
44 04.656 RING; SNAP,M/CYL
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 04.017 OD=27.9 		9-09180-126-0 01 1 9902-9909 ● ● ●
44 04.656 RING; SNAP,M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 04.017 OD=27.9 		9-09180-126-0 01 1 9902-9909 ● ● ●
44 04.656 RING; SNAP,M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 04.017 OD=27.9 		9-09180-126-0 01 1 9910-0109 ● ● ● ● ●
44 04.656 RING; SNAP,M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JB1 ENG(RLF) 04.017 OD=27.9 		9-09180-126-0 01 1 9910-0109 ● ● ●
44 04.656 RING; SNAP,M/CYL
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 04.017 OD=27.9 		9-09180-126-0 01 1 9910-0109 ● ● ●
44 04.656 RING; SNAP,M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 04.017 OD=27.9 		9-09180-126-0 01 1 9910-0109 ● ● ●
44 04.656 RING; SNAP,M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 04.017 OD=27.9 		9-09180-126-0 01 1 0110- ● ● ● ● ● ● ● ●
çizim 71732
3 1 6 8 6 21 2 21 5 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.650 CYLINDER ASM; BRK MASTER
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) 		8-97148-431-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97148-431-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97148-431-0 01 1 9910-0012 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97148-431-0 01 1 9910-0012 ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
22LE/C22NE ENG(RJT) 		8-97148-431-0 01 1 9910-0012 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97148-431-0 01 1 0101-0109 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97148-431-0 01 1 0101-0109 ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
22LE/C22NE ENG(RJT) 		8-97148-431-0 01 1 0101-0109 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97148-431-0 01 1 0110- ● ● ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
22LE/C22NE ENG(RJT) 		8-97148-431-0 01 1 0110- ● ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97178-010-0 01 1 9804-0010 ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97302-964-0 01 1 0011-0104 ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97309-954-0 01 1 0105- ● ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97148-432-0 01 1 9804-9901 ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97148-432-0 01 1 9902-9909 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97148-432-0 01 1 9902-9909 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97148-432-0 01 1 9910-0109 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97148-432-0 01 1 9910-0109 ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97148-432-0 01 1 0110- ● ● ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97178-011-0 01 1 9902-0011 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97255-852-0 01 1 0012-0104 ● ● ●
1 04.650 CYLINDER ASM; BRK MASTER
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97309-953-0 01 1 0105-0109 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97160-707-0 01 1 9804-9901 ● ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97160-707-0 01 1 9902-9909 ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) 		8-97160-707-0 01 1 9902-9909 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97160-707-0 01 1 9902-9909 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97160-707-0 01 1 9902-9909 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97160-707-0 01 1 9910-0109 ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JB1 ENG(RLF) 		8-97160-707-0 01 1 9910-0109 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97160-707-0 01 1 9910-0109 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97160-707-0 01 1 9910-0109 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97160-707-0 01 1 0110- ● ● ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97178-913-0 01 1 9804-9901 ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97178-913-0 01 1 9902-0104 ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97178-913-0 01 1 9902-0104 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97311-076-0 01 1 0105-0109 ● ● ● ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97311-076-0 01 1 0105-0109 ● ● ●
2 04.649 REPAIR KIT; BRK,M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97311-076-0 01 1 0110- ● ● ● ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94124-872-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94124-872-0 01 1 9910-0012 ● ● ●
3 04.651 CAP; OIL TANK
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94124-872-0 01 1 9910-0012 ● ● ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT) 		8-94124-872-0 01 1 9910-0012 ● ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94124-872-0 01 1 0101-0109 ● ● ●
3 04.651 CAP; OIL TANK
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94124-872-0 01 1 0101-0109 ● ● ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT) 		8-94124-872-0 01 1 0101-0109 ● ● ● ●
3 04.651 CAP; OIL TANK
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94124-872-0 01 1 0110- ● ● ● ● ● ● ● ●
3 04.651 CAP; OIL TANK
22LE/C22NE ENG(RJT) 		8-94124-872-0 01 1 0110- ● ● ● ● ● ● ●
3 04.651 CAP; OIL TANK
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97289-099-0 01 1 0011- ● ● ● ● ● ●
3 04.651 CAP; OIL TANK
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97138-667-0 01 1 9804-9901 ● ● ● ●
3 04.651 CAP; OIL TANK
4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97138-667-0 01 1 9902-0012 ● ● ●
3 04.651 CAP; OIL TANK
4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97138-667-0 01 1 9902-0012 ● ●
3 04.651 CAP; OIL TANK
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97138-667-0 01 1 0101-0109 ● ● ●
3 04.651 CAP; OIL TANK
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97138-667-0 01 1 0101-0109 ● ●
3 04.651 CAP; OIL TANK
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97138-667-0 01 1 0110- ● ● ● ● ●
5 04.651 RETAINER; DIAPH,M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97061-568-0 01 1 9804-9901 ● ● ● ● ● ●
5 04.651 RETAINER; DIAPH,M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97061-568-0 01 1 9902-0109 ● ● ● ● ● ●
5 04.651 RETAINER; DIAPH,M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97061-568-0 01 1 9902-0109 ● ● ●
5 04.651 RETAINER; DIAPH,M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97061-568-0 01 1 0110- ● ● ● ● ● ●
6 04.651 DIAPHRAGM; BRK M/CYL
04.657 		8-94124-873-0 01 1 9804- ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97071-797-0 01 1 9804-9901 ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97071-797-0 01 1 9902-9909 ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) 		8-97071-797-0 01 1 9902-9909 ● ● ●
8 04.651 TANK; OIL,M/CYL
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97071-797-0 01 1 9902-9909 ● ● ●
8 04.651 TANK; OIL,M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97071-797-0 01 1 9902-9909 ● ● ●
8 04.651 TANK; OIL,M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97071-797-0 01 1 9910-0109 ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JB1 ENG(RLF) 		8-97071-797-0 01 1 9910-0109 ● ● ●
8 04.651 TANK; OIL,M/CYL
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97071-797-0 01 1 9910-0109 ● ● ●
8 04.651 TANK; OIL,M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97071-797-0 01 1 9910-0109 ● ● ●
8 04.651 TANK; OIL,M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97071-797-0 01 1 0110- ● ● ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97061-565-0 01 1 9804-9901 ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97061-565-0 01 1 9902-0109 ● ● ● ● ● ●
8 04.651 TANK; OIL,M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97061-565-0 01 1 9902-0109 ● ● ●
8 04.651 TANK; OIL,M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97061-565-0 01 1 0110- ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94133-716-0 02 1 9804-9901 ● ● ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94133-716-0 02 1 9902-9909 ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
22LE/C22NE ENG(RJT),4JB1 ENG(RLF) 		8-94133-716-0 02 1 9902-9909 ● ● ●
21 04.651 GROMMET; BRK M/CYL
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94133-716-0 02 1 9902-9909 ● ● ●
21 04.651 GROMMET; BRK M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94133-716-0 02 1 9902-9909 ● ● ●
21 04.651 GROMMET; BRK M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94133-716-0 02 1 9910-0109 ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JB1 ENG(RLF) 		8-94133-716-0 02 1 9910-0109 ● ● ●
21 04.651 GROMMET; BRK M/CYL
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94133-716-0 02 1 9910-0109 ● ● ●
21 04.651 GROMMET; BRK M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94133-716-0 02 1 9910-0109 ● ● ●
21 04.651 GROMMET; BRK M/CYL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94133-716-0 02 1 0110- ● ● ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97061-567-0 02 1 9804-9901 ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97061-567-0 02 1 9902-0109 ● ● ● ● ● ●
21 04.651 GROMMET; BRK M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97061-567-0 02 1 9902-0109 ● ● ●
21 04.651 GROMMET; BRK M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97061-567-0 02 1 0110- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
