3-10 — BRAKE PEDAL AND CONTROL (#45674) — 106 parça

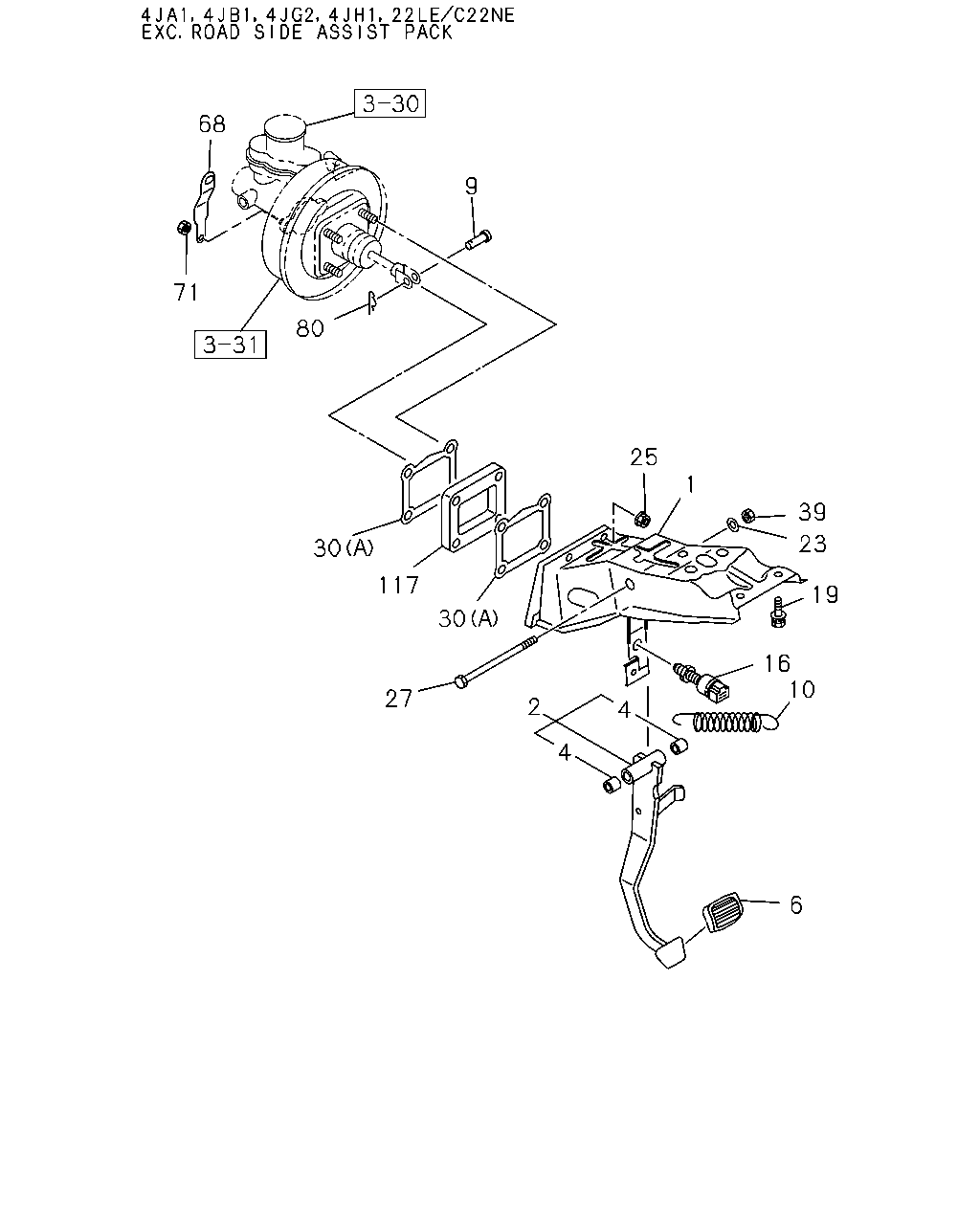

çizim 69347
68 9 71 80 25 1 39 23 30 117 19 30 16 10 27 2 4 4 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.634 BRACKET ASM; PEDAL 8-97134-254-3 01 1 9804- ● ● ● ● ● ● ● ●
2 04.625 PEDAL; BRK
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97100-339-2 01 1 9804- ● ● ● ● ● ● ● ●
2 04.625 PEDAL; BRK
A/T THM(RMQ) 		8-97100-340-2 01 1 9804-0012 ● ● ●
2 04.625 PEDAL; BRK
A/T THM(RMQ) 		8-97100-340-2 01 1 0101-0109 ● ● ● ● ● ●
2 04.625 PEDAL; BRK
A/T AISIN(RMD),A/T THM(RMQ) 		8-97100-340-2 01 1 0110- ● ● ● ● ● ●
4 04.634 BUSHING; BRK PEDAL
00.833 		8-94244-439-0 02 1 9804- ● ● ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94222-524-1 01 1 9804- ● ● ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T THM(RMQ) 		5-31413-004-0 01 1 9804-0012 ● ● ●
6 04.630 COVER; BRK PEDAL
A/T THM(RMQ) 		5-31413-004-0 01 1 0101-0109 ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T AISIN(RMD),A/T THM(RMQ) 		5-31413-004-0 01 1 0110- ● ● ● ● ● ●
9 04.634 PIN; JAW JOINT
04.662 		8-94250-182-0 01 1 9804- ● ● ● ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-94329-696-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
12V 12A 		8-94362-930-0 01 1 9804-0109 ● ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
12V 12A 		8-94362-930-0 01 1 0110- ● ● ●
16 02.447 SWITCH; STOP LAMP
EXC. CHARGE AIR COOLER<6PL> 12V 12A 		8-94362-930-0 01 1 0110- ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
CHARGE AIR COOLER<6PL> 		8-94109-863-0 01 1 0110- ● ● ● ● ●
19 04.634 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 05 1 9804- ● ● ● ● ● ● ● ●
23 04.634 WASHER; LK,SHAFT
00.002 ID=10.2 		9-09150-510-0 01 1 9804- ● ● ● ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
00.854 M8 FLANGE 		5-09440-005-0 04 1 9804- ● ● ● ● ● ● ● ●
27 04.634 SHAFT; BRK PEDAL 8-94480-803-0 01 1 9804- ● ● ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY
(A) 		8-94111-590-0 02 1 9804- ● ● ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97178-015-0 02 1 9804-9901 ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97178-015-0 02 1 9902-0109 ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) (B) 		8-97178-015-0 02 1 9902-0109 ● ● ●
30 04.910 GASKET; M/VAC TO BODY
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97178-015-0 02 1 0110-0306 ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97366-719-0 02 1 0307- ● ● ● ● ● ●
39 04.634 NUT; STOPPER LK
09.011 M10 		9-09110-410-0 01 1 9804- ● ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97061-908-0 01 1 9804-9901 ● ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97061-908-0 01 1 9902-0012 ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4JB1 ENG(RLF) 		8-97061-908-0 01 1 9902-0012 ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97061-908-0 01 1 9902-0012 ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97061-908-0 01 1 9902-0012 ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97061-908-0 01 1 0101-0109 ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-97061-908-0 01 1 0101-0109 ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97061-908-0 01 1 0101-0109 ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97061-908-0 01 1 0101-0109 ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97061-908-0 01 1 0110- ● ● ● ● ● ● ● ●
68 04.634 BRACKET; SERVO TO DASH PANEL
22LE/C22NE ENG(RJT) 		8-97194-039-1 01 1 9804- ● ● ● ● ● ● ●
71 04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 9804- ● ● ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL
L=27.7 		8-94157-841-0 01 1 9804- ● ● ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94126-762-0 01 1 9804-9901 ● ● ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) 		8-94126-762-0 01 1 9804-9901 ● ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94126-762-0 01 1 9902-0012 ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JB1 ENG(RLF) 		8-94126-762-0 01 1 9902-0012 ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94126-762-0 01 1 9902-0012 ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94126-762-0 01 1 9902-0012 ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94126-762-0 01 1 0101-0109 ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94126-762-0 01 1 0101-0109 ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94126-762-0 01 1 0101-0109 ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94126-762-0 01 1 0101-0109 ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94126-762-0 01 1 0110- ● ● ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) 		8-94126-762-0 01 1 0110- ● ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-94440-231-0 01 1 9804-9901 ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-94440-231-0 01 1 9902-0109 ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-94440-231-0 01 1 9902-0109 ● ● ●
117 04.910 SPACER; M/VAC TO BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-94440-231-0 01 1 0110- ● ● ● ● ● ●

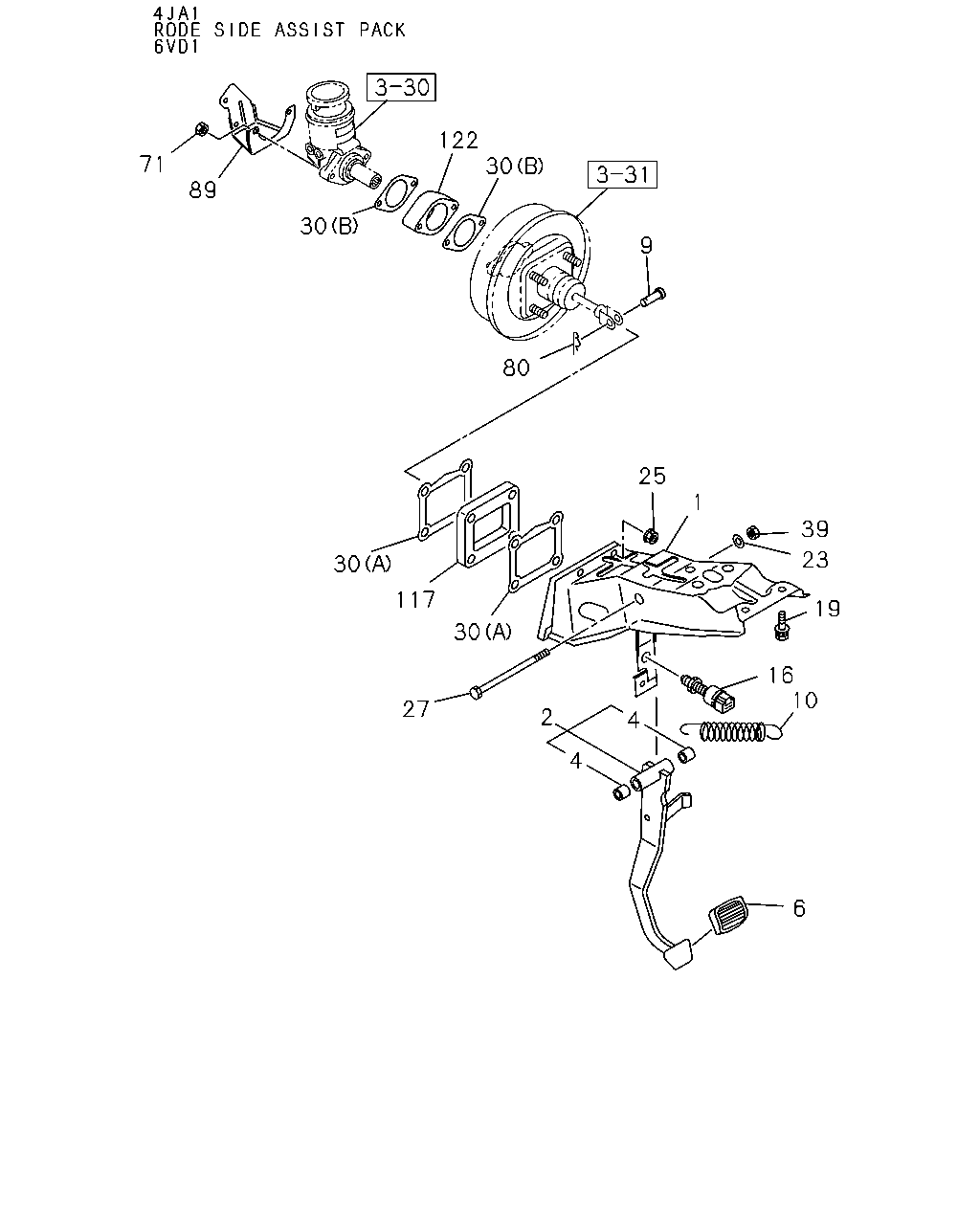

çizim 74186
122 30 71 89 30 9 80 25 1 39 23 30 117 19 30 16 10 27 2 4 4 6
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.634 BRACKET ASM; PEDAL 8-97134-254-3 01 1 9804- ● ● ● ● ● ● ● ●
2 04.625 PEDAL; BRK
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-97100-339-2 01 1 9804- ● ● ● ● ● ● ● ●
2 04.625 PEDAL; BRK
A/T THM(RMQ) 		8-97100-340-2 01 1 9804-0012 ● ● ●
2 04.625 PEDAL; BRK
A/T THM(RMQ) 		8-97100-340-2 01 1 0101-0109 ● ● ● ● ● ●
2 04.625 PEDAL; BRK
A/T AISIN(RMD),A/T THM(RMQ) 		8-97100-340-2 01 1 0110- ● ● ● ● ● ●
4 04.634 BUSHING; BRK PEDAL
00.833 		8-94244-439-0 02 1 9804- ● ● ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
M/T MSG 5 SPEED(M75),M/T MUA 5 SPEED(RMN) 		8-94222-524-1 01 1 9804- ● ● ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T THM(RMQ) 		5-31413-004-0 01 1 9804-0012 ● ● ●
6 04.630 COVER; BRK PEDAL
A/T THM(RMQ) 		5-31413-004-0 01 1 0101-0109 ● ● ● ● ● ●
6 04.630 COVER; BRK PEDAL
A/T AISIN(RMD),A/T THM(RMQ) 		5-31413-004-0 01 1 0110- ● ● ● ● ● ●
9 04.634 PIN; JAW JOINT
04.662 		8-94250-182-0 01 1 9804- ● ● ● ● ● ● ● ●
10 04.639 SPRING; RETURN,BRK PEDAL 8-94329-696-0 01 1 9804- ● ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
12V 12A 		8-94362-930-0 01 1 9804-0109 ● ● ● ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
12V 12A 		8-94362-930-0 01 1 0110- ● ● ●
16 02.447 SWITCH; STOP LAMP
EXC. CHARGE AIR COOLER<6PL> 12V 12A 		8-94362-930-0 01 1 0110- ● ● ● ● ●
16 02.447 SWITCH; STOP LAMP
CHARGE AIR COOLER<6PL> 		8-94109-863-0 01 1 0110- ● ● ● ● ●
19 04.634 BOLT; BRKT
01.062 M8X16 FLANGE 		0-28080-816-0 05 1 9804- ● ● ● ● ● ● ● ●
23 04.634 WASHER; LK,SHAFT
00.002 ID=10.2 		9-09150-510-0 01 1 9804- ● ● ● ● ● ● ● ●
25 04.634 NUT; FLANGE,MTG BRKT TO BODY
00.854 M8 FLANGE 		5-09440-005-0 04 1 9804- ● ● ● ● ● ● ● ●
27 04.634 SHAFT; BRK PEDAL 8-94480-803-0 01 1 9804- ● ● ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY
(A) 		8-94111-590-0 02 1 9804- ● ● ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97178-015-0 02 1 9804-9901 ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97178-015-0 02 1 9902-0109 ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) (B) 		8-97178-015-0 02 1 9902-0109 ● ● ●
30 04.910 GASKET; M/VAC TO BODY
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97178-015-0 02 1 0110-0306 ● ● ● ● ● ●
30 04.910 GASKET; M/VAC TO BODY
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) (B) 		8-97366-719-0 02 1 0307- ● ● ● ● ● ●
39 04.634 NUT; STOPPER LK
09.011 M10 		9-09110-410-0 01 1 9804- ● ● ● ● ● ● ● ●
71 04.650 NUT; BRK M/CYL
00.777 M8 W/LK WASHER 		8-94279-050-0 02 1 9804- ● ● ● ● ● ● ● ●
80 04.634 PIN; SNAP,BRK PEDAL
L=27.7 		8-94157-841-0 01 1 9804- ● ● ● ● ● ● ● ●
89 04.901 BRACKET; M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97192-085-0 01 1 9804- ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94126-762-0 01 1 9804-9901 ● ● ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) 		8-94126-762-0 01 1 9804-9901 ● ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94126-762-0 01 1 9902-0012 ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JB1 ENG(RLF) 		8-94126-762-0 01 1 9902-0012 ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94126-762-0 01 1 9902-0012 ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94126-762-0 01 1 9902-0012 ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94126-762-0 01 1 0101-0109 ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JG2 ENG(RJC),4JB1 ENG(RLF) 		8-94126-762-0 01 1 0101-0109 ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JA1 ENG(RLE) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-94126-762-0 01 1 0101-0109 ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94126-762-0 01 1 0101-0109 ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94126-762-0 01 1 0110- ● ● ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
22LE/C22NE ENG(RJT) EXC. AUSTRALIAN EQUIPMENT(RR3) 		8-94126-762-0 01 1 0110- ● ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-94440-231-0 01 1 9804-9901 ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-94440-231-0 01 1 9902-0109 ● ● ● ● ● ●
117 04.910 SPACER; M/VAC TO BODY
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-94440-231-0 01 1 9902-0109 ● ● ●
117 04.910 SPACER; M/VAC TO BODY
22LE/C22NE ENG(RJT),6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-94440-231-0 01 1 0110- ● ● ● ● ● ●
122 04.901 SPACER; BRK M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97178-014-0 01 1 9804-9901 ● ● ● ● ● ●
122 04.901 SPACER; BRK M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97178-014-0 01 1 9902-0109 ● ● ● ● ● ●
122 04.901 SPACER; BRK M/CYL
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) ROAD SIDE ASSIST PACK(7LU) 		8-97178-014-0 01 1 9902-0109 ● ● ●
122 04.901 SPACER; BRK M/CYL
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97178-014-0 01 1 0110- ● ● ● ● ● ●
