3-02 — FRONT DISC BRAKE CALIPER (#45672) — 450 parça

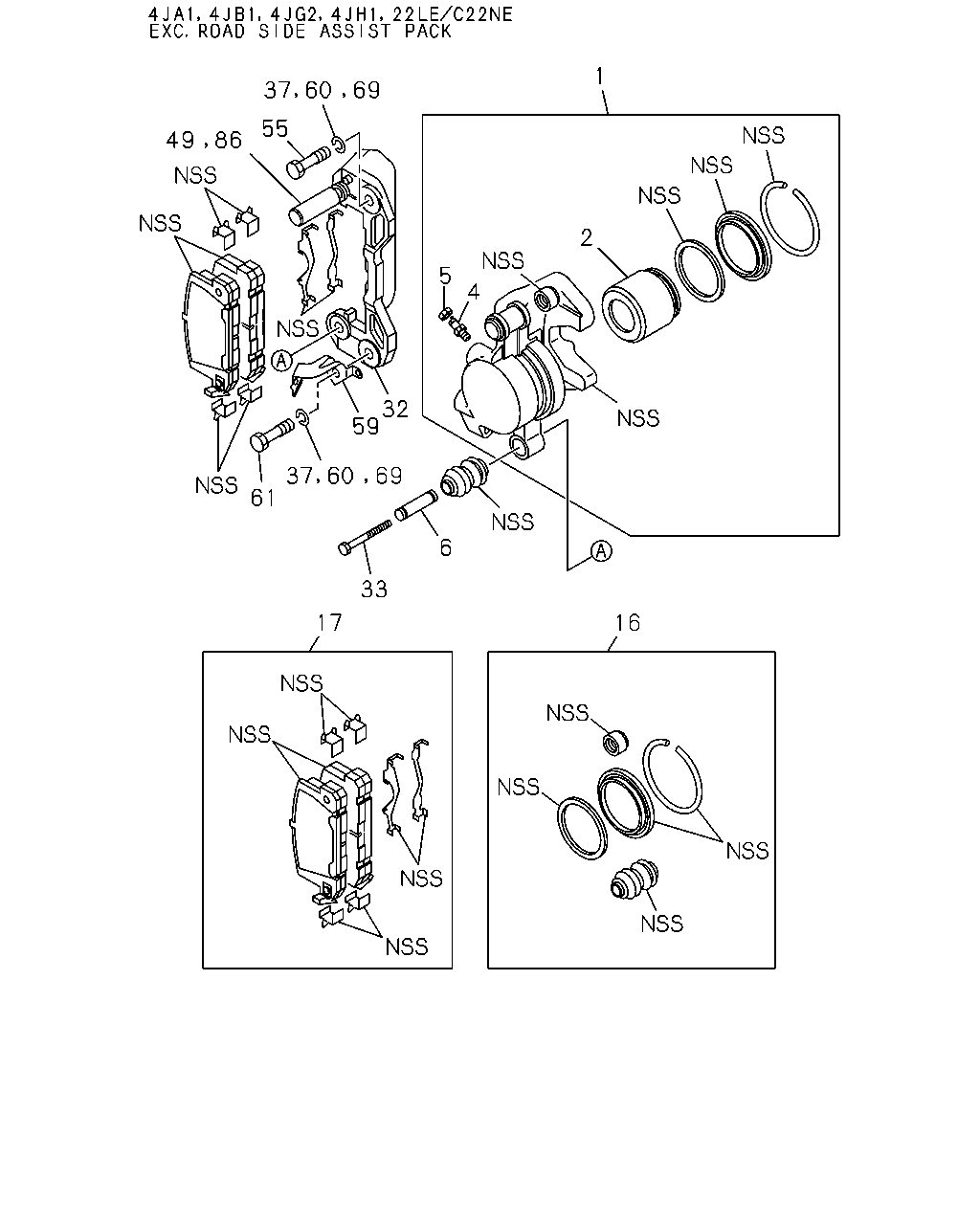

çizim 71715
1 69 55 49 86 2 5 4 32 59 69 61 6 33 17 16 37 60 37 60
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.665 CALIPER; FRT DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94388-013-0 01 1 9804-0012 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94388-013-0 01 1 0101- ● ● ●
1 04.665 CALIPER; FRT DISC BRK 8-94388-013-0 01 1 0101- ●
1 04.665 CALIPER; FRT DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94388-012-0 01 1 9804-0012 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94388-012-0 01 1 0101- ● ● ●
1 04.665 CALIPER; FRT DISC BRK 8-94388-012-0 01 1 0101- ●
1 04.665 CALIPER; FRT DISC BRK
6VD1 ENG(RLV) 		8-97144-477-0 01 1 9804-0012 ● ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
6VD1 ENG(RLV) 		8-97144-477-0 01 1 0101-0109 ● ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-97144-477-0 01 1 0101-0109 ●
1 04.665 CALIPER; FRT DISC BRK
6VD1 ENG(RLV) 		8-97144-477-0 01 1 0110- ● ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
6VD1 ENG(RLV) 		8-97144-476-0 01 1 9804-0012 ● ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
6VD1 ENG(RLV) 		8-97144-476-0 01 1 0101-0109 ● ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-97144-476-0 01 1 0101-0109 ●
1 04.665 CALIPER; FRT DISC BRK
6VD1 ENG(RLV) 		8-97144-476-0 01 1 0110- ● ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94388-017-0 01 1 9804-9901 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94388-017-0 01 1 9902-9909 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94388-017-0 01 1 9910-0012 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94388-017-0 01 1 0101-0109 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94388-017-0 01 1 0101-0109 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94388-017-0 01 1 0110- ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94388-017-0 01 1 0110- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94388-016-0 01 1 9804-9901 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94388-016-0 01 1 9902-9909 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94388-016-0 01 1 9910-0012 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94388-016-0 01 1 0101-0109 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94388-016-0 01 1 0101-0109 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94388-016-0 01 1 0110- ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94388-016-0 01 1 0110- ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94438-689-0 04 1 0110- ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94438-689-0 04 1 0110- ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) 		8-94438-689-0 04 1 0110- ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94438-689-0 02 1 0101-0109 ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94438-689-0 02 1 0101-0109 ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-94438-689-0 02 1 9804-0012 ● ● ● ● ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
6VD1 ENG(RLV) 		8-94438-689-0 02 1 0101-0109 ● ● ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) 		8-94438-689-0 02 1 0101-0109 ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-94438-689-0 02 1 0101-0109 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
6VD1 ENG(RLV) 		8-94438-689-0 02 1 0110- ● ● ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) 		8-94438-689-0 02 1 0110- ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 04.665 		8-97113-867-0 03 1 0110- ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 04.665 		8-97113-867-0 03 1 0110- ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) 04.665 		8-97113-867-0 03 1 0110- ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94438-713-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94438-713-0 01 1 9910-0009 ● ● ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94438-713-0 01 1 0010-0012 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94438-713-0 01 1 0010-0012 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94438-713-0 01 1 0101-0109 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT) 		8-94438-713-0 01 1 0101-0109 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JA1 ENG(RLE),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) EXC. M/T LOW GEARED(6WF),ROAD SIDE ASSIST PACK(7LU) 		8-94438-713-0 01 1 0101-0109 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94438-713-0 01 1 0110- ● ● ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.665 		8-97113-867-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 04.665 		8-97113-867-0 01 1 9910-0009 ● ● ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.665 		8-97113-867-0 01 1 0010-0012 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 04.665 		8-97113-867-0 01 1 0010-0012 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) 04.665 		8-97113-867-0 01 1 0101- ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
6VD1 ENG(RLV) 04.665 		8-97113-867-0 02 1 9804-0012 ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
04.665 		8-97113-867-0 02 1 0101-0109 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 04.665 		8-97113-867-0 02 1 0101-0109 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) 04.665 		8-97113-867-0 02 1 0101-0109 ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
6VD1 ENG(RLV) 04.665 		8-97113-867-0 02 1 0110- ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		1-47619-009-0 03 1 0110- ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		1-47619-009-0 03 1 0110- ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) 		1-47619-009-0 03 1 0110- ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		5-47619-007-2 01 1 9804-9909 ● ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		5-47619-007-2 01 1 9910-0009 ● ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		5-47619-007-2 01 1 0010-0012 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		5-47619-007-2 01 1 0010-0012 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		5-47619-007-2 01 1 0101-0109 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT) 		5-47619-007-2 01 1 0101-0109 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JA1 ENG(RLE),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) EXC. M/T LOW GEARED(6WF),ROAD SIDE ASSIST PACK(7LU) 		5-47619-007-2 01 1 0101-0109 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		5-47619-007-2 01 1 0110- ● ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		1-47619-009-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		1-47619-009-0 01 1 9910-0009 ● ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		1-47619-009-0 01 1 0010-0012 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		1-47619-009-0 01 1 0010-0012 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) 		1-47619-009-0 01 1 0101- ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
6VD1 ENG(RLV) 		1-47619-009-0 02 1 9804-0012 ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0101-0109 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 		1-47619-009-0 02 1 0101-0109 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) 		1-47619-009-0 02 1 0101-0109 ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
6VD1 ENG(RLV) 		1-47619-009-0 02 1 0110- ● ● ● ● ● ●
6 04.681 SLEEVE; BOOT,CALIPER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94136-644-0 02 1 9804-9901 ● ● ● ● ● ● ● ●
6 04.681 SLEEVE; BOOT,CALIPER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94136-644-0 02 1 9902-9909 ● ● ● ●
6 04.681 SLEEVE; BOOT,CALIPER
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94136-644-0 02 1 9902-9909 ● ● ● ●
6 04.681 SLEEVE; BOOT,CALIPER
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) 		8-94136-644-0 02 1 9902-9909 ● ● ●
6 04.681 SLEEVE; BOOT,CALIPER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94136-644-0 02 1 9910-0009 ● ● ● ●
6 04.681 SLEEVE; BOOT,CALIPER
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94136-644-0 02 1 9910-0009 ● ● ● ●
6 04.681 SLEEVE; BOOT,CALIPER
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) 		8-94136-644-0 02 1 9910-0009 ● ● ●
6 04.681 SLEEVE; BOOT,CALIPER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94136-644-0 02 1 0010-0012 ● ● ● ● ●
6 04.681 SLEEVE; BOOT,CALIPER
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94136-644-0 02 1 0010-0012 ● ● ●
6 04.681 SLEEVE; BOOT,CALIPER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94136-644-0 02 1 0101-0109 ● ● ● ●
6 04.681 SLEEVE; BOOT,CALIPER
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94136-644-0 02 1 0101-0109 ● ● ● ●
6 04.681 SLEEVE; BOOT,CALIPER
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94136-644-0 02 1 0110- ● ● ● ●
6 04.681 SLEEVE; BOOT,CALIPER
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94136-644-0 02 1 0110- ● ● ● ●
6 04.681 SLEEVE; BOOT,CALIPER
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) 		8-94136-644-0 02 1 0110- ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-715-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97134-715-0 01 1 9910-0009 ● ● ● ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-715-0 01 1 0010-0012 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97134-715-0 01 1 0010-0012 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97134-715-0 01 1 0101-0109 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT) 		8-97134-715-0 01 1 0101-0109 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4JA1 ENG(RLE),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) EXC. M/T LOW GEARED(6WF),ROAD SIDE ASSIST PACK(7LU) 		8-97134-715-0 01 1 0101-0109 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97134-715-0 01 1 0110- ● ● ● ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
6VD1 ENG(RLV) 		8-97134-716-0 01 1 9804-0012 ● ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
6VD1 ENG(RLV) 		8-97134-716-0 01 1 0101-0109 ● ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-97134-716-0 01 1 0101-0109 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
6VD1 ENG(RLV) 		8-97134-716-0 01 1 0110- ● ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97164-183-0 01 1 9804-0009 ● ● ● ● ● ● ● ●

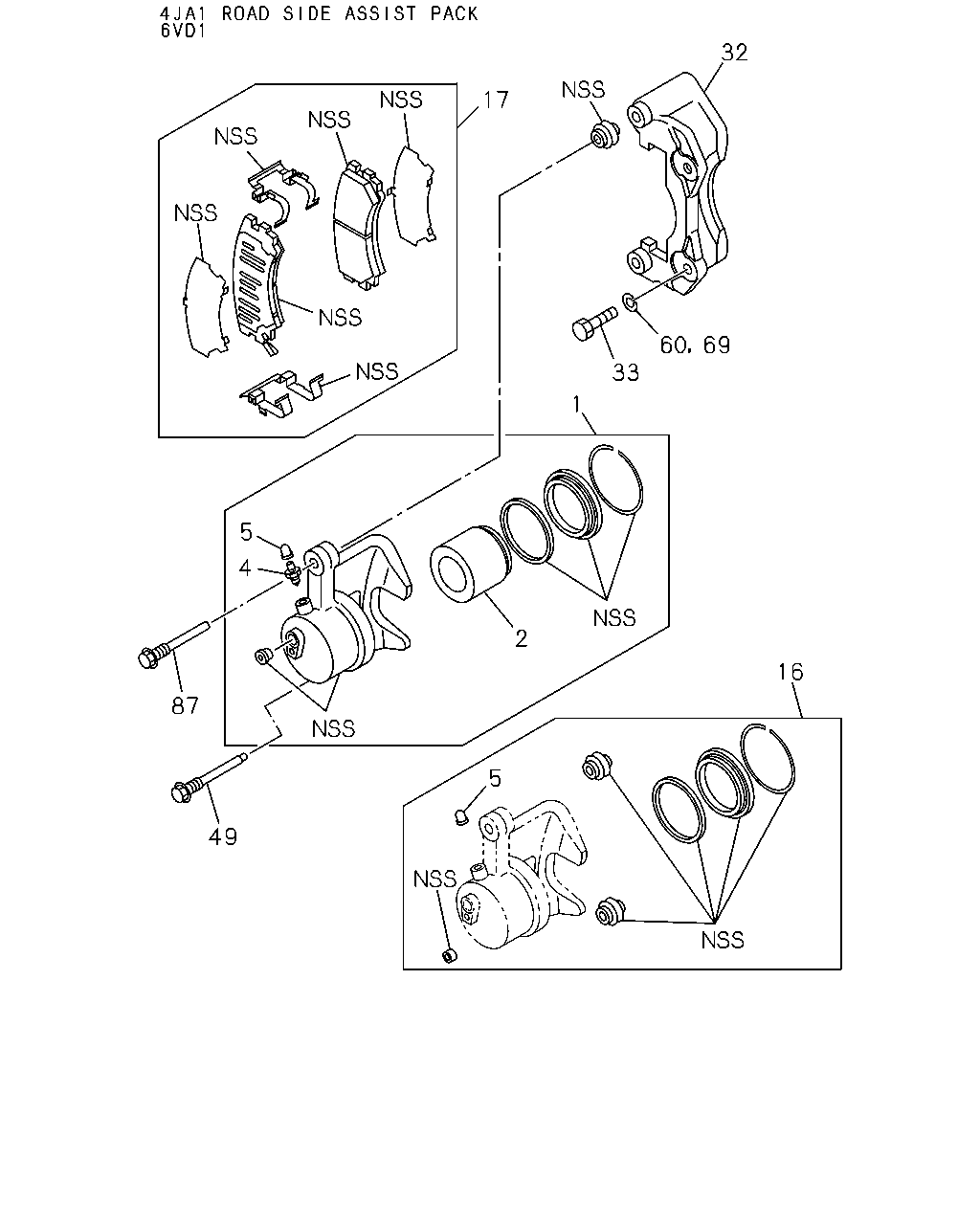

17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), ROAD SIDE ASSIST PACK(7LU) 		8-97164-183-0 01 1 0010-0012 ● ● ● ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97164-183-0 01 1 0101-0109 ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), ROAD SIDE ASSIST PACK(7LU) 		8-97164-183-0 01 1 0101-0109 ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97164-183-0 01 1 0110- ● ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JH1 ENG(RJX) 		8-97164-183-0 01 1 0110- ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97164-183-0 01 1 0110- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97164-183-0 01 1 0110- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
6VD1 ENG(RLV) 		8-97035-257-1 01 1 9804- ● ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-300-0 01 1 9804-9901 ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-300-0 01 1 9902-9909 ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97114-300-0 01 1 9902-9909 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-300-0 01 1 9910-0012 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97114-300-0 01 1 9910-0012 ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-300-0 01 1 0101-0109 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97114-300-0 01 1 0101-0109 ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. SHIFT ON THE FLY(7EX) 		8-97114-300-1 01 1 0110- ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) 		8-97114-300-1 01 1 0110- ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-97180-525-0 01 1 9902-0109 ●
32 04.665 SUPPORT; FRT DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94438-690-0 02 1 9804-0009 ● ● ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94438-690-0 02 1 0010-0010 ● ● ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94438-690-0 02 1 0011-0012 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT) 		8-94438-690-0 02 1 0011-0012 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JA1 ENG(RLE),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) EXC. M/T LOW GEARED(6WF),ROAD SIDE ASSIST PACK(7LU) 		8-94438-690-0 02 1 0011-0012 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94438-690-0 02 1 0101-0109 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT) 		8-94438-690-0 02 1 0101-0109 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JA1 ENG(RLE),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) EXC. M/T LOW GEARED(6WF),ROAD SIDE ASSIST PACK(7LU) 		8-94438-690-0 02 1 0101-0109 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) 		8-94438-690-0 02 1 0110- ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JB1 ENG(RLF) EXC. MANUAL LOCKING HUB(ED2) 		8-94438-690-0 02 1 0110- ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JH1 ENG(RJX) SHIFT ON THE FLY(7EX) 		8-94438-690-0 02 1 0110- ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
6VD1 ENG(RLV) 		8-97035-250-1 02 1 9804-0012 ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
6VD1 ENG(RLV) 		8-97035-250-1 02 1 0101-0109 ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-97035-250-1 02 1 0101-0109 ●
32 04.665 SUPPORT; FRT DISC BRK
6VD1 ENG(RLV) 		8-97035-250-1 02 1 0110- ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) 		8-94438-690-0 02 1 0011-0109 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JB1 ENG(RLF) EXC. MANUAL LOCKING HUB(ED2) 		8-94438-690-0 02 1 0011-0109 ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94438-690-0 02 1 0110- ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE) 		8-94438-690-0 02 1 0110- ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JH1 ENG(RJX),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2) 		8-94438-690-0 02 1 0110- ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M10X59.5 		8-94438-712-0 02 1 9804-9901 ● ● ● ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M10X59.5 		8-94438-712-0 02 1 9902-9909 ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) M10X59.5 		8-94438-712-0 02 1 9902-9909 ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) M10X59.5 		8-94438-712-0 02 1 9902-9909 ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M10X59.5 		8-94438-712-0 02 1 9910-0009 ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) M10X59.5 		8-94438-712-0 02 1 9910-0009 ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) M10X59.5 		8-94438-712-0 02 1 9910-0009 ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M10X59.5 		8-94438-712-0 02 1 0010-0012 ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) M10X59.5 		8-94438-712-0 02 1 0010-0012 ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M10X59.5 		8-94438-712-0 02 1 0101-0109 ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) M10X59.5 		8-94438-712-0 02 1 0101-0109 ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) M10X59.5 		8-94438-712-0 02 1 0110- ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) M10X59.5 		8-94438-712-0 02 1 0110- ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) M10X59.5 		8-94438-712-0 02 1 0110- ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
6VD1 ENG(RLV) M14X29 		8-97126-347-0 04 1 9804-9806 ● ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
6VD1 ENG(RLV) M14X29 		8-97126-347-0 04 1 9807-9901 ● ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) M14X29 		8-97126-347-0 04 1 9807-9901 ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
6VD1 ENG(RLV) M14X29 		8-97126-347-0 04 1 9902-0109 ● ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) M14X29 		8-97126-347-0 04 1 9902-0109 ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) M14X29 		8-97126-347-0 04 1 9902-0109 ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
6VD1 ENG(RLV) M14X29 		8-97126-347-0 04 1 0110-0203 ● ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) M14X29 		8-97126-347-0 04 1 0110-0203 ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
6VD1 ENG(RLV) M14X29 		8-97327-422-0 04 1 0204- ● ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) M14X29 		8-97327-422-0 04 1 0204- ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) 		8-94438-690-0 01 1 9807- ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) M10X59.5 		8-94438-712-0 01 1 9807- ● ● ●
37 04.665 WASHER; LK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 05.422 ID=14.2 		9-09150-814-0 04 1 9804-9806 ● ● ● ●
37 04.665 WASHER; LK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. MANUAL LOCKING HUB(ED2), AUSTRALIAN EQUIPMENT(RR3) 05.422 ID=14.2 		9-09150-814-0 04 1 9804-9806 ● ● ● ●
37 04.665 WASHER; LK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 05.422 ID=14.2 		9-09150-814-0 04 1 9807-9909 ● ● ● ●
37 04.665 WASHER; LK
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. MANUAL LOCKING HUB(ED2), AUSTRALIAN EQUIPMENT(RR3) 05.422 ID=14.2 		9-09150-814-0 04 1 9807-9909 ● ● ● ●
37 04.665 WASHER; LK
4JB1 ENG(RLF) AUSTRALIAN EQUIPMENT(RR3) AUTO LOCKING HUB(S1Y) 05.422 ID=14.2 		9-09150-814-0 04 1 9807-9909 ● ● ●
37 04.665 WASHER; LK
22LE/C22NE ENG(RJT) EXC. MANUAL LOCKING HUB(ED2),M/T LOW GEARED(6WF) 05.422 ID=14.2 		9-09150-814-0 04 1 9807-9909 ● ● ●
37 04.665 WASHER; LK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 05.422 ID=14.2 		9-09150-814-0 04 1 9910-0109 ● ● ● ●
37 04.665 WASHER; LK
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. MANUAL LOCKING HUB(ED2), UNITEDKINGDOM EQUIPMENT(EK3),AUSTRALIAN EQUIPMENT(RR3),SHIFT ON THE FLY(7EX) 05.422 ID=14.2 		9-09150-814-0 04 1 9910-0109 ● ● ● ●
37 04.665 WASHER; LK
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 05.422 ID=14.2 		9-09150-814-0 04 1 9910-0109 ● ● ●
37 04.665 WASHER; LK
4JB1 ENG(RLF) SHIFT ON THE FLY(7EX) 05.422 ID=14.2 		9-09150-814-0 04 1 9910-0109 ● ● ●
37 04.665 WASHER; LK
22LE/C22NE ENG(RJT) EXC. MANUAL LOCKING HUB(ED2),M/T LOW GEARED(6WF) 05.422 ID=14.2 		9-09150-814-0 04 1 9910-0109 ● ● ●
37 04.665 WASHER; LK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 05.422 ID=14.2 		9-09150-814-0 04 1 0110- ● ● ● ●
37 04.665 WASHER; LK
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. MANUAL LOCKING HUB(ED2), UNITEDKINGDOM EQUIPMENT(EK3),AUSTRALIAN EQUIPMENT(RR3) 05.422 ID=14.2 		9-09150-814-0 04 1 0110- ● ● ● ●
37 04.665 WASHER; LK
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 05.422 ID=14.2 		9-09150-814-0 04 1 0110- ● ● ●
37 04.665 WASHER; LK
4JH1 ENG(RJX) SHIFT ON THE FLY(7EX) 05.422 ID=14.2 		9-09150-814-0 04 1 0110- ● ● ●
37 04.665 WASHER; LK
22LE/C22NE ENG(RJT) EXC. MANUAL LOCKING HUB(ED2),M/T LOW GEARED(6WF) 05.422 ID=14.2 		9-09150-814-0 04 1 0110- ● ● ●
37 04.665 WASHER; LK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2) EXC. UNITED KINGDOM EQUIPMENT(EK3) 05.422 ID=14.2 		9-09150-814-0 02 1 9804-9806 ● ● ● ●
37 04.665 WASHER; LK
4JA1 ENG(RLE),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2) EXC. UNITED KINGDOM EQUIPMENT(EK3) 05.422 ID=14.2 		9-09150-814-0 02 1 9807-9909 ● ● ● ●
37 04.665 WASHER; LK
22LE/C22NE ENG(RJT) MANUAL LOCKING HUB(ED2) EXC. M/T LOW GEARED(6WF) 05.422 ID=14.2 		9-09150-814-0 02 1 9807-9909 ● ● ●
37 04.665 WASHER; LK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) MANUAL LOCKING HUB(ED2) EXC. UNITED KINGDOM EQUIPMENT(EK3), M/T LOW GEARED(6WF) 05.422 ID=14.2 		9-09150-814-0 02 1 9910-0109 ● ● ● ●
37 04.665 WASHER; LK
4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2) 05.422 ID=14.2 		9-09150-814-0 02 1 9910-0109 ● ● ●
37 04.665 WASHER; LK
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2) EXC. UNITED KINGDOM EQUIPMENT(EK3) 05.422 ID=14.2 		9-09150-814-0 02 1 0110- ● ● ● ●
37 04.665 WASHER; LK
22LE/C22NE ENG(RJT) MANUAL LOCKING HUB(ED2) EXC. M/T LOW GEARED(6WF) 05.422 ID=14.2 		9-09150-814-0 02 1 0110- ● ● ●
49 04.665 PIN; SLIDE,CALIPER
6VD1 ENG(RLV) 		8-97035-254-0 02 1 9804-0012 ● ● ● ● ● ●
49 04.665 PIN; SLIDE,CALIPER
6VD1 ENG(RLV) 		8-97035-254-0 02 1 0101-0109 ● ● ● ● ● ●
49 04.665 PIN; SLIDE,CALIPER
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-97035-254-0 02 1 0101-0109 ●
49 04.665 PIN; SLIDE,CALIPER
6VD1 ENG(RLV) 		8-97035-254-0 02 1 0110- ● ● ● ● ● ●
49 04.665 PIN; SLIDE,CALIPER
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) 		8-94438-694-0 02 1 9807- ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.665 M14X29 		8-97126-347-0 02 1 9804-9901 ● ● ● ● ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.665 M14X29 		8-97126-347-0 02 1 9902-9909 ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 04.665 M14X29 		8-97126-347-0 02 1 9902-9909 ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) 04.665 M14X29 		8-97126-347-0 02 1 9902-9909 ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.665 M14X29 		8-97126-347-0 02 1 9910-0009 ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 04.665 M14X29 		8-97126-347-0 02 1 9910-0009 ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) 04.665 M14X29 		8-97126-347-0 02 1 9910-0009 ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.665 M14X29 		8-97126-347-0 02 1 0010-0012 ● ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 04.665 M14X29 		8-97126-347-0 02 1 0010-0012 ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.665 M14X29 		8-97126-347-0 02 1 0101-0109 ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 04.665 M14X29 		8-97126-347-0 02 1 0101-0109 ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 04.665 M14X29 		8-97126-347-0 02 1 0110-0203 ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 04.665 M14X29 		8-97126-347-0 02 1 0110-0203 ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) 04.665 M14X29 		8-97126-347-0 02 1 0110-0203 ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 04.665 M14X29 		8-97327-422-0 02 1 0204- ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 04.665 M14X29 		8-97327-422-0 02 1 0204- ● ● ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) 04.665 M14X29 		8-97327-422-0 02 1 0204- ● ● ●
59 04.665 BRACKET; FLEX HOSE,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94433-667-1 01 1 9804-0012 ● ● ● ●
59 04.665 BRACKET; FLEX HOSE,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94433-667-1 01 1 0101- ● ● ●
59 04.665 BRACKET; FLEX HOSE,FRT 8-94433-667-1 01 1 0101- ●
59 04.665 BRACKET; FLEX HOSE,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94433-666-1 01 1 9804-0012 ● ● ● ●
59 04.665 BRACKET; FLEX HOSE,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94433-666-1 01 1 0101- ● ● ●
59 04.665 BRACKET; FLEX HOSE,FRT 8-94433-666-1 01 1 0101- ●
60 04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
6VD1 ENG(RLV) 05.422 ID=14.2 		9-09150-814-0 02 1 9804-9909 ● ● ● ● ● ●
60 04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2) EXC. UNITED KINGDOM EQUIPMENT(EK3) 05.422 ID=14.2 		9-09150-814-0 02 1 9804-9909 ● ● ● ●
60 04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
6VD1 ENG(RLV) 05.422 ID=14.2 		9-09150-814-0 02 1 9910-0109 ● ● ●
60 04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) 05.422 ID=14.2 		9-09150-814-0 02 1 9910-0109 ● ● ● ●
60 04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
6VD1 ENG(RLV) 05.422 ID=14.2 		9-09150-814-0 02 1 0110- ● ● ● ● ● ●
60 04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
22LE/C22NE ENG(RJT),4JH1 ENG(RJX), 4JA1 ENG(RLE),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2) EXC. UNITED KINGDOM EQUIPMENT(EK3) 05.422 ID=14.2 		9-09150-814-0 02 1 0110- ● ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M14X29 		8-97126-347-0 02 1 9804-9901 ● ● ● ● ● ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M14X29 		8-97126-347-0 02 1 9902-0009 ● ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) M14X29 		8-97126-347-0 02 1 9902-0009 ● ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) M14X29 		8-97126-347-0 02 1 9902-0009 ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M14X29 		8-97126-347-0 02 1 0010-0012 ● ● ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) M14X29 		8-97126-347-0 02 1 0010-0012 ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M14X29 		8-97126-347-0 02 1 0101-0109 ● ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) M14X29 		8-97126-347-0 02 1 0101-0109 ● ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) M14X29 		8-97126-347-0 02 1 0110-0203 ● ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) M14X29 		8-97126-347-0 02 1 0110-0203 ● ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) M14X29 		8-97126-347-0 02 1 0110-0203 ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) M14X29 		8-97327-422-0 02 1 0204- ● ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) M14X29 		8-97327-422-0 02 1 0204- ● ● ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) M14X29 		8-97327-422-0 02 1 0204- ● ● ●
69 04.665 WASHER; LK,FRT DISC BRK
6VD1 ENG(RLV) 05.422 ID=14.2 		9-09150-814-0 02 1 9804-9806 ● ● ● ● ● ●
69 04.665 WASHER; LK,FRT DISC BRK
6VD1 ENG(RLV) 05.422 ID=14.2 		9-09150-814-0 02 1 9807-9901 ● ● ● ● ● ●
69 04.665 WASHER; LK,FRT DISC BRK
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) 05.422 ID=14.2 		9-09150-814-0 02 1 9807-9901 ● ● ●
69 04.665 WASHER; LK,FRT DISC BRK
6VD1 ENG(RLV) 05.422 ID=14.2 		9-09150-814-0 02 1 9902-0109 ● ● ● ● ● ●
69 04.665 WASHER; LK,FRT DISC BRK
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) 05.422 ID=14.2 		9-09150-814-0 02 1 9902-0109 ● ● ●
69 04.665 WASHER; LK,FRT DISC BRK
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 05.422 ID=14.2 		9-09150-814-0 02 1 9902-0109 ●
69 04.665 WASHER; LK,FRT DISC BRK
6VD1 ENG(RLV) 05.422 ID=14.2 		9-09150-814-0 02 1 0110- ● ● ● ● ● ●
69 04.665 WASHER; LK,FRT DISC BRK
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) 05.422 ID=14.2 		9-09150-814-0 02 1 0110- ● ● ●
86 04.665 PIN; GUIDE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94438-694-0 02 1 9910-0012 ● ● ● ●
86 04.665 PIN; GUIDE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) EXC. M/T LOW GEARED(6WF) 		8-94438-694-0 02 1 9910-0012 ● ● ● ●
86 04.665 PIN; GUIDE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94438-694-0 02 1 0101-0109 ● ● ● ●
86 04.665 PIN; GUIDE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) EXC. M/T LOW GEARED(6WF) 		8-94438-694-0 02 1 0101-0109 ● ● ● ●
86 04.665 PIN; GUIDE
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) 		8-94438-694-0 03 1 0110- ● ● ● ●
86 04.665 PIN; GUIDE
4JB1 ENG(RLF) EXC. MANUAL LOCKING HUB(ED2) 		8-94438-694-0 03 1 0110- ● ● ●
86 04.665 PIN; GUIDE
4JH1 ENG(RJX) SHIFT ON THE FLY(7EX) 		8-94438-694-0 03 1 0110- ● ● ●
86 04.665 PIN; GUIDE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94438-694-0 02 1 9804-9806 ● ● ● ● ● ● ● ●
86 04.665 PIN; GUIDE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94438-694-0 02 1 9807-9909 ● ● ● ●
86 04.665 PIN; GUIDE
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94438-694-0 02 1 9807-9909 ● ● ● ●
86 04.665 PIN; GUIDE
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) 		8-94438-694-0 02 1 9807-9909 ● ● ● ●
86 04.665 PIN; GUIDE
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) 		8-94438-694-0 03 1 0011-0109 ● ● ● ●
86 04.665 PIN; GUIDE
4JB1 ENG(RLF) EXC. MANUAL LOCKING HUB(ED2) 		8-94438-694-0 03 1 0011-0109 ● ● ●
86 04.665 PIN; GUIDE
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94438-694-0 02 1 0110- ● ● ● ●
86 04.665 PIN; GUIDE
4JA1 ENG(RLE) MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) M/T LOW GEARED(6WF) 		8-94438-694-0 02 1 0110- ● ● ● ●
86 04.665 PIN; GUIDE
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) EXC. M/T LOW GEARED(6WF) 		8-94438-694-0 02 1 0110- ● ● ● ●
86 04.665 PIN; GUIDE
4JH1 ENG(RJX),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2) 		8-94438-694-0 02 1 0110- ● ● ●
86 04.665 PIN; GUIDE
4JG2 ENG(RJC) 		8-94438-694-0 02 1 0110- ● ● ●
çizim 72808
32 17 60 69 33 1 5 4 2 16 87 5 49
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 04.665 CALIPER; FRT DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94388-013-0 01 1 9804-0012 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94388-013-0 01 1 0101- ● ● ●
1 04.665 CALIPER; FRT DISC BRK 8-94388-013-0 01 1 0101- ●
1 04.665 CALIPER; FRT DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94388-012-0 01 1 9804-0012 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94388-012-0 01 1 0101- ● ● ●
1 04.665 CALIPER; FRT DISC BRK 8-94388-012-0 01 1 0101- ●
1 04.665 CALIPER; FRT DISC BRK
6VD1 ENG(RLV) 		8-97144-477-0 01 1 9804-0012 ● ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
6VD1 ENG(RLV) 		8-97144-477-0 01 1 0101-0109 ● ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-97144-477-0 01 1 0101-0109 ●
1 04.665 CALIPER; FRT DISC BRK
6VD1 ENG(RLV) 		8-97144-477-0 01 1 0110- ● ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
6VD1 ENG(RLV) 		8-97144-476-0 01 1 9804-0012 ● ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
6VD1 ENG(RLV) 		8-97144-476-0 01 1 0101-0109 ● ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-97144-476-0 01 1 0101-0109 ●
1 04.665 CALIPER; FRT DISC BRK
6VD1 ENG(RLV) 		8-97144-476-0 01 1 0110- ● ● ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94388-017-0 01 1 9804-9901 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94388-017-0 01 1 9902-9909 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94388-017-0 01 1 9910-0012 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94388-017-0 01 1 0101-0109 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94388-017-0 01 1 0101-0109 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94388-017-0 01 1 0110- ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94388-017-0 01 1 0110- ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94388-016-0 01 1 9804-9901 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94388-016-0 01 1 9902-9909 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94388-016-0 01 1 9910-0012 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94388-016-0 01 1 0101-0109 ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94388-016-0 01 1 0101-0109 ● ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 4X2 HIGH RIDE SUSPENSION(7YC) 		8-94388-016-0 01 1 0110- ● ● ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94388-016-0 01 1 0110- ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94438-689-0 04 1 0110- ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94438-689-0 04 1 0110- ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) 		8-94438-689-0 04 1 0110- ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94438-689-0 02 1 0101-0109 ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94438-689-0 02 1 0101-0109 ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-94438-689-0 02 1 9804-0012 ● ● ● ● ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
6VD1 ENG(RLV) 		8-94438-689-0 02 1 0101-0109 ● ● ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) 		8-94438-689-0 02 1 0101-0109 ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-94438-689-0 02 1 0101-0109 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
6VD1 ENG(RLV) 		8-94438-689-0 02 1 0110- ● ● ● ● ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) 		8-94438-689-0 02 1 0110- ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 04.665 		8-97113-867-0 03 1 0110- ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 04.665 		8-97113-867-0 03 1 0110- ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) 04.665 		8-97113-867-0 03 1 0110- ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94438-713-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94438-713-0 01 1 9910-0009 ● ● ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94438-713-0 01 1 0010-0012 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-94438-713-0 01 1 0010-0012 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94438-713-0 01 1 0101-0109 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT) 		8-94438-713-0 01 1 0101-0109 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JA1 ENG(RLE),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) EXC. M/T LOW GEARED(6WF),ROAD SIDE ASSIST PACK(7LU) 		8-94438-713-0 01 1 0101-0109 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94438-713-0 01 1 0110- ● ● ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.665 		8-97113-867-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 04.665 		8-97113-867-0 01 1 9910-0009 ● ● ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 04.665 		8-97113-867-0 01 1 0010-0012 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 04.665 		8-97113-867-0 01 1 0010-0012 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) 04.665 		8-97113-867-0 01 1 0101- ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
6VD1 ENG(RLV) 04.665 		8-97113-867-0 02 1 9804-0012 ● ● ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
04.665 		8-97113-867-0 02 1 0101-0109 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 04.665 		8-97113-867-0 02 1 0101-0109 ● ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) 04.665 		8-97113-867-0 02 1 0101-0109 ● ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
6VD1 ENG(RLV) 04.665 		8-97113-867-0 02 1 0110- ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		1-47619-009-0 03 1 0110- ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		1-47619-009-0 03 1 0110- ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) 		1-47619-009-0 03 1 0110- ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		5-47619-007-2 01 1 9804-9909 ● ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		5-47619-007-2 01 1 9910-0009 ● ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		5-47619-007-2 01 1 0010-0012 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		5-47619-007-2 01 1 0010-0012 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		5-47619-007-2 01 1 0101-0109 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT) 		5-47619-007-2 01 1 0101-0109 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JA1 ENG(RLE),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) EXC. M/T LOW GEARED(6WF),ROAD SIDE ASSIST PACK(7LU) 		5-47619-007-2 01 1 0101-0109 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		5-47619-007-2 01 1 0110- ● ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		1-47619-009-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		1-47619-009-0 01 1 9910-0009 ● ● ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		1-47619-009-0 01 1 0010-0012 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		1-47619-009-0 01 1 0010-0012 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) 		1-47619-009-0 01 1 0101- ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
6VD1 ENG(RLV) 		1-47619-009-0 02 1 9804-0012 ● ● ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 0101-0109 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 		1-47619-009-0 02 1 0101-0109 ● ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) 		1-47619-009-0 02 1 0101-0109 ● ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
6VD1 ENG(RLV) 		1-47619-009-0 02 1 0110- ● ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-715-0 01 1 9804-9909 ● ● ● ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97134-715-0 01 1 9910-0009 ● ● ● ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97134-715-0 01 1 0010-0012 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97134-715-0 01 1 0010-0012 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97134-715-0 01 1 0101-0109 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT) 		8-97134-715-0 01 1 0101-0109 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4JA1 ENG(RLE),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) EXC. M/T LOW GEARED(6WF),ROAD SIDE ASSIST PACK(7LU) 		8-97134-715-0 01 1 0101-0109 ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97134-715-0 01 1 0110- ● ● ● ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
6VD1 ENG(RLV) 		8-97134-716-0 01 1 9804-0012 ● ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
6VD1 ENG(RLV) 		8-97134-716-0 01 1 0101-0109 ● ● ● ● ● ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-97134-716-0 01 1 0101-0109 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
6VD1 ENG(RLV) 		8-97134-716-0 01 1 0110- ● ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97164-183-0 01 1 9804-0009 ● ● ● ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), ROAD SIDE ASSIST PACK(7LU) 		8-97164-183-0 01 1 0010-0012 ● ● ● ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-97164-183-0 01 1 0101-0109 ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3), ROAD SIDE ASSIST PACK(7LU) 		8-97164-183-0 01 1 0101-0109 ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97164-183-0 01 1 0110- ● ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JH1 ENG(RJX) 		8-97164-183-0 01 1 0110- ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC) 4X2 HIGH RIDE SUSPENSION(7YC) EXC. UNITED KINGDOM EQUIPMENT(EK3) 		8-97164-183-0 01 1 0110- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) EXC. 4X2 HIGH RIDE SUSPENSION(7YC) 		8-97164-183-0 01 1 0110- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
6VD1 ENG(RLV) 		8-97035-257-1 01 1 9804- ● ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-300-0 01 1 9804-9901 ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-300-0 01 1 9902-9909 ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97114-300-0 01 1 9902-9909 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-300-0 01 1 9910-0012 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97114-300-0 01 1 9910-0012 ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) 		8-97114-300-0 01 1 0101-0109 ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. ROAD SIDE ASSIST PACK(7LU) 		8-97114-300-0 01 1 0101-0109 ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC),4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) EXC. SHIFT ON THE FLY(7EX) 		8-97114-300-1 01 1 0110- ● ● ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JA1 ENG(RLE) UNITED KINGDOM EQUIPMENT(EK3) CHARGE AIR COOLER<6PL> SHIFT ON THE FLY(7EX) 		8-97114-300-1 01 1 0110- ● ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-97180-525-0 01 1 9902-0109 ●
32 04.665 SUPPORT; FRT DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94438-690-0 02 1 9804-0009 ● ● ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94438-690-0 02 1 0010-0010 ● ● ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) 		8-94438-690-0 02 1 0011-0012 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT) 		8-94438-690-0 02 1 0011-0012 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JA1 ENG(RLE),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) EXC. M/T LOW GEARED(6WF),ROAD SIDE ASSIST PACK(7LU) 		8-94438-690-0 02 1 0011-0012 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94438-690-0 02 1 0101-0109 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT) 		8-94438-690-0 02 1 0101-0109 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JA1 ENG(RLE),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) EXC. M/T LOW GEARED(6WF),ROAD SIDE ASSIST PACK(7LU) 		8-94438-690-0 02 1 0101-0109 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) 		8-94438-690-0 02 1 0110- ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JB1 ENG(RLF) EXC. MANUAL LOCKING HUB(ED2) 		8-94438-690-0 02 1 0110- ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JH1 ENG(RJX) SHIFT ON THE FLY(7EX) 		8-94438-690-0 02 1 0110- ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
6VD1 ENG(RLV) 		8-97035-250-1 02 1 9804-0012 ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
6VD1 ENG(RLV) 		8-97035-250-1 02 1 0101-0109 ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-97035-250-1 02 1 0101-0109 ●
32 04.665 SUPPORT; FRT DISC BRK
6VD1 ENG(RLV) 		8-97035-250-1 02 1 0110- ● ● ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JA1 ENG(RLE) M/T LOW GEARED(6WF) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) 		8-94438-690-0 02 1 0011-0109 ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JB1 ENG(RLF) EXC. MANUAL LOCKING HUB(ED2) 		8-94438-690-0 02 1 0011-0109 ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-94438-690-0 02 1 0110- ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE) 		8-94438-690-0 02 1 0110- ● ● ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JH1 ENG(RJX),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2) 		8-94438-690-0 02 1 0110- ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M10X59.5 		8-94438-712-0 02 1 9804-9901 ● ● ● ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M10X59.5 		8-94438-712-0 02 1 9902-9909 ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) M10X59.5 		8-94438-712-0 02 1 9902-9909 ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) M10X59.5 		8-94438-712-0 02 1 9902-9909 ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M10X59.5 		8-94438-712-0 02 1 9910-0009 ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) M10X59.5 		8-94438-712-0 02 1 9910-0009 ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) M10X59.5 		8-94438-712-0 02 1 9910-0009 ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M10X59.5 		8-94438-712-0 02 1 0010-0012 ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) M10X59.5 		8-94438-712-0 02 1 0010-0012 ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) M10X59.5 		8-94438-712-0 02 1 0101-0109 ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JA1 ENG(RLE),4JB1 ENG(RLF) EXC. ROAD SIDE ASSIST PACK(7LU) M10X59.5 		8-94438-712-0 02 1 0101-0109 ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT), 4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) M10X59.5 		8-94438-712-0 02 1 0110- ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF) M10X59.5 		8-94438-712-0 02 1 0110- ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) EXC. M/T LOW GEARED(6WF) M10X59.5 		8-94438-712-0 02 1 0110- ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
6VD1 ENG(RLV) M14X29 		8-97126-347-0 04 1 9804-9806 ● ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
6VD1 ENG(RLV) M14X29 		8-97126-347-0 04 1 9807-9901 ● ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) M14X29 		8-97126-347-0 04 1 9807-9901 ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
6VD1 ENG(RLV) M14X29 		8-97126-347-0 04 1 9902-0109 ● ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) M14X29 		8-97126-347-0 04 1 9902-0109 ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) M14X29 		8-97126-347-0 04 1 9902-0109 ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
6VD1 ENG(RLV) M14X29 		8-97126-347-0 04 1 0110-0203 ● ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) M14X29 		8-97126-347-0 04 1 0110-0203 ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
6VD1 ENG(RLV) M14X29 		8-97327-422-0 04 1 0204- ● ● ● ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) M14X29 		8-97327-422-0 04 1 0204- ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) 		8-94438-690-0 01 1 9807- ● ● ●
33 04.665 BOLT; SUPPORT BRKT TO DISC BRK
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) M10X59.5 		8-94438-712-0 01 1 9807- ● ● ●
49 04.665 PIN; SLIDE,CALIPER
6VD1 ENG(RLV) 		8-97035-254-0 02 1 9804-0012 ● ● ● ● ● ●
49 04.665 PIN; SLIDE,CALIPER
6VD1 ENG(RLV) 		8-97035-254-0 02 1 0101-0109 ● ● ● ● ● ●
49 04.665 PIN; SLIDE,CALIPER
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-97035-254-0 02 1 0101-0109 ●
49 04.665 PIN; SLIDE,CALIPER
6VD1 ENG(RLV) 		8-97035-254-0 02 1 0110- ● ● ● ● ● ●
49 04.665 PIN; SLIDE,CALIPER
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) 		8-94438-694-0 02 1 9807- ● ● ●
60 04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
6VD1 ENG(RLV) 05.422 ID=14.2 		9-09150-814-0 02 1 9804-9909 ● ● ● ● ● ●
60 04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2) EXC. UNITED KINGDOM EQUIPMENT(EK3) 05.422 ID=14.2 		9-09150-814-0 02 1 9804-9909 ● ● ● ●
60 04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
6VD1 ENG(RLV) 05.422 ID=14.2 		9-09150-814-0 02 1 9910-0109 ● ● ●
60 04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE), 4JB1 ENG(RLF),6VD1 ENG(RLV) 05.422 ID=14.2 		9-09150-814-0 02 1 9910-0109 ● ● ● ●
60 04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
6VD1 ENG(RLV) 05.422 ID=14.2 		9-09150-814-0 02 1 0110- ● ● ● ● ● ●
60 04.665 WASHER; LK,SUPPORT BRKT TO KNUCK
22LE/C22NE ENG(RJT),4JH1 ENG(RJX), 4JA1 ENG(RLE),4JB1 ENG(RLF) MANUAL LOCKING HUB(ED2) EXC. UNITED KINGDOM EQUIPMENT(EK3) 05.422 ID=14.2 		9-09150-814-0 02 1 0110- ● ● ● ●
69 04.665 WASHER; LK,FRT DISC BRK
6VD1 ENG(RLV) 05.422 ID=14.2 		9-09150-814-0 02 1 9804-9806 ● ● ● ● ● ●
69 04.665 WASHER; LK,FRT DISC BRK
6VD1 ENG(RLV) 05.422 ID=14.2 		9-09150-814-0 02 1 9807-9901 ● ● ● ● ● ●
69 04.665 WASHER; LK,FRT DISC BRK
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) 05.422 ID=14.2 		9-09150-814-0 02 1 9807-9901 ● ● ●
69 04.665 WASHER; LK,FRT DISC BRK
6VD1 ENG(RLV) 05.422 ID=14.2 		9-09150-814-0 02 1 9902-0109 ● ● ● ● ● ●
69 04.665 WASHER; LK,FRT DISC BRK
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) 05.422 ID=14.2 		9-09150-814-0 02 1 9902-0109 ● ● ●
69 04.665 WASHER; LK,FRT DISC BRK
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 05.422 ID=14.2 		9-09150-814-0 02 1 9902-0109 ●
69 04.665 WASHER; LK,FRT DISC BRK
6VD1 ENG(RLV) 05.422 ID=14.2 		9-09150-814-0 02 1 0110- ● ● ● ● ● ●
69 04.665 WASHER; LK,FRT DISC BRK
22LE/C22NE ENG(RJT) M/T LOW GEARED(6WF) 05.422 ID=14.2 		9-09150-814-0 02 1 0110- ● ● ●
87 04.665 PIN; LOCK
6VD1 ENG(RLV) 		8-97035-255-0 02 1 9804-0012 ● ● ● ● ● ●
87 04.665 PIN; LOCK
6VD1 ENG(RLV) 		8-97035-255-0 02 1 0101-0109 ● ● ● ● ● ●
87 04.665 PIN; LOCK
4JA1 ENG(RLE) ROAD SIDE ASSIST PACK(7LU) 		8-97035-255-0 02 1 0101-0109 ●
87 04.665 PIN; LOCK
6VD1 ENG(RLV) 		8-97035-255-0 02 1 0110- ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
