◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-66 - MANUAL TRANSFER GEAR; OUTPUT ▶
2-66 — MANUAL TRANSFER GEAR; OUTPUT (#45671) — 16 parça

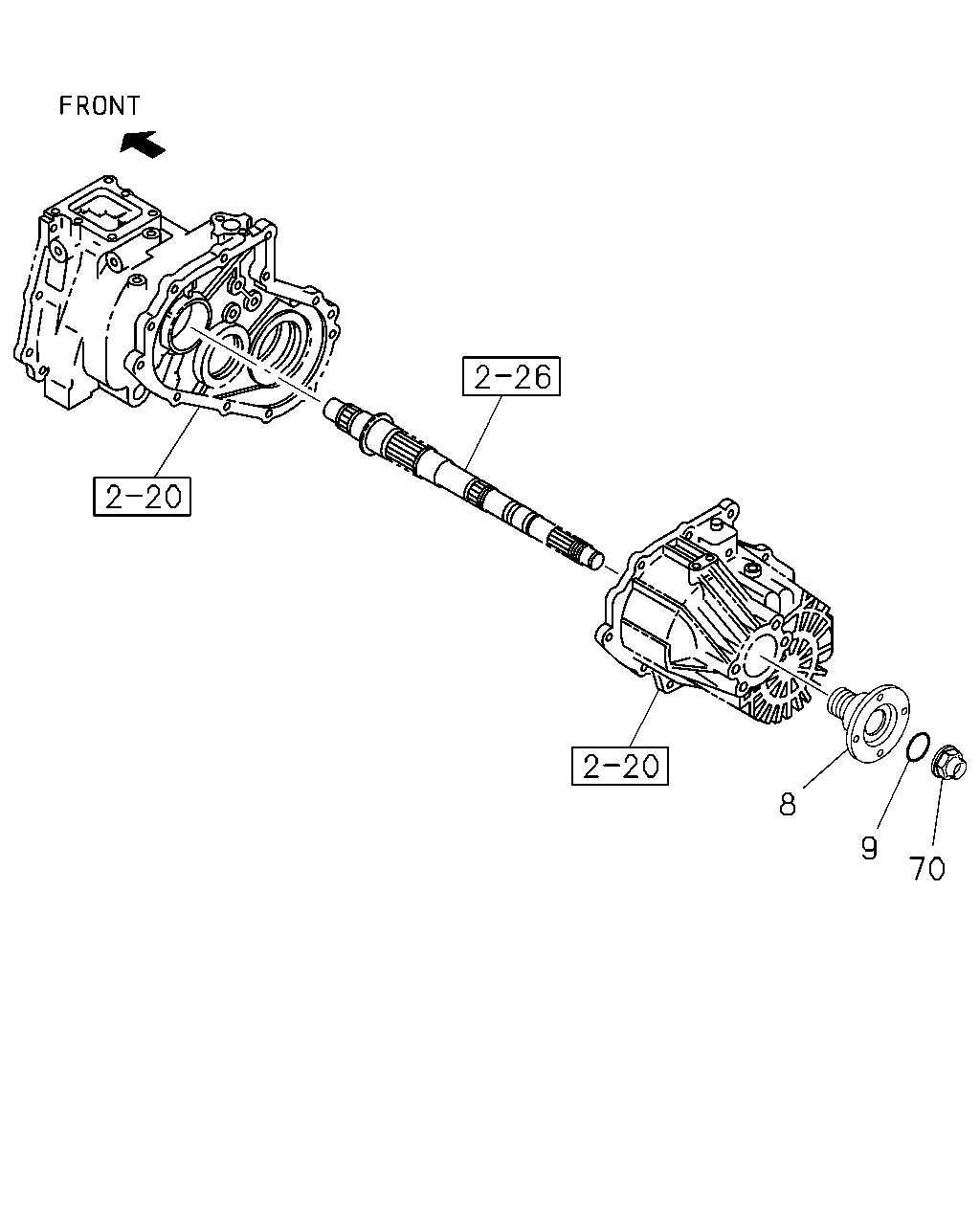

çizim 19323
8 9 70
BalonParca AdiParca NoAdetTipApplied Date A B C
8 04.535 FLANGE; OUTPUT
6VD1 ENG(RLV) 		8-97127-043-1 01 1 9804-0004 ● ● ●
8 04.535 FLANGE; OUTPUT
6VD1 ENG(RLV) 		8-97251-138-1 01 1 0005-0012 ● ● ●
8 04.535 FLANGE; OUTPUT
6VD1 ENG(RLV) A/T THM(RMQ) AUSTRALIAN EQUIPMENT(RR3) 		8-97251-138-1 01 1 0101-0109 ● ● ●
8 04.535 FLANGE; OUTPUT
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97251-138-1 01 1 0101-0109 ● ● ●
8 04.535 FLANGE; OUTPUT
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		8-97251-138-2 01 1 0110- ● ● ●
8 04.535 FLANGE; OUTPUT
4JH1 ENG(RJX) A/T AISIN(RMD) CHARGE AIR COOLER<6PL> 		8-97251-138-2 01 1 0110- ●
9 04.164 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 6VD1 ENG(RLV) 		9-09561-326-0 01 1 9804-0012 ● ● ●
9 04.164 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 6VD1 ENG(RLV) A/T THM(RMQ) AUSTRALIAN EQUIPMENT(RR3) 		9-09561-326-0 01 1 0101-0109 ● ● ●
9 04.164 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		9-09561-326-0 01 1 0101-0109 ● ● ●
9 04.164 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) 		9-09561-326-0 01 1 0110- ● ● ●
9 04.164 GASKET; SHAFT
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX) A/T AISIN(RMD) CHARGE AIR COOLER<6PL> 		9-09561-326-0 01 1 0110- ●
70 04.164 NUT; RR OUTPUT SHAFT,TRANSFER
6VD1 ENG(RLV) M24 		8-94385-985-1 01 1 9804-0012 ● ● ●
70 04.164 NUT; RR OUTPUT SHAFT,TRANSFER
6VD1 ENG(RLV) A/T THM(RMQ) AUSTRALIAN EQUIPMENT(RR3) M24 		8-94385-985-1 01 1 0101-0109 ● ● ●
70 04.164 NUT; RR OUTPUT SHAFT,TRANSFER
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) M24 		8-94385-985-1 01 1 0101-0109 ● ● ●
70 04.164 NUT; RR OUTPUT SHAFT,TRANSFER
6VD1 ENG(RLV) AUSTRALIAN EQUIPMENT(RR3) M24 		8-94385-985-1 01 1 0110- ● ● ●
70 04.164 NUT; RR OUTPUT SHAFT,TRANSFER
4JH1 ENG(RJX) A/T AISIN(RMD) CHARGE AIR COOLER<6PL> M24 		8-94385-985-1 01 1 0110- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
