◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-61 - TRANSFER CASE AND GEAR SHIFTER ▶
2-61 — TRANSFER CASE AND GEAR SHIFTER (#45668) — 46 parça

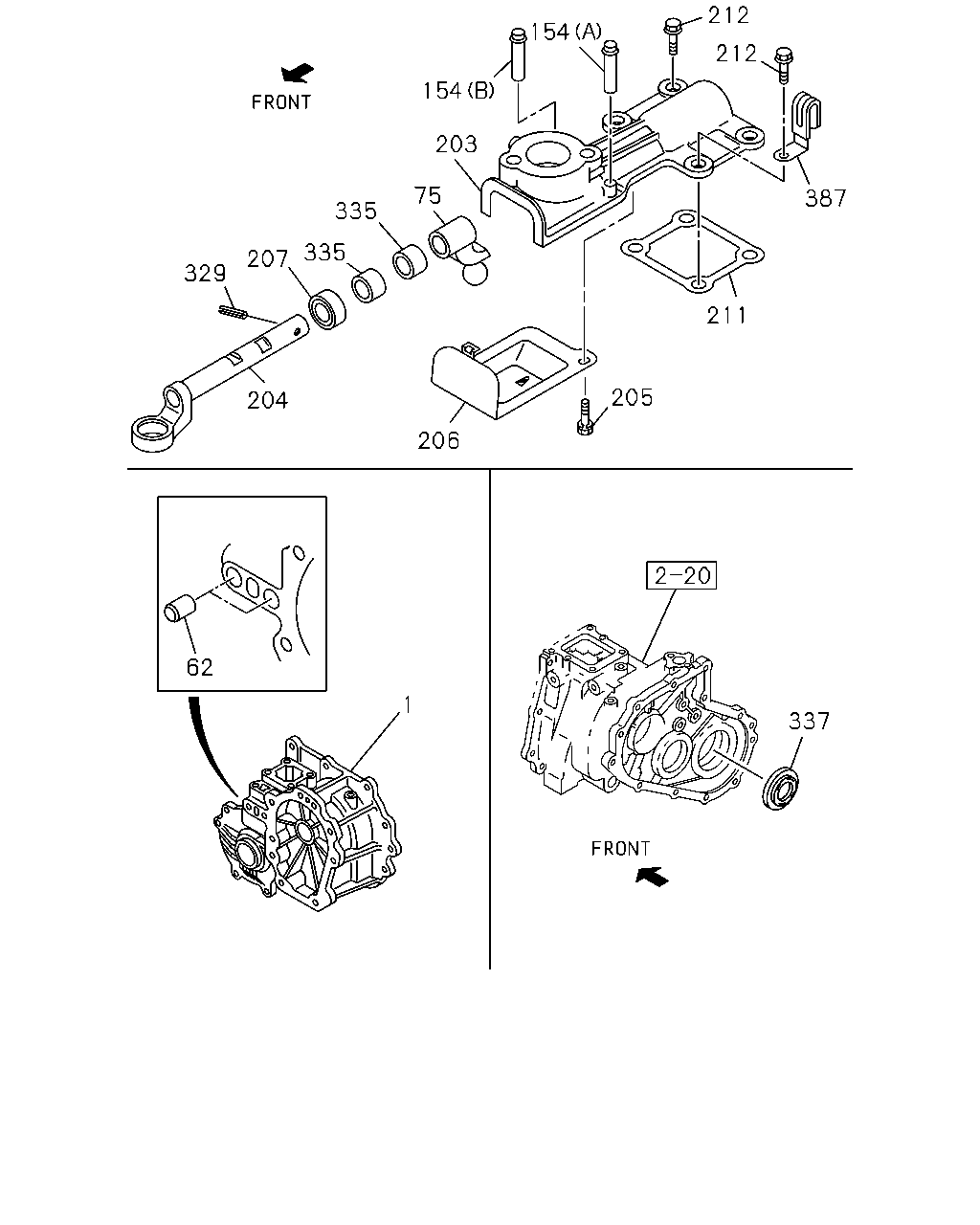

çizim 73635
212 154 212 154 203 75 387 335 335 207 329 211 205 204 206 62 1 337
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.510 CASE; TRANSFER
A/T THM(RMQ) 		8-97145-569-0 01 1 0110- ● ● ●
1 04.510 CASE; TRANSFER
A/T AISIN(RMD) CHARGE AIR COOLER<6PL> 		8-97145-569-0 01 1 0110- ●
62 04.510 CAP; SHIFT ROD
A/T THM(RMQ) 		8-97221-078-0 02 1 0101-0109 ● ● ●
62 04.510 CAP; SHIFT ROD
A/T THM(RMQ) 		8-97221-078-0 02 1 0110- ● ● ●
62 04.510 CAP; SHIFT ROD
A/T AISIN(RMD) CHARGE AIR COOLER<6PL> 		8-97221-078-0 02 1 0110- ●
75 04.246 LEVER ASM; L-H CONT,INTERNAL
A/T THM(RMQ) 		8-94367-929-2 01 1 0101-0109 ● ● ●
75 04.246 LEVER ASM; L-H CONT,INTERNAL
A/T THM(RMQ) 		8-94367-929-2 01 1 0110- ● ● ●
75 04.246 LEVER ASM; L-H CONT,INTERNAL
A/T AISIN(RMD) CHARGE AIR COOLER<6PL> 		8-94367-929-2 01 1 0110- ●
154 04.510 PIPE; BREATHER
A/T THM(RMQ) (A) 		8-97173-544-0 01 1 0101-0109 ● ● ●
154 04.510 PIPE; BREATHER
A/T THM(RMQ) (A) 		8-97173-544-0 01 1 0110- ● ● ●
154 04.510 PIPE; BREATHER
A/T AISIN(RMD) CHARGE AIR COOLER<6PL> (A) 		8-97173-544-0 01 1 0110- ●
154 04.510 PIPE; BREATHER
A/T THM(RMQ) (B) 		8-97173-545-0 01 1 0101-0109 ● ● ●
154 04.510 PIPE; BREATHER
A/T THM(RMQ) (B) 		8-97173-545-0 01 1 0110- ● ● ●
154 04.510 PIPE; BREATHER
A/T AISIN(RMD) CHARGE AIR COOLER<6PL> (B) 		8-97173-545-0 01 1 0110- ●
203 04.510 BOX; TRANSFER CONT
A/T THM(RMQ) 		8-97173-546-1 01 1 0101-0109 ● ● ●
203 04.510 BOX; TRANSFER CONT
A/T THM(RMQ) 		8-97173-546-1 01 1 0110- ● ● ●
203 04.510 BOX; TRANSFER CONT
A/T AISIN(RMD) CHARGE AIR COOLER<6PL> 		8-97173-546-1 01 1 0110- ●
204 04.246 ROD; SHIFT,TRANSFER CONT
A/T THM(RMQ) 		8-97176-249-2 01 1 0101-0109 ● ● ●
204 04.246 ROD; SHIFT,TRANSFER CONT
A/T THM(RMQ) 		8-97176-249-2 01 1 0110- ● ● ●
204 04.246 ROD; SHIFT,TRANSFER CONT
A/T AISIN(RMD) CHARGE AIR COOLER<6PL> 		8-97176-249-2 01 1 0110- ●
205 04.105 BOLT; DUST COVER,CONT BOX,TRANSF
A/T THM(RMQ) 09.775 M6X8 		9-03490-608-0 01 1 0101-0109 ● ● ●
205 04.105 BOLT; DUST COVER,CONT BOX,TRANSF
A/T THM(RMQ) 09.775 M6X8 		9-03490-608-0 01 1 0110- ● ● ●
205 04.105 BOLT; DUST COVER,CONT BOX,TRANSF
A/T AISIN(RMD) CHARGE AIR COOLER<6PL> 09.775 M6X8 		9-03490-608-0 01 1 0110- ●
206 04.510 COVER; DUST,CONT BOX,TRANSFER
A/T THM(RMQ) 		8-97106-784-1 01 1 0101-0109 ● ● ●
206 04.510 COVER; DUST,CONT BOX,TRANSFER
A/T THM(RMQ) 		8-97106-784-1 01 1 0110- ● ● ●
206 04.510 COVER; DUST,CONT BOX,TRANSFER
A/T AISIN(RMD) CHARGE AIR COOLER<6PL> 		8-97106-784-1 01 1 0110- ●
207 04.107 SEAL; OIL,INTERNAL SHIFT ROD,TRA
A/T THM(RMQ) 		8-94221-533-1 01 1 0101-0109 ● ● ●
207 04.107 SEAL; OIL,INTERNAL SHIFT ROD,TRA
A/T THM(RMQ) 		8-94221-533-1 01 1 0110- ● ● ●
207 04.107 SEAL; OIL,INTERNAL SHIFT ROD,TRA
A/T AISIN(RMD) CHARGE AIR COOLER<6PL> 		8-94221-533-1 01 1 0110- ●
211 04.109 GASKET; CONT BOX,TRANSFER
A/T THM(RMQ) 04.019 		8-94368-327-0 01 1 0101-0109 ● ● ●
211 04.109 GASKET; CONT BOX,TRANSFER
A/T THM(RMQ) 04.019 		8-94368-327-0 01 1 0110- ● ● ●
211 04.109 GASKET; CONT BOX,TRANSFER
A/T AISIN(RMD) CHARGE AIR COOLER<6PL> 04.019 		8-94368-327-0 01 1 0110- ●
212 04.105 BOLT; CONT BOX,TRANSFER
A/T THM(RMQ) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0101-0109 ● ● ●
212 04.105 BOLT; CONT BOX,TRANSFER
A/T THM(RMQ) 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0110- ● ● ●
212 04.105 BOLT; CONT BOX,TRANSFER
A/T AISIN(RMD) CHARGE AIR COOLER<6PL> 02.559 M8X25 FLANGE 		0-28680-825-0 04 1 0110- ●
329 04.107 PIN; SPRING,SHIFT ROD
A/T THM(RMQ) 04.042 OD=5.4 		9-09678-510-0 01 1 0101-0109 ● ● ●
329 04.107 PIN; SPRING,SHIFT ROD
A/T THM(RMQ) 04.042 OD=5.4 		9-09678-510-0 01 1 0110- ● ● ●
329 04.107 PIN; SPRING,SHIFT ROD
A/T AISIN(RMD) CHARGE AIR COOLER<6PL> 04.042 OD=5.4 		9-09678-510-0 01 1 0110- ●
335 04.105 BUSHING
A/T THM(RMQ) 		8-94388-205-1 02 1 0101-0109 ● ● ●
335 04.105 BUSHING
A/T THM(RMQ) 		8-94388-205-1 02 1 0110- ● ● ●
335 04.105 BUSHING
A/T AISIN(RMD) CHARGE AIR COOLER<6PL> 		8-94388-205-1 02 1 0110- ●
337 04.500 PLATE; LOCK
4JB1 ENG(RLF),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX) 04.422 		8-97102-940-0 01 1 9910-0012 ● ● ●
337 04.500 PLATE; LOCK
4JB1 ENG(RLF),6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) SHIFT ON THE FLY(7EX) AUSTRALIAN EQUIPMENT(RR3) 04.422 		8-97102-940-0 01 1 0101- ● ● ●
387 04.319 CLAMP; HOSE
A/T THM(RMQ) 02.313 		5-09700-359-0 02 1 0101-0109 ● ● ●
387 04.319 CLAMP; HOSE
A/T THM(RMQ) 02.313 		5-09700-359-0 02 1 0110- ● ● ●
387 04.319 CLAMP; HOSE
A/T AISIN(RMD) CHARGE AIR COOLER<6PL> 02.313 		5-09700-359-0 02 1 0110- ●
