2-56 — AUTO TRANS CONTROL LINK (#45666) — 22 parça

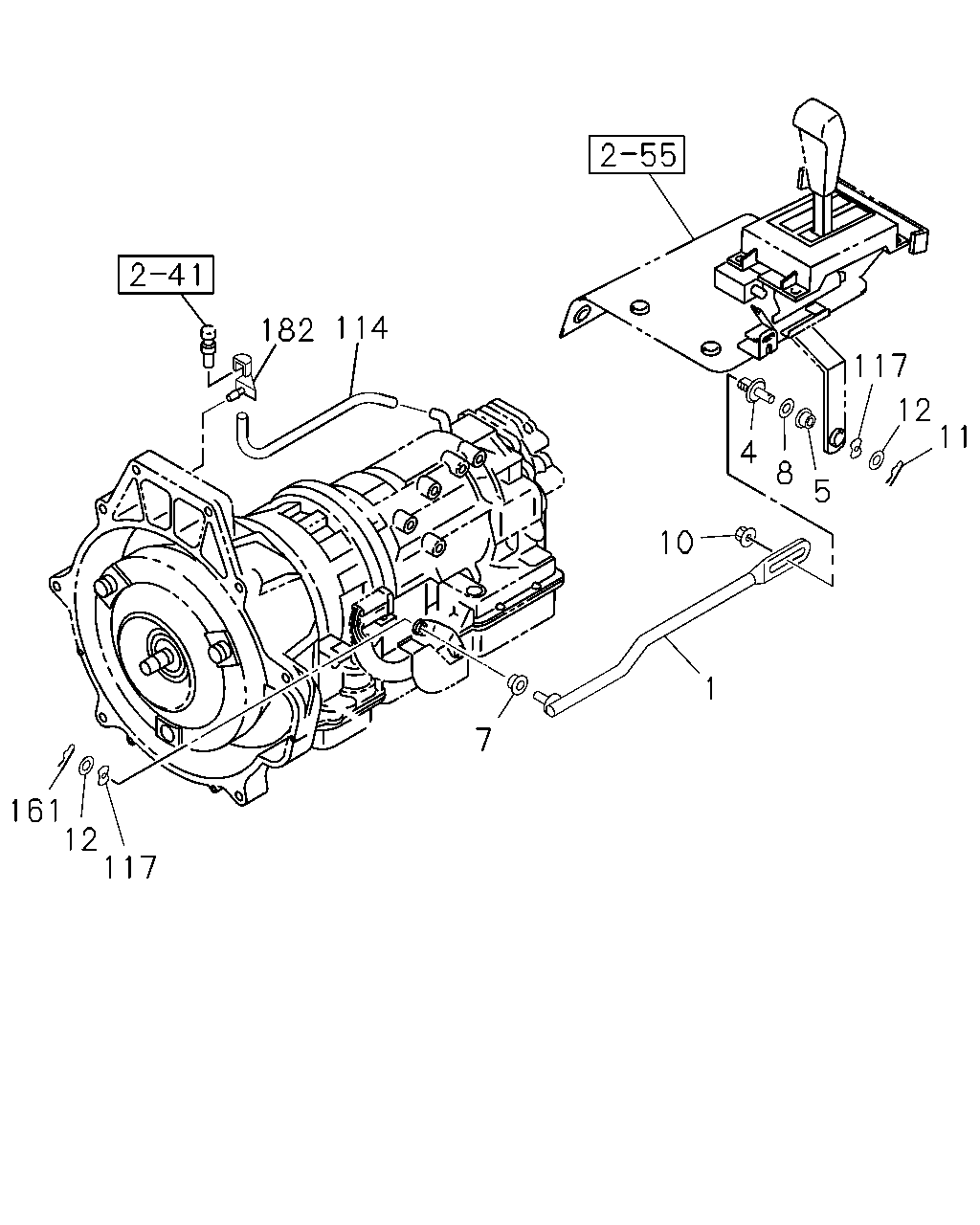

çizim 18298
114 182 117 12 11 4 8 5 10 1 7 161 12 117
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.035 ROD; LINK,SELECT CONT 8-97124-685-2 01 1 9804- ●
1 04.035 ROD; LINK,SELECT CONT 8-97124-684-2 01 1 0110- ●
4 04.037 BOSS; SELECT LEVER 8-97124-639-0 01 1 9804-0109 ●
4 04.037 BOSS; SELECT LEVER 8-97124-639-0 01 1 0110- ● ●
5 04.037 BUSHING; LINK ROD TO SELECT LEVE 8-97038-937-0 01 1 9804-0109 ●
5 04.037 BUSHING; LINK ROD TO SELECT LEVE 8-97038-937-0 01 1 0110- ● ●
7 04.037 BUSHING; JOINT,A/T CONT 8-97038-937-0 01 1 9804-0109 ●
7 04.037 BUSHING; JOINT,A/T CONT 8-97038-937-0 01 1 0110- ● ●
8 04.047 WASHER; PL,A/T CONT
06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 9804-0109 ●
8 04.047 WASHER; PL,A/T CONT
06.760 ID=8.4 OD=22 		9-09160-708-0 01 1 0110- ● ●
10 04.037 NUT; CLIP
08.917 M10 FLANGE 		0-91150-210-0 01 1 9804-0109 ●
10 04.037 NUT; CLIP
08.917 M10 FLANGE 		0-91150-210-0 01 1 0110- ● ●
11 04.047 PIN; SNAP,A/T CONT
04.004 L=27.7 		8-94210-407-0 01 1 9804-0109 ●
11 04.047 PIN; SNAP,A/T CONT
04.004 L=27.7 		8-94210-407-0 01 1 0110- ● ●
12 04.012 WASHER; PL,SELECT CONT
06.760 ID=8.4 OD=22 		9-09160-708-0 03 1 9804-0109 ●
12 04.012 WASHER; PL,SELECT CONT
06.760 ID=8.4 OD=22 		9-09160-708-0 03 1 0110- ● ●
114 08.962 HOSE; BREATHER
6VD1 ENG(RLV) 04.104 L=640 SERVICED BY L=3000 		0-02857-300-0 01 1 9804- ●
117 04.012 WASHER; CURVED,SELECT CONT
04.037 ID=8.5 T=0.3 		5-09509-001-0 02 1 9804-0109 ●
117 04.012 WASHER; CURVED,SELECT CONT
04.037 ID=8.5 T=0.3 		5-09509-001-0 02 1 0110- ● ●
161 04.047 PIN; SNAP,LINK ROD TO SELECT LEV
04.004 L=27.7 		8-94210-407-0 01 1 9804-0109 ●
161 04.047 PIN; SNAP,LINK ROD TO SELECT LEV
04.004 L=27.7 		8-94210-407-0 01 1 0110- ● ●
182 04.104 CLIP; BREATHER HOSE
6VD1 ENG(RLV) 		8-97164-817-1 01 1 9804- ●
