2-55 — AUTO TRANS SHIFT CONTROL LEVER (#45665) — 82 parça

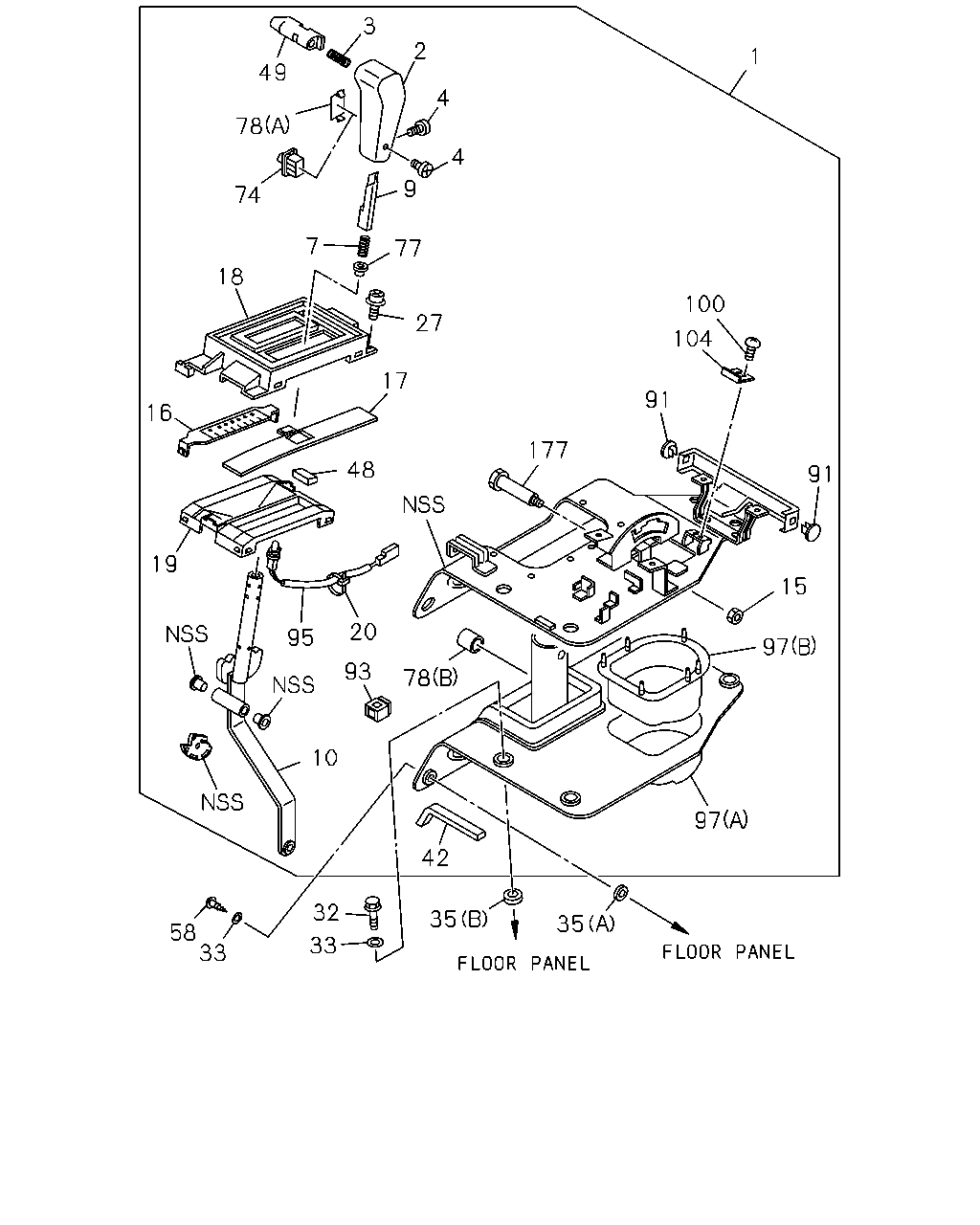

çizim 17290
3 2 1 49 4 78 4 9 74 7 77 18 100 27 104 17 91 16 177 48 91 19 15 20 95 97 93 78 10 97 42 32 35 35 58 33 33
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.006 LEVER; SHIFT,A/T
BLACK 		8-97198-130-0 01 1 9804-0001 ●
1 04.006 LEVER; SHIFT,A/T
BLACK 		8-97295-039-0 01 1 0002-0012 ●
1 04.006 LEVER; SHIFT,A/T
4X2 LONG(TFB**F) EXC. LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97295-039-3 01 1 0101- ●
1 04.006 LEVER; SHIFT,A/T
4X2 LONG(TFB**F) LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97296-776-3 01 1 0101- ●
1 04.006 LEVER; SHIFT,A/T
4X4 LONG(TFS**F) LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97296-777-3 01 1 0101- ●
1 04.006 LEVER; SHIFT,A/T
4X4 LONG(TFS**F) EXC. LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97295-045-3 01 1 0101- ●
1 04.006 LEVER; SHIFT,A/T
4X2(TFB***) LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97298-290-2 01 1 0110- ●
1 04.006 LEVER; SHIFT,A/T
4X2(TFB***) EXC. LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97298-291-2 01 1 0110- ●
1 04.006 LEVER; SHIFT,A/T
4X4(TFS***) LEATHER GRIP PACKAGE<7GZ> 		8-97298-292-2 01 1 0110- ●
1 04.006 LEVER; SHIFT,A/T
4X4(TFS***) EXC. LEATHER GRIP PACKAGE<7GZ> 		8-97298-293-2 01 1 0110- ●
2 04.006 KNOB ASM; AUTO CONT LEVER 8-97178-411-0 01 1 9804-0012 ●
2 04.006 KNOB ASM; AUTO CONT LEVER
LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97151-630-0 01 1 0101- ●
2 04.006 KNOB ASM; AUTO CONT LEVER
LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97151-627-0 01 1 0110-0304 ●
2 04.006 KNOB ASM; AUTO CONT LEVER
LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97398-279-0 01 1 0305- ●
2 04.006 KNOB ASM; AUTO CONT LEVER
EXC. LEATHER GRIP PACKAGE<7GZ> BLACK 		8-97391-546-0 01 1 0110- ●
3 04.008 SPRING; RETURN,KNOB 8-94370-126-0 01 1 9804-0109 ●
3 04.008 SPRING; RETURN,KNOB 8-94370-126-0 01 1 0110- ● ●
4 04.006 SCREW; KNOB TO LEVER 8-94370-128-0 02 1 9804-0109 ●
4 04.006 SCREW; KNOB TO LEVER 8-94370-128-0 02 1 0110- ● ●
7 04.008 SPRING; RETURN,ROD 8-97029-913-0 01 1 9804-0109 ●
7 04.008 SPRING; RETURN,ROD 8-97029-913-0 01 1 0110- ● ●
9 04.006 SLEEVE; KNOB,SHIFT LEVER 8-94370-129-0 01 1 9804-0109 ●
9 04.006 SLEEVE; KNOB,SHIFT LEVER 8-94370-129-0 01 1 0110- ● ●
10 04.006 LEVER; A/T CONT 8-97161-474-0 01 1 9804- ●
10 04.006 LEVER; A/T CONT 8-97221-399-0 01 1 0110- ●
15 04.042 NUT; LEVER TO SHAFT
00.787 M8 		9-09111-408-0 01 1 9804-0109 ●
15 04.042 NUT; LEVER TO SHAFT
00.787 M8 		9-09111-408-0 01 1 0110- ● ●
16 04.020 LENS; INDICATOR 8-97123-316-0 01 1 9804- ●
16 04.020 LENS; INDICATOR 8-97221-401-0 01 1 0110- ●
17 04.020 PLATE; INDICATOR 8-97113-988-0 01 1 9804-0001 ●
17 04.020 PLATE; INDICATOR 8-97240-972-0 01 1 0002-0109 ●
17 04.020 PLATE; INDICATOR 8-97240-972-0 01 1 0110- ● ●
18 04.020 COVER; INDICATOR,UPR 8-97039-063-0 01 1 9804-0109 ●
18 04.020 COVER; INDICATOR,UPR 8-97039-063-0 01 1 0110- ● ●
19 04.020 COVER; INDICATOR,LWR 8-97039-064-0 01 1 9804-0109 ●
19 04.020 COVER; INDICATOR,LWR 8-97039-064-0 01 1 0110- ● ●
20 04.022 CLIP; INHIBITOR SW 8-94389-647-0 02 1 9804-0209 ●
20 04.022 CLIP; INHIBITOR SW 8-94389-647-0 02 1 0210- ● ●
20 04.022 CLIP; INHIBITOR SW 8-94389-647-0 03 1 0110-0209 ●
27 04.022 SCREW; INDICATOR TO BRKT
04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 9804-0109 ●
27 04.022 SCREW; INDICATOR TO BRKT
04.054 M5X10 W/LK+PL WASHER 		9-03920-510-0 04 1 0110- ● ●
32 04.008 BOLT; CONT LEVER TO BODY
04.570 M8X25 W/LK&PL WASHER 		8-94411-977-0 04 1 9804-0109 ●
32 04.008 BOLT; CONT LEVER TO BODY
04.570 M8X25 W/LK&PL WASHER 		8-94411-977-0 04 1 0110- ● ●
33 04.008 WASHER; PL,CONT LEVER TO BODY
07.633 ID=8.4 OD=22 		9-09164-708-0 06 1 9804-9810 ●
33 04.008 WASHER; PL,CONT LEVER TO BODY
07.633 ID=8.4 OD=22 		9-09164-708-0 02 1 9811-0109 ●
33 04.008 WASHER; PL,CONT LEVER TO BODY
07.633 ID=8.4 OD=22 		9-09164-708-0 02 1 0110- ● ●
35 04.008 SPACER; BRKT TO FLOOR,SELECT LEV
04.012 (A) OD=13 T=4.5 		8-94230-464-1 02 1 9804-0109 ●
35 04.008 SPACER; BRKT TO FLOOR,SELECT LEV
04.012 (A) OD=13 T=4.5 		8-94230-464-1 02 1 0110- ● ●
35 04.008 SPACER; BRKT TO FLOOR,SELECT LEV
(B) OD=15 T=6.8 		8-94437-495-0 04 1 9804-0109 ●
35 04.008 SPACER; BRKT TO FLOOR,SELECT LEV
(B) OD=15 T=6.8 		8-94437-495-0 04 1 0110- ● ●
42 04.057 SEAL; RUBBER 8-97137-597-0 01 1 9804-0109 ●
42 04.057 SEAL; RUBBER 8-97137-597-0 01 1 0110- ● ●
48 04.006 INSULATION; PLATE 8-97066-477-0 02 1 9804-0109 ●
48 04.006 INSULATION; PLATE 8-97066-477-0 02 1 0110- ● ●
49 04.006 BUTTON; PUSH,KNOB
BLACK 		8-94389-615-0 01 1 9804-0109 ●
49 04.006 BUTTON; PUSH,KNOB
BLACK 		8-94389-615-0 01 1 0110- ● ●
58 04.008 SCREW; BRKT
03.483 		8-94220-277-0 02 1 9804-0109 ●
58 04.008 SCREW; BRKT
03.483 		8-94220-277-0 02 1 0110- ● ●
74 04.057 SWITCH; OVERDRIVE,A/T CONT LEVER
LEATHER GRIP PACKAGE<7GZ> 		8-97320-340-0 01 1 0110- ●
74 04.057 SWITCH; OVERDRIVE,A/T CONT LEVER
EXC. LEATHER GRIP PACKAGE<7GZ> 		8-97320-339-0 01 1 0110- ●
77 04.010 SUPPORT; SPRING,A/T CONT LEVER 8-94370-130-0 01 1 9804-0109 ●
77 04.010 SUPPORT; SPRING,A/T CONT LEVER 8-94370-130-0 01 1 0110- ● ●
78 04.057 PROTECTOR; LAMP CABLE,A/T CONT L
(A) BLACK 		8-97097-675-0 01 1 9804- ●
78 04.057 PROTECTOR; LAMP CABLE,A/T CONT L
(B) 		8-97218-342-0 01 1 0110- ●
91 04.020 GROMMET 8-97221-308-0 02 1 9804-0209 ●
91 04.020 GROMMET 8-97221-308-0 02 1 0210- ● ●
93 04.008 STOPPER; SOLENOID 8-97301-542-0 01 1 0210- ●
95 04.006 LAMP; INDICATOR 8-97035-013-0 01 1 9804- ●
95 04.006 LAMP; INDICATOR 8-97221-398-0 01 1 0110- ●
97 04.008 BOOT
(A) 		8-97032-475-0 01 1 9804-0109 ●
97 04.008 BOOT
(A) 		8-97032-475-0 01 1 0110- ● ●
97 04.008 BOOT
(B) 		8-97047-213-0 01 1 9804-0012 ●
97 04.008 BOOT
4X2 LONG(TFB**F) (B) 		8-97047-213-0 01 1 0101-0109 ●
97 04.008 BOOT
4X2(TFB***) (B) 		8-97047-213-0 01 1 0110- ● ●
97 04.008 BOOT
4X4 LONG(TFS**F) (B) 		8-97103-400-0 01 1 0101-0109 ●
97 04.008 BOOT
4X4(TFS***) (B) 		8-97103-400-0 01 1 0110- ● ●
100 04.012 SCREW
03.320 M4X10 W/LK&PL WASHER 		9-03920-410-0 02 1 9804-0109 ●
100 04.012 SCREW
03.320 M4X10 W/LK&PL WASHER 		9-03920-410-0 02 1 0110- ● ●
104 04.011 PLATE; LINK 8-97035-016-1 01 1 9804-0109 ●
104 04.011 PLATE; LINK 8-97035-016-1 01 1 0110- ● ●
177 04.040 SHAFT; SHIFT LEVER,A/T 8-97066-339-1 01 1 9804-0109 ●
177 04.040 SHAFT; SHIFT LEVER,A/T 8-97066-339-1 01 1 0110- ● ●
