2-52 — AUTO TRANS OVERDRIVE GEAR (#45663) — 128 parça

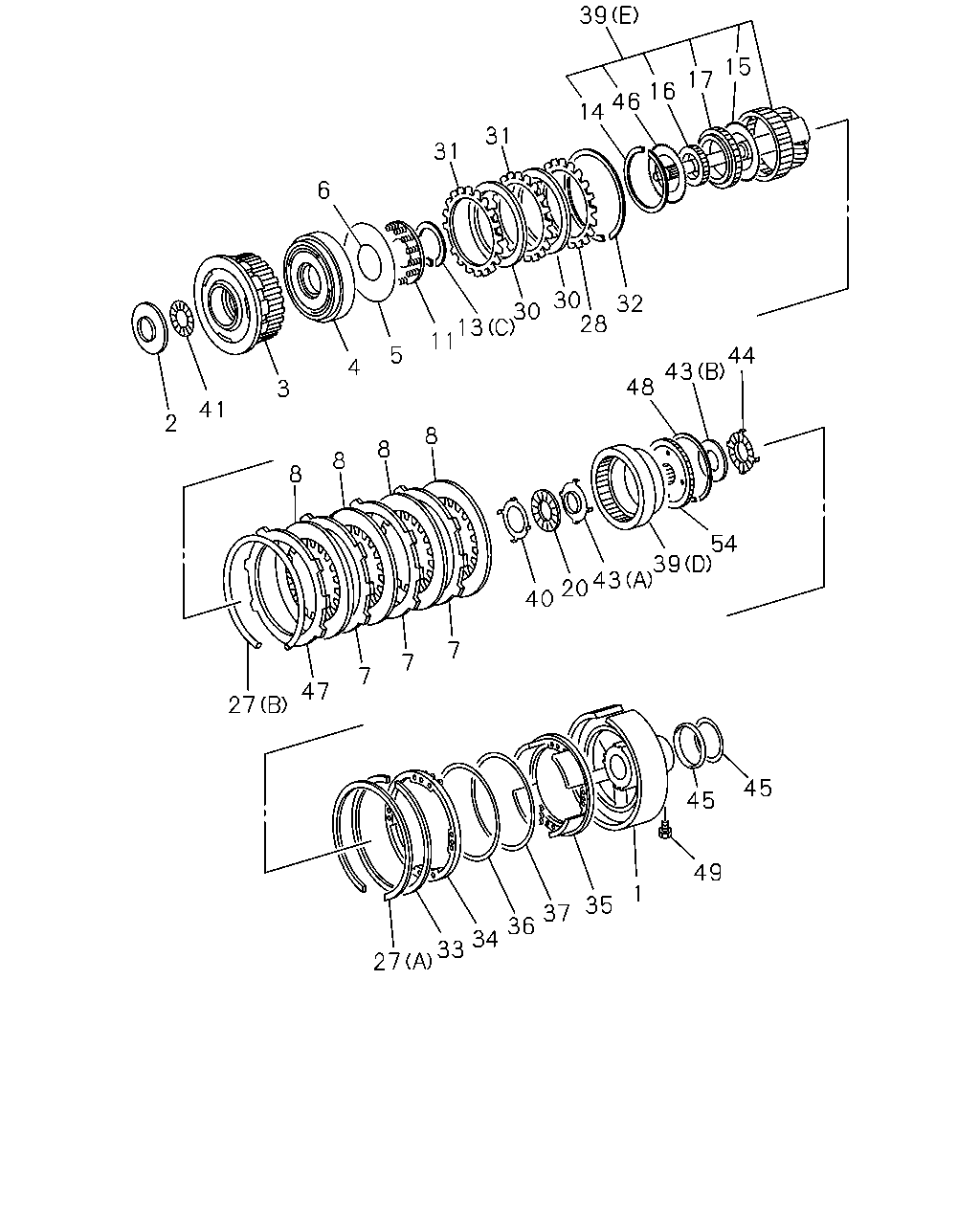

39 15 17 16 46 14 31 31 6 30 32 28 30 13 11 5 44 43 48 4 3 41 2 8 8 8 8 54 39 43 20 40 7 7 7 47 27 45 45 49 1 35 37 36 34 33 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.455 CASE ASM; OVERDRIVE,A/T	8-97184-516-0	01	1	0110-	●
2	04.472 RACE; THRUST BRG,OVERDRIVE,A/T	8-97249-736-0	01	1	0110-	●
3	04.468 DRUM; CLU,OVERDRIVE,A/T 6VD1 ENG(RLV)	8-96041-100-0	01	1	9804-		●
3	04.468 DRUM; CLU,OVERDRIVE,A/T	8-97232-042-0	01	1	0110-	●
4	04.468 PISTON ASM; CLU,OVERDRIVE,A/T 6VD1 ENG(RLV)	8-96017-401-0	01	1	9804-		●
4	04.468 PISTON ASM; CLU,OVERDRIVE,A/T	8-94479-889-0	01	1	0110-	●
5	04.460 GASKET; CLU PISTON,OUTER,OVERDRI 6VD1 ENG(RLV)	8-96017-561-0	01	1	9804-		●
5	04.460 GASKET; CLU PISTON,OUTER,OVERDRI	8-97184-528-0	01	1	0110-	●
6	04.460 GASKET; CLU PISTON,INNER,OVERDRI 6VD1 ENG(RLV)	8-96014-321-0	01	1	9804-		●
6	04.460 GASKET; CLU PISTON,INNER,OVERDRI	8-97184-321-0	01	1	0110-	●
7	04.468 PLATE; CLU CUSHION 6VD1 ENG(RLV)	8-96014-983-0	01	1	9804-		●
7	04.468 PLATE; CLU CUSHION	8-97143-124-0	04	1	0110-	●
8	04.455 DISC; CLU,OVERDRIVE,A/T 6VD1 ENG(RLV)	8-96014-459-0	02	1	9804-		●
8	04.455 DISC; CLU,OVERDRIVE,A/T	8-97143-126-0	04	1	0110-	●
11	04.468 SPRING; CLU RETURN,OVERDRIVE,A/T 6VD1 ENG(RLV)	8-08635-244-0	01	1	9804-		●
11	04.468 SPRING; CLU RETURN,OVERDRIVE,A/T	8-94479-890-0	01	1	0110-	●
13	04.472 RING; SNAP,OVERDRIVE,A/T 6VD1 ENG(RLV) (A)	8-08634-274-0	01	1	9804-9909		●
13	04.472 RING; SNAP,OVERDRIVE,A/T 6VD1 ENG(RLV) (B)	8-96014-389-0	01	1	9804-		●
13	04.472 RING; SNAP,OVERDRIVE,A/T 6VD1 ENG(RLV) (A)	8-08634-274-0	01	1	9910-		●
13	04.472 RING; SNAP,OVERDRIVE,A/T 04.166 (C)	8-94479-783-0	01	1	0110-	●
14	04.472 RING; RET,OVERDRIVE,A/T	8-94479-882-0	01	1	0110-	●
15	04.468 WASHER; THRUST,OVERDRIVE,A/T	8-94479-883-0	01	1	0110-	●
16	04.455 CLUTCH ASM; ONEWAY,OVERDRIVE,A/T	8-97019-545-0	01	1	0110-	●
17	04.468 RACE; ONEWAY CLU,A/T	8-94479-885-0	01	1	0110-	●
20	04.472 BEARING; THRUST 04.164	8-94479-778-0	01	1	0110-	●
27	04.472 RING; RET,OVERDRIVE,A/T 6VD1 ENG(RLV) (C)	8-08634-023-0	01	1	9804-		●
27	04.472 RING; RET,OVERDRIVE,A/T (A)	8-94479-859-0	01	1	0110-	●
27	04.472 RING; RET,OVERDRIVE,A/T (B)	8-94479-874-0	01	1	0110-	●
28	04.472 PLATE; CLU BACKING,OVERDRIVE,A/T 6VD1 ENG(RLV)	8-08634-864-0	01	1	9804-		●
28	04.472 PLATE; CLU BACKING,OVERDRIVE,A/T T=3.6	8-97288-924-0	01	1	0110-	●
28	04.472 PLATE; CLU BACKING,OVERDRIVE,A/T T=3.5	8-97288-925-0	01	1	0110-	●
28	04.472 PLATE; CLU BACKING,OVERDRIVE,A/T T=3.4	8-97288-926-0	01	1	0110-	●
28	04.472 PLATE; CLU BACKING,OVERDRIVE,A/T T=3.1	8-97311-564-0	01	1	0110-	●
28	04.472 PLATE; CLU BACKING,OVERDRIVE,A/T T=3.2	8-97311-565-0	01	1	0110-	●
28	04.472 PLATE; CLU BACKING,OVERDRIVE,A/T T=3.3	8-97311-566-0	01	1	0110-	●
30	04.455 DISC; CLU,OVERDRIVE,A/T 6VD1 ENG(RLV)	8-96014-194-0	02	1	9804-		●
30	04.455 DISC; CLU,OVERDRIVE,A/T	8-97143-121-0	02	1	0110-	●
31	04.468 PLATE; CUSHION,OVERDRIVE,A/T 6VD1 ENG(RLV)	8-96014-195-0	01	1	9804-		●
31	04.468 PLATE; CUSHION,OVERDRIVE,A/T 04.455	8-94479-891-0	02	1	0110-	●
32	04.472 RING; RET,OVERDRIVE,A/T 04.164	8-94250-342-0	01	1	0110-	●
33	04.485 RETAINER; BRK RETURN SPR,OVERDRI 6VD1 ENG(RLV)	8-96015-601-0	01	1	9804-		●
33	04.485 RETAINER; BRK RETURN SPR,OVERDRI ID=160	8-97184-521-0	01	1	0110-	●
34	04.467 SPRING; BRK RETURN,OVERDRIVE,A/T	8-97184-526-0	01	1	0110-	●
35	04.468 PISTON; BRK,OVERDRIVE,A/T 6VD1 ENG(RLV)	8-96017-559-0	01	1	9804-		●
35	04.468 PISTON; BRK,OVERDRIVE,A/T	8-97288-915-0	01	1	0110-	●
36	04.460 GASKET; PISTON,OUTER,A/T	8-97184-519-0	01	1	0110-	●
37	04.460 GASKET; PISTON,INNER,A/T	8-97184-520-0	01	1	0110-	●
39	04.470 GEAR ASM; PLANETARY INTERNAL,A/T 6VD1 ENG(RLV) (A)	8-96014-199-0	01	1	9804-		●
39	04.470 GEAR ASM; PLANETARY INTERNAL,A/T 6VD1 ENG(RLV) (B)	8-96014-202-0	01	1	9804-		●
39	04.470 GEAR ASM; PLANETARY INTERNAL,A/T 6VD1 ENG(RLV) (C)	8-96014-376-0	01	1	9804-		●
39	04.470 GEAR ASM; PLANETARY INTERNAL,A/T (D)	8-94479-876-0	01	1	0110-	●
39	04.470 GEAR ASM; PLANETARY INTERNAL,A/T (E)	8-97213-033-0	01	1	0110-	●
40	04.470 RACE; THRUST BRG,OVERDRIVE,A/T	8-94479-877-0	01	1	0110-	●
41	04.472 BEARING; THRUST,OVERDRIVE,A/T	8-97249-734-0	01	1	0110-	●
43	04.472 RACE; THRUST BRG,OVERDRIVE,A/T (A)	8-94479-878-0	01	1	0110-	●
43	04.472 RACE; THRUST BRG,OVERDRIVE,A/T (B)	8-97019-548-0	01	1	0110-	●
44	04.472 BEARING; THRUST,OVERDRIVE,A/T	8-97019-547-0	01	1	0110-	●
45	04.472 RING; SEAL,OVERDRIVE,A/T 04.226	8-94479-747-0	02	1	0110-	●
46	04.468 PLATE; RET,OVERDRIVE CLU	8-94479-886-0	01	1	0110-	●
47	04.467 FLANGE; OVERDRIVE BRK,A/T 6VD1 ENG(RLV)	8-96015-385-0	01	1	9804-		●
47	04.467 FLANGE; OVERDRIVE BRK,A/T T=3.6	8-97288-916-0	01	1	0110-	●
47	04.467 FLANGE; OVERDRIVE BRK,A/T T=3.7	8-97288-917-0	01	1	0110-	●
47	04.467 FLANGE; OVERDRIVE BRK,A/T T=3.5	8-97289-106-0	01	1	0110-	●
47	04.467 FLANGE; OVERDRIVE BRK,A/T T=3.8	8-97311-560-0	01	1	0110-	●
47	04.467 FLANGE; OVERDRIVE BRK,A/T T=3.9	8-97311-561-0	01	1	0110-	●
47	04.467 FLANGE; OVERDRIVE BRK,A/T T=4.0	8-97311-562-0	01	1	0110-	●
47	04.467 FLANGE; OVERDRIVE BRK,A/T T=3.3	8-97311-563-0	01	1	0110-	●
48	04.472 RING; SNAP,PLANETARY RING GEAR,O 6VD1 ENG(RLV)	8-08634-056-0	01	1	9804-		●
48	04.472 RING; SNAP,PLANETARY RING GEAR,O 04.166	8-94479-853-0	01	1	0110-	●
49	04.472 BOLT; OVERDRIVE SUPPORT,A/T	8-97143-090-0	02	1	0110-	●
54	04.175 FLANGE; PLANETARY RING GEAR,OVER	8-97019-546-0	01	1	0110-	●

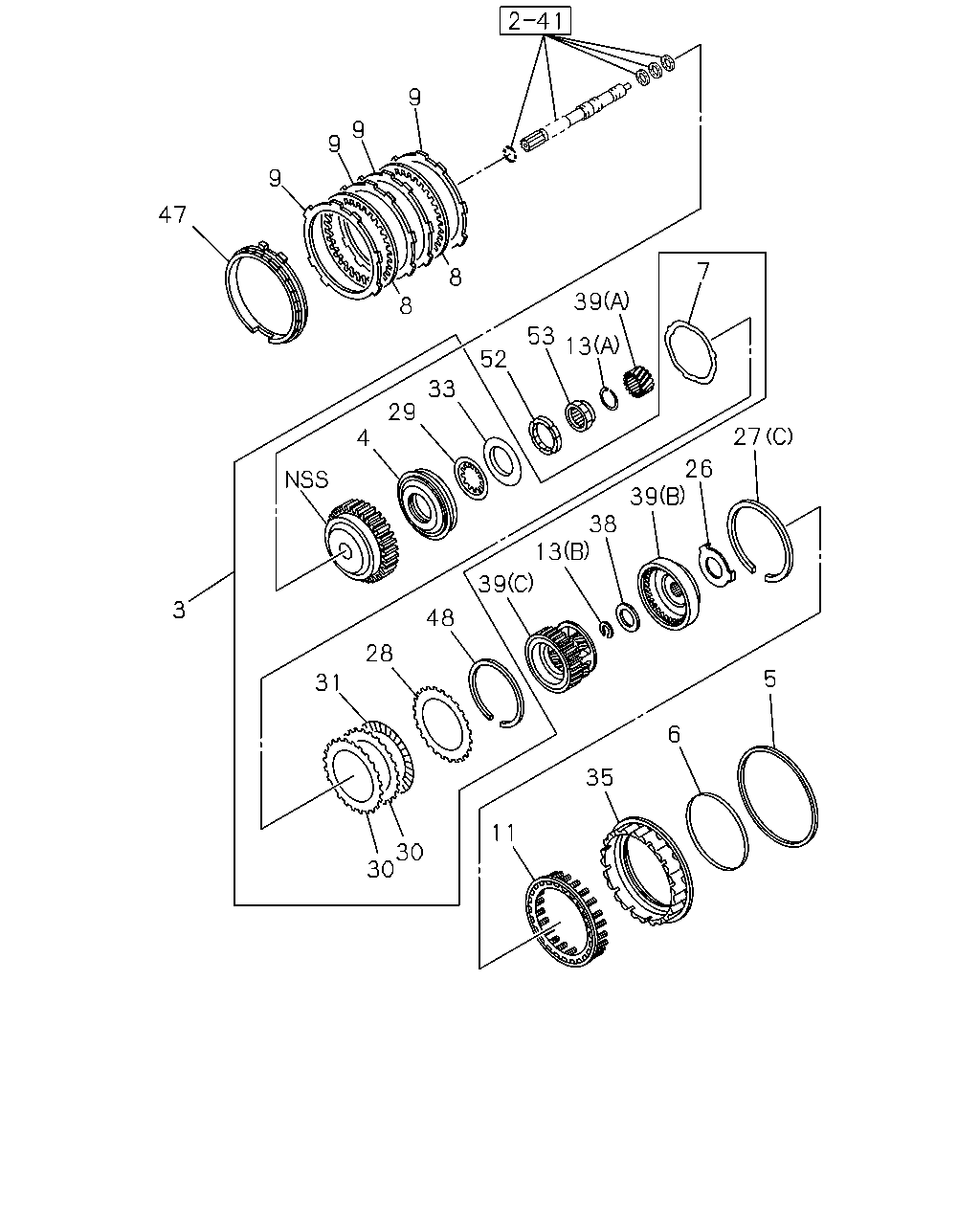

9 9 9 9 47 7 8 39 8 53 13 52 33 29 27 4 26 39 38 13 39 3 48 28 5 31 6 35 11 30 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
3	04.468 DRUM; CLU,OVERDRIVE,A/T 6VD1 ENG(RLV)	8-96041-100-0	01	1	9804-		●
3	04.468 DRUM; CLU,OVERDRIVE,A/T	8-97232-042-0	01	1	0110-	●
4	04.468 PISTON ASM; CLU,OVERDRIVE,A/T 6VD1 ENG(RLV)	8-96017-401-0	01	1	9804-		●
4	04.468 PISTON ASM; CLU,OVERDRIVE,A/T	8-94479-889-0	01	1	0110-	●
5	04.460 GASKET; CLU PISTON,OUTER,OVERDRI 6VD1 ENG(RLV)	8-96017-561-0	01	1	9804-		●
5	04.460 GASKET; CLU PISTON,OUTER,OVERDRI	8-97184-528-0	01	1	0110-	●
6	04.460 GASKET; CLU PISTON,INNER,OVERDRI 6VD1 ENG(RLV)	8-96014-321-0	01	1	9804-		●
6	04.460 GASKET; CLU PISTON,INNER,OVERDRI	8-97184-321-0	01	1	0110-	●
7	04.468 PLATE; CLU CUSHION 6VD1 ENG(RLV)	8-96014-983-0	01	1	9804-		●
7	04.468 PLATE; CLU CUSHION	8-97143-124-0	04	1	0110-	●
8	04.455 DISC; CLU,OVERDRIVE,A/T 6VD1 ENG(RLV)	8-96014-459-0	02	1	9804-		●
8	04.455 DISC; CLU,OVERDRIVE,A/T	8-97143-126-0	04	1	0110-	●
9	04.455 DISC ASM; CLU & FACING,OVERDRIVE 6VD1 ENG(RLV)	8-96014-187-0	04	1	9804-		●
11	04.468 SPRING; CLU RETURN,OVERDRIVE,A/T 6VD1 ENG(RLV)	8-08635-244-0	01	1	9804-		●
11	04.468 SPRING; CLU RETURN,OVERDRIVE,A/T	8-94479-890-0	01	1	0110-	●
13	04.472 RING; SNAP,OVERDRIVE,A/T 6VD1 ENG(RLV) (A)	8-08634-274-0	01	1	9804-9909		●
13	04.472 RING; SNAP,OVERDRIVE,A/T 6VD1 ENG(RLV) (B)	8-96014-389-0	01	1	9804-		●
13	04.472 RING; SNAP,OVERDRIVE,A/T 6VD1 ENG(RLV) (A)	8-08634-274-0	01	1	9910-		●
13	04.472 RING; SNAP,OVERDRIVE,A/T 04.166 (C)	8-94479-783-0	01	1	0110-	●
26	04.472 WASHER; THRUST,OVERDRIVE,A/T 6VD1 ENG(RLV)	8-96014-390-0	01	1	9804-		●
27	04.472 RING; RET,OVERDRIVE,A/T 6VD1 ENG(RLV) (C)	8-08634-023-0	01	1	9804-		●
27	04.472 RING; RET,OVERDRIVE,A/T (A)	8-94479-859-0	01	1	0110-	●
27	04.472 RING; RET,OVERDRIVE,A/T (B)	8-94479-874-0	01	1	0110-	●
28	04.472 PLATE; CLU BACKING,OVERDRIVE,A/T 6VD1 ENG(RLV)	8-08634-864-0	01	1	9804-		●
28	04.472 PLATE; CLU BACKING,OVERDRIVE,A/T T=3.6	8-97288-924-0	01	1	0110-	●
28	04.472 PLATE; CLU BACKING,OVERDRIVE,A/T T=3.5	8-97288-925-0	01	1	0110-	●
28	04.472 PLATE; CLU BACKING,OVERDRIVE,A/T T=3.4	8-97288-926-0	01	1	0110-	●
28	04.472 PLATE; CLU BACKING,OVERDRIVE,A/T T=3.1	8-97311-564-0	01	1	0110-	●
28	04.472 PLATE; CLU BACKING,OVERDRIVE,A/T T=3.2	8-97311-565-0	01	1	0110-	●
28	04.472 PLATE; CLU BACKING,OVERDRIVE,A/T T=3.3	8-97311-566-0	01	1	0110-	●
29	04.455 DISC ASM; CLU & FACING,OVERDRIVE 6VD1 ENG(RLV)	8-96014-902-0	01	1	9804-		●
30	04.455 DISC; CLU,OVERDRIVE,A/T 6VD1 ENG(RLV)	8-96014-194-0	02	1	9804-		●
30	04.455 DISC; CLU,OVERDRIVE,A/T	8-97143-121-0	02	1	0110-	●
31	04.468 PLATE; CUSHION,OVERDRIVE,A/T 6VD1 ENG(RLV)	8-96014-195-0	01	1	9804-		●
31	04.468 PLATE; CUSHION,OVERDRIVE,A/T 04.455	8-94479-891-0	02	1	0110-	●
33	04.485 RETAINER; BRK RETURN SPR,OVERDRI 6VD1 ENG(RLV)	8-96015-601-0	01	1	9804-		●
33	04.485 RETAINER; BRK RETURN SPR,OVERDRI ID=160	8-97184-521-0	01	1	0110-	●
35	04.468 PISTON; BRK,OVERDRIVE,A/T 6VD1 ENG(RLV)	8-96017-559-0	01	1	9804-		●
35	04.468 PISTON; BRK,OVERDRIVE,A/T	8-97288-915-0	01	1	0110-	●
38	04.472 WASHER; THRUST,OVERDRIVE,A/T 6VD1 ENG(RLV)	8-08634-035-0	01	1	9804-		●
39	04.470 GEAR ASM; PLANETARY INTERNAL,A/T 6VD1 ENG(RLV) (A)	8-96014-199-0	01	1	9804-		●
39	04.470 GEAR ASM; PLANETARY INTERNAL,A/T 6VD1 ENG(RLV) (B)	8-96014-202-0	01	1	9804-		●
39	04.470 GEAR ASM; PLANETARY INTERNAL,A/T 6VD1 ENG(RLV) (C)	8-96014-376-0	01	1	9804-		●
39	04.470 GEAR ASM; PLANETARY INTERNAL,A/T (D)	8-94479-876-0	01	1	0110-	●
39	04.470 GEAR ASM; PLANETARY INTERNAL,A/T (E)	8-97213-033-0	01	1	0110-	●
47	04.467 FLANGE; OVERDRIVE BRK,A/T 6VD1 ENG(RLV)	8-96015-385-0	01	1	9804-		●
47	04.467 FLANGE; OVERDRIVE BRK,A/T T=3.6	8-97288-916-0	01	1	0110-	●
47	04.467 FLANGE; OVERDRIVE BRK,A/T T=3.7	8-97288-917-0	01	1	0110-	●
47	04.467 FLANGE; OVERDRIVE BRK,A/T T=3.5	8-97289-106-0	01	1	0110-	●
47	04.467 FLANGE; OVERDRIVE BRK,A/T T=3.8	8-97311-560-0	01	1	0110-	●
47	04.467 FLANGE; OVERDRIVE BRK,A/T T=3.9	8-97311-561-0	01	1	0110-	●
47	04.467 FLANGE; OVERDRIVE BRK,A/T T=4.0	8-97311-562-0	01	1	0110-	●
47	04.467 FLANGE; OVERDRIVE BRK,A/T T=3.3	8-97311-563-0	01	1	0110-	●
48	04.472 RING; SNAP,PLANETARY RING GEAR,O 6VD1 ENG(RLV)	8-08634-056-0	01	1	9804-		●
48	04.472 RING; SNAP,PLANETARY RING GEAR,O 04.166	8-94479-853-0	01	1	0110-	●
52	04.180 ROLLER; OVERDRIVE CLU 6VD1 ENG(RLV)	8-00930-660-0	01	1	9804-		●
53	04.180 CAM; OVERDRIVE ROLLER CLU 6VD1 ENG(RLV)	8-08634-038-0	01	1	9804-		●
