2-49 — AUTO TRANS INHIBITOR SWITCH (#45662) — 65 parça

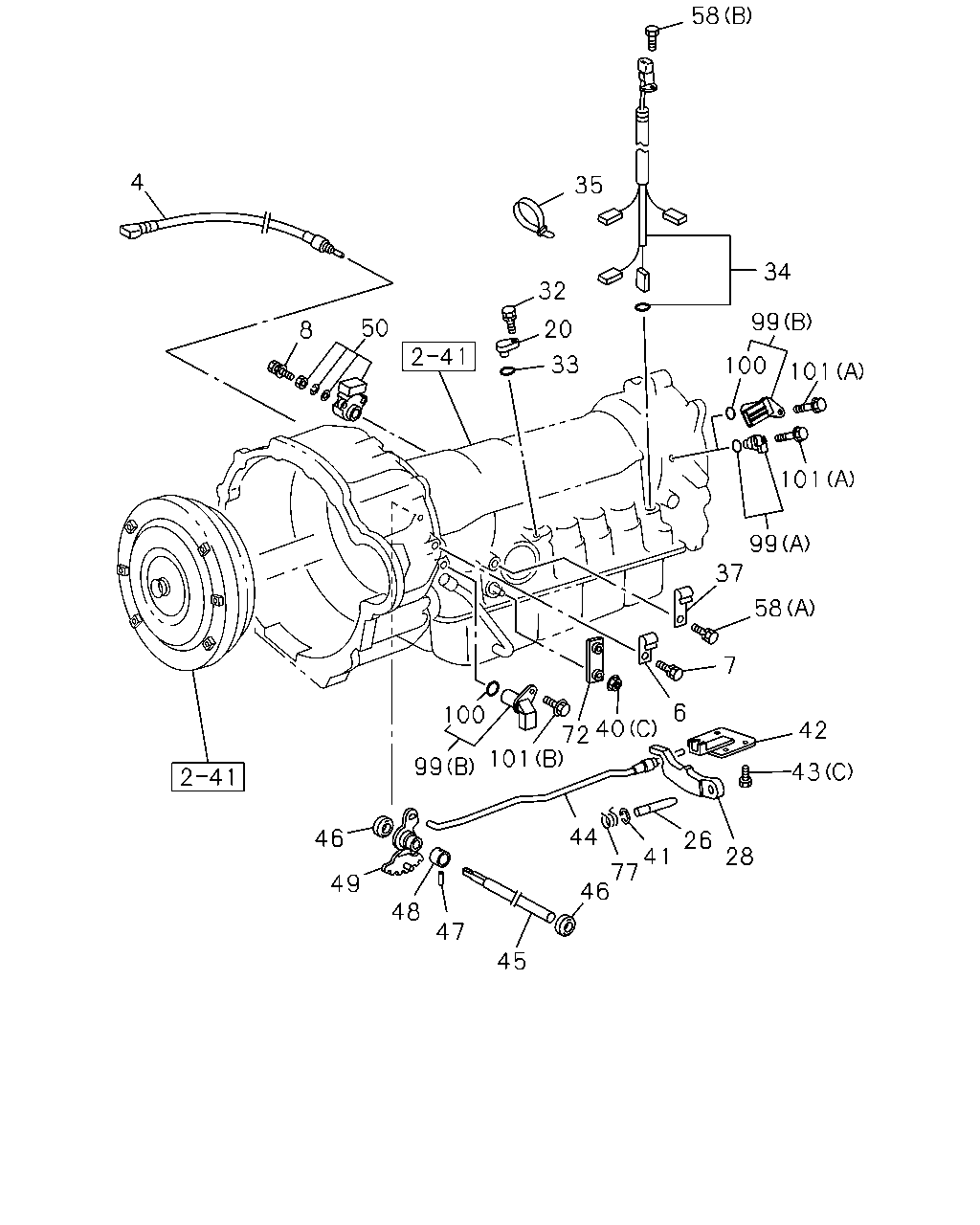

58 4 35 34 32 99 50 20 8 33 100 101 101 99 37 58 7 6 100 40 72 101 42 99 43 44 46 26 28 41 77 46 49 48 47 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	04.054 SENSOR; THERMO,A/T OIL	8-97126-810-0	01	1	0110-	●
6	04.054 CLAMP; WIRING HARNESS,A/T	8-97069-460-0	01	1	0110-	●
7	04.054 BOLT; CLAMP,WIRING HARNESS 04.050 M6X10	8-94252-680-0	01	1	0110-	●
8	04.054 BOLT; NEUTRAL START SW,A/T M8X30	8-97130-929-0	01	1	0110-	●
20	04.275 PIN; SNAP,PARKING ROD,A/T 04.105	8-97232-067-0	01	1	0110-	●
26	04.294 SHAFT; PARKING PAWL,A/T	8-94479-975-0	01	1	0110-	●
28	04.294 PAWL; PARKING,A/T	8-97143-087-0	01	1	0110-	●
32	04.050 BOLT; THROTTLE CABLE M6X16	8-94479-712-0	01	1	0110-	●
33	04.050 GASKET; THROTTLE CABLE	8-94364-922-0	01	1	0110-	●
34	04.265 SOLENOID ASM; A/T	8-97232-108-0	01	1	0110-	●
35	04.050 CLAMP; THROTTLE CABLE 04.054	8-94473-565-0	01	1	0110-	●
37	04.275 CLAMP; SOLENOID,A/T	8-97213-023-0	01	1	0110-	●
40	04.037 NUT; LEVER TO SHAFT 6VD1 ENG(RLV) (B) M10 FLANGE	0-91250-110-0	01	1	9804-		●
40	04.037 NUT; LEVER TO SHAFT 6VD1 ENG(RLV) (A)	8-11067-223-0	01	1	9804-		●
40	04.037 NUT; LEVER TO SHAFT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0110-	●
41	04.290 RETAINER; SPR,SHAFT	5-34488-002-0	01	1	0110-	●
42	04.290 BRACKET; PARKING LOCK	8-97126-815-0	01	1	0110-	●
43	04.290 BOLT; BRKT 6VD1 ENG(RLV) (A)	8-11041-238-0	01	1	9804-		●
43	04.290 BOLT; BRKT 6VD1 ENG(RLV) (B)	8-96017-499-0	01	1	9804-		●
43	04.290 BOLT; BRKT (C) M6X14	8-94479-978-0	03	1	0110-	●
44	04.290 ROD ASM; PARKING PAWL	8-97126-814-0	01	1	0110-	●
45	04.275 SHAFT; VALVE LEVER	8-97025-848-0	01	1	0110-	●
46	04.282 SEAL; OIL 04.027 OD=22	8-94479-740-0	02	1	0110-	●
47	04.275 PIN; ROLL SHAFT 04.052 D=4	8-94257-081-0	01	1	0110-	●
48	04.008 COVER; SLEEVE	8-94479-761-0	01	1	0110-	●
49	04.279 LEVER ASM; CAM	8-94479-760-0	01	1	0110-	●
50	04.054 SWITCH; NEUTRAL,A/T	8-97207-138-0	01	1	0110-	●
58	04.260 BOLT; SOLENOID TO A/T 04.054 (B)	8-94364-906-0	01	1	0110-	●
58	04.260 BOLT; SOLENOID TO A/T 04.050 (A) M6X16	8-94479-712-0	01	1	0110-	●
72	04.035 LEVER; SELECT CONT 6VD1 ENG(RLV)	8-97013-518-1	01	1	9804-		●
72	04.035 LEVER; SELECT CONT 4JH1 ENG(RJX)	8-97228-890-0	01	1	0110-	●
77	04.295 SPRING; TORSION,PARKING BRK LK,A	8-94479-976-0	01	1	0110-	●
99	04.329 SENSOR; SPD 4X2 CREW CAB(TFBW) 4JH1 ENG(RJX) (B)	8-97027-383-0	01	1	0110-	●
99	04.329 SENSOR; SPD 4X4 CREW CAB(TFSW) 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97027-383-0	01	1	0110-	●
99	04.329 SENSOR; SPD 4X2 CREW CAB(TFBW) 4JH1 ENG(RJX) (A)	8-97288-939-0	01	1	0110-	●
99	04.329 SENSOR; SPD 4X4 CREW CAB(TFSW) 4JH1 ENG(RJX) (B)	8-97027-383-0	02	1	0110-	●
100	04.239 GASKET; SPD SENSOR 4X2 CREW CAB(TFBW) 4JH1 ENG(RJX)	8-97027-197-0	01	1	0110-	●
100	04.239 GASKET; SPD SENSOR 4X4 CREW CAB(TFSW) 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97027-197-0	01	1	0110-	●
100	04.239 GASKET; SPD SENSOR 4X4 CREW CAB(TFSW) 4JH1 ENG(RJX)	8-97027-197-0	02	1	0110-	●
101	04.329 BOLT; SPD SENSOR 04.050 (A) M6X16	8-94479-712-0	01	1	0110-	●
101	04.329 BOLT; SPD SENSOR 04.290 (B) M6X14	8-94479-978-0	01	1	0110-	●

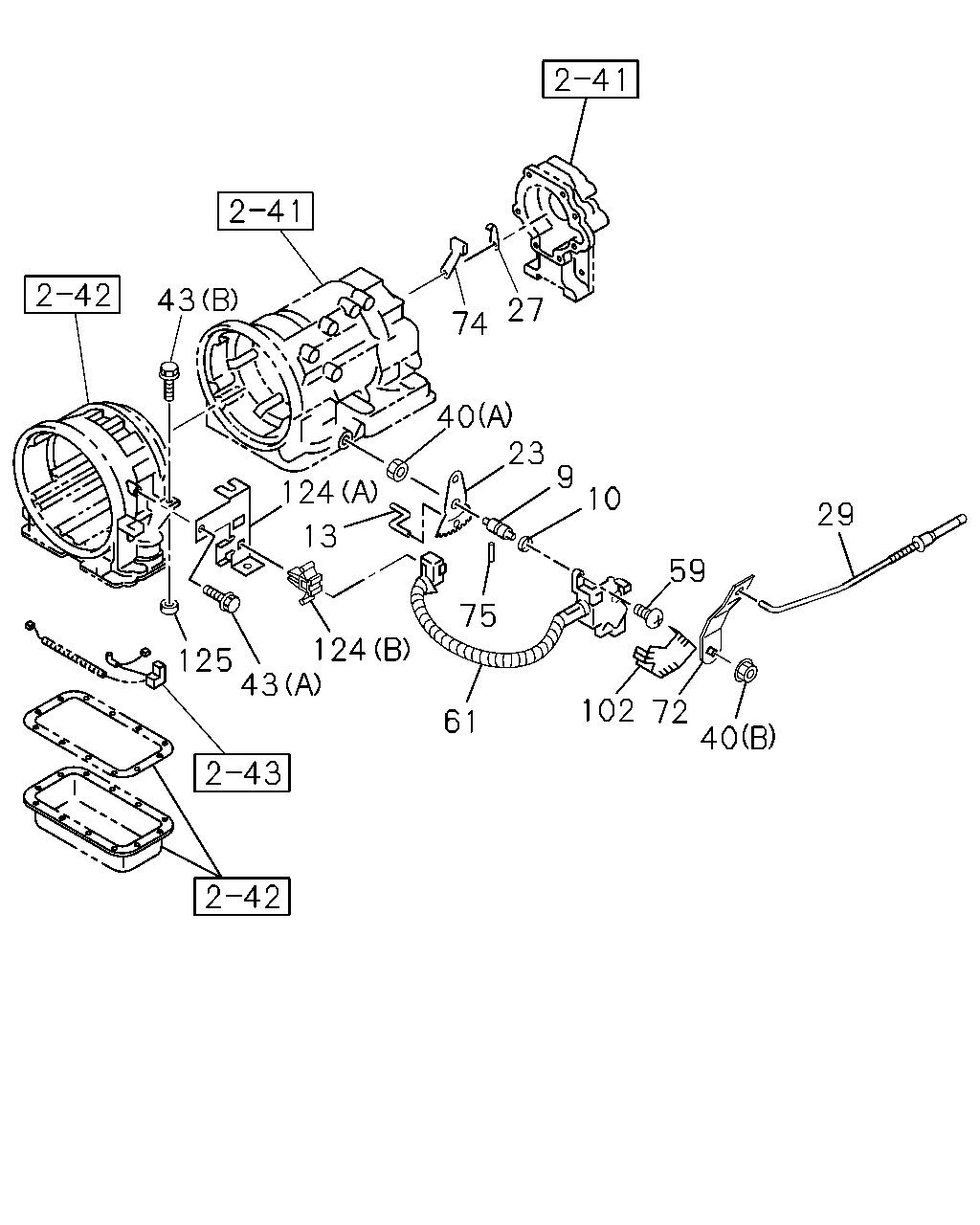

27 74 43 40 23 9 124 10 13 29 59 75 124 125 43 40 61 102 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	04.275 SHAFT; MANUAL,A/T 6VD1 ENG(RLV)	8-96014-268-0	01	1	9804-		●
10	04.265 GASKET; MANUAL SHIFT,A/T 6VD1 ENG(RLV)	8-08644-709-0	01	1	9804-		●
13	04.294 LEVER; SELECT,MANUAL SHAFT,A/T 6VD1 ENG(RLV)	8-05258-243-0	01	1	9804-		●
23	04.290 LEVER; PARKING ROD,A/T 6VD1 ENG(RLV)	8-96018-274-0	01	1	9804-		●
27	04.295 SPRING; PAWL RETURN,A/T 6VD1 ENG(RLV)	8-05258-076-0	01	1	9804-		●
29	04.290 ROD ASM; CONT,A/T 6VD1 ENG(RLV)	8-96014-271-0	01	1	9804-0012		●
29	04.290 ROD ASM; CONT,A/T 4X2(TFB***) 6VD1 ENG(RLV)	8-96014-271-0	01	1	0101-		●
29	04.290 ROD ASM; CONT,A/T 4X4 LONG(TFS**F) 6VD1 ENG(RLV)	8-96017-286-0	01	1	0101-		●
40	04.037 NUT; LEVER TO SHAFT 6VD1 ENG(RLV) (B) M10 FLANGE	0-91250-110-0	01	1	9804-		●
40	04.037 NUT; LEVER TO SHAFT 6VD1 ENG(RLV) (A)	8-11067-223-0	01	1	9804-		●
40	04.037 NUT; LEVER TO SHAFT 07.633 (C) M8 FLANGE	0-91150-108-0	01	1	0110-	●
43	04.290 BOLT; BRKT 6VD1 ENG(RLV) (A)	8-11041-238-0	01	1	9804-		●
43	04.290 BOLT; BRKT 6VD1 ENG(RLV) (B)	8-96017-499-0	01	1	9804-		●
43	04.290 BOLT; BRKT (C) M6X14	8-94479-978-0	03	1	0110-	●
59	04.265 SCREW; SW,A/T 6VD1 ENG(RLV)	8-96014-453-0	02	1	9804-		●
61	04.265 SWITCH ASM; MODE 6VD1 ENG(RLV)	8-96017-511-0	01	1	9804-		●
72	04.035 LEVER; SELECT CONT 6VD1 ENG(RLV)	8-97013-518-1	01	1	9804-		●
72	04.035 LEVER; SELECT CONT 4JH1 ENG(RJX)	8-97228-890-0	01	1	0110-	●
74	04.294 PAWL; PARKING BRK LK,A/T 6VD1 ENG(RLV)	8-96016-620-0	01	1	9804-		●
75	04.290 PIN; PARKING BRK LK,A/T 6VD1 ENG(RLV)	8-05259-654-0	01	1	9804-		●
102	04.265 SHIELD; MODE SWITCH,A/T 6VD1 ENG(RLV)	8-96014-454-0	01	1	9804-		●
124	04.057 BRACKET; MODE SWITCH 6VD1 ENG(RLV) (B)	8-90414-915-0	01	1	9804-		●
124	04.057 BRACKET; MODE SWITCH 6VD1 ENG(RLV) (A)	8-96018-450-0	01	1	9804-		●
125	04.057 NUT; BRKT 6VD1 ENG(RLV)	8-96017-663-0	01	1	9804-		●
