◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-47 - AUTO TRANS PLANETARY GEAR AND GOVERNOR ▶
2-47 — AUTO TRANS PLANETARY GEAR AND GOVERNOR (#45660) — 57 parça

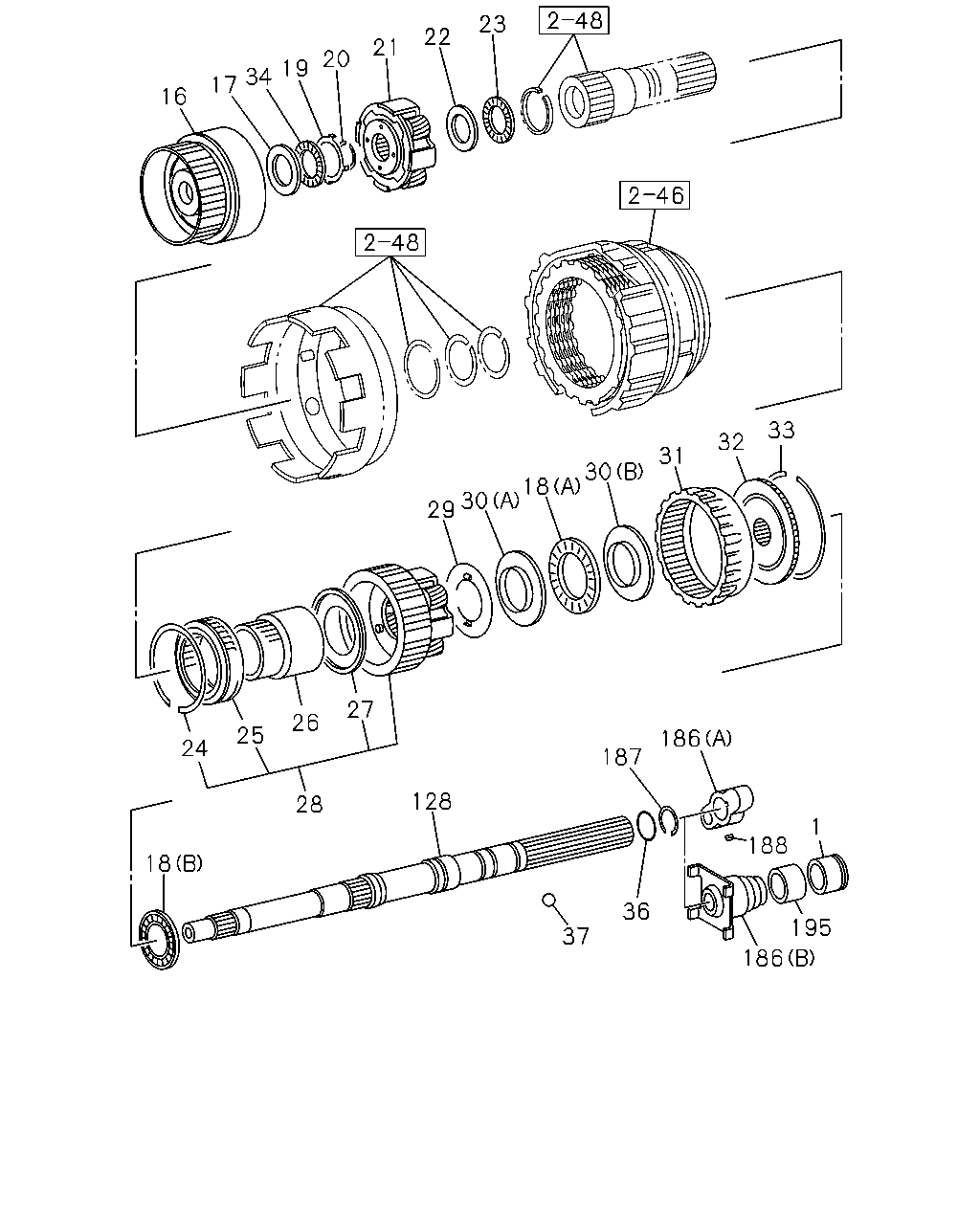

çizim 71832
23 22 21 20 19 34 17 16 33 32 31 30 18 30 29 27 26 25 186 24 187 128 28 1 188 18 36 195 37 186
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.337 GEAR; SPEEDOMETER DRIVE,A/T
4X2(TFB***) 		8-97181-547-0 01 1 0110- ●
16 04.256 GEAR ASM; FRT PLANETARY,A/T 8-97143-082-0 01 1 0110- ●
17 04.167 RACE; THRUST BRG,PLANETARY SHAFT 8-94479-836-0 01 1 0110- ●
18 04.187 BEARING; THRUST,RR PLANETARY GEA
04.166 (A) 		8-94479-847-0 01 1 0110- ●
18 04.187 BEARING; THRUST,RR PLANETARY GEA
(B) 		8-97249-735-0 01 1 0110- ●
19 04.167 RACE; THRUST BRG,PLANETARY SHAFT 8-94479-837-0 01 1 0110- ●
20 04.164 RING; RET,PLANETARY GEAR,A/T 8-94479-842-0 01 1 0110- ●
21 04.158 GEAR; PLANETARY,INTERNAL FRT,A/T 8-94479-839-0 01 1 0110- ●
22 04.167 RACE; THRUST BRG,FRT PLANETARY S 8-94479-840-0 01 1 0110- ●
23 04.164 BEARING; THRUST,PLANETARY SHAFT, 8-94479-841-0 01 1 0110- ●
24 04.164 RING; RET,FRT PLANETARY,A/T
(B) 		8-97143-129-0 01 1 0110- ●
24 04.164 RING; RET,FRT PLANETARY,A/T
4X2 CREW CAB(TFB*W*) 4JH1 ENG(RJX) 04.338 (A) 		8-97069-457-0 01 1 0110- ●
25 04.164 CLUTCH ASM; ONEWAY,FRT PLANETARY 8-94364-924-0 01 1 0110- ●
26 04.168 RACE; ONEWAY CLU,A/T 8-97019-542-0 01 1 0110- ●
27 04.256 WASHER; THRUST,FRT PLANETARY,A/T 8-94313-577-0 01 1 0110- ●
28 04.187 GEAR ASM; RR PLANETARY,A/T 8-97232-050-0 01 1 0110- ●
29 04.158 WASHER; THRUST,FRT PLANETARY,A/T
04.164 		8-94479-851-0 01 1 0110- ●
30 04.180 RACE; THRUST BRG,RR PLANETARY FL
(A) 		8-94479-848-0 01 1 0110- ●
30 04.180 RACE; THRUST BRG,RR PLANETARY FL
(B) 		8-94479-849-0 01 1 0110- ●
31 04.175 GEAR ASM; INTERNAL,PLANETARY,A/T 8-94479-854-0 01 1 0110- ●
32 04.164 FLANGE; RING GEAR,RR PLANETARY,A 8-94479-852-0 01 1 0110- ●
33 04.166 RING; RET,PLANETARY GEAR,A/T 8-94479-853-0 01 1 0110- ●
34 04.164 BEARING; THRUST,FRT PLANETARY SH
04.187 		8-94479-838-0 01 1 0110- ●
36 04.164 RING; SEALING,FRT PLANETARY SHAF 8-94479-902-0 01 1 0110- ●
37 04.256 BALL; SPD DRIVE
4X2(TFB***) 		8-94167-674-0 01 1 0110- ●
128 04.175 SHAFT; OUTPUT,A/T
4X2(TFB***) 		8-97184-427-0 01 1 0110- ●
128 04.175 SHAFT; OUTPUT,A/T
4X4(TFS***) 		8-97069-456-0 01 1 0110- ●
186 04.329 ROTOR; SPEED SENSOR
4X2(TFB***) (B) 		8-97211-747-0 01 1 0110- ●
186 04.329 ROTOR; SPEED SENSOR
4X4(TFS***) (A) 		8-97069-450-0 01 1 0110- ●
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
4X2(TFB***) 		8-97069-451-0 01 1 0110- ●
187 04.338 RING; SNAP,ROTOR,SPEED SENSOR
4X4(TFS***) 04.337 		8-94479-905-0 01 1 0110- ●
188 04.330 KEY; SPEED SENSOR ROTOR
04.337 		8-94479-904-0 01 1 0110- ●
195 04.337 SPACER; SPEEDMETER,DRIVE
4X2(TFB***) 		8-97184-425-0 01 1 0110- ●

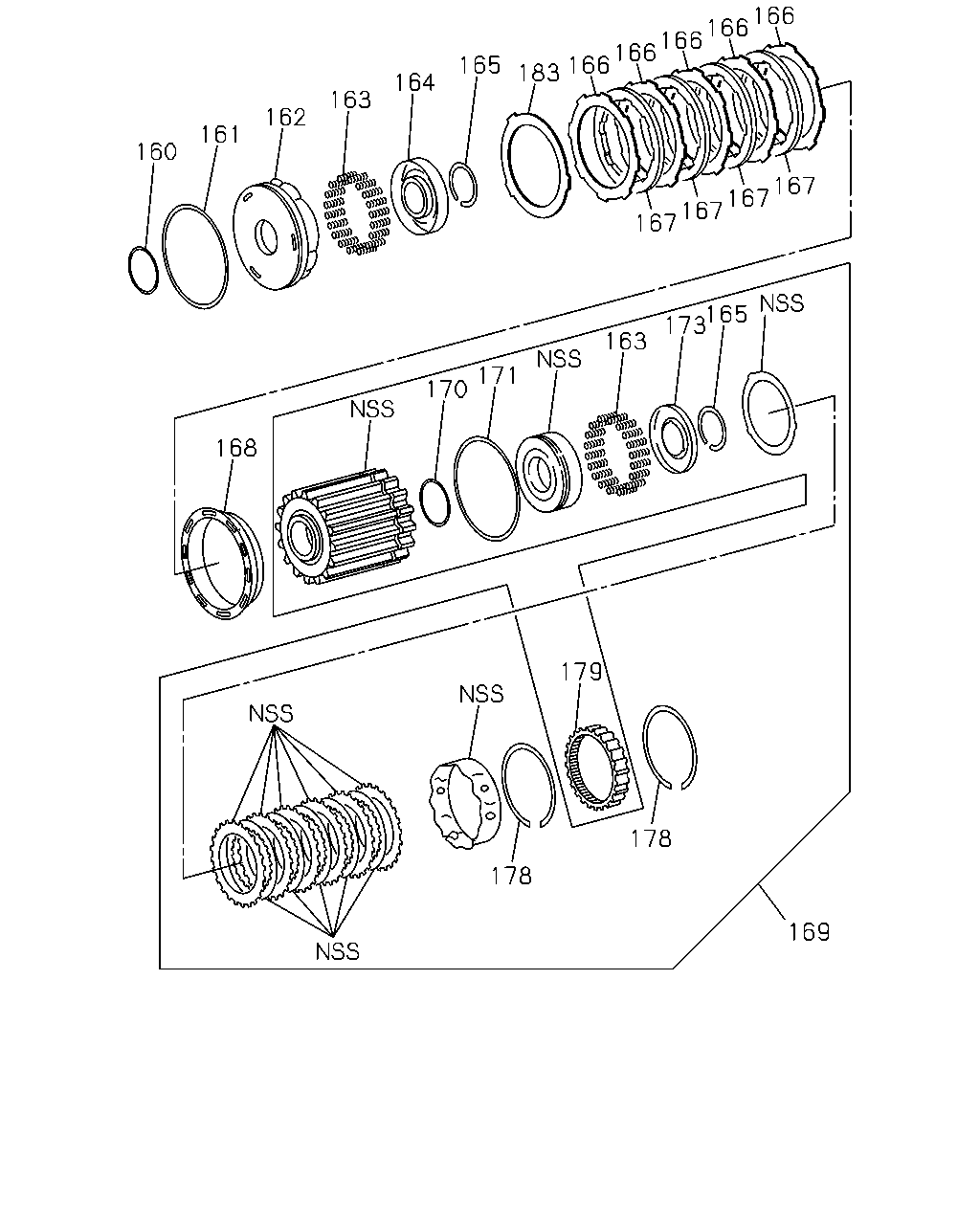

çizim 73633
166 166 166 166 166 183 165 164 163 162 161 160 167 167 167 167 165 173 163 171 170 168 179 178 178 169
BalonParca AdiParca NoAdetTipApplied Date A B
160 04.167 SEAL; REV CLU PISTON INNER
6VD1 ENG(RLV) 		8-96014-331-0 01 1 9804- ●
161 04.167 SEAL; REV CLU PISTON OUTER
6VD1 ENG(RLV) 		8-96014-332-0 01 1 9804- ●
162 04.167 PISTON; REV CLU
6VD1 ENG(RLV) 		8-96014-964-0 01 1 9804- ●
163 04.176 SPRING; PISTON CLU
6VD1 ENG(RLV) 04.262 		8-08958-719-0 46 1 9804- ●
164 04.176 SEAT; SPR,REV CLU
6VD1 ENG(RLV) 		8-05258-021-0 01 1 9804- ●
165 04.176 RING; RET
6VD1 ENG(RLV) 		8-05258-093-0 02 1 9804- ●
166 04.176 PLATE; REV CLU
6VD1 ENG(RLV) 		8-96017-283-0 05 1 9804- ●
167 04.176 PLATE ASM; REV CLU
6VD1 ENG(RLV) 		8-96014-269-0 04 1 9804- ●
168 04.176 PLATE; REV CLU PRESS
6VD1 ENG(RLV) T=6.35 		8-96014-622-0 01 1 9804- ●
168 04.176 PLATE; REV CLU PRESS
6VD1 ENG(RLV) T=6.64 		8-96014-623-0 01 1 9804-9909 ●
168 04.176 PLATE; REV CLU PRESS
6VD1 ENG(RLV) T=6.93 		8-96014-624-0 01 1 9804-9909 ●
168 04.176 PLATE; REV CLU PRESS
6VD1 ENG(RLV) T=7.22 		8-96014-625-0 01 1 9804-9909 ●
168 04.176 PLATE; REV CLU PRESS
6VD1 ENG(RLV) T=7.51 		8-96014-626-0 01 1 9804-9909 ●
168 04.176 PLATE; REV CLU PRESS
6VD1 ENG(RLV) T=6.64 		8-96014-623-0 01 1 9910- ●
168 04.176 PLATE; REV CLU PRESS
6VD1 ENG(RLV) T=6.93 		8-96014-624-0 01 1 9910- ●
168 04.176 PLATE; REV CLU PRESS
6VD1 ENG(RLV) T=7.22 		8-96014-625-0 01 1 9910- ●
168 04.176 PLATE; REV CLU PRESS
6VD1 ENG(RLV) T=7.51 		8-96014-626-0 01 1 9910- ●
169 04.169 DRUM; 2ND CLU
6VD1 ENG(RLV) 		8-96041-122-0 01 1 9804- ●
170 04.169 SEAL; 2ND CLU INNER
6VD1 ENG(RLV) 		8-96014-305-0 01 1 9804- ●
171 04.169 SEAL; 2ND CLU OUTER
6VD1 ENG(RLV) 		8-96014-306-0 01 1 9804- ●
173 04.169 SEAT; SPR,2ND CLU
6VD1 ENG(RLV) 		8-05258-038-0 01 1 9804- ●
178 04.187 RING; RET
6VD1 ENG(RLV) 		8-08958-619-0 02 1 9804- ●
179 04.190 GEAR; RING
6VD1 ENG(RLV) 		8-96014-576-0 01 1 9804- ●
183 04.176 PLATE; REV CLU
6VD1 ENG(RLV) 		8-96017-451-0 01 1 9804- ●
