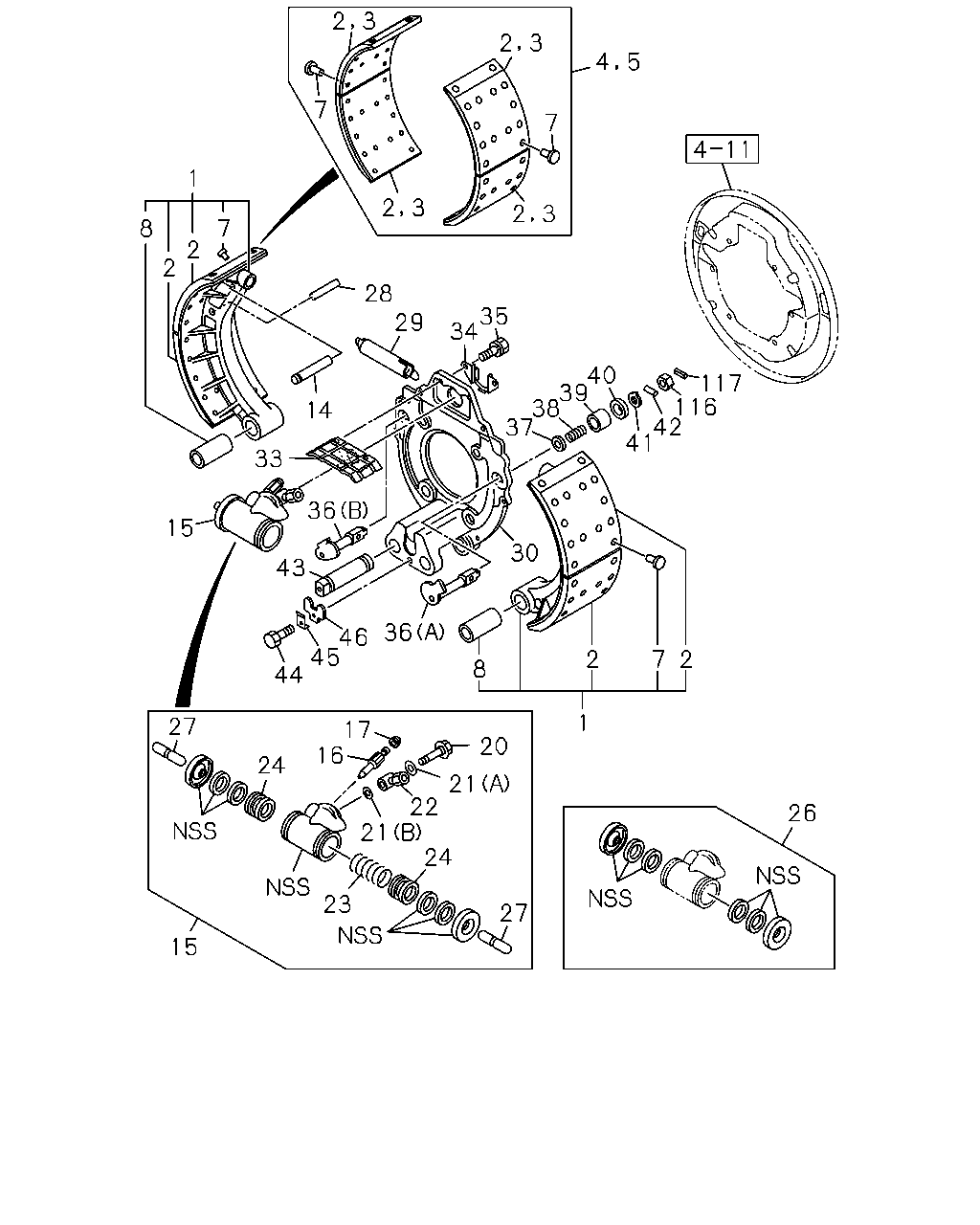

3-01 — FRONT WHEEL BRAKE (#4566) — 50 parça
çizim 4237
7 7 1 8 7 2 2 28 29 35 34 117 116 42 41 40 39 38 37 14 33 36 15 30 43 36 46 45 44 2 7 2 8 1 27 17 16 20 24 21 22 21 24 26 23 27 15 2 3 2 3 4 5 3 2 3 2
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,FRT
BRK LINING D2128 NON ASBESTOS<BEZ> 		1-47120-652-0 04 1 9712-
1 SHOE; BRK,FRT
BRK LINING MATERIAL D2129 NON ASBESTOS<BCL> 		1-47120-200-0 04 1 9712-
1 SHOE; BRK,FRT
EXC. BRK LINING MATERIAL D2129 NON ASBESTOS<BCL>, BRK LINING D2128 NON ASBESTOS<BEZ> D1019 RED 		1-47110-991-0 04 1 9712-
2 LINING; FRT BRK SHOE,STANDARD
BRK LINING D2128 NON ASBESTOS<BEZ> 		1-47125-748-0 08 1 9712-
2 LINING; FRT BRK SHOE,STANDARD
BRK LINING MATERIAL D2129 NON ASBESTOS<BCL> 		1-47125-179-0 08 1 9712-
2 LINING; FRT BRK SHOE,STANDARD
EXC. BRK LINING MATERIAL D2129 NON ASBESTOS<BCL>, BRK LINING D2128 NON ASBESTOS<BEZ> 		1-47115-726-0 08 1 9712-
3 LINING; FRT BRK SHOE,OVER SIZE
BRK LINING D2128 NON ASBESTOS<BEZ> 		1-47125-749-0 08 1 9712-
3 LINING; FRT BRK SHOE,OVER SIZE
BRK LINING MATERIAL D2129 NON ASBESTOS<BCL> 		1-47125-180-0 08 1 9712-
3 LINING; FRT BRK SHOE,OVER SIZE
EXC. BRK LINING MATERIAL D2129 NON ASBESTOS<BCL>, BRK LINING D2128 NON ASBESTOS<BEZ> T=17 		1-47115-727-0 08 1 9712-
4 LINING SET; FRT BRK,STANDARD
BRK LINING D2128 NON ASBESTOS<BEZ> 		1-88310-490-0 02 1 9712-
4 LINING SET; FRT BRK,STANDARD
BRK LINING MATERIAL D2129 NON ASBESTOS<BCL> 		1-88310-097-0 02 1 9712-
4 LINING SET; FRT BRK,STANDARD
EXC. BRK LINING MATERIAL D2129 NON ASBESTOS<BCL>, BRK LINING D2128 NON ASBESTOS<BEZ> 		1-88310-186-0 02 1 9712-
5 LINING SET; FRT BRK,OVER SIZE
BRK LINING D2128 NON ASBESTOS<BEZ> 		1-88310-491-0 02 1 9712-
5 LINING SET; FRT BRK,OVER SIZE
BRK LINING MATERIAL D2129 NON ASBESTOS<BCL> 		1-88310-098-0 02 1 9712-
5 LINING SET; FRT BRK,OVER SIZE
EXC. BRK LINING MATERIAL D2129 NON ASBESTOS<BCL>, BRK LINING D2128 NON ASBESTOS<BEZ> 		1-88310-187-0 02 1 9712-
7 RIVET; LINING,FRT BRK
L=19.5 		1-09732-035-0 AR 1 9712-
8 BUSHING; BRK SHOE 1-47112-016-0 04 1 9712-
14 PIN; SHOE RETURN SPR
L=73.5 		1-47119-017-1 04 1 9712-
15 CYLINDER; WHEEL,FRT BRK 1-47600-778-0 01 1 9712-
15 CYLINDER; WHEEL,FRT BRK 1-47600-777-0 01 1 9712-
16 SCREW; BLEEDER,FRT BRK 1-47615-016-0 02 1 9712-
17 CAP; BLEEDER,FRT WHEEL CYL
OD=12 		1-47619-011-0 02 1 9712-
20 BOLT; JOINT
M12X40.5 EYE BOLT 		1-47634-006-0 02 1 9712-
21 GASKET; UNION BOLT
(A) ID=15.2 		1-09630-019-0 02 1 9712-
21 GASKET; UNION BOLT
(B) ID=12.2 		1-09630-020-0 02 1 9712-
22 JOINT; PIPE 1-47631-057-1 02 1 9712-
23 SPRING; COIL 9-09940-435-0 02 1 9712-
24 PISTON; FRT WHEEL CYL 9-47624-210-0 04 1 9712-
26 CUP SET; FRT WHEEL CYL 1-87830-618-0 02 1 9712-
27 ROD; PUSH 1-47621-009-0 04 1 9712-
28 PIN; SHOE ADJ CAM GUIDE 1-47116-002-0 04 1 9712-
29 SPRING; RETURN,FRT BRK SHOE 1-09583-326-0 02 1 9712-
30 BRACKET; ANCHOR,FRT 1-47137-171-0 02 1 9712-
33 COVER; WHEEL CYL 1-47159-080-0 02 1 9712-
34 PLATE; DIRECTION,FRT 1-47159-094-0 02 1 9712-
35 BOLT; FRT WHEEL CYL
M12X35 W/LK WASHER 		0-50051-235-0 04 1 9712-
36 CAM ASM; ADJ
(A) 		1-47165-089-0 02 1 9712-
36 CAM ASM; ADJ
(B) 		1-47165-090-0 02 1 9712-
37 WASHER; ADJ CAM 1-47169-033-0 04 1 9712-
38 SPRING; ADJ CAM 1-47169-046-0 04 1 9712-
39 BOOT; ADJ CAM 1-47169-034-0 04 1 9712-
40 COVER; BOOT,ADJ CAM 1-47169-031-0 04 1 9712-
41 INDICATOR 1-47169-032-1 04 1 9712-
42 PIN; SPINDLE 1-47169-030-0 04 1 9712-
43 PIN; ANCHOR
L=115.5 		1-47131-044-0 04 1 9712-
44 BOLT; LOCK,ANCHOR PIN
M10X16 		0-20801-016-0 02 1 9712-
45 WASHER; LK 1-47133-011-0 02 1 9712-
46 PLATE; LOCK 1-47133-010-0 02 1 9712-
116 ADAPTER; ADJ CAM 1-47169-006-0 04 1 9712-
117 PIN; SPR,ADJ CAM 1-09748-006-0 04 1 9712-
