2-46 — AUTO TRANS SUPPORT AND PLANETARY GEAR (#45659) — 36 parça

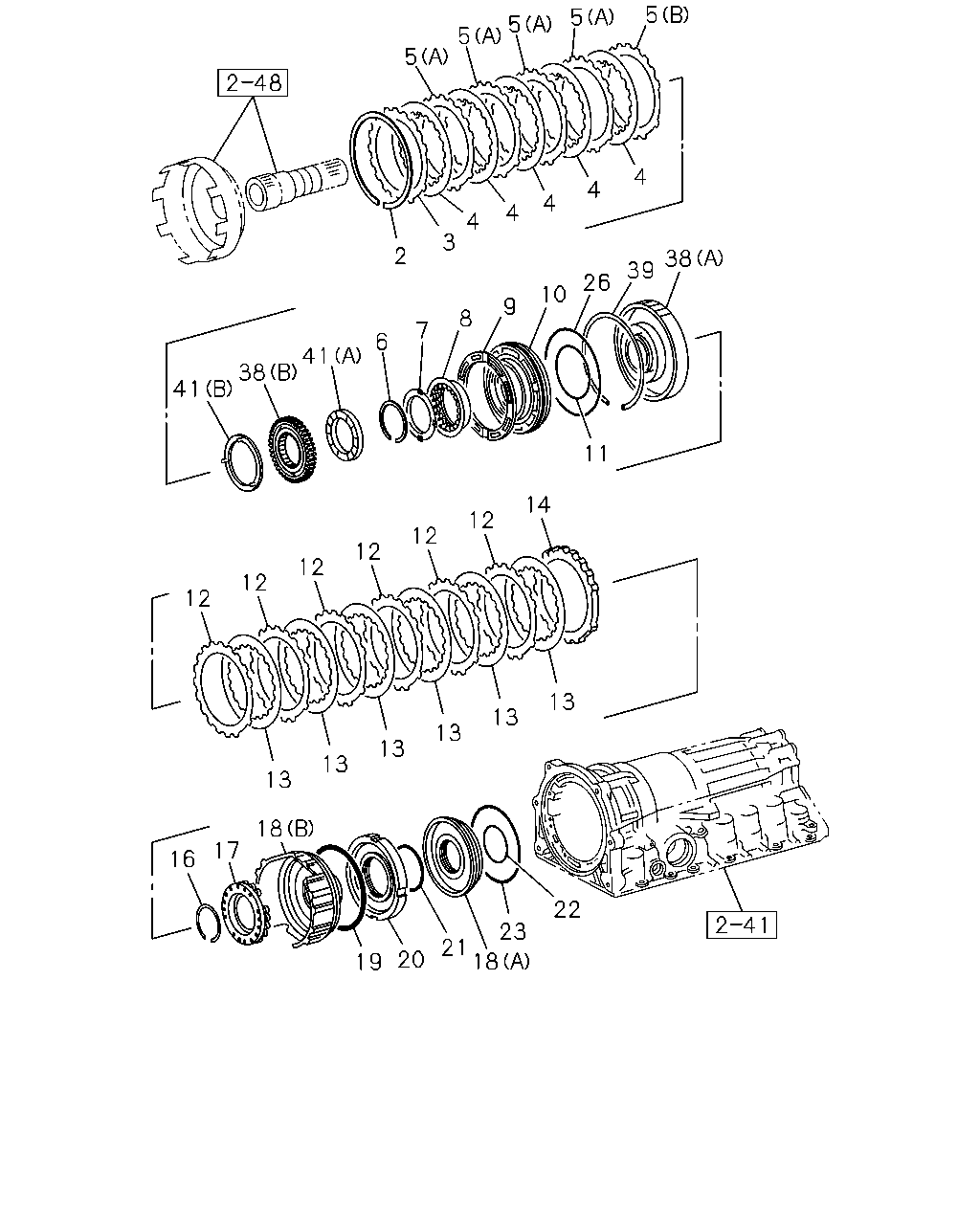

çizim 18878
5 5 5 5 5 4 4 4 4 4 3 2 38 39 26 10 9 8 7 6 41 38 41 11 14 12 12 12 12 12 12 13 13 13 13 13 13 18 17 16 22 23 21 20 18 19
BalonParca AdiParca NoAdetTipApplied Date
2 04.166 RING; RET,FRT BRK,2ND BRK,A/T
04.164 		8-94479-795-0 01 1 0110-
3 04.164 PLATE; CLU BACKING,2ND BRK,A/T 8-94479-806-0 01 1 0110-
4 04.163 DISC ASM; CLU & FACING,2ND BRK,A 8-97143-081-0 05 1 0110-
5 04.163 DISC; CLU,2ND BRK,A/T
(A) 		8-94479-807-0 04 1 0110-
5 04.163 DISC; CLU,2ND BRK,A/T
(B) 		8-97025-835-0 01 1 0110-
6 04.166 RING; SNAP,FRT BRK,A/T 8-94479-804-0 01 1 0110-
7 04.163 RETAINER; BRK,RETURN SPR,FRT BRK 8-94479-803-0 01 1 0110-
8 04.166 SPRING; RETURN,FRT BRK,A/T 8-94479-805-0 01 1 0110-
9 04.166 SLEEVE; 2ND BRK PISTON 8-97025-834-0 01 1 0110-
10 04.166 PISTON; BRK,FRT,2ND BRK,A/T 8-94479-799-0 01 1 0110-
11 04.166 GASKET; BRK PISTON,FRT,INNER,A/T
ID=85 		8-94479-800-0 01 1 0110-
12 04.166 PLATE; CLU,LOW & REV BRK,A/T 8-94479-832-0 06 1 0110-
13 04.163 DISC; CLU,LOW & REV BRK 8-97232-040-0 06 1 0110-
14 04.166 FLANGE; BRK,LOW & REV BRAKE
T=5.0 		8-97019-534-0 01 1 0110-
14 04.166 FLANGE; BRK,LOW & REV BRAKE
T=4.8 		8-97019-535-0 01 1 0110-
14 04.166 FLANGE; BRK,LOW & REV BRAKE
T=4.6 		8-97019-536-0 01 1 0110-
14 04.166 FLANGE; BRK,LOW & REV BRAKE
T=4.4 		8-97019-537-0 01 1 0110-
14 04.166 FLANGE; BRK,LOW & REV BRAKE
T=4.2 		8-97019-538-0 01 1 0110-
14 04.166 FLANGE; BRK,LOW & REV BRAKE
T=4.0 		8-97019-539-0 01 1 0110-
14 04.166 FLANGE; BRK,LOW & REV BRAKE
T=5.2 		8-97184-319-0 01 1 0110-
14 04.166 FLANGE; BRK,LOW & REV BRAKE
T=5.4 		8-97184-320-0 01 1 0110-
16 04.163 RETAINER; RETURN SPR,RR BRK,A/T
04.472 		5-34268-006-0 01 1 0110-
17 04.166 SPRING; RETURN,RR BRK,A/T 8-97214-554-0 01 1 0110-
18 04.166 PISTON; LOW & REV BRK,A/T
(A) 		8-94479-826-0 01 1 0110-
18 04.166 PISTON; LOW & REV BRK,A/T
(B) 		8-97069-454-0 01 1 0110-
19 04.166 GASKET; LOW & REV BRK PISTON 5-34218-004-0 01 1 0110-
20 04.166 SLEEVE; BRK REACTION,A/T 8-94479-827-0 01 1 0110-
21 04.166 RING; BRK REACTION SLEEVE,INNER 8-97184-352-0 01 1 0110-
22 04.166 GASKET; BRK PISTON,RR,INNER,A/T 8-97184-348-0 01 1 0110-
23 04.166 GASKET; BRK PISTON,RR,OUTER,A/T 8-97184-353-0 01 1 0110-
26 04.166 GASKET; BRK PISTON,FRT,OUTER,A/T
ID=124 		8-94479-801-0 01 1 0110-
38 04.163 CLUTCH ASM; ONEWAY,2ND BRK,A/T
(A) 		8-94479-798-0 01 1 0110-
38 04.163 CLUTCH ASM; ONEWAY,2ND BRK,A/T
(B) 		8-97143-134-0 01 1 0110-
39 04.164 RING; RET,SUN GEAR TO CLU
04.166 		8-94479-797-0 01 1 0110-
41 04.162 WASHER; THRUST
04.164 (A) 		8-94479-809-0 01 1 0110-
41 04.162 WASHER; THRUST
04.164 (B) 		8-94479-811-0 01 1 0110-
