2-44 — AUTO TRANS CONTROL VALVE; LOWER BODY (#45658) — 74 parça

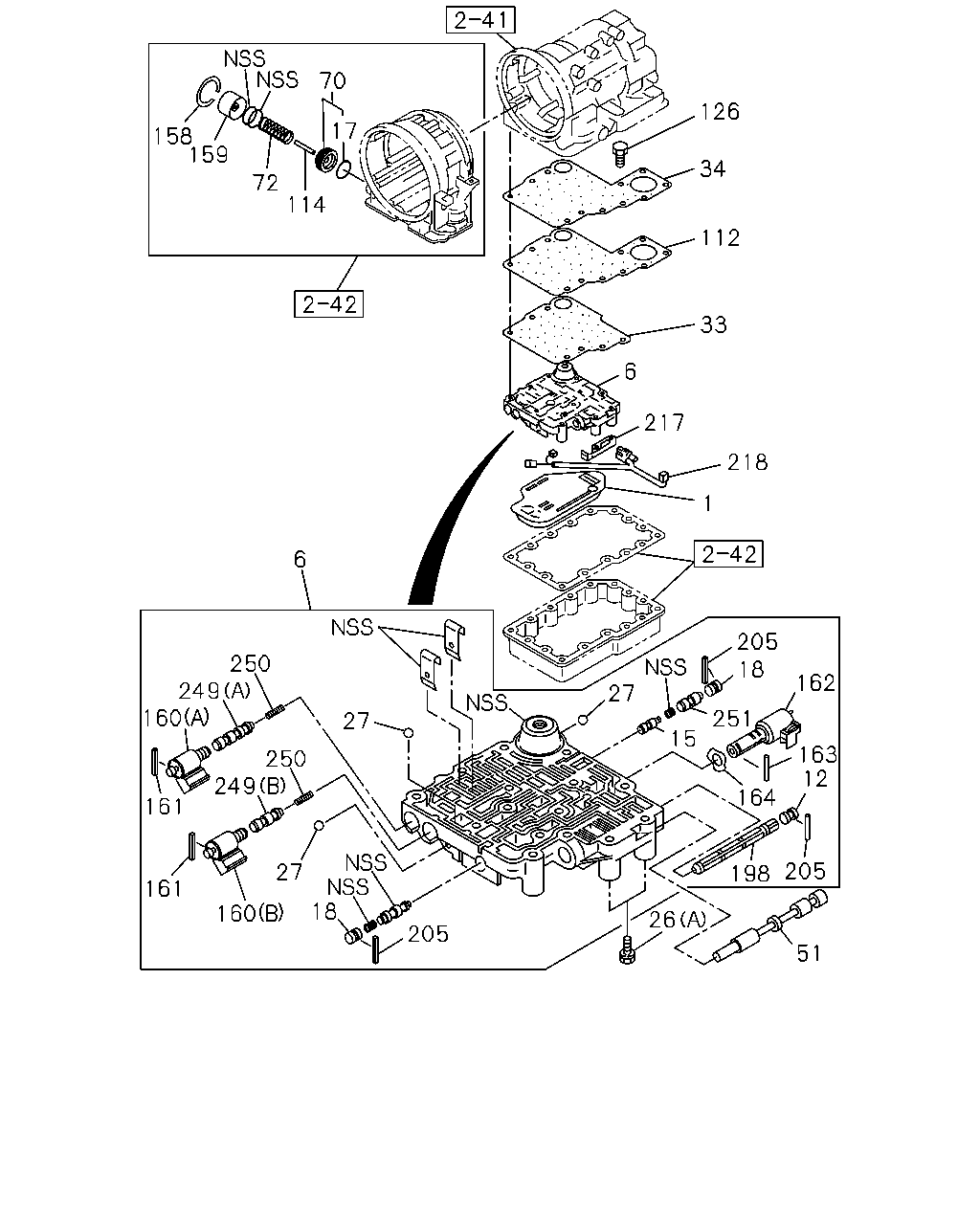

70 126 17 158 159 34 72 114 112 33 6 217 218 1 6 205 18 250 249 160 162 27 251 27 15 163 12 250 249 164 161 18 205 27 198 161 160 26 205 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.197 STRAINER ASM; OIL,A/T 6VD1 ENG(RLV)	8-96015-062-0	01	1	9804-	●
1	04.197 STRAINER ASM; OIL,A/T	8-97207-143-0	01	1	0110-		●
6	04.265 BODY ASM; VLV LWR,A/T 6VD1 ENG(RLV)	8-96017-636-0	01	1	9804-	●
12	04.265 PLUG; LWR BODY 6VD1 ENG(RLV)	8-96014-439-0	01	1	9804-	●
15	04.265 VALVE; ACCUMLATOR CONT 6VD1 ENG(RLV)	8-96014-434-0	01	1	9804-	●
17	04.265 RETAINER; ACCUMLATOR CONT VALVE 6VD1 ENG(RLV)	8-96014-566-0	01	1	9804-	●
18	04.265 PLUG; PRESSURE 6VD1 ENG(RLV)	8-05258-333-0	02	1	9804-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 6VD1 ENG(RLV) (A)	8-00179-826-0	12	1	9804-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (B) M6X28	8-94473-611-0	10	1	0110-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (C) M6X36	8-94473-630-0	06	1	0110-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (D) M6X23	8-94479-925-0	04	1	0110-		●
27	04.265 BALL; STEEL,VLV,A/T 6VD1 ENG(RLV)	8-11066-201-0	05	1	9804-	●
33	04.265 GASKET; LWR,VLV BODY,A/T 6VD1 ENG(RLV)	8-96015-417-0	01	1	9804-	●
34	04.265 GASKET; UPR,VLV BODY,A/T 6VD1 ENG(RLV)	8-96018-338-0	01	1	9804-	●
51	04.265 VALVE; MANUAL,A/T 6VD1 ENG(RLV)	8-96014-445-0	01	1	9804-	●
70	04.241 PISTON; ACCUMLATOR 6VD1 ENG(RLV)	8-96016-916-0	01	1	9804-	●
70	04.241 PISTON; ACCUMLATOR	8-97027-205-0	01	1	0110-		●
72	04.233 SPRING; ACCUMLATOR PISTON 6VD1 ENG(RLV)	8-96016-972-0	01	1	9804-	●
72	04.233 SPRING; ACCUMLATOR PISTON	8-97027-206-0	01	1	0110-		●
112	04.265 PLATE; VLV BODY CVR,VLV LWR,A/T 6VD1 ENG(RLV)	8-96017-628-0	01	1	9804-	●
114	04.164 PIN; ACCUMLATOR PISTON (B-2) 6VD1 ENG(RLV)	8-96017-098-0	01	1	9804-	●
126	04.265 BOLT; CVR,VLV LWR,A/T 6VD1 ENG(RLV) 04.115	8-00117-461-0	02	1	9804-	●
158	04.265 RING; SNAP,ADAPTER 6VD1 ENG(RLV)	8-96015-714-0	01	1	9804-	●
159	04.265 COVER; PISTON 6VD1 ENG(RLV)	8-96017-093-0	01	1	9804-	●
160	04.265 SOLENOID; ON-OFF 6VD1 ENG(RLV) (B)	8-96014-224-0	01	1	9804-	●
160	04.265 SOLENOID; ON-OFF 6VD1 ENG(RLV) (A)	8-96014-593-0	01	1	9804-	●
161	04.265 PIN; SPRING,SOLENOID 6VD1 ENG(RLV)	8-96014-443-0	02	1	9804-	●
162	04.265 SOLENOID; BAND CONT 6VD1 ENG(RLV)	8-96042-006-0	01	1	9804-	●
163	04.265 PIN; SOLENOID 6VD1 ENG(RLV)	8-96014-440-0	01	1	9804-	●
164	04.265 WASHER; SOLENOID 6VD1 ENG(RLV)	8-96014-555-0	01	1	9804-	●
198	04.265 STRAINER 6VD1 ENG(RLV)	8-96041-012-0	01	1	9804-	●
205	04.054 PIN; SPRING 6VD1 ENG(RLV)	8-05258-849-0	03	1	9804-	●
217	04.262 ROLLER ASM; SPR,DETENT 6VD1 ENG(RLV) 04.226	8-96015-354-0	01	1	9804-	●
218	04.115 HARNESS; SOLENOID WIRE 6VD1 ENG(RLV)	8-96014-855-0	01	1	9804-	●
249	04.265 VALVE; SHIFT 6VD1 ENG(RLV) (A)	8-96014-427-0	01	1	9804-	●
249	04.265 VALVE; SHIFT 6VD1 ENG(RLV) (B)	8-96014-429-0	01	1	9804-	●
250	04.265 SPRING; SHIFT VALVE 6VD1 ENG(RLV)	8-96014-428-0	02	1	9804-	●
251	04.265 VALVE; ACCUMULATOR 6VD1 ENG(RLV)	8-05258-806-0	01	1	9910-	●

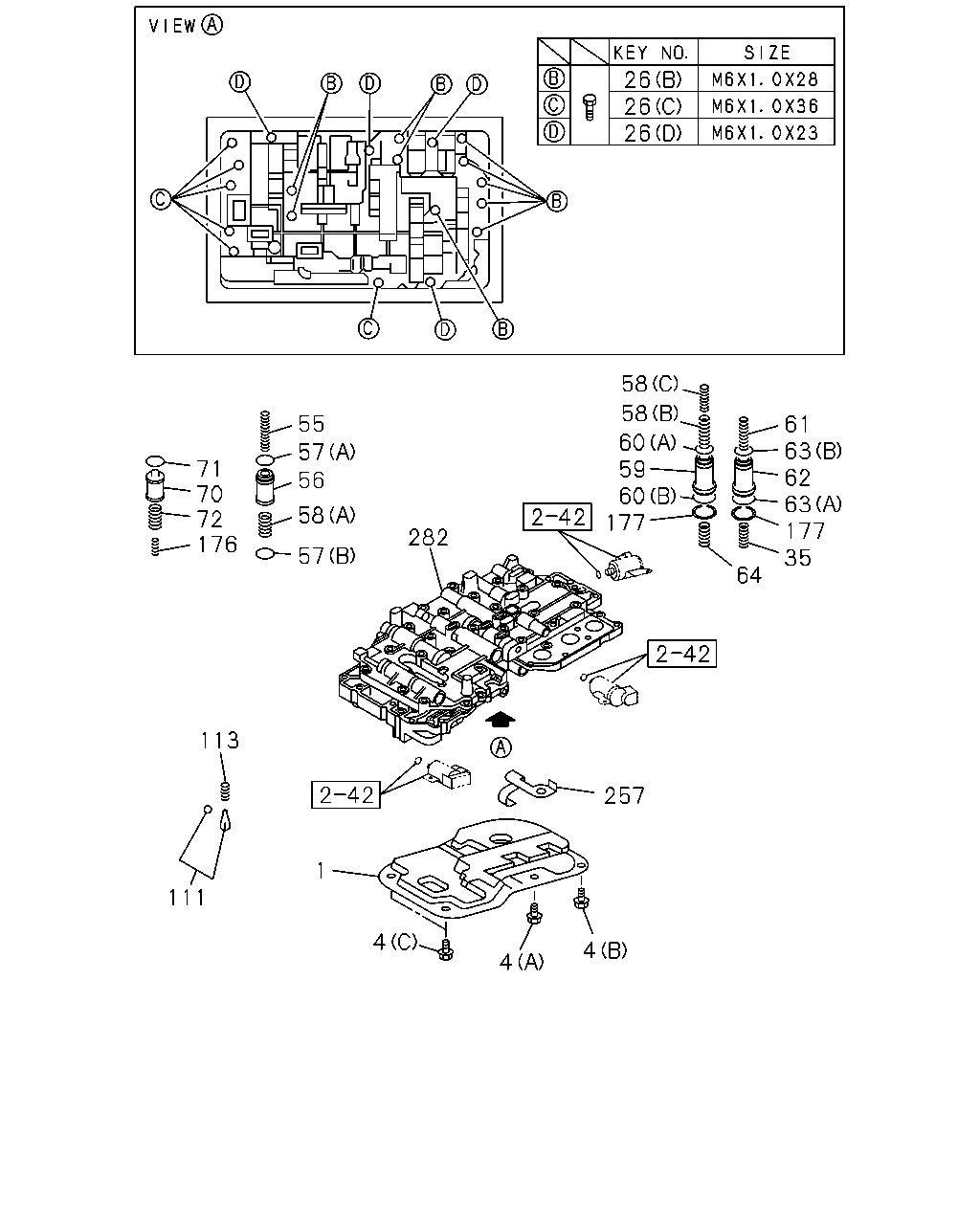

26 26 26 58 58 55 61 63 62 63 177 35 60 59 60 177 57 71 70 72 176 56 58 282 57 64 113 257 1 111 4 4 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.197 STRAINER ASM; OIL,A/T 6VD1 ENG(RLV)	8-96015-062-0	01	1	9804-	●
1	04.197 STRAINER ASM; OIL,A/T	8-97207-143-0	01	1	0110-		●
4	04.197 BOLT; OIL STRAINER,A/T 04.265 (A) M6X20	8-94479-922-0	01	1	0110-		●
4	04.197 BOLT; OIL STRAINER,A/T 04.265 (B) M6X23	8-94479-925-0	01	1	0110-		●
4	04.197 BOLT; OIL STRAINER,A/T (C)	8-97207-142-0	02	1	0110-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T 6VD1 ENG(RLV) (A)	8-00179-826-0	12	1	9804-	●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (B) M6X28	8-94473-611-0	10	1	0110-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (C) M6X36	8-94473-630-0	06	1	0110-		●
26	04.265 BOLT; BODY FIX,VLV LWR,A/T (D) M6X23	8-94479-925-0	04	1	0110-		●
35	04.265 SPRING; LWR VLV BODY	8-97025-856-0	01	1	0110-		●
55	04.246 SPRING; ACCUMLATOR PISTON	8-97027-208-0	01	1	0110-		●
56	04.241 PISTON; ACCUMLATOR	8-97027-207-0	01	1	0110-		●
57	04.241 GASKET; 2ND SPD PISTON,A/T (A) ID=20	8-97184-885-0	01	1	0110-		●
57	04.241 GASKET; 2ND SPD PISTON,A/T (B) ID=27	8-97184-886-0	01	1	0110-		●
58	04.164 SPRING; DIRECT CLU (C-2 ACCUM),A (C)	8-97027-204-0	01	1	0110-		●
58	04.164 SPRING; DIRECT CLU (C-2 ACCUM),A (A)	8-97027-209-0	01	1	0110-		●
58	04.164 SPRING; DIRECT CLU (C-2 ACCUM),A (B)	8-97184-329-0	01	1	0110-		●
59	04.166 PISTON; DIRECT CLU,A/T	8-97025-819-0	01	1	0110-		●
60	04.169 GASKET; DIRECT CLU PISTON,A/T (A)	8-97184-887-0	01	1	0110-		●
60	04.169 GASKET; DIRECT CLU PISTON,A/T 04.167 (B)	8-97184-888-0	01	1	0110-		●
61	04.164 SPRING; FWD CLU,(C-1 ACUUM),A/T	8-97184-330-0	01	1	0110-		●
62	04.166 PISTON; FWD CLU,A/T	8-97025-817-0	01	1	0110-		●
63	04.167 GASKET; FWD CLU,A/T (A)	8-97184-888-0	01	1	0110-		●
63	04.167 GASKET; FWD CLU,A/T (B) ID=24	8-97184-889-0	01	1	0110-		●
64	04.164 SPRING; DIRECT CLU	8-97184-335-0	01	1	0110-		●
70	04.241 PISTON; ACCUMLATOR 6VD1 ENG(RLV)	8-96016-916-0	01	1	9804-	●
70	04.241 PISTON; ACCUMLATOR	8-97027-205-0	01	1	0110-		●
71	04.241 GASKET; ACCUMLATOR PISTON	8-97184-884-0	01	1	0110-		●
72	04.233 SPRING; ACCUMLATOR PISTON 6VD1 ENG(RLV)	8-96016-972-0	01	1	9804-	●
72	04.233 SPRING; ACCUMLATOR PISTON	8-97027-206-0	01	1	0110-		●
111	04.169 BODY; CHECK BALL	8-94479-931-0	01	1	0110-		●
113	04.164 SPRING; CHECK BALL	8-94479-930-0	01	1	0110-		●
176	04.265 SPRING; ACCUM INNER	8-97025-825-0	01	1	0110-		●
177	04.265 RING; SNAP ID=19	8-97025-821-0	03	1	0110-		●
257	04.265 CLAMP; HARNESS	8-97232-037-0	01	1	0110-		●
282	04.265 BODY ASM; VLV,A/T	8-97288-903-0	01	1	0110-		●
