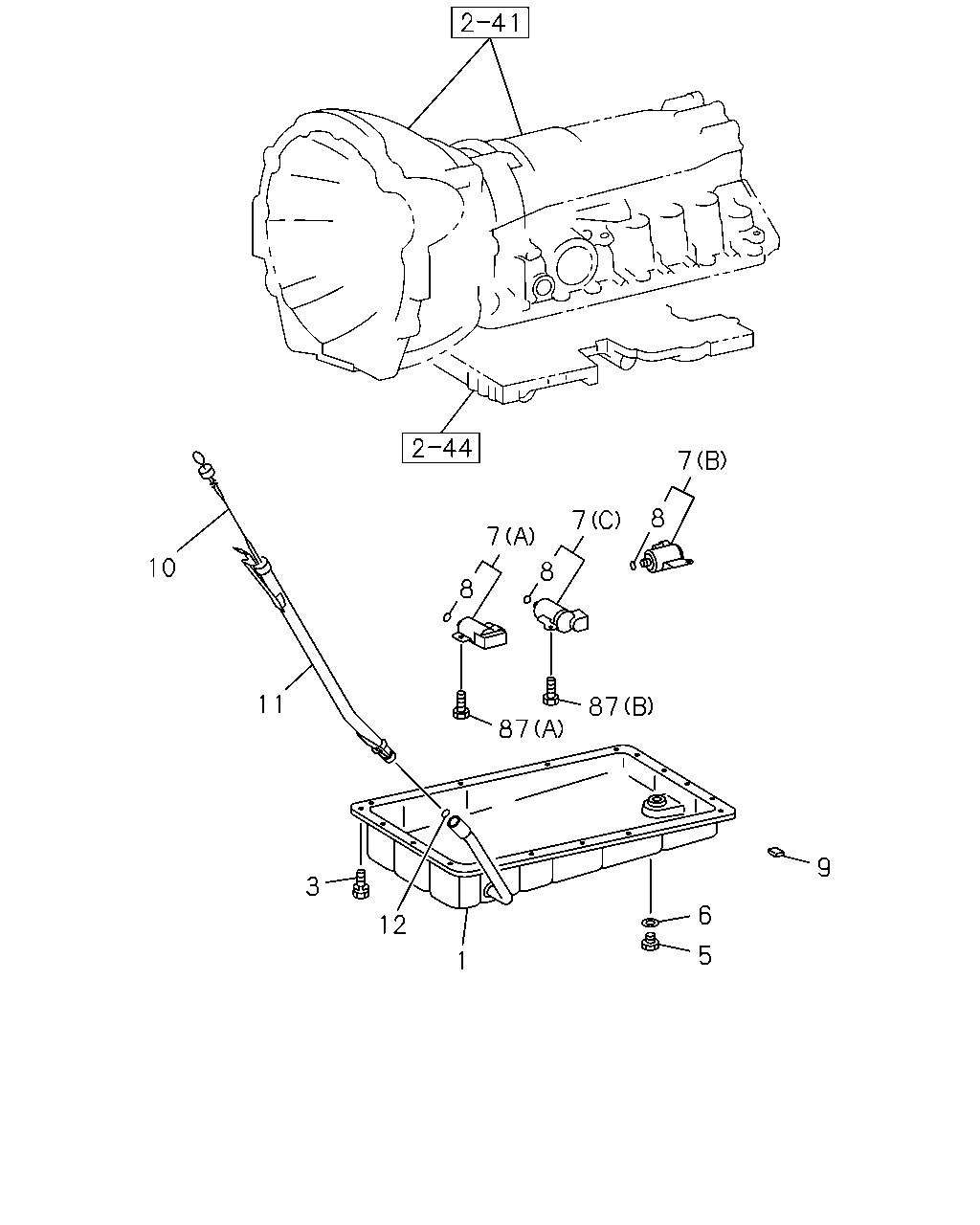

2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#45656) — 60 parça

7 8 7 7 10 8 8 11 87 87 9 3 6 12 5 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.195 PAN ASM; OIL,A/T 6VD1 ENG(RLV)	8-96017-876-0	01	1	9804-9912	●
1	04.195 PAN ASM; OIL,A/T 6VD1 ENG(RLV)	8-96023-707-0	01	1	0001-	●
1	04.195 PAN ASM; OIL,A/T	8-97288-942-0	01	1	0110-		●
3	04.196 BOLT; OIL PAN TO CASE 6VD1 ENG(RLV)	8-96017-023-0	28	1	9804-	●
3	04.196 BOLT; OIL PAN TO CASE	8-97130-928-0	19	1	0110-		●
5	04.195 PLUG; OIL PAN 6VD1 ENG(RLV)	8-96015-481-0	02	1	9804-	●
5	04.195 PLUG; OIL PAN	5-34132-003-0	01	1	0110-		●
6	04.195 GASKET; OIL PAN TO PLUG 6VD1 ENG(RLV)	8-01638-257-0	02	1	9804-9810	●
6	04.195 GASKET; OIL PAN TO PLUG 6VD1 ENG(RLV)	8-11023-580-0	02	1	9811-9912	●
6	04.195 GASKET; OIL PAN TO PLUG 6VD1 ENG(RLV) 01.456	8-11023-582-0	02	1	0001-	●
6	04.195 GASKET; OIL PAN TO PLUG ID=12	5-34132-002-0	01	1	0110-		●
7	04.265 SOLENOID; DOWN SHIFT,A/T (A)	8-97214-539-0	01	1	0110-		●
7	04.265 SOLENOID; DOWN SHIFT,A/T (B)	8-97218-986-0	01	1	0110-		●
7	04.265 SOLENOID; DOWN SHIFT,A/T (C)	8-97218-987-0	01	1	0110-		●
8	04.265 GASKET; DOWN SHIFT SOLENOID,A/T ID=6.1	8-94480-101-0	03	1	0110-		●
9	04.195 MAGNET; OIL PAN 6VD1 ENG(RLV)	8-96013-938-0	01	1	9804-	●
9	04.195 MAGNET; OIL PAN	5-34138-004-0	04	1	0110-		●
10	04.197 GAUGE; OIL LEVEL 4JH1 ENG(RJX)	8-97257-680-1	01	1	0110-		●
11	04.197 TUBE; OIL FILLER	8-97061-029-3	01	1	0110-		●
12	04.197 GASKET; OIL FILLER TUBE TO A/T 04.133 ID=9.8	9-09561-110-0	01	1	0110-		●
87	04.265 BOLT; SOLENOID 04.197 (B) M5X12	8-94405-335-0	01	1	0110-		●
87	04.265 BOLT; SOLENOID (A) M6X12	8-94479-927-0	01	1	0110-		●

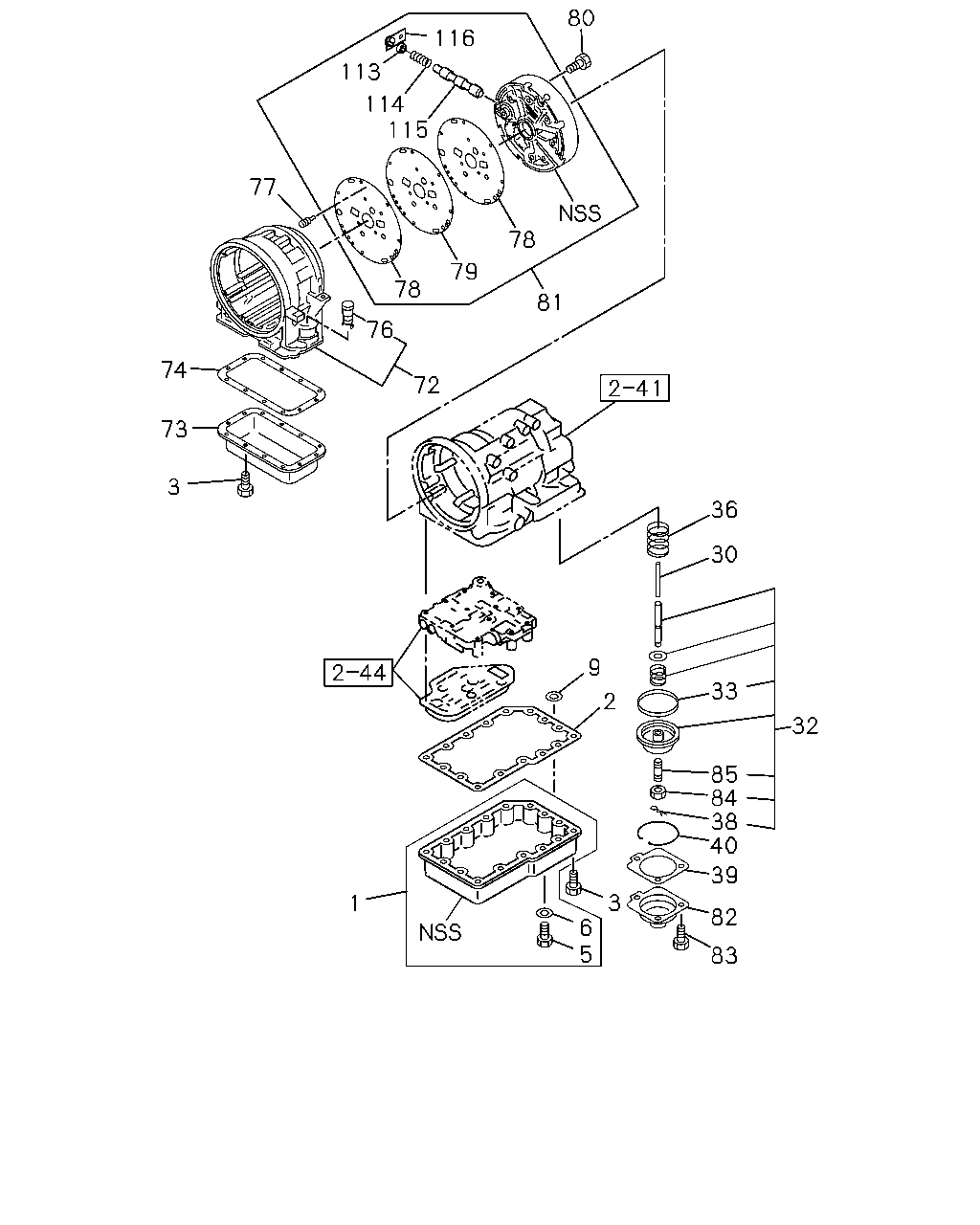

80 116 113 114 115 77 78 79 78 81 76 74 72 73 3 36 30 9 2 33 32 85 84 38 40 39 3 1 82 6 5 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	04.195 PAN ASM; OIL,A/T 6VD1 ENG(RLV)	8-96017-876-0	01	1	9804-9912	●
1	04.195 PAN ASM; OIL,A/T 6VD1 ENG(RLV)	8-96023-707-0	01	1	0001-	●
1	04.195 PAN ASM; OIL,A/T	8-97288-942-0	01	1	0110-		●
2	04.196 GASKET; OIL PAN,A/T 6VD1 ENG(RLV)	8-96014-234-0	01	1	9804-	●
3	04.196 BOLT; OIL PAN TO CASE 6VD1 ENG(RLV)	8-96017-023-0	28	1	9804-	●
3	04.196 BOLT; OIL PAN TO CASE	8-97130-928-0	19	1	0110-		●
5	04.195 PLUG; OIL PAN 6VD1 ENG(RLV)	8-96015-481-0	02	1	9804-	●
5	04.195 PLUG; OIL PAN	5-34132-003-0	01	1	0110-		●
6	04.195 GASKET; OIL PAN TO PLUG 6VD1 ENG(RLV)	8-01638-257-0	02	1	9804-9810	●
6	04.195 GASKET; OIL PAN TO PLUG 6VD1 ENG(RLV)	8-11023-580-0	02	1	9811-9912	●
6	04.195 GASKET; OIL PAN TO PLUG 6VD1 ENG(RLV) 01.456	8-11023-582-0	02	1	0001-	●
6	04.195 GASKET; OIL PAN TO PLUG ID=12	5-34132-002-0	01	1	0110-		●
9	04.195 MAGNET; OIL PAN 6VD1 ENG(RLV)	8-96013-938-0	01	1	9804-	●
9	04.195 MAGNET; OIL PAN	5-34138-004-0	04	1	0110-		●
30	04.265 ROD; VAC DIAPH,A/T 6VD1 ENG(RLV)	8-05258-182-0	01	1	9804-	●
32	04.228 PISTON ASM; SERVO,A/T 6VD1 ENG(RLV)	8-96017-601-0	01	1	9804-	●
33	04.229 SEAL; RING,SERVO PISTON,A/T 6VD1 ENG(RLV)	8-05258-159-0	01	1	9804-	●
36	04.233 SPRING; RETURN,SERVO PISTON,A/T 6VD1 ENG(RLV)	8-08958-931-0	01	1	9804-	●
38	04.233 RING; SNAP,SERVO PISTON,A/T 6VD1 ENG(RLV)	8-05258-185-0	01	1	9804-	●
39	04.212 GASKET; SERVO COVER 6VD1 ENG(RLV)	8-96014-414-0	01	1	9804-	●
40	04.233 RETAINER; SERVO PISTON,A/T 6VD1 ENG(RLV)	8-05258-121-0	01	1	9804-	●
72	04.195 CASE ASM; ADAPTER 6VD1 ENG(RLV)	8-96017-512-0	01	1	9804-	●
73	04.195 PAN ASM; ADAPTER 6VD1 ENG(RLV)	8-96014-186-0	01	1	9804-	●
74	04.195 GASKET; ADAPTER PAN 6VD1 ENG(RLV)	8-96014-235-0	01	1	9804-	●
76	04.195 CONNECTOR; ADAPTER CASE 6VD1 ENG(RLV)	8-96015-408-0	01	1	9804-	●
77	04.195 RESTRICTOR; OIL 6VD1 ENG(RLV)	8-96014-353-0	01	1	9804-	●
78	04.195 GASKET; ADAPTER PLATE 6VD1 ENG(RLV)	8-96016-514-0	02	1	9804-	●
79	04.195 PLATE; ADAPTER,CTR SUPPORT 6VD1 ENG(RLV)	8-96016-833-0	01	1	9804-	●
80	04.195 SCREW; CTR SUPPORT 6VD1 ENG(RLV)	8-96013-316-0	08	1	9804-	●
81	04.233 SUPPORT ASM; CENTER 6VD1 ENG(RLV)	8-96041-282-0	01	1	9804-	●
82	04.233 COVER; SERVO PISTON 6VD1 ENG(RLV)	8-96014-413-0	01	1	9804-	●
83	04.233 SCREW; SERVO COVER 6VD1 ENG(RLV) 04.195	8-96013-316-0	04	1	9804-	●
84	04.233 NUT; SERVO SCREW 6VD1 ENG(RLV)	8-96017-231-0	01	1	9804-	●
85	04.233 SCREW; SERVO PISTON 6VD1 ENG(RLV)	8-96018-235-0	01	1	9804-	●
113	04.105 PLUG; LOCKOUT 6VD1 ENG(RLV) 04.052	8-96017-027-0	01	1	9804-	●
114	04.256 SPRING; LOCKOUT 6VD1 ENG(RLV) 04.052	8-96014-961-0	01	1	9804-	●
115	04.256 VALVE; LOCKOUT 6VD1 ENG(RLV) 04.052	8-96014-967-0	01	1	9804-	●
116	04.256 PLATE; RETAINER 6VD1 ENG(RLV) 04.052	8-96017-026-0	01	1	9804-	●
