◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-41 - AUTO TRANS CASE,CONVERTER AND OIL PUMP ▶
2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP (#45655) — 170 parça

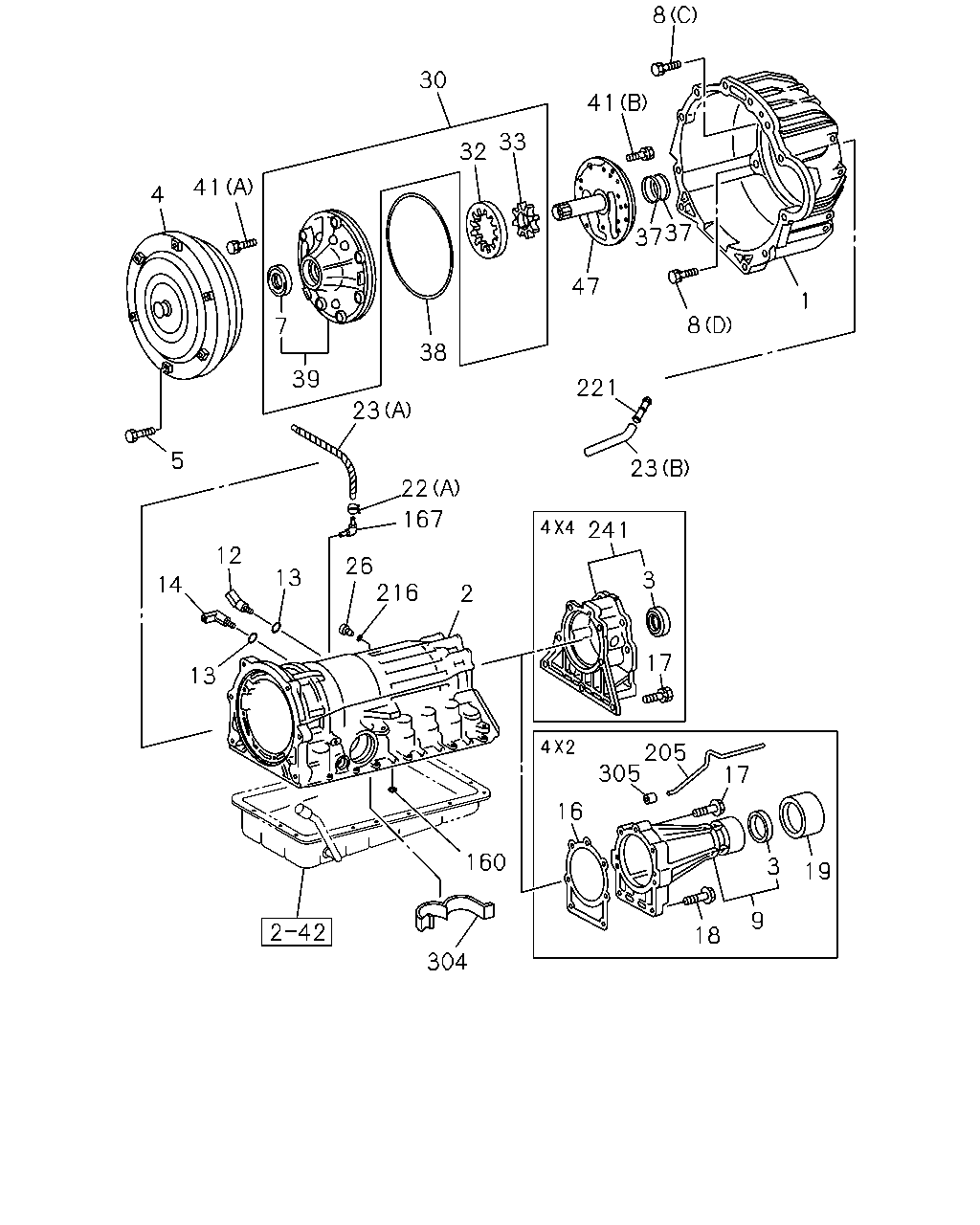

çizim 19797
8 30 41 33 32 37 37 41 4 47 1 8 7 38 39 221 23 5 23 22 167 241 12 26 216 13 3 14 2 17 13 205 305 17 16 160 3 19 9 18 304
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.103 HOUSING; CONV,A/T
6VD1 ENG(RLV) 		8-96042-233-0 01 1 9804- ●
1 04.103 HOUSING; CONV,A/T 8-97321-170-0 01 1 0110- ●
2 04.103 CASE ASM; A/T
6VD1 ENG(RLV) 		8-96041-374-0 01 1 9804- ●
2 04.103 CASE ASM; A/T
4X2 CREW CAB(TFB*W*) 4JH1 ENG(RJX) 		8-97288-902-0 01 1 0110- ●
2 04.103 CASE ASM; A/T
4X4 CREW CAB(TFS*W*) 4JH1 ENG(RJX) 		8-97232-111-0 01 1 0110- ●
3 04.241 SEAL; OIL,RR COVER,A/T
6VD1 ENG(RLV) 		8-96014-416-0 01 1 9804- ●
3 04.241 SEAL; OIL,RR COVER,A/T
4X2(TFB***) 		8-97184-430-0 01 1 0110- ●
3 04.241 SEAL; OIL,RR COVER,A/T
4X4(TFS***) 		8-97069-465-0 01 1 0110- ●
4 04.115 CONVERTER ASM; TORQUE,A/T
6VD1 ENG(RLV) 		8-24210-868-0 01 1 9804- ●
4 04.115 CONVERTER ASM; TORQUE,A/T 8-97321-168-0 01 1 0110- ●
5 04.008 BOLT; RR PLATE TO TORQUE CONV
M8X10 		8-94460-742-0 06 1 0110- ●
7 04.226 SEAL; OIL,LIP,A/T 8-94479-742-0 01 1 0110- ●
8 04.217 BOLT; HSG TO CASE
6VD1 ENG(RLV) (A) 		8-96013-210-0 05 1 9804- ●
8 04.217 BOLT; HSG TO CASE
6VD1 ENG(RLV) (B) 		8-96018-559-0 07 1 9804- ●
8 04.217 BOLT; HSG TO CASE
(C) M10X35 		8-90257-082-0 04 1 0110- ●
8 04.217 BOLT; HSG TO CASE
(D) M12X68 		8-97025-830-0 02 1 0110- ●
9 04.317 COVER ASM; RR,A/T
6VD1 ENG(RLV) 		8-96042-232-0 01 1 9804-0012 ●
9 04.317 COVER ASM; RR,A/T
4X2(TFB***) 6VD1 ENG(RLV) 		8-96042-232-0 01 1 0101- ●
9 04.317 COVER ASM; RR,A/T
4X4 LONG(TFS**F) 6VD1 ENG(RLV) 		8-96042-194-0 01 1 0101- ●
9 04.317 COVER ASM; RR,A/T
4X2(TFB***) 		8-97184-429-0 01 1 0110- ●
12 04.205 CONNECTOR; OIL COOLER OUTLET PIP
6VD1 ENG(RLV) 		8-96015-476-0 01 1 9804- ●
12 04.205 CONNECTOR; OIL COOLER OUTLET PIP
04.265 		8-94450-762-0 01 1 0110- ●
13 04.205 GASKET; OIL COOLER PIPE
04.265 ID=11.7 		8-94479-724-0 02 1 0110- ●
14 04.205 UNION; OIL COOLER RETURN PIPE
04.265 		8-94450-761-0 01 1 0110- ●
16 04.318 GASKET; EXT HSG
6VD1 ENG(RLV) 		8-96014-417-0 01 1 9804- ●
16 04.318 GASKET; EXT HSG
4X2(TFB***) 		8-97032-928-0 01 1 0110- ●
17 04.319 BOLT; REAR COVER TO CASE
6VD1 ENG(RLV) 		8-00179-843-0 07 1 9804-0012 ●
17 04.319 BOLT; REAR COVER TO CASE
4X2(TFB***) 6VD1 ENG(RLV) 		8-00179-843-0 07 1 0101- ●
17 04.319 BOLT; REAR COVER TO CASE
4X4 LONG(TFS**F) 6VD1 ENG(RLV) 		8-96015-271-0 07 1 0101- ●
17 04.319 BOLT; REAR COVER TO CASE
4X2(TFB***) M10X45 		8-94473-632-0 04 1 0110- ●
17 04.319 BOLT; REAR COVER TO CASE
4X4 CREW CAB(TFS*W*) 4JH1 ENG(RJX) 		8-94479-936-0 01 1 0110- ●
18 04.319 BOLT; RR CVR TO CASE,LWR,A/T
4X2(TFB***) M10X35 		8-94479-951-0 02 1 0110- ●
19 04.241 COVER; DUST,REAR COVER
4X2(TFB***) 		8-97184-432-0 01 1 0110- ●
22 04.101 CLIP; BREATHER HOSE,A/T
(A) 		8-94479-730-0 01 1 0110- ●
22 04.101 CLIP; BREATHER HOSE,A/T
4JH1 ENG(RJX) 03.163 (B) ID=13 & 4.75 		8-94447-856-0 01 1 0110- ●
23 04.101 HOSE; BREATHER,A/T
(A) 		8-97288-901-0 01 1 0110- ●
23 04.101 HOSE; BREATHER,A/T
4JH1 ENG(RJX) (B) 		8-97231-906-0 01 1 0110- ●
26 04.195 PLUG; TRANS CASE
04.103 		5-34119-002-0 02 1 0110- ●
30 04.224 PUMP ASM; OIL,A/T 8-97143-135-0 01 1 0110- ●
32 04.210 GEAR; OUTER,OIL PUMP,A/T
W=10.715 H MARK 		8-97184-337-0 01 1 0110- ●
32 04.210 GEAR; OUTER,OIL PUMP,A/T
W=10.695 F MARK 		8-97213-029-0 01 1 0110- ●
32 04.210 GEAR; OUTER,OIL PUMP,A/T
W=10.705 G MARK 		8-97213-030-0 01 1 0110- ●
32 04.210 GEAR; OUTER,OIL PUMP,A/T
W=10.725 J MARK 		8-97213-031-0 01 1 0110- ●
32 04.210 GEAR; OUTER,OIL PUMP,A/T
W=10.735 K MARK 		8-97213-032-0 01 1 0110- ●
33 04.224 GEAR; INNER,OIL PUMP,A/T
W=10.715 H MARK 		8-97147-426-0 01 1 0110- ●
33 04.224 GEAR; INNER,OIL PUMP,A/T
W=10.695 F MARK 		8-97213-025-0 01 1 0110- ●
33 04.224 GEAR; INNER,OIL PUMP,A/T
W=10.705 G MARK 		8-97213-026-0 01 1 0110- ●
33 04.224 GEAR; INNER,OIL PUMP,A/T
W=10.725 J MARK 		8-97213-027-0 01 1 0110- ●
33 04.224 GEAR; INNER,OIL PUMP,A/T
W=10.735 K MARK 		8-97213-028-0 01 1 0110- ●
37 04.226 RING; SEAL,OIL PUMP,A/T 8-94479-747-0 02 1 0110- ●
38 04.226 GASKET; OIL PUMP,A/T
6VD1 ENG(RLV) 		8-96014-973-0 01 1 9804- ●
38 04.226 GASKET; OIL PUMP,A/T 8-94479-748-0 01 1 0110- ●
39 04.224 BODY SUB ASM; FRT,OIL PUMP,A/T 8-94479-741-0 01 1 0110- ●
41 04.226 BOLT; OIL PUMP HSG,A/T
(A) M8X35 		8-94479-749-0 07 1 0110- ●
41 04.226 BOLT; OIL PUMP HSG,A/T
(B) M6X15.5 		8-97019-532-0 13 1 0110- ●
47 04.226 SHAFT; OIL PUMP,A/T 8-97019-531-0 01 1 0110- ●
160 04.265 GASKET; BRK DRUM,A/T 8-94313-576-0 01 1 0110- ●
167 04.052 CONNECTOR; CASE,A/T
6VD1 ENG(RLV) 		8-96015-477-0 01 1 9804- ●
167 04.052 CONNECTOR; CASE,A/T
04.104 		8-97126-812-0 01 1 0110- ●
205 04.103 TUBE; EXT HSG
4X2(TFB***) 		8-97184-431-0 01 1 0110- ●
216 04.265 GASKET; SOLENOID OUTER
04.103 ID=6 		5-34119-001-0 02 1 0110- ●
221 04.104 PIPE; BREATHER,A/T
4JH1 ENG(RJX) 04.515 		8-97228-323-0 01 1 0110- ●
241 04.317 ADAPTER; A/T
4X4(TFS***) 		8-97132-838-0 01 1 0110- ●
304 04.205 SPRING; LEAF,A/T 8-97184-331-0 01 1 0110- ●
305 04.103 GASKET; TUBE,EXT HSG
4X2(TFB***) 		8-97027-228-0 01 1 0110- ●

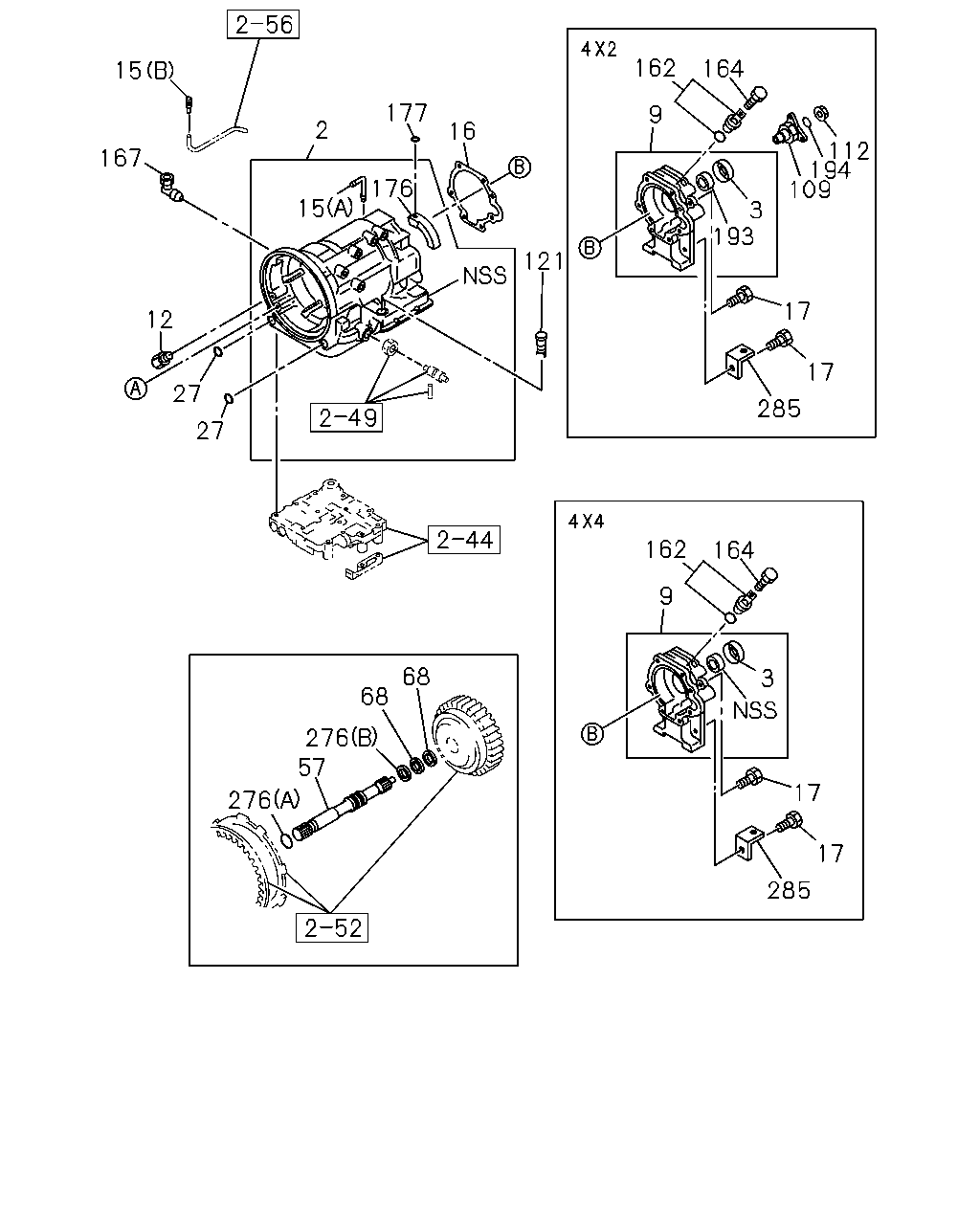

çizim 20158
162 164 15 177 16 176 15 9 2 112 194 109 167 3 193 121 17 12 17 27 27 285 162 164 9 68 68 3 276 57 276 17 17 285
BalonParca AdiParca NoAdetTipApplied Date A B
2 04.103 CASE ASM; A/T
6VD1 ENG(RLV) 		8-96041-374-0 01 1 9804- ●
2 04.103 CASE ASM; A/T
4X2 CREW CAB(TFB*W*) 4JH1 ENG(RJX) 		8-97288-902-0 01 1 0110- ●
2 04.103 CASE ASM; A/T
4X4 CREW CAB(TFS*W*) 4JH1 ENG(RJX) 		8-97232-111-0 01 1 0110- ●
3 04.241 SEAL; OIL,RR COVER,A/T
6VD1 ENG(RLV) 		8-96014-416-0 01 1 9804- ●
3 04.241 SEAL; OIL,RR COVER,A/T
4X2(TFB***) 		8-97184-430-0 01 1 0110- ●
3 04.241 SEAL; OIL,RR COVER,A/T
4X4(TFS***) 		8-97069-465-0 01 1 0110- ●
9 04.317 COVER ASM; RR,A/T
6VD1 ENG(RLV) 		8-96042-232-0 01 1 9804-0012 ●
9 04.317 COVER ASM; RR,A/T
4X2(TFB***) 6VD1 ENG(RLV) 		8-96042-232-0 01 1 0101- ●
9 04.317 COVER ASM; RR,A/T
4X4 LONG(TFS**F) 6VD1 ENG(RLV) 		8-96042-194-0 01 1 0101- ●
9 04.317 COVER ASM; RR,A/T
4X2(TFB***) 		8-97184-429-0 01 1 0110- ●
12 04.205 CONNECTOR; OIL COOLER OUTLET PIP
6VD1 ENG(RLV) 		8-96015-476-0 01 1 9804- ●
12 04.205 CONNECTOR; OIL COOLER OUTLET PIP
04.265 		8-94450-762-0 01 1 0110- ●
15 04.104 BREATHER; A/T CASE
6VD1 ENG(RLV) (A) 		8-96015-793-0 01 1 9804- ●
15 04.104 BREATHER; A/T CASE
6VD1 ENG(RLV) (B) 		8-97164-362-0 01 1 9804- ●
16 04.318 GASKET; EXT HSG
6VD1 ENG(RLV) 		8-96014-417-0 01 1 9804- ●
16 04.318 GASKET; EXT HSG
4X2(TFB***) 		8-97032-928-0 01 1 0110- ●
17 04.319 BOLT; REAR COVER TO CASE
6VD1 ENG(RLV) 		8-00179-843-0 07 1 9804-0012 ●
17 04.319 BOLT; REAR COVER TO CASE
4X2(TFB***) 6VD1 ENG(RLV) 		8-00179-843-0 07 1 0101- ●
17 04.319 BOLT; REAR COVER TO CASE
4X4 LONG(TFS**F) 6VD1 ENG(RLV) 		8-96015-271-0 07 1 0101- ●
17 04.319 BOLT; REAR COVER TO CASE
4X2(TFB***) M10X45 		8-94473-632-0 04 1 0110- ●
17 04.319 BOLT; REAR COVER TO CASE
4X4 CREW CAB(TFS*W*) 4JH1 ENG(RJX) 		8-94479-936-0 01 1 0110- ●
27 04.217 GASKET; HSG TO CASE
6VD1 ENG(RLV) 		8-96014-270-0 02 1 9804- ●
57 04.175 SHAFT; TURBINE,A/T
6VD1 ENG(RLV) 		8-96018-034-0 01 1 9804-9810 ●
57 04.175 SHAFT; TURBINE,A/T
6VD1 ENG(RLV) 		8-96023-043-0 01 1 9811- ●
68 04.175 RING; OIL SEAL,TURBINE SHAFT
6VD1 ENG(RLV) 		8-96017-484-0 02 1 9804- ●
109 04.175 DRIVER; COUPLING,A/T
6VD1 ENG(RLV) 		8-96018-182-0 01 1 9804-0012 ●
109 04.175 DRIVER; COUPLING,A/T
4X2(TFB***) 6VD1 ENG(RLV) 		8-96018-182-0 01 1 0101- ●
112 04.176 NUT; COUPLING DRIVER,A/T
6VD1 ENG(RLV) 		8-90446-832-0 01 1 9804-0012 ●
112 04.176 NUT; COUPLING DRIVER,A/T
4X2(TFB***) 6VD1 ENG(RLV) 		8-90446-832-0 01 1 0101- ●
121 04.226 CONNECTOR; ELEC
6VD1 ENG(RLV) 		8-96015-409-0 01 1 9804- ●
162 04.054 SENSOR; REVOLUTION,A/T CONT
6VD1 ENG(RLV) 		8-96014-422-0 01 1 9804- ●
164 04.054 BOLT; REV SENSOR,A/T
6VD1 ENG(RLV) 		8-96014-809-0 01 1 9804- ●
167 04.052 CONNECTOR; CASE,A/T
6VD1 ENG(RLV) 		8-96015-477-0 01 1 9804- ●
167 04.052 CONNECTOR; CASE,A/T
04.104 		8-97126-812-0 01 1 0110- ●
176 04.052 RESERVOIR; MAIN CASE
6VD1 ENG(RLV) 		8-96014-865-0 01 1 9804- ●
177 04.052 SEAL; MAIN CASE
6VD1 ENG(RLV) 		8-96017-547-0 01 1 9804- ●
193 04.205 BEARING; OUTPUT SHAFT
6VD1 ENG(RLV) 		8-96014-732-0 01 1 9804-0012 ●
193 04.205 BEARING; OUTPUT SHAFT
4X2(TFB***) 6VD1 ENG(RLV) 		8-96014-732-0 01 1 0101- ●
194 04.205 GASKET; COUPLING DRIVE
6VD1 ENG(RLV) 		8-96014-418-0 01 1 9804-0012 ●
194 04.205 GASKET; COUPLING DRIVE
4X2(TFB***) 6VD1 ENG(RLV) 		8-96014-418-0 01 1 0101- ●
276 04.103 GASKET; SHAFT
6VD1 ENG(RLV) 04.175 (A) 		8-96013-953-0 01 1 9804- ●
276 04.103 GASKET; SHAFT
6VD1 ENG(RLV) 04.175 (B) 		8-96041-327-0 01 1 9804- ●
285 04.226 BRACKET; HARNESS
6VD1 ENG(RLV) 		8-96018-455-0 01 1 9804- ●

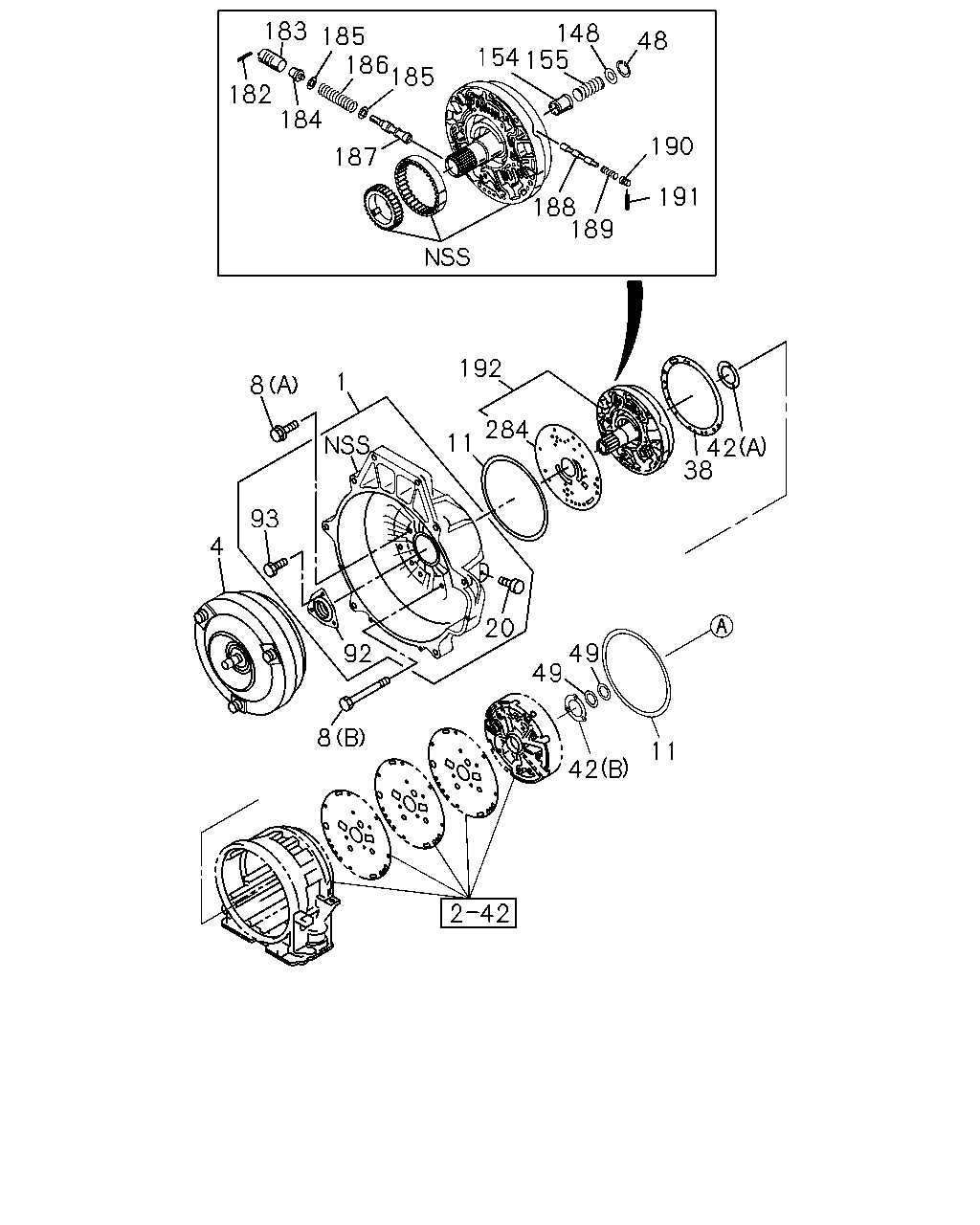

çizim 69360
183 185 186 185 182 184 148 154 155 48 188 189 190 187 191 192 1 8 284 11 42 38 93 4 92 20 49 49 8 11 42
BalonParca AdiParca NoAdetTipApplied Date A B
1 04.103 HOUSING; CONV,A/T
6VD1 ENG(RLV) 		8-96042-233-0 01 1 9804- ●
1 04.103 HOUSING; CONV,A/T 8-97321-170-0 01 1 0110- ●
4 04.115 CONVERTER ASM; TORQUE,A/T
6VD1 ENG(RLV) 		8-24210-868-0 01 1 9804- ●
4 04.115 CONVERTER ASM; TORQUE,A/T 8-97321-168-0 01 1 0110- ●
8 04.217 BOLT; HSG TO CASE
6VD1 ENG(RLV) (A) 		8-96013-210-0 05 1 9804- ●
8 04.217 BOLT; HSG TO CASE
6VD1 ENG(RLV) (B) 		8-96018-559-0 07 1 9804- ●
8 04.217 BOLT; HSG TO CASE
(C) M10X35 		8-90257-082-0 04 1 0110- ●
8 04.217 BOLT; HSG TO CASE
(D) M12X68 		8-97025-830-0 02 1 0110- ●
11 04.104 RING; SEALING,TRANS CASE
6VD1 ENG(RLV) 		8-96017-189-0 02 1 9804- ●
20 04.105 PLUG; TAPER,A/T CASE
6VD1 ENG(RLV) 		8-08662-173-0 01 1 9804- ●
38 04.226 GASKET; OIL PUMP,A/T
6VD1 ENG(RLV) 		8-96014-973-0 01 1 9804- ●
38 04.226 GASKET; OIL PUMP,A/T 8-94479-748-0 01 1 0110- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (A) YELLOW 		8-96013-761-0 01 1 9804- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (A) RED 		8-96013-762-0 01 1 9804-9909 ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (A) BLACK 		8-96013-763-0 01 1 9804-9909 ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (A) NATURAL 		8-96013-764-0 01 1 9804-9909 ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (A) GREEN 		8-96013-765-0 01 1 9804-9909 ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (A) BLUE 		8-96013-766-0 01 1 9804-9909 ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (B) YELLOW 		8-96017-289-0 01 1 9804-9909 ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (B) RED 		8-96017-290-0 01 1 9804-9909 ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (B) BLACK 		8-96017-291-0 01 1 9804-9909 ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (B) WHITE 		8-96017-292-0 01 1 9804-9909 ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (B) GREEN 		8-96017-293-0 01 1 9804-9909 ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (B) BLUE 		8-96017-294-0 01 1 9804-9909 ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (A) RED 		8-96013-762-0 01 1 9910- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (A) BLACK 		8-96013-763-0 01 1 9910- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (A) NATURAL 		8-96013-764-0 01 1 9910- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (A) GREEN 		8-96013-765-0 01 1 9910- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (A) BLUE 		8-96013-766-0 01 1 9910- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (B) YELLOW 		8-96017-289-0 01 1 9910- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (B) RED 		8-96017-290-0 01 1 9910- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (B) BLACK 		8-96017-291-0 01 1 9910- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (B) WHITE 		8-96017-292-0 01 1 9910- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (B) GREEN 		8-96017-293-0 01 1 9910- ●
42 04.226 WASHER; OIL PUMP HSG,A/T
6VD1 ENG(RLV) (B) BLUE 		8-96017-294-0 01 1 9910- ●
48 04.175 RING; SNAP,OIL PUMP,A/T
6VD1 ENG(RLV) 		8-96014-406-0 01 1 9804- ●
49 04.226 RING; OIL SEAL
6VD1 ENG(RLV) 		8-96017-553-0 02 1 9804- ●
92 04.226 COVER ASM; A/T
6VD1 ENG(RLV) 		8-96015-187-0 01 1 9804- ●
93 04.226 BOLT; COVER & BUSHING,A/T
6VD1 ENG(RLV) 		8-96015-215-0 03 1 9804- ●
148 04.226 RETAINER; SPRING,CAM RING,OIL PU
6VD1 ENG(RLV) 		8-96014-405-0 01 1 9804- ●
154 04.166 PISTON; ACCUMLATOR,OIL PUMP
6VD1 ENG(RLV) 		8-96014-403-0 01 1 9804- ●
155 04.164 SPRING; SERVO,ACCUMLATOR PISTON,
6VD1 ENG(RLV) 		8-96014-404-0 01 1 9804- ●
182 04.052 PIN; BOOST VALVE SLEEVE
6VD1 ENG(RLV) 		8-08958-824-0 01 1 9804- ●
183 04.052 SLEEVE; BOOST VALVE
6VD1 ENG(RLV) 		8-96016-067-0 01 1 9804- ●
184 04.205 VALVE; BOOST
6VD1 ENG(RLV) 		8-96016-071-0 01 1 9804- ●
185 04.205 SEAT; SPR,REG VALVE
6VD1 ENG(RLV) 		8-05258-219-0 02 1 9804- ●
186 04.205 SPRING; REG VALVE
6VD1 ENG(RLV) 		8-96017-526-0 01 1 9804- ●
187 04.205 VALVE; PRESSURE REG
6VD1 ENG(RLV) 		8-96016-072-0 01 1 9804- ●
188 04.205 VALVE; CONV CLU CONT
6VD1 ENG(RLV) 		8-96014-396-0 01 1 9804- ●
189 04.205 SPRING; CONV CLU CONT VALVE
6VD1 ENG(RLV) 		8-96014-397-0 01 1 9804- ●
190 04.205 PLUG; CONV CLU CONT VALVE
6VD1 ENG(RLV) 		8-96013-218-0 01 1 9804- ●
191 04.205 PIN; SPR,PLUG
6VD1 ENG(RLV) 		8-96013-658-0 01 1 9804- ●
192 04.200 PUMP KIT; OIL
6VD1 ENG(RLV) 		8-96041-284-0 01 1 9804- ●
284 04.224 PLATE; WEAR,OIL PUMP
6VD1 ENG(RLV) 04.226 		8-96017-926-0 01 1 9804- ●

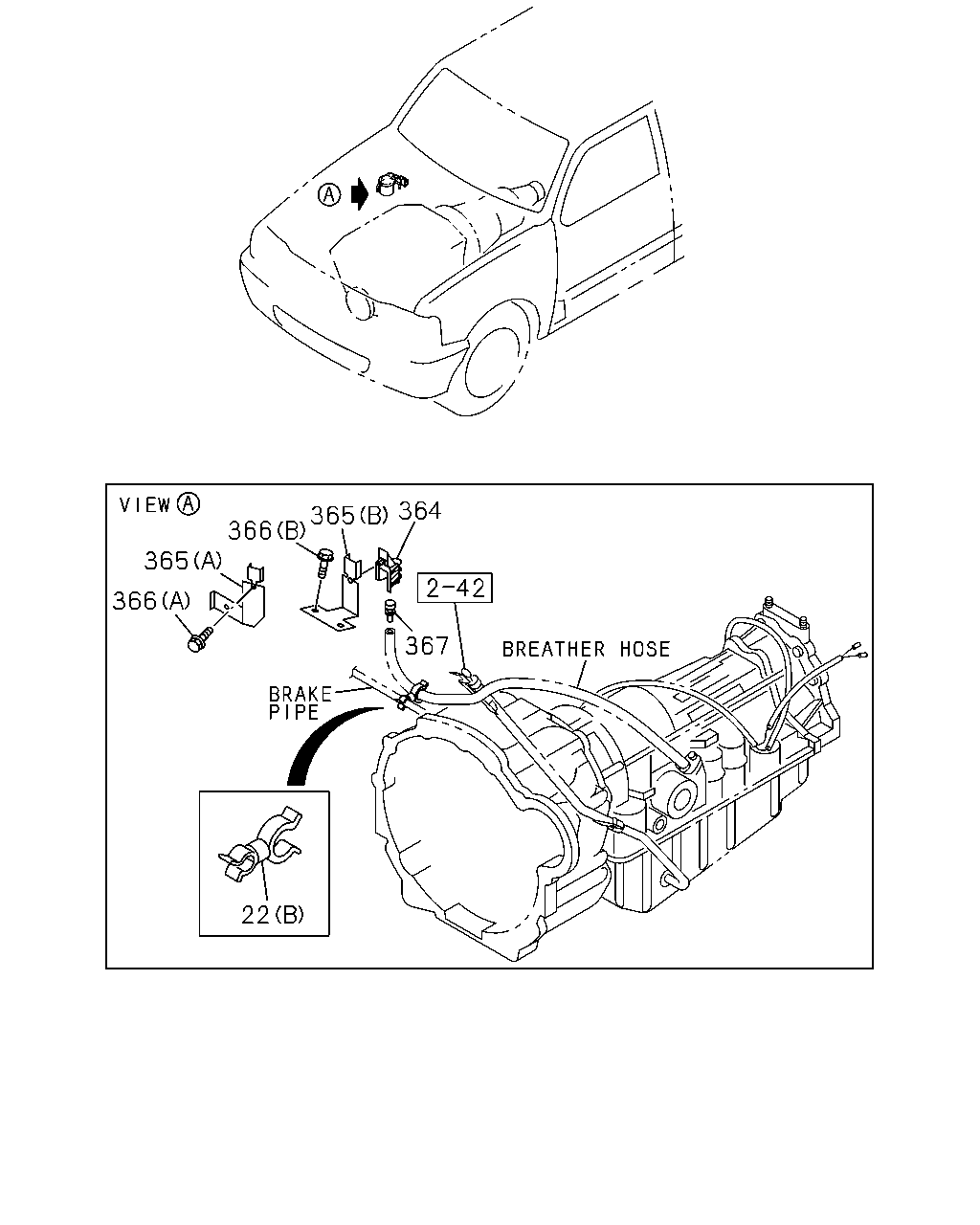

çizim 71335
364 365 366 365 366 367 22
BalonParca AdiParca NoAdetTipApplied Date A B
22 04.101 CLIP; BREATHER HOSE,A/T
(A) 		8-94479-730-0 01 1 0110- ●
22 04.101 CLIP; BREATHER HOSE,A/T
4JH1 ENG(RJX) 03.163 (B) ID=13 & 4.75 		8-94447-856-0 01 1 0110- ●
364 04.104 COVER; AIR BREATHER,A/T
CREW CAB(TF**W*) 4JG2 ENG(RJC),4JH1 ENG(RJX) 		8-97228-324-0 01 1 0110- ●
365 04.104 BRACKET; BREATHER HOSE,A/T
4JH1 ENG(RJX) (A) 		8-97231-740-1 01 1 0110- ●
365 04.104 BRACKET; BREATHER HOSE,A/T
4JH1 ENG(RJX) (B) 		8-97308-750-0 01 1 0110- ●
366 04.104 BOLT; BRKT,BREATHER HOSE
4JH1 ENG(RJX) 02.500 (A) M6X10 FLANGE 		0-28080-610-0 01 1 0110- ●
366 04.104 BOLT; BRKT,BREATHER HOSE
4JH1 ENG(RJX) 02.500 (B) M6X10 FLANGE 		0-28080-610-0 02 1 0110- ●
367 04.104 BREATHER; AIR,MISSION
CREW CAB(TF**W*) 4JG2 ENG(RJC),4JH1 ENG(RJX) 		8-97164-362-0 01 1 0110- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
