Isuzu WW
▶
PICKUP
▶
TFR
▶
50800 - TFR/TFS-RHD
▶
2 - Clutch, Transmission, Trans Axle
▶
2-40 - AUTO TRANS ASM AND REPAIR KIT
▶
2-40 — AUTO TRANS ASM AND REPAIR KIT
(#45654) — 18 parça
Tümü

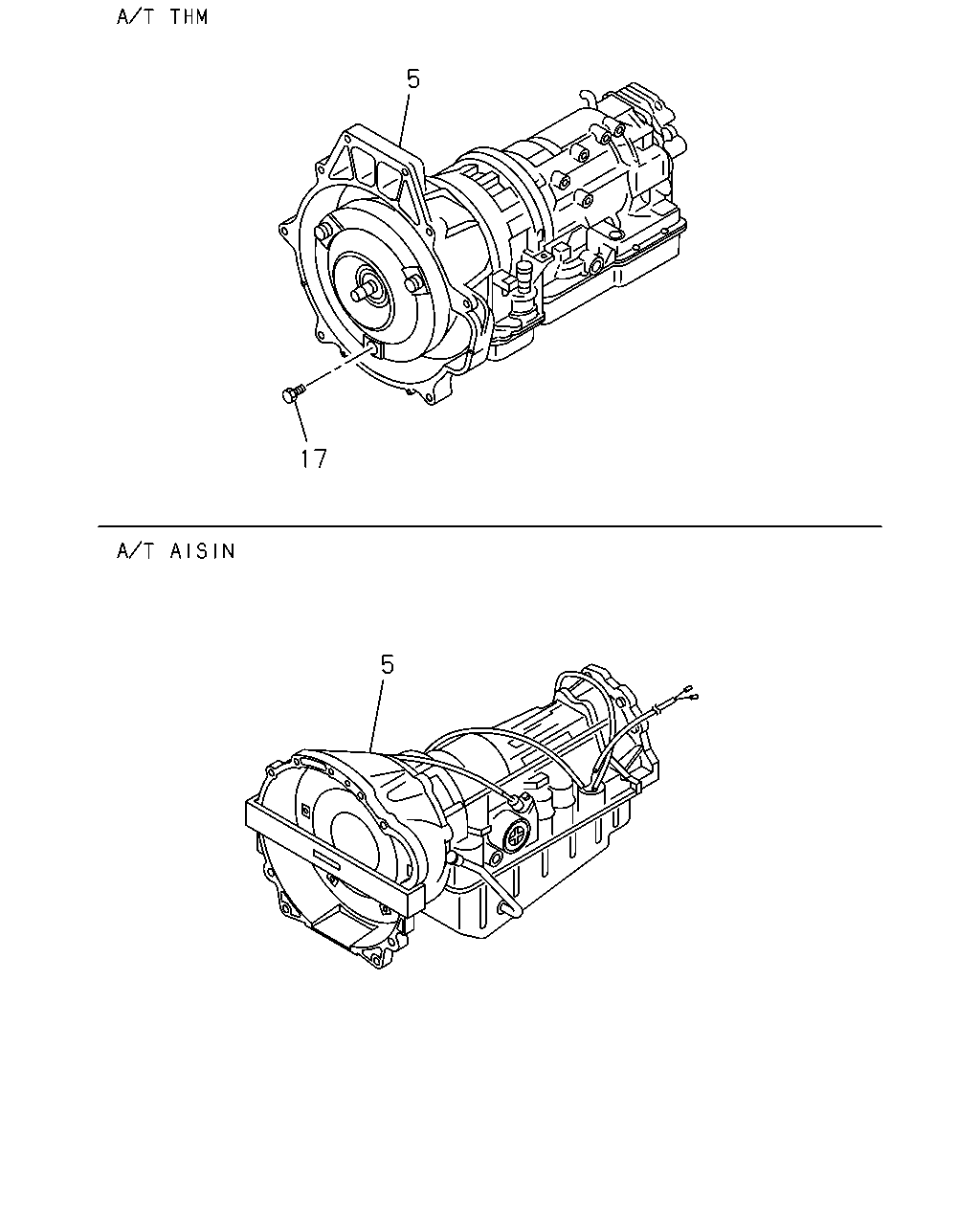

A - A/T THM
B - A/T AISIN
◀
[240A] TRANSMISSION ASM (6 parça)
[240A] REPAIR KIT(NO.3) (2 parça)
[240A] REPAIR KIT(NO.2) (3 parça)
[240A] REPAIR KIT(NO.4) (2 parça)
[240A] REPAIR KIT(NO.1) (3 parça)
[240A] REPAIR KIT(NO.5) (2 parça)
▶
5
17
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
5
04.003 TRANSMISSION ASM; AUTO
6VD1 ENG(RLV)
8-96018-434-1
01
1
9804-0012
●
5
04.003 TRANSMISSION ASM; AUTO
4X2(TFB***) 6VD1 ENG(RLV)
8-96018-434-1
01
1
0101-
●
5
04.003 TRANSMISSION ASM; AUTO
4X4 LONG(TFS**F) 6VD1 ENG(RLV)
8-96018-430-1
01
1
0101-
●
5
04.003 TRANSMISSION ASM; AUTO
4X2 CREW CAB(TFB*W*) 4JH1 ENG(RJX)
8-97258-611-2
01
1
0110-
●
5
04.003 TRANSMISSION ASM; AUTO
4X4 CREW CAB(TFS*W*) 4JH1 ENG(RJX)
8-97258-612-2
01
1
0110-
●
17
04.008 BOLT; PLATE TO CONV
6VD1 ENG(RLV) M10X14.7
8-94157-666-2
06
1
9804-
●
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3

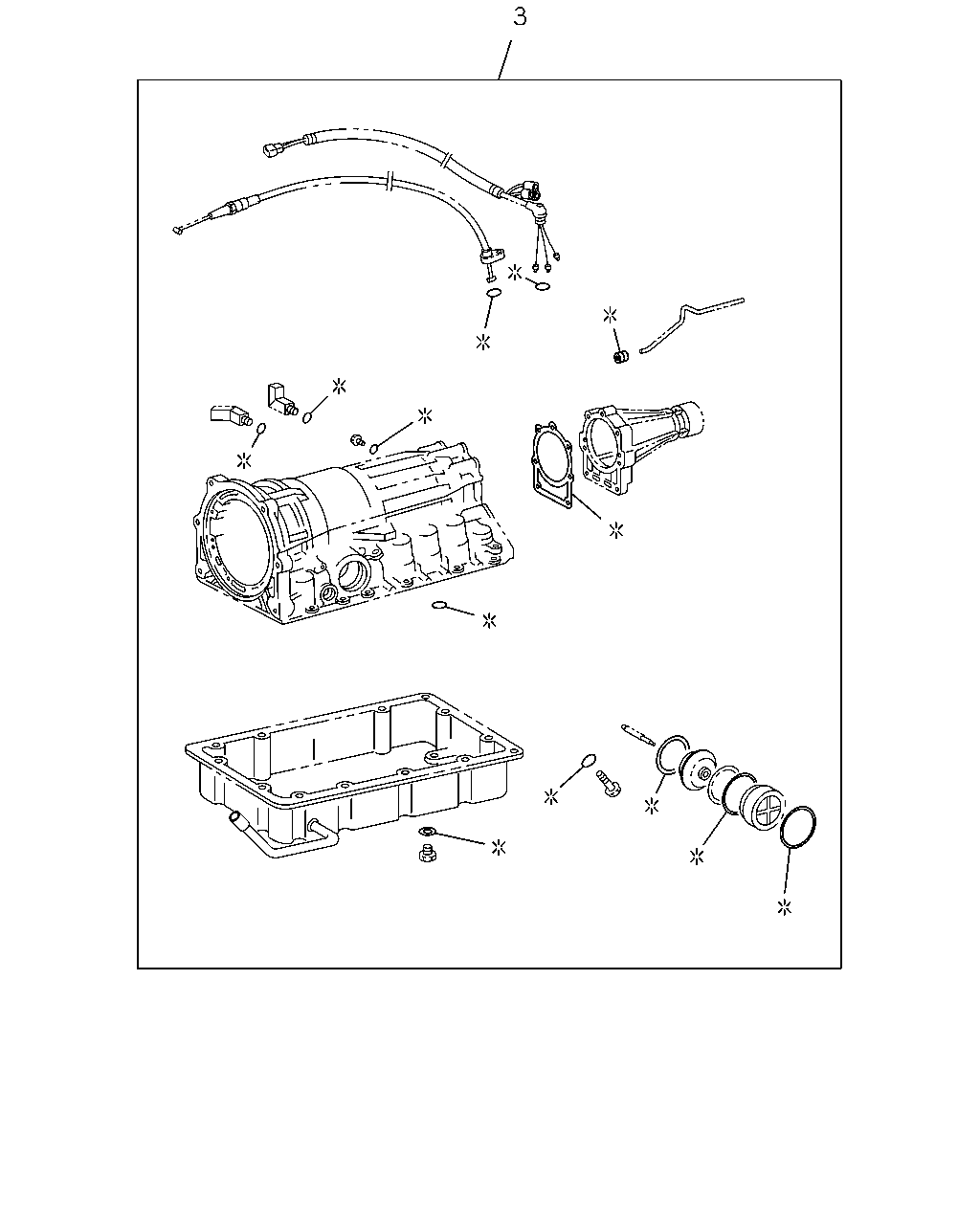

04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2 CREW CAB(TFB*W*) 4JH1 ENG(RJX)
8-97307-162-0
01
1
0110-
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***)
8-97186-631-0
01
1
0110-
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
04.005 REPAIR KIT; A/T

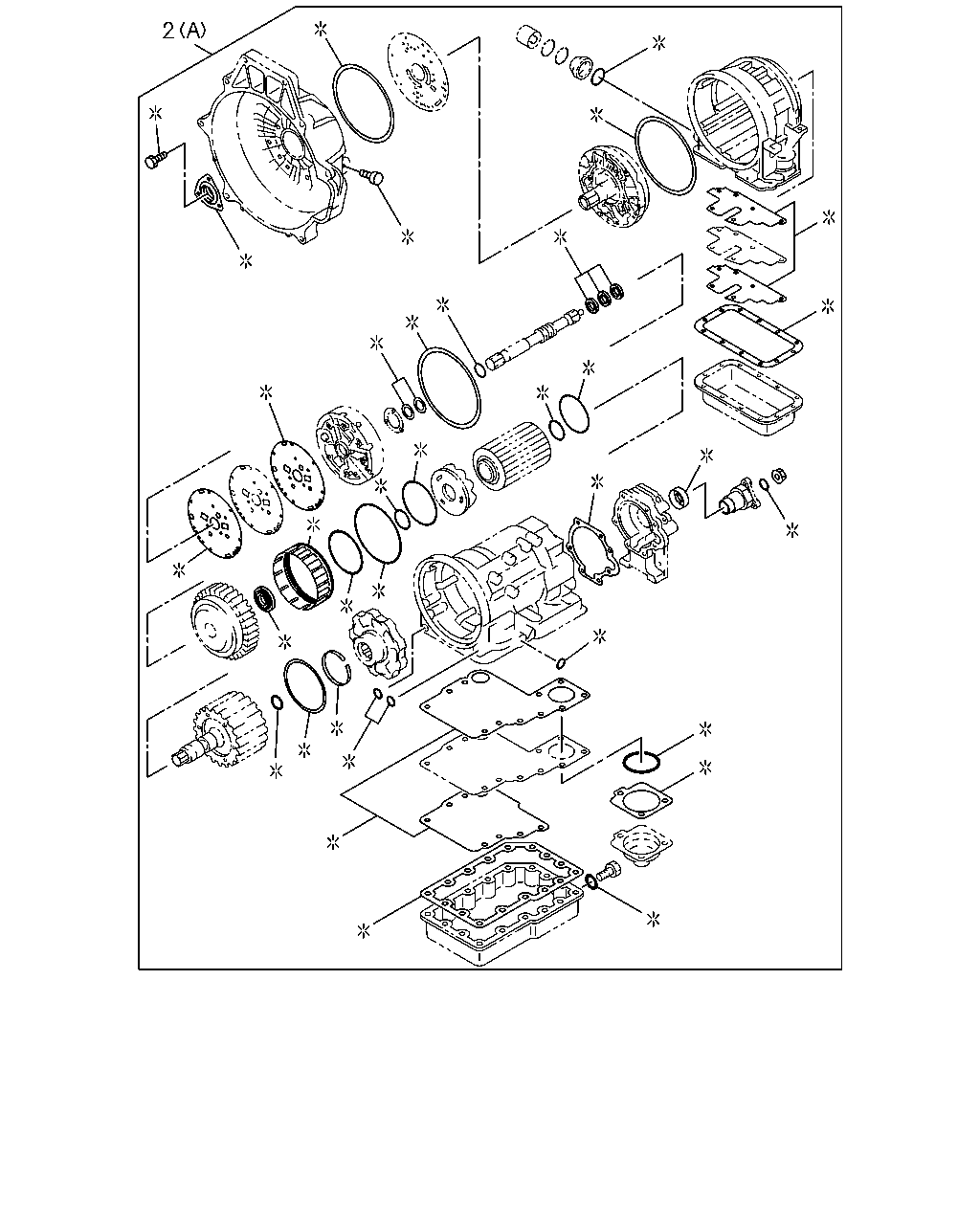

6VD1 ENG(RLV) (A)
8-96041-118-0
01
1
9804-
●
2
04.005 REPAIR KIT; A/T

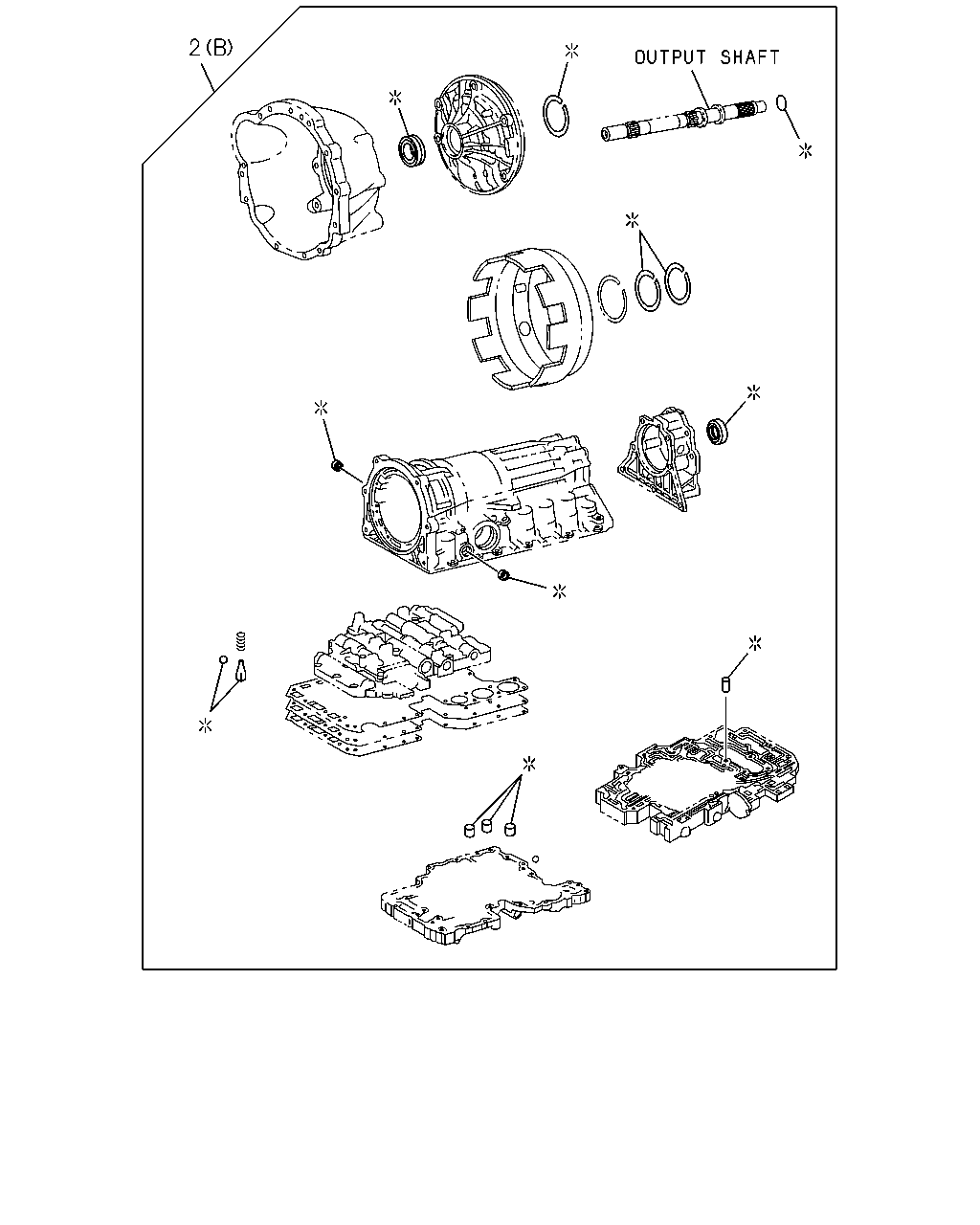

4X2 CREW CAB(TFB*W*) 4JH1 ENG(RJX) (B)
8-97307-161-0
01
1
0110-
●
2
04.005 REPAIR KIT; A/T
4X4(TFS***) (B)
8-97186-384-0
01
1
0110-
●
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3

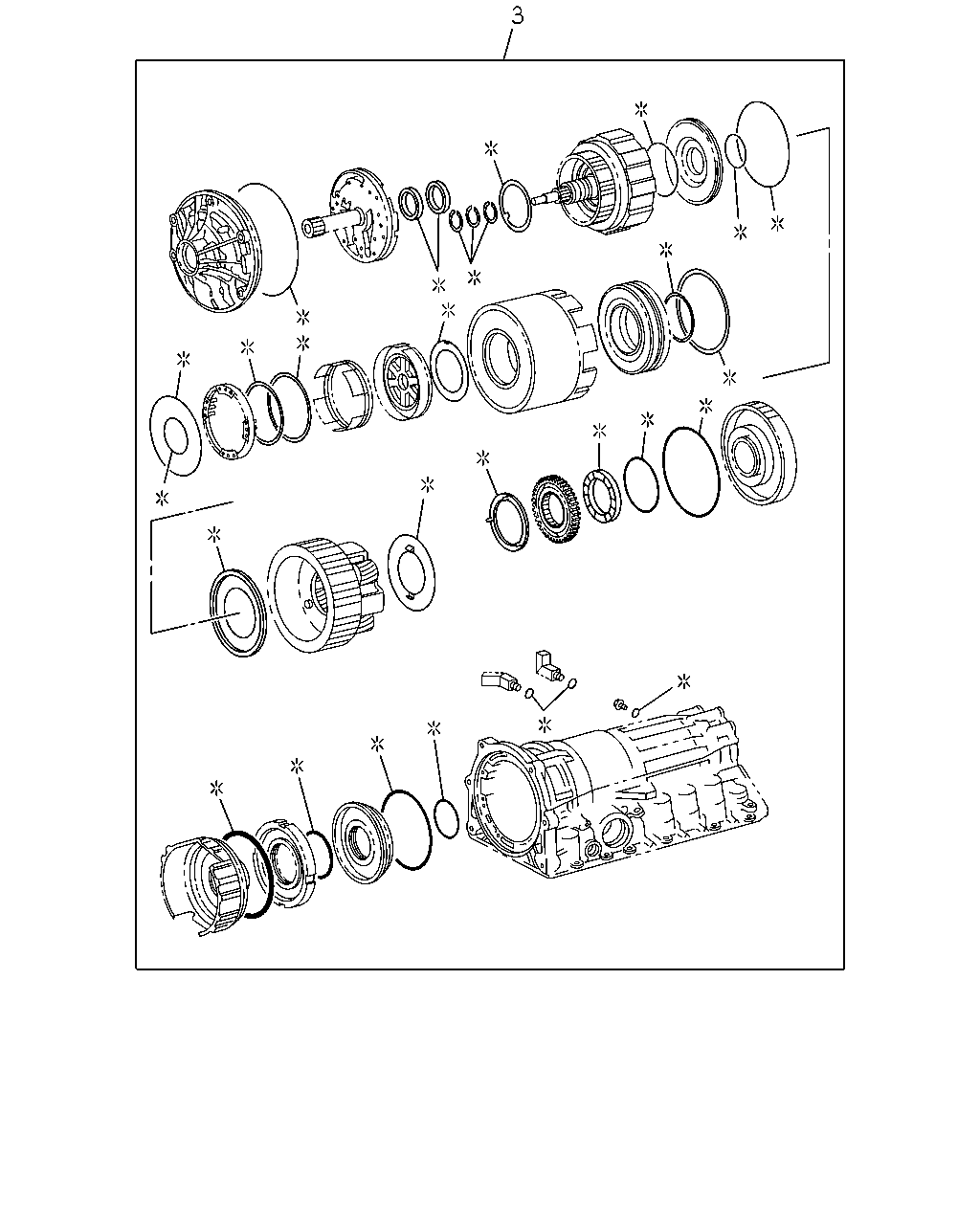

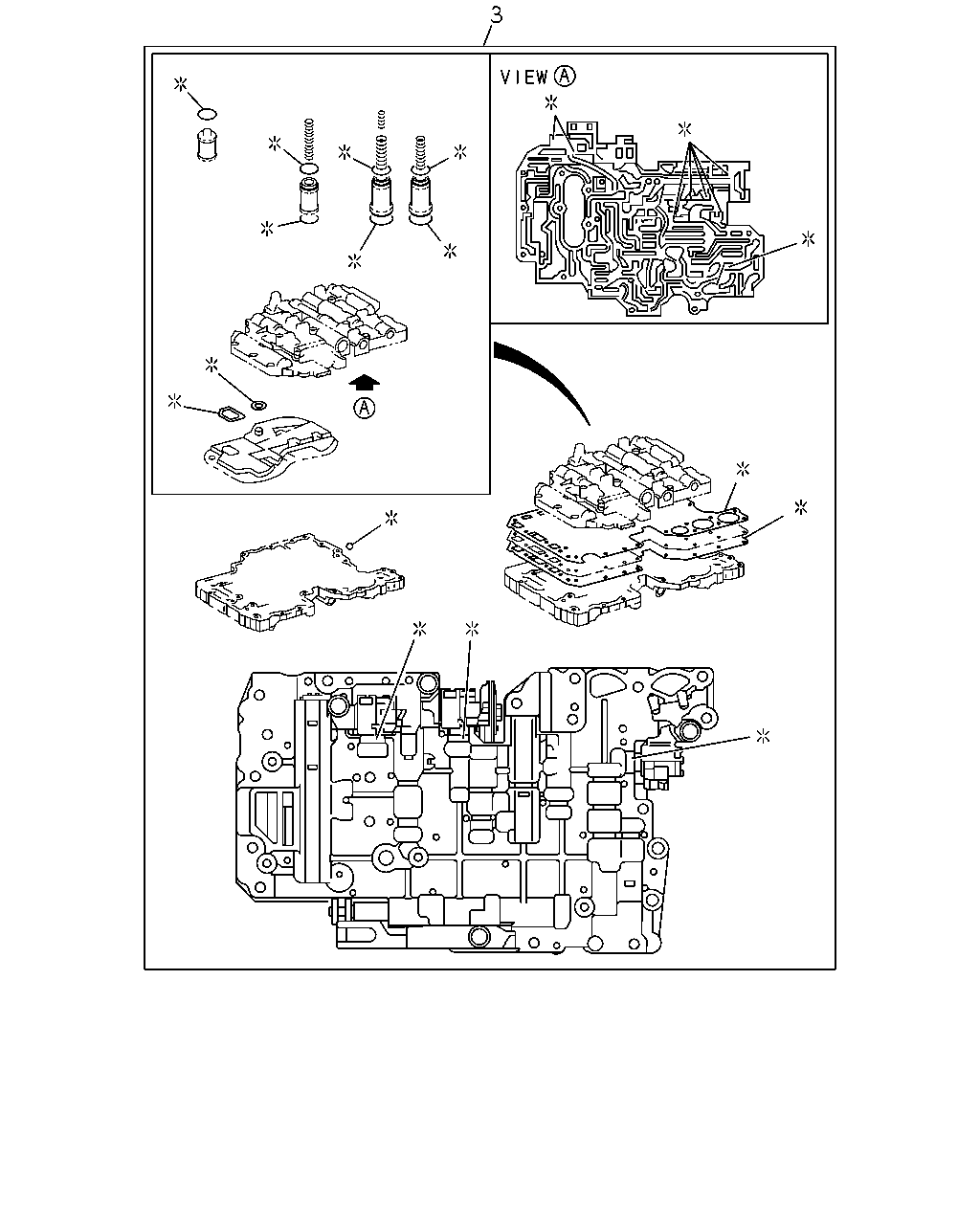

04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2 CREW CAB(TFB*W*) 4JH1 ENG(RJX)
8-97307-162-0
01
1
0110-
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***)
8-97186-631-0
01
1
0110-
●
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
04.005 REPAIR KIT; A/T
6VD1 ENG(RLV) (A)
8-96041-118-0
01
1
9804-
●
2
04.005 REPAIR KIT; A/T
4X2 CREW CAB(TFB*W*) 4JH1 ENG(RJX) (B)
8-97307-161-0
01
1
0110-
●
2
04.005 REPAIR KIT; A/T
4X4(TFS***) (B)
8-97186-384-0
01
1
0110-
●
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X2 CREW CAB(TFB*W*) 4JH1 ENG(RJX)
8-97307-162-0
01
1
0110-
●
3
04.005 REPAIR KIT; SEAL & GASKET,A/T
4X4(TFS***)
8-97186-631-0
01
1
0110-
●
