◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50800 - TFR/TFS-RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#45652) — 800 parça

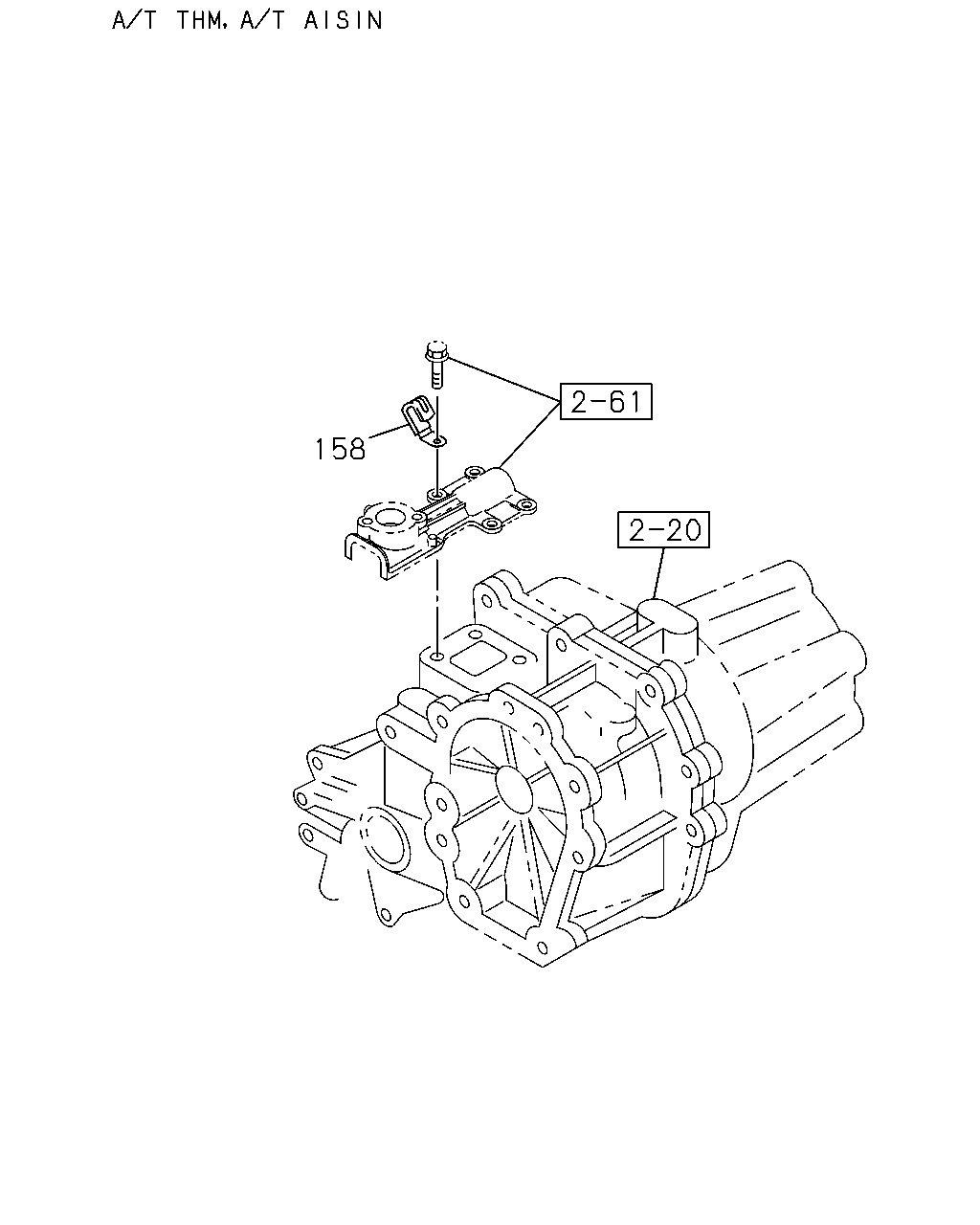

çizim 18757
158
BalonParca AdiParca NoAdetTipApplied Date A B C D
158 04.105 CLIP; HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 02 1 9804- ●
158 04.105 CLIP; HARNESS
4X4(TFS***) 6VD1 ENG(RLV) 00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0101-0109 ●
158 04.105 CLIP; HARNESS
4X4(TFS***) 4JH1 ENG(RJX),6VD1 ENG(RLV) 00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0110- ● ●

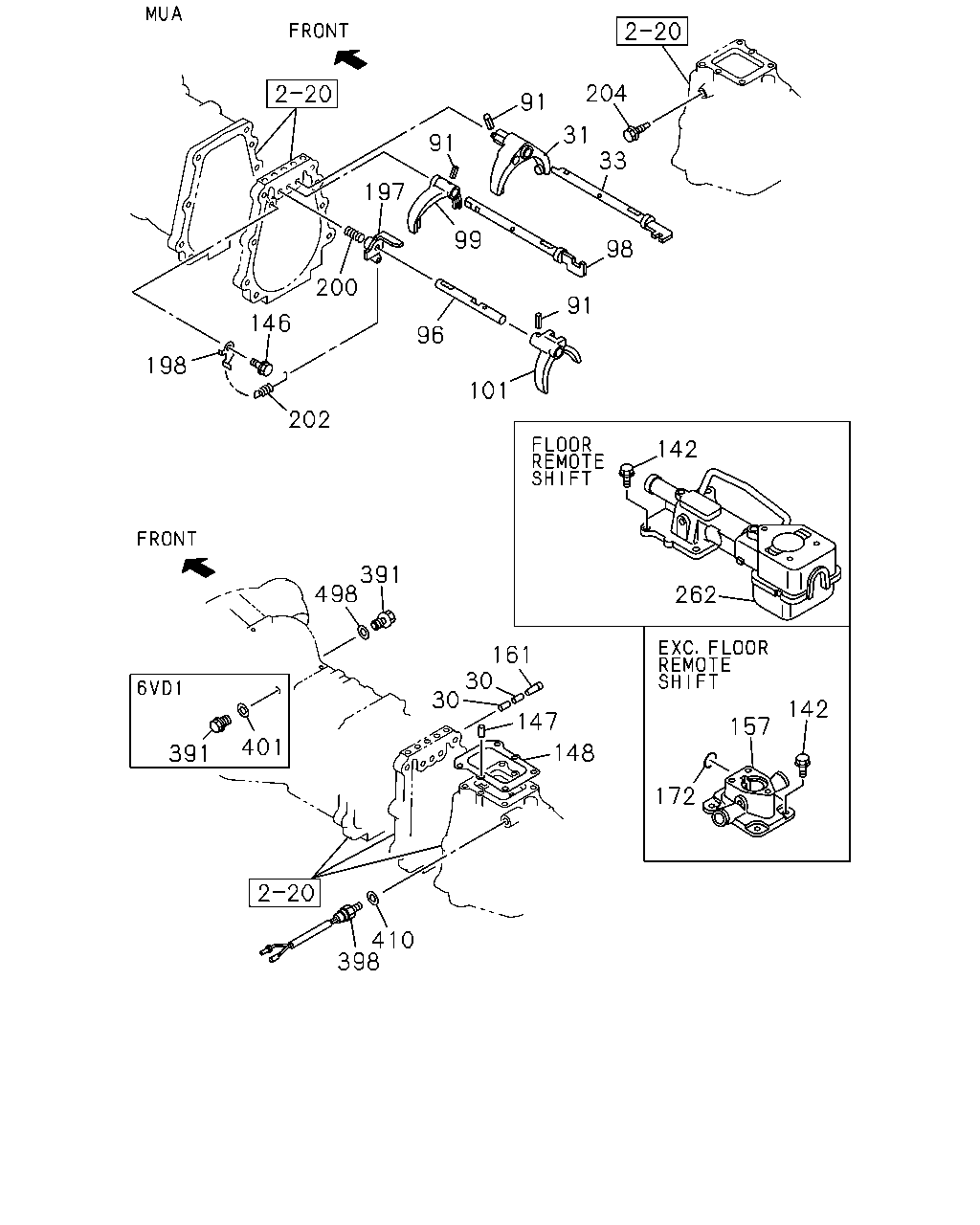

çizim 69794
204 91 31 91 33 197 99 98 200 91 146 96 198 101 202 142 391 498 262 161 30 30 142 147 157 401 148 391 172 410 398
BalonParca AdiParca NoAdetTipApplied Date A B C D
30 04.307 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 9804- ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-97024-503-1 01 1 9804- ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-94421-912-2 01 1 9804- ●
33 04.309 ROD; SHIFT,LOW & 2ND
FLOOR REMOTE SHIFT<M11> 		8-94455-849-1 01 1 9804-9901 ●
33 04.309 ROD; SHIFT,LOW & 2ND
FLOOR REMOTE SHIFT<M11> 		8-97211-465-0 01 1 9902-9902 ●
33 04.309 ROD; SHIFT,LOW & 2ND
FLOOR REMOTE SHIFT<M11> 		8-97213-047-0 01 1 9903- ●
33 04.309 ROD; SHIFT,LOW & 2ND
EXC. FLOOR REMOTE SHIFT<M11> 		8-94435-156-1 01 1 9804-9901 ●
33 04.309 ROD; SHIFT,LOW & 2ND
EXC. FLOOR REMOTE SHIFT<M11> 		8-97211-463-0 01 1 9902-9902 ●
33 04.309 ROD; SHIFT,LOW & 2ND
EXC. FLOOR REMOTE SHIFT<M11> 		8-97213-046-0 01 1 9903- ●
33 04.309 ROD; SHIFT,LOW & 2ND
FLOOR REMOTE SHIFT<M11> 		8-97019-061-2 01 1 9804- ●
33 04.309 ROD; SHIFT,LOW & 2ND
EXC. FLOOR REMOTE SHIFT<M11> 		8-94421-915-4 01 1 9804- ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 9804- ● ●
96 04.309 ROD; SHIFT,5TH 8-94440-079-1 01 1 9804- ●
98 04.309 ROD; SHIFT,TOP & 3RD
FLOOR REMOTE SHIFT<M11> 		8-94372-767-0 01 1 9804-9901 ●
98 04.309 ROD; SHIFT,TOP & 3RD
FLOOR REMOTE SHIFT<M11> 		8-97211-461-0 01 1 9902-9902 ●
98 04.309 ROD; SHIFT,TOP & 3RD
FLOOR REMOTE SHIFT<M11> 		8-97213-045-0 01 1 9903- ●
98 04.309 ROD; SHIFT,TOP & 3RD
EXC. FLOOR REMOTE SHIFT<M11> 		8-94372-766-0 01 1 9804-9901 ●
98 04.309 ROD; SHIFT,TOP & 3RD
EXC. FLOOR REMOTE SHIFT<M11> 		8-97211-460-0 01 1 9902-9902 ●
98 04.309 ROD; SHIFT,TOP & 3RD
EXC. FLOOR REMOTE SHIFT<M11> 		8-97213-044-0 01 1 9903- ●
98 04.309 ROD; SHIFT,TOP & 3RD
FLOOR REMOTE SHIFT<M11> 		8-97019-060-3 01 1 9804- ●
98 04.309 ROD; SHIFT,TOP & 3RD
EXC. FLOOR REMOTE SHIFT<M11> 		8-94421-914-4 01 1 9804- ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94435-153-1 01 1 9804- ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 9804- ●
101 04.302 ARM; SHIFT,REV & 5TH
FLOOR REMOTE SHIFT<M11> 		8-94455-851-3 01 1 9804- ●
101 04.302 ARM; SHIFT,REV & 5TH
EXC. FLOOR REMOTE SHIFT<M11> 		8-94440-061-3 01 1 9804- ●
101 04.302 ARM; SHIFT,REV & 5TH
FLOOR REMOTE SHIFT<M11> 		8-94448-755-2 01 1 9804- ●
101 04.302 ARM; SHIFT,REV & 5TH
EXC. FLOOR REMOTE SHIFT<M11> 		8-97109-504-1 01 1 9804- ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-94448-815-3 04 1 9804- ● ●
146 04.032 BOLT; REV INHIBITOR
02.664 M8X20 FLANGE 		0-28680-820-0 01 1 9804-0011 ●
146 04.032 BOLT; REV INHIBITOR
07.010 M8X20 FLANGE 		0-28080-820-0 01 1 0012- ●
147 04.020 PIN; KNOCK
4X2(TFB***) 22LE/C22NE ENG(RJT),4JB1 ENG(RLF),6VD1 ENG(RLV) 04.510 OD=6 L=12 		9-08150-612-0 02 1 9804-0012 ●
147 04.020 PIN; KNOCK
4X2(TFB***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 04.510 OD=6 L=12 		9-08150-612-0 02 1 0101-0109 ●
147 04.020 PIN; KNOCK
4X2(TFB***) 04.510 OD=6 L=12 		9-08150-612-0 02 1 0110- ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97184-922-0 01 1 9804- ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 9804- ●
157 04.105 BOX; QUAD,TRANS
EXC. FLOOR REMOTE SHIFT<M11> 		8-94161-146-4 01 1 9804- ●
157 04.105 BOX; QUAD,TRANS
EXC. FLOOR REMOTE SHIFT<M11> 		8-97113-441-1 01 1 9804- ●
161 04.307 PLUG; INTER LK HOLE 8-94239-543-1 01 1 9804- ● ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 9804-9809 ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 22LE/C22NE ENG(RJT),4JB1 ENG(RLF),6VD1 ENG(RLV) 04.075 ID=14.2 		8-94462-114-0 01 1 9810-9811 ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 4X2 LONG(TFB**F) 4JB1 ENG(RLF) EXC. FLOOR REMOTE SHIFT<M11> 04.075 ID=14.2 		8-94462-114-0 01 1 9812-9909 ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) 04.075 ID=14.2 		8-94462-114-0 01 1 9812-9909 ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). EXC. FLOOR REMOTE SHIFT<M11> 04.075 ID=14.2 		8-94462-114-0 01 1 9910-0109 ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). EXC. FLOOR REMOTE SHIFT<M11>,CHARGE AIRCOOLER<6PL> 04.075 ID=14.2 		8-94462-114-0 01 1 0110- ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX),4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> 04.075 ID=14.2 		8-94462-114-0 01 1 0110- ●
197 04.309 INHIBITOR; REV SHIFT
FLOOR REMOTE SHIFT<M11> 		8-94448-753-0 01 1 9804- ●
197 04.309 INHIBITOR; REV SHIFT
EXC. FLOOR REMOTE SHIFT<M11> 		8-94448-201-1 01 1 9804- ●
198 04.309 BRACKET; REV INHIBITOR 8-94448-199-0 01 1 9804- ●
200 04.309 SPRING; REV INHIBITOR,COMP 8-94448-807-0 01 1 9804- ●
202 04.309 SPRING; REV INHIBITOR,EXT 8-97017-500-0 01 1 9804- ●
204 04.309 STOPPER; REV INHIBITOR 8-94479-434-2 01 1 9804- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SPACE CAB(TFB*C*) 4JA1 ENG(RLE) FRT&RR 205R16 104S 6JJX16 STYLED WHL LO W-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JG2 ENG(RJC) FRT&RR 195R14-8 5.5JJ-20 P RANGE(ANM), FRT&RR 195R14-8 5.5JJ-20 MICHELIN(ANN),F RT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ) FLOOR REMOTE SHIFT<M11> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 LONG(TFB**F) 6VD1 ENG(RLV) FRT&RR 225/70R15C 6JJX15 STYLED(AYG), FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JA1 ENG(RLE) FRT&RR 205R16 104S 6JJX16 STYLED WHL LO W-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SPACE CAB(TFB*C*) 4JB1 ENG(RLF) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ),FRT&RR 185R14-8 5.5JJX14 (APE),FRT&RR 225/70R15C 6JJX15 STYLED(AYG),FRT&RR 205R16 104S 6JJX16 STYLED WH L LOW-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY), FRT&RR 185R14-8 5.5JJX14(9PE) TURBOCHARGER<K51> FLOOR REMOTE SHIFT<M11> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JB1 ENG(RLF) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY), FRT&RR 185R14-8 5.5JJX14(9PE) TURBOCHARGER<K51> FLOOR REMOTE SHIFT<M11> EAST MALAYSIA EQUIPMENT(PM6) 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JB1 ENG(RLF) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ),FRT&RR 185R14-8 5.5JJX14 (APE),FRT&RR 225/70R15C 6JJX15 STYLED(AYG),FRT&RR 205R16 104S 6JJX16 STYLED WH L LOW-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY), FRT&RR 185R14-8 5.5JJX14(9PE) TURBOCHARGER<K51> FLOOR REMOTE SHIFT<M11> EXC. EAST MALAYSIA EQUIPMENT(PM6) 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97358-139-0 01 1 0310- ● ● ● ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-530-3 01 1 9804- ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97104-409-4 01 1 9804-9808 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97201-493-1 01 1 9809-0010 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97201-493-1 01 1 0011-0103 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97201-493-1 01 1 0104- ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-531-2 01 1 9804-9909 ●
262 04.105 BOX ASM; SHIFT CONT
4X2(TFB***) 22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> 		8-97181-531-3 01 1 9910-0012 ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-531-3 01 1 0101-0305 ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97358-200-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97172-637-1 01 1 9804-9811 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97215-046-1 01 1 9812-9909 ●
262 04.105 BOX ASM; SHIFT CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97215-046-1 01 1 9910-0003 ●
262 04.105 BOX ASM; SHIFT CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97257-822-0 01 1 0004-0305 ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JG2 ENG(RJC) FRT&RR 205/80R16 6JJX16 MICHELIN STYLED (BXZ),FRT&RR 205/80R16 6JJX16 MICHELIN ALUMI(BYA),FRT&RR 205R16 104S 6JJX16 STYLED WHL LOW-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR(BYP) FLOOR REMOTE SHIFT<M11> 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 SHORT(TFS**C) 4JA1 ENG(RLE) FRT&RR 205R16 104S 6JJX16 STYLED WHL LO W-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR(BYP),FRT&RR 215R15-6 5.5K X15 STYLED WHL(BZH),FRT 6.5-15-6 RR 6.5-15-8 5.5KX15(9PA),FRT&RR 6.50-15-8 5.5 KX15 STYLED WHL(9RE) 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JA1 ENG(RLE) FRT&RR 205R16 6JJX16 STEEL WHL(BUP), FRT&RR 205R16 6JJX16 ALUMI WHL(BUQ),FRT&RR 205/80R16 6JJX16 MICHELIN STYLED(BXZ), FRT&RR 205/80R16 6JJX16 MICHELIN ALUMI(BYA),FRT&RR 205R16 104S 6JJX16 STYLED W HL LOW-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR(BYP),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT 6.5-15-6 R R 6.5-15-8 5.5KX15(9PA),FRT&RR 6.50-15-8 5.5KX15 STYLED WHL(9RE) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97257-823-0 01 1 0110-0309 ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97357-583-0 01 1 0310- ●
391 04.104 PLUG; SW HOLE
M14X11 		8-94252-142-0 01 1 9804-9809 ●
391 04.104 PLUG; SW HOLE
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) M14X11 		8-94252-142-0 01 1 9804-9809 ●
391 04.104 PLUG; SW HOLE
6VD1 ENG(RLV) M14X11 		8-94252-142-0 01 1 9804-9809 ●
391 04.104 PLUG; SW HOLE
M14X11 		8-94252-142-0 01 1 9810-9811 ●
391 04.104 PLUG; SW HOLE
4JB1 ENG(RLF),6VD1 ENG(RLV) M14X11 		8-94252-142-0 01 1 9810-9811 ●
391 04.104 PLUG; SW HOLE
6VD1 ENG(RLV) M14X11 		8-94252-142-0 01 1 9810-9811 ●
391 04.104 PLUG; SW HOLE
4JA1 ENG(RLE),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> M14X11 		8-94252-142-0 01 1 9812-9909 ●
391 04.104 PLUG; SW HOLE
22LE/C22NE ENG(RJT),4JB1 ENG(RLF),6VD1 ENG(RLV) M14X11 		8-94252-142-0 01 1 9812-9909 ●
391 04.104 PLUG; SW HOLE
4X2 LONG(TFB**F) 4JB1 ENG(RLF) EXC. FLOOR REMOTE SHIFT<M11> M14X11 		8-94252-142-0 01 1 9812-9909 ●
391 04.104 PLUG; SW HOLE
4JB1 ENG(RLF),6VD1 ENG(RLV) M14X11 		8-94252-142-0 01 1 9910-0109 ●
391 04.104 PLUG; SW HOLE
4JG2 ENG(RJC),4JA1 ENG(RLE),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> M14X11 		8-94252-142-0 01 1 9910-0109 ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JB1 ENG(RLF) EXC. FLOOR REMOTE SHIFT<M11> M14X11 		8-94252-142-0 01 1 9910-0109 ●
391 04.104 PLUG; SW HOLE
4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) M14X11 		8-94252-142-0 01 1 0110- ●
391 04.104 PLUG; SW HOLE
4JG2 ENG(RJC),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> M14X11 		8-94252-142-0 01 1 0110- ●
391 04.104 PLUG; SW HOLE
4X2(TFB***) 22LE/C22NE ENG(RJT),4JB1 ENG(RLF) EXC. FLOOR REMOTE SHIFT<M11> M14X11 		8-94252-142-0 01 1 0110- ●
398 02.698 SWITCH; REV LAMP
04.439 		8-94411-366-1 01 1 9804- ●
398 02.698 SWITCH; REV LAMP 8-97138-635-0 01 1 9804- ●
401 04.075 GASKET; SWITCH,TOP & 3RD
6VD1 ENG(RLV) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 9804- ●
410 04.054 GASKET; REV SW
ALSO INCLUDED IN GASKET SET(M/T). 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 9804- ●
498 04.075 GASKET; SWITCH,1ST & 2ND
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 9804-9909 ●
498 04.075 GASKET; SWITCH,1ST & 2ND
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 9910-0109 ●
498 04.075 GASKET; SWITCH,1ST & 2ND
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) 08.955 ID=14.2 OD=20.0 		9-09571-414-0 01 1 0110- ●

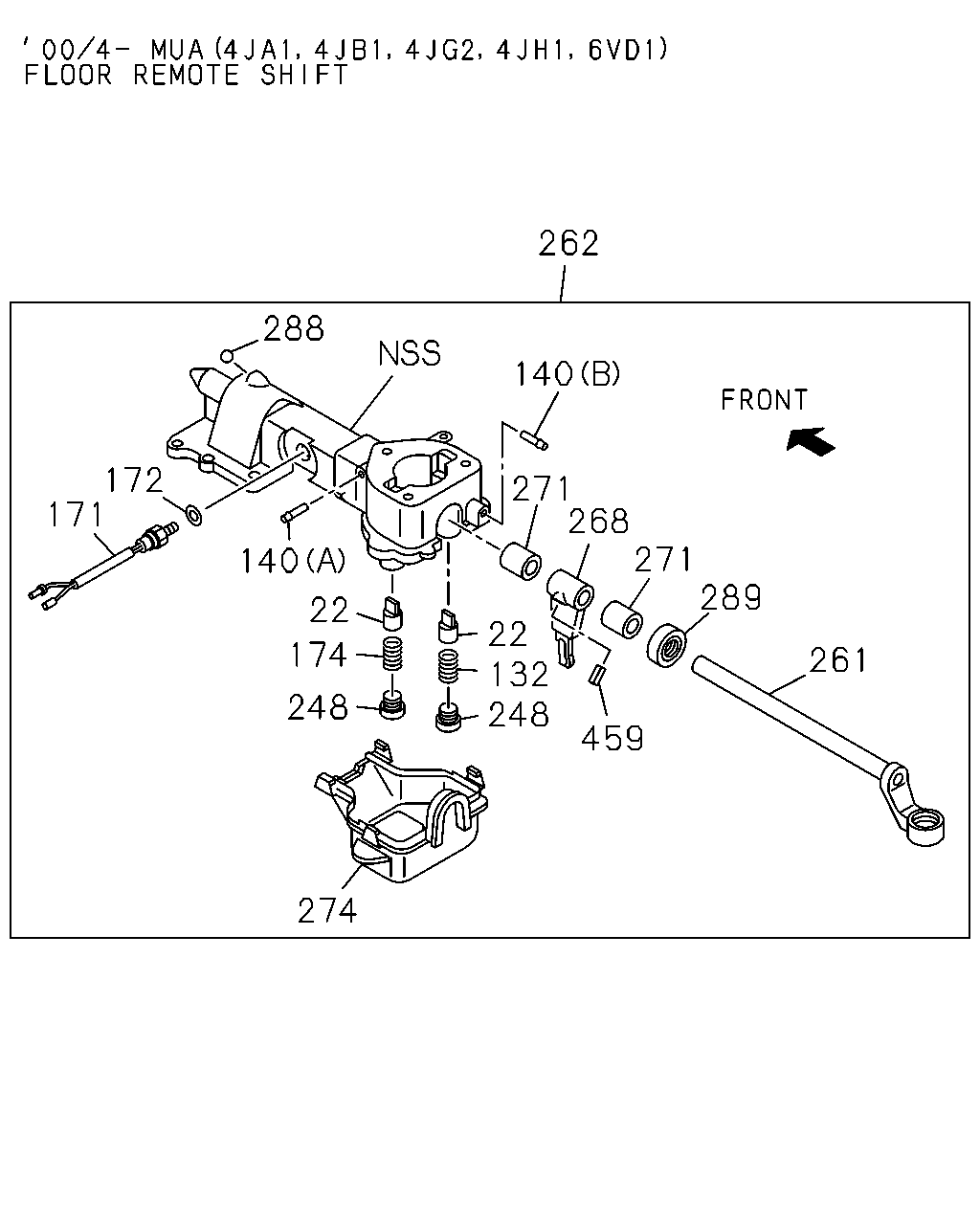

çizim 70380
262 288 140 172 171 271 268 271 289 140 22 22 132 248 174 261 248 459 274
BalonParca AdiParca NoAdetTipApplied Date A B C D
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 9804-9808 ● ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 9809-0003 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 9809-0003 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 0004-0109 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 0004-0109 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 0110- ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 0110- ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-102-0 02 1 9804-9808 ● ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-102-0 02 1 9809-9909 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-102-0 02 1 9910-0003 ●
132 04.027 SPRING; SELECT STOP
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 9805-9808 ● ●
132 04.027 SPRING; SELECT STOP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 9809-0003 ●
132 04.027 SPRING; SELECT STOP
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 9809-0003 ●
132 04.027 SPRING; SELECT STOP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 0004-0109 ●
132 04.027 SPRING; SELECT STOP
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 0004-0109 ●
132 04.027 SPRING; SELECT STOP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 0110- ●
132 04.027 SPRING; SELECT STOP
FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 0110- ●
132 04.027 SPRING; SELECT STOP
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-106-0 01 1 9804-9808 ● ●
132 04.027 SPRING; SELECT STOP
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-106-0 01 1 9809-9909 ●
132 04.027 SPRING; SELECT STOP
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-106-0 01 1 9910-0003 ●
140 04.104 BREATHER; AIR,TRANS
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 04.510 (C) 		8-97173-544-0 01 1 9804-9909 ●
140 04.104 BREATHER; AIR,TRANS
4X2(TFB***) 22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> 04.510 (C) 		8-97173-544-0 01 1 9910-0003 ●
140 04.104 BREATHER; AIR,TRANS
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> (C) 		8-97172-656-0 01 1 0004-0005 ●
140 04.104 BREATHER; AIR,TRANS
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> (A) 		8-97172-655-0 01 1 9804-9909 ●
140 04.104 BREATHER; AIR,TRANS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> (A) 		8-97172-655-0 01 1 9910-0003 ●
140 04.104 BREATHER; AIR,TRANS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.510 (A) 		8-97173-545-0 01 1 0004-0109 ●
140 04.104 BREATHER; AIR,TRANS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.510 (A) 		8-97173-545-0 01 1 0110-0305 ●
140 04.104 BREATHER; AIR,TRANS
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 04.510 		8-97173-545-0 01 1 0306-0309 ●
140 04.104 BREATHER; AIR,TRANS
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> (B) 		8-97172-656-0 01 1 9804-9804 ●
140 04.104 BREATHER; AIR,TRANS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> (B) 		8-97172-656-0 01 1 9805-9909 ●
140 04.104 BREATHER; AIR,TRANS
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> (B) 		8-97172-656-0 01 1 9910-0003 ●
140 04.104 BREATHER; AIR,TRANS
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.510 (B) 		8-97173-544-0 01 1 0004-0109 ●
140 04.104 BREATHER; AIR,TRANS
FLOOR REMOTE SHIFT<M11> 04.510 (B) 		8-97173-544-0 01 1 0110- ●
171 04.054 SWITCH; NEUTRAL
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97138-631-0 01 1 0110- ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 9804-9809 ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 22LE/C22NE ENG(RJT),4JB1 ENG(RLF),6VD1 ENG(RLV) 04.075 ID=14.2 		8-94462-114-0 01 1 9810-9811 ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 4X2 LONG(TFB**F) 4JB1 ENG(RLF) EXC. FLOOR REMOTE SHIFT<M11> 04.075 ID=14.2 		8-94462-114-0 01 1 9812-9909 ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) 04.075 ID=14.2 		8-94462-114-0 01 1 9812-9909 ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). EXC. FLOOR REMOTE SHIFT<M11> 04.075 ID=14.2 		8-94462-114-0 01 1 9910-0109 ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). EXC. FLOOR REMOTE SHIFT<M11>,CHARGE AIRCOOLER<6PL> 04.075 ID=14.2 		8-94462-114-0 01 1 0110- ●
172 04.054 GASKET; NEUTRAL SW
ALSO INCLUDED IN GASKET SET(M/T). 4JH1 ENG(RJX),4JA1 ENG(RLE) CHARGE AIR COOLER<6PL> FLOOR REMOTE SHIFT<M11> 04.075 ID=14.2 		8-94462-114-0 01 1 0110- ●
174 04.307 SPRING; REV
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 9804-9808 ● ●
174 04.307 SPRING; REV
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 9809-0003 ●
174 04.307 SPRING; REV
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 9809-0003 ●
174 04.307 SPRING; REV
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 0004-0109 ●
174 04.307 SPRING; REV
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 0004-0109 ●
174 04.307 SPRING; REV
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 0110- ●
174 04.307 SPRING; REV
FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 0110- ●
174 04.307 SPRING; REV
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-105-0 01 1 9804-9808 ● ●
174 04.307 SPRING; REV
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-105-0 01 1 9809-9909 ●
174 04.307 SPRING; REV
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-105-0 01 1 9910-0003 ●
248 04.105 RETAINER; CONT BOX
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 04.307 		8-97181-325-0 02 1 9805-9808 ● ●
248 04.105 RETAINER; CONT BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 04.307 		8-97181-325-0 02 1 9809-0003 ●
248 04.105 RETAINER; CONT BOX
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 04.307 		8-97181-325-0 02 1 9809-0003 ●
248 04.105 RETAINER; CONT BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 04.307 		8-97181-325-0 02 1 0004-0109 ●
248 04.105 RETAINER; CONT BOX
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.307 		8-97181-325-0 02 1 0004-0109 ●
248 04.105 RETAINER; CONT BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 04.307 		8-97181-325-0 02 1 0110- ●
248 04.105 RETAINER; CONT BOX
FLOOR REMOTE SHIFT<M11> 04.307 		8-97181-325-0 02 1 0110- ●
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97103-092-1 01 1 9804-9808 ●
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97203-908-1 01 1 9809-0005 ●
261 04.309 ROD; GEAR CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97184-904-1 01 1 9804-9910 ● ●
261 04.309 ROD; GEAR CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97184-904-1 01 1 9911-0005 ●
261 04.309 ROD; GEAR CONT
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97184-904-1 01 1 9911-0005 ●
261 04.309 ROD; GEAR CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97257-910-0 01 1 0006-0103 ● ●
261 04.309 ROD; GEAR CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97257-910-0 01 1 0104- ●
261 04.309 ROD; GEAR CONT
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97257-910-0 01 1 0104- ●
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-090-1 01 1 9804-9811 ●
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-092-1 01 1 9812-9909 ●
261 04.309 ROD; GEAR CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-092-1 01 1 9910-0003 ●
261 04.309 ROD; GEAR CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97257-825-0 01 1 0004-0005 ●
261 04.309 ROD; GEAR CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97257-825-0 01 1 0006-0103 ● ●
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97257-825-0 01 1 0104- ●
261 04.309 ROD; GEAR CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97257-825-0 01 1 0104- ●
261 04.309 ROD; GEAR CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97257-909-0 01 1 0110- ●

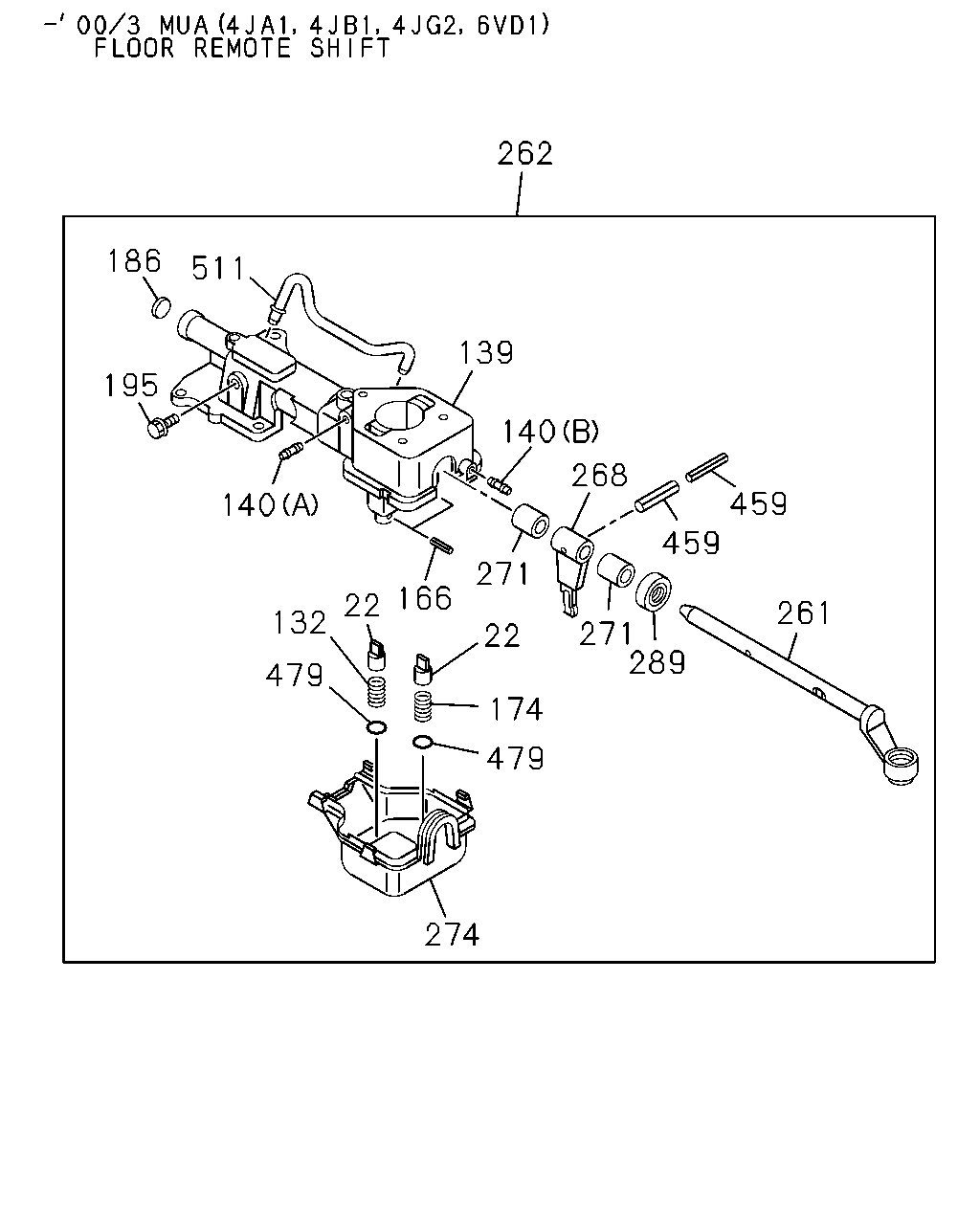

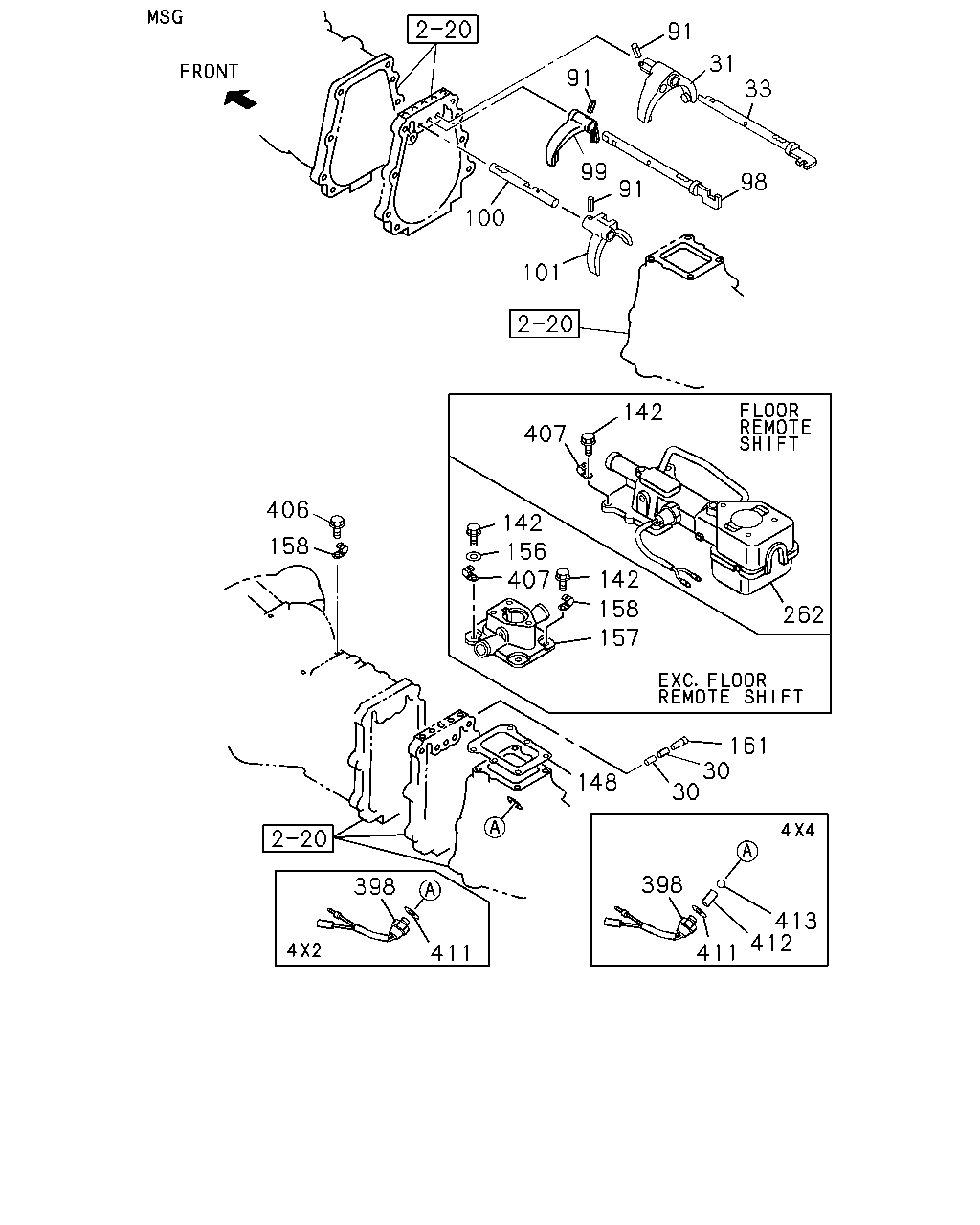

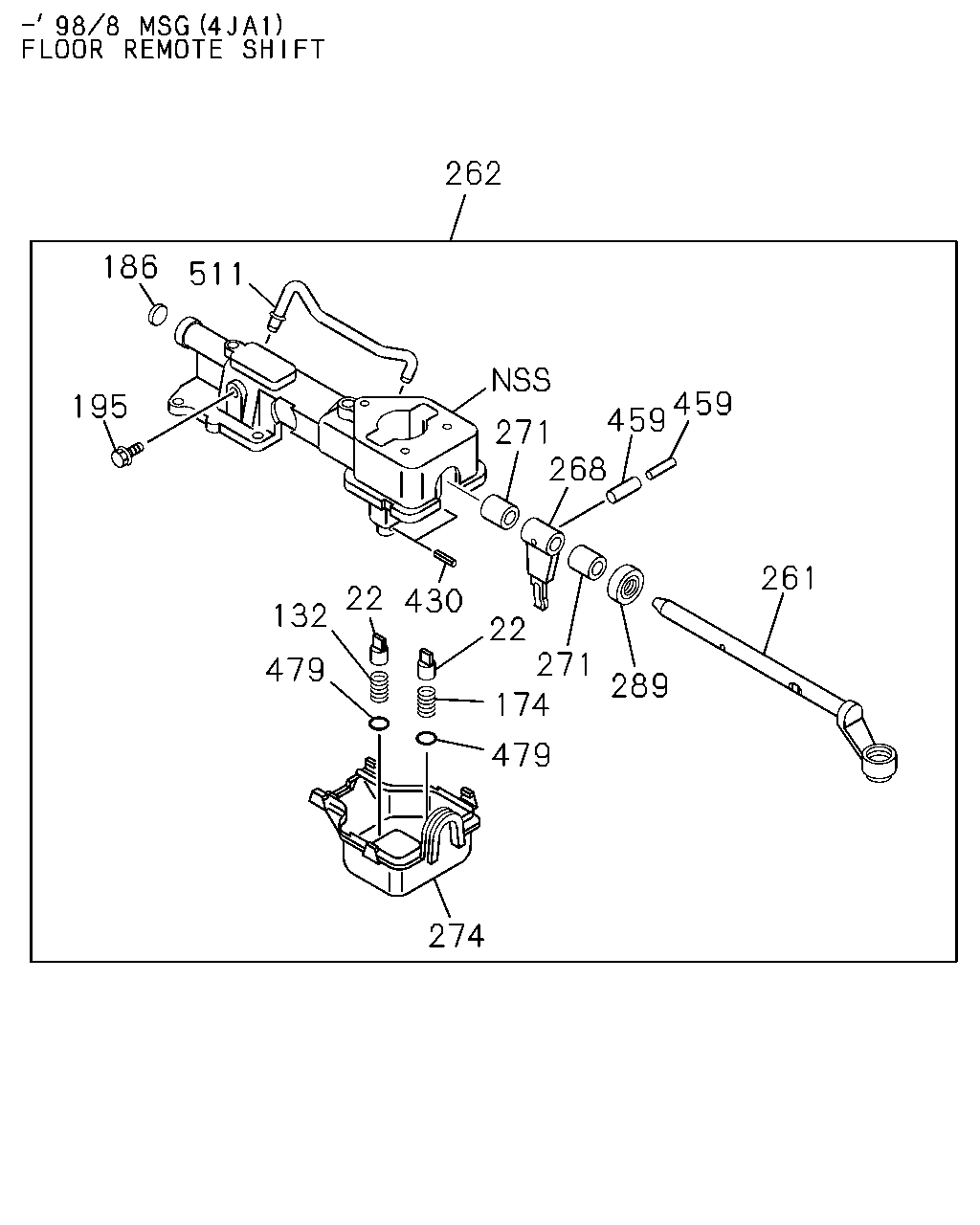

262 04.105 BOX ASM; SHIFT CONT
4X2 SPACE CAB(TFB*C*) 4JA1 ENG(RLE) FRT&RR 205R16 104S 6JJX16 STYLED WHL LO W-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JG2 ENG(RJC) FRT&RR 195R14-8 5.5JJ-20 P RANGE(ANM), FRT&RR 195R14-8 5.5JJ-20 MICHELIN(ANN),F RT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ) FLOOR REMOTE SHIFT<M11> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 LONG(TFB**F) 6VD1 ENG(RLV) FRT&RR 225/70R15C 6JJX15 STYLED(AYG), FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JA1 ENG(RLE) FRT&RR 205R16 104S 6JJX16 STYLED WHL LO W-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SPACE CAB(TFB*C*) 4JB1 ENG(RLF) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ),FRT&RR 185R14-8 5.5JJX14 (APE),FRT&RR 225/70R15C 6JJX15 STYLED(AYG),FRT&RR 205R16 104S 6JJX16 STYLED WH L LOW-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY), FRT&RR 185R14-8 5.5JJX14(9PE) TURBOCHARGER<K51> FLOOR REMOTE SHIFT<M11> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JB1 ENG(RLF) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY), FRT&RR 185R14-8 5.5JJX14(9PE) TURBOCHARGER<K51> FLOOR REMOTE SHIFT<M11> EAST MALAYSIA EQUIPMENT(PM6) 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JB1 ENG(RLF) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ),FRT&RR 185R14-8 5.5JJX14 (APE),FRT&RR 225/70R15C 6JJX15 STYLED(AYG),FRT&RR 205R16 104S 6JJX16 STYLED WH L LOW-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY), FRT&RR 185R14-8 5.5JJX14(9PE) TURBOCHARGER<K51> FLOOR REMOTE SHIFT<M11> EXC. EAST MALAYSIA EQUIPMENT(PM6) 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97358-139-0 01 1 0310- ● ● ● ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-530-3 01 1 9804- ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97104-409-4 01 1 9804-9808 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97201-493-1 01 1 9809-0010 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97201-493-1 01 1 0011-0103 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97201-493-1 01 1 0104- ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-531-2 01 1 9804-9909 ●
262 04.105 BOX ASM; SHIFT CONT
4X2(TFB***) 22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> 		8-97181-531-3 01 1 9910-0012 ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-531-3 01 1 0101-0305 ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97358-200-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97172-637-1 01 1 9804-9811 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97215-046-1 01 1 9812-9909 ●
262 04.105 BOX ASM; SHIFT CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97215-046-1 01 1 9910-0003 ●
262 04.105 BOX ASM; SHIFT CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97257-822-0 01 1 0004-0305 ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JG2 ENG(RJC) FRT&RR 205/80R16 6JJX16 MICHELIN STYLED (BXZ),FRT&RR 205/80R16 6JJX16 MICHELIN ALUMI(BYA),FRT&RR 205R16 104S 6JJX16 STYLED WHL LOW-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR(BYP) FLOOR REMOTE SHIFT<M11> 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 SHORT(TFS**C) 4JA1 ENG(RLE) FRT&RR 205R16 104S 6JJX16 STYLED WHL LO W-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR(BYP),FRT&RR 215R15-6 5.5K X15 STYLED WHL(BZH),FRT 6.5-15-6 RR 6.5-15-8 5.5KX15(9PA),FRT&RR 6.50-15-8 5.5 KX15 STYLED WHL(9RE) 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JA1 ENG(RLE) FRT&RR 205R16 6JJX16 STEEL WHL(BUP), FRT&RR 205R16 6JJX16 ALUMI WHL(BUQ),FRT&RR 205/80R16 6JJX16 MICHELIN STYLED(BXZ), FRT&RR 205/80R16 6JJX16 MICHELIN ALUMI(BYA),FRT&RR 205R16 104S 6JJX16 STYLED W HL LOW-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR(BYP),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT 6.5-15-6 R R 6.5-15-8 5.5KX15(9PA),FRT&RR 6.50-15-8 5.5KX15 STYLED WHL(9RE) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97257-823-0 01 1 0110-0309 ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97357-583-0 01 1 0310- ●
268 04.302 LEVER; CONT,INTERNAL
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97184-894-0 01 1 9804-9808 ●
268 04.302 LEVER; CONT,INTERNAL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97184-894-0 01 1 9809- ●
268 04.302 LEVER; CONT,INTERNAL
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97104-410-0 01 1 9804-9808 ●
268 04.302 LEVER; CONT,INTERNAL
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97184-895-0 01 1 9805-9909 ●
268 04.302 LEVER; CONT,INTERNAL
4X2(TFB***) 22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> 		8-97184-895-0 01 1 9910-0003 ●
268 04.302 LEVER; CONT,INTERNAL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97184-895-0 01 1 0004-0109 ●
268 04.302 LEVER; CONT,INTERNAL
FLOOR REMOTE SHIFT<M11> 		8-97184-895-0 01 1 0110- ●
268 04.302 LEVER; CONT,INTERNAL
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-089-0 01 1 9804-9909 ●
268 04.302 LEVER; CONT,INTERNAL
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-089-0 01 1 9910-0003 ●
271 04.105 BUSHING; QUAD BOX
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 9804-9808 ● ●
271 04.105 BUSHING; QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 9809-0003 ●
271 04.105 BUSHING; QUAD BOX
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 9809-0003 ●
271 04.105 BUSHING; QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 0004-0109 ●
271 04.105 BUSHING; QUAD BOX
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 0004-0109 ●
271 04.105 BUSHING; QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 0110- ●
271 04.105 BUSHING; QUAD BOX
FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 0110- ●
271 04.105 BUSHING; QUAD BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> ID=14 L=15 		8-94478-119-0 02 1 9804-9808 ● ●
271 04.105 BUSHING; QUAD BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> ID=14 L=15 		8-94478-119-0 02 1 9809-9909 ●
271 04.105 BUSHING; QUAD BOX
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> ID=14 L=15 		8-94478-119-0 02 1 9910-0003 ●
274 04.105 COVER; SHAFT,QUAD BOX
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 9804-9808 ● ●
274 04.105 COVER; SHAFT,QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 9809-0003 ●
274 04.105 COVER; SHAFT,QUAD BOX
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 9809-0003 ●
274 04.105 COVER; SHAFT,QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 0004-0109 ●
274 04.105 COVER; SHAFT,QUAD BOX
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 0004-0109 ●
274 04.105 COVER; SHAFT,QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 0110- ●
274 04.105 COVER; SHAFT,QUAD BOX
FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 0110- ●
274 04.105 COVER; SHAFT,QUAD BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-093-2 01 1 9804-9808 ● ●
274 04.105 COVER; SHAFT,QUAD BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-093-3 01 1 9809-9909 ●
274 04.105 COVER; SHAFT,QUAD BOX
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-093-3 01 1 9910-0003 ●
288 04.307 PLUG; AIR BREATHER
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97184-906-0 01 1 9804-9808 ● ●
288 04.307 PLUG; AIR BREATHER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97184-906-0 01 1 9809-0005 ●
288 04.307 PLUG; AIR BREATHER
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97184-906-0 01 1 9809-0005 ●
288 04.307 PLUG; AIR BREATHER
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		9-00097-517-0 01 1 0004-0005 ●
288 04.307 PLUG; AIR BREATHER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		9-00097-517-0 01 1 0006-0109 ●
288 04.307 PLUG; AIR BREATHER
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		9-00097-517-0 01 1 0006-0109 ●
288 04.307 PLUG; AIR BREATHER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		9-00097-517-0 01 1 0110- ●
288 04.307 PLUG; AIR BREATHER
FLOOR REMOTE SHIFT<M11> 		9-00097-517-0 01 1 0110- ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 9804-9808 ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 9809-0003 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 9809-0003 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 0004-0109 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 0004-0109 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 0110- ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 0110- ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-94478-118-0 01 1 9804-9808 ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-94478-118-0 01 1 9809-9909 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-94478-118-0 01 1 9910-0003 ●
459 04.302 PIN; SPR,ROD TO ARM
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 9804-9808 ● ●
459 04.302 PIN; SPR,ROD TO ARM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 9809-0003 ●
459 04.302 PIN; SPR,ROD TO ARM
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 9809-0003 ●
459 04.302 PIN; SPR,ROD TO ARM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 0004-0109 ●
459 04.302 PIN; SPR,ROD TO ARM
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 0004-0109 ●
459 04.302 PIN; SPR,ROD TO ARM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 0110- ●
459 04.302 PIN; SPR,ROD TO ARM
FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 0110- ●
459 04.302 PIN; SPR,ROD TO ARM
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=5.4 		9-09678-510-0 01 1 9804-9808 ● ●
459 04.302 PIN; SPR,ROD TO ARM
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=5.4 		9-09678-510-0 01 1 9809-9909 ●
459 04.302 PIN; SPR,ROD TO ARM
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=5.4 		9-09678-510-0 01 1 9910-0003 ●
459 04.302 PIN; SPR,ROD TO ARM
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=3.3 		9-09678-519-0 01 1 9804-9808 ● ●
459 04.302 PIN; SPR,ROD TO ARM
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=3.3 		9-09678-519-0 01 1 9809-9909 ●
459 04.302 PIN; SPR,ROD TO ARM
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=3.3 		9-09678-519-0 01 1 9910-0003 ●
çizim 71491
262 186 511 139 195 140 268 459 459 140 271 271 289 22 166 132 261 22 479 174 479 274
BalonParca AdiParca NoAdetTipApplied Date A B C D
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 9804-9808 ● ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 9809-0003 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 9809-0003 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 0004-0109 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 0004-0109 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 0110- ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 0110- ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-102-0 02 1 9804-9808 ● ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-102-0 02 1 9809-9909 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-102-0 02 1 9910-0003 ●
132 04.027 SPRING; SELECT STOP
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 9805-9808 ● ●
132 04.027 SPRING; SELECT STOP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 9809-0003 ●
132 04.027 SPRING; SELECT STOP
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 9809-0003 ●
132 04.027 SPRING; SELECT STOP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 0004-0109 ●
132 04.027 SPRING; SELECT STOP
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 0004-0109 ●
132 04.027 SPRING; SELECT STOP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 0110- ●
132 04.027 SPRING; SELECT STOP
FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 0110- ●
132 04.027 SPRING; SELECT STOP
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-106-0 01 1 9804-9808 ● ●
132 04.027 SPRING; SELECT STOP
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-106-0 01 1 9809-9909 ●
132 04.027 SPRING; SELECT STOP
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-106-0 01 1 9910-0003 ●
139 04.020 BOX; QUAD,TRANS
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 04.105 		8-97203-640-0 01 1 9804-9909 ●
140 04.104 BREATHER; AIR,TRANS
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 04.510 (C) 		8-97173-544-0 01 1 9804-9909 ●
140 04.104 BREATHER; AIR,TRANS
4X2(TFB***) 22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> 04.510 (C) 		8-97173-544-0 01 1 9910-0003 ●
140 04.104 BREATHER; AIR,TRANS
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> (C) 		8-97172-656-0 01 1 0004-0005 ●
140 04.104 BREATHER; AIR,TRANS
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> (A) 		8-97172-655-0 01 1 9804-9909 ●
140 04.104 BREATHER; AIR,TRANS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> (A) 		8-97172-655-0 01 1 9910-0003 ●
140 04.104 BREATHER; AIR,TRANS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.510 (A) 		8-97173-545-0 01 1 0004-0109 ●
140 04.104 BREATHER; AIR,TRANS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.510 (A) 		8-97173-545-0 01 1 0110-0305 ●
140 04.104 BREATHER; AIR,TRANS
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 04.510 		8-97173-545-0 01 1 0306-0309 ●
140 04.104 BREATHER; AIR,TRANS
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> (B) 		8-97172-656-0 01 1 9804-9804 ●
140 04.104 BREATHER; AIR,TRANS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> (B) 		8-97172-656-0 01 1 9805-9909 ●
140 04.104 BREATHER; AIR,TRANS
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> (B) 		8-97172-656-0 01 1 9910-0003 ●
140 04.104 BREATHER; AIR,TRANS
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.510 (B) 		8-97173-544-0 01 1 0004-0109 ●
140 04.104 BREATHER; AIR,TRANS
FLOOR REMOTE SHIFT<M11> 04.510 (B) 		8-97173-544-0 01 1 0110- ●
166 04.302 PIN; SPR,SELECT LEVER
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.307 D=4.2 L=25 		8-97103-142-0 02 1 9804-9909 ●
166 04.302 PIN; SPR,SELECT LEVER
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.307 D=4.2 L=25 		8-97103-142-0 02 1 9910-0003 ●
174 04.307 SPRING; REV
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 9804-9808 ● ●
174 04.307 SPRING; REV
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 9809-0003 ●
174 04.307 SPRING; REV
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 9809-0003 ●
174 04.307 SPRING; REV
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 0004-0109 ●
174 04.307 SPRING; REV
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 0004-0109 ●
174 04.307 SPRING; REV
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 0110- ●
174 04.307 SPRING; REV
FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 0110- ●
174 04.307 SPRING; REV
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-105-0 01 1 9804-9808 ● ●
174 04.307 SPRING; REV
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-105-0 01 1 9809-9909 ●
174 04.307 SPRING; REV
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-105-0 01 1 9910-0003 ●
186 04.105 PLUG; SHIFTER ROD
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 00.253 OD=16 		9-11129-081-0 01 1 9804-9808 ● ●
186 04.105 PLUG; SHIFTER ROD
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 00.253 OD=16 		9-11129-081-0 01 1 9809-9909 ●
186 04.105 PLUG; SHIFTER ROD
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 00.253 OD=16 		9-11129-081-0 01 1 9910-0003 ●
195 04.105 BOLT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 01.656 M8X12 FLANGE 		8-94479-696-1 01 1 9804-9808 ● ●
195 04.105 BOLT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 01.656 M8X12 FLANGE 		8-94479-696-1 01 1 9809-9909 ●
195 04.105 BOLT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 01.656 M8X12 FLANGE 		8-94479-696-1 01 1 9910-0003 ●
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97103-092-1 01 1 9804-9808 ●
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97203-908-1 01 1 9809-0005 ●
261 04.309 ROD; GEAR CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97184-904-1 01 1 9804-9910 ● ●
261 04.309 ROD; GEAR CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97184-904-1 01 1 9911-0005 ●
261 04.309 ROD; GEAR CONT
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97184-904-1 01 1 9911-0005 ●
261 04.309 ROD; GEAR CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97257-910-0 01 1 0006-0103 ● ●
261 04.309 ROD; GEAR CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97257-910-0 01 1 0104- ●
261 04.309 ROD; GEAR CONT
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97257-910-0 01 1 0104- ●
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-090-1 01 1 9804-9811 ●
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-092-1 01 1 9812-9909 ●
261 04.309 ROD; GEAR CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-092-1 01 1 9910-0003 ●
261 04.309 ROD; GEAR CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97257-825-0 01 1 0004-0005 ●
261 04.309 ROD; GEAR CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97257-825-0 01 1 0006-0103 ● ●
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97257-825-0 01 1 0104- ●
261 04.309 ROD; GEAR CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97257-825-0 01 1 0104- ●
261 04.309 ROD; GEAR CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97257-909-0 01 1 0110- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SPACE CAB(TFB*C*) 4JA1 ENG(RLE) FRT&RR 205R16 104S 6JJX16 STYLED WHL LO W-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JG2 ENG(RJC) FRT&RR 195R14-8 5.5JJ-20 P RANGE(ANM), FRT&RR 195R14-8 5.5JJ-20 MICHELIN(ANN),F RT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ) FLOOR REMOTE SHIFT<M11> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 LONG(TFB**F) 6VD1 ENG(RLV) FRT&RR 225/70R15C 6JJX15 STYLED(AYG), FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JA1 ENG(RLE) FRT&RR 205R16 104S 6JJX16 STYLED WHL LO W-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SPACE CAB(TFB*C*) 4JB1 ENG(RLF) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ),FRT&RR 185R14-8 5.5JJX14 (APE),FRT&RR 225/70R15C 6JJX15 STYLED(AYG),FRT&RR 205R16 104S 6JJX16 STYLED WH L LOW-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY), FRT&RR 185R14-8 5.5JJX14(9PE) TURBOCHARGER<K51> FLOOR REMOTE SHIFT<M11> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JB1 ENG(RLF) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY), FRT&RR 185R14-8 5.5JJX14(9PE) TURBOCHARGER<K51> FLOOR REMOTE SHIFT<M11> EAST MALAYSIA EQUIPMENT(PM6) 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JB1 ENG(RLF) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ),FRT&RR 185R14-8 5.5JJX14 (APE),FRT&RR 225/70R15C 6JJX15 STYLED(AYG),FRT&RR 205R16 104S 6JJX16 STYLED WH L LOW-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY), FRT&RR 185R14-8 5.5JJX14(9PE) TURBOCHARGER<K51> FLOOR REMOTE SHIFT<M11> EXC. EAST MALAYSIA EQUIPMENT(PM6) 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97358-139-0 01 1 0310- ● ● ● ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-530-3 01 1 9804- ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97104-409-4 01 1 9804-9808 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97201-493-1 01 1 9809-0010 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97201-493-1 01 1 0011-0103 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97201-493-1 01 1 0104- ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-531-2 01 1 9804-9909 ●
262 04.105 BOX ASM; SHIFT CONT
4X2(TFB***) 22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> 		8-97181-531-3 01 1 9910-0012 ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-531-3 01 1 0101-0305 ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97358-200-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97172-637-1 01 1 9804-9811 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97215-046-1 01 1 9812-9909 ●
262 04.105 BOX ASM; SHIFT CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97215-046-1 01 1 9910-0003 ●
262 04.105 BOX ASM; SHIFT CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97257-822-0 01 1 0004-0305 ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JG2 ENG(RJC) FRT&RR 205/80R16 6JJX16 MICHELIN STYLED (BXZ),FRT&RR 205/80R16 6JJX16 MICHELIN ALUMI(BYA),FRT&RR 205R16 104S 6JJX16 STYLED WHL LOW-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR(BYP) FLOOR REMOTE SHIFT<M11> 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 SHORT(TFS**C) 4JA1 ENG(RLE) FRT&RR 205R16 104S 6JJX16 STYLED WHL LO W-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR(BYP),FRT&RR 215R15-6 5.5K X15 STYLED WHL(BZH),FRT 6.5-15-6 RR 6.5-15-8 5.5KX15(9PA),FRT&RR 6.50-15-8 5.5 KX15 STYLED WHL(9RE) 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JA1 ENG(RLE) FRT&RR 205R16 6JJX16 STEEL WHL(BUP), FRT&RR 205R16 6JJX16 ALUMI WHL(BUQ),FRT&RR 205/80R16 6JJX16 MICHELIN STYLED(BXZ), FRT&RR 205/80R16 6JJX16 MICHELIN ALUMI(BYA),FRT&RR 205R16 104S 6JJX16 STYLED W HL LOW-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR(BYP),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT 6.5-15-6 R R 6.5-15-8 5.5KX15(9PA),FRT&RR 6.50-15-8 5.5KX15 STYLED WHL(9RE) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97257-823-0 01 1 0110-0309 ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97357-583-0 01 1 0310- ●
268 04.302 LEVER; CONT,INTERNAL
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97184-894-0 01 1 9804-9808 ●
268 04.302 LEVER; CONT,INTERNAL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97184-894-0 01 1 9809- ●
268 04.302 LEVER; CONT,INTERNAL
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97104-410-0 01 1 9804-9808 ●
268 04.302 LEVER; CONT,INTERNAL
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97184-895-0 01 1 9805-9909 ●
268 04.302 LEVER; CONT,INTERNAL
4X2(TFB***) 22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> 		8-97184-895-0 01 1 9910-0003 ●
268 04.302 LEVER; CONT,INTERNAL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97184-895-0 01 1 0004-0109 ●
268 04.302 LEVER; CONT,INTERNAL
FLOOR REMOTE SHIFT<M11> 		8-97184-895-0 01 1 0110- ●
268 04.302 LEVER; CONT,INTERNAL
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-089-0 01 1 9804-9909 ●
268 04.302 LEVER; CONT,INTERNAL
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-089-0 01 1 9910-0003 ●
271 04.105 BUSHING; QUAD BOX
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 9804-9808 ● ●
271 04.105 BUSHING; QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 9809-0003 ●
271 04.105 BUSHING; QUAD BOX
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 9809-0003 ●
271 04.105 BUSHING; QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 0004-0109 ●
271 04.105 BUSHING; QUAD BOX
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 0004-0109 ●
271 04.105 BUSHING; QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 0110- ●
271 04.105 BUSHING; QUAD BOX
FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 0110- ●
271 04.105 BUSHING; QUAD BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> ID=14 L=15 		8-94478-119-0 02 1 9804-9808 ● ●
271 04.105 BUSHING; QUAD BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> ID=14 L=15 		8-94478-119-0 02 1 9809-9909 ●
271 04.105 BUSHING; QUAD BOX
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> ID=14 L=15 		8-94478-119-0 02 1 9910-0003 ●
274 04.105 COVER; SHAFT,QUAD BOX
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 9804-9808 ● ●
274 04.105 COVER; SHAFT,QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 9809-0003 ●
274 04.105 COVER; SHAFT,QUAD BOX
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 9809-0003 ●
274 04.105 COVER; SHAFT,QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 0004-0109 ●
274 04.105 COVER; SHAFT,QUAD BOX
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 0004-0109 ●
274 04.105 COVER; SHAFT,QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 0110- ●
274 04.105 COVER; SHAFT,QUAD BOX
FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 0110- ●
274 04.105 COVER; SHAFT,QUAD BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-093-2 01 1 9804-9808 ● ●
274 04.105 COVER; SHAFT,QUAD BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-093-3 01 1 9809-9909 ●
274 04.105 COVER; SHAFT,QUAD BOX
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-093-3 01 1 9910-0003 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 9804-9808 ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 9809-0003 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 9809-0003 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 0004-0109 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 0004-0109 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 0110- ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 0110- ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-94478-118-0 01 1 9804-9808 ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-94478-118-0 01 1 9809-9909 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-94478-118-0 01 1 9910-0003 ●
459 04.302 PIN; SPR,ROD TO ARM
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 9804-9808 ● ●
459 04.302 PIN; SPR,ROD TO ARM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 9809-0003 ●
459 04.302 PIN; SPR,ROD TO ARM
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 9809-0003 ●
459 04.302 PIN; SPR,ROD TO ARM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 0004-0109 ●
459 04.302 PIN; SPR,ROD TO ARM
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 0004-0109 ●
459 04.302 PIN; SPR,ROD TO ARM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 0110- ●
459 04.302 PIN; SPR,ROD TO ARM
FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 0110- ●
459 04.302 PIN; SPR,ROD TO ARM
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=5.4 		9-09678-510-0 01 1 9804-9808 ● ●
459 04.302 PIN; SPR,ROD TO ARM
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=5.4 		9-09678-510-0 01 1 9809-9909 ●
459 04.302 PIN; SPR,ROD TO ARM
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=5.4 		9-09678-510-0 01 1 9910-0003 ●
459 04.302 PIN; SPR,ROD TO ARM
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=3.3 		9-09678-519-0 01 1 9804-9808 ● ●
459 04.302 PIN; SPR,ROD TO ARM
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=3.3 		9-09678-519-0 01 1 9809-9909 ●
459 04.302 PIN; SPR,ROD TO ARM
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=3.3 		9-09678-519-0 01 1 9910-0003 ●
479 04.307 PLATE; SELECT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-325-0 02 1 9804- ● ●
479 04.307 PLATE; SELECT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> D=13 		8-97103-110-0 02 1 9804-9808 ● ●
479 04.307 PLATE; SELECT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> D=13 		8-97103-110-0 02 1 9809-9909 ●
479 04.307 PLATE; SELECT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> D=13 		8-97103-110-0 02 1 9910-0003 ●
511 04.302 PIPE; AIR
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97104-725-0 01 1 9804-9804 ●
511 04.302 PIPE; AIR
FLOOR REMOTE SHIFT<M11> 		8-97104-725-0 01 1 9805-9808 ●
511 04.302 PIPE; AIR
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97104-725-0 01 1 9809-9910 ●
511 04.302 PIPE; AIR
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97172-589-0 01 1 9804-9909 ●
511 04.302 PIPE; AIR
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97172-589-0 01 1 9910-0003 ●
çizim 71711
262 186 511 459 459 195 271 268 22 430 132 261 22 271 174 479 289 479 274
BalonParca AdiParca NoAdetTipApplied Date A B C D
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 9804-9808 ● ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 9809-0003 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 9809-0003 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 0004-0109 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 0004-0109 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 0110- ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 0110- ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-102-0 02 1 9804-9808 ● ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-102-0 02 1 9809-9909 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-102-0 02 1 9910-0003 ●
132 04.027 SPRING; SELECT STOP
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 9805-9808 ● ●
132 04.027 SPRING; SELECT STOP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 9809-0003 ●
132 04.027 SPRING; SELECT STOP
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 9809-0003 ●
132 04.027 SPRING; SELECT STOP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 0004-0109 ●
132 04.027 SPRING; SELECT STOP
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 0004-0109 ●
132 04.027 SPRING; SELECT STOP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 0110- ●
132 04.027 SPRING; SELECT STOP
FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 0110- ●
132 04.027 SPRING; SELECT STOP
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-106-0 01 1 9804-9808 ● ●
132 04.027 SPRING; SELECT STOP
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-106-0 01 1 9809-9909 ●
132 04.027 SPRING; SELECT STOP
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-106-0 01 1 9910-0003 ●
174 04.307 SPRING; REV
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 9804-9808 ● ●
174 04.307 SPRING; REV
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 9809-0003 ●
174 04.307 SPRING; REV
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 9809-0003 ●
174 04.307 SPRING; REV
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 0004-0109 ●
174 04.307 SPRING; REV
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 0004-0109 ●
174 04.307 SPRING; REV
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 0110- ●
174 04.307 SPRING; REV
FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 0110- ●
174 04.307 SPRING; REV
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-105-0 01 1 9804-9808 ● ●
174 04.307 SPRING; REV
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-105-0 01 1 9809-9909 ●
174 04.307 SPRING; REV
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-105-0 01 1 9910-0003 ●
186 04.105 PLUG; SHIFTER ROD
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 00.253 OD=16 		9-11129-081-0 01 1 9804-9808 ● ●
186 04.105 PLUG; SHIFTER ROD
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 00.253 OD=16 		9-11129-081-0 01 1 9809-9909 ●
186 04.105 PLUG; SHIFTER ROD
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 00.253 OD=16 		9-11129-081-0 01 1 9910-0003 ●
195 04.105 BOLT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 01.656 M8X12 FLANGE 		8-94479-696-1 01 1 9804-9808 ● ●
195 04.105 BOLT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 01.656 M8X12 FLANGE 		8-94479-696-1 01 1 9809-9909 ●
195 04.105 BOLT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 01.656 M8X12 FLANGE 		8-94479-696-1 01 1 9910-0003 ●
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97103-092-1 01 1 9804-9808 ●
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97203-908-1 01 1 9809-0005 ●
261 04.309 ROD; GEAR CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97184-904-1 01 1 9804-9910 ● ●
261 04.309 ROD; GEAR CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97184-904-1 01 1 9911-0005 ●
261 04.309 ROD; GEAR CONT
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97184-904-1 01 1 9911-0005 ●
261 04.309 ROD; GEAR CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97257-910-0 01 1 0006-0103 ● ●
261 04.309 ROD; GEAR CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97257-910-0 01 1 0104- ●
261 04.309 ROD; GEAR CONT
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97257-910-0 01 1 0104- ●
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-090-1 01 1 9804-9811 ●
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-092-1 01 1 9812-9909 ●
261 04.309 ROD; GEAR CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-092-1 01 1 9910-0003 ●
261 04.309 ROD; GEAR CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97257-825-0 01 1 0004-0005 ●
261 04.309 ROD; GEAR CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97257-825-0 01 1 0006-0103 ● ●
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97257-825-0 01 1 0104- ●
261 04.309 ROD; GEAR CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97257-825-0 01 1 0104- ●
261 04.309 ROD; GEAR CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97257-909-0 01 1 0110- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SPACE CAB(TFB*C*) 4JA1 ENG(RLE) FRT&RR 205R16 104S 6JJX16 STYLED WHL LO W-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JG2 ENG(RJC) FRT&RR 195R14-8 5.5JJ-20 P RANGE(ANM), FRT&RR 195R14-8 5.5JJ-20 MICHELIN(ANN),F RT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ) FLOOR REMOTE SHIFT<M11> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 LONG(TFB**F) 6VD1 ENG(RLV) FRT&RR 225/70R15C 6JJX15 STYLED(AYG), FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JA1 ENG(RLE) FRT&RR 205R16 104S 6JJX16 STYLED WHL LO W-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SPACE CAB(TFB*C*) 4JB1 ENG(RLF) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ),FRT&RR 185R14-8 5.5JJX14 (APE),FRT&RR 225/70R15C 6JJX15 STYLED(AYG),FRT&RR 205R16 104S 6JJX16 STYLED WH L LOW-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY), FRT&RR 185R14-8 5.5JJX14(9PE) TURBOCHARGER<K51> FLOOR REMOTE SHIFT<M11> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JB1 ENG(RLF) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY), FRT&RR 185R14-8 5.5JJX14(9PE) TURBOCHARGER<K51> FLOOR REMOTE SHIFT<M11> EAST MALAYSIA EQUIPMENT(PM6) 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JB1 ENG(RLF) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ),FRT&RR 185R14-8 5.5JJX14 (APE),FRT&RR 225/70R15C 6JJX15 STYLED(AYG),FRT&RR 205R16 104S 6JJX16 STYLED WH L LOW-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY), FRT&RR 185R14-8 5.5JJX14(9PE) TURBOCHARGER<K51> FLOOR REMOTE SHIFT<M11> EXC. EAST MALAYSIA EQUIPMENT(PM6) 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97358-139-0 01 1 0310- ● ● ● ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-530-3 01 1 9804- ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97104-409-4 01 1 9804-9808 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97201-493-1 01 1 9809-0010 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97201-493-1 01 1 0011-0103 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97201-493-1 01 1 0104- ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-531-2 01 1 9804-9909 ●
262 04.105 BOX ASM; SHIFT CONT
4X2(TFB***) 22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> 		8-97181-531-3 01 1 9910-0012 ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-531-3 01 1 0101-0305 ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97358-200-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97172-637-1 01 1 9804-9811 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97215-046-1 01 1 9812-9909 ●
262 04.105 BOX ASM; SHIFT CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97215-046-1 01 1 9910-0003 ●
262 04.105 BOX ASM; SHIFT CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97257-822-0 01 1 0004-0305 ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JG2 ENG(RJC) FRT&RR 205/80R16 6JJX16 MICHELIN STYLED (BXZ),FRT&RR 205/80R16 6JJX16 MICHELIN ALUMI(BYA),FRT&RR 205R16 104S 6JJX16 STYLED WHL LOW-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR(BYP) FLOOR REMOTE SHIFT<M11> 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 SHORT(TFS**C) 4JA1 ENG(RLE) FRT&RR 205R16 104S 6JJX16 STYLED WHL LO W-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR(BYP),FRT&RR 215R15-6 5.5K X15 STYLED WHL(BZH),FRT 6.5-15-6 RR 6.5-15-8 5.5KX15(9PA),FRT&RR 6.50-15-8 5.5 KX15 STYLED WHL(9RE) 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JA1 ENG(RLE) FRT&RR 205R16 6JJX16 STEEL WHL(BUP), FRT&RR 205R16 6JJX16 ALUMI WHL(BUQ),FRT&RR 205/80R16 6JJX16 MICHELIN STYLED(BXZ), FRT&RR 205/80R16 6JJX16 MICHELIN ALUMI(BYA),FRT&RR 205R16 104S 6JJX16 STYLED W HL LOW-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR(BYP),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT 6.5-15-6 R R 6.5-15-8 5.5KX15(9PA),FRT&RR 6.50-15-8 5.5KX15 STYLED WHL(9RE) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97257-823-0 01 1 0110-0309 ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97357-583-0 01 1 0310- ●
268 04.302 LEVER; CONT,INTERNAL
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97184-894-0 01 1 9804-9808 ●
268 04.302 LEVER; CONT,INTERNAL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97184-894-0 01 1 9809- ●
268 04.302 LEVER; CONT,INTERNAL
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97104-410-0 01 1 9804-9808 ●
268 04.302 LEVER; CONT,INTERNAL
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97184-895-0 01 1 9805-9909 ●
268 04.302 LEVER; CONT,INTERNAL
4X2(TFB***) 22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> 		8-97184-895-0 01 1 9910-0003 ●
268 04.302 LEVER; CONT,INTERNAL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97184-895-0 01 1 0004-0109 ●
268 04.302 LEVER; CONT,INTERNAL
FLOOR REMOTE SHIFT<M11> 		8-97184-895-0 01 1 0110- ●
268 04.302 LEVER; CONT,INTERNAL
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-089-0 01 1 9804-9909 ●
268 04.302 LEVER; CONT,INTERNAL
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-089-0 01 1 9910-0003 ●
271 04.105 BUSHING; QUAD BOX
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 9804-9808 ● ●
271 04.105 BUSHING; QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 9809-0003 ●
271 04.105 BUSHING; QUAD BOX
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 9809-0003 ●
271 04.105 BUSHING; QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 0004-0109 ●
271 04.105 BUSHING; QUAD BOX
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 0004-0109 ●
271 04.105 BUSHING; QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 0110- ●
271 04.105 BUSHING; QUAD BOX
FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 0110- ●
271 04.105 BUSHING; QUAD BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> ID=14 L=15 		8-94478-119-0 02 1 9804-9808 ● ●
271 04.105 BUSHING; QUAD BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> ID=14 L=15 		8-94478-119-0 02 1 9809-9909 ●
271 04.105 BUSHING; QUAD BOX
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> ID=14 L=15 		8-94478-119-0 02 1 9910-0003 ●
274 04.105 COVER; SHAFT,QUAD BOX
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 9804-9808 ● ●
274 04.105 COVER; SHAFT,QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 9809-0003 ●
274 04.105 COVER; SHAFT,QUAD BOX
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 9809-0003 ●
274 04.105 COVER; SHAFT,QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 0004-0109 ●
274 04.105 COVER; SHAFT,QUAD BOX
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 0004-0109 ●
274 04.105 COVER; SHAFT,QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 0110- ●
274 04.105 COVER; SHAFT,QUAD BOX
FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 0110- ●
274 04.105 COVER; SHAFT,QUAD BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-093-2 01 1 9804-9808 ● ●
274 04.105 COVER; SHAFT,QUAD BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-093-3 01 1 9809-9909 ●
274 04.105 COVER; SHAFT,QUAD BOX
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-093-3 01 1 9910-0003 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 9804-9808 ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 9809-0003 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 9809-0003 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 0004-0109 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 0004-0109 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 0110- ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 0110- ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-94478-118-0 01 1 9804-9808 ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-94478-118-0 01 1 9809-9909 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-94478-118-0 01 1 9910-0003 ●
430 04.307 PIN; SPR,SHIFT ROD
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) D=4.2 L=25 		8-97103-142-0 02 1 9804-9808 ●
459 04.302 PIN; SPR,ROD TO ARM
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 9804-9808 ● ●
459 04.302 PIN; SPR,ROD TO ARM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 9809-0003 ●
459 04.302 PIN; SPR,ROD TO ARM
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 9809-0003 ●
459 04.302 PIN; SPR,ROD TO ARM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 0004-0109 ●
459 04.302 PIN; SPR,ROD TO ARM
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 0004-0109 ●
459 04.302 PIN; SPR,ROD TO ARM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 0110- ●
459 04.302 PIN; SPR,ROD TO ARM
FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 0110- ●
459 04.302 PIN; SPR,ROD TO ARM
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=5.4 		9-09678-510-0 01 1 9804-9808 ● ●
459 04.302 PIN; SPR,ROD TO ARM
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=5.4 		9-09678-510-0 01 1 9809-9909 ●
459 04.302 PIN; SPR,ROD TO ARM
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=5.4 		9-09678-510-0 01 1 9910-0003 ●
459 04.302 PIN; SPR,ROD TO ARM
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=3.3 		9-09678-519-0 01 1 9804-9808 ● ●
459 04.302 PIN; SPR,ROD TO ARM
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=3.3 		9-09678-519-0 01 1 9809-9909 ●
459 04.302 PIN; SPR,ROD TO ARM
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=3.3 		9-09678-519-0 01 1 9910-0003 ●
479 04.307 PLATE; SELECT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-325-0 02 1 9804- ● ●
479 04.307 PLATE; SELECT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> D=13 		8-97103-110-0 02 1 9804-9808 ● ●
479 04.307 PLATE; SELECT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> D=13 		8-97103-110-0 02 1 9809-9909 ●
479 04.307 PLATE; SELECT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> D=13 		8-97103-110-0 02 1 9910-0003 ●
511 04.302 PIPE; AIR
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97104-725-0 01 1 9804-9804 ●
511 04.302 PIPE; AIR
FLOOR REMOTE SHIFT<M11> 		8-97104-725-0 01 1 9805-9808 ●
511 04.302 PIPE; AIR
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97104-725-0 01 1 9809-9910 ●
511 04.302 PIPE; AIR
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97172-589-0 01 1 9804-9909 ●
511 04.302 PIPE; AIR
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97172-589-0 01 1 9910-0003 ●
çizim 71790
91 31 33 91 99 91 98 100 101 142 407 406 142 156 407 158 142 158 157 262 161 30 30 148 398 398 413 412 411 411
BalonParca AdiParca NoAdetTipApplied Date A B C D
30 04.307 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 9804- ● ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-97024-503-1 01 1 9804- ●
31 04.302 ARM; SHIFT,LOW & 2ND 8-94421-912-2 01 1 9804- ●
33 04.309 ROD; SHIFT,LOW & 2ND
FLOOR REMOTE SHIFT<M11> 		8-94455-849-1 01 1 9804-9901 ●
33 04.309 ROD; SHIFT,LOW & 2ND
FLOOR REMOTE SHIFT<M11> 		8-97211-465-0 01 1 9902-9902 ●
33 04.309 ROD; SHIFT,LOW & 2ND
FLOOR REMOTE SHIFT<M11> 		8-97213-047-0 01 1 9903- ●
33 04.309 ROD; SHIFT,LOW & 2ND
EXC. FLOOR REMOTE SHIFT<M11> 		8-94435-156-1 01 1 9804-9901 ●
33 04.309 ROD; SHIFT,LOW & 2ND
EXC. FLOOR REMOTE SHIFT<M11> 		8-97211-463-0 01 1 9902-9902 ●
33 04.309 ROD; SHIFT,LOW & 2ND
EXC. FLOOR REMOTE SHIFT<M11> 		8-97213-046-0 01 1 9903- ●
33 04.309 ROD; SHIFT,LOW & 2ND
FLOOR REMOTE SHIFT<M11> 		8-97019-061-2 01 1 9804- ●
33 04.309 ROD; SHIFT,LOW & 2ND
EXC. FLOOR REMOTE SHIFT<M11> 		8-94421-915-4 01 1 9804- ●
91 04.302 PIN; SPR,SHIFT ARM
04.303 D=4.2 L=25 		8-94171-541-0 03 1 9804- ● ●
98 04.309 ROD; SHIFT,TOP & 3RD
FLOOR REMOTE SHIFT<M11> 		8-94372-767-0 01 1 9804-9901 ●
98 04.309 ROD; SHIFT,TOP & 3RD
FLOOR REMOTE SHIFT<M11> 		8-97211-461-0 01 1 9902-9902 ●
98 04.309 ROD; SHIFT,TOP & 3RD
FLOOR REMOTE SHIFT<M11> 		8-97213-045-0 01 1 9903- ●
98 04.309 ROD; SHIFT,TOP & 3RD
EXC. FLOOR REMOTE SHIFT<M11> 		8-94372-766-0 01 1 9804-9901 ●
98 04.309 ROD; SHIFT,TOP & 3RD
EXC. FLOOR REMOTE SHIFT<M11> 		8-97211-460-0 01 1 9902-9902 ●
98 04.309 ROD; SHIFT,TOP & 3RD
EXC. FLOOR REMOTE SHIFT<M11> 		8-97213-044-0 01 1 9903- ●
98 04.309 ROD; SHIFT,TOP & 3RD
FLOOR REMOTE SHIFT<M11> 		8-97019-060-3 01 1 9804- ●
98 04.309 ROD; SHIFT,TOP & 3RD
EXC. FLOOR REMOTE SHIFT<M11> 		8-94421-914-4 01 1 9804- ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94435-153-1 01 1 9804- ●
99 04.302 ARM; SHIFT,4TH & 3RD 8-94421-911-2 01 1 9804- ●
100 04.309 ROD; SHIFT,REV & 5TH 8-97115-185-0 01 1 9804- ●
101 04.302 ARM; SHIFT,REV & 5TH
FLOOR REMOTE SHIFT<M11> 		8-94455-851-3 01 1 9804- ●
101 04.302 ARM; SHIFT,REV & 5TH
EXC. FLOOR REMOTE SHIFT<M11> 		8-94440-061-3 01 1 9804- ●
101 04.302 ARM; SHIFT,REV & 5TH
FLOOR REMOTE SHIFT<M11> 		8-94448-755-2 01 1 9804- ●
101 04.302 ARM; SHIFT,REV & 5TH
EXC. FLOOR REMOTE SHIFT<M11> 		8-97109-504-1 01 1 9804- ●
142 04.012 BOLT; QUAD BOX
04.356 M8X22 FLANGE 		8-94448-815-3 04 1 9804- ● ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97184-922-0 01 1 9804- ●
148 04.015 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97083-599-0 01 1 9804- ●
156 00.349 WASHER; PL,HARNESS CLIP
4X4(TFS***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) 16.674 ID=8.4 		9-09160-508-0 01 1 9804-9804 ●
157 04.105 BOX; QUAD,TRANS
EXC. FLOOR REMOTE SHIFT<M11> 		8-94161-146-4 01 1 9804- ●
157 04.105 BOX; QUAD,TRANS
EXC. FLOOR REMOTE SHIFT<M11> 		8-97113-441-1 01 1 9804- ●
158 04.105 CLIP; HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 02 1 9804- ●
158 04.105 CLIP; HARNESS
4X4(TFS***) 6VD1 ENG(RLV) 00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0101-0109 ●
158 04.105 CLIP; HARNESS
4X4(TFS***) 4JH1 ENG(RJX),6VD1 ENG(RLV) 00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 0110- ● ●
161 04.307 PLUG; INTER LK HOLE 8-94239-543-1 01 1 9804- ● ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SPACE CAB(TFB*C*) 4JA1 ENG(RLE) FRT&RR 205R16 104S 6JJX16 STYLED WHL LO W-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JG2 ENG(RJC) FRT&RR 195R14-8 5.5JJ-20 P RANGE(ANM), FRT&RR 195R14-8 5.5JJ-20 MICHELIN(ANN),F RT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ) FLOOR REMOTE SHIFT<M11> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 LONG(TFB**F) 6VD1 ENG(RLV) FRT&RR 225/70R15C 6JJX15 STYLED(AYG), FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JA1 ENG(RLE) FRT&RR 205R16 104S 6JJX16 STYLED WHL LO W-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SPACE CAB(TFB*C*) 4JB1 ENG(RLF) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ),FRT&RR 185R14-8 5.5JJX14 (APE),FRT&RR 225/70R15C 6JJX15 STYLED(AYG),FRT&RR 205R16 104S 6JJX16 STYLED WH L LOW-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY), FRT&RR 185R14-8 5.5JJX14(9PE) TURBOCHARGER<K51> FLOOR REMOTE SHIFT<M11> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JB1 ENG(RLF) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY), FRT&RR 185R14-8 5.5JJX14(9PE) TURBOCHARGER<K51> FLOOR REMOTE SHIFT<M11> EAST MALAYSIA EQUIPMENT(PM6) 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JB1 ENG(RLF) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ),FRT&RR 185R14-8 5.5JJX14 (APE),FRT&RR 225/70R15C 6JJX15 STYLED(AYG),FRT&RR 205R16 104S 6JJX16 STYLED WH L LOW-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY), FRT&RR 185R14-8 5.5JJX14(9PE) TURBOCHARGER<K51> FLOOR REMOTE SHIFT<M11> EXC. EAST MALAYSIA EQUIPMENT(PM6) 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97358-139-0 01 1 0310- ● ● ● ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-530-3 01 1 9804- ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97104-409-4 01 1 9804-9808 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97201-493-1 01 1 9809-0010 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97201-493-1 01 1 0011-0103 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97201-493-1 01 1 0104- ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-531-2 01 1 9804-9909 ●
262 04.105 BOX ASM; SHIFT CONT
4X2(TFB***) 22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> 		8-97181-531-3 01 1 9910-0012 ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-531-3 01 1 0101-0305 ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97358-200-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97172-637-1 01 1 9804-9811 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97215-046-1 01 1 9812-9909 ●
262 04.105 BOX ASM; SHIFT CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97215-046-1 01 1 9910-0003 ●
262 04.105 BOX ASM; SHIFT CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97257-822-0 01 1 0004-0305 ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JG2 ENG(RJC) FRT&RR 205/80R16 6JJX16 MICHELIN STYLED (BXZ),FRT&RR 205/80R16 6JJX16 MICHELIN ALUMI(BYA),FRT&RR 205R16 104S 6JJX16 STYLED WHL LOW-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR(BYP) FLOOR REMOTE SHIFT<M11> 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 SHORT(TFS**C) 4JA1 ENG(RLE) FRT&RR 205R16 104S 6JJX16 STYLED WHL LO W-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR(BYP),FRT&RR 215R15-6 5.5K X15 STYLED WHL(BZH),FRT 6.5-15-6 RR 6.5-15-8 5.5KX15(9PA),FRT&RR 6.50-15-8 5.5 KX15 STYLED WHL(9RE) 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JA1 ENG(RLE) FRT&RR 205R16 6JJX16 STEEL WHL(BUP), FRT&RR 205R16 6JJX16 ALUMI WHL(BUQ),FRT&RR 205/80R16 6JJX16 MICHELIN STYLED(BXZ), FRT&RR 205/80R16 6JJX16 MICHELIN ALUMI(BYA),FRT&RR 205R16 104S 6JJX16 STYLED W HL LOW-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR(BYP),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT 6.5-15-6 R R 6.5-15-8 5.5KX15(9PA),FRT&RR 6.50-15-8 5.5KX15 STYLED WHL(9RE) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97257-823-0 01 1 0110-0309 ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97357-583-0 01 1 0310- ●
398 02.698 SWITCH; REV LAMP
04.439 		8-94411-366-1 01 1 9804- ●
398 02.698 SWITCH; REV LAMP 8-97138-635-0 01 1 9804- ●
406 02.559 BOLT; HARNESS CLIP
01.062 M8X16 FLANGE 		0-28080-816-0 01 1 9804- ●
406 02.559 BOLT; HARNESS CLIP
4X4(TFS***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) 00.206 M8X12 W/LK WASHER 		0-50040-812-0 01 1 9804-9804 ●
407 02.698 CLIP; SWITCH HARNESS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) 00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804-9804 ●
407 02.698 CLIP; SWITCH HARNESS
4X4(TFS***) 4JA1 ENG(RLE) 00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9804-9804 ●
407 02.698 CLIP; SWITCH HARNESS
00.446 ID=12 B=14 ID=8.5 		5-09700-350-0 01 1 9805- ●
407 02.698 CLIP; SWITCH HARNESS
4X4(TFS***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) 04.105 L=140 		8-97122-360-0 01 1 9805- ●
411 02.698 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). 04.075 ID=14.2 		8-94462-114-0 01 1 9804- ●
412 02.698 PLUNGER; REV LAMP SW
4X4(TFS***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) 04.302 D=5.5 L=26.7 		8-94161-122-0 01 1 9804- ●
413 04.307 BALL; BACK SW
4X4(TFS***) 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) 		9-00097-517-0 01 1 9804- ●
çizim 73888
262 288 140 271 268 271 289 139 22 22 174 459 479 261 132 479 248 248 274
BalonParca AdiParca NoAdetTipApplied Date A B C D
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 9804-9808 ● ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 9809-0003 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 9809-0003 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 0004-0109 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 0004-0109 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 0110- ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
FLOOR REMOTE SHIFT<M11> 		8-97181-326-0 02 1 0110- ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-102-0 02 1 9804-9808 ● ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-102-0 02 1 9809-9909 ●
22 04.307 CAP; RETURN SPR,SHIFT BLOCK
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-102-0 02 1 9910-0003 ●
132 04.027 SPRING; SELECT STOP
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 9805-9808 ● ●
132 04.027 SPRING; SELECT STOP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 9809-0003 ●
132 04.027 SPRING; SELECT STOP
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 9809-0003 ●
132 04.027 SPRING; SELECT STOP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 0004-0109 ●
132 04.027 SPRING; SELECT STOP
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 0004-0109 ●
132 04.027 SPRING; SELECT STOP
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 0110- ●
132 04.027 SPRING; SELECT STOP
FLOOR REMOTE SHIFT<M11> 		8-97181-395-0 01 1 0110- ●
132 04.027 SPRING; SELECT STOP
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-106-0 01 1 9804-9808 ● ●
132 04.027 SPRING; SELECT STOP
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-106-0 01 1 9809-9909 ●
132 04.027 SPRING; SELECT STOP
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-106-0 01 1 9910-0003 ●
139 04.020 BOX; QUAD,TRANS
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 04.105 		8-97203-640-0 01 1 9804-9909 ●
140 04.104 BREATHER; AIR,TRANS
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 04.510 (C) 		8-97173-544-0 01 1 9804-9909 ●
140 04.104 BREATHER; AIR,TRANS
4X2(TFB***) 22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> 04.510 (C) 		8-97173-544-0 01 1 9910-0003 ●
140 04.104 BREATHER; AIR,TRANS
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> (C) 		8-97172-656-0 01 1 0004-0005 ●
140 04.104 BREATHER; AIR,TRANS
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> (A) 		8-97172-655-0 01 1 9804-9909 ●
140 04.104 BREATHER; AIR,TRANS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> (A) 		8-97172-655-0 01 1 9910-0003 ●
140 04.104 BREATHER; AIR,TRANS
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.510 (A) 		8-97173-545-0 01 1 0004-0109 ●
140 04.104 BREATHER; AIR,TRANS
4JG2 ENG(RJC),4JH1 ENG(RJX),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.510 (A) 		8-97173-545-0 01 1 0110-0305 ●
140 04.104 BREATHER; AIR,TRANS
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 04.510 		8-97173-545-0 01 1 0306-0309 ●
140 04.104 BREATHER; AIR,TRANS
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> (B) 		8-97172-656-0 01 1 9804-9804 ●
140 04.104 BREATHER; AIR,TRANS
22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> (B) 		8-97172-656-0 01 1 9805-9909 ●
140 04.104 BREATHER; AIR,TRANS
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> (B) 		8-97172-656-0 01 1 9910-0003 ●
140 04.104 BREATHER; AIR,TRANS
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.510 (B) 		8-97173-544-0 01 1 0004-0109 ●
140 04.104 BREATHER; AIR,TRANS
FLOOR REMOTE SHIFT<M11> 04.510 (B) 		8-97173-544-0 01 1 0110- ●
174 04.307 SPRING; REV
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 9804-9808 ● ●
174 04.307 SPRING; REV
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 9809-0003 ●
174 04.307 SPRING; REV
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 9809-0003 ●
174 04.307 SPRING; REV
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 0004-0109 ●
174 04.307 SPRING; REV
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 0004-0109 ●
174 04.307 SPRING; REV
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 0110- ●
174 04.307 SPRING; REV
FLOOR REMOTE SHIFT<M11> 		8-97181-394-0 01 1 0110- ●
174 04.307 SPRING; REV
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-105-0 01 1 9804-9808 ● ●
174 04.307 SPRING; REV
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-105-0 01 1 9809-9909 ●
174 04.307 SPRING; REV
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-105-0 01 1 9910-0003 ●
248 04.105 RETAINER; CONT BOX
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 04.307 		8-97181-325-0 02 1 9805-9808 ● ●
248 04.105 RETAINER; CONT BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 04.307 		8-97181-325-0 02 1 9809-0003 ●
248 04.105 RETAINER; CONT BOX
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 04.307 		8-97181-325-0 02 1 9809-0003 ●
248 04.105 RETAINER; CONT BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 04.307 		8-97181-325-0 02 1 0004-0109 ●
248 04.105 RETAINER; CONT BOX
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.307 		8-97181-325-0 02 1 0004-0109 ●
248 04.105 RETAINER; CONT BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 04.307 		8-97181-325-0 02 1 0110- ●
248 04.105 RETAINER; CONT BOX
FLOOR REMOTE SHIFT<M11> 04.307 		8-97181-325-0 02 1 0110- ●
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97103-092-1 01 1 9804-9808 ●
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97203-908-1 01 1 9809-0005 ●
261 04.309 ROD; GEAR CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97184-904-1 01 1 9804-9910 ● ●
261 04.309 ROD; GEAR CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97184-904-1 01 1 9911-0005 ●
261 04.309 ROD; GEAR CONT
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97184-904-1 01 1 9911-0005 ●
261 04.309 ROD; GEAR CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97257-910-0 01 1 0006-0103 ● ●
261 04.309 ROD; GEAR CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97257-910-0 01 1 0104- ●
261 04.309 ROD; GEAR CONT
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97257-910-0 01 1 0104- ●
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-090-1 01 1 9804-9811 ●
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-092-1 01 1 9812-9909 ●
261 04.309 ROD; GEAR CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-092-1 01 1 9910-0003 ●
261 04.309 ROD; GEAR CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97257-825-0 01 1 0004-0005 ●
261 04.309 ROD; GEAR CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97257-825-0 01 1 0006-0103 ● ●
261 04.309 ROD; GEAR CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97257-825-0 01 1 0104- ●
261 04.309 ROD; GEAR CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97257-825-0 01 1 0104- ●
261 04.309 ROD; GEAR CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97257-909-0 01 1 0110- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SPACE CAB(TFB*C*) 4JA1 ENG(RLE) FRT&RR 205R16 104S 6JJX16 STYLED WHL LO W-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JG2 ENG(RJC) FRT&RR 195R14-8 5.5JJ-20 P RANGE(ANM), FRT&RR 195R14-8 5.5JJ-20 MICHELIN(ANN),F RT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ) FLOOR REMOTE SHIFT<M11> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 LONG(TFB**F) 6VD1 ENG(RLV) FRT&RR 225/70R15C 6JJX15 STYLED(AYG), FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JA1 ENG(RLE) FRT&RR 205R16 104S 6JJX16 STYLED WHL LO W-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SPACE CAB(TFB*C*) 4JB1 ENG(RLF) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ),FRT&RR 185R14-8 5.5JJX14 (APE),FRT&RR 225/70R15C 6JJX15 STYLED(AYG),FRT&RR 205R16 104S 6JJX16 STYLED WH L LOW-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY), FRT&RR 185R14-8 5.5JJX14(9PE) TURBOCHARGER<K51> FLOOR REMOTE SHIFT<M11> 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JB1 ENG(RLF) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY), FRT&RR 185R14-8 5.5JJX14(9PE) TURBOCHARGER<K51> FLOOR REMOTE SHIFT<M11> EAST MALAYSIA EQUIPMENT(PM6) 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JB1 ENG(RLF) FRT 185R14-6 5.5JJ-20 RR 185R14-8 5.5JJ -20(ANL),FRT&RR 195R14-8 5.5JJ-20 P RANGE STYLED(ANQ),FRT&RR 185R14-8 5.5JJX14 (APE),FRT&RR 225/70R15C 6JJX15 STYLED(AYG),FRT&RR 205R16 104S 6JJX16 STYLED WH L LOW-RR(BYN),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY), FRT&RR 185R14-8 5.5JJX14(9PE) TURBOCHARGER<K51> FLOOR REMOTE SHIFT<M11> EXC. EAST MALAYSIA EQUIPMENT(PM6) 		8-97358-140-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97358-139-0 01 1 0310- ● ● ● ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-530-3 01 1 9804- ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97104-409-4 01 1 9804-9808 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97201-493-1 01 1 9809-0010 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97201-493-1 01 1 0011-0103 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97201-493-1 01 1 0104- ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-531-2 01 1 9804-9909 ●
262 04.105 BOX ASM; SHIFT CONT
4X2(TFB***) 22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> 		8-97181-531-3 01 1 9910-0012 ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-531-3 01 1 0101-0305 ●
262 04.105 BOX ASM; SHIFT CONT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97358-200-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97172-637-1 01 1 9804-9811 ●
262 04.105 BOX ASM; SHIFT CONT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97215-046-1 01 1 9812-9909 ●
262 04.105 BOX ASM; SHIFT CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97215-046-1 01 1 9910-0003 ●
262 04.105 BOX ASM; SHIFT CONT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97257-822-0 01 1 0004-0305 ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JG2 ENG(RJC) FRT&RR 205/80R16 6JJX16 MICHELIN STYLED (BXZ),FRT&RR 205/80R16 6JJX16 MICHELIN ALUMI(BYA),FRT&RR 205R16 104S 6JJX16 STYLED WHL LOW-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR(BYP) FLOOR REMOTE SHIFT<M11> 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 SHORT(TFS**C) 4JA1 ENG(RLE) FRT&RR 205R16 104S 6JJX16 STYLED WHL LO W-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR(BYP),FRT&RR 215R15-6 5.5K X15 STYLED WHL(BZH),FRT 6.5-15-6 RR 6.5-15-8 5.5KX15(9PA),FRT&RR 6.50-15-8 5.5 KX15 STYLED WHL(9RE) 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JA1 ENG(RLE) FRT&RR 205R16 6JJX16 STEEL WHL(BUP), FRT&RR 205R16 6JJX16 ALUMI WHL(BUQ),FRT&RR 205/80R16 6JJX16 MICHELIN STYLED(BXZ), FRT&RR 205/80R16 6JJX16 MICHELIN ALUMI(BYA),FRT&RR 205R16 104S 6JJX16 STYLED W HL LOW-RR(BYN),FRT&RR 205R16 104S 6JJX16 ALUMI WHL LOW-RR(BYP),FRT&RR 215R15-6 5.5KX15 STYLED WHL(BZH),FRT 6.5-15-6 R R 6.5-15-8 5.5KX15(9PA),FRT&RR 6.50-15-8 5.5KX15 STYLED WHL(9RE) FLOOR REMOTE SHIFT<M11> EXC. CHARGE AIR COOLER<6PL> 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> AUSTRALIAN EQUIPMENT(RR3) 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JB1 ENG(RLF) FLOOR REMOTE SHIFT<M11> 		8-97357-584-0 01 1 0306- ●
262 04.105 BOX ASM; SHIFT CONT
4X2 SINGLE CAB LONG(TFB5SF) 4X2 CREW CAB(TFB5WF) 4X4 SPACE CAB(TFS5CF) 4X4 SINGLE CAB LONG(TFS5SF) 4X4 CREW CAB(TFS5WF) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97257-823-0 01 1 0110-0309 ●
262 04.105 BOX ASM; SHIFT CONT
4X4 LONG(TFS**F) 4JH1 ENG(RJX),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> CHARGE AIR COOLER<6PL> 		8-97357-583-0 01 1 0310- ●
268 04.302 LEVER; CONT,INTERNAL
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97184-894-0 01 1 9804-9808 ●
268 04.302 LEVER; CONT,INTERNAL
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97184-894-0 01 1 9809- ●
268 04.302 LEVER; CONT,INTERNAL
4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> EXC. M/T LOW GEARED(6WF) 		8-97104-410-0 01 1 9804-9808 ●
268 04.302 LEVER; CONT,INTERNAL
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97184-895-0 01 1 9805-9909 ●
268 04.302 LEVER; CONT,INTERNAL
4X2(TFB***) 22LE/C22NE ENG(RJT) AUSTRALIAN EQUIPMENT(RR3) FLOOR REMOTE SHIFT<M11> 		8-97184-895-0 01 1 9910-0003 ●
268 04.302 LEVER; CONT,INTERNAL
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97184-895-0 01 1 0004-0109 ●
268 04.302 LEVER; CONT,INTERNAL
FLOOR REMOTE SHIFT<M11> 		8-97184-895-0 01 1 0110- ●
268 04.302 LEVER; CONT,INTERNAL
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-089-0 01 1 9804-9909 ●
268 04.302 LEVER; CONT,INTERNAL
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-089-0 01 1 9910-0003 ●
271 04.105 BUSHING; QUAD BOX
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 9804-9808 ● ●
271 04.105 BUSHING; QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 9809-0003 ●
271 04.105 BUSHING; QUAD BOX
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 9809-0003 ●
271 04.105 BUSHING; QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 0004-0109 ●
271 04.105 BUSHING; QUAD BOX
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 0004-0109 ●
271 04.105 BUSHING; QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 0110- ●
271 04.105 BUSHING; QUAD BOX
FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-97203-909-0 02 1 0110- ●
271 04.105 BUSHING; QUAD BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> ID=14 L=15 		8-94478-119-0 02 1 9804-9808 ● ●
271 04.105 BUSHING; QUAD BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> ID=14 L=15 		8-94478-119-0 02 1 9809-9909 ●
271 04.105 BUSHING; QUAD BOX
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> ID=14 L=15 		8-94478-119-0 02 1 9910-0003 ●
274 04.105 COVER; SHAFT,QUAD BOX
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 9804-9808 ● ●
274 04.105 COVER; SHAFT,QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 9809-0003 ●
274 04.105 COVER; SHAFT,QUAD BOX
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 9809-0003 ●
274 04.105 COVER; SHAFT,QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 0004-0109 ●
274 04.105 COVER; SHAFT,QUAD BOX
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 0004-0109 ●
274 04.105 COVER; SHAFT,QUAD BOX
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 0110- ●
274 04.105 COVER; SHAFT,QUAD BOX
FLOOR REMOTE SHIFT<M11> 		8-97181-324-1 01 1 0110- ●
274 04.105 COVER; SHAFT,QUAD BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-093-2 01 1 9804-9808 ● ●
274 04.105 COVER; SHAFT,QUAD BOX
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-093-3 01 1 9809-9909 ●
274 04.105 COVER; SHAFT,QUAD BOX
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97103-093-3 01 1 9910-0003 ●
288 04.307 PLUG; AIR BREATHER
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97184-906-0 01 1 9804-9808 ● ●
288 04.307 PLUG; AIR BREATHER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97184-906-0 01 1 9809-0005 ●
288 04.307 PLUG; AIR BREATHER
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97184-906-0 01 1 9809-0005 ●
288 04.307 PLUG; AIR BREATHER
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		9-00097-517-0 01 1 0004-0005 ●
288 04.307 PLUG; AIR BREATHER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		9-00097-517-0 01 1 0006-0109 ●
288 04.307 PLUG; AIR BREATHER
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		9-00097-517-0 01 1 0006-0109 ●
288 04.307 PLUG; AIR BREATHER
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		9-00097-517-0 01 1 0110- ●
288 04.307 PLUG; AIR BREATHER
FLOOR REMOTE SHIFT<M11> 		9-00097-517-0 01 1 0110- ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 9804-9808 ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 9809-0003 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 9809-0003 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 0004-0109 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 0004-0109 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 0110- ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). FLOOR REMOTE SHIFT<M11> 		8-97181-327-0 01 1 0110- ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-94478-118-0 01 1 9804-9808 ● ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-94478-118-0 01 1 9809-9909 ●
289 04.107 SEAL; OIL,CONT SHAFT,QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 		8-94478-118-0 01 1 9910-0003 ●
459 04.302 PIN; SPR,ROD TO ARM
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 9804-9808 ● ●
459 04.302 PIN; SPR,ROD TO ARM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 9809-0003 ●
459 04.302 PIN; SPR,ROD TO ARM
4X2 LONG(TFB**F) 22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 9809-0003 ●
459 04.302 PIN; SPR,ROD TO ARM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 0004-0109 ●
459 04.302 PIN; SPR,ROD TO ARM
4JG2 ENG(RJC),22LE/C22NE ENG(RJT),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 0004-0109 ●
459 04.302 PIN; SPR,ROD TO ARM
22LE/C22NE ENG(RJT),4JA1 ENG(RLE) FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 0110- ●
459 04.302 PIN; SPR,ROD TO ARM
FLOOR REMOTE SHIFT<M11> OD=5 		8-97184-905-0 01 1 0110- ●
459 04.302 PIN; SPR,ROD TO ARM
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=5.4 		9-09678-510-0 01 1 9804-9808 ● ●
459 04.302 PIN; SPR,ROD TO ARM
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=5.4 		9-09678-510-0 01 1 9809-9909 ●
459 04.302 PIN; SPR,ROD TO ARM
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=5.4 		9-09678-510-0 01 1 9910-0003 ●
459 04.302 PIN; SPR,ROD TO ARM
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=3.3 		9-09678-519-0 01 1 9804-9808 ● ●
459 04.302 PIN; SPR,ROD TO ARM
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=3.3 		9-09678-519-0 01 1 9809-9909 ●
459 04.302 PIN; SPR,ROD TO ARM
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> 04.042 OD=3.3 		9-09678-519-0 01 1 9910-0003 ●
479 04.307 PLATE; SELECT
22LE/C22NE ENG(RJT) FLOOR REMOTE SHIFT<M11> 		8-97181-325-0 02 1 9804- ● ●
479 04.307 PLATE; SELECT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> D=13 		8-97103-110-0 02 1 9804-9808 ● ●
479 04.307 PLATE; SELECT
4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> D=13 		8-97103-110-0 02 1 9809-9909 ●
479 04.307 PLATE; SELECT
4JG2 ENG(RJC),4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) FLOOR REMOTE SHIFT<M11> D=13 		8-97103-110-0 02 1 9910-0003 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
