◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11429 - FXZ(AUST)JNLT05 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#45633) — 18 parça

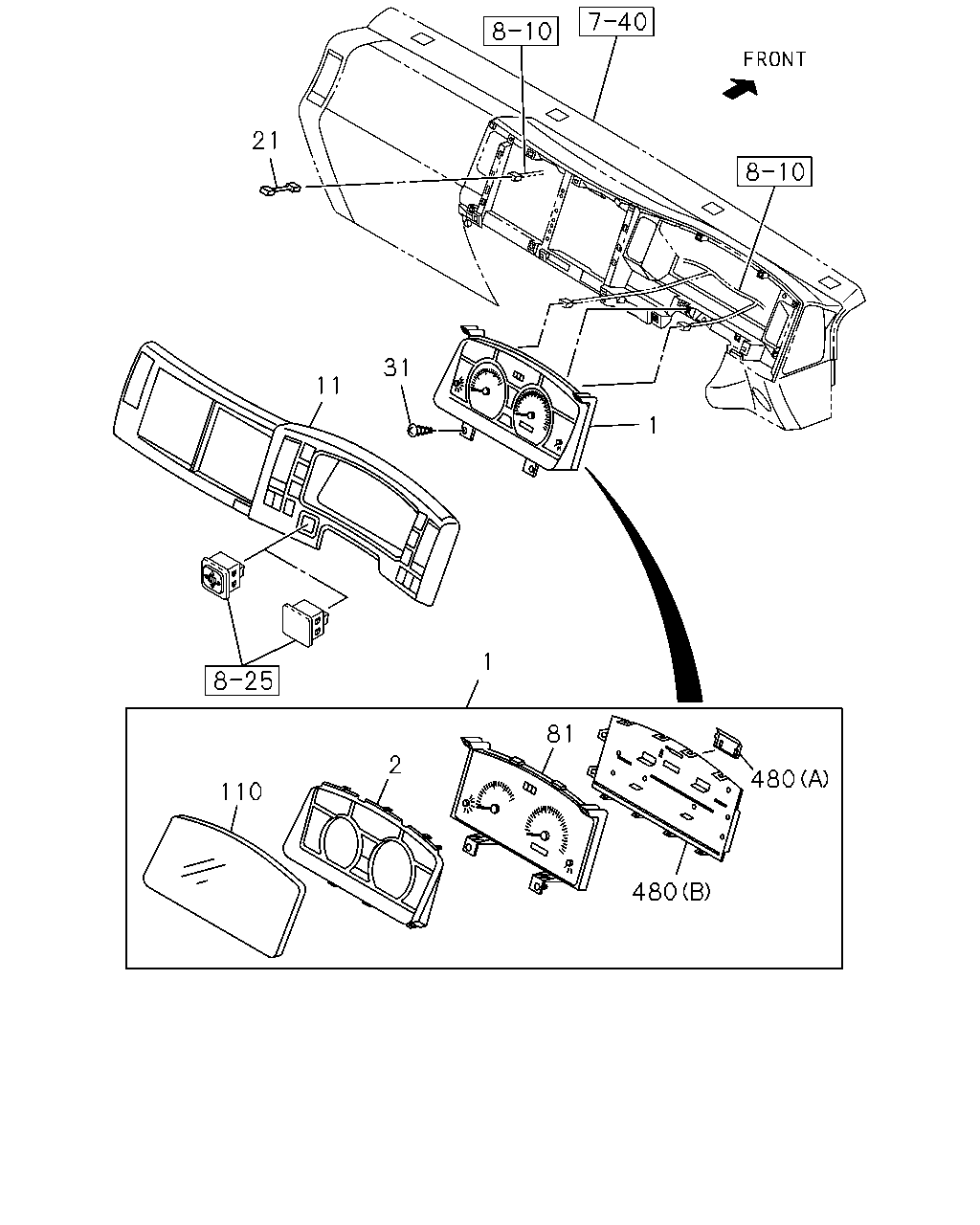

çizim 113007
21 31 11 1 1 81 2 480 110 480
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
MULTI INFORMATION DISPLAY<7NY> 		8-98075-594-5 01 1 0801-1101 ● ●
1 METER COMPL; CLUSTER
MULTI INFORMATION DISPLAY<7NY> 		8-98179-474-1 01 1 1102- ● ●
1 METER COMPL; CLUSTER
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98075-591-4 01 1 0801-1101 ● ●
1 METER COMPL; CLUSTER
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98179-472-2 01 1 1102- ● ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 0801- ● ●
11 CLUSTER ASM; METER
TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97414-681-1 01 1 0801-0905 ● ●
11 CLUSTER ASM; METER
EXC. TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97405-350-6 01 1 0801-0905 ● ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 0906- ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> 		8-98074-078-0 01 1 0801-0905 ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 0801- ● ●
81 METER SUB ASM
MULTI INFORMATION DISPLAY<7NY> 		8-98079-698-0 01 1 0801-1101 ● ●
81 METER SUB ASM
MULTI INFORMATION DISPLAY<7NY> 		8-98179-482-0 01 1 1102- ● ●
81 METER SUB ASM
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98079-684-0 01 1 0801-1101 ● ●
81 METER SUB ASM
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98179-480-0 01 1 1102- ● ●
110 GLASS; CLUSTER METER
MULTI INFORMATION DISPLAY<7NY> 		8-98054-642-0 01 1 0801- ● ●
110 GLASS; CLUSTER METER
EXC. MULTI INFORMATION DISPLAY<7NY> 		8-98054-431-0 01 1 0801- ● ●
480 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 0801- ● ●
480 COVER; METER
MULTI INFORMATION DISPLAY<7NY> (A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 0801- ● ●
