Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#45631) — 615 parça

38 38 38 139 150 38 150 466 38 242 38 38 38 386 127 524 24 219 294 340 515 525 552 358 377 38 242 377 386 38 386 38 38 86 139 242 313 38 423 139

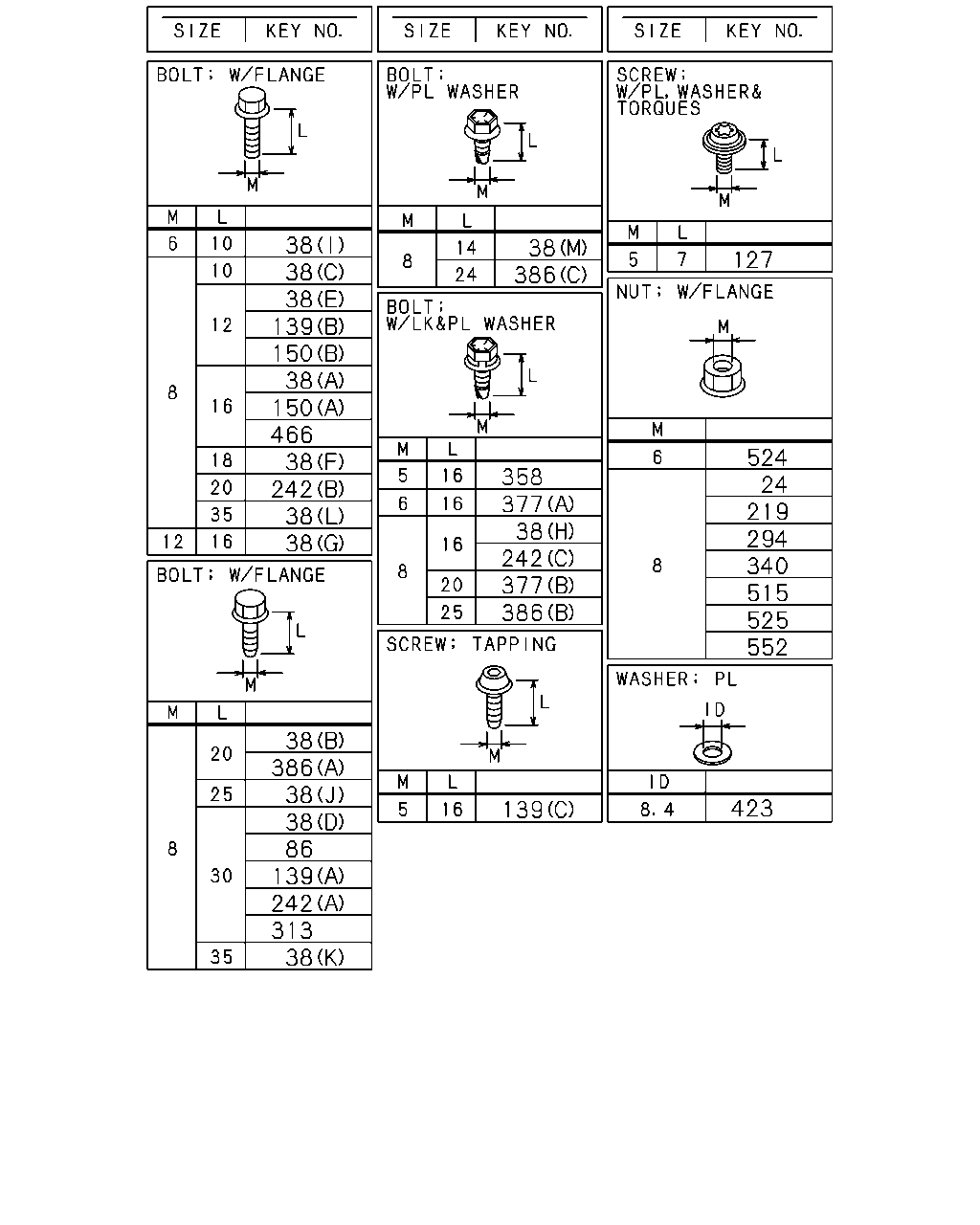

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	NUT; HARNESS M8 FLANGE	0-91180-108-0	02	1	0801-0801	●	●
38	BOLT; CLIP,HARNESS (L) M8X35 FLANGE	0-28050-835-0	03	1	1212-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	04	1	1212-	●	●
38	BOLT; CLIP,HARNESS (F) M8X18 FLANGE	0-28080-818-0	01	1	0801-0801	●	●
38	BOLT; CLIP,HARNESS WHEEL BASE 4900MM(49W) (D) M8X30 FLANGE	0-28650-830-0	01	1	0802-1201		●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	1202-	●	●
38	BOLT; CLIP,HARNESS WHEEL BASE 4900MM(49W) (D) M8X30 FLANGE	0-28650-830-0	01	1	1202-		●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	04	1	0801-0801	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	01	1	0802-0802	●	●
38	BOLT; CLIP,HARNESS ZF9S1310 M/T(Y5K) (B) M8X20 FLANGE	0-28650-820-0	01	1	0802-	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	01	1	0802-	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	05	1	0801-0801	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	08	1	0802-0802	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	06	1	0803-0804	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	07	1	0805-1201	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	05	1	1202-	●	●
38	BOLT; CLIP,HARNESS (J) M8X25 FLANGE	0-28650-825-0	03	1	0801-	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	11	1	0801-0801	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	01	1	0801-0801	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	12	1	0802-0803	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	08	1	0804-0804	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	07	1	0805-1201	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	06	1	1202-1211	●	●
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1212-	●	●
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	1-09044-079-0	01	1	0801-1105	●	●
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	0-28051-216-0	01	1	1106-	●	●
38	BOLT; CLIP,HARNESS (H) M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	0801-1201	●	●
38	BOLT; CLIP,HARNESS (M) M8X14 W/PL WASHER	8-98164-837-0	03	1	1202-	●	●
38	BOLT; CLIP,HARNESS (K) M8X35 FLANGE	0-28650-835-0	02	1	0803-	●	●
38	BOLT; CLIP,HARNESS (L) M8X35 FLANGE	0-28050-835-0	04	1	0804-1211	●	●
38	BOLT; CLIP,HARNESS (L) M8X35 FLANGE	0-28050-835-0	01	1	1212-	●	●
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE	0-28650-820-0	02	1	0801-1201	●	●
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (B) M8X20 FLANGE	0-28650-820-0	02	1	1202-	●	●
38	BOLT; CLIP,HARNESS (B) M8X20 FLANGE	0-28650-820-0	02	1	1202-	●	●
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM(BFA) (A) M8X16 FLANGE	0-28050-816-0	01	1	0801-0803	●	●
38	BOLT; CLIP,HARNESS GENERATOR 24V90A(K44) (C) M8X10 FLANGE	0-28050-810-0	01	1	0801-	●	●
38	BOLT; CLIP,HARNESS EXC. GENERATOR 24V90A(K44) (I) M6X10 FLANGE	0-28050-610-0	01	1	0801-	●	●
38	BOLT; CLIP,HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (B) M8X20 FLANGE	0-28650-820-0	03	1	0801-	●	●
38	BOLT; CLIP,HARNESS ZF9S1310 M/T(Y5K) (E) M8X12 FLANGE	0-28050-812-0	02	1	0801-	●	●
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	01	1	0801-	●	●
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0801-	●	●
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	08	1	1202-	●	●
139	BOLT; BRKT (B) M8X12 FLANGE	0-28050-812-0	01	1	0801-	●	●
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	09	1	0801-1201	●	●
139	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1202-	●	●
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM(BFA) (A) M8X30 FLANGE	0-28650-830-0	03	1	0801-	●	●
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0801-1301	●	●
150	BOLT; CLIP (B) M8X12 FLANGE	0-28050-812-0	02	1	0801-	●	●
150	BOLT; CLIP (A) M8X16 FLANGE	0-28050-816-0	08	1	0801-	●	●
219	NUT M8 FLANGE	0-91180-108-0	02	1	0801-0801	●	●
219	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	0801-0801	●	●
219	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	02	1	0802-	●	●
219	NUT M8 FLANGE	0-91180-108-0	09	1	0801-0801	●	●
219	NUT M8 FLANGE	0-91180-108-0	10	1	0802-1201	●	●
219	NUT M8 FLANGE	0-91180-108-0	05	1	1202-	●	●
219	NUT M8 FLANGE	0-91180-108-0	05	1	1202-	●	●
219	NUT TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	01	1	0801-0801	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	0802-0802	●	●
219	NUT TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	01	1	0802-0802	●	●
219	NUT TRANSMISSION-FULLER RTO11908(Y5L) M8 FLANGE	0-91180-108-0	01	1	0802-	●	●
219	NUT M8 FLANGE	0-91180-108-0	01	1	0802-	●
219	NUT WHEEL BASE 4900MM(49W) M8 FLANGE	0-91180-108-0	01	1	0802-		●
242	BOLT; BRKT,HARNESS (B) M8X20 FLANGE	0-28050-820-0	01	1	0801-	●	●
242	BOLT; BRKT,HARNESS (A) M8X30 FLANGE	0-28650-830-0	01	1	0801-	●	●
242	BOLT; BRKT,HARNESS (A) M8X30 FLANGE	0-28650-830-0	02	1	0801-	●	●
242	BOLT; BRKT,HARNESS (C) M8X16 W/LK&PL WASHER	1-09980-498-0	02	1	0801-	●	●
294	NUT M8 FLANGE	0-91180-108-0	06	1	1202-	●	●
294	NUT M8 FLANGE	0-91180-108-0	08	1	0801-1201	●	●
294	NUT M8 FLANGE	0-91180-108-0	02	1	1202-	●	●
294	NUT ANTILOCK BRAKE SYSTEM(BFA) M8 FLANGE	0-91180-108-0	03	1	0801-	●	●
313	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	08	1	0801-	●	●
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91180-108-0	03	1	0801-	●	●
358	BOLT; EARTH M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0801-	●	●
377	BOLT; CAB EARTH (A) M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0801-	●	●
377	BOLT; CAB EARTH (B) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0801-	●	●
386	BOLT; GRAND HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	0801-	●	●
386	BOLT; GRAND HARNESS (B) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0801-1202	●	●
386	BOLT; GRAND HARNESS (C) M8X24 W/PL WASHER	8-98141-256-1	02	1	1203-	●	●
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	03	1	0801-	●	●
466	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	0801-	●	●
515	NUT; BRKT M8 FLANGE	0-91180-108-0	07	1	1202-	●	●
515	NUT; BRKT M8 FLANGE	0-91180-108-0	08	1	0801-1201	●	●
515	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1202-	●	●
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	04	1	0801-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0801-1211	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1212-	●	●
525	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	1212-	●	●
552	NUT; BRKT,HARNESS M8 FLANGE	0-91180-108-0	01	1	0801-	●	●

16 48 208 16 48 51 612 16 16 48 104 16 16 16 48 48 16 612 16 116 16 16 16 104 470 104 16 612 421 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

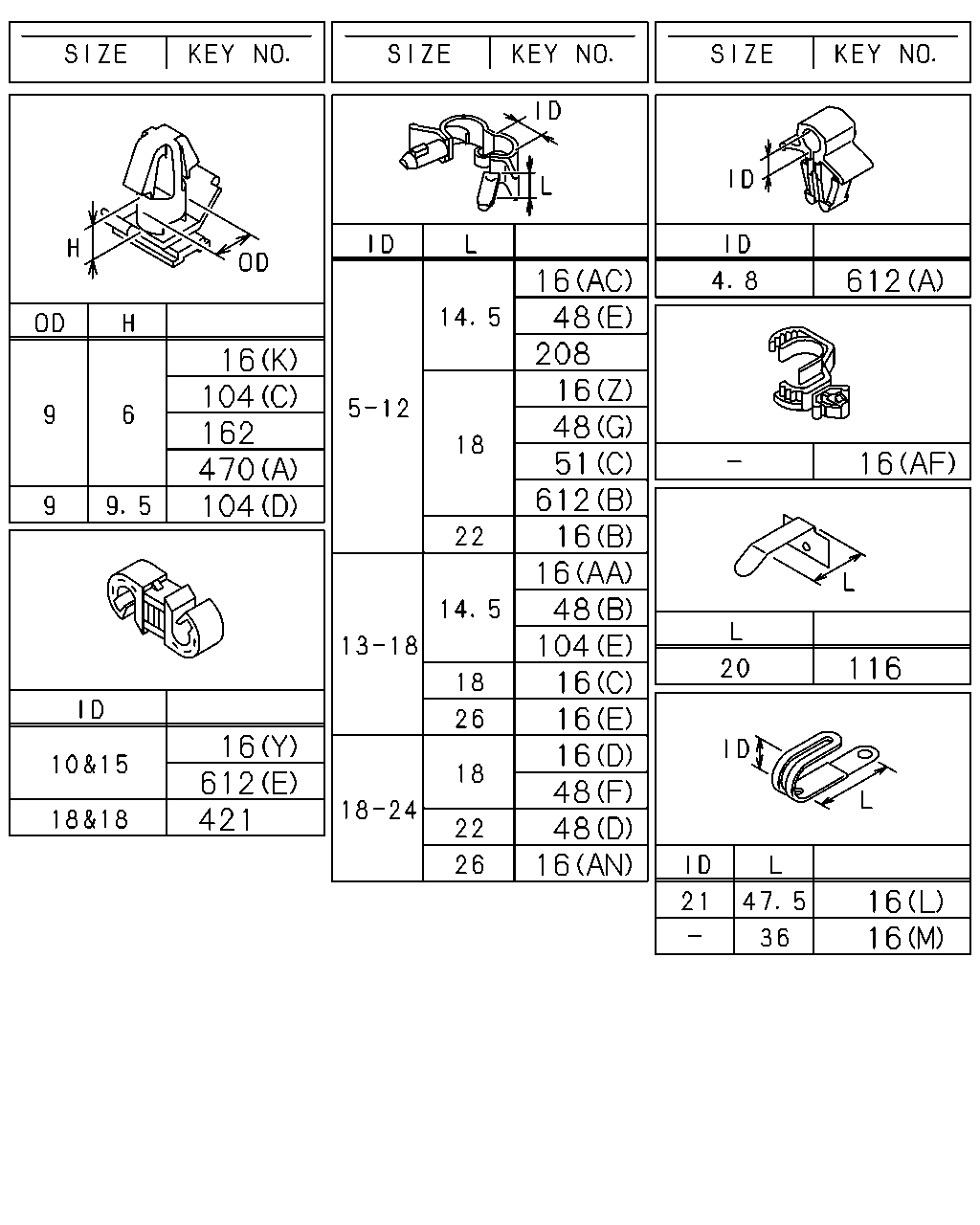

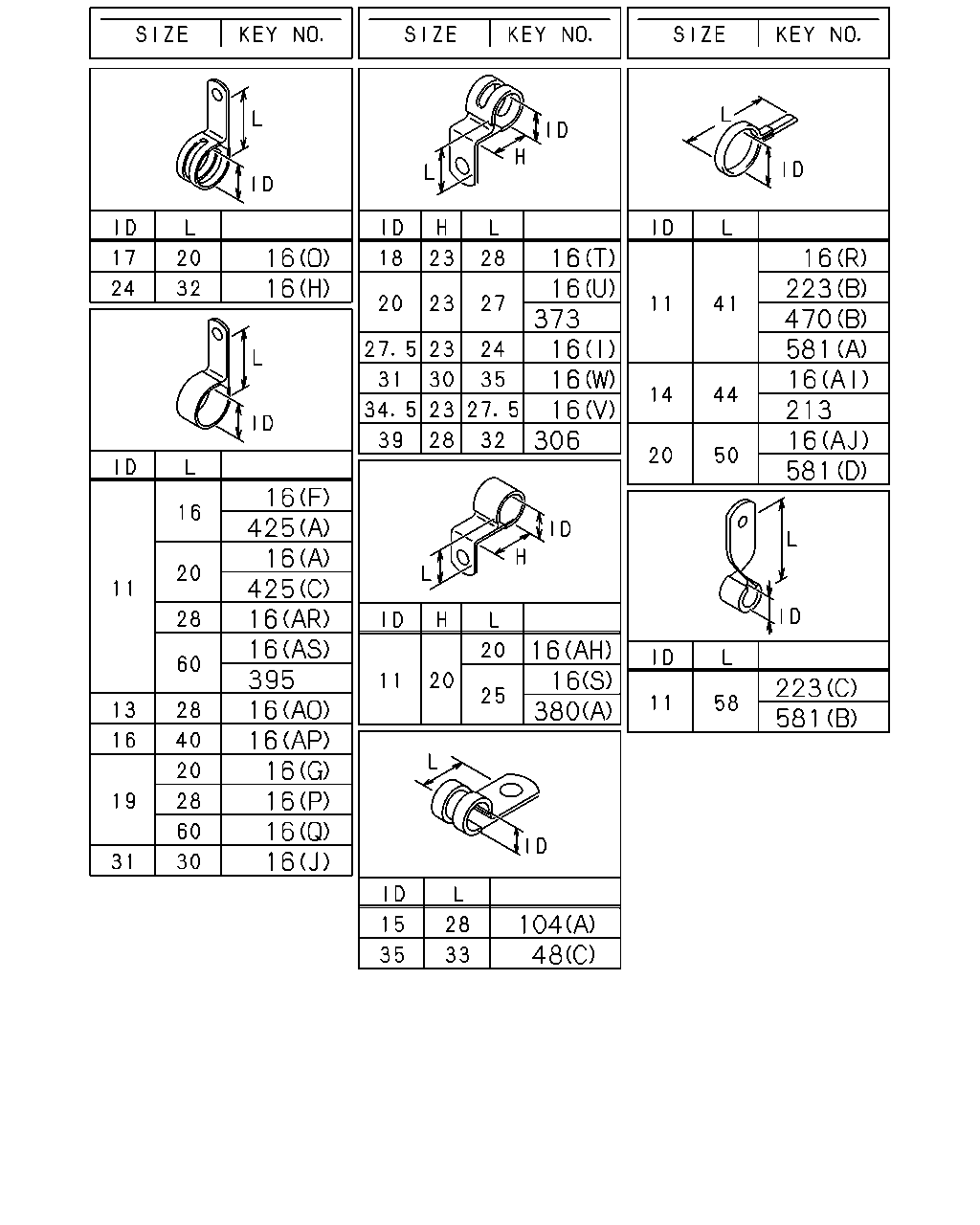

16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	10	1	0801-0808	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (C) ID=13-18 L=18	1-09709-291-0	06	1	0809-	●
16	CLIP; HARNESS (E) ID=13-18 L=26	1-09709-293-0	01	1	0801-0808	●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (E) ID=13-18 L=26	1-09709-293-0	01	1	0809-	●
16	CLIP; HARNESS (D) ID=18-24 L=18	1-09709-294-0	11	1	0801-0805	●
16	CLIP; HARNESS (D) ID=18-24 L=18	1-09709-294-0	12	1	0806-0808	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18	1-09709-294-0	13	1	0809-	●
16	CLIP; HARNESS (AN) ID=18-24 L=26	1-09709-296-0	01	1	0801-0808	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AN) ID=18-24 L=26	1-09709-296-0	02	1	0809-0907	●
16	CLIP; HARNESS (AN) ID=18-24 L=26	1-09709-296-0	02	1	0908-	●
16	CLIP; HARNESS DIFF LOCK<C3N> (X) L=350	1-09707-183-0	01	1	0809-	●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (D) ID=18-24 L=18	1-09709-294-0	12	1	0809-	●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (AN) ID=18-24 L=26	1-09709-296-0	01	1	0809-0907	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	0801-	●	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	05	1	0801-	●	●
16	CLIP; HARNESS (G) ID=19 L=20	0-95235-836-0	01	1	0801-	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	0801-	●	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	0801-	●	●
16	CLIP; HARNESS (S) ID=11 H=20 L=25	1-09700-848-0	01	1	0801-0801	●	●
16	CLIP; HARNESS FUEL TANK 200L AL<THF> (Z) ID=5-12 L=18	1-09709-287-0	01	1	0802-		●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	0801-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	0801-	●	●
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0801-	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0801-	●	●
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	0801-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	0801-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	09	1	0801-0801	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	08	1	0802-0805	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	07	1	0806-1101	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	03	1	1102-1107	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1108-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	02	1	1108-		●
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	0801-	●	●
16	CLIP; HARNESS (Y) ID=10 & 15	1-09709-279-1	01	1	0801-0801	●	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	0801-0801	●	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	0802-	●
16	CLIP; HARNESS FUEL TANK 400L<SDH> (Z) ID=5-12 L=18	1-09709-287-0	02	1	0802-		●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	02	1	0801-0801	●	●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	02	1	0802-	●
16	CLIP; HARNESS FUEL TANK 400L<SDH> (B) ID=5-12 L=22	1-09709-288-0	02	1	0802-		●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	0801-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	0801-	●	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	0801-0802	●	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	0803-	●	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	0803-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	0801-	●	●
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	0801-	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	02	1	0801-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	0801-	●	●
16	CLIP; HARNESS (AK) L=60	8-94449-165-0	02	1	0801-0802	●	●
16	CLIP; HARNESS (AQ) L=40.6	8-97229-357-0	02	1	0803-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	0801-	●	●
16	CLIP; HARNESS (AL) L=36.5	8-97019-892-0	02	1	0801-0802	●	●
16	CLIP; HARNESS (AM) L=155	8-97173-307-0	18	1	0801-	●	●
16	CLIP; HARNESS (N) L=150	8-97355-273-0	01	1	0801-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	03	1	0801-1105	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1106-	●	●
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	04	1	0801-	●	●
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	0801-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	04	1	0801-0801	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	0802-	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	0801-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	0801-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	04	1	1102-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16	0-95235-025-0	02	1	0801-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=11 L=20	0-95235-035-0	01	1	0801-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (AO) ID=13 L=28	0-95235-255-0	01	1	0801-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (AP) ID=16 L=40	0-95235-576-0	01	1	0801-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (K) OD=9 H=6	1-09709-178-0	02	1	0801-	●	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (P) ID=19 L=28	0-95235-856-0	01	1	0801-1101	●	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (P) ID=19 L=28	0-95235-856-0	01	1	1102-	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (P) ID=19 L=28	0-95235-856-0	01	1	1102-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (Q) ID=19 L=60	0-95235-896-0	02	1	0801-1101	●	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (Q) ID=19 L=60	0-95235-896-0	02	1	1102-	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (Q) ID=19 L=60	0-95235-896-0	02	1	1102-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	02	1	0801-1107		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	05	1	0801-		●
16	CLIP; HARNESS WHEEL BASE 4900MM(49W) (C) ID=13-18 L=18	1-09709-291-0	02	1	0801-		●
16	CLIP; HARNESS WHEEL BASE 4900MM(49W) (D) ID=18-24 L=18	1-09709-294-0	08	1	0801-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18	1-09709-294-0	14	1	0809-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (C) ID=13-18 L=18	1-09709-291-0	07	1	0809-		●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (C) ID=13-18 L=18	1-09709-291-0	07	1	0801-0808		●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (C) ID=13-18 L=18	1-09709-291-0	10	1	0809-	●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (D) ID=18-24 L=18	1-09709-294-0	15	1	0801-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (AR) ID=11 L=28	0-95235-055-0	01	1	1102-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (AS) ID=11 L=60	0-95235-096-0	02	1	1102-		●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	0801-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	16	1	0801-0801	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	14	1	0802-	●	●
48	CLIP; FRAME HARNESS (B) ID=13-18 L=14.5	1-09709-290-0	01	1	0801-0802	●	●
48	CLIP; FRAME HARNESS (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0803-0804	●	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=18	1-09709-287-0	01	1	0805-1101	●	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=18	1-09709-287-0	01	1	1102-	●
48	CLIP; FRAME HARNESS FUEL TANK 400L<SDH> (G) ID=5-12 L=18	1-09709-287-0	01	1	1102-		●
48	CLIP; FRAME HARNESS (D) ID=18-24 L=22	1-09709-295-0	02	1	0801-	●	●
48	CLIP; FRAME HARNESS (F) ID=18-24 L=18	1-09709-294-0	01	1	0805-1101	●	●
48	CLIP; FRAME HARNESS (F) ID=18-24 L=18	1-09709-294-0	01	1	1102-	●
48	CLIP; FRAME HARNESS FUEL TANK 400L<SDH> (F) ID=18-24 L=18	1-09709-294-0	01	1	1102-		●
48	CLIP; FRAME HARNESS FUEL TANK 200L AL<THF> (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1102-		●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=180	1-09707-162-1	01	1	0801-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=350	1-09707-183-0	01	1	0801-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=5-12 L=18	1-09709-287-0	01	1	0801-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	01	1	1202-	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	02	1	0801-0801	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	0802-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	0801-1201	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	02	1	1202-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	0801-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	0801-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	0801-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	01	1	0801-	●	●
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	0801-	●	●
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	0801-	●	●
208	CLIP; HARNESS,MAG VLV ID=5-12 L=14.5	1-09987-221-0	01	1	0801-0805	●	●
421	CLIP; FLOOR HARNESS ID=18 & 18	8-94323-068-0	02	1	0806-	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	0801-	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	0801-	●	●
612	CLIP; HARNESS DPD (A) ID=4.8	1-09701-218-0	03	1	0801-	●	●
612	CLIP; HARNESS DPD (D) L=350	1-09707-183-0	02	1	0801-	●	●
612	CLIP; HARNESS DPD (E) ID=10 & 15	1-09709-279-1	01	1	0801-	●	●
612	CLIP; HARNESS DPD (B) ID=5-12 L=18	1-09709-287-0	01	1	0801-0801	●	●
612	CLIP; HARNESS DPD (C) L=250	5-09707-030-1	01	1	0801-	●	●

312 375 335 335 211 375 600 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA)	8-97621-353-1	01	1	0801-	●	●
211	BRACKET; AXLE HARNESS ANTILOCK BRAKE SYSTEM(BFA)	8-97621-352-1	01	1	0801-	●	●
312	BRACKET; CLIP HARNESS L=120	8-97619-440-0	01	1	0801-	●	●
335	BRACKET; CONNECTOR (B)	1-82698-358-0	01	1	0801-	●	●
335	BRACKET; CONNECTOR ANTILOCK BRAKE SYSTEM(BFA) (A)	1-82698-167-0	01	1	0801-	●	●
375	BRACKET; AC GEN HARNESS CLIP (A) L=120 H=35	1-82698-088-0	01	1	0801-	●	●
375	BRACKET; AC GEN HARNESS CLIP (B)	1-82698-569-0	01	1	0801-	●	●
375	BRACKET; AC GEN HARNESS CLIP (C)	1-82698-583-1	01	1	0801-	●	●
600	PROTECTOR; HEAT	8-97608-456-0	01	1	0801-	●	●

16 16 16 16 373 16 16 16 306 16 223 470 581 16 213 16 581 16 425 16 425 16 16 395 16 16 16 16 16 16 16 16 380 223 581 104 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	10	1	0801-0808	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (C) ID=13-18 L=18	1-09709-291-0	06	1	0809-	●
16	CLIP; HARNESS (E) ID=13-18 L=26	1-09709-293-0	01	1	0801-0808	●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (E) ID=13-18 L=26	1-09709-293-0	01	1	0809-	●
16	CLIP; HARNESS (D) ID=18-24 L=18	1-09709-294-0	11	1	0801-0805	●
16	CLIP; HARNESS (D) ID=18-24 L=18	1-09709-294-0	12	1	0806-0808	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18	1-09709-294-0	13	1	0809-	●
16	CLIP; HARNESS (AN) ID=18-24 L=26	1-09709-296-0	01	1	0801-0808	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AN) ID=18-24 L=26	1-09709-296-0	02	1	0809-0907	●
16	CLIP; HARNESS (AN) ID=18-24 L=26	1-09709-296-0	02	1	0908-	●
16	CLIP; HARNESS DIFF LOCK<C3N> (X) L=350	1-09707-183-0	01	1	0809-	●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (D) ID=18-24 L=18	1-09709-294-0	12	1	0809-	●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (AN) ID=18-24 L=26	1-09709-296-0	01	1	0809-0907	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	0801-	●	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	05	1	0801-	●	●
16	CLIP; HARNESS (G) ID=19 L=20	0-95235-836-0	01	1	0801-	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	0801-	●	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	0801-	●	●
16	CLIP; HARNESS (S) ID=11 H=20 L=25	1-09700-848-0	01	1	0801-0801	●	●
16	CLIP; HARNESS FUEL TANK 200L AL<THF> (Z) ID=5-12 L=18	1-09709-287-0	01	1	0802-		●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	0801-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	0801-	●	●
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0801-	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0801-	●	●
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	0801-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	0801-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	09	1	0801-0801	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	08	1	0802-0805	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	07	1	0806-1101	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	03	1	1102-1107	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1108-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	02	1	1108-		●
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	0801-	●	●
16	CLIP; HARNESS (Y) ID=10 & 15	1-09709-279-1	01	1	0801-0801	●	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	0801-0801	●	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	0802-	●
16	CLIP; HARNESS FUEL TANK 400L<SDH> (Z) ID=5-12 L=18	1-09709-287-0	02	1	0802-		●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	02	1	0801-0801	●	●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	02	1	0802-	●
16	CLIP; HARNESS FUEL TANK 400L<SDH> (B) ID=5-12 L=22	1-09709-288-0	02	1	0802-		●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	0801-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	0801-	●	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	0801-0802	●	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	0803-	●	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	0803-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	0801-	●	●
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	0801-	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	02	1	0801-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	0801-	●	●
16	CLIP; HARNESS (AK) L=60	8-94449-165-0	02	1	0801-0802	●	●
16	CLIP; HARNESS (AQ) L=40.6	8-97229-357-0	02	1	0803-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	0801-	●	●
16	CLIP; HARNESS (AL) L=36.5	8-97019-892-0	02	1	0801-0802	●	●
16	CLIP; HARNESS (AM) L=155	8-97173-307-0	18	1	0801-	●	●
16	CLIP; HARNESS (N) L=150	8-97355-273-0	01	1	0801-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	03	1	0801-1105	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1106-	●	●
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	04	1	0801-	●	●
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	0801-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	04	1	0801-0801	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	0802-	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	0801-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	0801-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	04	1	1102-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16	0-95235-025-0	02	1	0801-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=11 L=20	0-95235-035-0	01	1	0801-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (AO) ID=13 L=28	0-95235-255-0	01	1	0801-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (AP) ID=16 L=40	0-95235-576-0	01	1	0801-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (K) OD=9 H=6	1-09709-178-0	02	1	0801-	●	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (P) ID=19 L=28	0-95235-856-0	01	1	0801-1101	●	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (P) ID=19 L=28	0-95235-856-0	01	1	1102-	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (P) ID=19 L=28	0-95235-856-0	01	1	1102-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (Q) ID=19 L=60	0-95235-896-0	02	1	0801-1101	●	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (Q) ID=19 L=60	0-95235-896-0	02	1	1102-	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (Q) ID=19 L=60	0-95235-896-0	02	1	1102-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	02	1	0801-1107		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	05	1	0801-		●
16	CLIP; HARNESS WHEEL BASE 4900MM(49W) (C) ID=13-18 L=18	1-09709-291-0	02	1	0801-		●
16	CLIP; HARNESS WHEEL BASE 4900MM(49W) (D) ID=18-24 L=18	1-09709-294-0	08	1	0801-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18	1-09709-294-0	14	1	0809-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (C) ID=13-18 L=18	1-09709-291-0	07	1	0809-		●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (C) ID=13-18 L=18	1-09709-291-0	07	1	0801-0808		●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (C) ID=13-18 L=18	1-09709-291-0	10	1	0809-	●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (D) ID=18-24 L=18	1-09709-294-0	15	1	0801-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (AR) ID=11 L=28	0-95235-055-0	01	1	1102-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (AS) ID=11 L=60	0-95235-096-0	02	1	1102-		●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	0801-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	16	1	0801-0801	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	14	1	0802-	●	●
48	CLIP; FRAME HARNESS (B) ID=13-18 L=14.5	1-09709-290-0	01	1	0801-0802	●	●
48	CLIP; FRAME HARNESS (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0803-0804	●	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=18	1-09709-287-0	01	1	0805-1101	●	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=18	1-09709-287-0	01	1	1102-	●
48	CLIP; FRAME HARNESS FUEL TANK 400L<SDH> (G) ID=5-12 L=18	1-09709-287-0	01	1	1102-		●
48	CLIP; FRAME HARNESS (D) ID=18-24 L=22	1-09709-295-0	02	1	0801-	●	●
48	CLIP; FRAME HARNESS (F) ID=18-24 L=18	1-09709-294-0	01	1	0805-1101	●	●
48	CLIP; FRAME HARNESS (F) ID=18-24 L=18	1-09709-294-0	01	1	1102-	●
48	CLIP; FRAME HARNESS FUEL TANK 400L<SDH> (F) ID=18-24 L=18	1-09709-294-0	01	1	1102-		●
48	CLIP; FRAME HARNESS FUEL TANK 200L AL<THF> (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1102-		●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	01	1	1202-	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	02	1	0801-0801	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	0802-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	0801-1201	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	02	1	1202-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	0801-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	0801-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	0801-	●	●
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0801-	●	●
223	CLIP; AIR TANK HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0801-0801	●	●
223	CLIP; AIR TANK HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0802-	●
223	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	0801-	●	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 4900MM(49W) (C) ID=11 L=58	9-09917-135-2	01	1	0802-		●
306	CLIP; HARNESS,ELEC GOV ID=39 H=28 L=32	1-09701-263-0	03	1	0801-	●	●
373	CLIP; BAND,GEN HARNESS ID=20 H=23 L=27	1-09700-861-0	02	1	0801-	●	●
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	0801-	●	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	02	1	0801-0802	●	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	03	1	0803-	●	●
395	CLIP; WIPER HARNESS ID=11 L=60	0-95235-096-0	01	1	0801-0807	●	●
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B) L=350	1-09707-183-0	03	1	0801-0802	●	●
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B) L=350	1-09707-183-0	02	1	0803-0805	●	●
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B) L=350	1-09707-183-0	03	1	0806-	●	●
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=16	0-95235-025-0	01	1	0801-0802	●	●
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=20	0-95235-035-0	01	1	0803-0803	●	●
470	CLIP; HARNESS,LICENSE LAMP (B) ID=11 L=41	1-09700-403-0	01	1	0801-	●	●
470	CLIP; HARNESS,LICENSE LAMP (A) OD=9 H=6	1-09709-178-0	01	1	0801-	●	●
581	CLIP; HARNESS,REAR SUSP (A) ID=11 L=41	1-09700-403-0	02	1	0801-0805	●
581	CLIP; HARNESS,REAR SUSP (A) ID=11 L=41	1-09700-403-0	01	1	0806-	●
581	CLIP; HARNESS,REAR SUSP ANTILOCK BRAKE SYSTEM(BFA) (C) L=350	1-09707-183-0	01	1	0801-	●
581	CLIP; HARNESS,REAR SUSP (B) ID=11 L=58	9-09917-135-2	01	1	0801-0801	●	●
581	CLIP; HARNESS,REAR SUSP (B) ID=11 L=58	9-09917-135-2	01	1	0802-	●
581	CLIP; HARNESS,REAR SUSP ANTILOCK BRAKE SYSTEM(BFA) (D) ID=20 L=50	9-09917-430-0	01	1	0801-0901	●	●
581	CLIP; HARNESS,REAR SUSP ANTILOCK BRAKE SYSTEM(BFA) (D) ID=20 L=50	9-09917-430-0	01	1	0902-		●
581	CLIP; HARNESS,REAR SUSP (D) ID=20 L=50	9-09917-430-0	02	1	0801-		●

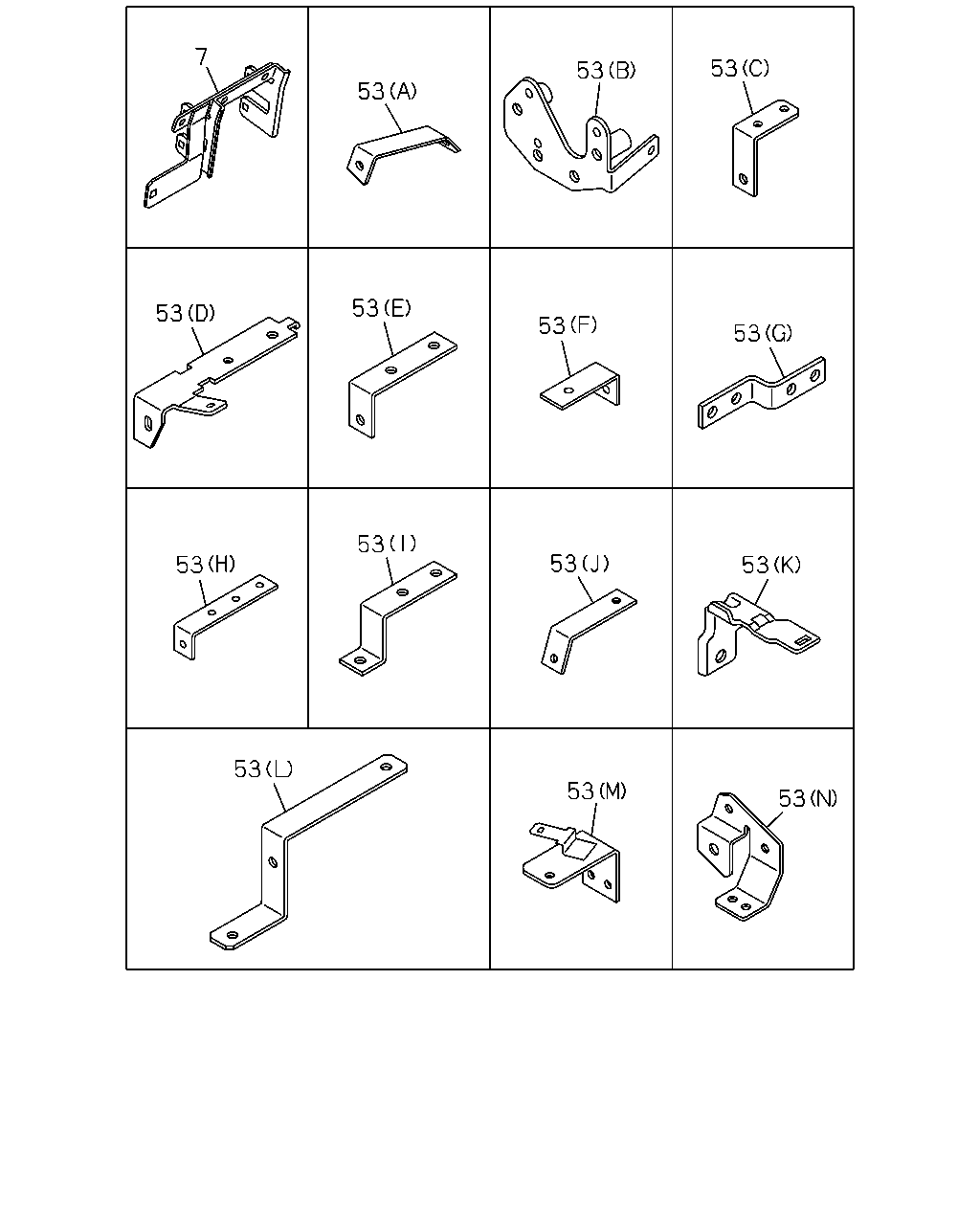

7 53 53 53 53 53 53 53 53 53 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	0801-	●	●
53	BRACKET; HARNESS (E) L=82 B=20	1-47478-420-0	01	1	0801-1404	●	●
53	BRACKET; HARNESS (E) L=82 B=20	8-98259-390-0	01	1	1405-	●	●
53	BRACKET; HARNESS (F) L=65	1-47479-064-0	01	1	0801-0803	●	●
53	BRACKET; HARNESS (F) L=65	1-47479-064-0	01	1	0804-1105	●
53	BRACKET; HARNESS FUEL TANK 400L<SDH> (F) L=65	1-47479-064-0	01	1	0804-1105		●
53	BRACKET; HARNESS (F) L=65	1-47479-064-1	01	1	1106-	●	●
53	BRACKET; HARNESS (A)	1-47479-537-0	14	1	0801-	●	●
53	BRACKET; HARNESS (G)	1-82569-278-0	01	1	0801-	●	●
53	BRACKET; HARNESS (H) L=120 H=35	1-82698-088-0	01	1	0801-	●	●
53	BRACKET; HARNESS (I)	1-82698-382-0	01	1	0801-	●	●
53	BRACKET; HARNESS (J)	1-82698-514-0	01	1	0801-	●	●
53	BRACKET; HARNESS (B)	8-97611-413-0	01	1	0801-	●	●
53	BRACKET; HARNESS (K)	8-98052-458-0	01	1	0801-	●	●
53	BRACKET; HARNESS (C)	8-98053-669-0	01	1	0801-	●	●
53	BRACKET; HARNESS (L)	8-98078-801-0	01	1	0801-	●	●
53	BRACKET; HARNESS (D)	8-98098-974-0	01	1	0801-	●	●
53	BRACKET; HARNESS (M)	8-98102-490-0	01	1	0801-	●	●
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (N)	8-98084-590-0	01	1	0801-1301	●	●

16 16 194 206 16 612 1 194 14 16 48 51 102 104 171 194 380 425 581 612 369 178 178 178 178 51 223 538 530

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SLEEVE; RUBBER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) ID=38.1 OD=48.1 L=50	5-09360-835-0	01	1	0801-	●	●
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM(BFA) L=350	1-09707-183-0	02	1	0801-	●	●
14	CLIP; BAND,HARNESS ZF9S1310 M/T(Y5K) L=350	1-09707-183-0	01	1	0802-1101	●	●
14	CLIP; BAND,HARNESS ZF9S1310 M/T(Y5K) L=350	1-09707-183-0	01	1	1102-	●
14	CLIP; BAND,HARNESS ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) L=350	1-09707-183-0	01	1	1102-		●
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	10	1	0801-0808	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (C) ID=13-18 L=18	1-09709-291-0	06	1	0809-	●
16	CLIP; HARNESS (E) ID=13-18 L=26	1-09709-293-0	01	1	0801-0808	●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (E) ID=13-18 L=26	1-09709-293-0	01	1	0809-	●
16	CLIP; HARNESS (D) ID=18-24 L=18	1-09709-294-0	11	1	0801-0805	●
16	CLIP; HARNESS (D) ID=18-24 L=18	1-09709-294-0	12	1	0806-0808	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18	1-09709-294-0	13	1	0809-	●
16	CLIP; HARNESS (AN) ID=18-24 L=26	1-09709-296-0	01	1	0801-0808	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AN) ID=18-24 L=26	1-09709-296-0	02	1	0809-0907	●
16	CLIP; HARNESS (AN) ID=18-24 L=26	1-09709-296-0	02	1	0908-	●
16	CLIP; HARNESS DIFF LOCK<C3N> (X) L=350	1-09707-183-0	01	1	0809-	●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (D) ID=18-24 L=18	1-09709-294-0	12	1	0809-	●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (AN) ID=18-24 L=26	1-09709-296-0	01	1	0809-0907	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	0801-	●	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	05	1	0801-	●	●
16	CLIP; HARNESS (G) ID=19 L=20	0-95235-836-0	01	1	0801-	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	0801-	●	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	0801-	●	●
16	CLIP; HARNESS (S) ID=11 H=20 L=25	1-09700-848-0	01	1	0801-0801	●	●
16	CLIP; HARNESS FUEL TANK 200L AL<THF> (Z) ID=5-12 L=18	1-09709-287-0	01	1	0802-		●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	0801-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	0801-	●	●
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0801-	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0801-	●	●
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	0801-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	0801-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	09	1	0801-0801	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	08	1	0802-0805	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	07	1	0806-1101	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	03	1	1102-1107	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1108-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	02	1	1108-		●
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	0801-	●	●
16	CLIP; HARNESS (Y) ID=10 & 15	1-09709-279-1	01	1	0801-0801	●	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	0801-0801	●	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	0802-	●
16	CLIP; HARNESS FUEL TANK 400L<SDH> (Z) ID=5-12 L=18	1-09709-287-0	02	1	0802-		●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	02	1	0801-0801	●	●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	02	1	0802-	●
16	CLIP; HARNESS FUEL TANK 400L<SDH> (B) ID=5-12 L=22	1-09709-288-0	02	1	0802-		●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	0801-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	0801-	●	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	0801-0802	●	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	0803-	●	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	0803-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	0801-	●	●
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	0801-	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	02	1	0801-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	0801-	●	●
16	CLIP; HARNESS (AK) L=60	8-94449-165-0	02	1	0801-0802	●	●
16	CLIP; HARNESS (AQ) L=40.6	8-97229-357-0	02	1	0803-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	0801-	●	●
16	CLIP; HARNESS (AL) L=36.5	8-97019-892-0	02	1	0801-0802	●	●
16	CLIP; HARNESS (AM) L=155	8-97173-307-0	18	1	0801-	●	●
16	CLIP; HARNESS (N) L=150	8-97355-273-0	01	1	0801-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	03	1	0801-1105	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1106-	●	●
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	04	1	0801-	●	●
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	0801-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	04	1	0801-0801	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	0802-	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	0801-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	0801-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	04	1	1102-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16	0-95235-025-0	02	1	0801-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=11 L=20	0-95235-035-0	01	1	0801-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (AO) ID=13 L=28	0-95235-255-0	01	1	0801-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (AP) ID=16 L=40	0-95235-576-0	01	1	0801-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (K) OD=9 H=6	1-09709-178-0	02	1	0801-	●	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (P) ID=19 L=28	0-95235-856-0	01	1	0801-1101	●	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (P) ID=19 L=28	0-95235-856-0	01	1	1102-	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (P) ID=19 L=28	0-95235-856-0	01	1	1102-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (Q) ID=19 L=60	0-95235-896-0	02	1	0801-1101	●	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (Q) ID=19 L=60	0-95235-896-0	02	1	1102-	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (Q) ID=19 L=60	0-95235-896-0	02	1	1102-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	02	1	0801-1107		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	05	1	0801-		●
16	CLIP; HARNESS WHEEL BASE 4900MM(49W) (C) ID=13-18 L=18	1-09709-291-0	02	1	0801-		●
16	CLIP; HARNESS WHEEL BASE 4900MM(49W) (D) ID=18-24 L=18	1-09709-294-0	08	1	0801-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18	1-09709-294-0	14	1	0809-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (C) ID=13-18 L=18	1-09709-291-0	07	1	0809-		●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (C) ID=13-18 L=18	1-09709-291-0	07	1	0801-0808		●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (C) ID=13-18 L=18	1-09709-291-0	10	1	0809-	●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (D) ID=18-24 L=18	1-09709-294-0	15	1	0801-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (AR) ID=11 L=28	0-95235-055-0	01	1	1102-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (AS) ID=11 L=60	0-95235-096-0	02	1	1102-		●
48	CLIP; FRAME HARNESS (C) ID=35 L=33	1-09700-945-0	04	1	0801-	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	16	1	0801-0801	●	●
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	14	1	0802-	●	●
48	CLIP; FRAME HARNESS (B) ID=13-18 L=14.5	1-09709-290-0	01	1	0801-0802	●	●
48	CLIP; FRAME HARNESS (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0803-0804	●	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=18	1-09709-287-0	01	1	0805-1101	●	●
48	CLIP; FRAME HARNESS (G) ID=5-12 L=18	1-09709-287-0	01	1	1102-	●
48	CLIP; FRAME HARNESS FUEL TANK 400L<SDH> (G) ID=5-12 L=18	1-09709-287-0	01	1	1102-		●
48	CLIP; FRAME HARNESS (D) ID=18-24 L=22	1-09709-295-0	02	1	0801-	●	●
48	CLIP; FRAME HARNESS (F) ID=18-24 L=18	1-09709-294-0	01	1	0805-1101	●	●
48	CLIP; FRAME HARNESS (F) ID=18-24 L=18	1-09709-294-0	01	1	1102-	●
48	CLIP; FRAME HARNESS FUEL TANK 400L<SDH> (F) ID=18-24 L=18	1-09709-294-0	01	1	1102-		●
48	CLIP; FRAME HARNESS FUEL TANK 200L AL<THF> (E) ID=5-12 L=14.5	1-09987-221-0	01	1	1102-		●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=180	1-09707-162-1	01	1	0801-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) L=350	1-09707-183-0	01	1	0801-	●	●
51	CLIP; COOLER CMPR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=5-12 L=18	1-09709-287-0	01	1	0801-	●	●
102	CLIP; BAND L=350	1-09707-183-0	02	1	0902-	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	01	1	1202-	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	02	1	0801-0801	●	●
104	CLIP; HEADLAMP HARNESS (A) ID=15 L=28	1-09701-216-0	01	1	0802-	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	03	1	0801-1201	●	●
104	CLIP; HEADLAMP HARNESS (B) L=350	1-09707-183-0	02	1	1202-	●	●
104	CLIP; HEADLAMP HARNESS (C) OD=9 H=6	1-09709-178-0	01	1	0801-	●	●
104	CLIP; HEADLAMP HARNESS (D) OD=9 H=9.5	1-09709-179-0	01	1	0801-	●	●
104	CLIP; HEADLAMP HARNESS (E) ID=13-18 L=14.5	1-09709-290-0	02	1	0801-	●	●
171	CLIP; STARTER HARNESS L=350	1-09707-183-0	03	1	0801-	●	●
178	GROMMET; HARNESS (B) ID=24 OD=30 T=22	1-09332-104-0	01	1	0801-	●	●
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	0801-	●	●
178	GROMMET; HARNESS (C) ID=28 OD=35 T=17	9-09956-256-2	02	1	0801-	●	●
178	GROMMET; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (D) ID=28 OD=35 T=25	1-09332-011-1	03	1	0801-	●	●
194	CLIP; BAND (B) L=350	1-09707-183-0	05	1	0801-0802	●	●
194	CLIP; BAND (B) L=350	1-09707-183-0	06	1	0803-	●	●
194	CLIP; BAND (C) L=140	5-09707-031-1	02	1	0801-	●	●
194	CLIP; BAND AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) L=300	1-09707-001-1	02	1	0801-	●	●
206	CLIP; FUEL TANK HARNESS (A) L=140	5-09707-031-1	02	1	0801-	●	●
206	CLIP; FUEL TANK HARNESS (B) ID=8.3 & 10	8-94176-792-0	01	1	0801-	●	●
223	CLIP; AIR TANK HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0801-0801	●	●
223	CLIP; AIR TANK HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	0802-	●
223	CLIP; AIR TANK HARNESS (A) L=180	1-09707-162-1	01	1	0801-	●	●
223	CLIP; AIR TANK HARNESS WHEEL BASE 4900MM(49W) (C) ID=11 L=58	9-09917-135-2	01	1	0802-		●
369	CLIP; BAND EDS HARNESS L=500	1-09707-082-1	01	1	0804-	●	●
380	CLIP; EARTH HARNESS (A) ID=11 H=20 L=25	1-09700-848-0	02	1	0801-	●	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	02	1	0801-0802	●	●
380	CLIP; EARTH HARNESS (B) L=350	1-09707-183-0	03	1	0803-	●	●
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B) L=350	1-09707-183-0	03	1	0801-0802	●	●
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B) L=350	1-09707-183-0	02	1	0803-0805	●	●
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (B) L=350	1-09707-183-0	03	1	0806-	●	●
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (A) ID=11 L=16	0-95235-025-0	01	1	0801-0802	●	●
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM(BFA) (C) ID=11 L=20	0-95235-035-0	01	1	0803-0803	●	●
530	SEAL; HARNESS 180X40	1-72498-019-1	23	1	0801-	●	●
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	1001-	●	●
581	CLIP; HARNESS,REAR SUSP (A) ID=11 L=41	1-09700-403-0	02	1	0801-0805	●
581	CLIP; HARNESS,REAR SUSP (A) ID=11 L=41	1-09700-403-0	01	1	0806-	●
581	CLIP; HARNESS,REAR SUSP ANTILOCK BRAKE SYSTEM(BFA) (C) L=350	1-09707-183-0	01	1	0801-	●
581	CLIP; HARNESS,REAR SUSP (B) ID=11 L=58	9-09917-135-2	01	1	0801-0801	●	●
581	CLIP; HARNESS,REAR SUSP (B) ID=11 L=58	9-09917-135-2	01	1	0802-	●
581	CLIP; HARNESS,REAR SUSP ANTILOCK BRAKE SYSTEM(BFA) (D) ID=20 L=50	9-09917-430-0	01	1	0801-0901	●	●
581	CLIP; HARNESS,REAR SUSP ANTILOCK BRAKE SYSTEM(BFA) (D) ID=20 L=50	9-09917-430-0	01	1	0902-		●
581	CLIP; HARNESS,REAR SUSP (D) ID=20 L=50	9-09917-430-0	02	1	0801-		●
612	CLIP; HARNESS DPD (A) ID=4.8	1-09701-218-0	03	1	0801-	●	●
612	CLIP; HARNESS DPD (D) L=350	1-09707-183-0	02	1	0801-	●	●
612	CLIP; HARNESS DPD (E) ID=10 & 15	1-09709-279-1	01	1	0801-	●	●
612	CLIP; HARNESS DPD (B) ID=5-12 L=18	1-09709-287-0	01	1	0801-0801	●	●
612	CLIP; HARNESS DPD (C) L=250	5-09707-030-1	01	1	0801-	●	●

16 16 16 16 142 206 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	CLIP; HARNESS (C) ID=13-18 L=18	1-09709-291-0	10	1	0801-0808	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (C) ID=13-18 L=18	1-09709-291-0	06	1	0809-	●
16	CLIP; HARNESS (E) ID=13-18 L=26	1-09709-293-0	01	1	0801-0808	●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (E) ID=13-18 L=26	1-09709-293-0	01	1	0809-	●
16	CLIP; HARNESS (D) ID=18-24 L=18	1-09709-294-0	11	1	0801-0805	●
16	CLIP; HARNESS (D) ID=18-24 L=18	1-09709-294-0	12	1	0806-0808	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18	1-09709-294-0	13	1	0809-	●
16	CLIP; HARNESS (AN) ID=18-24 L=26	1-09709-296-0	01	1	0801-0808	●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (AN) ID=18-24 L=26	1-09709-296-0	02	1	0809-0907	●
16	CLIP; HARNESS (AN) ID=18-24 L=26	1-09709-296-0	02	1	0908-	●
16	CLIP; HARNESS DIFF LOCK<C3N> (X) L=350	1-09707-183-0	01	1	0809-	●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (D) ID=18-24 L=18	1-09709-294-0	12	1	0809-	●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (AN) ID=18-24 L=26	1-09709-296-0	01	1	0809-0907	●
16	CLIP; HARNESS (F) ID=11 L=16	0-95235-025-0	01	1	0801-	●	●
16	CLIP; HARNESS (A) ID=11 L=20	0-95235-035-0	05	1	0801-	●	●
16	CLIP; HARNESS (G) ID=19 L=20	0-95235-836-0	01	1	0801-	●	●
16	CLIP; HARNESS (R) ID=11 L=41	1-09700-403-0	01	1	0801-	●	●
16	CLIP; HARNESS (H) ID=24 L=32	1-09700-766-1	01	1	0801-	●	●
16	CLIP; HARNESS (S) ID=11 H=20 L=25	1-09700-848-0	01	1	0801-0801	●	●
16	CLIP; HARNESS FUEL TANK 200L AL<THF> (Z) ID=5-12 L=18	1-09709-287-0	01	1	0802-		●
16	CLIP; HARNESS (T) ID=18 H=23 L=28	1-09700-860-0	01	1	0801-	●	●
16	CLIP; HARNESS (U) ID=20 H=23 L=27	1-09700-861-0	01	1	0801-	●	●
16	CLIP; HARNESS (I) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0801-	●	●
16	CLIP; HARNESS (V) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	0801-	●	●
16	CLIP; HARNESS (J) ID=31 L=30	1-09700-969-0	01	1	0801-	●	●
16	CLIP; HARNESS (W) ID=31 H=30 L=35	1-09700-994-0	01	1	0801-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	09	1	0801-0801	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	08	1	0802-0805	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	07	1	0806-1101	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	03	1	1102-1107	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	02	1	1108-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	02	1	1108-		●
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	0801-	●	●
16	CLIP; HARNESS (Y) ID=10 & 15	1-09709-279-1	01	1	0801-0801	●	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	0801-0801	●	●
16	CLIP; HARNESS (Z) ID=5-12 L=18	1-09709-287-0	02	1	0802-	●
16	CLIP; HARNESS FUEL TANK 400L<SDH> (Z) ID=5-12 L=18	1-09709-287-0	02	1	0802-		●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	02	1	0801-0801	●	●
16	CLIP; HARNESS (B) ID=5-12 L=22	1-09709-288-0	02	1	0802-	●
16	CLIP; HARNESS FUEL TANK 400L<SDH> (B) ID=5-12 L=22	1-09709-288-0	02	1	0802-		●
16	CLIP; HARNESS (AA) ID=13-18 L=14.5	1-09709-290-0	01	1	0801-	●	●
16	CLIP; HARNESS (AC) ID=5-12 L=14.5	1-09987-221-0	06	1	0801-	●	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	0801-0802	●	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	0803-	●	●
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	02	1	0803-	●	●
16	CLIP; HARNESS (AE) L=140	5-09707-031-1	04	1	0801-	●	●
16	CLIP; HARNESS (L) ID=21 L=47.5	8-94178-108-0	01	1	0801-	●	●
16	CLIP; HARNESS (M) L=36	8-94224-891-1	02	1	0801-	●	●
16	CLIP; HARNESS (AF) ID=10 & 16	8-94413-325-0	01	1	0801-	●	●
16	CLIP; HARNESS (AK) L=60	8-94449-165-0	02	1	0801-0802	●	●
16	CLIP; HARNESS (AQ) L=40.6	8-97229-357-0	02	1	0803-	●	●
16	CLIP; HARNESS (AB) ID=20 & 16.5	8-94486-835-0	01	1	0801-	●	●
16	CLIP; HARNESS (AL) L=36.5	8-97019-892-0	02	1	0801-0802	●	●
16	CLIP; HARNESS (AM) L=155	8-97173-307-0	18	1	0801-	●	●
16	CLIP; HARNESS (N) L=150	8-97355-273-0	01	1	0801-	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	03	1	0801-1105	●	●
16	CLIP; HARNESS (K) OD=9 H=6	8-97368-793-0	02	1	1106-	●	●
16	CLIP; HARNESS (O) ID=17 L=20	8-97619-251-0	04	1	0801-	●	●
16	CLIP; HARNESS (AG)	8-98052-679-0	02	1	0801-	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	04	1	0801-0801	●	●
16	CLIP; HARNESS (AI) ID=14 L=44	9-09917-427-0	03	1	0802-	●	●
16	CLIP; HARNESS (AJ) ID=20 L=50	9-09917-430-0	02	1	0801-	●	●
16	CLIP; HARNESS (AH) ID=11 H=20 L=20	8-98033-780-0	01	1	0801-	●	●
16	CLIP; HARNESS (X) L=350	1-09707-183-0	04	1	1102-	●	●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (F) ID=11 L=16	0-95235-025-0	02	1	0801-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (A) ID=11 L=20	0-95235-035-0	01	1	0801-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (AO) ID=13 L=28	0-95235-255-0	01	1	0801-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (AP) ID=16 L=40	0-95235-576-0	01	1	0801-	●	●
16	CLIP; HARNESS TRANSMISSION-FULLER RTO11908(Y5L) (K) OD=9 H=6	1-09709-178-0	02	1	0801-	●	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (P) ID=19 L=28	0-95235-856-0	01	1	0801-1101	●	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (P) ID=19 L=28	0-95235-856-0	01	1	1102-	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (P) ID=19 L=28	0-95235-856-0	01	1	1102-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (Q) ID=19 L=60	0-95235-896-0	02	1	0801-1101	●	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) (Q) ID=19 L=60	0-95235-896-0	02	1	1102-	●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) EXC. ENGINE REAR PTO(SV1) (Q) ID=19 L=60	0-95235-896-0	02	1	1102-		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (X) L=350	1-09707-183-0	02	1	0801-1107		●
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM(BFA) (C) ID=13-18 L=18	1-09709-291-0	05	1	0801-		●
16	CLIP; HARNESS WHEEL BASE 4900MM(49W) (C) ID=13-18 L=18	1-09709-291-0	02	1	0801-		●
16	CLIP; HARNESS WHEEL BASE 4900MM(49W) (D) ID=18-24 L=18	1-09709-294-0	08	1	0801-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W) (D) ID=18-24 L=18	1-09709-294-0	14	1	0809-		●
16	CLIP; HARNESS WHEEL BASE 6600MM(66W),WHEEL BASE 7100MM(71W) (C) ID=13-18 L=18	1-09709-291-0	07	1	0809-		●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (C) ID=13-18 L=18	1-09709-291-0	07	1	0801-0808		●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (C) ID=13-18 L=18	1-09709-291-0	10	1	0809-	●
16	CLIP; HARNESS WHEEL BASE 7100MM(71W) (D) ID=18-24 L=18	1-09709-294-0	15	1	0801-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (AR) ID=11 L=28	0-95235-055-0	01	1	1102-		●
16	CLIP; HARNESS ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) (AS) ID=11 L=60	0-95235-096-0	02	1	1102-		●
142	CLIP; HARNESS,ENG L=170.3	8-97209-720-0	01	1	0801-	●	●
206	CLIP; FUEL TANK HARNESS (A) L=140	5-09707-031-1	02	1	0801-	●	●
206	CLIP; FUEL TANK HARNESS (B) ID=8.3 & 10	8-94176-792-0	01	1	0801-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
