Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#45630) — 359 parça

6 720 184 174 27 388 431 431 10 431 184 389 290 267 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

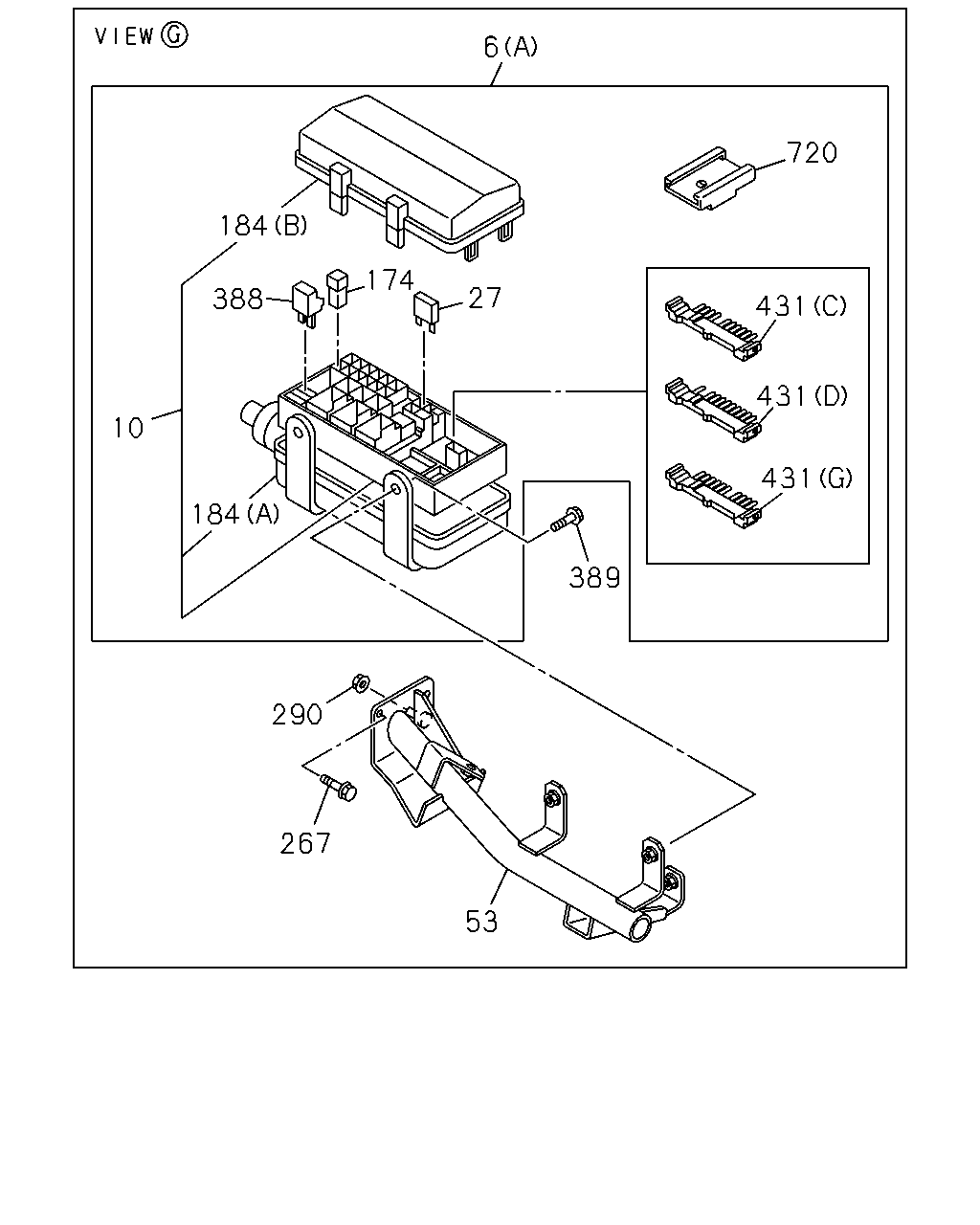

6	HARNESS; FRAME (B)	8-98075-634-3	01	1	0801-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A)	8-98128-425-1	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A)	8-98127-950-1	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98079-740-2	01	1	0801-0808	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A)	8-98079-740-3	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98094-517-4	01	1	0801-0808	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A)	8-98094-517-5	01	1	0809-	●	●
10	BOX; FUSE,HARNESS ANTILOCK BRAKE SYSTEM(BFA)	8-98030-762-0	01	1	0801-	●	●
27	FUSE UNIT ANTILOCK BRAKE SYSTEM(BFA) 10A RED	8-98054-257-0	03	1	0801-	●	●
27	FUSE UNIT ANTILOCK BRAKE SYSTEM(BFA) 15A BLUE	8-98054-258-0	01	1	0801-	●	●
53	BRACKET; FUSE BOX	8-98078-800-1	01	1	0801-	●	●
174	FUSE; SLOW BLOW ANTILOCK BRAKE SYSTEM(BFA) 30A PINK	8-98079-191-0	02	1	0801-	●	●
174	FUSE; SLOW BLOW ANTILOCK BRAKE SYSTEM(BFA) 40A GREEN	8-98079-192-0	01	1	0801-	●	●
174	FUSE; SLOW BLOW ANTILOCK BRAKE SYSTEM(BFA) 50A RED	8-98079-193-0	03	1	0801-	●	●
174	FUSE; SLOW BLOW ANTILOCK BRAKE SYSTEM(BFA) 60A YELLOW	8-97219-407-0	02	1	0801-1106	●	●
174	FUSE; SLOW BLOW ANTILOCK BRAKE SYSTEM(BFA) 60A YELLOW	8-97219-407-0	01	1	1107-	●	●
174	FUSE; SLOW BLOW ANTILOCK BRAKE SYSTEM(BFA) 60A YELLOW	8-97219-407-0	01	1	1107-	●	●
184	COVER; RELAY & FUSE BOX ANTILOCK BRAKE SYSTEM(BFA) (A)	8-98030-766-0	01	1	0801-	●	●
184	COVER; RELAY & FUSE BOX ANTILOCK BRAKE SYSTEM(BFA) (B)	8-98030-767-0	01	1	0801-	●	●
267	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0801-	●	●
290	NUT; BRKT M10 FLANGE	0-91180-110-0	01	1	0801-	●	●
388	DIODE; RELAY BOX ANTILOCK BRAKE SYSTEM(BFA) BLACK 4P-1.5A	8-94381-730-0	02	1	0801-	●	●
388	DIODE; RELAY BOX ANTILOCK BRAKE SYSTEM(BFA) BLACK 2P-1.5A	8-94422-639-1	01	1	0801-	●	●
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	0801-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	0801-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	0801-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	08	1	0801-	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0801-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0801-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0801-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (C) 10P BLUE	1-82699-598-0	04	1	0801-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (G) 10P GREEN	1-82699-599-0	07	1	0801-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (D) 10P BROWN	1-82699-601-0	01	1	0801-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	02	1	0801-	●	●
720	ATTACHMENT; CONNECTOR ANTILOCK BRAKE SYSTEM(BFA)	1-82699-688-0	03	1	0801-	●	●

1 2 2 2 2 314 431 431 431 431 535 536 668 533 534

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

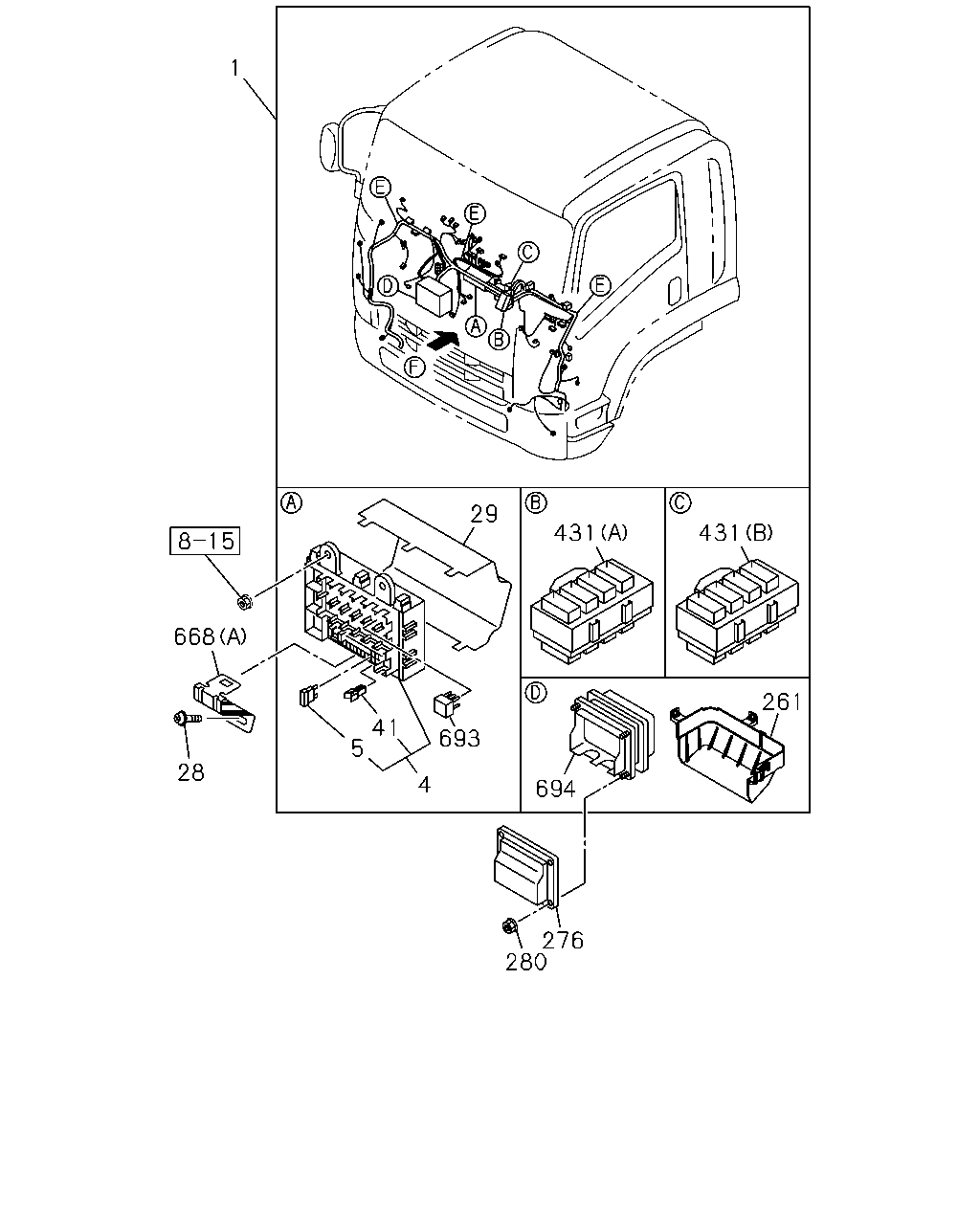

1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF>	8-98192-057-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-055-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N>	8-98192-051-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98192-049-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98192-058-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-056-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N>	8-98192-052-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98192-050-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68)	8-98132-409-2	01	1	0809-1004	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68)	8-98162-791-0	01	1	1005-1104	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98162-791-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68)	8-98162-791-0	01	1	1107-1203	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68)	8-98192-058-0	01	1	1204-	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98132-407-2	01	1	0809-1004	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98162-789-0	01	1	1005-1104	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98162-789-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98162-789-0	01	1	1107-1203	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-056-0	01	1	1204-	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68)	8-98094-000-4	01	1	0801-0808	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N>	8-98094-000-6	01	1	0809-1004	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N>	8-98162-785-0	01	1	1005-1104	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N>,IN HOUSE PRODUCTION<TKF>	8-98162-785-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N>	8-98162-785-0	01	1	1107-1203	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N>	8-98192-052-0	01	1	1204-	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98093-998-4	01	1	0801-0808	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98093-998-6	01	1	0809-1004	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98162-783-0	01	1	1005-1104	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68), IN HOUSE PRODUCTION<TKF>	8-98162-783-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98162-783-0	01	1	1107-1203	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98192-050-0	01	1	1204-	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY>	8-98132-408-2	01	1	0809-1004	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY>	8-98162-790-0	01	1	1005-1104	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. IN HOUSE PRODUCTION<TKF>	8-98162-790-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY>	8-98162-790-0	01	1	1107-1203	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY>	8-98192-057-0	01	1	1204-	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98132-406-2	01	1	0809-1004	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98162-788-0	01	1	1005-1104	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98162-788-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98162-788-0	01	1	1107-1203	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-055-0	01	1	1204-	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY>	8-98093-999-4	01	1	0801-0808	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>	8-98093-999-6	01	1	0809-1004	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>	8-98162-784-0	01	1	1005-1104	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,IN HOUSE PRODUCTION<TKF>	8-98162-784-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>	8-98162-784-0	01	1	1107-1203	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>	8-98192-051-0	01	1	1204-	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98093-997-4	01	1	0801-0808	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98093-997-6	01	1	0809-1004	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98162-782-0	01	1	1005-1104	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68), IN HOUSE PRODUCTION<TKF>	8-98162-782-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98162-782-0	01	1	1107-1203	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98192-049-0	01	1	1204-	●	●

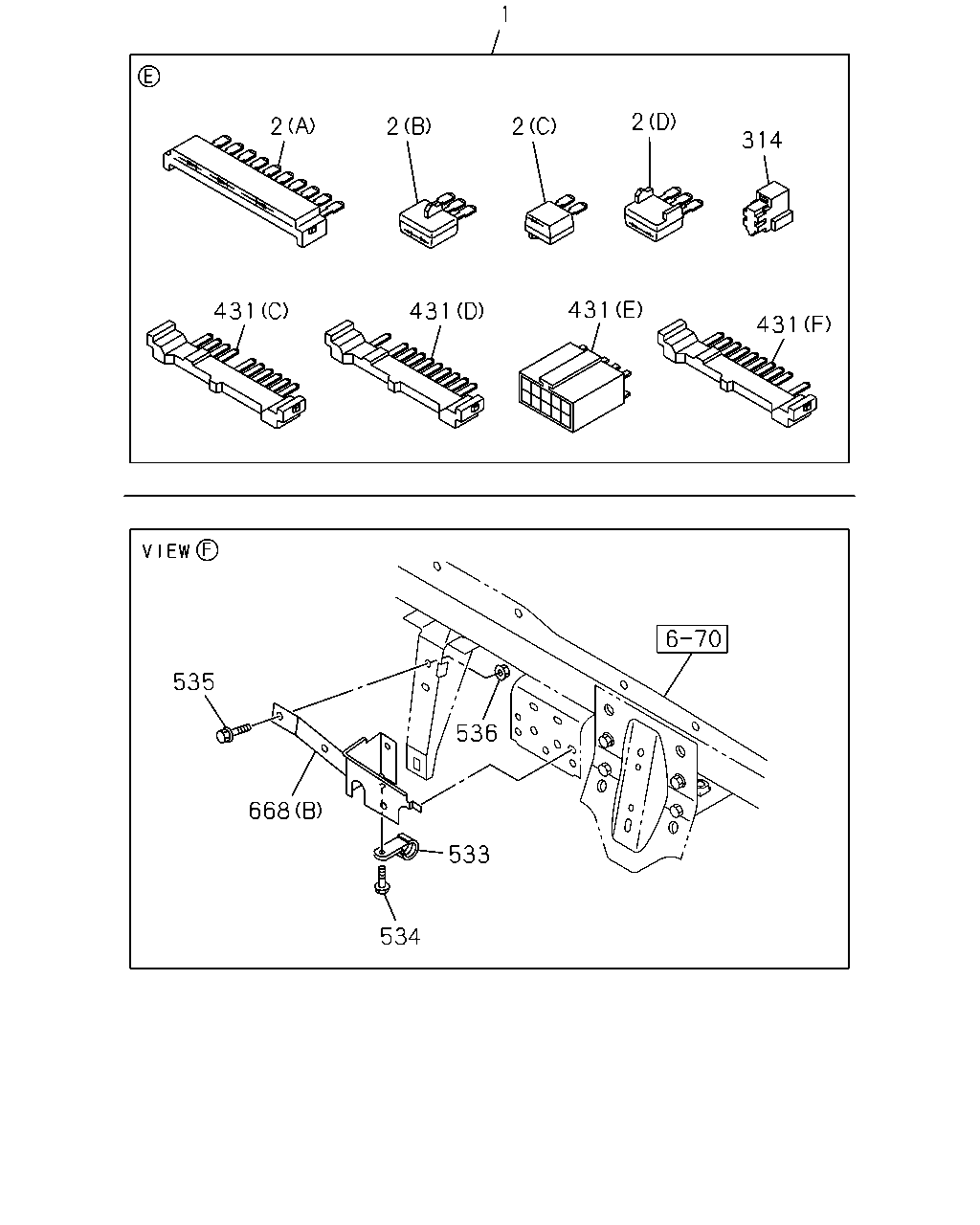

2	DIODE; CABLE HARNESS (A) BLACK 10P	1-82699-703-0	01	1	0801-	●	●
2	DIODE; CABLE HARNESS (C) BLACK 2P-1.5A	8-94422-639-1	02	1	0801-	●	●
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A	8-94422-640-1	01	1	0801-	●	●
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A	8-94416-438-1	01	1	0806-	●	●
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	0801-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	0801-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	0801-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	08	1	0801-	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0801-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0801-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0801-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (C) 10P BLUE	1-82699-598-0	04	1	0801-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (G) 10P GREEN	1-82699-599-0	07	1	0801-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (D) 10P BROWN	1-82699-601-0	01	1	0801-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	02	1	0801-	●	●
533	CLIP ID=31 L=35	1-09700-329-1	01	1	0801-	●	●
534	BOLT M8X20 FLANGE	0-28650-820-0	01	1	0801-	●	●
535	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	01	1	0801-1302	●	●
535	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	03	1	1303-1303	●	●
535	BOLT; BRKT FIX M8X20 FLANGE	0-28650-820-0	01	1	1304-	●	●
536	NUT; BRKT FIX M8	8-98041-929-0	01	1	0801-	●	●
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	0801-	●	●
668	BRACKET; HARNESS (B)	8-98098-453-1	01	1	0801-0803	●	●
668	BRACKET; HARNESS (B)	8-98117-572-0	01	1	0804-	●	●

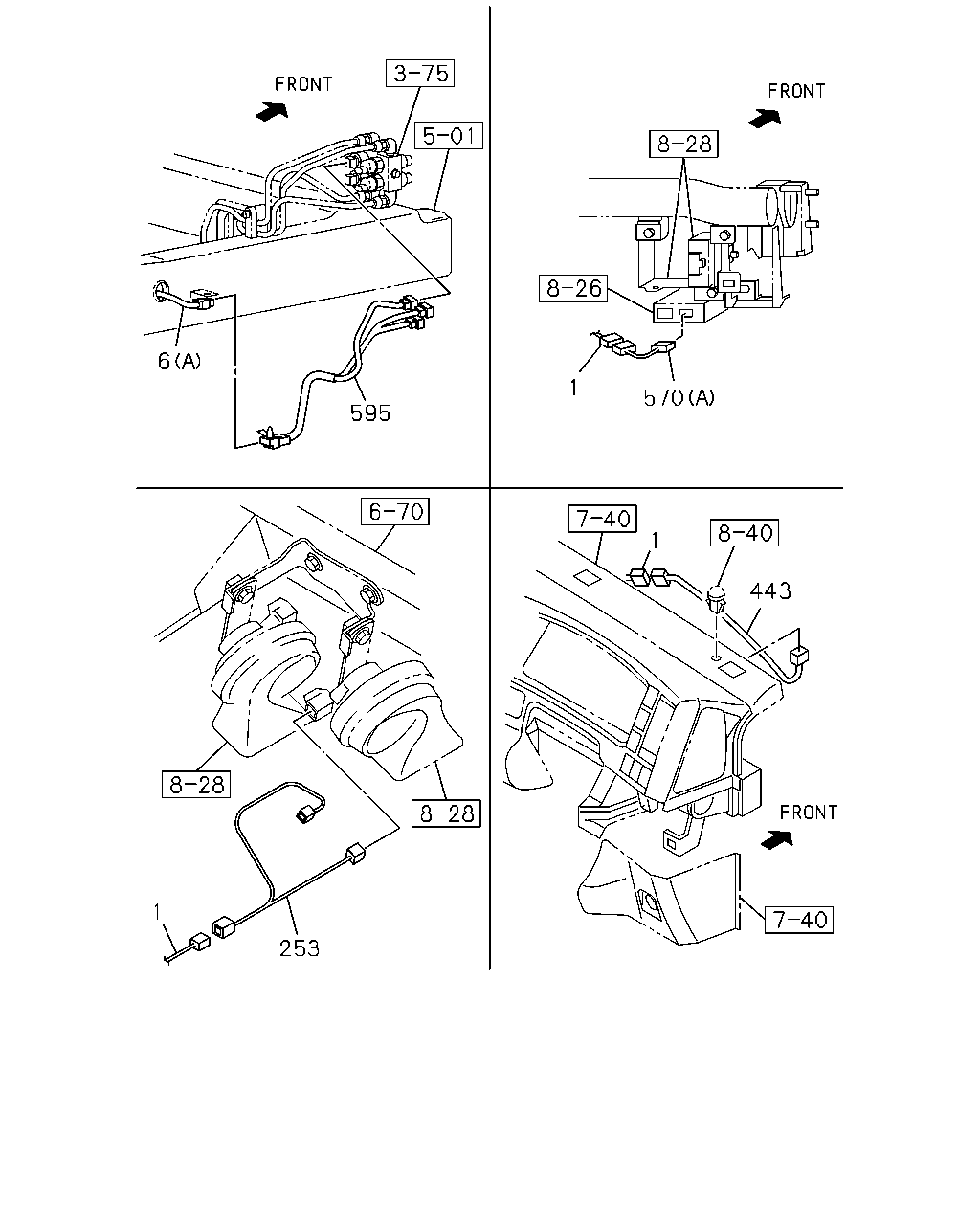

6 1 570 595 1 443 1 253

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF>	8-98192-057-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-055-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N>	8-98192-051-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98192-049-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98192-058-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-056-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N>	8-98192-052-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98192-050-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68)	8-98132-409-2	01	1	0809-1004	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68)	8-98162-791-0	01	1	1005-1104	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98162-791-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68)	8-98162-791-0	01	1	1107-1203	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68)	8-98192-058-0	01	1	1204-	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98132-407-2	01	1	0809-1004	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98162-789-0	01	1	1005-1104	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98162-789-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98162-789-0	01	1	1107-1203	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-056-0	01	1	1204-	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68)	8-98094-000-4	01	1	0801-0808	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N>	8-98094-000-6	01	1	0809-1004	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N>	8-98162-785-0	01	1	1005-1104	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N>,IN HOUSE PRODUCTION<TKF>	8-98162-785-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N>	8-98162-785-0	01	1	1107-1203	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N>	8-98192-052-0	01	1	1204-	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98093-998-4	01	1	0801-0808	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98093-998-6	01	1	0809-1004	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98162-783-0	01	1	1005-1104	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68), IN HOUSE PRODUCTION<TKF>	8-98162-783-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98162-783-0	01	1	1107-1203	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98192-050-0	01	1	1204-	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY>	8-98132-408-2	01	1	0809-1004	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY>	8-98162-790-0	01	1	1005-1104	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. IN HOUSE PRODUCTION<TKF>	8-98162-790-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY>	8-98162-790-0	01	1	1107-1203	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY>	8-98192-057-0	01	1	1204-	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98132-406-2	01	1	0809-1004	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98162-788-0	01	1	1005-1104	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98162-788-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98162-788-0	01	1	1107-1203	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-055-0	01	1	1204-	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY>	8-98093-999-4	01	1	0801-0808	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>	8-98093-999-6	01	1	0809-1004	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>	8-98162-784-0	01	1	1005-1104	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,IN HOUSE PRODUCTION<TKF>	8-98162-784-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>	8-98162-784-0	01	1	1107-1203	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>	8-98192-051-0	01	1	1204-	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98093-997-4	01	1	0801-0808	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98093-997-6	01	1	0809-1004	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98162-782-0	01	1	1005-1104	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68), IN HOUSE PRODUCTION<TKF>	8-98162-782-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98162-782-0	01	1	1107-1203	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98192-049-0	01	1	1204-	●	●
6	HARNESS; FRAME (B)	8-98075-634-3	01	1	0801-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A)	8-98128-425-1	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A)	8-98127-950-1	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98079-740-2	01	1	0801-0808	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A)	8-98079-740-3	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98094-517-4	01	1	0801-0808	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A)	8-98094-517-5	01	1	0809-	●	●
253	HARNESS; EXT,HORN	8-98074-081-2	01	1	0801-	●	●
443	HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98096-565-0	01	1	0801-	●	●

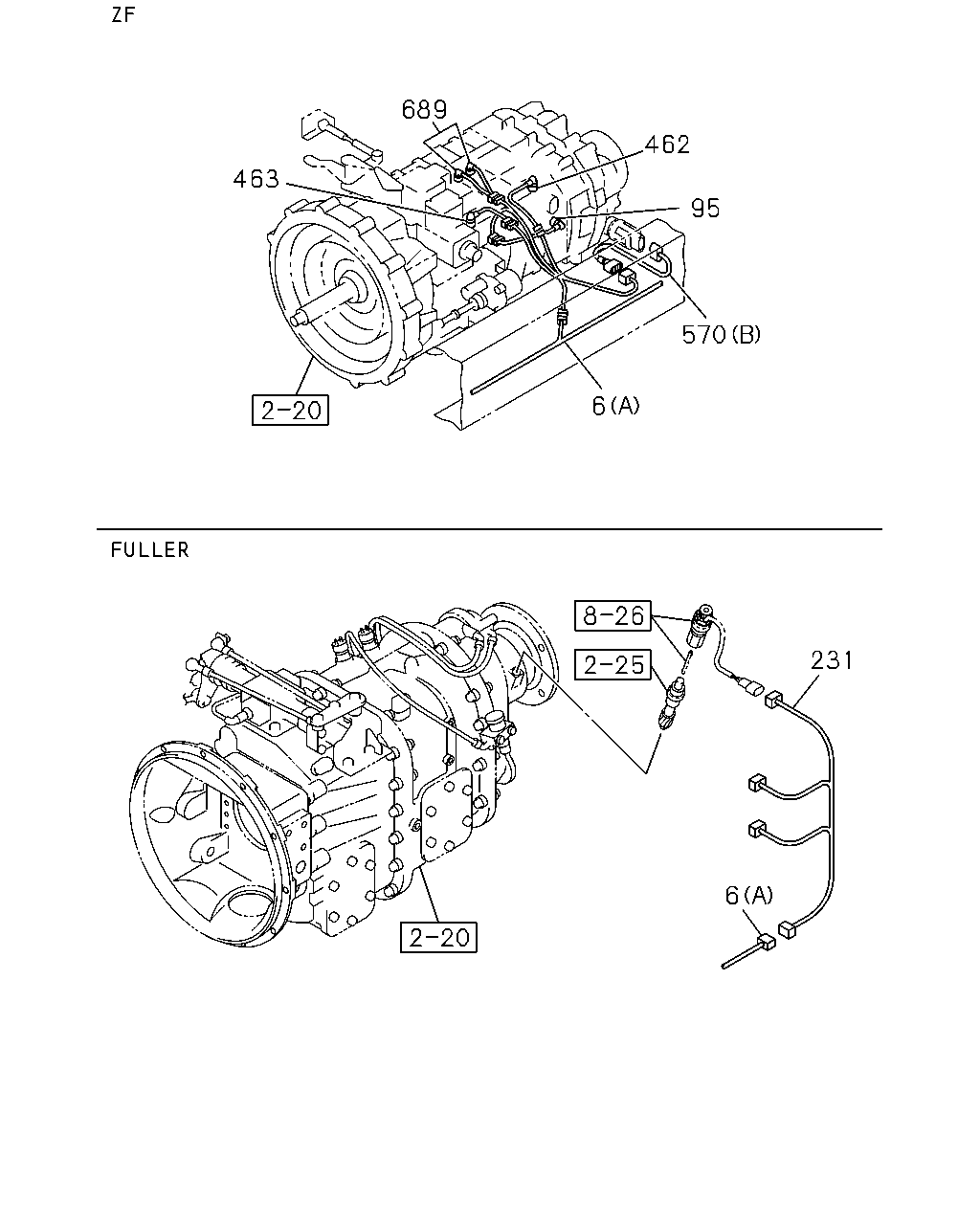

570	HARNESS; SPEED SENSOR (B)	8-98058-327-1	01	1	0801-	●	●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T(Y5K) (A)	1-82659-230-0	01	1	0801-1004	●	●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T(Y5K) (A)	8-98148-602-0	01	1	1005-	●	●
595	HARNESS; WARNING,BRK	8-98075-638-1	01	1	0801-	●	●

706 6 6 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME (B)	8-98075-634-3	01	1	0801-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A)	8-98128-425-1	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A)	8-98127-950-1	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98079-740-2	01	1	0801-0808	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A)	8-98079-740-3	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98094-517-4	01	1	0801-0808	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A)	8-98094-517-5	01	1	0809-	●	●
7	LINK ASM; FUSIBLE ENGINE REAR PTO(SV1) EXC. GENERATOR 24V90A(K44)	8-98106-137-0	01	1	0801-1101	●	●
7	LINK ASM; FUSIBLE ENGINE REAR PTO(SV1) EXC. GENERATOR 24V90A(K44)	8-98106-137-0	01	1	1102-		●
7	LINK ASM; FUSIBLE GENERATOR 24V90A(K44) ENGINE REAR PTO(SV1)	8-98106-138-0	01	1	0801-1101	●	●
7	LINK ASM; FUSIBLE GENERATOR 24V90A(K44) ENGINE REAR PTO(SV1)	8-98106-138-0	01	1	1102-		●
7	LINK ASM; FUSIBLE GENERATOR 24V90A(K44) EXC. ENGINE REAR PTO(SV1)	8-98103-000-0	01	1	0801-1101	●	●
7	LINK ASM; FUSIBLE GENERATOR 24V90A(K44)	8-98103-000-0	01	1	1102-	●
7	LINK ASM; FUSIBLE GENERATOR 24V90A(K44) EXC. ENGINE REAR PTO(SV1)	8-98103-000-0	01	1	1102-		●
7	LINK ASM; FUSIBLE EXC. GENERATOR 24V90A(K44),ENGINE REAR PTO(SV1)	8-98088-132-0	01	1	0801-1101	●	●
7	LINK ASM; FUSIBLE EXC. GENERATOR 24V90A(K44)	8-98088-132-0	01	1	1102-	●
7	LINK ASM; FUSIBLE EXC. GENERATOR 24V90A(K44),ENGINE REAR PTO(SV1)	8-98088-132-0	01	1	1102-		●
706	HARNESS; EXT,SEDIMENTER	8-98087-610-1	01	1	0801-	●
706	HARNESS; EXT,SEDIMENTER FUEL TANK 400L<SDH>	8-98087-610-1	01	1	0801-		●
706	HARNESS; EXT,SEDIMENTER FUEL TANK 200L AL<THF>	8-98079-754-0	01	1	0801-		●

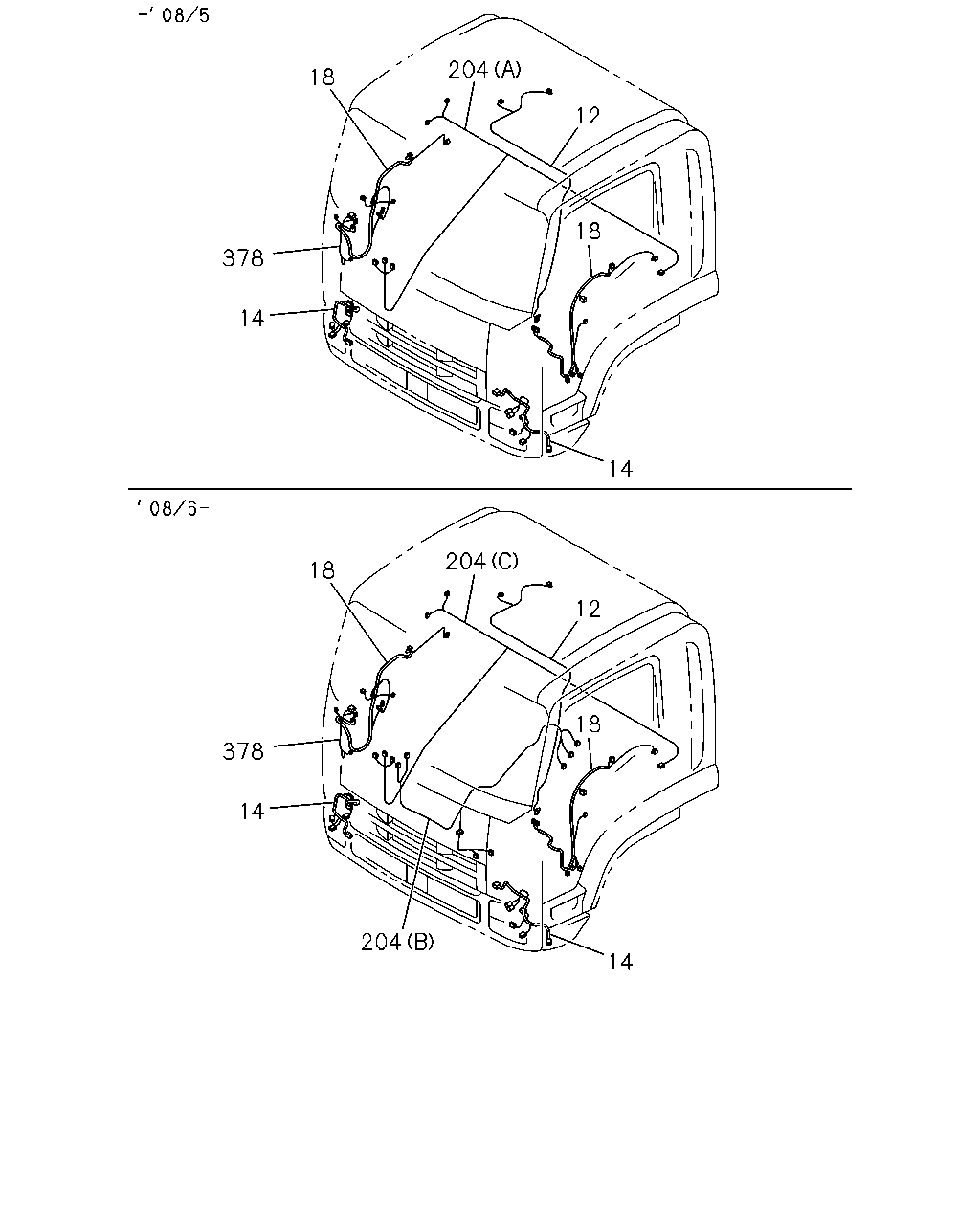

204 18 12 18 378 14 14 204 18 12 18 378 14 204 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
12	HARNESS; ROOF	8-98079-072-1	01	1	0801-	●	●
14	HARNESS; HEADLAMP HALOGEN HEADLAMPS<TT5> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98103-680-1	02	1	0801-	●	●
14	HARNESS; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> HALOGEN HEADLAMPS<TT5>	8-98075-629-3	02	1	0801-	●	●
18	HARNESS; DOOR	8-98079-079-5	01	1	0801-	●	●
18	HARNESS; DOOR	8-98079-076-5	01	1	0801-	●	●
204	HARNESS; CABLE,FLOOR (A)	8-98098-092-2	01	1	0801-0805	●	●
204	HARNESS; CABLE,FLOOR (C)	8-98117-544-0	01	1	0806-	●	●
204	HARNESS; CABLE,FLOOR (B)	8-98117-550-2	01	1	0806-	●	●
378	HARNESS; EXT,MIRROR	8-98031-603-1	02	1	0801-0901	●	●

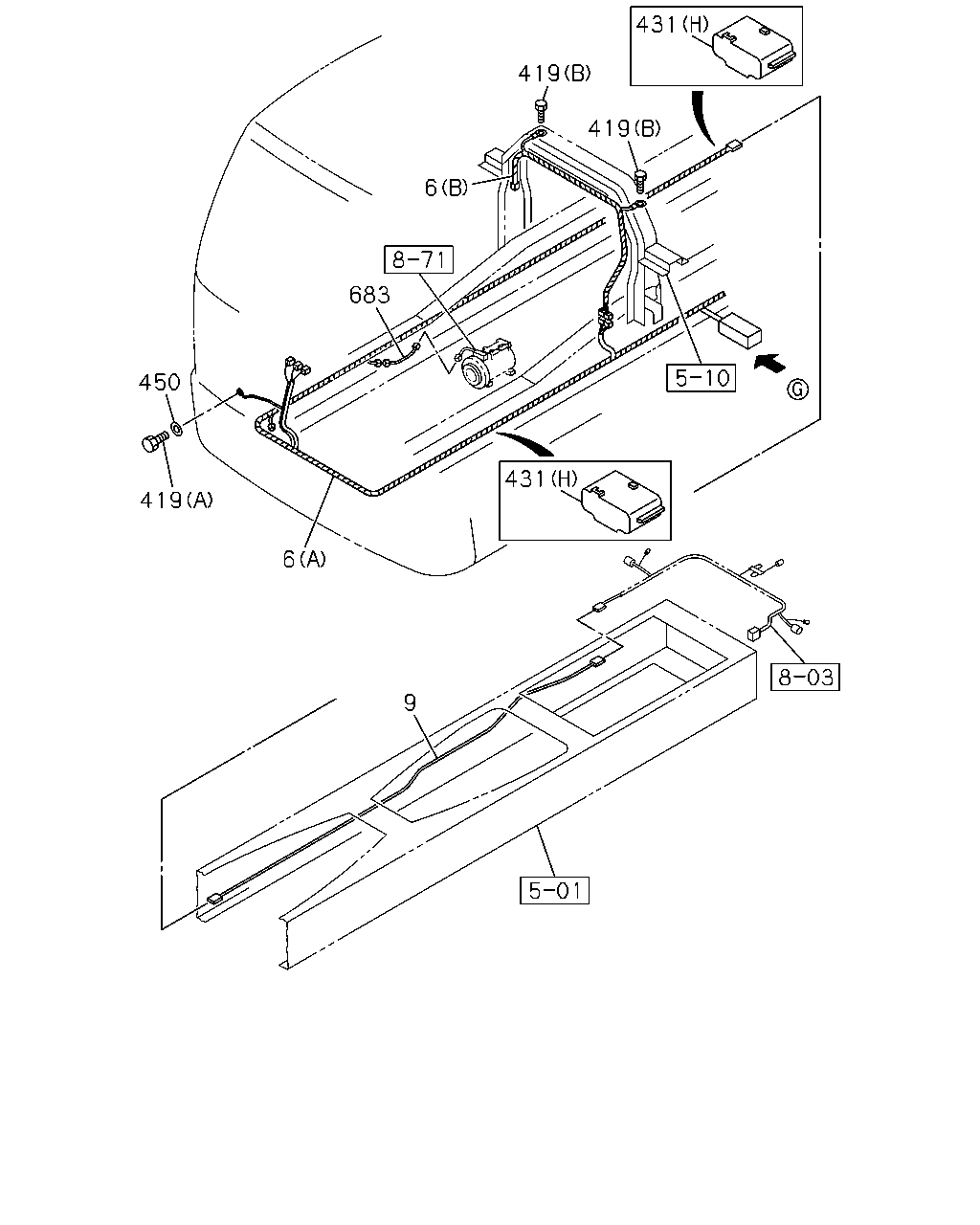

431 419 419 6 683 450 431 419 6 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME (B)	8-98075-634-3	01	1	0801-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A)	8-98128-425-1	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A)	8-98127-950-1	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98079-740-2	01	1	0801-0808	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A)	8-98079-740-3	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98094-517-4	01	1	0801-0808	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A)	8-98094-517-5	01	1	0809-	●	●
9	HARNESS; FRAME,RR WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N>	8-98131-643-2	01	1	0809-	●
9	HARNESS; FRAME,RR WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>	8-98131-649-1	01	1	0809-	●
9	HARNESS; FRAME,RR WHEEL BASE 7100MM(71W) ANTILOCK BRAKE SYSTEM(BFA)	8-98103-463-3	01	1	0801-	●
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W) ANTILOCK BRAKE SYSTEM(BFA)	8-98103-462-2	01	1	0801-0808		●
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W) ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>	8-98103-462-2	01	1	0809-		●
9	HARNESS; FRAME,RR WHEEL BASE 4900MM(49W) ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N>	8-98131-640-1	01	1	0809-		●
9	HARNESS; FRAME,RR WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N>	8-98127-951-1	01	1	0809-		●
9	HARNESS; FRAME,RR WHEEL BASE 6600MM(66W) ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>	8-98131-647-0	01	1	0809-		●
9	HARNESS; FRAME,RR WHEEL BASE 7100MM(71W) ANTILOCK BRAKE SYSTEM(BFA)	8-98079-748-1	01	1	0801-		●
419	BOLT; CAB EARTH (A) M6X16 W/LK&PL WASHER	8-97086-823-0	01	1	0801-	●	●
419	BOLT; CAB EARTH (B) M8X16 W/LK&PL WASHER	8-97087-055-0	03	1	0801-1201	●	●
419	BOLT; CAB EARTH (B) M8X14 W/PL WASHER	8-98164-837-0	03	1	1202-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	0801-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	0801-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	08	1	0801-	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0801-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0801-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0801-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (C) 10P BLUE	1-82699-598-0	04	1	0801-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (G) 10P GREEN	1-82699-599-0	07	1	0801-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (D) 10P BROWN	1-82699-601-0	01	1	0801-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	02	1	0801-	●	●
450	WASHER; PL,CAB EARTH ID=8.4	1-09503-264-0	01	1	0801-	●	●
683	HARNESS; EXT,COOLER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-97609-020-1	01	1	0801-	●	●

1 28 668 41 5 29 431 431 261 693 4 694 276 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF>	8-98192-057-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-055-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N>	8-98192-051-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98192-049-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF>	8-98192-058-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> IN HOUSE PRODUCTION<TKF> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-056-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N>	8-98192-052-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) IN HOUSE PRODUCTION<TKF> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98192-050-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68)	8-98132-409-2	01	1	0809-1004	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68)	8-98162-791-0	01	1	1005-1104	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) EXC. IN HOUSE PRODUCTION<TKF>	8-98162-791-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68)	8-98162-791-0	01	1	1107-1203	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68)	8-98192-058-0	01	1	1204-	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98132-407-2	01	1	0809-1004	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98162-789-0	01	1	1005-1104	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98162-789-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98162-789-0	01	1	1107-1203	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) DIFF LOCK<C3N> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-056-0	01	1	1204-	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68)	8-98094-000-4	01	1	0801-0808	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N>	8-98094-000-6	01	1	0809-1004	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N>	8-98162-785-0	01	1	1005-1104	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N>,IN HOUSE PRODUCTION<TKF>	8-98162-785-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N>	8-98162-785-0	01	1	1107-1203	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) FULLAUTO AIR CONDITIONER(C68) EXC. DIFF LOCK<C3N>	8-98192-052-0	01	1	1204-	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. FULLAUTO AIR CONDITIONER(C68)	8-98093-998-4	01	1	0801-0808	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98093-998-6	01	1	0809-1004	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98162-783-0	01	1	1005-1104	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68), IN HOUSE PRODUCTION<TKF>	8-98162-783-0	01	1	1105-1106	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98162-783-0	01	1	1107-1203	●	●
1	HARNESS; CAB TRANSMISSION-FULLER RTO11908(Y5L) EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98192-050-0	01	1	1204-	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY>	8-98132-408-2	01	1	0809-1004	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY>	8-98162-790-0	01	1	1005-1104	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. IN HOUSE PRODUCTION<TKF>	8-98162-790-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY>	8-98162-790-0	01	1	1107-1203	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY>	8-98192-057-0	01	1	1204-	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98132-406-2	01	1	0809-1004	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98162-788-0	01	1	1005-1104	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68),IN HOUSE PRODUCTION<TKF>	8-98162-788-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98162-788-0	01	1	1107-1203	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) DIFF LOCK<C3N> SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98192-055-0	01	1	1204-	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY>	8-98093-999-4	01	1	0801-0808	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>	8-98093-999-6	01	1	0809-1004	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>	8-98162-784-0	01	1	1005-1104	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,IN HOUSE PRODUCTION<TKF>	8-98162-784-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>	8-98162-784-0	01	1	1107-1203	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) FULLAUTO AIR CONDITIONER(C68) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>	8-98192-051-0	01	1	1204-	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. FULLAUTO AIR CONDITIONER(C68)	8-98093-997-4	01	1	0801-0808	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98093-997-6	01	1	0809-1004	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98162-782-0	01	1	1005-1104	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68), IN HOUSE PRODUCTION<TKF>	8-98162-782-0	01	1	1105-1106	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98162-782-0	01	1	1107-1203	●	●
1	HARNESS; CAB ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY> EXC. DIFF LOCK<C3N>,FULLAUTO AIR CONDITIONER(C68)	8-98192-049-0	01	1	1204-	●	●
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	0801-	●	●
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	0801-	●	●
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	0801-	●	●
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	0801-	●	●
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	0801-	●	●
28	SCREW; FUSE BOX M6X16 FLANGE	0-28650-616-0	01	1	0801-	●	●
29	COVER; FUSE BOX	8-98056-968-0	01	1	0801-	●	●
41	PULLER; FUSE	8-98054-260-0	01	1	0801-	●	●
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	0801-	●	●
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	0801-	●	●
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	0801-	●	●
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	0801-	●	●
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	01	1	0801-	●	●
431	CONNECTOR; JOINT (D) 10P BROWN	1-82699-601-0	08	1	0801-	●	●
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	0801-	●	●
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	0801-	●	●
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	0801-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (C) 10P BLUE	1-82699-598-0	04	1	0801-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (G) 10P GREEN	1-82699-599-0	07	1	0801-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (D) 10P BROWN	1-82699-601-0	01	1	0801-	●	●
431	CONNECTOR; JOINT ANTILOCK BRAKE SYSTEM(BFA) (H) 6P BLACK	8-97616-194-0	02	1	0801-	●	●
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	0801-	●	●
668	BRACKET; HARNESS (B)	8-98098-453-1	01	1	0801-0803	●	●
668	BRACKET; HARNESS (B)	8-98117-572-0	01	1	0804-	●	●
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0801-	●	●
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	0801-	●	●

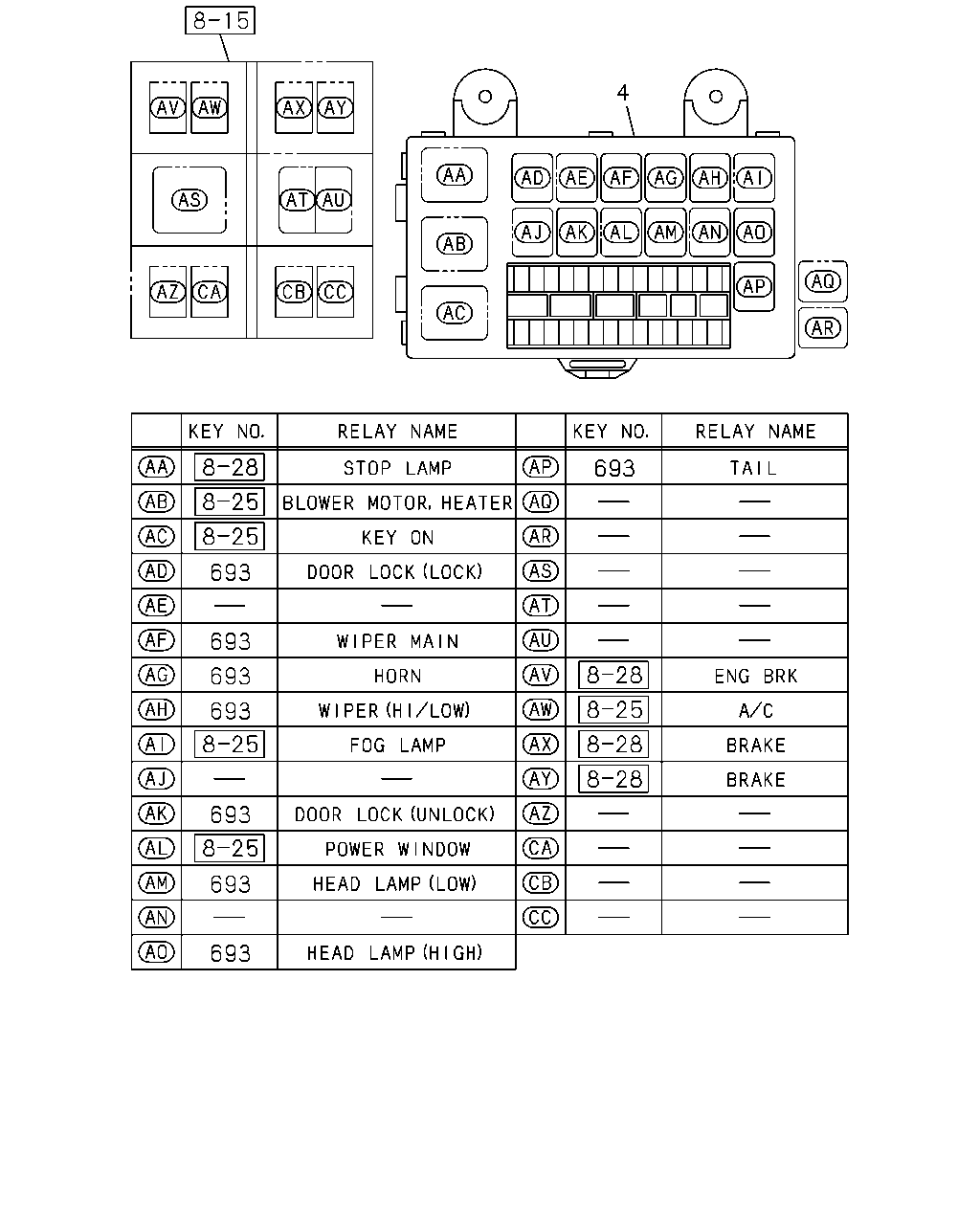

4 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	0801-	●	●
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	0801-	●	●

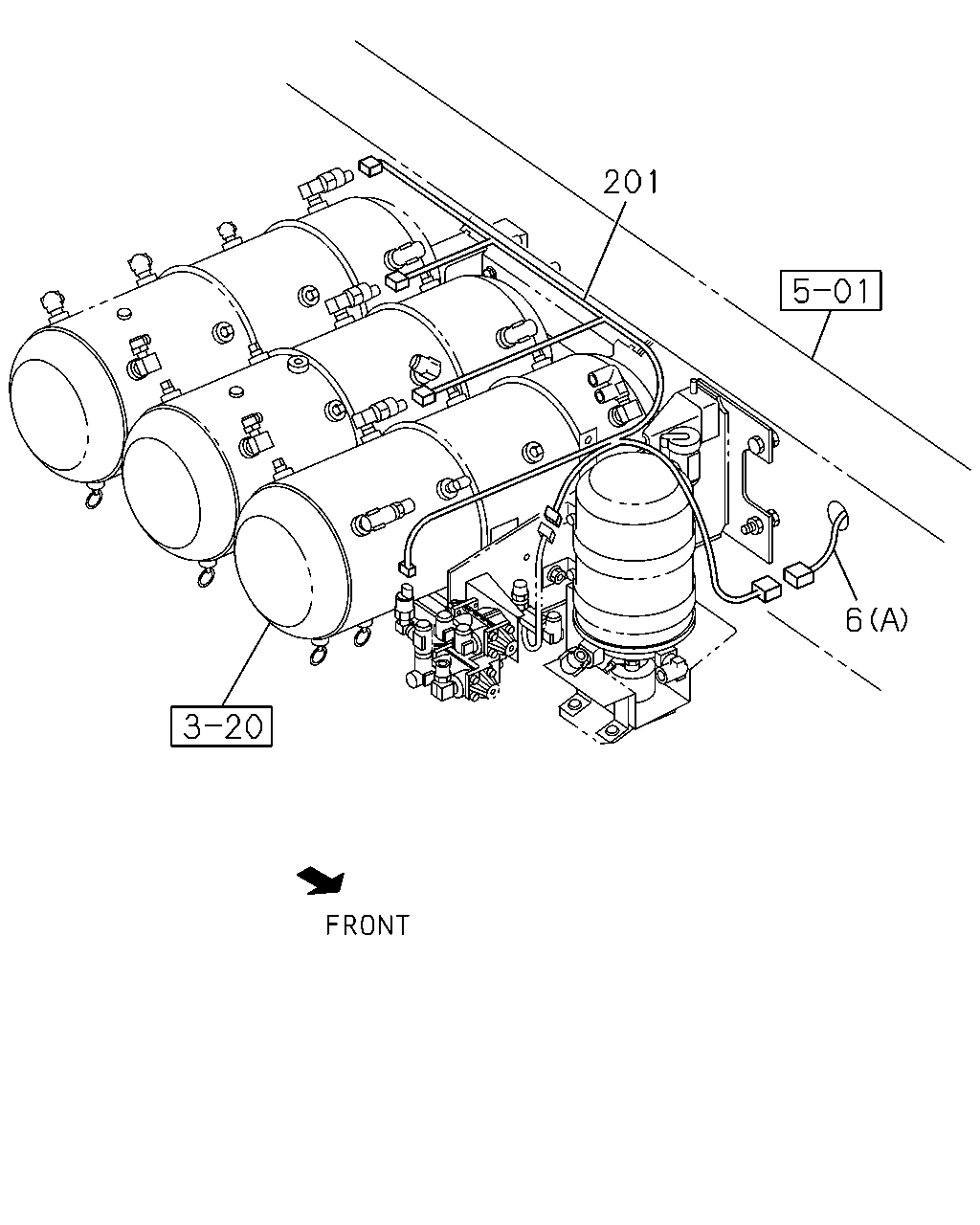

201 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME (B)	8-98075-634-3	01	1	0801-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A)	8-98128-425-1	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A)	8-98127-950-1	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98079-740-2	01	1	0801-0808	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A)	8-98079-740-3	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98094-517-4	01	1	0801-0808	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A)	8-98094-517-5	01	1	0809-	●	●
201	HARNESS; AIR TANK	8-98079-765-5	01	1	0801-	●	●

689 462 463 95 570 6 231 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME (B)	8-98075-634-3	01	1	0801-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A)	8-98128-425-1	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A)	8-98127-950-1	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98079-740-2	01	1	0801-0808	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A)	8-98079-740-3	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98094-517-4	01	1	0801-0808	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A)	8-98094-517-5	01	1	0809-	●	●
95	HARNESS; NEUTRAL SW TRANSMISSION-FULLER RTO11908(Y5L)	1-82639-626-0	01	1	0801-	●	●
95	HARNESS; NEUTRAL SW ZF9S1310 M/T(Y5K)	1-82659-226-0	01	1	0801-0905	●	●
95	HARNESS; NEUTRAL SW ZF9S1310 M/T(Y5K) RED	8-98145-854-0	01	1	0906-	●	●
231	HARNESS; TRANS TRANSMISSION-FULLER RTO11908(Y5L)	8-98079-751-1	01	1	0801-	●	●
231	HARNESS; TRANS ZF9S1310 M/T(Y5K)	8-98075-627-2	01	1	0801-0803	●	●
231	HARNESS; TRANS ZF9S1310 M/T(Y5K) SHIFT PATTERN SINGLE-H<EDY>	8-98075-627-2	01	1	0804-	●	●
231	HARNESS; TRANS ZF9S1310 M/T(Y5K) EXC. SHIFT PATTERN SINGLE-H<EDY>	8-98107-418-0	01	1	0804-1101	●	●
231	HARNESS; TRANS ZF9S1310 M/T(Y5K) EXC. SHIFT PATTERN SINGLE-H<EDY>	8-98107-418-0	01	1	1102-	●
231	HARNESS; TRANS ZF9S1310 M/T(Y5K) EXC. SHIFT PATTERN SINGLE-H<EDY>,ENGINE REAR PTO(SV1)	8-98107-418-0	01	1	1102-		●
231	HARNESS; TRANS ZF9S1310 M/T(Y5K) ENGINE REAR PTO(SV1) EXC. SHIFT PATTERN SINGLE-H<EDY>	8-98172-096-0	01	1	1102-		●
462	HARNESS; SW,RANGE ZF9S1310 M/T(Y5K) BLUE	1-82659-228-0	01	1	0801-0905	●	●
462	HARNESS; SW,RANGE ZF9S1310 M/T(Y5K) BLUE	8-98145-857-0	01	1	0906-	●	●
463	HARNESS; SW,BACK UP ZF9S1310 M/T(Y5K)	1-82659-227-0	01	1	0801-0905	●	●
463	HARNESS; SW,BACK UP ZF9S1310 M/T(Y5K) BLACK	8-98145-856-0	01	1	0906-	●	●
570	HARNESS; SPEED SENSOR (B)	8-98058-327-1	01	1	0801-	●	●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T(Y5K) (A)	1-82659-230-0	01	1	0801-1004	●	●
570	HARNESS; SPEED SENSOR ZF9S1310 M/T(Y5K) (A)	8-98148-602-0	01	1	1005-	●	●
689	HARNESS; PRESSURE & ECU SWITCH ZF9S1310 M/T(Y5K)	1-82659-229-1	01	1	0801-1101	●	●
689	HARNESS; PRESSURE & ECU SWITCH ZF9S1310 M/T(Y5K)	8-98148-603-0	01	1	1102-	●	●

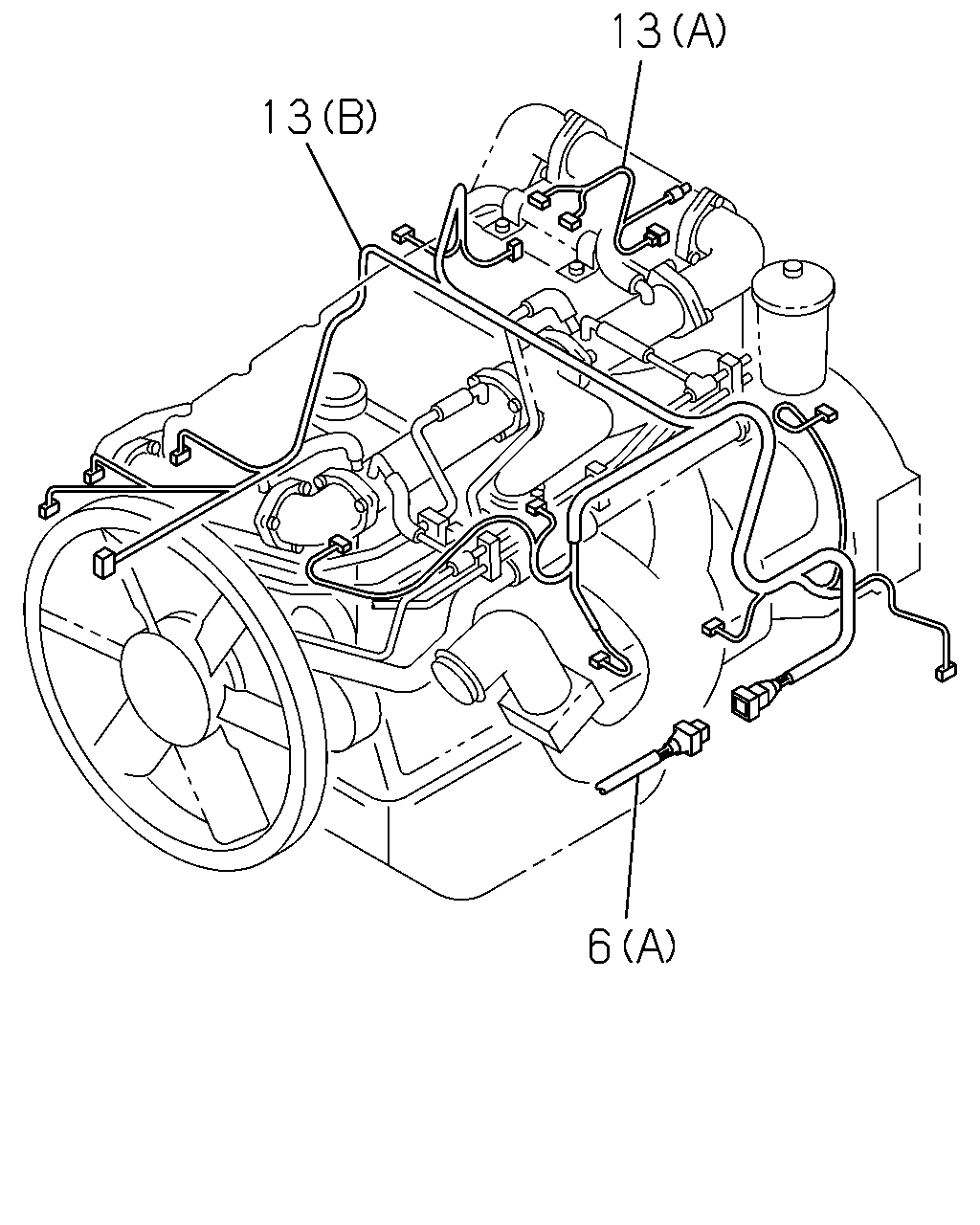

13 13 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	HARNESS; FRAME (B)	8-98075-634-3	01	1	0801-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> GENERATOR 24V90A(K44) (A)	8-98128-425-1	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) DIFF LOCK<C3N> EXC. GENERATOR 24V90A(K44) (A)	8-98127-950-1	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) (A)	8-98079-740-2	01	1	0801-0808	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) GENERATOR 24V90A(K44) EXC. DIFF LOCK<C3N> (A)	8-98079-740-3	01	1	0809-	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. GENERATOR 24V90A(K44) (A)	8-98094-517-4	01	1	0801-0808	●	●
6	HARNESS; FRAME ANTILOCK BRAKE SYSTEM(BFA) EXC. DIFF LOCK<C3N>,GENERATOR 24V90A(K44) (A)	8-98094-517-5	01	1	0809-	●	●
13	HARNESS; ENG (B)	8-97620-048-1	01	1	0801-	●	●
13	HARNESS; ENG (A)	8-97609-178-1	01	1	0801-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
