Sayfa 4-35 - Isuzu EPC

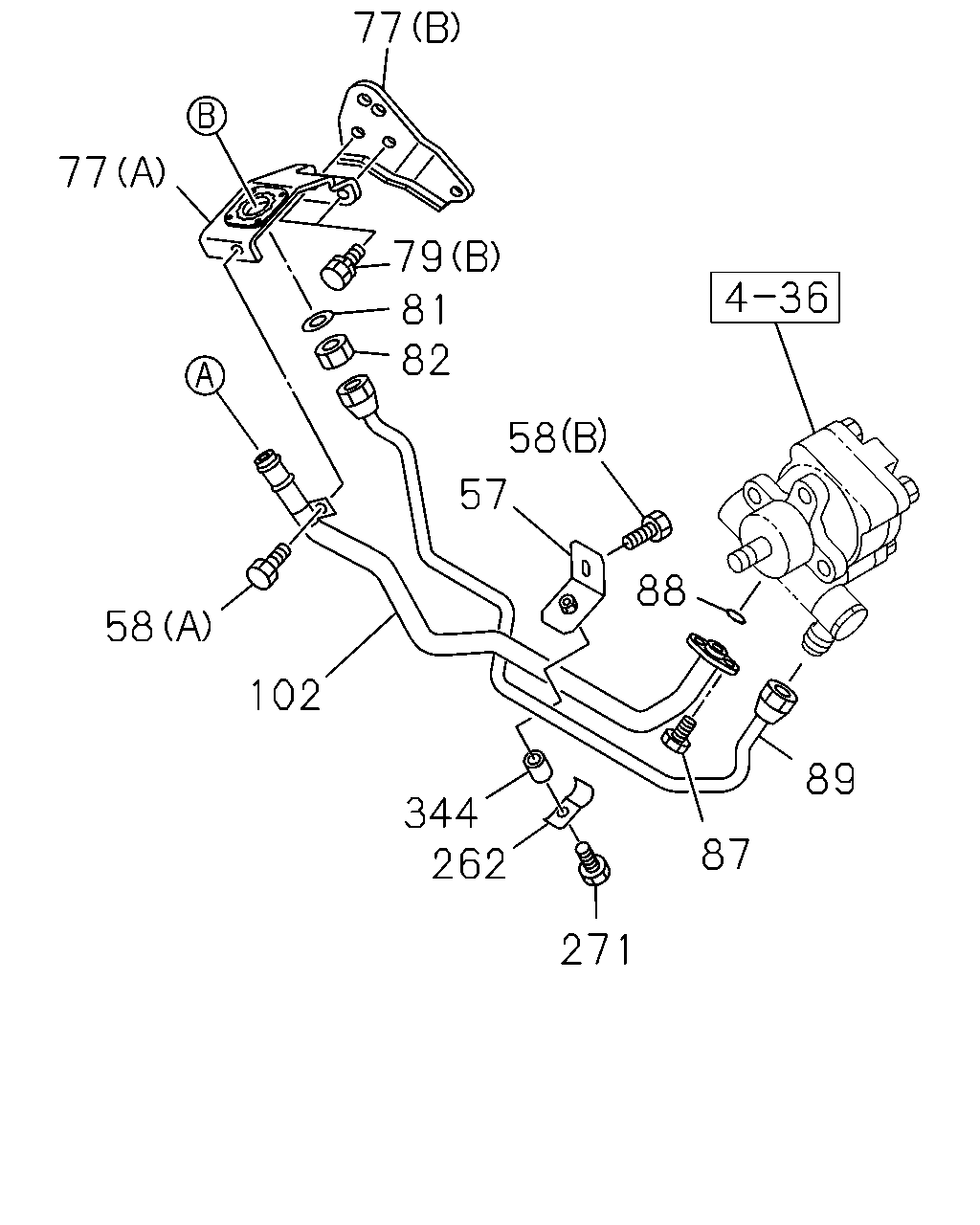

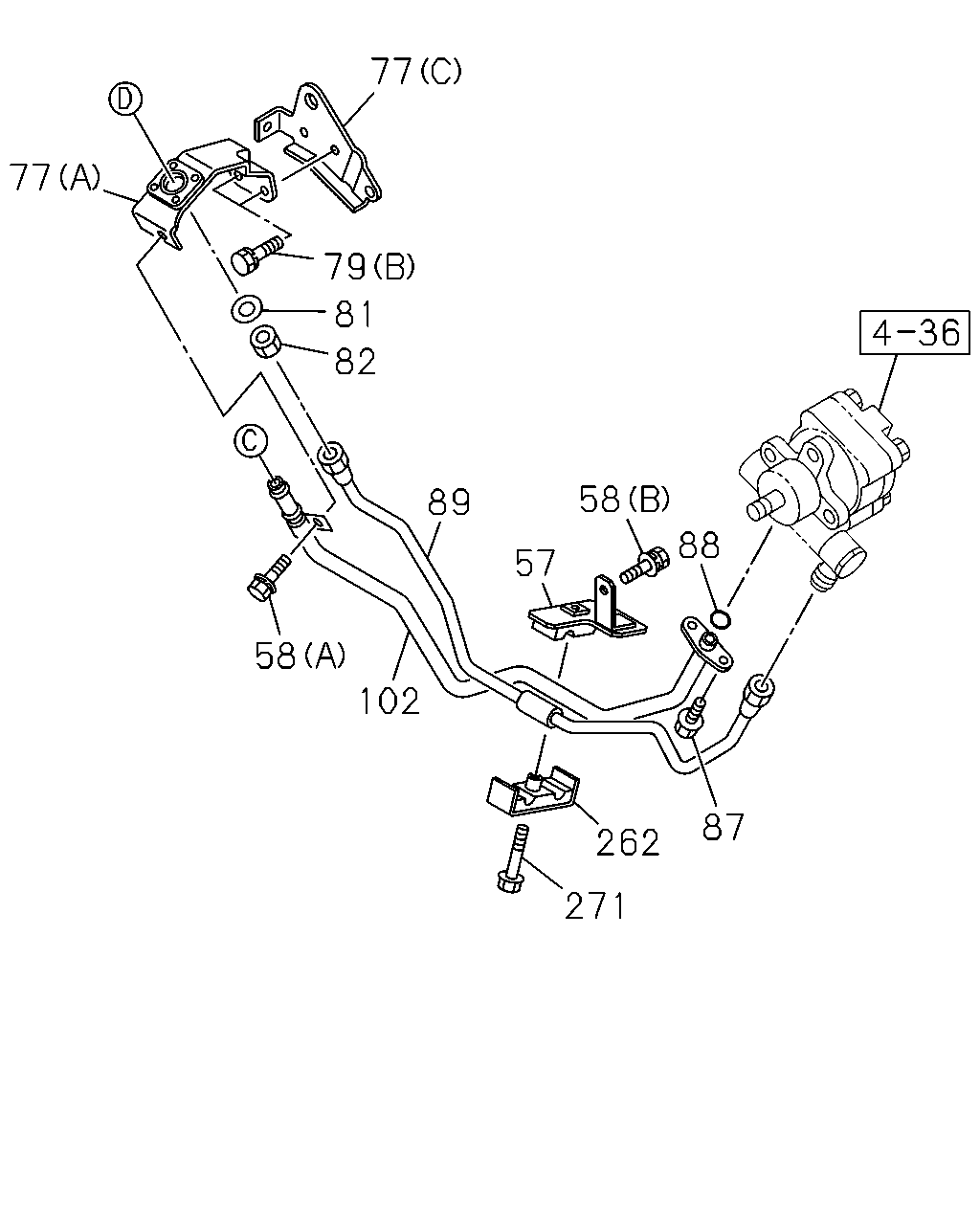

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#45628) — 325 parça

77 77 79 81 82 58 89 88 57 58 102 87 262 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
57	06.672 BRACKET; POWER STRG PIPE 4JG2 ENG(RJC)	8-97101-943-0	01	1	9812-9905	●	●
57	06.672 BRACKET; POWER STRG PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97101-943-0	01	1	9906-0105	●	●
57	06.672 BRACKET; POWER STRG PIPE 4JH1 ENG(RJX)	8-97312-558-1	01	1	0106-	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC) 04.595 (B) M8X20 FLANGE	0-28480-820-0	01	1	9812-9812	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9901-9905	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9906-0105	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0106-	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC) 08.080 (A) M6X16	8-94238-894-0	01	1	9812-9903	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC) 00.206 (A) M6X20	8-94279-112-0	01	1	9904-9905	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.206 (A) M6X20	8-94279-112-0	01	1	9906-0105	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 00.206 (A) M6X20	8-94279-112-0	01	1	0106-	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0106-	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE (B)	8-97073-947-0	01	1	9812-9905	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JG2 ENG(RJC) (B)	8-97073-947-0	01	1	9906-0105	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JH1 ENG(RJX) (C)	8-97240-137-0	01	1	0106-	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE (A)	8-97074-053-0	01	1	9812-9812	●	●
77	06.672 BRACKET; POWER STEERING HOSE (A)	8-97208-424-0	01	1	9812-0105	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JH1 ENG(RJX) (A)	8-97208-424-0	01	1	0106-	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) (B)	8-97075-615-0	01	1	9906-0105	●	●
79	06.672 BOLT; BRKT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	9906-0105	●
79	06.672 BOLT; BRKT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0106-	●
79	06.672 BOLT; BRKT 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	9812-0105	●	●
79	06.672 BOLT; BRKT 4JH1 ENG(RJX) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0106-	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9812-9905	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9812-9905	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9906-0105	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9906-0105	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0106-	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0106-	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JG2 ENG(RJC) 06.897 M16	8-94370-339-0	01	1	9812-9905	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) 06.897 M16	8-94370-339-0	01	1	9906-0105	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JH1 ENG(RJX) 06.897 M16	8-94370-339-0	01	1	0106-	●	●	●
87	06.672 BOLT; POWER STRG PIPE 4JG2 ENG(RJC) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9812-9905	●	●
87	06.672 BOLT; POWER STRG PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
87	06.672 BOLT; POWER STRG PIPE 4JH1 ENG(RJX) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●
88	06.673 RING; OIL PIPE 4JG2 ENG(RJC) 06.609 ID=11.0	9-09561-111-0	01	1	9812-9905	●	●
88	06.673 RING; OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 06.609 ID=11.0	9-09561-111-0	01	1	9906-0105	●	●
88	06.673 RING; OIL PIPE 4JH1 ENG(RJX) 06.609 ID=11.0	9-09561-111-0	01	1	0106-	●	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97102-201-1	01	1	9812-9812	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97214-441-0	01	1	9812-9903	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97227-154-0	01	1	9904-9905	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97227-154-0	01	1	9906-0105	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97312-555-0	01	1	0106-	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC)	8-97148-571-0	01	1	9812-9812		●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC)	8-97214-442-0	01	1	9812-9903		●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC)	8-97227-155-0	01	1	9904-9905		●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97227-155-0	01	1	9906-0105		●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JH1 ENG(RJX)	8-97312-556-0	01	1	0106-		●	●
102	06.671 PIPE; SUCTION,P/S 4JG2 ENG(RJC)	8-97136-516-0	01	1	9812-9812	●	●
102	06.671 PIPE; SUCTION,P/S 4JG2 ENG(RJC)	8-97214-446-0	01	1	9812-9812	●	●
102	06.671 PIPE; SUCTION,P/S 4JG2 ENG(RJC)	8-97223-147-0	01	1	9901-9904	●	●
102	06.671 PIPE; SUCTION,P/S 4JG2 ENG(RJC)	8-97226-682-0	01	1	9905-9905	●	●
102	06.671 PIPE; SUCTION,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97226-682-0	01	1	9906-0105	●	●
102	06.671 PIPE; SUCTION,P/S 4JH1 ENG(RJX)	8-97312-557-1	01	1	0106-	●	●	●
262	06.672 CLIP; P/S PIPE 4JG2 ENG(RJC)	8-94154-657-1	01	1	9812-9812	●	●
262	06.672 CLIP; P/S PIPE 4JG2 ENG(RJC)	8-97214-447-0	01	1	9812-9905	●	●
262	06.672 CLIP; P/S PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97214-447-1	01	1	9906-9911	●	●
262	06.672 CLIP; P/S PIPE 4JH1 ENG(RJX)	8-97300-961-0	01	1	9906-	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JG2 ENG(RJC) 06.525 M8X30	8-94247-692-0	01	1	9812-9812	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JG2 ENG(RJC) 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9901-9905	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9906-9911	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JH1 ENG(RJX) 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9906-	●	●	●

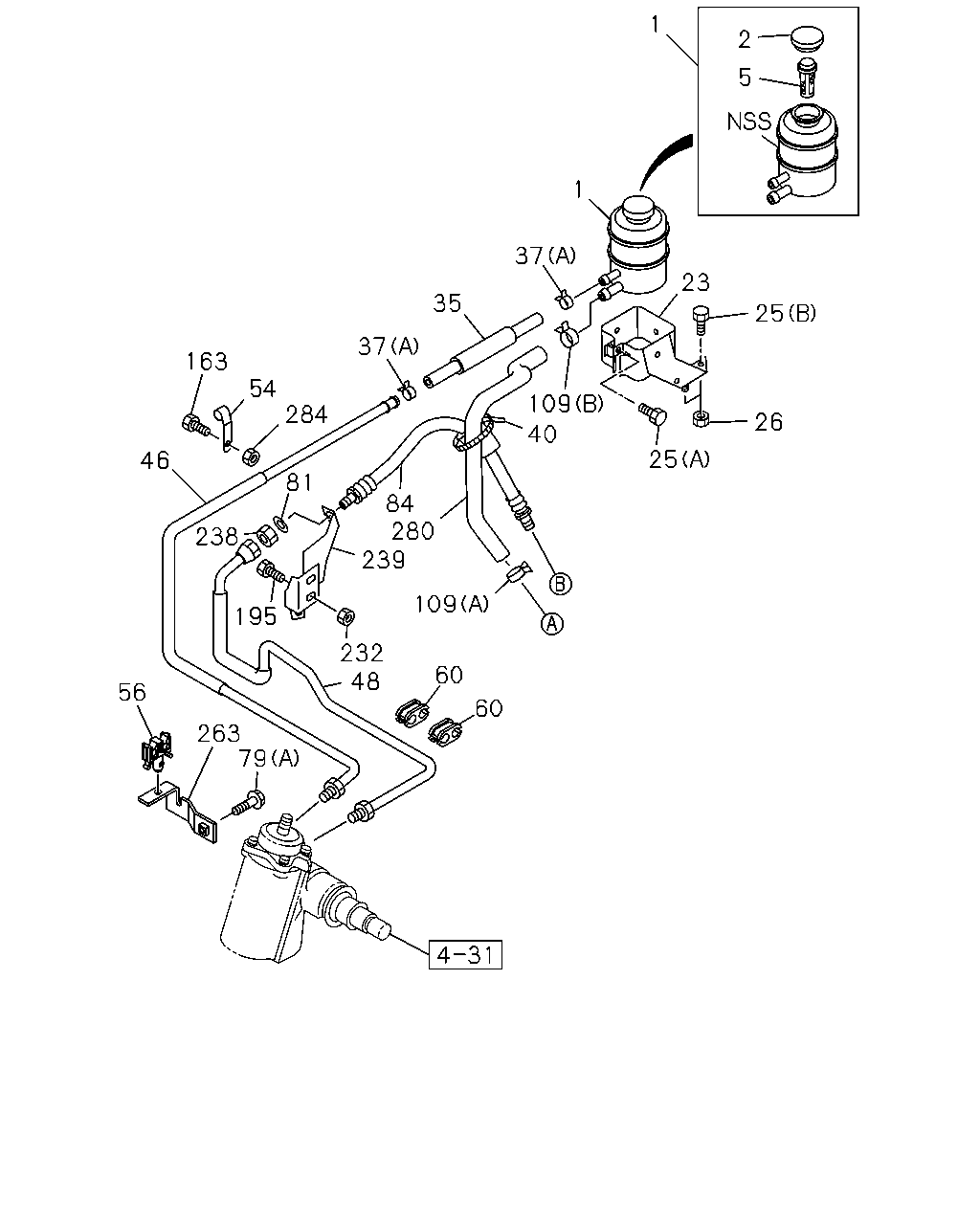

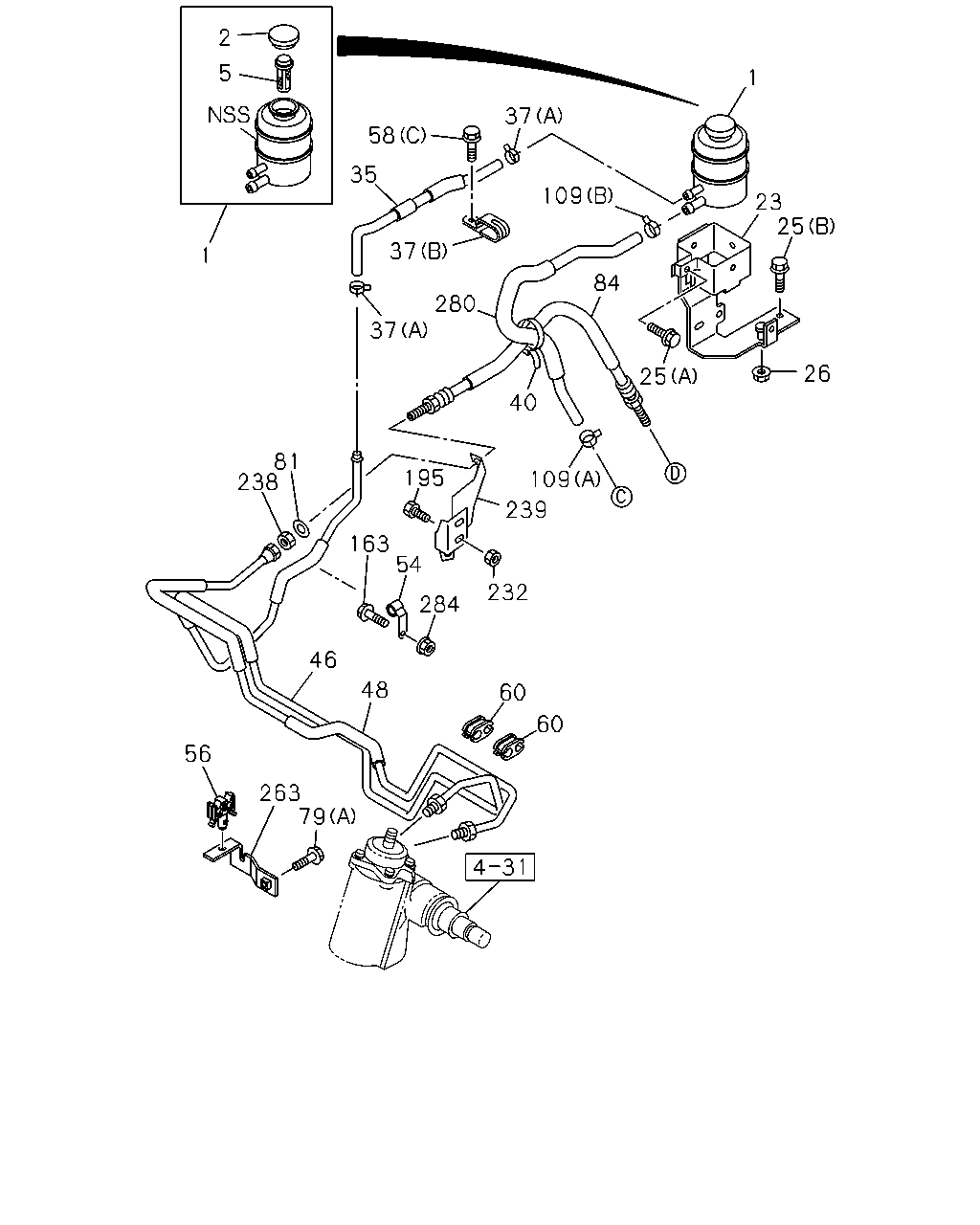

2 5 1 37 58 35 109 23 25 37 1 84 280 37 26 25 40 81 238 195 109 239 163 54 232 284 46 48 60 60 56 263 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	9812-	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	9812-	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	9812-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC)	8-97066-500-3	01	1	9812-9905	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97066-500-3	01	1	9906-0105	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JH1 ENG(RJX)	8-97289-416-0	01	1	0106-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28480-620-0	01	1	9812-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	9812-9905	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●	●
25	06.635 BOLT; OIL TANK BRKT 4JH1 ENG(RJX) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●
26	06.635 NUT; OIL TANK TO BRKT 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	03	1	9812-9905		●
26	06.635 NUT; OIL TANK TO BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	03	1	9906-0005		●
26	06.635 NUT; OIL TANK TO BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0006-0105		●
26	06.635 NUT; OIL TANK TO BRKT 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-		●	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97081-443-0	01	1	9812-9905	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97081-443-0	01	1	9906-0105	●
35	06.671 HOSE; RETURN,P/S TANK 4JH1 ENG(RJX)	8-97289-444-1	01	1	0106-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC)	8-97081-444-3	01	1	9812-9905		●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97081-444-3	01	1	9906-0105		●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	9812-	●	●	●
37	01.762 CLIP; HOSE,P/S 4JH1 ENG(RJX) 04.047 (B) WO/SCREW	1-09700-988-0	01	1	0106-	●	●	●
40	06.672 CLIP; BAND 4JG2 ENG(RJC) 02.559 L=250	5-09707-030-1	01	1	9812-9905	●	●
40	06.672 CLIP; BAND 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 L=250	5-09707-030-1	01	1	9906-0105	●	●
40	06.672 CLIP; BAND 4JH1 ENG(RJX) 02.559 L=250	5-09707-030-1	01	1	0106-	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-97192-793-1	01	1	9812-9905	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL>	8-97192-793-1	01	1	9906-0105	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97262-203-0	01	1	0106-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97211-309-1	01	1	9906-0105	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX)	8-97289-410-0	01	1	0106-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97211-311-0	01	1	9906-0105		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC)	8-97192-791-0	01	1	9812-9905		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97192-791-0	01	1	9906-0105		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97192-787-1	01	1	9812-9905	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL>	8-97192-787-1	01	1	9906-0105	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97211-308-1	01	1	9906-0105	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97211-308-1	01	1	0106-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97211-310-0	01	1	9906-0105		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97211-310-0	01	1	0106-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC)	8-97192-785-0	01	1	9812-9905		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97192-785-0	01	1	9906-0105		●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC) ID=11 L=40	8-94259-342-0	01	1	9812-9905	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) ID=11 L=40	8-94259-342-0	01	1	9906-0105	●	●
54	06.672 CLIP; OIL PIPE 4JH1 ENG(RJX) ID=11 L=40	8-94259-342-0	01	1	0106-	●	●	●
56	06.672 CLIP; OIL PIPE 04.930 ID=10X2 H=37.5	8-97018-546-0	01	1	9812-	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC) 04.595 (B) M8X20 FLANGE	0-28480-820-0	01	1	9812-9812	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9901-9905	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9906-0105	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0106-	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC) 08.080 (A) M6X16	8-94238-894-0	01	1	9812-9903	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC) 00.206 (A) M6X20	8-94279-112-0	01	1	9904-9905	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.206 (A) M6X20	8-94279-112-0	01	1	9906-0105	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 00.206 (A) M6X20	8-94279-112-0	01	1	0106-	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0106-	●	●	●
60	06.672 CLAMP; PIPE,RETURN 4JG2 ENG(RJC) ID=10X2 H=22	8-94252-455-2	02	1	9812-9905	●	●
60	06.672 CLAMP; PIPE,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) ID=10X2 H=22	8-94252-455-2	02	1	9906-0105	●	●
60	06.672 CLAMP; PIPE,RETURN 4JH1 ENG(RJX) ID=10X2 H=22	8-94252-455-2	02	1	0106-	●	●	●
79	06.672 BOLT; BRKT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	9906-0105	●
79	06.672 BOLT; BRKT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0106-	●
79	06.672 BOLT; BRKT 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	9812-0105	●	●
79	06.672 BOLT; BRKT 4JH1 ENG(RJX) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0106-	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9812-9905	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9812-9905	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9906-0105	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9906-0105	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0106-	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0106-	●	●	●
84	06.670 HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97078-368-4	01	1	9812-9905	●	●
84	06.670 HOSE; FLEX,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97078-368-4	01	1	9906-0105	●	●
84	06.670 HOSE; FLEX,P/S 4JH1 ENG(RJX)	8-97260-172-1	01	1	0106-0301	●	●	●
84	06.670 HOSE; FLEX,P/S 4JH1 ENG(RJX)	8-97358-341-0	01	1	0302-	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	9812-	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	9812-	●	●	●
163	06.671 BOLT; OIL PIPE 4JG2 ENG(RJC) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9905	●	●
163	06.671 BOLT; OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●	●
163	06.671 BOLT; OIL PIPE 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●
195	06.635 BOLT; BRKT 4JG2 ENG(RJC) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9812-9905	●	●
195	06.635 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9906-0105	●	●
195	06.635 BOLT; BRKT 4JH1 ENG(RJX) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	0106-	●	●	●
232	06.672 NUT; BRKT 4JG2 ENG(RJC) 04.785 M10 FLANGE	0-91150-110-0	02	1	9812-9905		●
232	06.672 NUT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	02	1	9906-0105		●
232	06.672 NUT; BRKT 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-		●	●
238	06.670 NUT; FLEX HOSE 4JG2 ENG(RJC) 06.897 M16	8-94370-339-0	01	1	9812-9905	●	●
238	06.670 NUT; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 06.897 M16	8-94370-339-0	01	1	9906-9911	●	●
238	06.670 NUT; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 06.897 M16	8-94370-339-0	01	1	9912-0105	●	●
238	06.670 NUT; FLEX HOSE 4JH1 ENG(RJX) 06.897 M16	8-94370-339-0	01	1	0106-	●	●	●
239	06.606 BRACKET; FLEX HOSE 4JG2 ENG(RJC)	8-97092-085-1	01	1	9812-9905	●	●
239	06.606 BRACKET; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97092-085-1	01	1	9906-0009	●	●
239	06.606 BRACKET; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97092-085-1	01	1	0010-0105	●
239	06.606 BRACKET; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97092-085-1	01	1	0010-0105		●
239	06.606 BRACKET; FLEX HOSE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97092-085-1	01	1	0106-0203	●	●
239	06.606 BRACKET; FLEX HOSE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97092-085-1	01	1	0204-	●	●	●
239	06.606 BRACKET; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97260-271-1	01	1	0010-0105		●
239	06.606 BRACKET; FLEX HOSE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97260-271-1	01	1	0106-	●	●	●
263	06.672 BRACKET; P/S PIPE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97211-312-0	01	1	9906-0105	●
263	06.672 BRACKET; P/S PIPE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97211-312-0	01	1	0106-	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97205-635-0	01	1	9906-0105	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JG2 ENG(RJC)	8-97062-797-1	01	1	9812-9905	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97062-797-1	01	1	9906-9911	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97062-797-1	01	1	9912-0105	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JH1 ENG(RJX)	8-97315-641-1	01	1	0106-	●	●	●
284	06.670 NUT; PIPE 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9905		●
284	06.670 NUT; PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-9911		●
284	06.670 NUT; PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9912-0105		●
284	06.670 NUT; PIPE 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-		●	●

77 77 79 81 82 58 57 88 58 102 89 344 262 87 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
57	06.672 BRACKET; POWER STRG PIPE 4JG2 ENG(RJC)	8-97101-943-0	01	1	9812-9905	●	●
57	06.672 BRACKET; POWER STRG PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97101-943-0	01	1	9906-0105	●	●
57	06.672 BRACKET; POWER STRG PIPE 4JH1 ENG(RJX)	8-97312-558-1	01	1	0106-	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC) 04.595 (B) M8X20 FLANGE	0-28480-820-0	01	1	9812-9812	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9901-9905	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	9906-0105	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0106-	●	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC) 08.080 (A) M6X16	8-94238-894-0	01	1	9812-9903	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC) 00.206 (A) M6X20	8-94279-112-0	01	1	9904-9905	●	●
58	06.672 BOLT; CLIP 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.206 (A) M6X20	8-94279-112-0	01	1	9906-0105	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 00.206 (A) M6X20	8-94279-112-0	01	1	0106-	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 02.334 (C) M6X25 FLANGE	0-28680-625-0	01	1	0106-	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE (B)	8-97073-947-0	01	1	9812-9905	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JG2 ENG(RJC) (B)	8-97073-947-0	01	1	9906-0105	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JH1 ENG(RJX) (C)	8-97240-137-0	01	1	0106-	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE (A)	8-97074-053-0	01	1	9812-9812	●	●
77	06.672 BRACKET; POWER STEERING HOSE (A)	8-97208-424-0	01	1	9812-0105	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JH1 ENG(RJX) (A)	8-97208-424-0	01	1	0106-	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JB1 ENG(RLF) (B)	8-97075-615-0	01	1	9906-0105	●	●
79	06.672 BOLT; BRKT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	9906-0105	●
79	06.672 BOLT; BRKT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0106-	●
79	06.672 BOLT; BRKT 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	9812-0105	●	●
79	06.672 BOLT; BRKT 4JH1 ENG(RJX) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0106-	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9812-9905	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9812-9905	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9906-0105	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9906-0105	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0106-	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0106-	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JG2 ENG(RJC) 06.897 M16	8-94370-339-0	01	1	9812-9905	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF) 06.897 M16	8-94370-339-0	01	1	9906-0105	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JH1 ENG(RJX) 06.897 M16	8-94370-339-0	01	1	0106-	●	●	●
87	06.672 BOLT; POWER STRG PIPE 4JG2 ENG(RJC) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9812-9905	●	●
87	06.672 BOLT; POWER STRG PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	9906-0105	●	●
87	06.672 BOLT; POWER STRG PIPE 4JH1 ENG(RJX) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●
88	06.673 RING; OIL PIPE 4JG2 ENG(RJC) 06.609 ID=11.0	9-09561-111-0	01	1	9812-9905	●	●
88	06.673 RING; OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 06.609 ID=11.0	9-09561-111-0	01	1	9906-0105	●	●
88	06.673 RING; OIL PIPE 4JH1 ENG(RJX) 06.609 ID=11.0	9-09561-111-0	01	1	0106-	●	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97102-201-1	01	1	9812-9812	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97214-441-0	01	1	9812-9903	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97227-154-0	01	1	9904-9905	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97227-154-0	01	1	9906-0105	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97312-555-0	01	1	0106-	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC)	8-97148-571-0	01	1	9812-9812		●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC)	8-97214-442-0	01	1	9812-9903		●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC)	8-97227-155-0	01	1	9904-9905		●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97227-155-0	01	1	9906-0105		●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JH1 ENG(RJX)	8-97312-556-0	01	1	0106-		●	●
102	06.671 PIPE; SUCTION,P/S 4JG2 ENG(RJC)	8-97136-516-0	01	1	9812-9812	●	●
102	06.671 PIPE; SUCTION,P/S 4JG2 ENG(RJC)	8-97214-446-0	01	1	9812-9812	●	●
102	06.671 PIPE; SUCTION,P/S 4JG2 ENG(RJC)	8-97223-147-0	01	1	9901-9904	●	●
102	06.671 PIPE; SUCTION,P/S 4JG2 ENG(RJC)	8-97226-682-0	01	1	9905-9905	●	●
102	06.671 PIPE; SUCTION,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97226-682-0	01	1	9906-0105	●	●
102	06.671 PIPE; SUCTION,P/S 4JH1 ENG(RJX)	8-97312-557-1	01	1	0106-	●	●	●
262	06.672 CLIP; P/S PIPE 4JG2 ENG(RJC)	8-94154-657-1	01	1	9812-9812	●	●
262	06.672 CLIP; P/S PIPE 4JG2 ENG(RJC)	8-97214-447-0	01	1	9812-9905	●	●
262	06.672 CLIP; P/S PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97214-447-1	01	1	9906-9911	●	●
262	06.672 CLIP; P/S PIPE 4JH1 ENG(RJX)	8-97300-961-0	01	1	9906-	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JG2 ENG(RJC) 06.525 M8X30	8-94247-692-0	01	1	9812-9812	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JG2 ENG(RJC) 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9901-9905	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JG2 ENG(RJC),4JB1 ENG(RLF) 00.780 M8X30 W/LK WASHER	0-50040-830-0	01	1	9906-9911	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JH1 ENG(RJX) 03.704 M8X40 FLANGE	0-28680-840-0	01	1	9906-	●	●	●
344	04.681 PIECE; DISTANCE 4JG2 ENG(RJC)	8-97214-563-0	01	1	9812-9905	●	●
344	04.681 PIECE; DISTANCE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97214-563-0	01	1	9906-0105	●	●

1 2 5 1 37 23 35 25 37 163 54 284 109 26 40 25 46 81 84 280 239 238 109 195 232 48 60 56 60 263 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	9812-	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	9812-	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	9812-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC)	8-97066-500-3	01	1	9812-9905	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97066-500-3	01	1	9906-0105	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JH1 ENG(RJX)	8-97289-416-0	01	1	0106-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28480-620-0	01	1	9812-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	9812-9905	●	●
25	06.635 BOLT; OIL TANK BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●	●
25	06.635 BOLT; OIL TANK BRKT 4JH1 ENG(RJX) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●
26	06.635 NUT; OIL TANK TO BRKT 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	03	1	9812-9905		●
26	06.635 NUT; OIL TANK TO BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	03	1	9906-0005		●
26	06.635 NUT; OIL TANK TO BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0006-0105		●
26	06.635 NUT; OIL TANK TO BRKT 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-		●	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97081-443-0	01	1	9812-9905	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97081-443-0	01	1	9906-0105	●
35	06.671 HOSE; RETURN,P/S TANK 4JH1 ENG(RJX)	8-97289-444-1	01	1	0106-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC)	8-97081-444-3	01	1	9812-9905		●
35	06.671 HOSE; RETURN,P/S TANK 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97081-444-3	01	1	9906-0105		●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	9812-	●	●	●
37	01.762 CLIP; HOSE,P/S 4JH1 ENG(RJX) 04.047 (B) WO/SCREW	1-09700-988-0	01	1	0106-	●	●	●
40	06.672 CLIP; BAND 4JG2 ENG(RJC) 02.559 L=250	5-09707-030-1	01	1	9812-9905	●	●
40	06.672 CLIP; BAND 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 L=250	5-09707-030-1	01	1	9906-0105	●	●
40	06.672 CLIP; BAND 4JH1 ENG(RJX) 02.559 L=250	5-09707-030-1	01	1	0106-	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK	8-97192-793-1	01	1	9812-9905	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL>	8-97192-793-1	01	1	9906-0105	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97262-203-0	01	1	0106-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97211-309-1	01	1	9906-0105	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX)	8-97289-410-0	01	1	0106-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97211-311-0	01	1	9906-0105		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC)	8-97192-791-0	01	1	9812-9905		●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97192-791-0	01	1	9906-0105		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97192-787-1	01	1	9812-9905	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. CHARGE AIR COOLER<6PL>	8-97192-787-1	01	1	9906-0105	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97211-308-1	01	1	9906-0105	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97211-308-1	01	1	0106-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97211-310-0	01	1	9906-0105		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97211-310-0	01	1	0106-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC)	8-97192-785-0	01	1	9812-9905		●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97192-785-0	01	1	9906-0105		●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC) ID=11 L=40	8-94259-342-0	01	1	9812-9905	●	●
54	06.672 CLIP; OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) ID=11 L=40	8-94259-342-0	01	1	9906-0105	●	●
54	06.672 CLIP; OIL PIPE 4JH1 ENG(RJX) ID=11 L=40	8-94259-342-0	01	1	0106-	●	●	●
56	06.672 CLIP; OIL PIPE 04.930 ID=10X2 H=37.5	8-97018-546-0	01	1	9812-	●	●	●
60	06.672 CLAMP; PIPE,RETURN 4JG2 ENG(RJC) ID=10X2 H=22	8-94252-455-2	02	1	9812-9905	●	●
60	06.672 CLAMP; PIPE,RETURN 4JG2 ENG(RJC),4JB1 ENG(RLF) ID=10X2 H=22	8-94252-455-2	02	1	9906-0105	●	●
60	06.672 CLAMP; PIPE,RETURN 4JH1 ENG(RJX) ID=10X2 H=22	8-94252-455-2	02	1	0106-	●	●	●
79	06.672 BOLT; BRKT 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	9906-0105	●
79	06.672 BOLT; BRKT 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 02.664 (A) M8X20 FLANGE	0-28680-820-0	01	1	0106-	●
79	06.672 BOLT; BRKT 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	9812-0105	●	●
79	06.672 BOLT; BRKT 4JH1 ENG(RJX) 08.900 (B) M8X20 W/LK WASHER	0-50040-820-0	02	1	0106-	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9812-9905	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9812-9905	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9906-0105	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9906-0105	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0106-	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0106-	●	●	●
84	06.670 HOSE; FLEX,P/S 4JG2 ENG(RJC)	8-97078-368-4	01	1	9812-9905	●	●
84	06.670 HOSE; FLEX,P/S 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97078-368-4	01	1	9906-0105	●	●
84	06.670 HOSE; FLEX,P/S 4JH1 ENG(RJX)	8-97260-172-1	01	1	0106-0301	●	●	●
84	06.670 HOSE; FLEX,P/S 4JH1 ENG(RJX)	8-97358-341-0	01	1	0302-	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	9812-	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	9812-	●	●	●
163	06.671 BOLT; OIL PIPE 4JG2 ENG(RJC) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-9905	●	●
163	06.671 BOLT; OIL PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●	●
163	06.671 BOLT; OIL PIPE 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●
195	06.635 BOLT; BRKT 4JG2 ENG(RJC) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9812-9905	●	●
195	06.635 BOLT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	9906-0105	●	●
195	06.635 BOLT; BRKT 4JH1 ENG(RJX) 03.162 M10X35 FLANGE	0-28681-035-0	02	1	0106-	●	●	●
232	06.672 NUT; BRKT 4JG2 ENG(RJC) 04.785 M10 FLANGE	0-91150-110-0	02	1	9812-9905		●
232	06.672 NUT; BRKT 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.785 M10 FLANGE	0-91150-110-0	02	1	9906-0105		●
232	06.672 NUT; BRKT 4JH1 ENG(RJX) 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-		●	●
238	06.670 NUT; FLEX HOSE 4JG2 ENG(RJC) 06.897 M16	8-94370-339-0	01	1	9812-9905	●	●
238	06.670 NUT; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 06.897 M16	8-94370-339-0	01	1	9906-9911	●	●
238	06.670 NUT; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 06.897 M16	8-94370-339-0	01	1	9912-0105	●	●
238	06.670 NUT; FLEX HOSE 4JH1 ENG(RJX) 06.897 M16	8-94370-339-0	01	1	0106-	●	●	●
239	06.606 BRACKET; FLEX HOSE 4JG2 ENG(RJC)	8-97092-085-1	01	1	9812-9905	●	●
239	06.606 BRACKET; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97092-085-1	01	1	9906-0009	●	●
239	06.606 BRACKET; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97092-085-1	01	1	0010-0105	●
239	06.606 BRACKET; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97092-085-1	01	1	0010-0105		●
239	06.606 BRACKET; FLEX HOSE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97092-085-1	01	1	0106-0203	●	●
239	06.606 BRACKET; FLEX HOSE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97092-085-1	01	1	0204-	●	●	●
239	06.606 BRACKET; FLEX HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97260-271-1	01	1	0010-0105		●
239	06.606 BRACKET; FLEX HOSE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97260-271-1	01	1	0106-	●	●	●
263	06.672 BRACKET; P/S PIPE 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97211-312-0	01	1	9906-0105	●
263	06.672 BRACKET; P/S PIPE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97211-312-0	01	1	0106-	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL>	8-97205-635-0	01	1	9906-0105	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JG2 ENG(RJC)	8-97062-797-1	01	1	9812-9905	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97062-797-1	01	1	9906-9911	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL>	8-97062-797-1	01	1	9912-0105	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JH1 ENG(RJX)	8-97315-641-1	01	1	0106-	●	●	●
284	06.670 NUT; PIPE 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-9905		●
284	06.670 NUT; PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9906-9911		●
284	06.670 NUT; PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9912-0105		●
284	06.670 NUT; PIPE 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
