◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50810 - NKR(EUROPE)-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-33 - STEERING LINKAGE ▶
4-33 — STEERING LINKAGE (#45627) — 131 parça

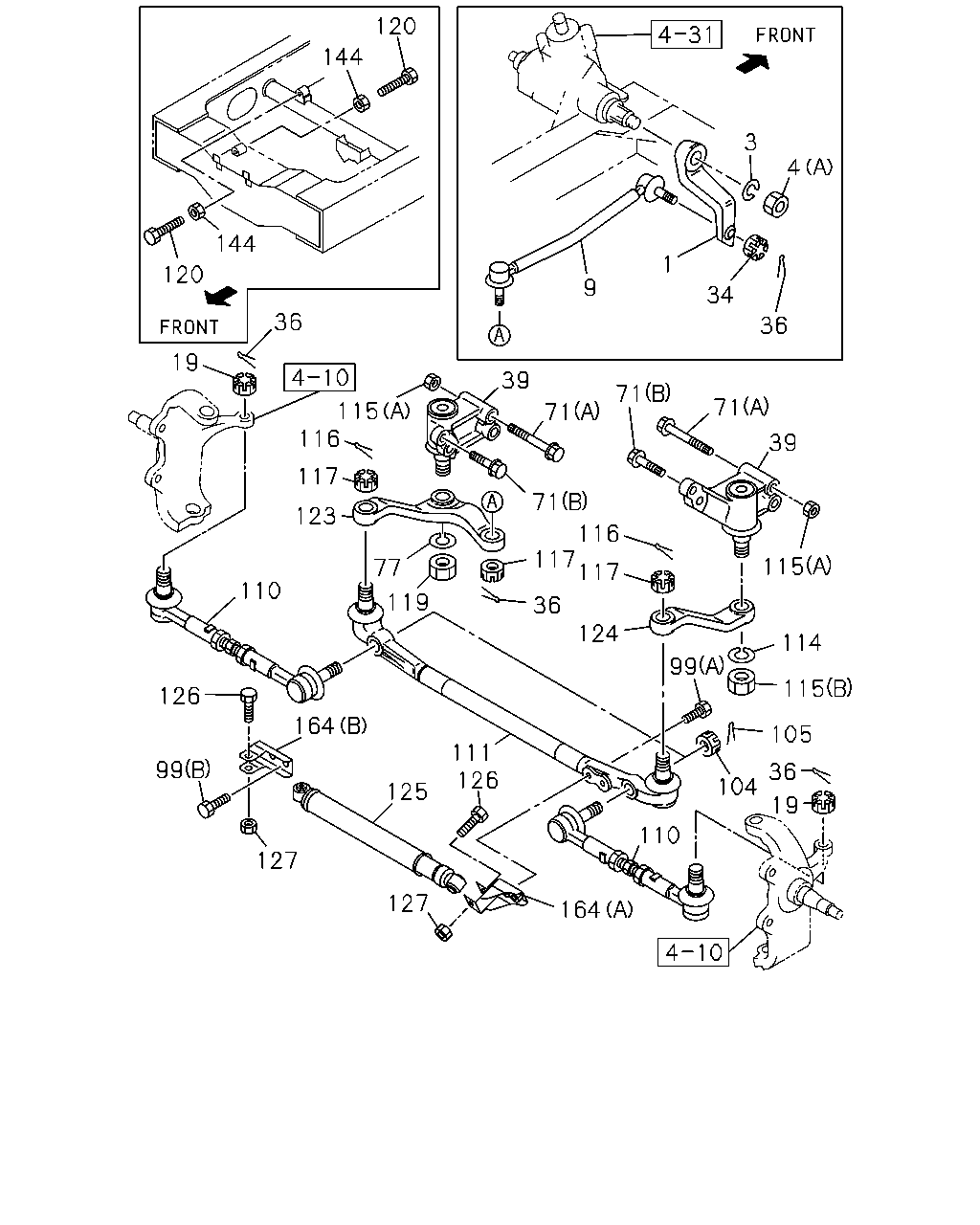

çizim 10807
120 144 3 4 144 1 120 9 34 36 36 19 39 71 71 115 116 71 39 117 71 123 116 117 117 115 77 110 119 36 124 114 99 115 126 164 105 111 126 99 36 104 125 19 110 127 127 164
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.859 ARM; PITMAN,STRG 8-97070-552-2 01 1 9812- ●
1 06.859 ARM; PITMAN,STRG 8-97109-289-1 01 1 9812- ● ●
3 06.861 WASHER; LK,PITMAN ARM
08.931 ID=27.5 		9-09150-527-0 01 1 9812- ●
3 06.861 WASHER; LK,PITMAN ARM
ID=22.5 		9-09150-522-0 01 1 9812- ● ●
4 06.861 NUT; PITMAN ARM
(A) M27 		5-12378-002-0 01 1 9812- ●
4 06.861 NUT; PITMAN ARM
(B) M18 SLOTTED 		8-97017-761-0 01 1 9812- ● ●
4 06.861 NUT; PITMAN ARM
08.915 (C) M22 		9-09111-522-0 01 1 9812- ● ●
9 06.870 LINK; DRAG 8-97070-496-2 01 1 9812- ●
9 06.870 LINK; DRAG 8-97175-323-0 01 1 9812-9903 ●
9 06.870 LINK; DRAG 8-97222-502-0 01 1 9904-9906 ●
9 06.870 LINK; DRAG
EXC. SHIMMY DAMPER<S3V> 		8-97222-502-0 01 1 9907-0111 ●
9 06.870 LINK; DRAG
EXC. SHIMMY DAMPER<S3V> 		8-97175-323-0 01 1 0112- ● ●
9 06.870 LINK; DRAG
SHIMMY DAMPER<S3V> 		8-97222-503-0 01 1 9907-0111 ●
9 06.870 LINK; DRAG
SHIMMY DAMPER<S3V> 		8-97325-819-0 01 1 0112- ● ●
19 06.865 NUT; PITMAN ARM,STOPPER 8-97017-762-0 02 1 9812- ●
34 06.233 NUT; DRAG LINK TO PITMAN ARM
06.861 M18 SLOTTED 		8-97017-761-0 01 1 9812- ●
36 06.881 PIN; SPLIT,DRAG LINK
09.023 OD=3.7 L=30 		9-08114-030-0 03 1 9812-0212 ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 03 1 0301- ●
36 06.881 PIN; SPLIT,DRAG LINK
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9812-0203 ● ●
36 06.881 PIN; SPLIT,DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 01 1 0204-0212 ●
36 06.881 PIN; SPLIT,DRAG LINK
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 0204-0212 ● ●
36 06.881 PIN; SPLIT,DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) L=19 		8-97349-766-0 01 1 0301- ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 01 1 0301- ● ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE 8-97189-457-0 01 1 9812- ●
39 06.896 LEVER ASM; RELAY,STRG LINKAGE 8-97189-455-0 01 1 9812- ●
71 06.896 BOLT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (A) M12X93.5 		8-97085-383-0 04 1 9812- ●
71 06.896 BOLT; RELAY LEVER BRKT
FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (B) M12X43.5 		8-97085-384-0 04 1 9812- ●
71 06.896 BOLT; RELAY LEVER BRKT
KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 00.780 (A) M12X90 		0-28081-290-0 04 1 9812- ●
71 06.896 BOLT; RELAY LEVER BRKT
KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 03.890 (B) M12X40 		9-92061-240-0 04 1 9812- ●
77 06.897 WASHER; LK,RELAY LEVER
08.931 ID=20.2 		9-09150-520-0 01 1 9812- ●
99 06.896 BOLT; BRKT
00.685 (A) M10X50 FLANGE 		0-28081-050-0 02 1 9812- ●
99 06.896 BOLT; BRKT
03.611 (B) M10X20 FLANGE 		0-28681-020-0 02 1 9812- ●
104 06.233 NUT; ROD END
06.234 M16 SLOTTED 		1-09442-021-1 02 1 9812- ●
105 06.865 PIN; SPLIT,ROD END
06.022 OD=3.7 L=25 		9-08114-025-0 02 1 9812-0212 ●
105 06.865 PIN; SPLIT,ROD END
06.881 L=19 		8-97349-766-0 02 1 0301- ●
110 06.870 ROD; TRACK,OUTER 8-97107-318-1 02 1 9812- ●
111 06.870 ROD; TRACK,CENTER 8-97062-180-2 01 1 9812- ●
114 06.515 WASHER; RELAY LEVER BRKT
08.931 ID=20.2 		9-09150-520-0 01 1 9812- ●
115 06.896 NUT; RELAY LEVER BRKT
06.606 (A) M12 		8-94139-015-0 08 1 9812- ●
115 06.896 NUT; RELAY LEVER BRKT
08.915 (B) M20 		9-99111-520-0 01 1 9812- ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9812-0212 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9812-0212 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9812-0212 ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 06.881 L=19 		8-97349-766-0 01 1 0301- ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 06.881 L=19 		8-97349-766-0 01 1 0301- ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 L=19 		8-97349-766-0 01 1 0301- ● ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 02 1 9812- ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 01 1 9812-0203 ● ●
117 06.233 NUT; DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED 		8-97017-761-0 01 1 0204- ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 01 1 0204- ● ●
119 06.897 NUT; RELAY LEVER
08.915 M20 		9-99111-520-0 01 1 9812- ●
120 06.897 BOLT; RELAY LEVER STOPPER 8-97014-919-0 02 1 9812- ●
123 06.895 LEVER; RELAY,RH 8-97061-692-0 01 1 9812- ●
124 06.859 LEVER; RELAY,STRG LINKAGE 8-97036-547-1 01 1 9812- ●
125 06.865 DAMPER; STEERING 8-97012-618-3 01 1 9812- ●
125 06.865 DAMPER; STEERING
SHIMMY DAMPER<S3V> 		8-97230-742-0 01 1 9907- ● ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER
00.685 M10X45 FLANGE 		0-28081-045-0 02 1 9812- ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER
SHIMMY DAMPER<S3V> 00.685 M10X45 FLANGE 		0-28081-045-0 02 1 9812- ● ●
127 06.865 NUT; STRG DAMPER
08.917 M10 FLANGE 		0-91150-210-0 02 1 9812- ●
127 06.865 NUT; STRG DAMPER
SHIMMY DAMPER<S3V> 08.917 M10 FLANGE 		0-91150-210-0 01 1 9907- ● ●
144 06.896 NUT; STOPPER BRKT
05.816 M12 		9-99110-412-0 02 1 9812- ●
164 06.896 BRACKET; STEERING DAMPER
(A) 		8-97012-595-2 01 1 9812- ●
164 06.896 BRACKET; STEERING DAMPER
(B) 		8-97025-765-1 01 1 9812- ●
çizim 47540
4 3 1 116 4 9 117 36
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.859 ARM; PITMAN,STRG 8-97070-552-2 01 1 9812- ●
1 06.859 ARM; PITMAN,STRG 8-97109-289-1 01 1 9812- ● ●
3 06.861 WASHER; LK,PITMAN ARM
08.931 ID=27.5 		9-09150-527-0 01 1 9812- ●
3 06.861 WASHER; LK,PITMAN ARM
ID=22.5 		9-09150-522-0 01 1 9812- ● ●
4 06.861 NUT; PITMAN ARM
(A) M27 		5-12378-002-0 01 1 9812- ●
4 06.861 NUT; PITMAN ARM
(B) M18 SLOTTED 		8-97017-761-0 01 1 9812- ● ●
4 06.861 NUT; PITMAN ARM
08.915 (C) M22 		9-09111-522-0 01 1 9812- ● ●
9 06.870 LINK; DRAG 8-97070-496-2 01 1 9812- ●
9 06.870 LINK; DRAG 8-97175-323-0 01 1 9812-9903 ●
9 06.870 LINK; DRAG 8-97222-502-0 01 1 9904-9906 ●
9 06.870 LINK; DRAG
EXC. SHIMMY DAMPER<S3V> 		8-97222-502-0 01 1 9907-0111 ●
9 06.870 LINK; DRAG
EXC. SHIMMY DAMPER<S3V> 		8-97175-323-0 01 1 0112- ● ●
9 06.870 LINK; DRAG
SHIMMY DAMPER<S3V> 		8-97222-503-0 01 1 9907-0111 ●
9 06.870 LINK; DRAG
SHIMMY DAMPER<S3V> 		8-97325-819-0 01 1 0112- ● ●
36 06.881 PIN; SPLIT,DRAG LINK
09.023 OD=3.7 L=30 		9-08114-030-0 03 1 9812-0212 ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 03 1 0301- ●
36 06.881 PIN; SPLIT,DRAG LINK
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9812-0203 ● ●
36 06.881 PIN; SPLIT,DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 01 1 0204-0212 ●
36 06.881 PIN; SPLIT,DRAG LINK
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 0204-0212 ● ●
36 06.881 PIN; SPLIT,DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) L=19 		8-97349-766-0 01 1 0301- ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 01 1 0301- ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9812-0212 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9812-0212 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9812-0212 ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 06.881 L=19 		8-97349-766-0 01 1 0301- ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 06.881 L=19 		8-97349-766-0 01 1 0301- ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 L=19 		8-97349-766-0 01 1 0301- ● ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 02 1 9812- ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 01 1 9812-0203 ● ●
117 06.233 NUT; DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED 		8-97017-761-0 01 1 0204- ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 01 1 0204- ● ●

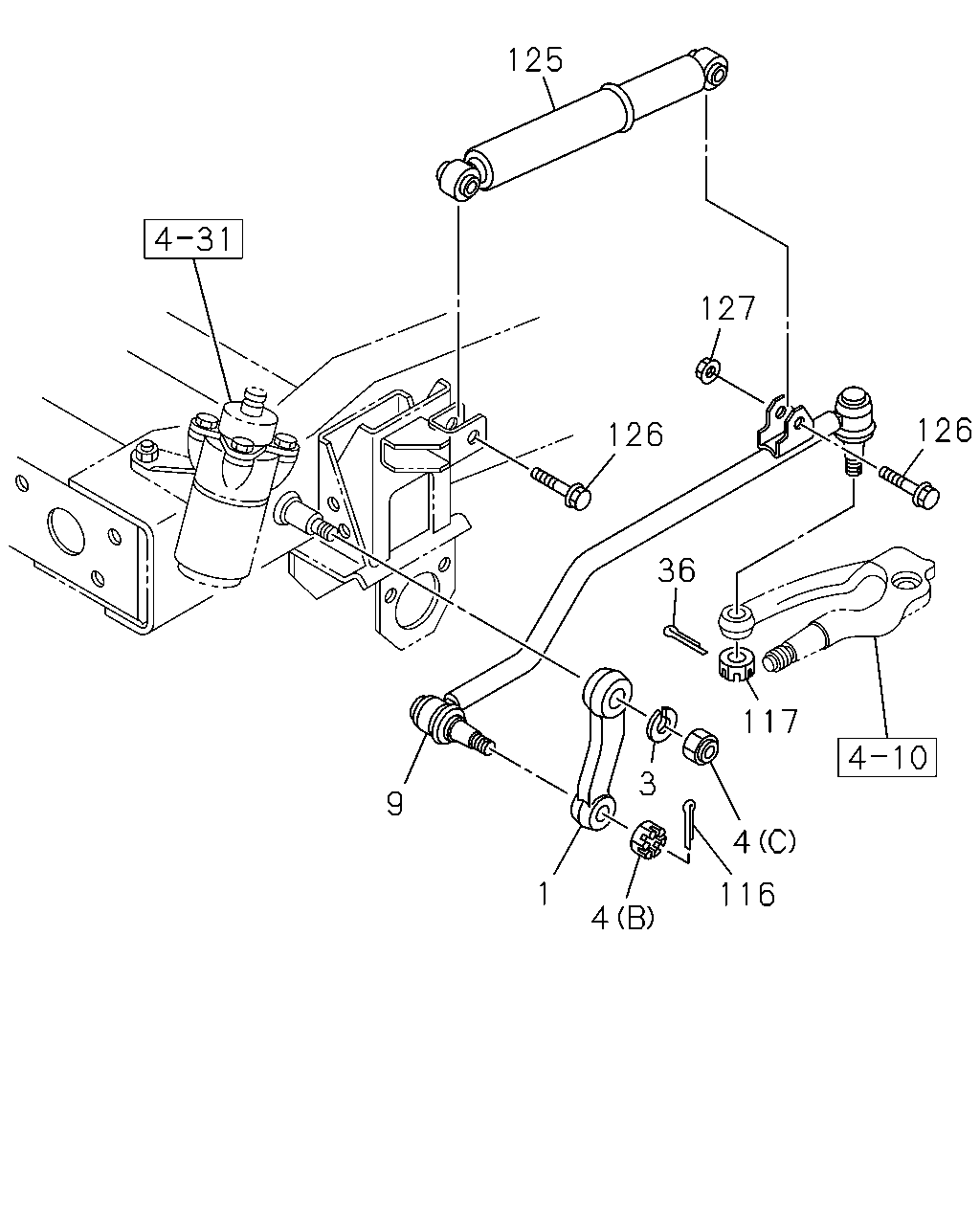

çizim 47995
125 127 126 126 36 117 3 9 4 1 116 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.859 ARM; PITMAN,STRG 8-97070-552-2 01 1 9812- ●
1 06.859 ARM; PITMAN,STRG 8-97109-289-1 01 1 9812- ● ●
3 06.861 WASHER; LK,PITMAN ARM
08.931 ID=27.5 		9-09150-527-0 01 1 9812- ●
3 06.861 WASHER; LK,PITMAN ARM
ID=22.5 		9-09150-522-0 01 1 9812- ● ●
4 06.861 NUT; PITMAN ARM
(A) M27 		5-12378-002-0 01 1 9812- ●
4 06.861 NUT; PITMAN ARM
(B) M18 SLOTTED 		8-97017-761-0 01 1 9812- ● ●
4 06.861 NUT; PITMAN ARM
08.915 (C) M22 		9-09111-522-0 01 1 9812- ● ●
9 06.870 LINK; DRAG 8-97070-496-2 01 1 9812- ●
9 06.870 LINK; DRAG 8-97175-323-0 01 1 9812-9903 ●
9 06.870 LINK; DRAG 8-97222-502-0 01 1 9904-9906 ●
9 06.870 LINK; DRAG
EXC. SHIMMY DAMPER<S3V> 		8-97222-502-0 01 1 9907-0111 ●
9 06.870 LINK; DRAG
EXC. SHIMMY DAMPER<S3V> 		8-97175-323-0 01 1 0112- ● ●
9 06.870 LINK; DRAG
SHIMMY DAMPER<S3V> 		8-97222-503-0 01 1 9907-0111 ●
9 06.870 LINK; DRAG
SHIMMY DAMPER<S3V> 		8-97325-819-0 01 1 0112- ● ●
36 06.881 PIN; SPLIT,DRAG LINK
09.023 OD=3.7 L=30 		9-08114-030-0 03 1 9812-0212 ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 03 1 0301- ●
36 06.881 PIN; SPLIT,DRAG LINK
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9812-0203 ● ●
36 06.881 PIN; SPLIT,DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 01 1 0204-0212 ●
36 06.881 PIN; SPLIT,DRAG LINK
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 0204-0212 ● ●
36 06.881 PIN; SPLIT,DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) L=19 		8-97349-766-0 01 1 0301- ●
36 06.881 PIN; SPLIT,DRAG LINK
L=19 		8-97349-766-0 01 1 0301- ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9812-0212 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9812-0212 ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
09.023 OD=3.7 L=30 		9-08114-030-0 01 1 9812-0212 ● ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 06.881 L=19 		8-97349-766-0 01 1 0301- ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
FRT INDEPENDENT SUSPENSION(6PP) 06.881 L=19 		8-97349-766-0 01 1 0301- ●
116 06.897 PIN; SPLIT,TRACK ROD,CENTER
06.881 L=19 		8-97349-766-0 01 1 0301- ● ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 02 1 9812- ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 01 1 9812-0203 ● ●
117 06.233 NUT; DRAG LINK
FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED 		8-97017-761-0 01 1 0204- ●
117 06.233 NUT; DRAG LINK
06.861 M18 SLOTTED 		8-97017-761-0 01 1 0204- ● ●
125 06.865 DAMPER; STEERING 8-97012-618-3 01 1 9812- ●
125 06.865 DAMPER; STEERING
SHIMMY DAMPER<S3V> 		8-97230-742-0 01 1 9907- ● ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER
00.685 M10X45 FLANGE 		0-28081-045-0 02 1 9812- ●
126 06.865 BOLT; STRG DAMPER TO RELAY LEVER
SHIMMY DAMPER<S3V> 00.685 M10X45 FLANGE 		0-28081-045-0 02 1 9812- ● ●
127 06.865 NUT; STRG DAMPER
08.917 M10 FLANGE 		0-91150-210-0 02 1 9812- ●
127 06.865 NUT; STRG DAMPER
SHIMMY DAMPER<S3V> 08.917 M10 FLANGE 		0-91150-210-0 01 1 9907- ● ●
