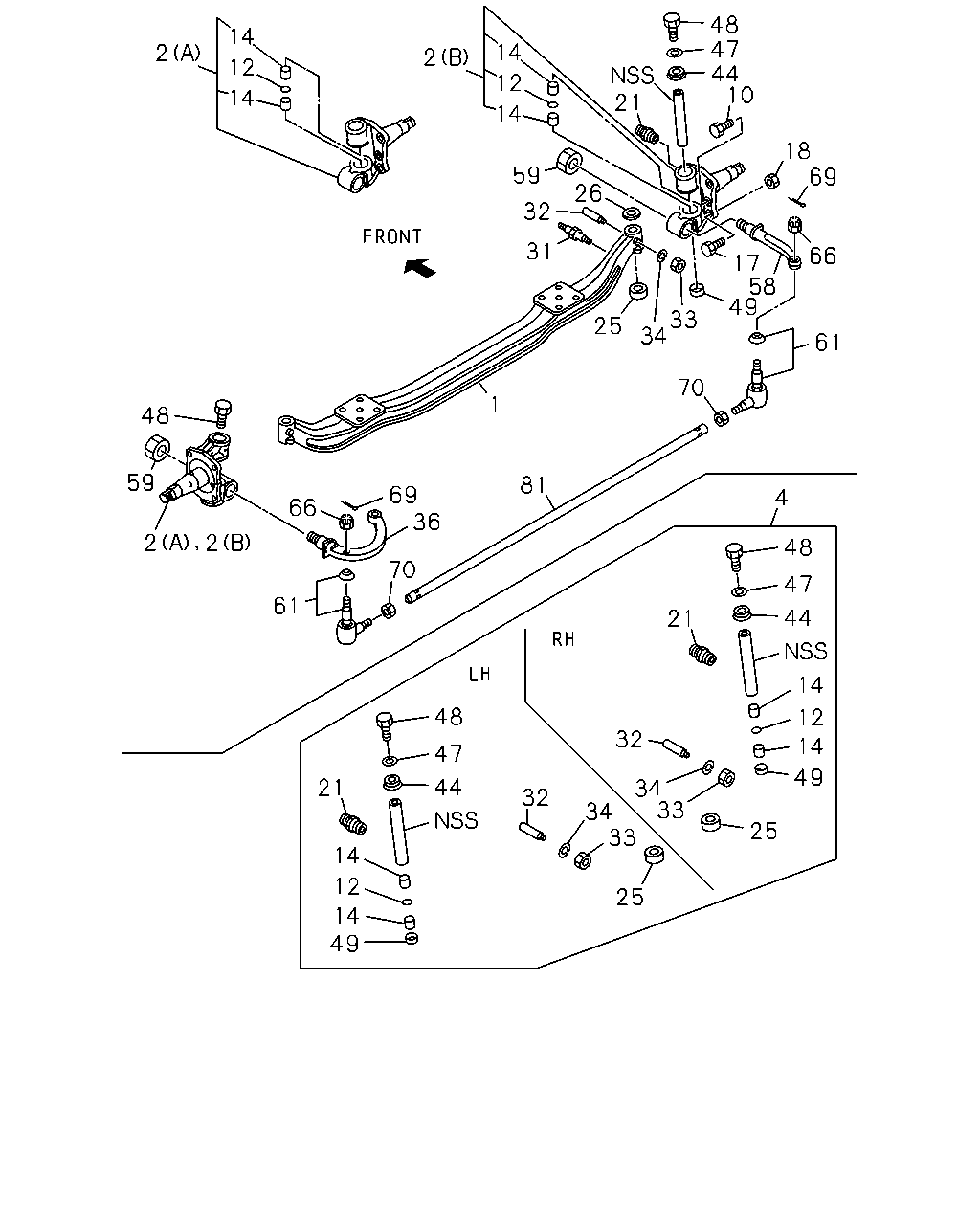

4-10 — FRONT AXLE (#45621) — 147 parça

48 47 44 10 14 14 2 2 12 21 12 14 14 18 69 59 26 32 31 66 17 58 49 33 34 25 61 70 1 48 59 81 69 36 4 66 2 2 48 70 47 61 21 44 14 48 12 32 14 47 49 44 21 34 33 32 34 33 25 14 12 25 14 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.008 AXLE; FRT	8-97137-585-0	01	1	9812-0105	●
1	06.008 AXLE; FRT 4JH1 ENG(RJX)	8-97137-585-2	01	1	0106-	●	●
2	06.020 KNUCKLE; FRT AXLE (C)	8-94375-103-3	01	1	9812-0105			●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-94375-103-3	01	1	0106-0209			●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97320-368-1	01	1	0210-			●
2	06.020 KNUCKLE; FRT AXLE (C)	8-94375-102-3	01	1	9812-0105			●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-94375-102-3	01	1	0106-0209			●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97320-367-1	01	1	0210-			●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97033-164-1	01	1	0106-0209			●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97320-366-1	01	1	0210-			●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97033-163-1	01	1	0106-0209			●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97320-365-1	01	1	0210-			●
2	06.020 KNUCKLE; FRT AXLE (B)	8-97141-785-0	01	1	9812-9812	●
2	06.020 KNUCKLE; FRT AXLE 4JG2 ENG(RJC) (B)	8-97141-785-0	01	1	9812-9905	●
2	06.020 KNUCKLE; FRT AXLE 4JG2 ENG(RJC) EXC. AXLE ISUZU PRODUCTION<8BF> (B)	8-97141-785-0	01	1	9906-9906	●
2	06.020 KNUCKLE; FRT AXLE EXC. AXLE ISUZU PRODUCTION<8BF> (B)	8-97141-785-0	01	1	9906-9909	●
2	06.020 KNUCKLE; FRT AXLE (B)	8-97141-784-0	01	1	9812-9812	●
2	06.020 KNUCKLE; FRT AXLE 4JG2 ENG(RJC) (B)	8-97141-784-0	01	1	9812-9905	●
2	06.020 KNUCKLE; FRT AXLE 4JG2 ENG(RJC) EXC. AXLE ISUZU PRODUCTION<8BF> (B)	8-97141-784-0	01	1	9906-9906	●
2	06.020 KNUCKLE; FRT AXLE EXC. AXLE ISUZU PRODUCTION<8BF> (B)	8-97141-784-0	01	1	9906-9909	●
2	06.020 KNUCKLE; FRT AXLE 4JG2 ENG(RJC) AXLE ISUZU PRODUCTION<8BF> (A)	8-97230-684-0	01	1	9906-9906	●
2	06.020 KNUCKLE; FRT AXLE AXLE ISUZU PRODUCTION<8BF> (A)	8-97230-684-0	01	1	9906-9909	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97230-684-0	01	1	9910-0008	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-550-0	01	1	0009-0105	●
2	06.020 KNUCKLE; FRT AXLE 4JH1 ENG(RJX) (A)	8-97261-550-1	01	1	0106-	●	●
2	06.020 KNUCKLE; FRT AXLE 4JG2 ENG(RJC) AXLE ISUZU PRODUCTION<8BF> (A)	8-97230-683-0	01	1	9906-9906	●
2	06.020 KNUCKLE; FRT AXLE AXLE ISUZU PRODUCTION<8BF> (A)	8-97230-683-0	01	1	9906-9909	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97230-683-0	01	1	9910-0008	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-549-0	01	1	0009-0105	●
2	06.020 KNUCKLE; FRT AXLE 4JH1 ENG(RJX) (A)	8-97261-549-1	01	1	0106-	●	●
4	06.203 KING PIN KIT	5-87831-608-1	01	1	9812-0105	●
4	06.203 KING PIN KIT 4JH1 ENG(RJX)	5-87831-608-1	01	1	0106-	●	●
10	06.009 PLUG; PLATE,KNUCKLE	8-94107-661-0	01	1	9812-0105	●
10	06.009 PLUG; PLATE,KNUCKLE 4JH1 ENG(RJX)	8-94107-661-0	01	1	0106-	●	●
12	06.021 GASKET; KNUCKLE 06.225	9-09561-230-0	02	1	9812-0105	●
12	06.021 GASKET; KNUCKLE 4JH1 ENG(RJX) 06.225	9-09561-230-0	02	1	0106-	●	●
14	06.021 BUSHING; KING PIN DAIDO WO/NOTCH	8-94107-672-2	04	1	9812-0105	●
14	06.021 BUSHING; KING PIN 4JH1 ENG(RJX) DAIDO WO/NOTCH	8-94107-672-2	04	1	0106-	●	●
14	06.021 BUSHING; KING PIN JBK	8-94127-925-2	04	1	9812-0105	●
14	06.021 BUSHING; KING PIN 4JH1 ENG(RJX) JBK	8-94127-925-2	04	1	0106-	●	●
17	06.009 BOLT; STOPPER KNUCKLE M12X24 EYE-BOLT	5-09000-208-1	03	1	9812-0105	●
17	06.009 BOLT; STOPPER KNUCKLE 4JH1 ENG(RJX) M12X24 EYE-BOLT	5-09000-208-1	03	1	0106-	●	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 07.347 M12	9-99111-512-0	03	1	9812-0105	●
18	06.216 NUT; STOPPER BOLT,KNUCKLE 4JH1 ENG(RJX) 07.347 M12	9-99111-512-0	03	1	0106-	●	●
21	06.166 NIPPLE; GREASE,KING PIN 08.984 M6 STRAIGHT	9-09031-006-0	04	1	9812-0105	●
21	06.166 NIPPLE; GREASE,KING PIN 4JH1 ENG(RJX) 08.984 M6 STRAIGHT	9-09031-006-0	04	1	0106-	●	●
25	06.210 BEARING; THRUST,KING PIN	8-97141-943-0	01	1	9812-0105	●
25	06.210 BEARING; THRUST,KING PIN 4JH1 ENG(RJX)	8-97141-943-0	01	1	0106-	●	●
25	06.210 BEARING; THRUST,KING PIN 06.021	8-94248-883-2	01	1	9812-0105	●
25	06.210 BEARING; THRUST,KING PIN 4JH1 ENG(RJX) 06.021	8-94248-883-2	01	1	0106-	●	●
26	06.022 SHIM; KING PIN,BRG T=0.50	8-94162-574-0	AR	1	9812-0105	●
26	06.022 SHIM; KING PIN,BRG 4JH1 ENG(RJX) T=0.50	8-94162-574-0	AR	1	0106-	●	●
26	06.022 SHIM; KING PIN,BRG T=0.55	8-94162-575-0	AR	1	9812-0105	●
26	06.022 SHIM; KING PIN,BRG 4JH1 ENG(RJX) T=0.55	8-94162-575-0	AR	1	0106-	●	●
26	06.022 SHIM; KING PIN,BRG T=0.60	8-94162-576-0	AR	1	9812-0105	●
26	06.022 SHIM; KING PIN,BRG 4JH1 ENG(RJX) T=0.60	8-94162-576-0	AR	1	0106-	●	●
26	06.022 SHIM; KING PIN,BRG T=0.65	8-94162-577-0	AR	1	9812-0105	●
26	06.022 SHIM; KING PIN,BRG 4JH1 ENG(RJX) T=0.65	8-94162-577-0	AR	1	0106-	●	●
26	06.022 SHIM; KING PIN,BRG 05.460 T=1.95	8-94168-490-0	01	1	9812-0105	●
26	06.022 SHIM; KING PIN,BRG 4JH1 ENG(RJX) 05.460 T=1.95	8-94168-490-0	01	1	0106-	●	●
26	06.022 SHIM; KING PIN,BRG T=0.70	8-94174-352-0	AR	1	9812-0105	●
26	06.022 SHIM; KING PIN,BRG 4JH1 ENG(RJX) T=0.70	8-94174-352-0	AR	1	0106-	●	●
26	06.022 SHIM; KING PIN,BRG T=0.80	8-94174-354-0	AR	1	9812-0105	●
26	06.022 SHIM; KING PIN,BRG 4JH1 ENG(RJX) T=0.80	8-94174-354-0	AR	1	0106-	●	●
26	06.022 SHIM; KING PIN,BRG T=0.90	8-94174-356-0	AR	1	9812-0105	●
26	06.022 SHIM; KING PIN,BRG 4JH1 ENG(RJX) T=0.90	8-94174-356-0	AR	1	0106-	●	●
31	07.347 PIN; S/ABS,LWR	8-97141-944-0	02	1	9812-0105	●
31	07.347 PIN; S/ABS,LWR 4JH1 ENG(RJX)	8-97141-944-0	02	1	0106-	●	●
32	06.216 BOLT; KEY,KING PIN	8-97141-945-1	02	1	9812-0105	●
32	06.216 BOLT; KEY,KING PIN 4JH1 ENG(RJX)	8-97141-945-1	02	1	0106-	●	●
33	06.216 NUT; KEY BOLT 09.011 M10	9-09110-410-0	02	1	9812-0105	●
33	06.216 NUT; KEY BOLT 4JH1 ENG(RJX) 09.011 M10	9-09110-410-0	02	1	0106-	●	●
34	06.216 WASHER; LK,KEY BOLT 00.002 ID=10.2	9-09150-510-0	02	1	9812-0105	●
34	06.216 WASHER; LK,KEY BOLT 4JH1 ENG(RJX) 00.002 ID=10.2	9-09150-510-0	02	1	0106-	●	●
36	06.103 ARM; KNUCKLE	8-97168-291-0	01	1	9812-0105	●
36	06.103 ARM; KNUCKLE 4JH1 ENG(RJX)	8-97168-291-0	01	1	0106-	●	●
44	06.225 COVER; KING PIN OD=36	8-94248-675-0	02	1	9812-0105	●
44	06.225 COVER; KING PIN 4JH1 ENG(RJX) OD=36	8-94248-675-1	02	1	0106-	●	●
47	06.225 WASHER; PL,COVER,KING PIN 06.896 ID=10.5	9-09164-510-0	02	1	9812-0105	●
47	06.225 WASHER; PL,COVER,KING PIN 4JH1 ENG(RJX) 06.896 ID=10.5	9-09164-510-0	02	1	0106-	●	●
48	06.225 BOLT; COVER 04.642 M10X16	0-20801-016-0	02	1	9812-0105	●
48	06.225 BOLT; COVER 4JH1 ENG(RJX) 04.642 M10X16	0-20801-016-0	02	1	0106-	●	●
49	06.225 CAP; KNUCKLE	8-94248-566-0	02	1	9812-0008	●
49	06.225 CAP; KNUCKLE	8-97261-587-0	02	1	0009-0105	●
49	06.225 CAP; KNUCKLE 4JH1 ENG(RJX)	8-97261-587-0	02	1	0106-	●	●
58	06.103 ARM; TIE ROD	8-97168-292-0	01	1	9812-0105	●
58	06.103 ARM; TIE ROD 4JH1 ENG(RJX)	8-97168-292-0	01	1	0106-	●	●
59	06.104 NUT; TIE ROD ARM	8-94247-724-0	02	1	9812-0105	●
59	06.104 NUT; TIE ROD ARM 4JH1 ENG(RJX)	8-94247-724-0	02	1	0106-	●	●
61	06.233 ROD END; TIE ROD 4JG2 ENG(RJC)	8-97142-101-1	01	1	9812-9903	●
61	06.233 ROD END; TIE ROD 4JG2 ENG(RJC)	8-97222-510-0	01	1	9904-9905	●
61	06.233 ROD END; TIE ROD	8-97222-510-0	01	1	9906-0105	●
61	06.233 ROD END; TIE ROD 4JH1 ENG(RJX)	8-97222-510-0	01	1	0106-0203	●
61	06.233 ROD END; TIE ROD 4JH1 ENG(RJX)	8-97222-510-0	01	1	0204-0204	●	●
61	06.233 ROD END; TIE ROD 4JH1 ENG(RJX)	8-97142-101-1	01	1	0205-	●	●
61	06.233 ROD END; TIE ROD 4JG2 ENG(RJC)	8-97142-100-1	01	1	9812-9903	●
61	06.233 ROD END; TIE ROD 4JG2 ENG(RJC)	8-97222-509-0	01	1	9904-9905	●
61	06.233 ROD END; TIE ROD	8-97222-509-0	01	1	9906-0105	●
61	06.233 ROD END; TIE ROD 4JH1 ENG(RJX)	8-97222-509-0	01	1	0106-0203	●
61	06.233 ROD END; TIE ROD 4JH1 ENG(RJX)	8-97222-509-0	01	1	0204-0204	●	●
61	06.233 ROD END; TIE ROD 4JH1 ENG(RJX)	8-97142-100-1	01	1	0205-	●	●
66	06.234 NUT; TIE ROD END 08.917 M16 SLOTTED	9-99116-516-0	02	1	9812-0105	●
66	06.234 NUT; TIE ROD END 4JH1 ENG(RJX) 08.917 M16 SLOTTED	9-99116-516-0	02	1	0106-	●	●
69	06.255 PIN; SPLIT,TIE ROD END 01.271 OD=3.7 L=20	9-08114-020-0	02	1	9812-0105	●
69	06.255 PIN; SPLIT,TIE ROD END 4JH1 ENG(RJX) 01.271 OD=3.7 L=20	9-08114-020-0	02	1	0106-	●	●
70	06.234 NUT; TIE ROD END M20 LH THREAD	8-94254-726-0	01	1	9812-0105	●
70	06.234 NUT; TIE ROD END 4JH1 ENG(RJX) M20 LH THREAD	8-94254-726-0	01	1	0106-	●	●
70	06.234 NUT; TIE ROD END M20	9-99111-420-0	01	1	9812-0105	●
70	06.234 NUT; TIE ROD END 4JH1 ENG(RJX) M20	9-99111-420-0	01	1	0106-	●	●
81	06.230 ROD; TIE	8-97142-023-0	01	1	9812-0105	●
81	06.230 ROD; TIE 4JH1 ENG(RJX)	8-97142-023-0	01	1	0106-	●	●

132 352 129 131 86 41 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	06.020 KNUCKLE; FRT AXLE (C)	8-94375-103-3	01	1	9812-0105			●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-94375-103-3	01	1	0106-0209			●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97320-368-1	01	1	0210-			●
2	06.020 KNUCKLE; FRT AXLE (C)	8-94375-102-3	01	1	9812-0105			●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-94375-102-3	01	1	0106-0209			●
2	06.020 KNUCKLE; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97320-367-1	01	1	0210-			●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97033-164-1	01	1	0106-0209			●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97320-366-1	01	1	0210-			●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97033-163-1	01	1	0106-0209			●
2	06.020 KNUCKLE; FRT AXLE 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97320-365-1	01	1	0210-			●
2	06.020 KNUCKLE; FRT AXLE (B)	8-97141-785-0	01	1	9812-9812	●
2	06.020 KNUCKLE; FRT AXLE 4JG2 ENG(RJC) (B)	8-97141-785-0	01	1	9812-9905	●
2	06.020 KNUCKLE; FRT AXLE 4JG2 ENG(RJC) EXC. AXLE ISUZU PRODUCTION<8BF> (B)	8-97141-785-0	01	1	9906-9906	●
2	06.020 KNUCKLE; FRT AXLE EXC. AXLE ISUZU PRODUCTION<8BF> (B)	8-97141-785-0	01	1	9906-9909	●
2	06.020 KNUCKLE; FRT AXLE (B)	8-97141-784-0	01	1	9812-9812	●
2	06.020 KNUCKLE; FRT AXLE 4JG2 ENG(RJC) (B)	8-97141-784-0	01	1	9812-9905	●
2	06.020 KNUCKLE; FRT AXLE 4JG2 ENG(RJC) EXC. AXLE ISUZU PRODUCTION<8BF> (B)	8-97141-784-0	01	1	9906-9906	●
2	06.020 KNUCKLE; FRT AXLE EXC. AXLE ISUZU PRODUCTION<8BF> (B)	8-97141-784-0	01	1	9906-9909	●
2	06.020 KNUCKLE; FRT AXLE 4JG2 ENG(RJC) AXLE ISUZU PRODUCTION<8BF> (A)	8-97230-684-0	01	1	9906-9906	●
2	06.020 KNUCKLE; FRT AXLE AXLE ISUZU PRODUCTION<8BF> (A)	8-97230-684-0	01	1	9906-9909	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97230-684-0	01	1	9910-0008	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-550-0	01	1	0009-0105	●
2	06.020 KNUCKLE; FRT AXLE 4JH1 ENG(RJX) (A)	8-97261-550-1	01	1	0106-	●	●
2	06.020 KNUCKLE; FRT AXLE 4JG2 ENG(RJC) AXLE ISUZU PRODUCTION<8BF> (A)	8-97230-683-0	01	1	9906-9906	●
2	06.020 KNUCKLE; FRT AXLE AXLE ISUZU PRODUCTION<8BF> (A)	8-97230-683-0	01	1	9906-9909	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97230-683-0	01	1	9910-0008	●
2	06.020 KNUCKLE; FRT AXLE (A)	8-97261-549-0	01	1	0009-0105	●
2	06.020 KNUCKLE; FRT AXLE 4JH1 ENG(RJX) (A)	8-97261-549-1	01	1	0106-	●	●
41	06.177 PIN; KNOCK,KNUCKLE ARM 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 04.510 OD=6 L=12	9-08150-612-0	02	1	0106-0209			●
86	07.428 BOLT; TORSION BAR,HEIGHT CONT	8-97081-578-2	02	1	9812-			●
129	07.412 BAR; TORSION,FRT SUSP	8-97075-592-0	01	1	9812-			●
129	07.412 BAR; TORSION,FRT SUSP	8-97075-591-0	01	1	9812-			●
131	07.436 ARM; HEIGHT CONT	8-94336-208-3	01	1	9812-			●
131	07.436 ARM; HEIGHT CONT	8-94336-207-3	01	1	9812-			●
132	07.436 COLLAR; TORSION BAR	8-94336-145-0	02	1	9812-			●
352	07.436 PLUG; PLATE	8-97325-053-0	02	1	9812-			●
