4-02 — PROPELLER SHAFT GUARD (#45620) — 12 parça

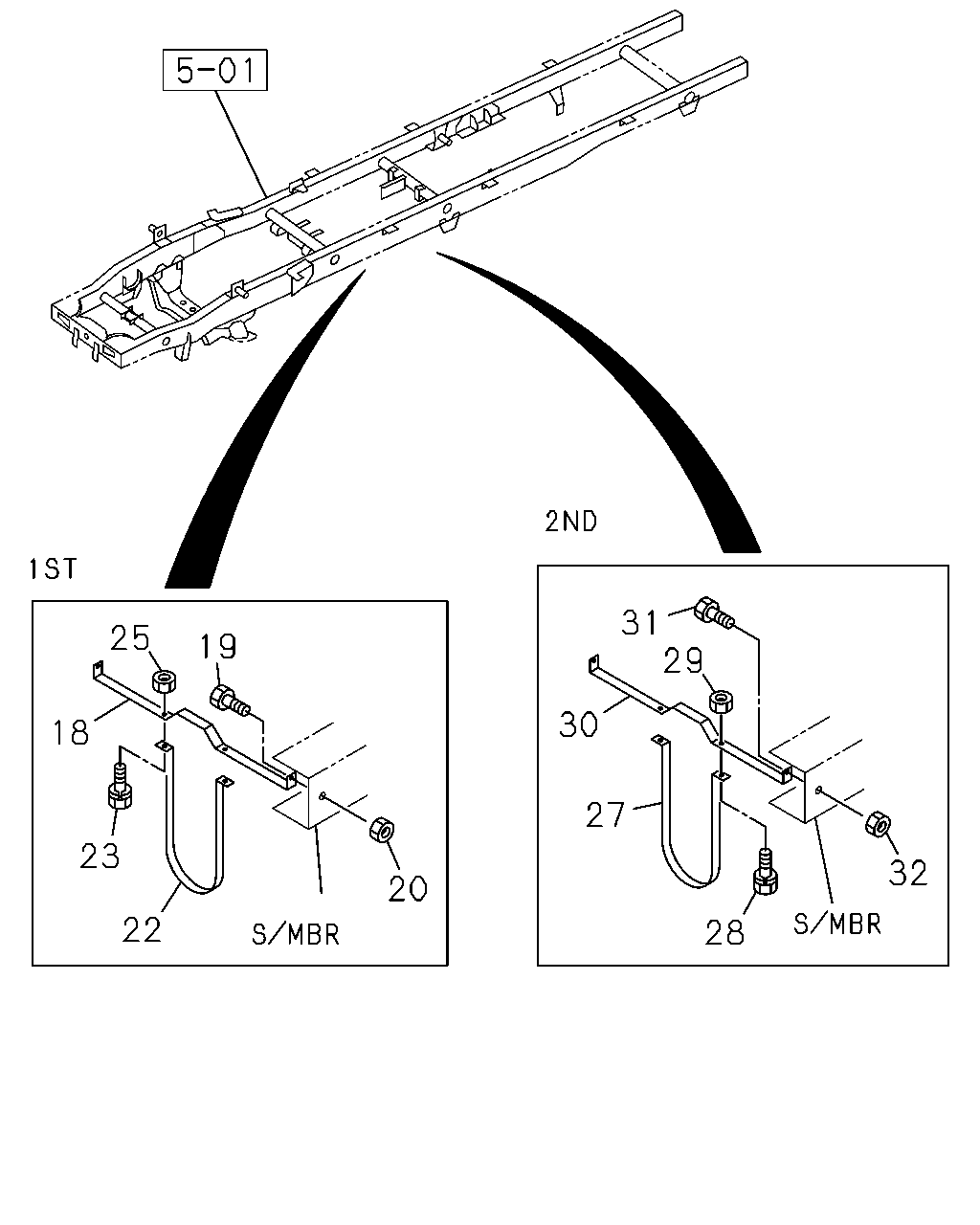

çizim 8259
31 29 25 19 30 18 27 23 32 20 22 28
BalonParca AdiParca NoAdetTipApplied Date
18 05.546 BRACKET; PROP SHAFT GUARD
GUARD PROP SHAFT<7NK> 		8-97035-290-0 01 1 0005-0008
19 05.546 BOLT; BRKT,PROP SHAFT GUARD
GUARD PROP SHAFT<7NK> 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0005-0008
20 05.546 NUT; BRKT,PROP SHAFT GUARD
GUARD PROP SHAFT<7NK> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0005-0008
22 05.546 GUARD; PROP SHAFT
GUARD PROP SHAFT<7NK> L=227 		8-94116-995-1 01 1 0005-0008
23 05.546 BOLT; GUARD
GUARD PROP SHAFT<7NK> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0005-0008
25 05.546 NUT; GUARD
GUARD PROP SHAFT<7NK> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0005-0008
27 05.546 GUARD; PROP SHAFT,2ND
GUARD PROP SHAFT<7NK> L=227 		8-94116-995-1 01 1 0005-0008
28 05.546 BOLT; GUARD,PROP SHAFT,2ND
GUARD PROP SHAFT<7NK> 02.559 M8X25 FLANGE 		0-28680-825-0 02 1 0005-0008
29 05.546 NUT; GUARD,PROP SHAFT,2ND
GUARD PROP SHAFT<7NK> 07.633 M8 FLANGE 		0-91150-108-0 02 1 0005-0008
30 05.546 BRACKET; PROP SHAFT,2ND
GUARD PROP SHAFT<7NK> 		8-97035-290-0 01 1 0005-0008
31 05.546 BOLT; BRKT,PROP SHAFT,2ND,GUARD
GUARD PROP SHAFT<7NK> 03.405 M10X30 FLANGE 		0-28681-030-0 02 1 0005-0008
32 05.546 NUT; BRKT,PROP SHAFT,2ND,GUARD
GUARD PROP SHAFT<7NK> 04.785 M10 FLANGE 		0-91150-110-0 02 1 0005-0008
