Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#45618) — 147 parça

201 184 200 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
184	04.685 BRACKET; UNION FIX (B)	8-97094-014-2	01	1	9812-	●	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97094-377-4	01	1	9812-	●	●	●
200	04.931 GROMMET; SCREW H=15	8-94463-268-1	02	1	9812-	●	●	●
201	04.686 SCREW; BRKT 10.240 M5X16 TAPPING W/PL WASHER	0-74305-516-0	02	1	9812-	●	●	●
202	04.686 SEAL 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	9812-	●	●	●

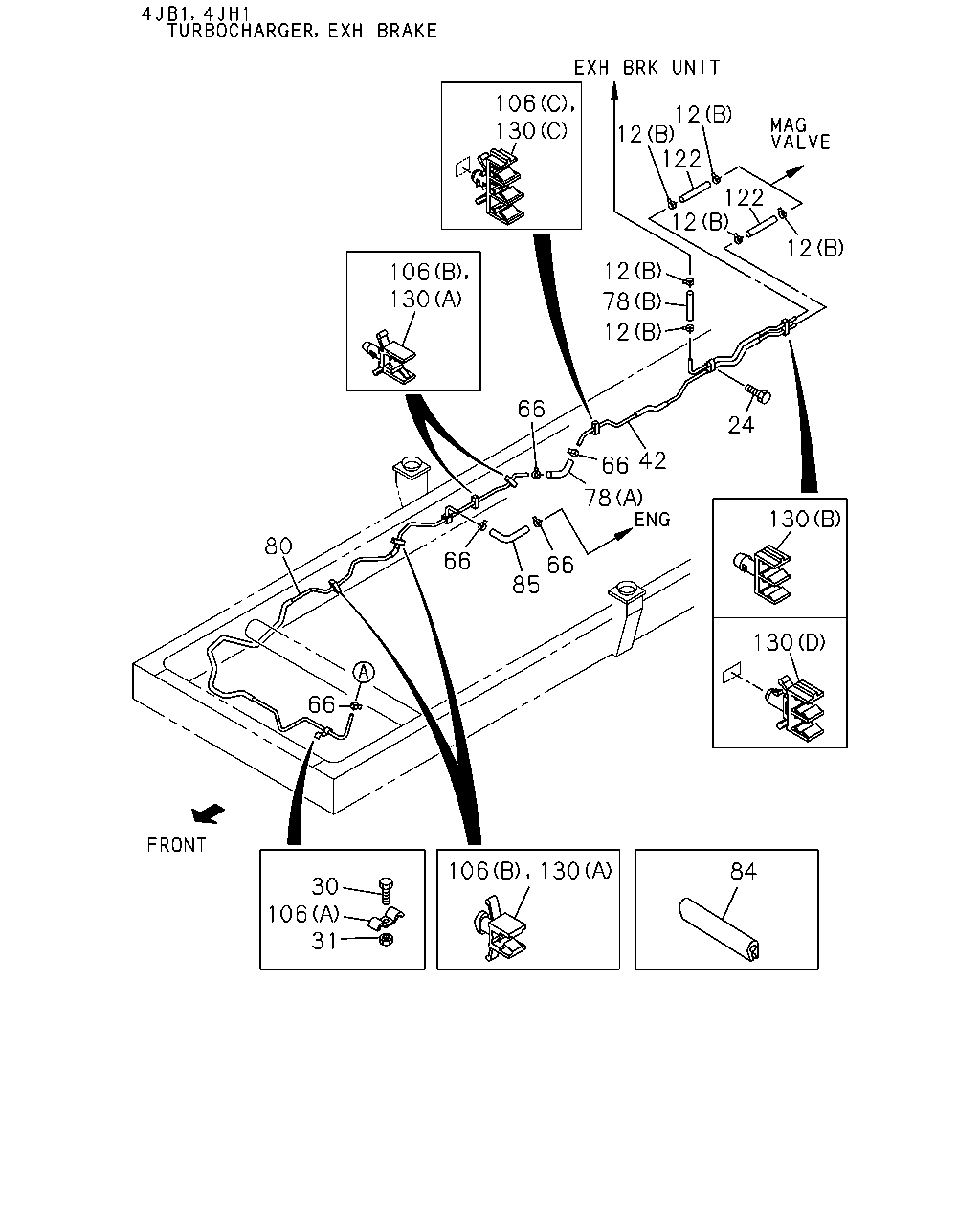

106 130 12 12 122 122 12 12 12 106 130 78 12 66 24 42 66 78 130 66 80 66 85 130 66 106 130 84 30 106 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	9812-	●	●	●
12	04.681 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> 04.930 (B) ID=16	8-94238-568-0	06	1	9906-0105	●		●
12	04.681 CLIP; HOSE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0106-	●	●	●
24	04.686 BOLT; BRKT 4JB1 ENG(RLF) TURBOCHARGER<K51> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9906-0105	●		●
24	04.686 BOLT; BRKT 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9812-	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	9812-		●	●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JB1 ENG(RLF) TURBOCHARGER<K51> FRT INDEPENDENT SUSPENSION(6PP)	8-97204-605-0	01	1	9906-9909	●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JB1 ENG(RLF) TURBOCHARGER<K51> FRT INDEPENDENT SUSPENSION(6PP)	8-97233-401-0	01	1	9910-0105	●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-372-3	01	1	0106-	●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97225-306-1	01	1	9906-0004			●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97225-306-1	01	1	0005-0105			●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> TURBOCHARGER<K51>	8-97257-297-1	01	1	0005-0105			●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97259-514-1	01	1	0106-			●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97329-462-0	01	1	0204-		●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	9812-	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JB1 ENG(RLF) TURBOCHARGER<K51> ID=16	8-94238-568-0	05	1	9906-0105	●		●
66	04.930 CLIP; VAC HOSE,M/VAC 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0106-	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	06	1	9812-9905	●		●
66	04.930 CLIP; VAC HOSE,M/VAC 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> ID=16	8-94238-568-0	06	1	9906-0105	●		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> FRT INDEPENDENT SUSPENSION(6PP) 03.630 (B) L=490 SERVICED BY L=3000	0-08258-300-0	01	1	9906-0105	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.630 (B) L=460 SERVICED BY L=3000	0-08258-300-0	01	1	0106-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0106-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> 03.630 (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	9906-0009	●		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.630 (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0010-0105	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.630 (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0010-0105			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.630 (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0106-0203			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.630 (A) L=110 SERVICED BY L=3000	0-08258-300-0	01	1	0204-		●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> (B)	8-97028-386-2	01	1	9906-0105			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B)	8-97028-386-2	01	1	0106-			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.630 (B) L=250 SERVICED BY L=3000	0-08258-300-0	01	1	0204-		●
80	04.930 PIPE; VAC,ENG SIDE	8-97113-764-2	01	1	9812-9905	●
80	04.930 PIPE; VAC,ENG SIDE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97113-764-2	01	1	9906-0105	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> FRT INDEPENDENT SUSPENSION(6PP) EXC. EXHAUST BRAKE<NF8>	8-97113-764-2	01	1	9906-0105	●
80	04.930 PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-371-1	01	1	0106-	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> FRT INDEPENDENT SUSPENSION(6PP)	8-97205-998-1	01	1	9906-0105	●
80	04.930 PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL>	8-97259-513-0	01	1	0106-		●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97161-684-0	01	1	9906-0105			●
80	04.930 PIPE; VAC,ENG SIDE 4JG2 ENG(RJC)	8-97178-175-0	01	1	9812-9905			●
80	04.930 PIPE; VAC,ENG SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>	8-97178-175-0	01	1	9906-0105			●
80	04.930 PIPE; VAC,ENG SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8>	8-97178-175-0	01	1	9906-0105			●
84	04.931 PROTECTOR; EDGE,VAC HOSE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.008 L=80	5-22439-006-0	01	1	0204-		●
85	04.931 HOSE; VAC,ENG SIDE 4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	9812-9905	●		●
85	04.931 HOSE; VAC,ENG SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	9906-0105	●		●
85	04.931 HOSE; VAC,ENG SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) TURBOCHARGER<K51> L=130	8-94438-246-0	01	1	9906-0105	●		●
85	04.931 HOSE; VAC,ENG SIDE 4JH1 ENG(RJX) TURBOCHARGER<K51> L=130	8-94438-246-0	01	1	0106-0203	●		●
85	04.931 HOSE; VAC,ENG SIDE 4JH1 ENG(RJX) TURBOCHARGER<K51> L=130	8-94438-246-0	01	1	0204-	●	●	●
106	04.930 CLIP; PIPE (B) ID=10 H=45.5	8-97017-902-0	01	1	9812-9909	●
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9812-0105	●		●
106	04.930 CLIP; PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.162 (C) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-9908			●
106	04.930 CLIP; PIPE 4JG2 ENG(RJC) 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	9812-9905			●
106	04.930 CLIP; PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	9906-0105			●
106	04.930 CLIP; PIPE 4JH1 ENG(RJX) 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	0106-		●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> 03.630 L=330 SERVICED BY L=3000	0-08258-300-0	02	1	9906-0004	●		●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 03.630 L=330 SERVICED BY L=3000	0-08258-300-0	02	1	0005-0009			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.630 L=330 SERVICED BY L=3000	0-08258-300-0	02	1	0010-0105	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 03.630 L=330 SERVICED BY L=3000	0-08258-300-0	02	1	0010-0105			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	02	1	0106-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> TURBOCHARGER<K51> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0005-0007			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> TURBOCHARGER<K51>	8-97287-362-0	01	1	0008-0008			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> TURBOCHARGER<K51>	8-97287-362-1	02	1	0009-0105			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8>	8-97287-362-1	02	1	0106-			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.630 L=220 SERVICED BY L=3000	0-08258-300-0	02	1	0204-		●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) ID=10 H=40	8-94462-219-0	01	1	9906-9909	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.162 (C) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9910-0009	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> FRT INDEPENDENT SUSPENSION(6PP) 03.162 (C) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0010-0105	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) ID=10X2 H=47.5	8-97018-605-0	01	1	9906-0105	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (B) ID=10X2 H=47.5	8-97018-605-0	01	1	0106-	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) ID=10 H=40	8-94462-219-0	01	1	9910-0009	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) ID=10 H=40	8-94462-219-0	01	1	9910-0009	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) (A) ID=10 H=40	8-94462-219-0	01	1	0010-0105	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) ID=10 H=40	8-94462-219-0	01	1	0010-0105	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (A) ID=10 H=40	8-94462-219-0	01	1	0106-	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (D) ID=10X2 H=37.5	8-97018-546-0	01	1	9906-9911			●
130	04.930 CLIP; VAC PIPE TO FRAME 4JB1 ENG(RLF) TURBOCHARGER<K51> (D) ID=10X2 H=37.5	8-97018-546-0	01	1	9912-0105			●
130	04.930 CLIP; VAC PIPE TO FRAME 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> (D) ID=10X2 H=37.5	8-97018-546-0	01	1	0106-		●	●

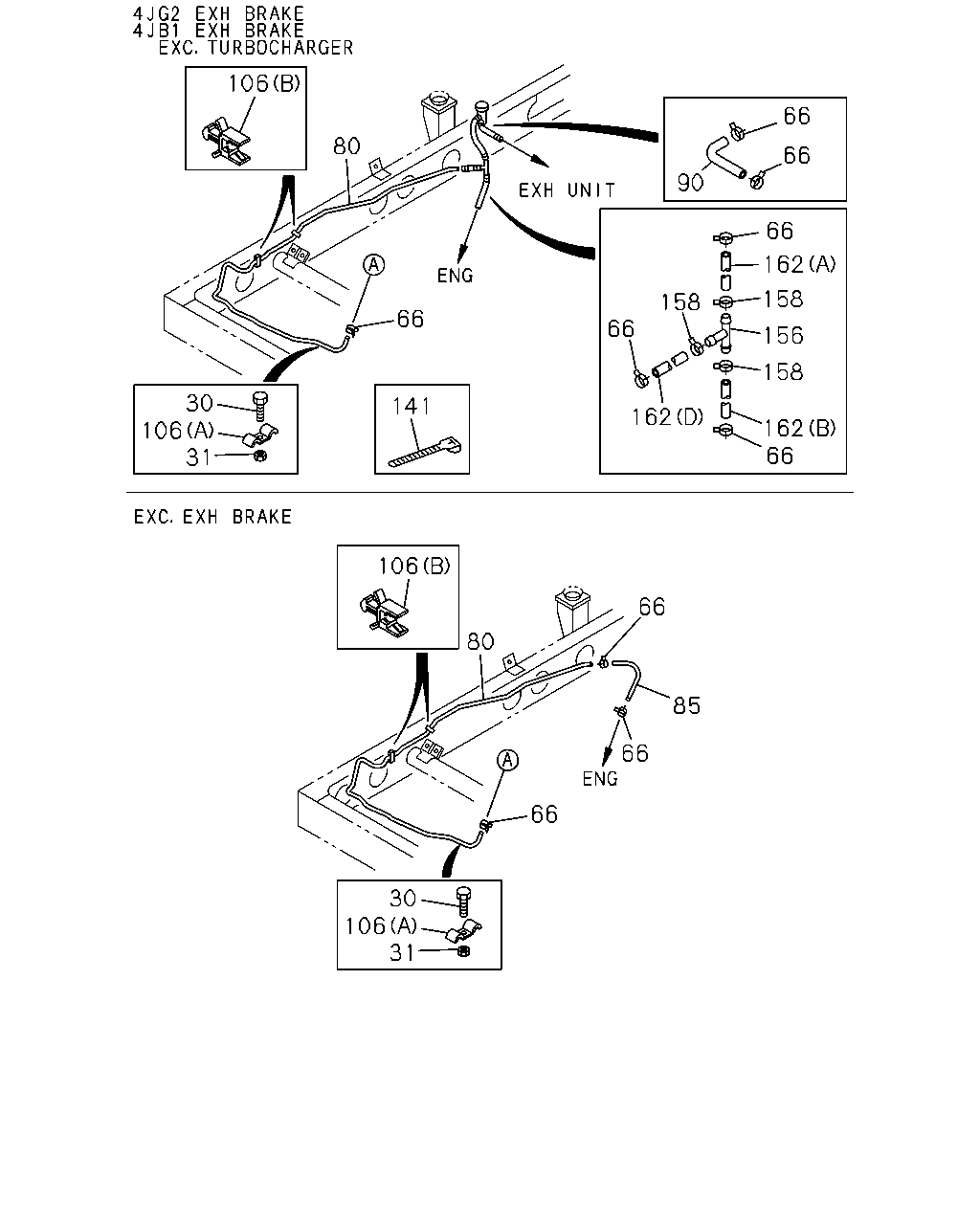

106 66 80 66 90 66 162 158 158 66 66 156 158 30 106 31 141 162 162 66 106 66 80 85 66 66 30 106 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	9812-	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	9812-		●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	9812-	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JB1 ENG(RLF) TURBOCHARGER<K51> ID=16	8-94238-568-0	05	1	9906-0105	●		●
66	04.930 CLIP; VAC HOSE,M/VAC 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0106-	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	06	1	9812-9905	●		●
66	04.930 CLIP; VAC HOSE,M/VAC 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> ID=16	8-94238-568-0	06	1	9906-0105	●		●
80	04.930 PIPE; VAC,ENG SIDE	8-97113-764-2	01	1	9812-9905	●
80	04.930 PIPE; VAC,ENG SIDE 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97113-764-2	01	1	9906-0105	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> FRT INDEPENDENT SUSPENSION(6PP) EXC. EXHAUST BRAKE<NF8>	8-97113-764-2	01	1	9906-0105	●
80	04.930 PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-371-1	01	1	0106-	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> FRT INDEPENDENT SUSPENSION(6PP)	8-97205-998-1	01	1	9906-0105	●
80	04.930 PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> CHARGE AIR COOLER<6PL>	8-97259-513-0	01	1	0106-		●	●
80	04.930 PIPE; VAC,ENG SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51>	8-97161-684-0	01	1	9906-0105			●
80	04.930 PIPE; VAC,ENG SIDE 4JG2 ENG(RJC)	8-97178-175-0	01	1	9812-9905			●
80	04.930 PIPE; VAC,ENG SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>	8-97178-175-0	01	1	9906-0105			●
80	04.930 PIPE; VAC,ENG SIDE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXC. EXHAUST BRAKE<NF8>	8-97178-175-0	01	1	9906-0105			●
85	04.931 HOSE; VAC,ENG SIDE 4JG2 ENG(RJC) EXC. EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	9812-9905	●		●
85	04.931 HOSE; VAC,ENG SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. TURBOCHARGER<K51>,EXHAUST BRAKE<NF8> L=130	8-94438-246-0	01	1	9906-0105	●		●
85	04.931 HOSE; VAC,ENG SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) TURBOCHARGER<K51> L=130	8-94438-246-0	01	1	9906-0105	●		●
85	04.931 HOSE; VAC,ENG SIDE 4JH1 ENG(RJX) TURBOCHARGER<K51> L=130	8-94438-246-0	01	1	0106-0203	●		●
85	04.931 HOSE; VAC,ENG SIDE 4JH1 ENG(RJX) TURBOCHARGER<K51> L=130	8-94438-246-0	01	1	0204-	●	●	●
90	04.931 HOSE; VAC,MAG VLV 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	9812-9905	●		●
90	04.931 HOSE; VAC,MAG VLV 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 03.630 L=300 SERVICED BY L=3000	0-08258-300-0	01	1	9906-0105	●		●
106	04.930 CLIP; PIPE (B) ID=10 H=45.5	8-97017-902-0	01	1	9812-9909	●
106	04.930 CLIP; PIPE 04.686 (A) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9812-0105	●		●
106	04.930 CLIP; PIPE 4JB1 ENG(RLF) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 03.162 (C) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-9908			●
106	04.930 CLIP; PIPE 4JG2 ENG(RJC) 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	9812-9905			●
106	04.930 CLIP; PIPE 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	9906-0105			●
106	04.930 CLIP; PIPE 4JH1 ENG(RJX) 03.485 (B) ID=10 H=36	8-94249-686-1	02	1	0106-		●	●
141	04.686 CLIP; 3 WAY JOINT 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 02.559 L=250	5-09707-030-1	01	1	9812-9905	●		●
141	04.686 CLIP; 3 WAY JOINT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 02.559 L=250	5-09707-030-1	01	1	9906-0105	●		●
156	04.931 JOINT; 3 WAY 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> L=430	8-94467-387-0	01	1	9812-9905	●		●
156	04.931 JOINT; 3 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> L=430	8-94467-387-0	01	1	9906-0105	●		●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> 04.930 ID=14.5	8-94167-480-0	03	1	9812-9905	●		●
158	04.681 CLIP; HOSE 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> 04.930 ID=14.5	8-94167-480-0	03	1	9906-0105	●		●
162	04.931 HOSE; VAC (C)	8-97102-999-0	01	1	9812-	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9812-9905	●		●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9906-0105	●		●
162	04.931 HOSE; VAC 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> (B)	8-97100-393-0	01	1	9812-9905	●		●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B)	8-97100-393-0	01	1	9906-0105	●		●
162	04.931 HOSE; VAC 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> (D)	8-97100-402-0	01	1	9812-9905	●		●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (D)	8-97100-402-0	01	1	9906-0105	●		●
162	04.931 HOSE; VAC (C)	8-97078-785-0	01	1	9812-		●	●

116 12 12 12 13 39 39 184 39 39 165 39 175 162 173 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	9812-	●	●	●
12	04.681 CLIP; HOSE 4JB1 ENG(RLF) TURBOCHARGER<K51> 04.930 (B) ID=16	8-94238-568-0	06	1	9906-0105	●		●
12	04.681 CLIP; HOSE 4JH1 ENG(RJX) TURBOCHARGER<K51> EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0106-	●	●	●
13	04.681 JOINT; HOSE,VAC 04.686 3WAY	8-94441-184-0	01	1	9812-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	5-09707-023-2	02	1	9812-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (A) ID=16	8-94238-568-0	03	1	9812-	●	●	●
39	04.681 CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	9812-	●	●	●
116	04.931 HOSE; VAC,M/VAC	8-97048-909-0	01	1	9812-0109	●		●
116	04.931 HOSE; VAC,M/VAC	8-97314-597-0	01	1	0110-	●	●	●
162	04.931 HOSE; VAC (C)	8-97102-999-0	01	1	9812-	●
162	04.931 HOSE; VAC 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9812-9905	●		●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (A) L=200 SERVICED BY L=3000	0-08358-300-0	01	1	9906-0105	●		●
162	04.931 HOSE; VAC 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> (B)	8-97100-393-0	01	1	9812-9905	●		●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (B)	8-97100-393-0	01	1	9906-0105	●		●
162	04.931 HOSE; VAC 4JG2 ENG(RJC) EXHAUST BRAKE<NF8> (D)	8-97100-402-0	01	1	9812-9905	●		●
162	04.931 HOSE; VAC 4JG2 ENG(RJC),4JB1 ENG(RLF) EXHAUST BRAKE<NF8> EXC. TURBOCHARGER<K51> (D)	8-97100-402-0	01	1	9906-0105	●		●
162	04.931 HOSE; VAC (C)	8-97078-785-0	01	1	9812-		●	●
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	9812-	●	●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-872-0	01	1	9812-	●	●	●
175	04.930 CLIP; BAND,VAC HOSE 02.559 L=219.5	1-09987-136-0	01	1	9812-	●	●	●
184	04.685 BRACKET; UNION FIX (B)	8-97094-014-2	01	1	9812-	●	●	●
184	04.685 BRACKET; UNION FIX (A)	8-97094-377-4	01	1	9812-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
