Sayfa 3-58 - Isuzu EPC

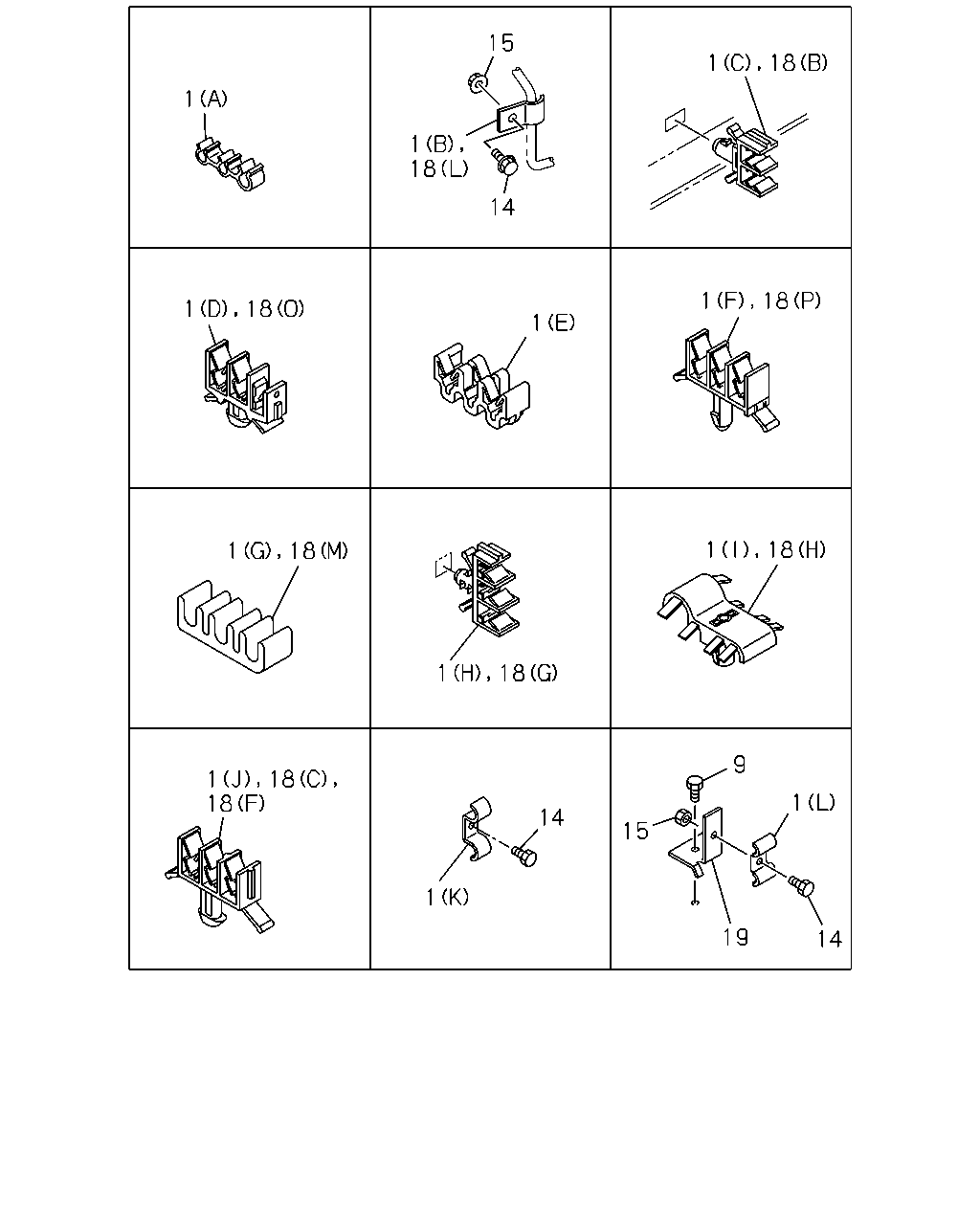

3-58 — FIXING PARTS; OIL PIPING (#45617) — 177 parça

1 18 1 18 1 1 18 1 18 1 18 18 9 29 18 20 37 20 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.686 CLIP; OIL PIPE TO BODY (A) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9812-9909	●
1	04.686 CLIP; OIL PIPE TO BODY (A) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9812-9909	●
1	04.686 CLIP; OIL PIPE TO BODY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (P) ID=6.4 & 4.8	8-94257-329-0	01	1	9910-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9812-9905	●
1	04.686 CLIP; OIL PIPE TO BODY FRT INDEPENDENT SUSPENSION(6PP) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-9911	●
1	04.686 CLIP; OIL PIPE TO BODY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-9911	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-9911		●
1	04.686 CLIP; OIL PIPE TO BODY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9912-0105	●
1	04.686 CLIP; OIL PIPE TO BODY FRT INDEPENDENT SUSPENSION(6PP) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9912-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9912-0105		●
1	04.686 CLIP; OIL PIPE TO BODY 00.785 (B) B=14 L=16	9-09916-996-0	02	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 03.162 (K) ID=9 & 7 L=15 & 15	8-97031-813-0	01	1	9812-9909	●
1	04.686 CLIP; OIL PIPE TO BODY (A) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9910-0105	●
1	04.686 CLIP; OIL PIPE TO BODY (L) ID=7 & 7 L=15 & 15	1-09700-059-0	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY (L) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY (Q) ID=21 L=24	8-94176-807-1	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY (J) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY (I)	8-97074-319-1	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 03.162 (K) ID=9 & 7 L=15 & 15	8-97031-813-0	01	1	9910-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (M) ID=4.8X2	8-94389-060-0	01	1	9906-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 04.685 (G) ID=4.76X3	8-94122-333-0	01	1	9812-0105	●	●
1	04.686 CLIP; OIL PIPE TO BODY (J) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9812-9908	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) (J) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9812-9908		●
1	04.686 CLIP; OIL PIPE TO BODY (J) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9909-9912	●	●
1	04.686 CLIP; OIL PIPE TO BODY (J) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9909-9912		●
1	04.686 CLIP; OIL PIPE TO BODY (J) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0001-0105	●	●
1	04.686 CLIP; OIL PIPE TO BODY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0001-0105		●
1	04.686 CLIP; OIL PIPE TO BODY (R) ID=4.8 H=26	8-94249-685-0	01	1	9812-0105	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) (C) ID=4.8X2	8-94316-410-0	01	1	9812-9905	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) (C) ID=4.8X2	8-94316-410-0	01	1	9812-9905	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) (C) ID=4.8X2	8-94316-410-0	01	1	9906-0105	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) (C) ID=4.8X2	8-94316-410-0	01	1	9906-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.8X2	8-94316-410-0	01	1	0106-	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY (F) ID=6.5 & 4.8X2	8-94131-710-2	01	1	9812-9912		●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0001-0105		●
1	04.686 CLIP; OIL PIPE TO BODY (J) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9812-0105		●
1	04.686 CLIP; OIL PIPE TO BODY (J) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9812-0105		●
1	04.686 CLIP; OIL PIPE TO BODY (C) ID=4.8X2	8-94316-410-0	03	1	9812-0105		●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (N) ID=10 & 4.76X3	8-97168-819-0	03	1	0001-0105		●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (N) ID=10 & 4.76X3	8-97168-819-0	01	1	0106-	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (O) ID=10 & 4.76X3	8-97168-820-0	03	1	0001-0105		●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (D) ID=5 & 6.5 & 8.2	8-94128-316-1	01	1	0001-0105		●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.8X2	8-94316-410-0	04	1	0001-0105		●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0001-0105		●
1	04.686 CLIP; OIL PIPE TO BODY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0001-0105		●
1	04.686 CLIP; OIL PIPE TO BODY 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=4.8X3	8-94487-369-0	01	1	0005-0105		●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=4.8X3	8-94487-369-0	01	1	0106-	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) (R) ID=4.8 H=26	8-94249-685-0	02	1	9812-9912		●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (R) ID=4.8 H=26	8-94249-685-0	02	1	0001-0105		●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9812-0105		●
9	04.686 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9812-9909	●
9	04.686 BOLT; BRKT 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9910-0105	●
18	04.686 CLIP; BRK PIPE 00.785 (L) B=14 L=16	9-09916-996-0	02	1	0106-	●
18	04.686 CLIP; BRK PIPE (K) ID=21 L=24	8-94176-807-1	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (C) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (H)	8-97074-319-1	02	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (H)	8-97074-319-1	02	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (G) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) ID=6.4 & 4.8	8-94257-329-0	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.8X2	8-94316-410-0	01	1	0106-	●
18	04.686 CLIP; BRK PIPE (B) ID=4.8X2	8-94316-410-0	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (F) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 04.685 (M) ID=4.76X3	8-94122-333-0	01	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97168-819-0	02	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97168-820-0	02	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97168-820-0	02	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97168-820-0	02	1	0106-		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.8X2	8-94316-410-0	02	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 03.162 (E) ID=12 & 6.35 & 4.76	8-97254-201-0	02	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (P) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (N) B=18 L=20	1-09700-372-0	02	1	0106-		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.8X2	8-94316-410-0	03	1	0106-		●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 03.162 (O) ID=5 & 6.5 & 8.2	8-94128-316-1	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 03.162 (E) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (P) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (P) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE (P) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE (C) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (C) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-		●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) ID=4.8 H=26	8-94249-685-0	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (J) ID=4.8 H=26	8-94249-685-0	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=10 & 4.76X3	8-97168-820-0	01	1	0204-			●
20	04.686 CLIP; BRK PIPE (D) ID=6.4 & 4.8X2	8-94146-043-0	03	1	9812-	●	●	●
20	04.686 CLIP; BRK PIPE 04.868 (B) ID=4.6X2	8-94241-454-0	01	1	9812-	●	●	●
20	04.686 CLIP; BRK PIPE (A) ID=6.35 & 4.76X2	8-94250-923-2	01	1	9812-	●	●	●
20	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) B=18 L=20	1-09700-372-0	02	1	0002-0105		●
29	04.686 NUT; CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	02	1	0002-		●
37	04.686 BOLT; CLIP FIX 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0002-		●

15 1 18 1 1 18 14 1 18 1 18 1 18 1 18 1 1 18 9 1 18 18 1 14 15 1 19 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.686 CLIP; OIL PIPE TO BODY (A) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9812-9909	●
1	04.686 CLIP; OIL PIPE TO BODY (A) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9812-9909	●
1	04.686 CLIP; OIL PIPE TO BODY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (P) ID=6.4 & 4.8	8-94257-329-0	01	1	9910-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9812-9905	●
1	04.686 CLIP; OIL PIPE TO BODY FRT INDEPENDENT SUSPENSION(6PP) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-9911	●
1	04.686 CLIP; OIL PIPE TO BODY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-9911	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9906-9911		●
1	04.686 CLIP; OIL PIPE TO BODY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9912-0105	●
1	04.686 CLIP; OIL PIPE TO BODY FRT INDEPENDENT SUSPENSION(6PP) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9912-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	9912-0105		●
1	04.686 CLIP; OIL PIPE TO BODY 00.785 (B) B=14 L=16	9-09916-996-0	02	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 03.162 (K) ID=9 & 7 L=15 & 15	8-97031-813-0	01	1	9812-9909	●
1	04.686 CLIP; OIL PIPE TO BODY (A) ID=6.4 & 4.8X2	8-94146-043-0	01	1	9910-0105	●
1	04.686 CLIP; OIL PIPE TO BODY (L) ID=7 & 7 L=15 & 15	1-09700-059-0	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY (L) ID=13 & 7 L=16 & 14	1-09700-070-0	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY (Q) ID=21 L=24	8-94176-807-1	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY (J) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY (I)	8-97074-319-1	01	1	9812-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 03.162 (K) ID=9 & 7 L=15 & 15	8-97031-813-0	01	1	9910-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (M) ID=4.8X2	8-94389-060-0	01	1	9906-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 04.685 (G) ID=4.76X3	8-94122-333-0	01	1	9812-0105	●	●
1	04.686 CLIP; OIL PIPE TO BODY (J) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9812-9908	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) (J) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9812-9908		●
1	04.686 CLIP; OIL PIPE TO BODY (J) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9909-9912	●	●
1	04.686 CLIP; OIL PIPE TO BODY (J) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	9909-9912		●
1	04.686 CLIP; OIL PIPE TO BODY (J) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0001-0105	●	●
1	04.686 CLIP; OIL PIPE TO BODY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0001-0105		●
1	04.686 CLIP; OIL PIPE TO BODY (R) ID=4.8 H=26	8-94249-685-0	01	1	9812-0105	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) (C) ID=4.8X2	8-94316-410-0	01	1	9812-9905	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC) (C) ID=4.8X2	8-94316-410-0	01	1	9812-9905	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) (C) ID=4.8X2	8-94316-410-0	01	1	9906-0105	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) (C) ID=4.8X2	8-94316-410-0	01	1	9906-0105	●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.8X2	8-94316-410-0	01	1	0106-	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY (F) ID=6.5 & 4.8X2	8-94131-710-2	01	1	9812-9912		●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0001-0105		●
1	04.686 CLIP; OIL PIPE TO BODY (J) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9812-0105		●
1	04.686 CLIP; OIL PIPE TO BODY (J) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	9812-0105		●
1	04.686 CLIP; OIL PIPE TO BODY (C) ID=4.8X2	8-94316-410-0	03	1	9812-0105		●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (N) ID=10 & 4.76X3	8-97168-819-0	03	1	0001-0105		●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (N) ID=10 & 4.76X3	8-97168-819-0	01	1	0106-	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (O) ID=10 & 4.76X3	8-97168-820-0	03	1	0001-0105		●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (D) ID=5 & 6.5 & 8.2	8-94128-316-1	01	1	0001-0105		●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.8X2	8-94316-410-0	04	1	0001-0105		●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0001-0105		●
1	04.686 CLIP; OIL PIPE TO BODY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0001-0105		●
1	04.686 CLIP; OIL PIPE TO BODY 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=4.8X3	8-94487-369-0	01	1	0005-0105		●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=4.8X3	8-94487-369-0	01	1	0106-	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) (R) ID=4.8 H=26	8-94249-685-0	02	1	9812-9912		●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (R) ID=4.8 H=26	8-94249-685-0	02	1	0001-0105		●
1	04.686 CLIP; OIL PIPE TO BODY 4JG2 ENG(RJC),4JB1 ENG(RLF) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	9812-0105		●
9	04.686 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9812-9909	●
9	04.686 BOLT; BRKT 02.664 M8X20 FLANGE	0-28680-820-0	01	1	9910-0105	●
14	04.686 BOLT; CLIP,OIL PIPE 04.930 M6X20 FLANGE	0-28680-620-0	06	1	9812-0105	●
14	04.686 BOLT; CLIP,OIL PIPE 04.930 M6X20 FLANGE	0-28680-620-0	03	1	0106-	●
15	04.686 NUT; CLIP,OIL PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	9812-0105	●
18	04.686 CLIP; BRK PIPE 00.785 (L) B=14 L=16	9-09916-996-0	02	1	0106-	●
18	04.686 CLIP; BRK PIPE (K) ID=21 L=24	8-94176-807-1	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (C) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (H)	8-97074-319-1	02	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (H)	8-97074-319-1	02	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (G) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (I) ID=6.4 & 4.8	8-94257-329-0	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.8X2	8-94316-410-0	01	1	0106-	●
18	04.686 CLIP; BRK PIPE (B) ID=4.8X2	8-94316-410-0	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (F) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0106-	●
18	04.686 CLIP; BRK PIPE 04.685 (M) ID=4.76X3	8-94122-333-0	01	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE (A) ID=10 & 4.76X3	8-97168-819-0	02	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97168-820-0	02	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97168-820-0	02	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE (D) ID=10 & 4.76X3	8-97168-820-0	02	1	0106-		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.8X2	8-94316-410-0	02	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 03.162 (E) ID=12 & 6.35 & 4.76	8-97254-201-0	02	1	0106-	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (P) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (N) B=18 L=20	1-09700-372-0	02	1	0106-		●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=4.8X2	8-94316-410-0	03	1	0106-		●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 03.162 (O) ID=5 & 6.5 & 8.2	8-94128-316-1	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 03.162 (E) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (P) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (P) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE (P) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE (C) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (C) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0106-		●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (J) ID=4.8 H=26	8-94249-685-0	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (J) ID=4.8 H=26	8-94249-685-0	01	1	0106-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D) ID=10 & 4.76X3	8-97168-820-0	01	1	0204-			●
19	04.686 BRACKET; OIL PIPE FRT INDEPENDENT SUSPENSION(6PP)	8-97068-790-0	01	1	9812-9909	●
19	04.686 BRACKET; OIL PIPE	8-97068-790-0	01	1	9910-0105	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
