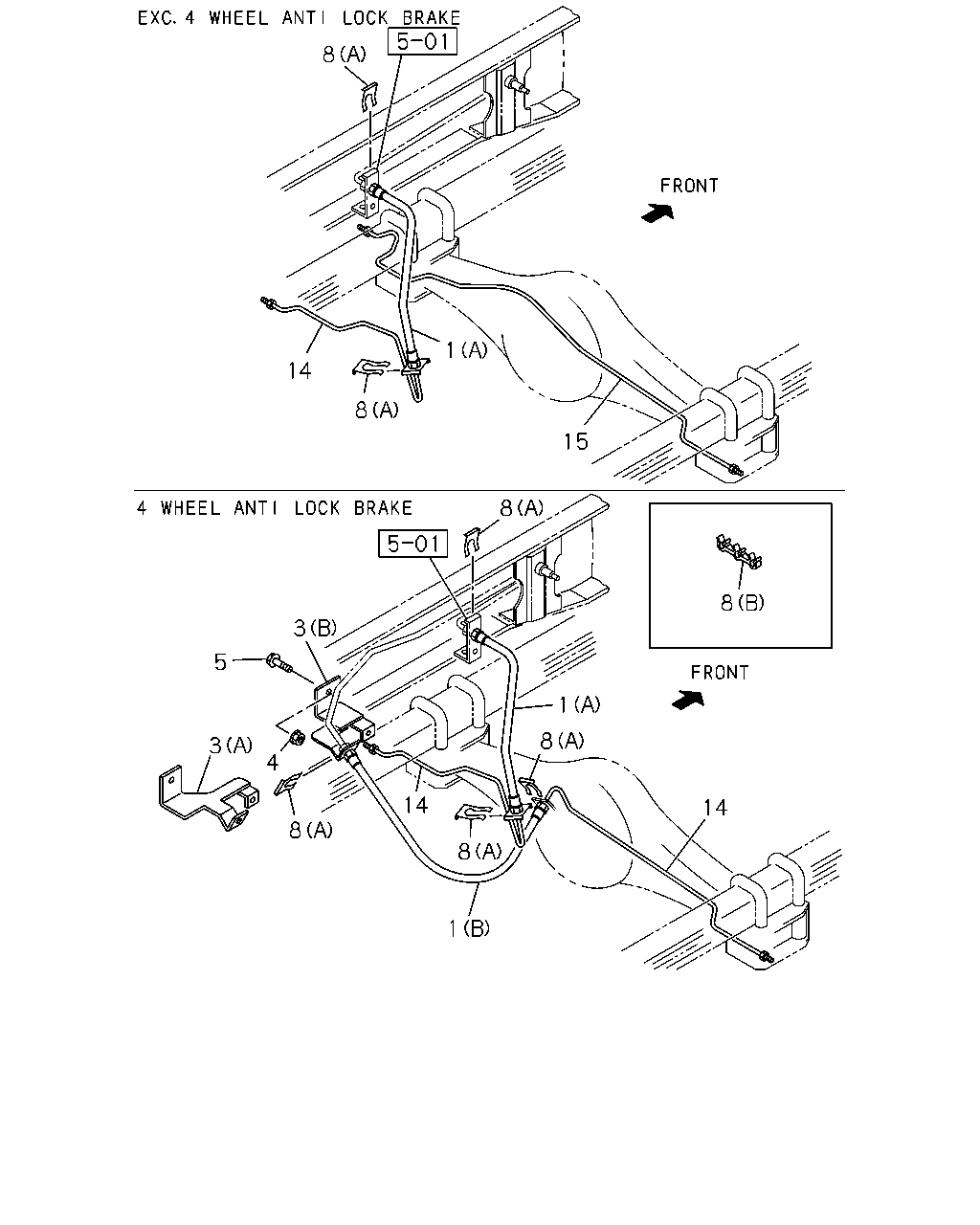

3-55 — BRAKE PIPING; OIL,REAR (#45616) — 52 parça

8 1 14 8 15 8 8 3 5 1 8 3 4 14 14 8 8 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.680 HOSE; FLEX,RR BRK SUSPENSION SOFT RIDE(F49) (A) L=405	8-97089-061-0	01	1	9906-0105	●
1	04.680 HOSE; FLEX,RR BRK 4JH1 ENG(RJX) (A) L=405	8-97089-061-0	01	1	0106-	●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=345	8-97230-284-1	01	1	0106-	●
1	04.680 HOSE; FLEX,RR BRK (A) L=370	8-97035-574-0	01	1	9812-9905	●	●
1	04.680 HOSE; FLEX,RR BRK EXC. SUSPENSION SOFT RIDE(F49) (A) L=370	8-97035-574-0	01	1	9906-0105	●
1	04.680 HOSE; FLEX,RR BRK (A) L=370	8-97035-574-0	01	1	9906-0105		●
1	04.680 HOSE; FLEX,RR BRK (A) L=370	8-97035-574-0	01	1	0106-		●	●
1	04.680 HOSE; FLEX,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B) L=430	8-97077-458-0	01	1	0001-		●	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97264-189-0	01	1	0106-	●
3	04.681 BRACKET; FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97046-936-0	01	1	0001-		●	●
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 08.917 M10 FLANGE	0-91150-210-0	01	1	0001-0003		●
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 M10 FLANGE	0-91150-110-0	01	1	0004-0105		●
4	04.686 NUT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 M10 FLANGE	0-91150-110-0	01	1	0106-	●	●	●
5	04.681 BOLT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 03.023 M10X30 FLANGE	0-28691-030-0	01	1	0001-0003		●
5	04.681 BOLT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0004-0105		●
5	04.681 BOLT; BRKT,FLEX HOSE,RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 03.405 M10X30 FLANGE	0-28681-030-0	01	1	0106-	●	●	●
8	04.686 CLIP; RR BRK 04.681 (A)	8-94137-662-0	02	1	9812-9912	●	●
8	04.686 CLIP; RR BRK 04.681 (A)	8-94137-662-0	02	1	0001-0105	●
8	04.686 CLIP; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 (A)	8-94137-662-0	02	1	0001-0105		●
8	04.686 CLIP; RR BRK EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 (A)	8-94137-662-0	02	1	0106-	●	●	●
8	04.686 CLIP; RR BRK (B)	8-97076-471-0	01	1	9812-	●	●	●
8	04.686 CLIP; RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 (A)	8-94137-662-0	04	1	0001-0105		●
8	04.686 CLIP; RR BRK 4 WHEEL ANTI LOCK BRAKE<JE5> 04.681 (A)	8-94137-662-0	04	1	0106-	●	●	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97076-838-2	01	1	9812-9908	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE STANDARD 244MM(R39) EXC. SUSPENSION SOFT RIDE(F49)	8-97076-838-2	01	1	9909-0105	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97260-318-1	01	1	0106-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR AXLE STANDARD 244MM(R39) SUSPENSION SOFT RIDE(F49)	8-97231-599-0	01	1	9909-0105	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97239-140-1	01	1	0106-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97304-924-0	01	1	0106-	●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL	8-97070-590-0	01	1	9812-9912		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-590-0	01	1	0001-0105		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-590-0	01	1	0106-0203		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-590-0	01	1	0204-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-590-0	01	1	0204-			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97082-923-0	01	1	0001-0105		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97082-923-0	01	1	0106-0203		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97082-923-0	01	1	0204-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T)	8-97082-923-0	01	1	0204-			●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97042-077-2	01	1	0001-0105		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97042-077-2	01	1	0106-0203		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97042-077-2	01	1	0204-		●
14	04.685 PIPE; BRK,FLEX HOSE TO WHEEL CYL 4 WHEEL ANTI LOCK BRAKE<JE5> REAR WIDE TREAD(V4T)	8-97042-077-2	01	1	0204-			●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL	8-97089-922-0	01	1	9812-9908	●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL REAR AXLE STANDARD 244MM(R39) EXC. SUSPENSION SOFT RIDE(F49)	8-97089-922-0	01	1	9909-0105	●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL REAR AXLE STANDARD 244MM(R39) SUSPENSION SOFT RIDE(F49)	8-97231-600-0	01	1	9909-0105	●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97162-846-0	01	1	0106-	●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 4JG2 ENG(RJC)	8-97070-591-0	01	1	9812-9905		●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97070-591-0	01	1	9906-9912		●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-591-0	01	1	0001-0105		●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-591-0	01	1	0106-0203		●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-591-0	01	1	0204-		●
15	04.685 PIPE; BRK,WHEEL CYL TO WHEEL CYL 4JH1 ENG(RJX) REAR WIDE TREAD(V4T) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-591-0	01	1	0204-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
