Sayfa 3-52 - Isuzu EPC

3-52 — BRAKE PIPING; OIL,FRONT (#45615) — 324 parça

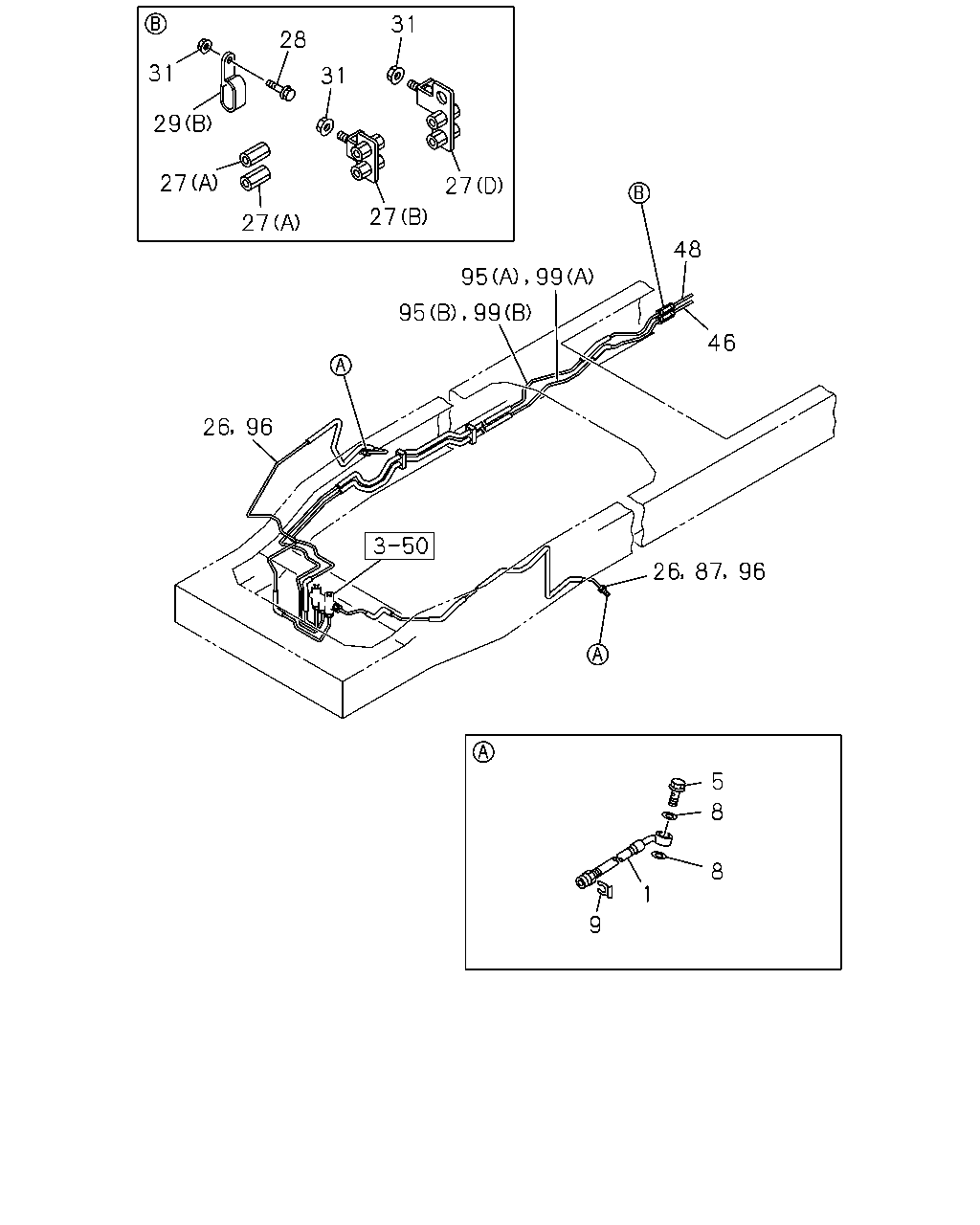

48 46 95 99 95 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
46	04.685 PIPE; BRK,JOINT TO VLV 4JB1 ENG(RLF)	8-97208-981-1	01	1	9906-0105	●
46	04.685 PIPE; BRK,JOINT TO VLV 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97259-522-1	01	1	0106-		●
46	04.685 PIPE; BRK,JOINT TO VLV 4JG2 ENG(RJC)	8-97093-658-3	01	1	9812-0105	●
46	04.685 PIPE; BRK,JOINT TO VLV 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97259-532-2	01	1	0106-	●
46	04.685 PIPE; BRK,JOINT TO VLV	8-97148-829-1	01	1	9812-9912		●
46	04.685 PIPE; BRK,JOINT TO VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97148-829-1	01	1	0001-0105		●
46	04.685 PIPE; BRK,JOINT TO VLV 4JH1 ENG(RJX) REAR WIDE TREAD(V4T) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97329-460-0	01	1	0204-			●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JB1 ENG(RLF)	8-97208-980-1	01	1	9906-0105	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JG2 ENG(RJC)	8-97093-659-3	01	1	9812-0105	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-360-2	01	1	0106-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN	8-97148-830-2	01	1	9812-9912		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97148-830-2	01	1	0001-0105		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97247-853-2	01	1	0001-0105		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97247-853-2	01	1	0106-		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JH1 ENG(RJX) REAR WIDE TREAD(V4T) CHARGE AIR COOLER<6PL>	8-97329-461-0	01	1	0204-			●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) FRONT	8-97206-419-0	01	1	9906-0105	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) REAR	8-97206-420-0	01	1	9906-0105	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) REAR	8-97122-632-2	01	1	9812-0105	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A) FRONT	8-97122-636-1	01	1	9812-0105	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97247-850-2	01	1	0001-0105		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97247-851-2	01	1	0001-0105		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) (B) REAR	8-97122-631-0	01	1	9812-9905		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) (B) REAR	8-97122-631-0	01	1	9906-9912		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97122-631-0	01	1	0001-0105		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) (A) FRONT	8-97200-626-0	01	1	9812-9901		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) (A) FRONT	8-97225-305-0	01	1	9902-9905		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) FRONT	8-97225-305-0	01	1	9906-9912		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97225-305-0	01	1	0001-0105		●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (A) FRONT	8-97259-356-2	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B) REAR	8-97259-358-2	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (A) FRONT	8-97259-508-0	01	1	0106-		●	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B) REAR	8-97259-509-1	01	1	0106-		●	●

51 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
51	04.685 PIPE; BRK (B) FRONT	5-47411-763-0	01	1	9812-	●	●	●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97247-852-2	01	1	0001-0105		●
51	04.685 PIPE; BRK (A) REAR	8-97070-296-2	01	1	9812-	●	●	●

31 28 31 31 29 27 27 27 27 48 95 99 46 26 96 26 87 96 5 8 8 1 9 95 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.680 HOSE; FLEX,FRT BRK	8-97035-064-0	02	1	9812-	●
1	04.680 HOSE; FLEX,FRT BRK 4JG2 ENG(RJC)	8-97084-970-0	02	1	9812-9905		●
1	04.680 HOSE; FLEX,FRT BRK	8-97084-970-0	02	1	9906-0108		●
1	04.680 HOSE; FLEX,FRT BRK	8-97316-734-0	02	1	0109-		●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22	5-09675-017-0	02	1	9812-9905	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK 4JG2 ENG(RJC) 04.665 M10X22	5-09675-017-0	02	1	9812-9905		●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22	5-09675-017-0	02	1	9906-	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK 04.665 M10X22	5-09675-017-0	02	1	9906-		●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	9812-9905	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 4JG2 ENG(RJC) 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	9812-9905		●
8	04.681 GASKET; FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	9906-	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	9906-		●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	9812-	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97208-514-1	01	1	9906-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL>	8-97259-510-2	01	1	0106-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97225-632-0	01	1	9906-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL>	8-97259-511-3	01	1	0106-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97075-570-3	01	1	9812-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-365-2	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 04.685	8-97146-895-0	01	1	9812-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-366-4	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 04.685	8-97122-629-0	01	1	9812-9912		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.685	8-97122-629-0	01	1	0001-0105		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97247-861-4	01	1	0001-0105		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97247-860-3	01	1	0001-0105		●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97259-369-0	01	1	0106-	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 08.963 (E) M10 3WAY	9-09227-325-0	01	1	0106-	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> 08.963 (E) M10 3WAY	9-09227-325-0	01	1	0106-		●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9812-0004	●	●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0005-0105	●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0005-0105		●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0106-	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (F)	8-97095-852-1	01	1	0001-0004		●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0005-0105		●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0106-		●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97257-650-0	01	1	0005-		●	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97259-943-0	01	1	0106-		●	●
28	04.686 BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●
28	04.686 BOLT; UNION CLIP 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9812-9912	●	●
28	04.686 BOLT; UNION CLIP 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0001-0004	●
28	04.686 BOLT; UNION CLIP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0001-0004		●
28	04.686 BOLT; UNION CLIP 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0005-0105	●	●
28	04.686 BOLT; UNION CLIP 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0106-		●	●
28	04.686 BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 02.334 M6X25 FLANGE	0-28680-625-0	03	1	0001-0004		●
29	04.686 CLIP; UNION (B) ID=16X2 L=20	9-09535-533-0	01	1	9812-9912	●	●
29	04.686 CLIP; UNION (B) ID=16X2 L=20	9-09535-533-0	01	1	0001-0105	●
29	04.686 CLIP; UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=16X2 L=20	9-09535-533-0	01	1	0001-0105		●
29	04.686 CLIP; UNION 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 01.531 (A) ID=16 L=20	9-09525-536-0	02	1	0106-	●
29	04.686 CLIP; UNION 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (A) ID=16 L=20	9-09525-532-0	02	1	0001-0004		●
29	04.686 CLIP; UNION 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (A) ID=16 L=20	9-09525-532-0	01	1	0005-0105		●
29	04.686 CLIP; UNION 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (A) ID=16 L=20	9-09525-532-0	01	1	0106-		●	●
31	04.686 NUT; UNION CLIP 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●
31	04.686 NUT; UNION CLIP 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	9812-9912	●	●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0001-0105	●
31	04.686 NUT; UNION CLIP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE	0-91150-106-0	01	1	0001-0105		●
31	04.686 NUT; UNION CLIP 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE	0-91150-106-0	01	1	0106-		●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE	0-91150-106-0	03	1	0001-0004		●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE	0-91150-106-0	02	1	0005-0105		●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE	0-91150-106-0	02	1	0106-		●	●
46	04.685 PIPE; BRK,JOINT TO VLV 4JB1 ENG(RLF)	8-97208-981-1	01	1	9906-0105	●
46	04.685 PIPE; BRK,JOINT TO VLV 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97259-522-1	01	1	0106-		●
46	04.685 PIPE; BRK,JOINT TO VLV 4JG2 ENG(RJC)	8-97093-658-3	01	1	9812-0105	●
46	04.685 PIPE; BRK,JOINT TO VLV 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97259-532-2	01	1	0106-	●
46	04.685 PIPE; BRK,JOINT TO VLV	8-97148-829-1	01	1	9812-9912		●
46	04.685 PIPE; BRK,JOINT TO VLV EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97148-829-1	01	1	0001-0105		●
46	04.685 PIPE; BRK,JOINT TO VLV 4JH1 ENG(RJX) REAR WIDE TREAD(V4T) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97329-460-0	01	1	0204-			●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JB1 ENG(RLF)	8-97208-980-1	01	1	9906-0105	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JG2 ENG(RJC)	8-97093-659-3	01	1	9812-0105	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-360-2	01	1	0106-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN	8-97148-830-2	01	1	9812-9912		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97148-830-2	01	1	0001-0105		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97247-853-2	01	1	0001-0105		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97247-853-2	01	1	0106-		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JH1 ENG(RJX) REAR WIDE TREAD(V4T) CHARGE AIR COOLER<6PL>	8-97329-461-0	01	1	0204-			●
87	04.685 PIPE; BRK,5 WAY TO UNION	8-97077-467-3	01	1	9812-9912		●
87	04.685 PIPE; BRK,5 WAY TO UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97077-467-3	01	1	0001-0105		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) FRONT	8-97206-419-0	01	1	9906-0105	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) REAR	8-97206-420-0	01	1	9906-0105	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) REAR	8-97122-632-2	01	1	9812-0105	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A) FRONT	8-97122-636-1	01	1	9812-0105	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97247-850-2	01	1	0001-0105		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97247-851-2	01	1	0001-0105		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) (B) REAR	8-97122-631-0	01	1	9812-9905		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) (B) REAR	8-97122-631-0	01	1	9906-9912		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97122-631-0	01	1	0001-0105		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) (A) FRONT	8-97200-626-0	01	1	9812-9901		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) (A) FRONT	8-97225-305-0	01	1	9902-9905		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) FRONT	8-97225-305-0	01	1	9906-9912		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97225-305-0	01	1	0001-0105		●
96	04.686 PIPE ASM; 6 WAY 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 05.476	8-97208-514-1	01	1	0106-	●
96	04.686 PIPE ASM; 6 WAY 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 05.476	8-97225-632-0	01	1	0106-	●
96	04.686 PIPE ASM; 6 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.685	8-97122-629-0	01	1	0106-		●	●
96	04.686 PIPE ASM; 6 WAY 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97250-488-0	01	1	0106-		●	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (A) FRONT	8-97259-356-2	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B) REAR	8-97259-358-2	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (A) FRONT	8-97259-508-0	01	1	0106-		●	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B) REAR	8-97259-509-1	01	1	0106-		●	●

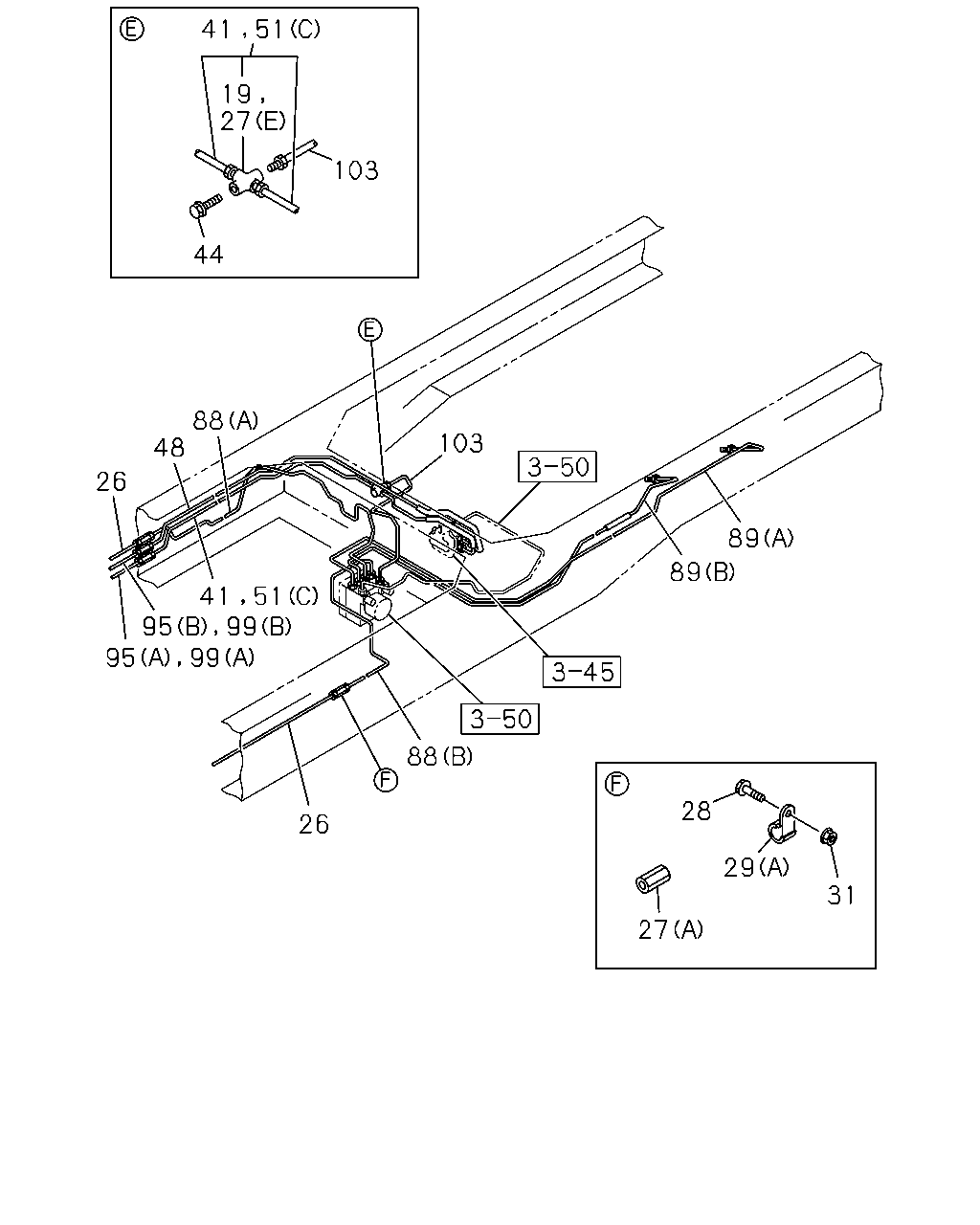

31 31 28 27 28 31 31 29 27 27 27 88 95 99 48 51 41 88 26 26 5 8 8 1 9 95 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.680 HOSE; FLEX,FRT BRK	8-97035-064-0	02	1	9812-	●
1	04.680 HOSE; FLEX,FRT BRK 4JG2 ENG(RJC)	8-97084-970-0	02	1	9812-9905		●
1	04.680 HOSE; FLEX,FRT BRK	8-97084-970-0	02	1	9906-0108		●
1	04.680 HOSE; FLEX,FRT BRK	8-97316-734-0	02	1	0109-		●	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22	5-09675-017-0	02	1	9812-9905	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK 4JG2 ENG(RJC) 04.665 M10X22	5-09675-017-0	02	1	9812-9905		●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(6PP) 04.665 M10X22	5-09675-017-0	02	1	9906-	●
5	04.681 BOLT; EYE,FLEX HOSE,FRT BRK 04.665 M10X22	5-09675-017-0	02	1	9906-		●	●
8	04.681 GASKET; FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	9812-9905	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 4JG2 ENG(RJC) 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	9812-9905		●
8	04.681 GASKET; FLEX HOSE,FRT BRK FRT INDEPENDENT SUSPENSION(6PP) 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	9906-	●
8	04.681 GASKET; FLEX HOSE,FRT BRK 08.955 ID=10.2 OD=16.0	9-09571-410-0	04	1	9906-		●	●
9	04.686 CLIP; FLEX HOSE,FRT BRK 04.681	8-94137-662-0	02	1	9812-	●	●	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97208-514-1	01	1	9906-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL>	8-97259-510-2	01	1	0106-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97225-632-0	01	1	9906-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL>	8-97259-511-3	01	1	0106-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97075-570-3	01	1	9812-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-365-2	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 04.685	8-97146-895-0	01	1	9812-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-366-4	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 04.685	8-97122-629-0	01	1	9812-9912		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.685	8-97122-629-0	01	1	0001-0105		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97247-861-4	01	1	0001-0105		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97247-860-3	01	1	0001-0105		●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97259-369-0	01	1	0106-	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 08.963 (E) M10 3WAY	9-09227-325-0	01	1	0106-	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> 08.963 (E) M10 3WAY	9-09227-325-0	01	1	0106-		●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9812-0004	●	●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0005-0105	●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0005-0105		●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0106-	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (F)	8-97095-852-1	01	1	0001-0004		●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0005-0105		●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0106-		●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97257-650-0	01	1	0005-		●	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97259-943-0	01	1	0106-		●	●
28	04.686 BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●
28	04.686 BOLT; UNION CLIP 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9812-9912	●	●
28	04.686 BOLT; UNION CLIP 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0001-0004	●
28	04.686 BOLT; UNION CLIP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0001-0004		●
28	04.686 BOLT; UNION CLIP 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0005-0105	●	●
28	04.686 BOLT; UNION CLIP 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0106-		●	●
28	04.686 BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 02.334 M6X25 FLANGE	0-28680-625-0	03	1	0001-0004		●
29	04.686 CLIP; UNION (B) ID=16X2 L=20	9-09535-533-0	01	1	9812-9912	●	●
29	04.686 CLIP; UNION (B) ID=16X2 L=20	9-09535-533-0	01	1	0001-0105	●
29	04.686 CLIP; UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=16X2 L=20	9-09535-533-0	01	1	0001-0105		●
29	04.686 CLIP; UNION 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 01.531 (A) ID=16 L=20	9-09525-536-0	02	1	0106-	●
29	04.686 CLIP; UNION 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (A) ID=16 L=20	9-09525-532-0	02	1	0001-0004		●
29	04.686 CLIP; UNION 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (A) ID=16 L=20	9-09525-532-0	01	1	0005-0105		●
29	04.686 CLIP; UNION 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (A) ID=16 L=20	9-09525-532-0	01	1	0106-		●	●
31	04.686 NUT; UNION CLIP 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●
31	04.686 NUT; UNION CLIP 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	9812-9912	●	●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0001-0105	●
31	04.686 NUT; UNION CLIP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE	0-91150-106-0	01	1	0001-0105		●
31	04.686 NUT; UNION CLIP 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE	0-91150-106-0	01	1	0106-		●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE	0-91150-106-0	03	1	0001-0004		●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE	0-91150-106-0	02	1	0005-0105		●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE	0-91150-106-0	02	1	0106-		●	●
41	04.685 PIPE; BRK,PROPORTIONING VLV 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-359-2	01	1	0106-	●
41	04.685 PIPE; BRK,PROPORTIONING VLV 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL>	8-97247-852-2	01	1	0106-		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JB1 ENG(RLF)	8-97208-980-1	01	1	9906-0105	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JG2 ENG(RJC)	8-97093-659-3	01	1	9812-0105	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-360-2	01	1	0106-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN	8-97148-830-2	01	1	9812-9912		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97148-830-2	01	1	0001-0105		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97247-853-2	01	1	0001-0105		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97247-853-2	01	1	0106-		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JH1 ENG(RJX) REAR WIDE TREAD(V4T) CHARGE AIR COOLER<6PL>	8-97329-461-0	01	1	0204-			●
51	04.685 PIPE; BRK (B) FRONT	5-47411-763-0	01	1	9812-	●	●	●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97247-852-2	01	1	0001-0105		●
51	04.685 PIPE; BRK (A) REAR	8-97070-296-2	01	1	9812-	●	●	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97259-364-0	01	1	0106-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97259-363-1	01	1	0106-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97247-857-2	01	1	0001-0105		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> (B)	8-97247-857-2	01	1	0106-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97247-856-5	01	1	0001-0105		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> (A)	8-97247-856-5	01	1	0106-		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) FRONT	8-97206-419-0	01	1	9906-0105	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) REAR	8-97206-420-0	01	1	9906-0105	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) REAR	8-97122-632-2	01	1	9812-0105	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A) FRONT	8-97122-636-1	01	1	9812-0105	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97247-850-2	01	1	0001-0105		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97247-851-2	01	1	0001-0105		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) (B) REAR	8-97122-631-0	01	1	9812-9905		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) (B) REAR	8-97122-631-0	01	1	9906-9912		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97122-631-0	01	1	0001-0105		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) (A) FRONT	8-97200-626-0	01	1	9812-9901		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) (A) FRONT	8-97225-305-0	01	1	9902-9905		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) FRONT	8-97225-305-0	01	1	9906-9912		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97225-305-0	01	1	0001-0105		●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (A) FRONT	8-97259-356-2	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B) REAR	8-97259-358-2	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (A) FRONT	8-97259-508-0	01	1	0106-		●	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B) REAR	8-97259-509-1	01	1	0106-		●	●

51 41 19 27 103 44 88 48 103 26 89 89 41 51 88 28 26 29 31 27 95 95 99 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	04.686 UNION; OIL PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 M10 3WAY	9-09227-325-0	01	1	0001-0105		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97208-514-1	01	1	9906-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL>	8-97259-510-2	01	1	0106-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP)	8-97225-632-0	01	1	9906-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL>	8-97259-511-3	01	1	0106-		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP)	8-97075-570-3	01	1	9812-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-365-2	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) 04.685	8-97146-895-0	01	1	9812-0105	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-366-4	01	1	0106-	●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 04.685	8-97122-629-0	01	1	9812-9912		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.685	8-97122-629-0	01	1	0001-0105		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97247-861-4	01	1	0001-0105		●
26	05.476 PIPE; BRK,JOINT TO 2 WAY 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97247-860-3	01	1	0001-0105		●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97259-369-0	01	1	0106-	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) 08.963 (E) M10 3WAY	9-09227-325-0	01	1	0106-	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> 08.963 (E) M10 3WAY	9-09227-325-0	01	1	0106-		●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	9812-0004	●	●
27	04.686 UNION; BRK PIPE 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0005-0105	●
27	04.686 UNION; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0005-0105		●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 08.963 (A) M10 STRAIGHT	9-09227-005-0	02	1	0106-	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (F)	8-97095-852-1	01	1	0001-0004		●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0005-0105		●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.963 (A) M10 STRAIGHT	9-09227-005-0	01	1	0106-		●	●
27	04.686 UNION; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97257-650-0	01	1	0005-		●	●
27	04.686 UNION; BRK PIPE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (D)	8-97259-943-0	01	1	0106-		●	●
28	04.686 BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●
28	04.686 BOLT; UNION CLIP 02.334 M6X25 FLANGE	0-28680-625-0	01	1	9812-9912	●	●
28	04.686 BOLT; UNION CLIP 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0001-0004	●
28	04.686 BOLT; UNION CLIP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0001-0004		●
28	04.686 BOLT; UNION CLIP 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0005-0105	●	●
28	04.686 BOLT; UNION CLIP 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 02.334 M6X25 FLANGE	0-28680-625-0	01	1	0106-		●	●
28	04.686 BOLT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 02.334 M6X25 FLANGE	0-28680-625-0	03	1	0001-0004		●
29	04.686 CLIP; UNION (B) ID=16X2 L=20	9-09535-533-0	01	1	9812-9912	●	●
29	04.686 CLIP; UNION (B) ID=16X2 L=20	9-09535-533-0	01	1	0001-0105	●
29	04.686 CLIP; UNION EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=16X2 L=20	9-09535-533-0	01	1	0001-0105		●
29	04.686 CLIP; UNION 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 01.531 (A) ID=16 L=20	9-09525-536-0	02	1	0106-	●
29	04.686 CLIP; UNION 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (A) ID=16 L=20	9-09525-532-0	02	1	0001-0004		●
29	04.686 CLIP; UNION 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (A) ID=16 L=20	9-09525-532-0	01	1	0005-0105		●
29	04.686 CLIP; UNION 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 (A) ID=16 L=20	9-09525-532-0	01	1	0106-		●	●
31	04.686 NUT; UNION CLIP 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●
31	04.686 NUT; UNION CLIP 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	02	1	0106-	●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	9812-9912	●	●
31	04.686 NUT; UNION CLIP 04.594 M6 FLANGE	0-91150-106-0	01	1	0001-0105	●
31	04.686 NUT; UNION CLIP EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE	0-91150-106-0	01	1	0001-0105		●
31	04.686 NUT; UNION CLIP 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE	0-91150-106-0	01	1	0106-		●	●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE	0-91150-106-0	03	1	0001-0004		●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE	0-91150-106-0	02	1	0005-0105		●
31	04.686 NUT; UNION CLIP 4 WHEEL ANTI LOCK BRAKE<JE5> 04.594 M6 FLANGE	0-91150-106-0	02	1	0106-		●	●
41	04.685 PIPE; BRK,PROPORTIONING VLV 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-359-2	01	1	0106-	●
41	04.685 PIPE; BRK,PROPORTIONING VLV 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL>	8-97247-852-2	01	1	0106-		●
44	04.686 BOLT; JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0001-0105		●
44	04.686 BOLT; JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE	0-28080-812-0	01	1	0106-	●	●	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JB1 ENG(RLF)	8-97208-980-1	01	1	9906-0105	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JG2 ENG(RJC)	8-97093-659-3	01	1	9812-0105	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-360-2	01	1	0106-	●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN	8-97148-830-2	01	1	9812-9912		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97148-830-2	01	1	0001-0105		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97247-853-2	01	1	0001-0105		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL>	8-97247-853-2	01	1	0106-		●
48	04.685 PIPE; BRK,BYPASS VLV TO CONN 4JH1 ENG(RJX) REAR WIDE TREAD(V4T) CHARGE AIR COOLER<6PL>	8-97329-461-0	01	1	0204-			●
51	04.685 PIPE; BRK (B) FRONT	5-47411-763-0	01	1	9812-	●	●	●
51	04.685 PIPE; BRK 4 WHEEL ANTI LOCK BRAKE<JE5> (C)	8-97247-852-2	01	1	0001-0105		●
51	04.685 PIPE; BRK (A) REAR	8-97070-296-2	01	1	9812-	●	●	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97259-364-0	01	1	0106-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97259-363-1	01	1	0106-	●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97247-857-2	01	1	0001-0105		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> (B)	8-97247-857-2	01	1	0106-		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97247-856-5	01	1	0001-0105		●
88	04.685 PIPE; BRK,HYDRULIC UNIT TO JOINT 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> (A)	8-97247-856-5	01	1	0106-		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97259-368-4	01	1	0106-	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97259-367-4	01	1	0106-	●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> (B)	8-97247-859-3	01	1	0001-0105		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> (B)	8-97247-859-3	01	1	0106-		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4 WHEEL ANTI LOCK BRAKE<JE5> (A)	8-97247-858-3	01	1	0001-0105		●
89	04.685 PIPE; BRK,HYDRULIC UNIT TO RR BR 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> (A)	8-97247-858-3	01	1	0106-		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (A) FRONT	8-97206-419-0	01	1	9906-0105	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (B) REAR	8-97206-420-0	01	1	9906-0105	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (B) REAR	8-97122-632-2	01	1	9812-0105	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) FRT INDEPENDENT SUSPENSION(6PP) (A) FRONT	8-97122-636-1	01	1	9812-0105	●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97247-850-2	01	1	0001-0105		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97247-851-2	01	1	0001-0105		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) (B) REAR	8-97122-631-0	01	1	9812-9905		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) (B) REAR	8-97122-631-0	01	1	9906-9912		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR	8-97122-631-0	01	1	0001-0105		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) (A) FRONT	8-97200-626-0	01	1	9812-9901		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC) (A) FRONT	8-97225-305-0	01	1	9902-9905		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) (A) FRONT	8-97225-305-0	01	1	9906-9912		●
95	04.686 PIPE ASM; BRK,6 WAY 2 WAY 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT	8-97225-305-0	01	1	0001-0105		●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (A) FRONT	8-97259-356-2	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) (B) REAR	8-97259-358-2	01	1	0106-	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (A) FRONT	8-97259-508-0	01	1	0106-		●	●
99	04.686 PIPE ASM; 4/5/6 WAY 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> (B) REAR	8-97259-509-1	01	1	0106-		●	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-362-2	01	1	0106-	●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97247-854-1	01	1	0001-0105		●
103	04.686 PIPE; BRK,3 WAY TO HYDRAULIC UNI 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL>	8-97247-854-1	01	1	0106-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
