3-50 — BRAKE PIPING; OIL,MASTER CYLINDER (#45614) — 63 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JG2 ENG(RJC)	8-97100-892-0	01	1	9812-9905	●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97100-892-0	01	1	9906-9911	●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-97100-892-0	01	1	9912-0105	●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97305-268-1	01	1	0106-	●
35	04.685 PIPE; BRK,VLV TO RR AXLE	8-97070-371-0	01	1	9812-9912		●
35	04.685 PIPE; BRK,VLV TO RR AXLE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97070-371-0	01	1	0001-0105		●
35	04.685 PIPE; BRK,VLV TO RR AXLE 4JH1 ENG(RJX) CHARGE AIR COOLER<6PL> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97259-523-1	01	1	0106-		●	●

18 24 100 100 89 72 138 228 103 90 103 72 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

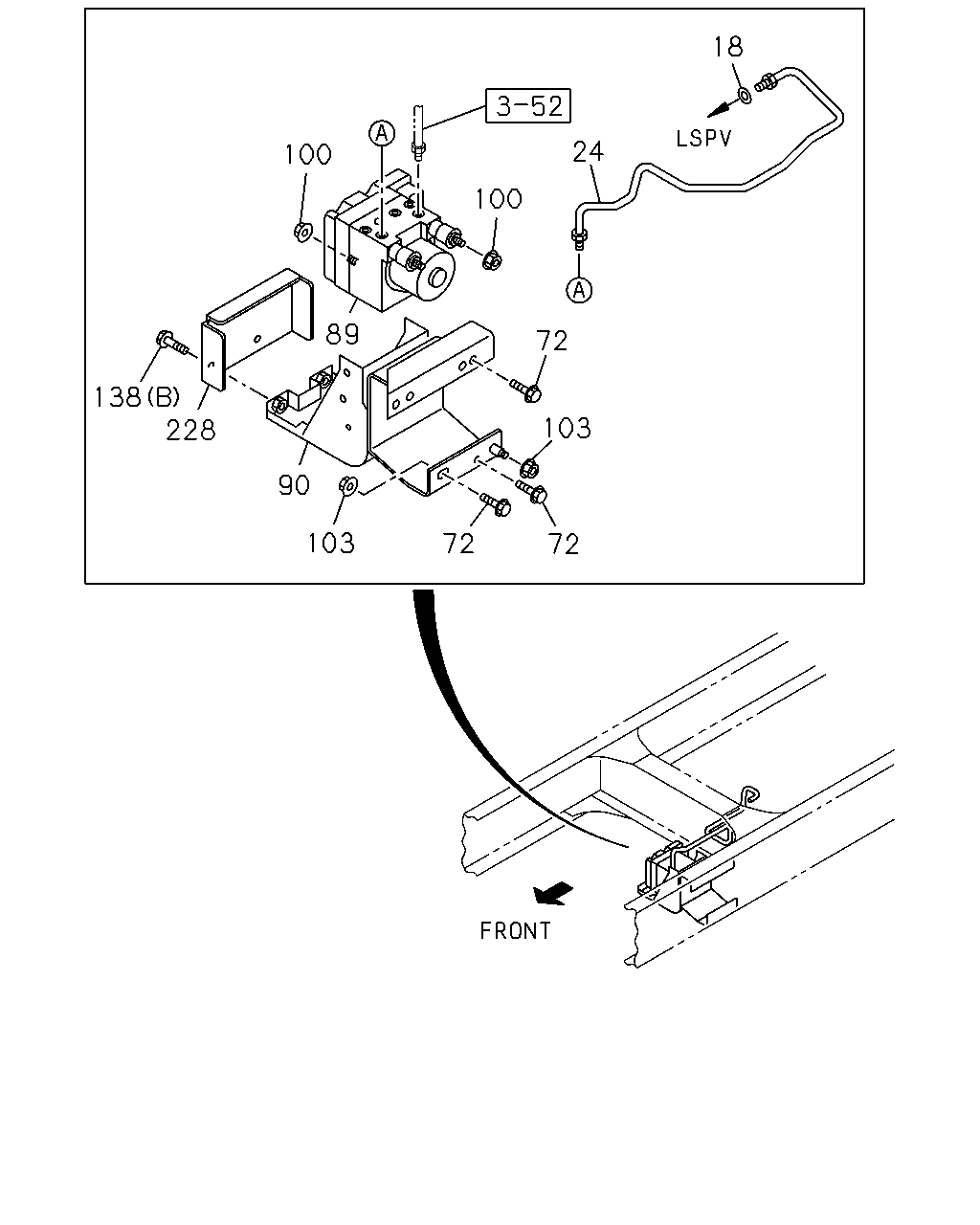

18	04.685 WASHER; PL,VALVE 4 WHEEL ANTI LOCK BRAKE<JE5> 03.706 ID=10.5 OD=32	9-09164-810-0	01	1	0001-0003		●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL> FRT INDEPENDENT SUSPENSION(6PP)	8-97259-361-3	01	1	0106-	●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97247-855-3	01	1	0001-0105		●
24	04.685 PIPE; BRK,PROPORTIONING VLV 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> CHARGE AIR COOLER<6PL>	8-97247-855-3	01	1	0106-		●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 03.405 M10X25 FLANGE	0-28681-025-0	03	1	0001-0105		●
72	04.686 BOLT; BRKT TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> 03.405 M10X25 FLANGE	0-28681-025-0	03	1	0106-	●	●	●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97255-106-2	01	1	0001-0105		●
89	04.730 HYDRAULIC UNIT; ANTI LOCK BRK 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97255-106-3	01	1	0106-	●	●	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97245-501-0	01	1	0106-	●
90	04.730 BRACKET; HYDRAULIC UNIT,ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97245-498-2	01	1	0001-		●	●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	03	1	0001-0105		●
100	04.730 NUT; HYDRAULIC UNIT 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	03	1	0106-	●	●	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 M10 FLANGE	0-91150-110-0	02	1	0106-	●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 M10 FLANGE	0-91150-110-0	02	1	0001-0105		●
103	04.730 NUT; HYDRAULIC UNIT BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 04.785 M10 FLANGE	0-91150-110-0	03	1	0106-		●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (B) M8X12 FLANGE	0-28080-812-0	02	1	0001-0105		●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (B) M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 04.640 (A) M10X12 FLANGE	0-28081-012-0	02	1	0001-		●	●
228	04.730 COVER; ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97233-083-0	01	1	0001-0105		●
228	04.730 COVER; ABS 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97233-083-0	01	1	0106-	●	●	●

19 56 145 146 56 59 146 59 7 7 9 155 8 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

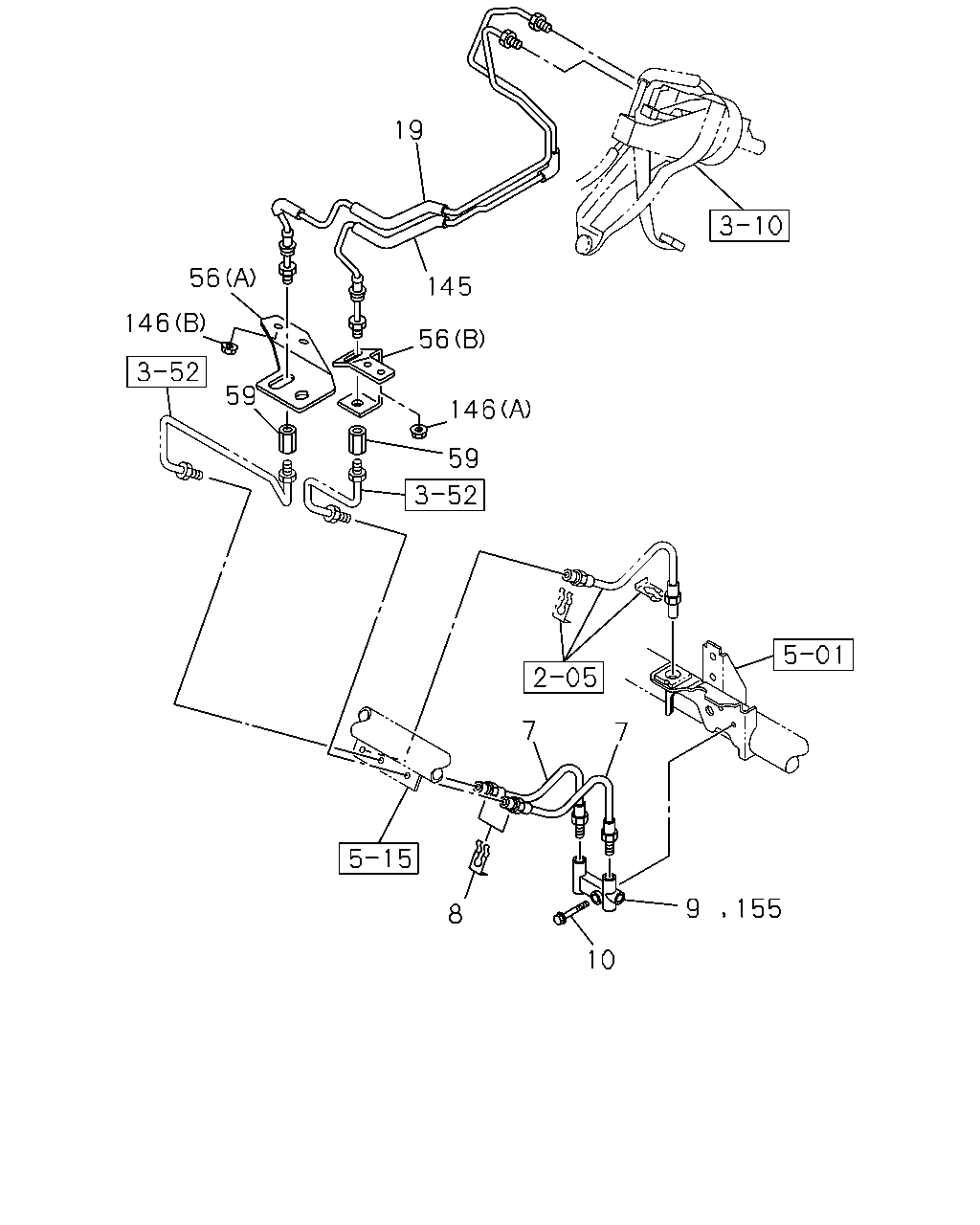

7	04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT	8-97171-031-0	02	1	9812-	●	●	●
8	04.681 CLIP; FLEX HOSE,CABLE SIDE 00.785	8-94167-006-0	02	1	9812-	●	●	●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97139-922-0	01	1	0001-0105		●
9	04.686 JOINT; BRK & CLU PIPE,CAB SIDE 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97139-922-1	01	1	0106-	●	●	●
10	04.686 BOLT; JOINT 03.163 M6X40 FLANGE	0-28680-640-0	01	1	9812-	●	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97119-828-0	01	1	9812-0109	●	●
19	04.685 PIPE; BRK,M/CYL TO UNION	8-97314-591-0	01	1	0110-	●	●	●
56	04.686 BRACKET; UNION,BRK (A)	8-97102-365-0	01	1	9812-	●	●	●
56	04.686 BRACKET; UNION,BRK (B)	8-97102-366-2	01	1	9812-	●	●	●
59	04.686 UNION; BRK PIPE 08.963 M10 STRAIGHT	9-09227-005-0	02	1	9812-	●	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97119-827-0	01	1	9812-0109	●	●
145	04.685 PIPE; BRK,METERING VLV TO UNION	8-97314-584-0	01	1	0110-	●	●	●
146	04.685 NUT; BRKT 04.594 (A) M6 FLANGE	0-91150-106-0	02	1	9812-	●	●	●
146	04.685 NUT; BRKT 07.633 (B) M8 FLANGE	0-91150-108-0	02	1	9812-	●	●	●
155	04.686 JOINT; 6WAY	8-97120-033-1	01	1	9812-9912	●	●
155	04.686 JOINT; 6WAY	8-97120-033-1	01	1	0001-0105	●
155	04.686 JOINT; 6WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97120-033-1	01	1	0001-0105		●
155	04.686 JOINT; 6WAY EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97120-033-2	01	1	0106-	●	●	●

147 143 142 95 147 131 138 130 147

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

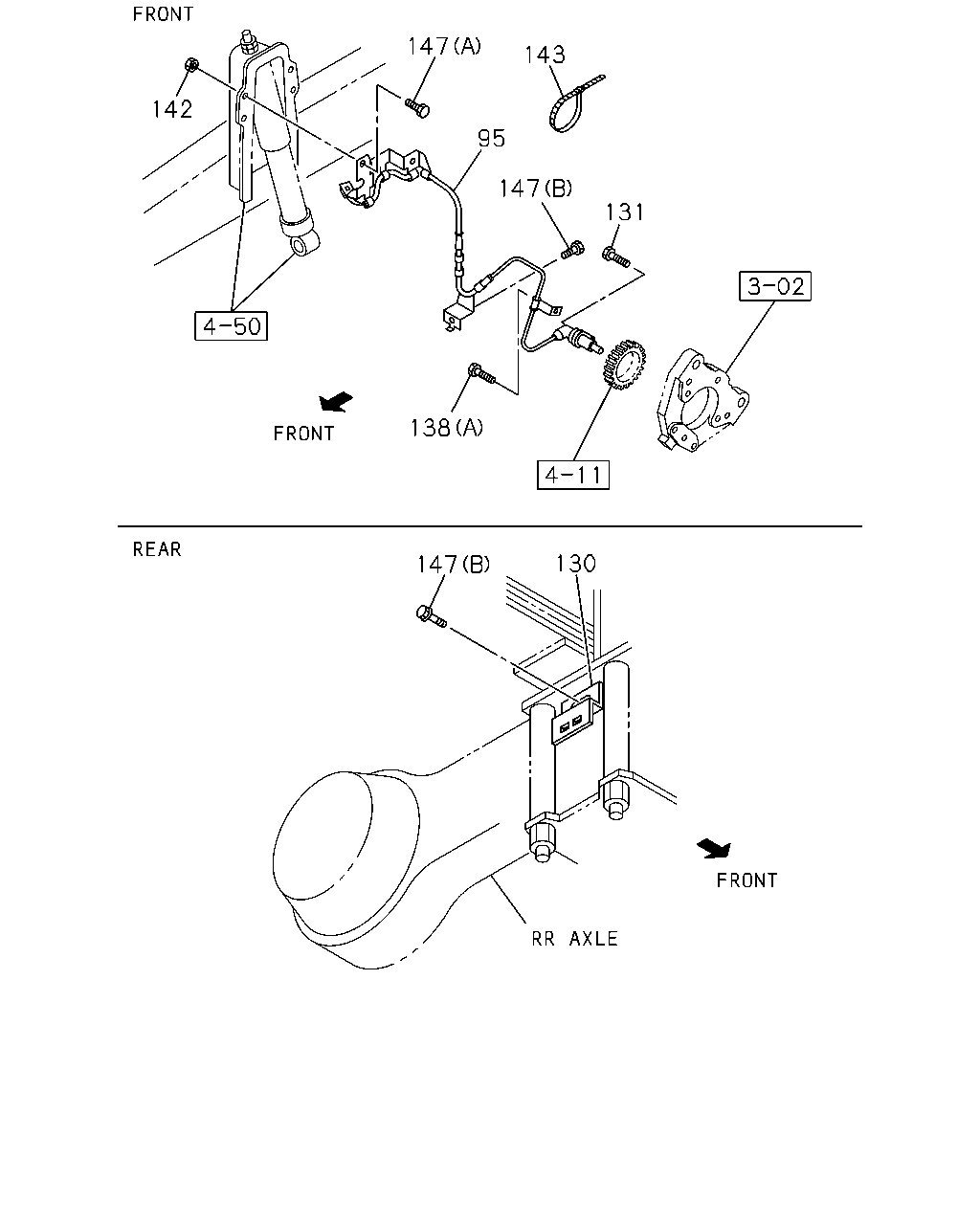

95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97118-930-1	01	1	0001-0003		●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97258-317-2	01	1	0004-		●	●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97252-220-0	01	1	0001-0003		●
95	04.710 SENSOR; SPD,FRT WHEEL 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97258-316-2	01	1	0004-		●	●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97080-060-2	02	1	0001-0105		●
130	04.686 BRACKET; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97080-060-2	02	1	0106-	●	●	●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0001-0105		●
131	04.710 BOLT; BRKT 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (B) M8X12 FLANGE	0-28080-812-0	02	1	0001-0105		●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (B) M8X12 FLANGE	0-28080-812-0	02	1	0106-	●	●	●
138	04.720 BOLT; COVER 4 WHEEL ANTI LOCK BRAKE<JE5> 04.640 (A) M10X12 FLANGE	0-28081-012-0	02	1	0001-		●	●
142	04.710 NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	04	1	0001-0012		●
142	04.710 NUT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 07.633 M8 FLANGE	0-91150-108-0	02	1	0101-		●	●
143	04.710 CLIP; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 03.162 L=140	5-09707-031-1	01	1	0106-	●	●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 07.010 (A) M8X20 FLANGE	0-28080-820-0	02	1	0106-	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 (B) M8X12 FLANGE	0-28080-812-0	04	1	0001-		●	●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 (A) M8X20 FLANGE	0-28680-820-0	04	1	0001-0012		●
147	04.710 BOLT; SPEED SENSOR 4 WHEEL ANTI LOCK BRAKE<JE5> 02.664 (A) M8X20 FLANGE	0-28680-820-0	02	1	0101-		●	●
