3-30 — BRAKE MASTER CYLINDER (#45611) — 102 parça

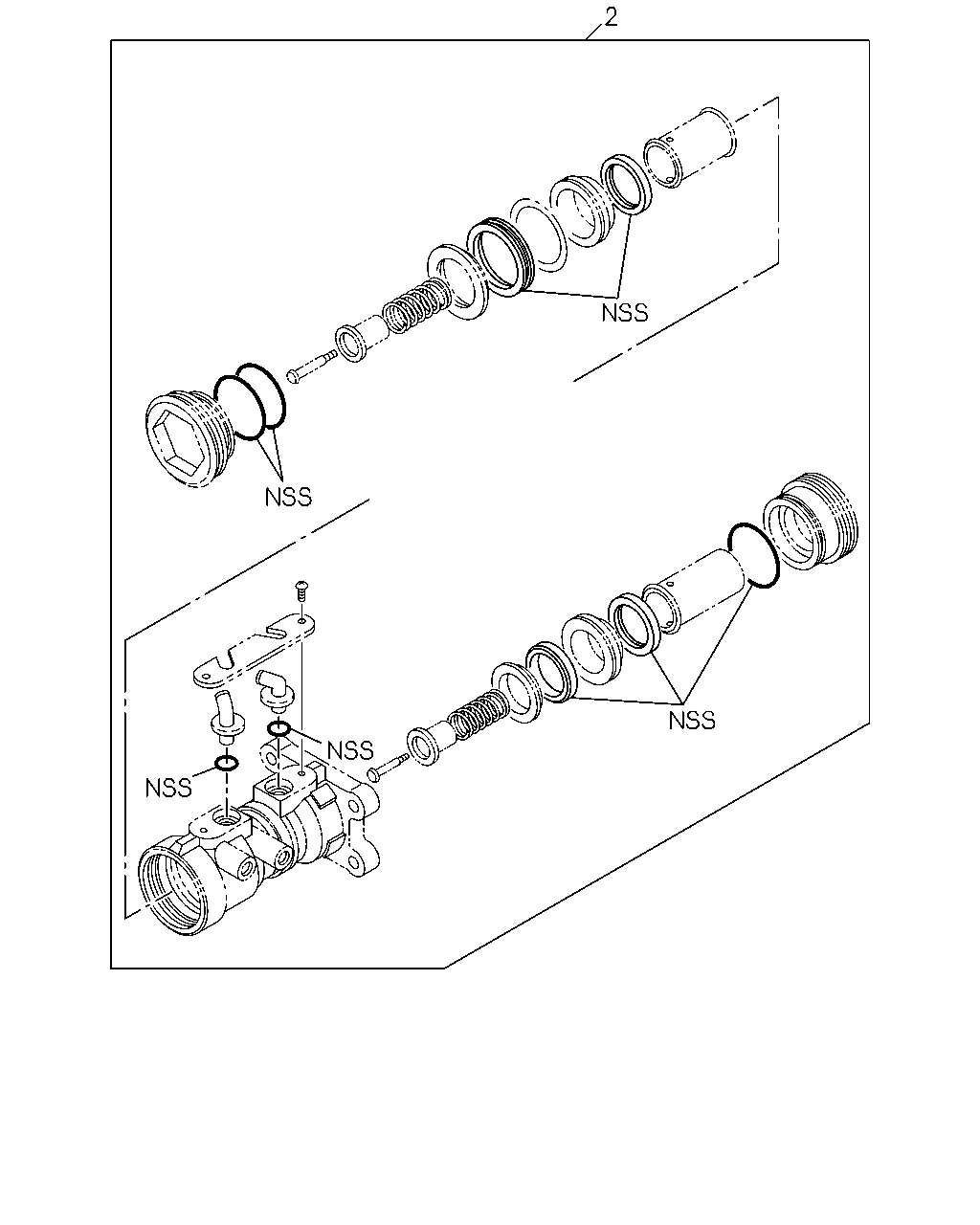

çizim 11333
2
BalonParca AdiParca NoAdetTipApplied Date A B C
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 9812-9812 ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-470-0 01 1 9901-0105 ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JG2 ENG(RJC) 		8-97130-470-0 01 1 9901-0105 ●
2 04.649 REPAIR KIT; BRK,M/CYL
FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-470-0 01 1 0106- ●
2 04.649 REPAIR KIT; BRK,M/CYL 8-97130-471-0 01 1 9812-9812 ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JB1 ENG(RLF) 		8-97141-423-0 01 1 9906-0105 ●
2 04.649 REPAIR KIT; BRK,M/CYL
4JH1 ENG(RJX) 		8-97141-423-0 01 1 0106- ● ●

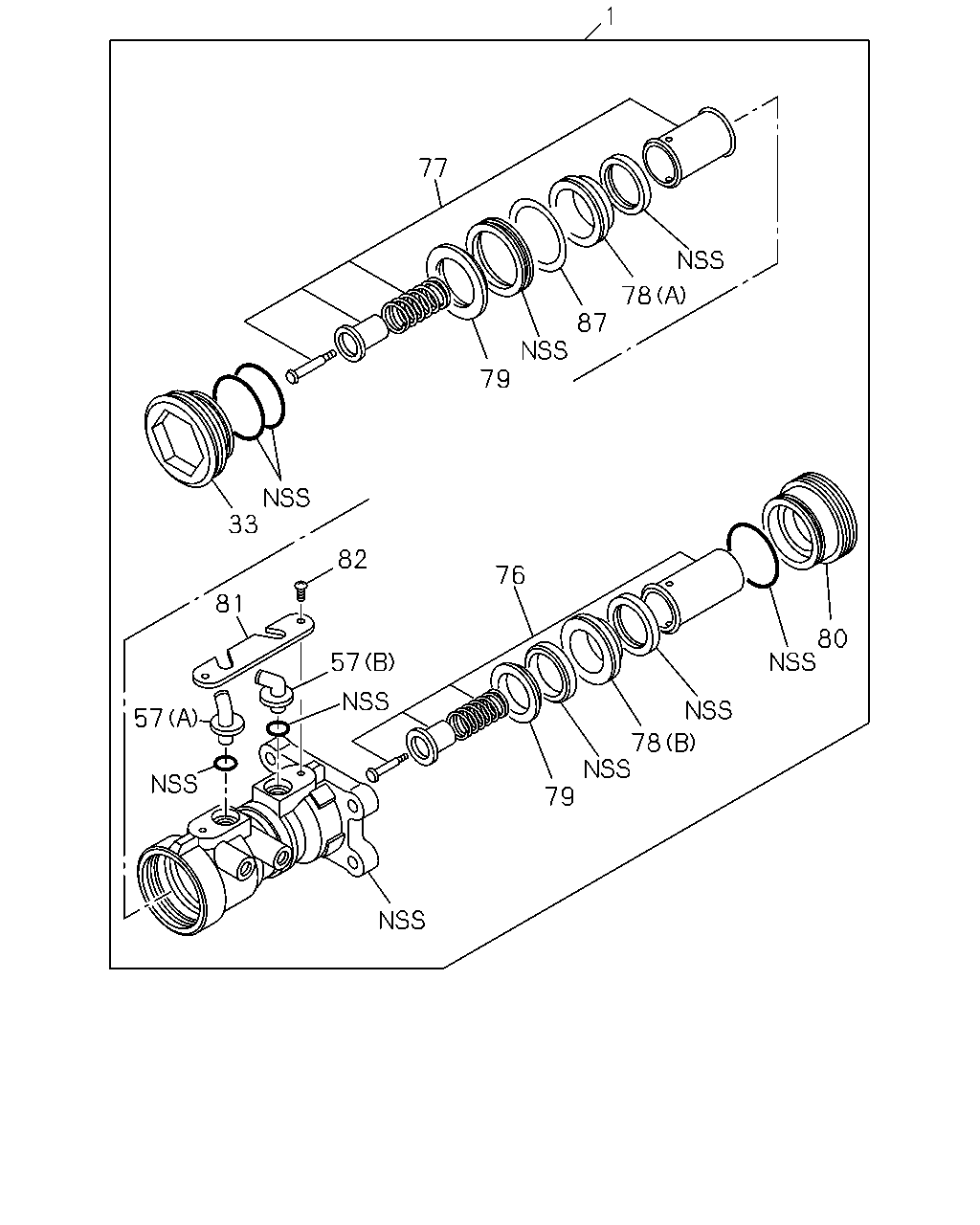

çizim 49213
1 77 78 87 79 33 82 76 81 80 57 57 78 79
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.650 CYLINDER ASM; BRK MASTER
G.V.W. 3.5-4.0TON(RPQ) FRT INDEPENDENT SUSPENSION(6PP) 		8-97186-686-0 01 1 9812-9812 ●
1 04.650 CYLINDER ASM; BRK MASTER 8-97219-307-0 01 1 9901-9901 ●
1 04.650 CYLINDER ASM; BRK MASTER
4JG2 ENG(RJC) 		8-97219-307-0 01 1 9901-9901 ●
1 04.650 CYLINDER ASM; BRK MASTER 8-97224-374-0 01 1 9902-0105 ●
1 04.650 CYLINDER ASM; BRK MASTER
4JG2 ENG(RJC) 		8-97224-374-0 01 1 9902-0105 ●
1 04.650 CYLINDER ASM; BRK MASTER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97224-374-0 01 1 0106-0109 ●
1 04.650 CYLINDER ASM; BRK MASTER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97315-164-0 01 1 0110- ●
1 04.650 CYLINDER ASM; BRK MASTER 8-97186-688-0 01 1 9812-9812 ●
1 04.650 CYLINDER ASM; BRK MASTER
4JB1 ENG(RLF) 		8-97224-367-0 01 1 9906-0105 ●
1 04.650 CYLINDER ASM; BRK MASTER
4JH1 ENG(RJX) 		8-97224-367-0 01 1 0106-0109 ●
1 04.650 CYLINDER ASM; BRK MASTER
4JH1 ENG(RJX) 		8-97315-165-0 01 1 0110- ● ●
33 04.661 PLUG; END,M/CYL 8-97186-696-0 01 1 9812-9812 ●
33 04.661 PLUG; END,M/CYL 8-97186-696-0 01 1 9901-0105 ●
33 04.661 PLUG; END,M/CYL
4JG2 ENG(RJC) 		8-97186-696-0 01 1 9901-0105 ●
33 04.661 PLUG; END,M/CYL
FRT INDEPENDENT SUSPENSION(6PP) 		8-97186-696-0 01 1 0106- ●
33 04.661 PLUG; END,M/CYL 8-97186-697-0 01 1 9812-9812 ●
33 04.661 PLUG; END,M/CYL
4JB1 ENG(RLF) 		8-97186-698-0 01 1 9906-0105 ●
33 04.661 PLUG; END,M/CYL
4JH1 ENG(RJX) 		8-97186-698-0 01 1 0106- ● ●
57 04.651 NIPPLE; BRK M/CYL
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97130-441-0 01 1 0110- ●
57 04.651 NIPPLE; BRK M/CYL
4JH1 ENG(RJX) (A) 		8-97130-441-0 01 1 0110- ● ●
57 04.651 NIPPLE; BRK M/CYL
(A),(B) 		8-97130-442-0 02 1 9812-9812 ● ●
57 04.651 NIPPLE; BRK M/CYL
(A),(B) 		8-97130-442-0 02 1 9901-9905 ●
57 04.651 NIPPLE; BRK M/CYL
4JG2 ENG(RJC) (A),(B) 		8-97130-442-0 02 1 9901-9905 ●
57 04.651 NIPPLE; BRK M/CYL
(A),(B) 		8-97130-442-0 02 1 9906-0105 ● ●
57 04.651 NIPPLE; BRK M/CYL
FRT INDEPENDENT SUSPENSION(6PP) (A),(B) 		8-97130-442-0 02 1 0106-0109 ●
57 04.651 NIPPLE; BRK M/CYL
4JH1 ENG(RJX) (A),(B) 		8-97130-442-0 02 1 0106-0109 ●
57 04.651 NIPPLE; BRK M/CYL
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97130-442-0 01 1 0110- ●
57 04.651 NIPPLE; BRK M/CYL
4JH1 ENG(RJX) (B) 		8-97130-442-0 01 1 0110- ● ●
76 04.653 PISTON ASM; PRIMARY 8-97130-464-0 01 1 9812-9812 ●
76 04.653 PISTON ASM; PRIMARY 8-97130-464-0 01 1 9901-9901 ●
76 04.653 PISTON ASM; PRIMARY
4JG2 ENG(RJC) 		8-97130-464-0 01 1 9901-9901 ●
76 04.653 PISTON ASM; PRIMARY 8-97224-636-0 01 1 9902-0105 ●
76 04.653 PISTON ASM; PRIMARY
4JG2 ENG(RJC) 		8-97224-636-0 01 1 9902-0105 ●
76 04.653 PISTON ASM; PRIMARY
FRT INDEPENDENT SUSPENSION(6PP) 		8-97224-636-0 01 1 0106- ●
76 04.653 PISTON ASM; PRIMARY 8-97130-465-0 01 1 9812-9812 ●
76 04.653 PISTON ASM; PRIMARY
4JB1 ENG(RLF) 		8-97224-639-0 01 1 9906-0105 ●
76 04.653 PISTON ASM; PRIMARY
4JH1 ENG(RJX) 		8-97224-639-0 01 1 0106- ● ●
77 04.653 PISTON ASM; SECONDARY 8-97130-466-0 01 1 9812-9812 ●
77 04.653 PISTON ASM; SECONDARY 8-97130-466-0 01 1 9901-9901 ●
77 04.653 PISTON ASM; SECONDARY
4JG2 ENG(RJC) 		8-97130-466-0 01 1 9901-9901 ●
77 04.653 PISTON ASM; SECONDARY 8-97224-635-0 01 1 9902-0105 ●
77 04.653 PISTON ASM; SECONDARY
4JG2 ENG(RJC) 		8-97224-635-0 01 1 9902-0105 ●
77 04.653 PISTON ASM; SECONDARY
FRT INDEPENDENT SUSPENSION(6PP) 		8-97224-635-0 01 1 0106- ●
77 04.653 PISTON ASM; SECONDARY 8-97130-467-0 01 1 9812-9812 ●
77 04.653 PISTON ASM; SECONDARY
4JB1 ENG(RLF) 		8-97224-637-0 01 1 9906-0105 ●
77 04.653 PISTON ASM; SECONDARY
4JH1 ENG(RJX) 		8-97224-637-0 01 1 0106- ● ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 9812-9812 ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-454-0 01 1 9901-0105 ●
78 04.651 BUSHING; MASTER CYL
4JG2 ENG(RJC) (A) 		8-97130-454-0 01 1 9901-0105 ●
78 04.651 BUSHING; MASTER CYL
FRT INDEPENDENT SUSPENSION(6PP) (A) 		8-97130-454-0 01 1 0106- ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97130-456-0 01 1 9812-9812 ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97217-310-0 01 1 9901-0105 ●
78 04.651 BUSHING; MASTER CYL
4JG2 ENG(RJC) (B) 		8-97217-310-0 01 1 9901-0105 ●
78 04.651 BUSHING; MASTER CYL
FRT INDEPENDENT SUSPENSION(6PP) (B) 		8-97217-310-0 01 1 0106- ●
78 04.651 BUSHING; MASTER CYL
(A) 		8-97130-455-0 01 1 9812-9812 ●
78 04.651 BUSHING; MASTER CYL
(B) 		8-97130-457-0 01 1 9812-9812 ●
78 04.651 BUSHING; MASTER CYL
4JB1 ENG(RLF) (B) 		8-97141-410-0 01 1 9906-0105 ●
78 04.651 BUSHING; MASTER CYL
4JH1 ENG(RJX) (B) 		8-97141-410-0 01 1 0106- ● ●
78 04.651 BUSHING; MASTER CYL
4JB1 ENG(RLF) (A) 		8-97217-830-0 01 1 9906-0105 ●
78 04.651 BUSHING; MASTER CYL
4JH1 ENG(RJX) (A) 		8-97217-830-0 01 1 0106- ● ●
79 04.651 SUPPORTER; CUP 8-97130-462-0 02 1 9812-9812 ●
79 04.651 SUPPORTER; CUP 8-97130-462-0 02 1 9901-0105 ●
79 04.651 SUPPORTER; CUP
4JG2 ENG(RJC) 		8-97130-462-0 02 1 9901-0105 ●
79 04.651 SUPPORTER; CUP
FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-462-0 02 1 0106- ●
79 04.651 SUPPORTER; CUP 8-97130-463-0 02 1 9812-9812 ●
79 04.651 SUPPORTER; CUP
4JB1 ENG(RLF) 		8-97141-417-0 02 1 9906-0105 ●
79 04.651 SUPPORTER; CUP
4JH1 ENG(RJX) 		8-97141-417-0 02 1 0106- ● ●
80 04.651 COVER; MASTER CYL 8-97130-448-0 01 1 9812-9812 ●
80 04.651 COVER; MASTER CYL 8-97130-448-0 01 1 9901-0105 ●
80 04.651 COVER; MASTER CYL
4JG2 ENG(RJC) 		8-97130-448-0 01 1 9901-0105 ●
80 04.651 COVER; MASTER CYL
FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-448-0 01 1 0106- ●
80 04.651 COVER; MASTER CYL 8-97130-449-0 01 1 9812-9812 ●
80 04.651 COVER; MASTER CYL
4JB1 ENG(RLF) 		8-97141-404-0 01 1 9906-0105 ●
80 04.651 COVER; MASTER CYL
4JH1 ENG(RJX) 		8-97141-404-0 01 1 0106- ● ●
81 04.651 HOLDER; NIPPLE 8-97130-445-0 01 1 9812-9812 ● ●
81 04.651 HOLDER; NIPPLE 8-97130-445-0 01 1 9901-9905 ●
81 04.651 HOLDER; NIPPLE
4JG2 ENG(RJC) 		8-97130-445-0 01 1 9901-9905 ●
81 04.651 HOLDER; NIPPLE 8-97130-445-0 01 1 9906-0105 ● ●
81 04.651 HOLDER; NIPPLE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-445-0 01 1 0106-0109 ●
81 04.651 HOLDER; NIPPLE
4JH1 ENG(RJX) 		8-97130-445-0 01 1 0106-0109 ●
81 04.651 HOLDER; NIPPLE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97315-168-0 01 1 0110- ●
81 04.651 HOLDER; NIPPLE
4JH1 ENG(RJX) 		8-97315-168-0 01 1 0110- ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 9812-9812 ● ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 9901-9905 ●
82 04.651 SCREW; HOLDER
4JG2 ENG(RJC) 		8-97130-446-0 02 1 9901-9905 ●
82 04.651 SCREW; HOLDER 8-97130-446-0 02 1 9906-0105 ● ●
82 04.651 SCREW; HOLDER
FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-446-0 02 1 0106- ●
82 04.651 SCREW; HOLDER
4JH1 ENG(RJX) 		8-97130-446-0 02 1 0106- ● ●
87 04.662 SPACER; CUP 8-97130-458-0 01 1 9812-9812 ●
87 04.662 SPACER; CUP 8-97130-458-0 01 1 9901-0105 ●
87 04.662 SPACER; CUP
4JG2 ENG(RJC) 		8-97130-458-0 01 1 9901-0105 ●
87 04.662 SPACER; CUP
FRT INDEPENDENT SUSPENSION(6PP) 		8-97130-458-0 01 1 0106- ●
87 04.662 SPACER; CUP 8-97130-459-0 01 1 9812-9812 ●
87 04.662 SPACER; CUP
4JB1 ENG(RLF) 		8-97141-413-0 01 1 9906-0105 ●
87 04.662 SPACER; CUP
4JH1 ENG(RJX) 		8-97141-413-0 01 1 0106- ● ●
