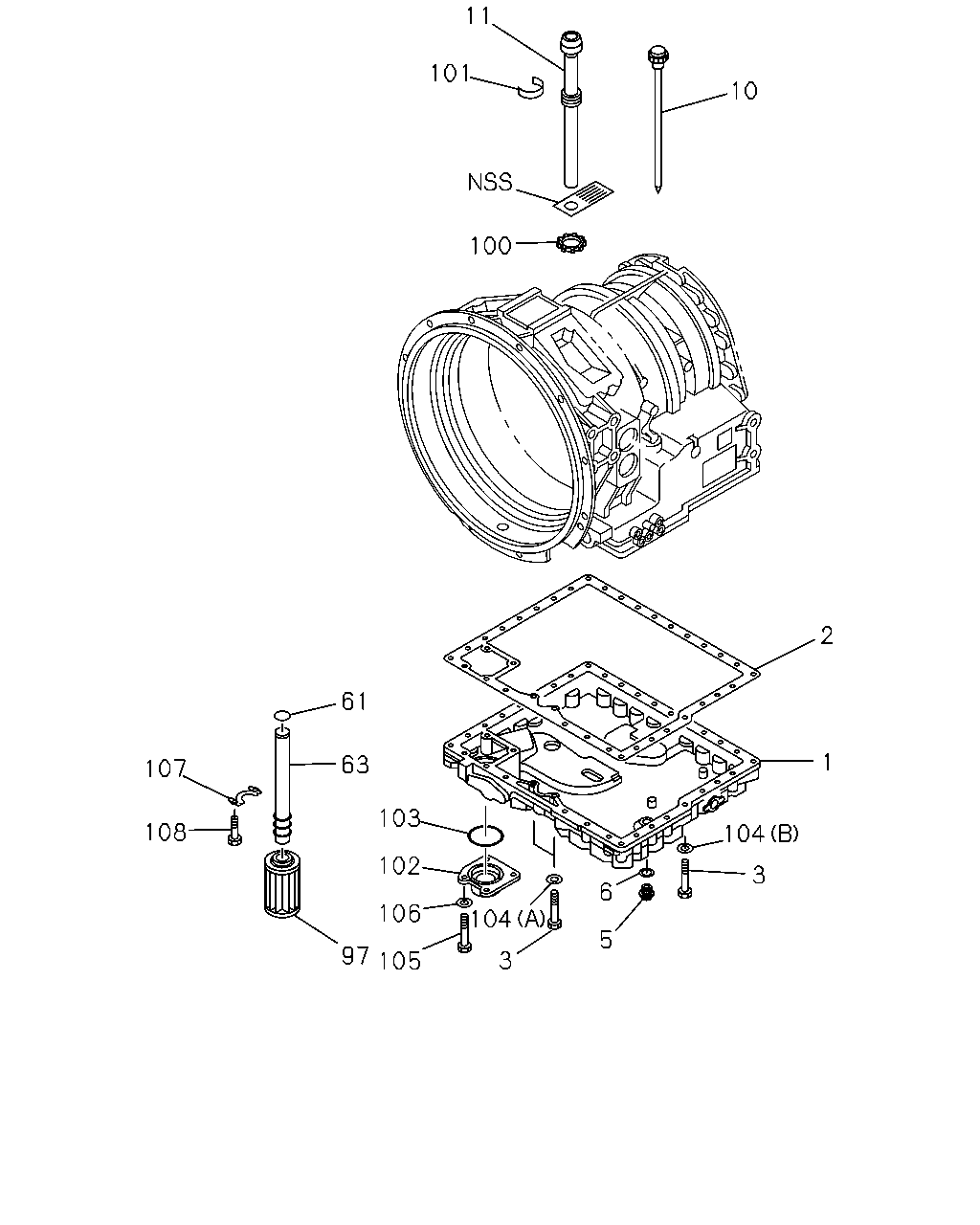

2-42 — AUTO TRANS OIL PAN AND OIL CONTROL
(#4561) — 20 parça
11
101
10
100
2
61
1
63
107
103
108
104
102
3
6
106
104
5
97
3
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL,A/T
1-34131-011-0
01
1
9712-
2
GASKET; OIL PAN,A/T
1-34132-012-0
01
1
9712-
3
BOLT; OIL PAN TO CASE
M8X60
1-09089-010-0
27
1
9712-
5
PLUG; OIL PAN
1-34139-032-0
01
1
9712-
6
GASKET; OIL PAN TO PLUG
ID=22
1-32568-001-0
01
1
9712-
10
GAUGE; OIL LEVEL
1-34121-123-0
01
1
9712-
11
TUBE; OIL FILLER
1-34129-057-0
01
1
9712-
61
SEAL; OIL FILTER
1-34139-033-0
01
1
9712-
63
PIPE; INT,A/T
1-34139-037-0
01
1
9712-
97
FILTER; OIL
1-34139-035-0
01
1
9712-
100
NUT; FILLER TUBE
1-34129-097-0
01
1
9712-
101
TAPE; FILLER TUBE
12X300
1-34129-058-0
01
1
9712-
102
COVER; OIL PAN
1-34131-014-0
01
1
9712-
103
GASKET; COVER
1-09623-606-0
01
1
9712-
104
WASHER; OIL PAN
(A)
1-09630-136-0
02
1
9712-
104
WASHER; OIL PAN
(B)
1-33549-159-0
25
1
9712-
105
BOLT; COVER
1-34139-049-0
10
1
9712-
106
WASHER; COVER
1-33549-159-0
10
1
9712-
107
PLATE; PIPE
1-34139-038-0
01
1
9712-
108
BOLT; PLATE
1-34139-050-0
02
1
9712-
