◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50810 - NKR(EUROPE)-LHD ▶ 3 - Brakes, Brake System ▶ 3-15 - ANTILOCK BRAKE SYSTEM(A.B.S.) ▶
3-15 — ANTILOCK BRAKE SYSTEM(A.B.S.) (#45609) — 13 parça

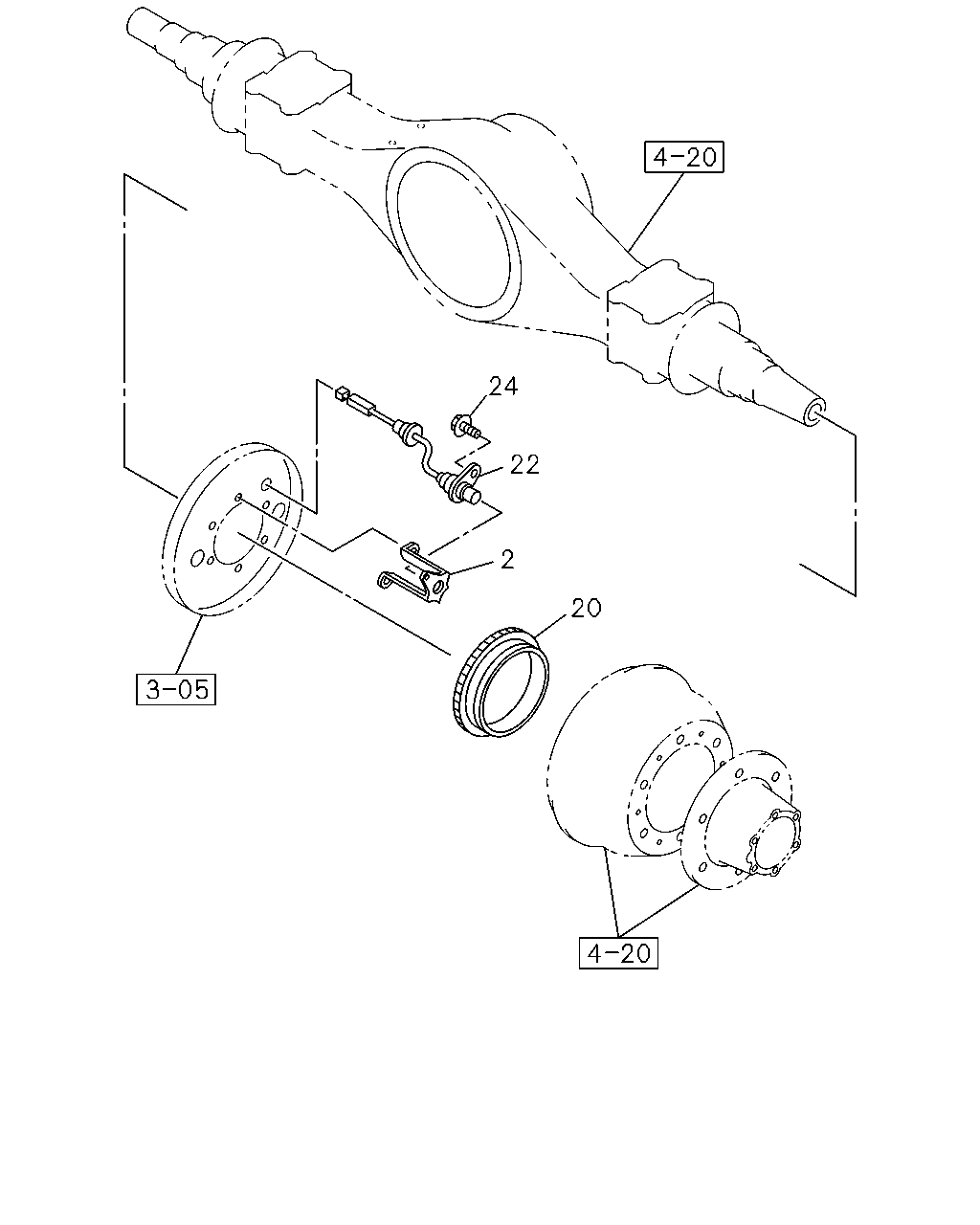

çizim 46263
24 22 2 20
BalonParca AdiParca NoAdetTipApplied Date A B C
2 04.730 BRACKET; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97239-529-0 02 1 0106- ●
2 04.730 BRACKET; SENSOR
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97222-719-0 02 1 0001-0002 ●
2 04.730 BRACKET; SENSOR
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97248-115-0 02 1 0003-0105 ●
2 04.730 BRACKET; SENSOR
4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97314-120-0 02 1 0106- ● ●
20 04.710 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97239-527-0 02 1 0106- ●
20 04.710 ROTOR; SENSOR
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97234-459-2 02 1 0001-0105 ●
20 04.710 ROTOR; SENSOR
4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97234-459-2 02 1 0106- ● ●
22 04.710 SENSOR; SPEED
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97184-314-2 02 1 0001-0105 ●
22 04.710 SENSOR; SPEED
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 		8-97184-314-3 02 1 0106- ●
22 04.710 SENSOR; SPEED
4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97184-314-3 02 1 0106- ● ●
24 04.730 BOLT; SENSOR
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR AXLE HEAVY DUTY 292MM(G73) FINAL GEAR RATIO 41/7(R41) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0001-0105 ●
24 04.730 BOLT; SENSOR
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0106- ●
24 04.730 BOLT; SENSOR
4JH1 ENG(RJX) FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/9(S2J) 4 WHEEL ANTI LOCK BRAKE<JE5> 08.900 M8X12 FLANGE 		0-28080-812-0 02 1 0106- ● ●
