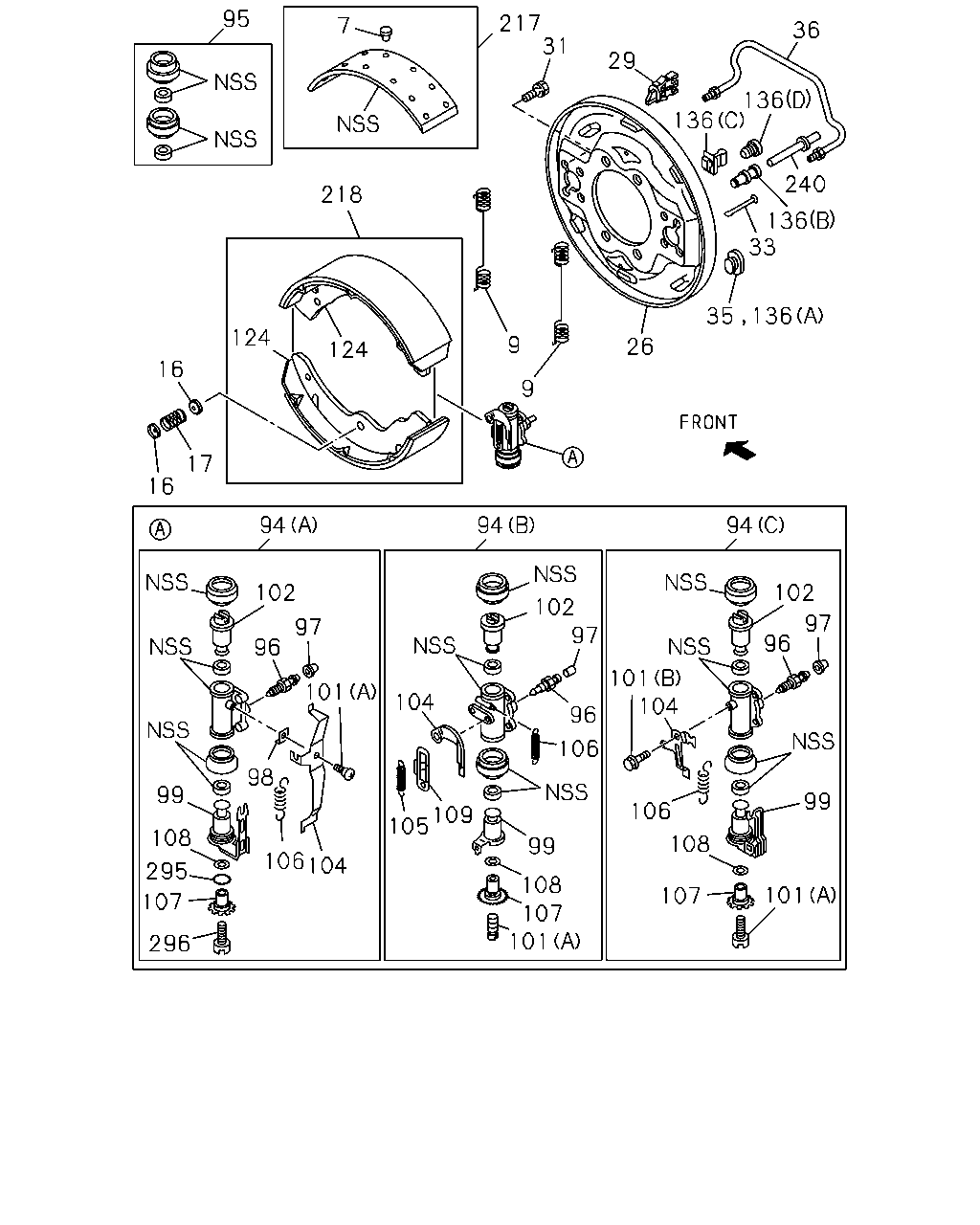

7 |
05.019 RIVET; LINING,RR BRK
|
1-09732-029-0 |
40 |
1 |
9812-0105 |
● |
|
|
| |
7 |
05.019 RIVET; LINING,RR BRK
4JH1 ENG(RJX)
|
1-09732-029-0 |
40 |
1 |
0106- |
● |
● |
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
|
8-97095-330-0 |
04 |
1 |
9812-0105 |
|
|
● |
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
|
8-97191-707-0 |
04 |
1 |
0106- |
|
|
● |
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
|
5-09583-118-0 |
04 |
1 |
9812-0105 |
● |
|
|
| |
9 |
05.026 SPRING; RETURN,BRK SHOE
4JH1 ENG(RJX)
|
5-09583-118-0 |
04 |
1 |
0106- |
● |
● |
|
| |
16 |
05.043 CUP; SHOE HOLDING
|
9-47162-033-0 |
08 |
1 |
9812-0105 |
|
|
● |
| |
16 |
05.043 CUP; SHOE HOLDING
|
8-97191-712-0 |
08 |
1 |
0106- |
|
|
● |
| |
16 |
05.043 CUP; SHOE HOLDING
|
9-47165-096-0 |
08 |
1 |
9812-0105 |
● |
|
|
| |
16 |
05.043 CUP; SHOE HOLDING
4JH1 ENG(RJX)
|
9-47165-096-0 |
08 |
1 |
0106- |
● |
● |
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
05.043
|
9-09940-989-1 |
04 |
1 |
9812-0105 |
|
|
● |
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
|
8-97191-708-0 |
04 |
1 |
0106- |
|
|
● |
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
05.043
|
5-09580-101-1 |
04 |
1 |
9812-0105 |
● |
|
|
| |
17 |
04.043 SPRING; SHOE HOLD DOWN
4JH1 ENG(RJX)
05.043
|
5-09580-101-1 |
04 |
1 |
0106- |
● |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97078-674-0 |
01 |
1 |
9812-0105 |
|
|
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97239-300-0 |
01 |
1 |
0106- |
|
|
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97078-673-0 |
01 |
1 |
9812-0105 |
|
|
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97239-299-0 |
01 |
1 |
0106- |
|
|
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97191-496-0 |
01 |
1 |
0106- |
|
|
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97191-495-0 |
01 |
1 |
0106- |
|
|
● |
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97079-849-0 |
01 |
1 |
9812-9912 |
● |
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97079-849-0 |
01 |
1 |
0001-0105 |
● |
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
|
8-97079-849-0 |
01 |
1 |
0001-0105 |
● |
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97079-849-0 |
01 |
1 |
0106-0203 |
● |
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97079-849-0 |
01 |
1 |
0204-0212 |
● |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
LIMITED SLIP DIFF<6LV>
|
8-97079-849-0 |
01 |
1 |
0301- |
● |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97079-849-0 |
01 |
1 |
0301- |
● |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
|
8-97079-848-0 |
01 |
1 |
9812-9912 |
● |
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97079-848-0 |
01 |
1 |
0001-0105 |
● |
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
|
8-97079-848-0 |
01 |
1 |
0001-0105 |
● |
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97079-848-0 |
01 |
1 |
0106-0203 |
● |
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97079-848-0 |
01 |
1 |
0204-0212 |
● |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
LIMITED SLIP DIFF<6LV>
|
8-97079-848-0 |
01 |
1 |
0301- |
● |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97079-848-0 |
01 |
1 |
0301- |
● |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97079-855-0 |
01 |
1 |
0001-0105 |
● |
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97079-855-0 |
01 |
1 |
0106-0203 |
● |
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97079-855-0 |
01 |
1 |
0204- |
● |
● |
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97079-854-0 |
01 |
1 |
0001-0105 |
● |
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97079-854-0 |
01 |
1 |
0106-0203 |
● |
|
|
| |
26 |
05.001 PLATE; BACK,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97079-854-0 |
01 |
1 |
0204- |
● |
● |
|
| |
29 |
04.685 CLIP; PIPE,BRK
|
8-94128-307-0 |
02 |
1 |
9812-0105 |
|
|
● |
| |
29 |
04.685 CLIP; PIPE,BRK
|
8-97191-703-0 |
02 |
1 |
0106- |
|
|
● |
| |
29 |
04.685 CLIP; PIPE,BRK
|
8-94128-306-0 |
02 |
1 |
9812-0105 |
● |
|
|
| |
29 |
04.685 CLIP; PIPE,BRK
4JH1 ENG(RJX)
|
8-94128-306-0 |
02 |
1 |
0106- |
● |
● |
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
|
5-09030-036-1 |
16 |
1 |
9812-0105 |
|
|
● |
| |
31 |
04.665 BOLT; RR WHEEL CYL
|
8-97191-714-0 |
16 |
1 |
0106- |
|
|
● |
| |
31 |
04.665 BOLT; RR WHEEL CYL
|
5-09030-016-1 |
16 |
1 |
9812-0105 |
● |
|
|
| |
31 |
04.665 BOLT; RR WHEEL CYL
4JH1 ENG(RJX)
|
5-09030-016-1 |
16 |
1 |
0106- |
● |
● |
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
|
9-47162-607-0 |
04 |
1 |
9812-0105 |
|
|
● |
| |
33 |
05.043 PIN; SHOE HOLD DOWN
|
8-97191-711-0 |
04 |
1 |
0106- |
|
|
● |
| |
33 |
05.043 PIN; SHOE HOLD DOWN
|
5-47162-001-0 |
04 |
1 |
9812-0105 |
● |
|
|
| |
33 |
05.043 PIN; SHOE HOLD DOWN
4JH1 ENG(RJX)
|
5-47162-001-0 |
04 |
1 |
0106- |
● |
● |
|
| |
35 |
05.002 GROMMET; CHECK HOLE
|
8-94344-919-0 |
02 |
1 |
9812-0105 |
|
|
● |
| |
35 |
05.002 GROMMET; CHECK HOLE
|
8-97191-720-0 |
02 |
1 |
0106- |
|
|
● |
| |
35 |
05.002 GROMMET; CHECK HOLE
|
8-94171-287-0 |
02 |
1 |
9812-0105 |
● |
|
|
| |
35 |
05.002 GROMMET; CHECK HOLE
4JH1 ENG(RJX)
|
8-94171-287-0 |
02 |
1 |
0106- |
● |
● |
|
| |
36 |
04.685 PIPE; OIL,RR BRK
|
8-94128-192-0 |
02 |
1 |
9812-0105 |
|
|
● |
| |
36 |
04.685 PIPE; OIL,RR BRK
|
8-97191-702-0 |
02 |
1 |
0106- |
|
|
● |
| |
36 |
04.685 PIPE; OIL,RR BRK
|
8-94154-916-0 |
02 |
1 |
9812-0105 |
● |
|
|
| |
36 |
04.685 PIPE; OIL,RR BRK
4JH1 ENG(RJX)
|
8-94154-916-0 |
02 |
1 |
0106- |
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
(B)
|
8-97139-839-0 |
02 |
1 |
9812-0105 |
|
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5>
(A) REAR
|
8-97191-502-0 |
01 |
1 |
0106- |
|
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT
|
8-97139-836-0 |
01 |
1 |
9812-0105 |
|
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
(A) FRONT
|
8-97191-497-0 |
01 |
1 |
0106- |
|
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
(B) REAR
|
8-97139-838-0 |
01 |
1 |
9812-0105 |
|
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
(A) REAR
|
8-97191-499-0 |
01 |
1 |
0106- |
|
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5>
(A) FRONT
|
8-97191-501-0 |
01 |
1 |
0106- |
|
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
(A)
|
8-97191-502-0 |
02 |
1 |
0106- |
|
|
● |
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
(B)
|
8-97139-850-0 |
02 |
1 |
9812-9912 |
● |
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
(B)
|
8-97139-850-0 |
02 |
1 |
0001-0105 |
● |
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
(B)
|
8-97139-850-0 |
02 |
1 |
0001-0105 |
● |
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
(B) REAR
|
8-97139-850-0 |
01 |
1 |
0106-0206 |
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
(C) FRONT
|
8-97349-691-0 |
01 |
1 |
0207- |
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
(B) FRONT
|
8-97139-847-0 |
01 |
1 |
9812-0105 |
● |
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX)
(B) FRONT
|
8-97139-847-0 |
01 |
1 |
0106-0206 |
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX)
(C) REAR
|
8-97349-690-0 |
01 |
1 |
0207- |
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
(B) REAR
|
8-97139-849-0 |
01 |
1 |
9812-0105 |
● |
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX)
(B) REAR
|
8-97139-849-0 |
01 |
1 |
0106-0206 |
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX)
(C) FRONT
|
8-97349-692-0 |
01 |
1 |
0207- |
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
(B) FRONT
|
8-97139-848-0 |
01 |
1 |
0001-0105 |
● |
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
(B) FRONT
|
8-97139-848-0 |
01 |
1 |
0106-0206 |
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
(C) REAR
|
8-97349-689-0 |
01 |
1 |
0207- |
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
(B) REAR
|
8-97139-850-0 |
01 |
1 |
0001-0105 |
● |
|
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
(B)
|
8-97139-850-0 |
02 |
1 |
0106-0206 |
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
(C)
|
8-97349-689-0 |
02 |
1 |
0207-0212 |
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
LIMITED SLIP DIFF<6LV>
(C)
|
8-97349-689-0 |
02 |
1 |
0301- |
● |
● |
|
| |
94 |
04.665 CYLINDER; WHEEL,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
(C)
|
8-97349-689-0 |
02 |
1 |
0301- |
● |
● |
|
| |
95 |
04.665 CUP SET; RR WHEEL CYL
|
5-87831-781-0 |
01 |
1 |
0106- |
|
|
● |
| |
95 |
04.665 CUP SET; RR WHEEL CYL
|
5-87831-622-0 |
01 |
1 |
9812-0105 |
● |
|
● |
| |
95 |
04.665 CUP SET; RR WHEEL CYL
4JH1 ENG(RJX)
|
5-87831-622-0 |
01 |
1 |
0106- |
● |
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97191-759-0 |
02 |
1 |
0106- |
|
|
● |
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97191-759-0 |
01 |
1 |
0106- |
|
|
● |
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
|
9-47615-027-0 |
01 |
1 |
9812-9912 |
● |
|
● |
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
|
9-47615-027-0 |
01 |
1 |
0001-0105 |
|
|
● |
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
FINAL GEAR RATIO 41/7(R41)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
9-47615-027-0 |
01 |
1 |
0001-0105 |
● |
|
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
FINAL GEAR RATIO 39/7(GV1)
|
9-47615-027-0 |
01 |
1 |
0001-0105 |
● |
|
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
9-47615-027-0 |
02 |
1 |
0106- |
● |
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
9-47615-027-0 |
02 |
1 |
0001-0105 |
● |
|
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
9-47615-027-0 |
01 |
1 |
0106-0212 |
● |
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
LIMITED SLIP DIFF<6LV>
|
9-47615-027-0 |
01 |
1 |
0301- |
● |
● |
|
| |
96 |
04.666 SCREW; BLEEDER,RR BRK
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
9-47615-027-0 |
01 |
1 |
0301- |
● |
● |
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97191-774-0 |
02 |
1 |
0106- |
|
|
● |
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97191-774-0 |
01 |
1 |
0106- |
|
|
● |
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
|
1-47619-009-0 |
01 |
1 |
9812-9912 |
● |
|
● |
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
|
1-47619-009-0 |
01 |
1 |
0001-0105 |
|
|
● |
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR RATIO 41/7(R41)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
1-47619-009-0 |
01 |
1 |
0001-0105 |
● |
|
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR RATIO 39/7(GV1)
|
1-47619-009-0 |
01 |
1 |
0001-0105 |
● |
|
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
1-47619-009-0 |
02 |
1 |
0106- |
● |
● |
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
1-47619-009-0 |
02 |
1 |
0001-0105 |
● |
|
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
1-47619-009-0 |
01 |
1 |
0106-0212 |
● |
● |
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,
LIMITED SLIP DIFF<6LV>
|
1-47619-009-0 |
01 |
1 |
0301- |
● |
● |
|
| |
97 |
04.666 CAP; BLEEDER,RR WHEEL CYL
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
1-47619-009-0 |
01 |
1 |
0301- |
● |
● |
|
| |
98 |
04.669 SPRING; RR WHEEL CYL
|
8-97191-768-0 |
04 |
1 |
0106- |
|
|
● |
| |
99 |
04.668 PISTON; RR WHEEL CYL
|
8-97191-732-0 |
02 |
1 |
0106- |
|
|
● |
| |
99 |
04.668 PISTON; RR WHEEL CYL
|
8-97191-731-0 |
02 |
1 |
0106- |
|
|
● |
| |
99 |
04.668 PISTON; RR WHEEL CYL
D=25.4
|
8-94129-015-1 |
02 |
1 |
9812-0105 |
● |
|
● |
| |
99 |
04.668 PISTON; RR WHEEL CYL
4JH1 ENG(RJX)
D=25.4
|
8-94129-015-1 |
02 |
1 |
0106-0206 |
● |
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4JH1 ENG(RJX)
|
8-97349-728-0 |
02 |
1 |
0207- |
● |
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
D=25.4
|
8-94128-538-1 |
02 |
1 |
9812-0105 |
● |
|
● |
| |
99 |
04.668 PISTON; RR WHEEL CYL
4JH1 ENG(RJX)
D=25.4
|
8-94128-538-1 |
02 |
1 |
0106-0206 |
● |
● |
|
| |
99 |
04.668 PISTON; RR WHEEL CYL
4JH1 ENG(RJX)
|
8-97349-727-0 |
02 |
1 |
0207- |
● |
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
4JH1 ENG(RJX)
(B)
|
8-97349-747-0 |
04 |
1 |
0207- |
● |
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
(A)
|
8-97191-770-0 |
04 |
1 |
0106- |
|
|
● |
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
(A)
M12X30.2 LH THREAD
|
5-47622-004-1 |
02 |
1 |
9812-0105 |
● |
|
● |
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
4JH1 ENG(RJX)
(A)
M12X30.2 LH THREAD
|
5-47622-004-1 |
02 |
1 |
0106- |
● |
● |
|
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
(A)
M12X30.2 RH THREAD
|
5-47622-003-1 |
02 |
1 |
9812-0105 |
● |
|
● |
| |
101 |
04.666 SCREW; ADJ,RR WHEEL CYL
4JH1 ENG(RJX)
(A)
M12X30.2 RH THREAD
|
5-47622-003-1 |
02 |
1 |
0106- |
● |
● |
|
| |
102 |
04.668 PISTON; REAR WHEEL CYL
|
8-97191-755-0 |
04 |
1 |
0106- |
|
|
● |
| |
102 |
04.668 PISTON; REAR WHEEL CYL
D=25.4
|
8-94128-531-1 |
04 |
1 |
9812-0105 |
● |
|
● |
| |
102 |
04.668 PISTON; REAR WHEEL CYL
4JH1 ENG(RJX)
D=25.4
|
8-94128-531-1 |
04 |
1 |
0106- |
● |
● |
|
| |
104 |
05.103 LEVER; ADJ
|
8-97191-740-0 |
02 |
1 |
0106- |
|
|
● |
| |
104 |
05.103 LEVER; ADJ
|
8-97191-739-0 |
02 |
1 |
0106- |
|
|
● |
| |
104 |
05.103 LEVER; ADJ
|
8-94366-174-0 |
02 |
1 |
9812-0105 |
● |
|
● |
| |
104 |
05.103 LEVER; ADJ
4JH1 ENG(RJX)
|
8-94366-174-0 |
02 |
1 |
0106-0206 |
● |
● |
|
| |
104 |
05.103 LEVER; ADJ
4JH1 ENG(RJX)
|
8-97349-744-0 |
02 |
1 |
0207- |
● |
● |
|
| |
104 |
05.103 LEVER; ADJ
|
8-94366-173-0 |
02 |
1 |
9812-0105 |
● |
|
● |
| |
104 |
05.103 LEVER; ADJ
4JH1 ENG(RJX)
|
8-94366-173-0 |
02 |
1 |
0106-0206 |
● |
● |
|
| |
104 |
05.103 LEVER; ADJ
4JH1 ENG(RJX)
|
8-97349-743-0 |
02 |
1 |
0207- |
● |
● |
|
| |
105 |
05.107 SPRING; OVER TRAVEL,ADJ
|
5-09583-110-0 |
04 |
1 |
9812-0105 |
● |
|
● |
| |
105 |
05.107 SPRING; OVER TRAVEL,ADJ
4JH1 ENG(RJX)
|
5-09583-110-0 |
04 |
1 |
0106-0206 |
● |
● |
|
| |
106 |
05.107 SPRING; ADJ LEVER
|
8-97191-744-0 |
02 |
1 |
0106- |
|
|
● |
| |
106 |
05.107 SPRING; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97191-743-0 |
02 |
1 |
0106- |
|
|
● |
| |
106 |
05.107 SPRING; ADJ LEVER
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97191-745-0 |
02 |
1 |
0106- |
|
|
● |
| |
106 |
05.107 SPRING; ADJ LEVER
|
5-09585-045-0 |
04 |
1 |
9812-0105 |
● |
|
● |
| |
106 |
05.107 SPRING; ADJ LEVER
4JH1 ENG(RJX)
|
5-09585-045-0 |
04 |
1 |
0106-0206 |
● |
● |
|
| |
106 |
05.107 SPRING; ADJ LEVER
4JH1 ENG(RJX)
|
8-97349-745-0 |
04 |
1 |
0207- |
● |
● |
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
|
8-94479-589-0 |
02 |
1 |
9812-0105 |
|
|
● |
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
|
8-97191-748-0 |
02 |
1 |
0106- |
|
|
● |
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
|
8-94479-588-0 |
02 |
1 |
9812-0105 |
|
|
● |
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
|
8-97191-747-0 |
02 |
1 |
0106- |
|
|
● |
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
|
5-47623-006-0 |
02 |
1 |
9812-0105 |
● |
|
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
4JH1 ENG(RJX)
|
5-47623-006-0 |
02 |
1 |
0106-0206 |
● |
● |
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
4JH1 ENG(RJX)
|
8-97349-739-0 |
02 |
1 |
0207- |
● |
● |
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
|
5-47623-005-0 |
02 |
1 |
9812-0105 |
● |
|
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
4JH1 ENG(RJX)
|
5-47623-005-0 |
02 |
1 |
0106-0206 |
● |
● |
|
| |
107 |
05.110 GEAR; ADJ,RR W/CYL
4JH1 ENG(RJX)
|
8-97349-737-0 |
02 |
1 |
0207- |
● |
● |
|
| |
108 |
05.110 WASHER; THRUST,GEAR ADJ
|
8-97191-762-0 |
04 |
1 |
0106- |
|
|
● |
| |
108 |
05.110 WASHER; THRUST,GEAR ADJ
|
8-97029-304-0 |
04 |
1 |
9812-0105 |
● |
|
● |
| |
108 |
05.110 WASHER; THRUST,GEAR ADJ
4JH1 ENG(RJX)
|
8-97029-304-0 |
04 |
1 |
0106- |
● |
● |
|
| |
109 |
04.665 FITTING; AUTO ADJ
|
5-47619-042-0 |
04 |
1 |
9812-0105 |
● |
|
● |
| |
109 |
04.665 FITTING; AUTO ADJ
4JH1 ENG(RJX)
|
5-47619-042-0 |
04 |
1 |
0106-0206 |
● |
● |
|
| |
124 |
05.017 SHOE ASM; BRK,RR
|
8-97035-085-1 |
04 |
1 |
9812-0105 |
|
|
● |
| |
124 |
05.017 SHOE ASM; BRK,RR
|
8-97191-716-1 |
04 |
1 |
0106-0206 |
|
|
● |
| |
124 |
05.017 SHOE ASM; BRK,RR
|
8-97331-932-0 |
04 |
1 |
0207- |
|
|
● |
| |
124 |
05.017 SHOE ASM; BRK,RR
|
8-97066-695-0 |
04 |
1 |
9812-9912 |
● |
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97066-695-0 |
04 |
1 |
0001-0105 |
● |
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
|
8-97066-695-0 |
04 |
1 |
0001-0105 |
● |
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97217-754-0 |
04 |
1 |
0001-0009 |
● |
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97287-778-0 |
04 |
1 |
0010-0105 |
● |
|
|
| |
124 |
05.017 SHOE ASM; BRK,RR
4JH1 ENG(RJX)
|
8-97287-778-0 |
04 |
1 |
0106- |
● |
● |
|
| |
136 |
05.002 GROMMET
(C)
|
9-09956-640-0 |
04 |
1 |
9812-0105 |
|
|
● |
| |
136 |
05.002 GROMMET
(A)
|
8-97191-718-0 |
08 |
1 |
0106- |
|
|
● |
| |
136 |
05.002 GROMMET
(B)
|
8-94366-295-0 |
04 |
1 |
9812-0105 |
● |
|
● |
| |
136 |
05.002 GROMMET
4JH1 ENG(RJX)
(B)
|
8-94366-295-0 |
04 |
1 |
0106-0206 |
● |
● |
|
| |
136 |
05.002 GROMMET
4JH1 ENG(RJX)
04.670
(D)
|
1-47154-008-0 |
04 |
1 |
0207- |
● |
● |
|
| |
136 |
05.002 GROMMET
(A)
|
8-94171-287-0 |
04 |
1 |
9812-0105 |
● |
|
|
| |
136 |
05.002 GROMMET
4JH1 ENG(RJX)
(A)
|
8-94171-287-0 |
04 |
1 |
0106- |
● |
● |
|
| |
217 |
05.018 LINING KIT; RR BRK
|
5-88300-002-0 |
01 |
1 |
9812-9912 |
● |
|
|
| |
217 |
05.018 LINING KIT; RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
5-88300-002-0 |
01 |
1 |
0001-0105 |
● |
|
|
| |
217 |
05.018 LINING KIT; RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 39/7(GV1)
|
5-88300-002-0 |
01 |
1 |
0001-0105 |
● |
|
|
| |
217 |
05.018 LINING KIT; RR BRK
4JG2 ENG(RJC),4JB1 ENG(RLF)
REAR AXLE HEAVY DUTY 292MM(G73)
FINAL GEAR RATIO 41/7(R41)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
5-87831-801-0 |
01 |
1 |
0001-0105 |
● |
|
|
| |
217 |
05.018 LINING KIT; RR BRK
4JH1 ENG(RJX)
|
5-87831-801-0 |
01 |
1 |
0106- |
● |
● |
|
| |
218 |
05.017 SHOE KIT; BRK,RR
|
5-87832-044-0 |
01 |
1 |
0204- |
|
|
● |
| |
218 |
05.017 SHOE KIT; BRK,RR
4JH1 ENG(RJX)
|
5-87832-047-0 |
01 |
1 |
0204- |
● |
● |
|
| |
240 |
05.020 PIN; AUTO ADJ
|
8-97078-700-0 |
04 |
1 |
9812-0105 |
● |
|
● |
| |
240 |
05.020 PIN; AUTO ADJ
4JH1 ENG(RJX)
|
8-97078-700-0 |
04 |
1 |
0106-0206 |
● |
● |
|
| |
295 |
05.110 SEAL; DUST
|
8-97191-751-0 |
04 |
1 |
0106- |
|
|
● |
| |
296 |
05.125 BOLT; ADJ,RR WHEEL CYL
|
8-97191-765-0 |
02 |
1 |
0106- |
|
|
● |
| |
296 |
05.125 BOLT; ADJ,RR WHEEL CYL
|
8-97191-764-0 |
02 |
1 |
0106- |
|
|
● |
