3-02 — FRONT DISC BRAKE CALIPER (#45604) — 145 parça

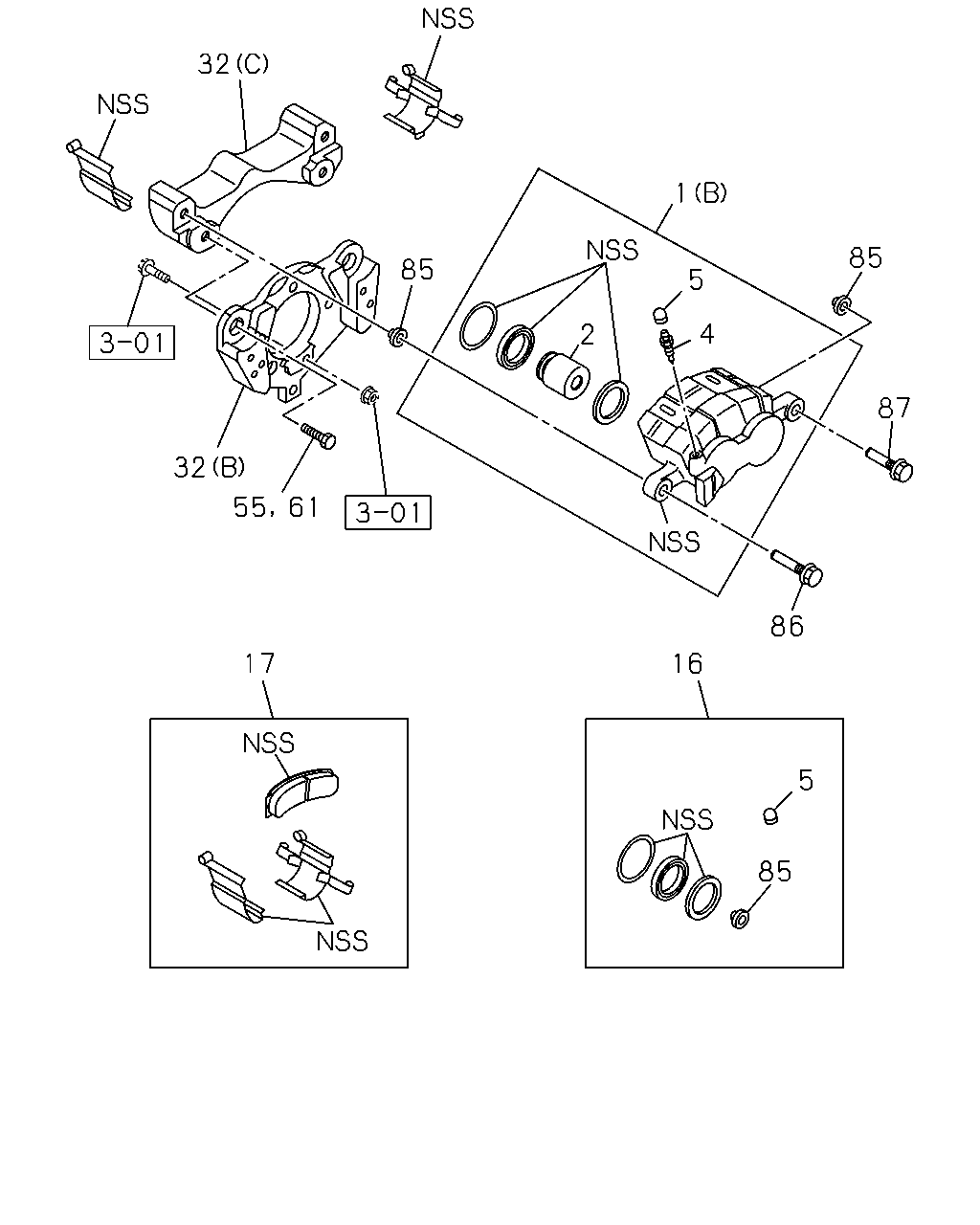

çizim 46029
32 1 85 85 5 2 4 87 32 55 61 86 17 16 5 85
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.665 CALIPER; FRT DISC BRK
(B) 		8-97078-399-1 01 1 9812- ●
1 04.665 CALIPER; FRT DISC BRK
(B) 		8-97078-398-1 01 1 9812- ●
1 04.665 CALIPER; FRT DISC BRK
(B) 		8-97192-283-0 01 1 9812-9812 ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC) (A) 		8-94324-765-1 01 1 9812-0105 ●
1 04.665 CALIPER; FRT DISC BRK
(B) 		8-97192-282-0 01 1 9812-9812 ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC) (A) 		8-94324-764-1 01 1 9812-0105 ●
1 04.665 CALIPER; FRT DISC BRK
4JB1 ENG(RLF) (B) 		8-97228-623-0 01 1 9906-0105 ●
1 04.665 CALIPER; FRT DISC BRK
4JH1 ENG(RJX) (B) 		8-97228-623-1 01 1 0106- ● ●
1 04.665 CALIPER; FRT DISC BRK
4JB1 ENG(RLF) (B) 		8-97228-622-0 01 1 9906-0105 ●
1 04.665 CALIPER; FRT DISC BRK
4JH1 ENG(RJX) (B) 		8-97228-622-1 01 1 0106- ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97078-402-0 04 1 9812- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC) 		8-94468-350-0 04 1 9812-9905 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-94468-350-0 04 1 9906-0105 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
4JH1 ENG(RJX) 		8-94468-350-0 04 1 0106- ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 9-47615-027-0 02 1 9812- ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC) 		1-47615-027-0 02 1 9812-9905 ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 9906-0105 ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JH1 ENG(RJX) 		1-47615-027-0 02 1 0106- ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		1-47619-009-0 02 1 9812-9812 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 9812-9812 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 9812-9905 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		1-47619-009-0 02 1 9906-0105 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JB1 ENG(RLF) 		1-47619-009-0 02 1 9906-0105 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		1-47619-009-0 02 1 0106- ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JH1 ENG(RJX) 		1-47619-009-0 02 1 0106- ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC) 		9-47619-038-0 02 1 9812-0105 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-97078-410-2 01 1 9812- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-97168-635-0 01 1 9812-9812 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC) 		8-94479-584-1 01 1 9812-0105 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4JB1 ENG(RLF) 		8-97168-635-0 01 1 9906-0105 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4JH1 ENG(RJX) 		8-97168-635-0 01 1 0106- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97078-409-4 01 1 9812-0105 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97226-103-0 01 1 0106-0203 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97329-265-0 01 1 0204- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97168-633-0 01 1 9812-9812 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC) 		8-97094-710-0 01 1 9812-0105 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JB1 ENG(RLF) 		8-97168-633-0 01 1 9906-0105 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JH1 ENG(RJX) 		8-97168-633-0 01 1 0106-0203 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JH1 ENG(RJX) 		8-97329-266-0 01 1 0204- ● ●
32 04.665 SUPPORT; FRT DISC BRK
(C) 		8-97078-404-1 02 1 9812- ●
32 04.665 SUPPORT; FRT DISC BRK
(C) 		8-97192-286-0 02 1 9812-9812 ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97179-592-0 01 1 9812-9812 ●
32 04.665 SUPPORT; FRT DISC BRK
4JG2 ENG(RJC) (A) 		8-94468-352-1 01 1 9812-0105 ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97179-591-0 01 1 9812-9812 ●
32 04.665 SUPPORT; FRT DISC BRK
4JG2 ENG(RJC) (A) 		8-94468-351-1 01 1 9812-0105 ●
32 04.665 SUPPORT; FRT DISC BRK
4JB1 ENG(RLF) (C) 		8-97228-630-0 02 1 9906-0105 ●
32 04.665 SUPPORT; FRT DISC BRK
4JH1 ENG(RJX) (C) 		8-97228-630-1 02 1 0106- ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JB1 ENG(RLF) (B) 		8-97179-592-0 01 1 9906-9912 ●
32 04.665 SUPPORT; FRT DISC BRK
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-592-0 01 1 0001-0105 ●
32 04.665 SUPPORT; FRT DISC BRK
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-592-1 01 1 0106- ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JB1 ENG(RLF) (B) 		8-97179-591-0 01 1 9906-9912 ●
32 04.665 SUPPORT; FRT DISC BRK
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-591-0 01 1 0001-0105 ●
32 04.665 SUPPORT; FRT DISC BRK
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-591-1 01 1 0106- ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-584-1 01 1 0001-0105 ●
32 04.665 SUPPORT; FRT DISC BRK
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-584-2 01 1 0106- ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-583-1 01 1 0001-0105 ●
32 04.665 SUPPORT; FRT DISC BRK
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-583-2 01 1 0106- ● ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK 8-97042-716-1 02 1 9812- ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK 8-97168-639-0 04 1 9812-9812 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
4JB1 ENG(RLF) 		8-97168-639-0 04 1 9906-0105 ●
55 04.681 BOLT; SUPPORT BRKT TO DISC BRK
4JH1 ENG(RJX) 		8-97168-639-0 04 1 0106- ● ●
61 04.665 BOLT; SUPPORT BRKT TO KNUCKLE
04.681 		8-97042-716-1 02 1 9812- ●
85 04.665 BOOT; PIN 8-97029-977-0 04 1 9812- ●
85 04.665 BOOT; PIN 8-97168-612-0 04 1 9812-9812 ●
85 04.665 BOOT; PIN
4JB1 ENG(RLF) 		8-97168-612-0 04 1 9906-0105 ●
85 04.665 BOOT; PIN
4JH1 ENG(RJX) 		8-97168-612-0 04 1 0106- ● ●
85 04.665 BOOT; PIN
4JG2 ENG(RJC) 		8-97088-727-0 02 1 9903-0105 ●
86 04.665 PIN; GUIDE 8-97029-999-0 02 1 9812- ●
86 04.665 PIN; GUIDE 8-97168-609-0 02 1 9812-9812 ●
86 04.665 PIN; GUIDE
4JB1 ENG(RLF) 		8-97168-609-1 02 1 9906-0105 ●
86 04.665 PIN; GUIDE
4JH1 ENG(RJX) 		8-97168-609-1 02 1 0106- ● ●
87 04.665 PIN; LOCK 8-97029-998-0 02 1 9812- ●
87 04.665 PIN; LOCK 8-97168-611-0 02 1 9812-9812 ●
87 04.665 PIN; LOCK
4JG2 ENG(RJC) 04.681 		8-94479-685-1 02 1 9812-0105 ●
87 04.665 PIN; LOCK
4JB1 ENG(RLF) 		8-97168-611-1 02 1 9906-0105 ●
87 04.665 PIN; LOCK
4JH1 ENG(RJX) 		8-97168-611-1 02 1 0106- ● ●

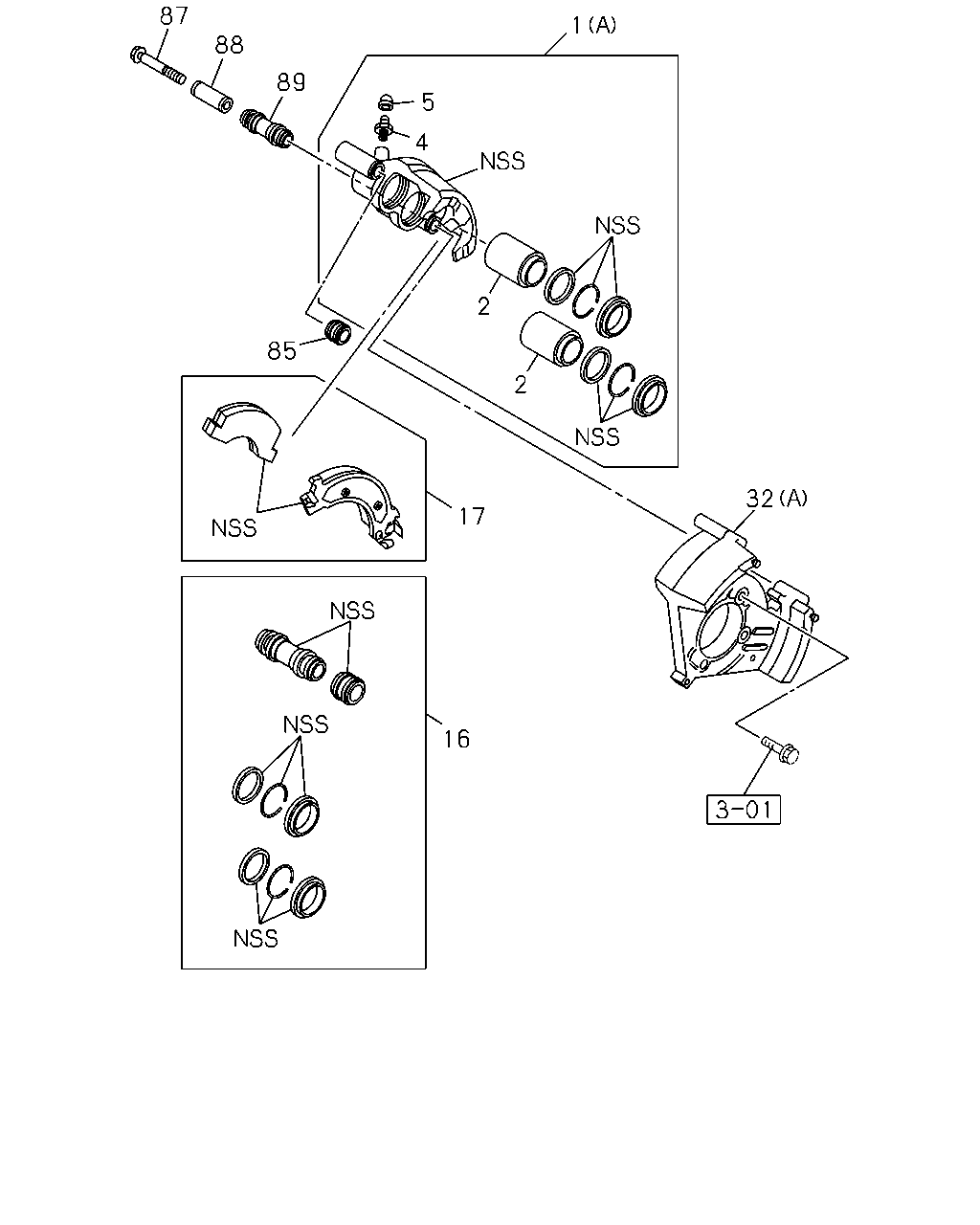

çizim 49244
87 1 88 89 5 4 2 85 2 32 17 16
BalonParca AdiParca NoAdetTipApplied Date A B C
1 04.665 CALIPER; FRT DISC BRK
(B) 		8-97078-399-1 01 1 9812- ●
1 04.665 CALIPER; FRT DISC BRK
(B) 		8-97078-398-1 01 1 9812- ●
1 04.665 CALIPER; FRT DISC BRK
(B) 		8-97192-283-0 01 1 9812-9812 ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC) (A) 		8-94324-765-1 01 1 9812-0105 ●
1 04.665 CALIPER; FRT DISC BRK
(B) 		8-97192-282-0 01 1 9812-9812 ●
1 04.665 CALIPER; FRT DISC BRK
4JG2 ENG(RJC) (A) 		8-94324-764-1 01 1 9812-0105 ●
1 04.665 CALIPER; FRT DISC BRK
4JB1 ENG(RLF) (B) 		8-97228-623-0 01 1 9906-0105 ●
1 04.665 CALIPER; FRT DISC BRK
4JH1 ENG(RJX) (B) 		8-97228-623-1 01 1 0106- ● ●
1 04.665 CALIPER; FRT DISC BRK
4JB1 ENG(RLF) (B) 		8-97228-622-0 01 1 9906-0105 ●
1 04.665 CALIPER; FRT DISC BRK
4JH1 ENG(RJX) (B) 		8-97228-622-1 01 1 0106- ● ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-97078-402-0 04 1 9812- ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC) 		8-94468-350-0 04 1 9812-9905 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT 8-94468-350-0 04 1 9906-0105 ●
2 04.668 PISTON; CALIPER,DISC BRK,FRT
4JH1 ENG(RJX) 		8-94468-350-0 04 1 0106- ● ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 9-47615-027-0 02 1 9812- ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC) 		1-47615-027-0 02 1 9812-9905 ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT 1-47615-027-0 02 1 9906-0105 ●
4 04.666 SCREW; BLEEDER,DISC BRK,FRT
4JH1 ENG(RJX) 		1-47615-027-0 02 1 0106- ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		1-47619-009-0 02 1 9812-9812 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 9812-9812 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT 1-47619-009-0 02 1 9812-9905 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		1-47619-009-0 02 1 9906-0105 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JB1 ENG(RLF) 		1-47619-009-0 02 1 9906-0105 ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		1-47619-009-0 02 1 0106- ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JH1 ENG(RJX) 		1-47619-009-0 02 1 0106- ● ●
5 04.666 CAP; BLEEDER,DISC BRK,FRT
4JG2 ENG(RJC) 		9-47619-038-0 02 1 9812-0105 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-97078-410-2 01 1 9812- ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT 8-97168-635-0 01 1 9812-9812 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC) 		8-94479-584-1 01 1 9812-0105 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4JB1 ENG(RLF) 		8-97168-635-0 01 1 9906-0105 ●
16 04.667 REPAIR KIT; CALIPER,DISC BRK,FRT
4JH1 ENG(RJX) 		8-97168-635-0 01 1 0106- ● ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97078-409-4 01 1 9812-0105 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97226-103-0 01 1 0106-0203 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97329-265-0 01 1 0204- ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT 8-97168-633-0 01 1 9812-9812 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JG2 ENG(RJC) 		8-97094-710-0 01 1 9812-0105 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JB1 ENG(RLF) 		8-97168-633-0 01 1 9906-0105 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JH1 ENG(RJX) 		8-97168-633-0 01 1 0106-0203 ●
17 05.017 PAD KIT; CALIPER,DISC BRK,FRT
4JH1 ENG(RJX) 		8-97329-266-0 01 1 0204- ● ●
32 04.665 SUPPORT; FRT DISC BRK
(C) 		8-97078-404-1 02 1 9812- ●
32 04.665 SUPPORT; FRT DISC BRK
(C) 		8-97192-286-0 02 1 9812-9812 ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97179-592-0 01 1 9812-9812 ●
32 04.665 SUPPORT; FRT DISC BRK
4JG2 ENG(RJC) (A) 		8-94468-352-1 01 1 9812-0105 ●
32 04.665 SUPPORT; FRT DISC BRK
(B) 		8-97179-591-0 01 1 9812-9812 ●
32 04.665 SUPPORT; FRT DISC BRK
4JG2 ENG(RJC) (A) 		8-94468-351-1 01 1 9812-0105 ●
32 04.665 SUPPORT; FRT DISC BRK
4JB1 ENG(RLF) (C) 		8-97228-630-0 02 1 9906-0105 ●
32 04.665 SUPPORT; FRT DISC BRK
4JH1 ENG(RJX) (C) 		8-97228-630-1 02 1 0106- ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JB1 ENG(RLF) (B) 		8-97179-592-0 01 1 9906-9912 ●
32 04.665 SUPPORT; FRT DISC BRK
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-592-0 01 1 0001-0105 ●
32 04.665 SUPPORT; FRT DISC BRK
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-592-1 01 1 0106- ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JB1 ENG(RLF) (B) 		8-97179-591-0 01 1 9906-9912 ●
32 04.665 SUPPORT; FRT DISC BRK
4JB1 ENG(RLF) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-591-0 01 1 0001-0105 ●
32 04.665 SUPPORT; FRT DISC BRK
4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97179-591-1 01 1 0106- ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-584-1 01 1 0001-0105 ●
32 04.665 SUPPORT; FRT DISC BRK
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-584-2 01 1 0106- ● ●
32 04.665 SUPPORT; FRT DISC BRK
4JB1 ENG(RLF) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-583-1 01 1 0001-0105 ●
32 04.665 SUPPORT; FRT DISC BRK
4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97168-583-2 01 1 0106- ● ●
85 04.665 BOOT; PIN 8-97029-977-0 04 1 9812- ●
85 04.665 BOOT; PIN 8-97168-612-0 04 1 9812-9812 ●
85 04.665 BOOT; PIN
4JB1 ENG(RLF) 		8-97168-612-0 04 1 9906-0105 ●
85 04.665 BOOT; PIN
4JH1 ENG(RJX) 		8-97168-612-0 04 1 0106- ● ●
85 04.665 BOOT; PIN
4JG2 ENG(RJC) 		8-97088-727-0 02 1 9903-0105 ●
87 04.665 PIN; LOCK 8-97029-998-0 02 1 9812- ●
87 04.665 PIN; LOCK 8-97168-611-0 02 1 9812-9812 ●
87 04.665 PIN; LOCK
4JG2 ENG(RJC) 04.681 		8-94479-685-1 02 1 9812-0105 ●
87 04.665 PIN; LOCK
4JB1 ENG(RLF) 		8-97168-611-1 02 1 9906-0105 ●
87 04.665 PIN; LOCK
4JH1 ENG(RJX) 		8-97168-611-1 02 1 0106- ● ●
88 04.681 SLEEVE; LOCK PIN
4JG2 ENG(RJC) 		8-94468-353-0 02 1 9812-0105 ●
89 04.665 BOOT; SLEEVE
4JG2 ENG(RJC) 		8-97088-726-0 02 1 9812-0105 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
