Sayfa 2-85 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50810 - NKR(EUROPE)-LHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-85 - POWER TAKE OFF CONTROL ▶

2-85 — POWER TAKE OFF CONTROL (#45602) — 137 parça

70 15 71 18 19 79 245 256 79 121 16 83 222 24 21 31 256 192

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-217-0	01	1	9812-0105	●	●
15	04.439 LEVER ASM; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-217-1	01	1	0106-			●
16	04.439 CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66) 04.027	8-94152-900-0	01	1	9812-0105	●	●
16	04.439 CLIP; CABLE,PTO PTO TRANSMISSION SIDE(V66) 04.027	8-94152-900-0	01	1	0106-			●
18	04.439 PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	9812-0105	●	●
18	04.439 PIN; SNAP,PTO CABLE PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0106-			●
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 16.674 ID=8.4	9-09160-508-0	01	1	9812-0105	●	●
19	04.439 WASHER; PL,PTO CABLE PTO TRANSMISSION SIDE(V66) 16.674 ID=8.4	9-09160-508-0	01	1	0106-			●
21	04.439 WASHER; PL,CONT LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9812-0105	●	●
21	04.439 WASHER; PL,CONT LEVER 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	0106-			●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	9812-0105	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	0106-			●
24	04.439 CABLE; PTO CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) L=2690	8-97142-482-0	01	1	9812-0105	●	●
24	04.439 CABLE; PTO CONT 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) L=2810	8-97260-319-1	01	1	0106-			●
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) 02.559 L=300	1-09707-001-1	01	1	9812-0105	●	●
31	04.439 CLIP; BAND,CABLE PTO TRANSMISSION SIDE(V66) 02.559 L=300	1-09707-001-1	01	1	0106-			●
70	04.439 KNOB; DUMP CONT PTO TRANSMISSION SIDE(V66)	8-94147-332-1	01	1	9812-0105	●	●
70	04.439 KNOB; DUMP CONT PTO TRANSMISSION SIDE(V66)	8-94147-332-1	01	1	0106-			●
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-218-0	01	1	9812-0105	●	●
71	04.439 LEVER; PTO CONT PTO TRANSMISSION SIDE(V66)	8-97143-218-0	01	1	0106-			●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.008 ID=14 OD=16	8-94252-671-0	02	1	9812-0105	●	●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.008 ID=14 OD=16	8-94252-671-0	02	1	0106-0204			●
79	04.439 BUSHING; CONT LEVER PTO TRANSMISSION SIDE(V66) 04.792	8-94238-596-0	02	1	0205-			●
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97118-977-0	01	1	9812-0105	●	●
83	04.439 BRACKET; CONT LEVER PTO TRANSMISSION SIDE(V66)	8-97118-977-0	01	1	0106-			●
121	04.439 RING; SNAP PTO TRANSMISSION SIDE(V66) 08.934 ID=10	9-09185-410-0	01	1	9812-0105	●	●
121	04.439 RING; SNAP PTO TRANSMISSION SIDE(V66) 08.934 ID=10	9-09185-410-0	01	1	0106-			●
192	04.439 BOLT; PTO BRKT PTO TRANSMISSION SIDE(V66) M6X16 FLANGE	0-28680-616-0	01	1	9812-0105	●	●
192	04.439 BOLT; PTO BRKT PTO TRANSMISSION SIDE(V66) M6X16 FLANGE	0-28680-616-0	01	1	0106-			●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	02	1	9812-0105	●	●
222	04.439 BOLT; LEVER PTO TRANSMISSION SIDE(V66) 00.662 M8X14 FLANGE	0-28080-814-0	02	1	0106-			●
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	9812-0105	●	●
245	04.439 SCREW; COVER,CONT LEVER BRKT PTO TRANSMISSION SIDE(V66) 03.320 M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	0106-			●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (B)	8-97118-983-0	01	1	9812-0105	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (B)	8-97118-983-0	01	1	0106-			●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (A)	8-97142-947-0	01	1	9812-0105	●	●
256	04.439 PLATE; LOCK PTO TRANSMISSION SIDE(V66) (A)	8-97142-947-0	01	1	0106-			●

1 10 9 4 6 12 193 11 8 13 14 7 1 64 7 5 21 38 24 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (B)	8-94169-638-3	01	1	9812-0105	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-114-1	01	1	0106-			●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (B)	8-94169-639-0	01	1	9812-0105	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-97019-744-0	01	1	0106-			●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (B)	8-94147-828-0	01	1	9812-0105	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-115-0	01	1	0106-			●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) (B)	8-94147-829-1	01	1	9812-0105	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-94419-941-1	01	1	0106-			●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	9812-0105	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0106-			●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	9812-0105	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0106-			●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	9812-0105	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	0106-			●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	9812-0105	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	0106-			●
11	04.439 JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66)	8-94342-085-0	01	1	9812-0105	●	●
11	04.439 JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66)	8-94342-085-0	01	1	0106-			●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	9812-0105	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0106-			●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	9812-0105	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	0106-			●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	9812-0105	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	0106-			●
21	04.439 WASHER; PL,CONT LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9812-0105	●	●
21	04.439 WASHER; PL,CONT LEVER 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	0106-			●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	9812-0105	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	0106-			●
24	04.439 CABLE; PTO CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) L=2690	8-97142-482-0	01	1	9812-0105	●	●
24	04.439 CABLE; PTO CONT 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) L=2810	8-97260-319-1	01	1	0106-			●
38	04.439 PIN; JOINT,CABLE TO LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 04.047	8-94153-035-0	01	1	9812-0105	●	●
46	04.439 BRACKET; PTO,TRANS SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) (A)	8-94157-541-0	01	1	9812-0105	●	●
46	04.439 BRACKET; PTO,TRANS SIDE 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) (B)	8-97260-329-0	01	1	0106-0204			●
46	04.439 BRACKET; PTO,TRANS SIDE 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) (B)	8-97351-069-0	01	1	0205-			●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	9812-0105	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0106-			●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	9812-0105	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	0106-			●

195 172 24 172 195 173 172 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	04.439 CABLE; PTO CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) L=2690	8-97142-482-0	01	1	9812-0105	●	●
24	04.439 CABLE; PTO CONT 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) L=2810	8-97260-319-1	01	1	0106-			●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	9812-0105	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 01.062 M8X16 FLANGE	0-28080-816-0	01	1	0106-			●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	9812-0105	●	●
172	04.439 BOLT; BRKT PTO TRANSMISSION SIDE(V66) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0106-			●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	9812-0105	●	●
173	04.439 NUT; BRKT PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-0203			●
173	04.439 NUT; BRKT SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0204-0210			●
173	04.439 NUT; BRKT DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0204-0210			●
173	04.439 NUT; BRKT DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-			●
173	04.439 NUT; BRKT MIDDLE(NK***F) PTO TRANSMISSION SIDE(V66) 07.633 M8 FLANGE	0-91150-108-0	01	1	0211-			●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	9812-0105	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0106-0203			●
195	04.439 BRACKET; CONT CABLE SGL TIRE&SGL CAB&SHORT(NKB6SC) DUAL RR TIRE&SGL CAB&MIDDLE(NKC6SF) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0204-0210			●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0204-0210			●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) REAR WIDE TREAD(V4T) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0211-			●
195	04.439 BRACKET; CONT CABLE MIDDLE(NK***F) PTO TRANSMISSION SIDE(V66) (A)	8-97076-429-6	01	1	0211-			●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97085-695-3	01	1	9812-0105	●	●
195	04.439 BRACKET; CONT CABLE PTO TRANSMISSION SIDE(V66) (B)	8-97085-695-3	01	1	0106-			●
195	04.439 BRACKET; CONT CABLE DUAL RR TIRE&SHORT(NKC**C) PTO TRANSMISSION SIDE(V66) EXC. REAR WIDE TREAD(V4T) (C)	8-97229-563-0	01	1	0204-			●

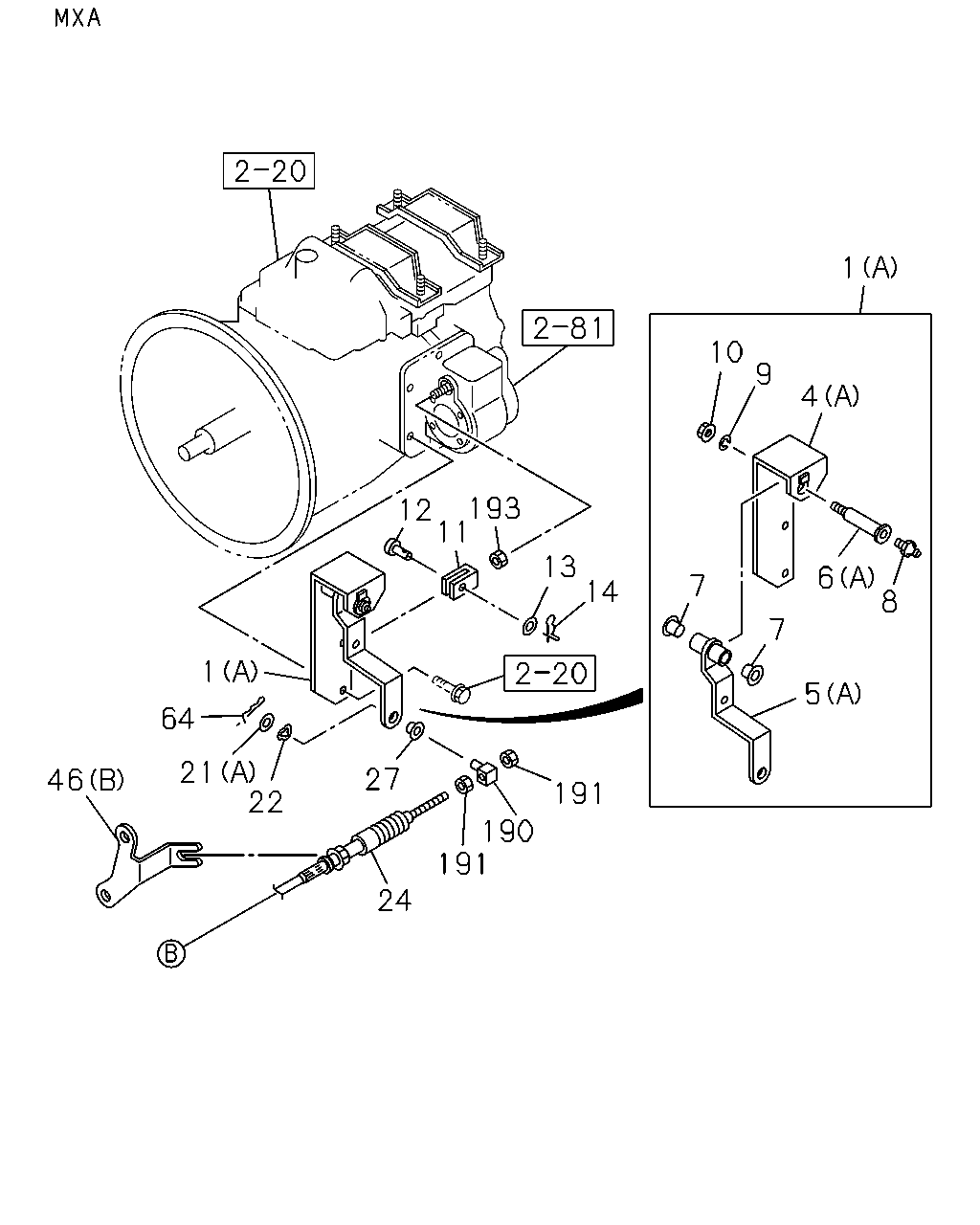

1 10 9 4 12 193 11 13 14 6 8 7 7 1 5 64 21 22 27 46 191 190 191 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (B)	8-94169-638-3	01	1	9812-0105	●	●
1	04.439 LEVER ASM; PTO & DUMP CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-114-1	01	1	0106-			●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (B)	8-94169-639-0	01	1	9812-0105	●	●
4	04.439 BRACKET; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-97019-744-0	01	1	0106-			●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (B)	8-94147-828-0	01	1	9812-0105	●	●
5	04.439 LEVER; PTO SHIFT CONT PTO TRANSMISSION SIDE(V66) (A)	8-97017-115-0	01	1	0106-			●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) (B)	8-94147-829-1	01	1	9812-0105	●	●
6	04.439 SHAFT; PTO CONT PTO TRANSMISSION SIDE(V66) (A)	8-94419-941-1	01	1	0106-			●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	9812-0105	●	●
7	04.439 BUSHING; LEVER,PTO PTO TRANSMISSION SIDE(V66)	5-33659-053-0	02	1	0106-			●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	9812-0105	●	●
8	04.439 NIPPLE; GREASE PTO TRANSMISSION SIDE(V66) 08.984 M6 STRAIGHT	9-09031-006-0	01	1	0106-			●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	9812-0105	●	●
9	04.439 WASHER; LK,SHAFT,PTO PTO TRANSMISSION SIDE(V66) 00.002 ID=8.2	9-09150-508-0	01	1	0106-			●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	9812-0105	●	●
10	04.439 NUT; SHAFT,PTO PTO TRANSMISSION SIDE(V66) 02.559 M8	9-09110-408-0	01	1	0106-			●
11	04.439 JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66)	8-94342-085-0	01	1	9812-0105	●	●
11	04.439 JOINT; JAW,YOKE PTO TRANSMISSION SIDE(V66)	8-94342-085-0	01	1	0106-			●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	9812-0105	●	●
12	04.439 JOINT; PIN,YOKE PTO TRANSMISSION SIDE(V66)	8-94174-099-0	01	1	0106-			●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	9812-0105	●	●
13	04.439 WASHER; PL,YOKE PTO TRANSMISSION SIDE(V66) 03.430 ID=12.5	9-09160-512-0	01	1	0106-			●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	9812-0105	●	●
14	04.439 PIN; SPLIT,YOKE PTO TRANSMISSION SIDE(V66) 09.003	1-09987-158-1	01	1	0106-			●
21	04.439 WASHER; PL,CONT LEVER 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) 16.674 (A) ID=8.4	9-09160-508-0	01	1	9812-0105	●	●
21	04.439 WASHER; PL,CONT LEVER 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 07.633 (A) ID=8.4 OD=22	9-09164-708-0	01	1	0106-			●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	9812-0105	●	●
21	04.439 WASHER; PL,CONT LEVER PTO TRANSMISSION SIDE(V66) 06.760 (B) ID=8.4 OD=22	9-09160-708-0	01	1	0106-			●
22	04.439 WASHER; LK,LEVER 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 04.037 ID=8.5 T=0.3	5-09509-001-0	01	1	0106-			●
24	04.439 CABLE; PTO CONT 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) L=2690	8-97142-482-0	01	1	9812-0105	●	●
24	04.439 CABLE; PTO CONT 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) L=2810	8-97260-319-1	01	1	0106-			●
27	04.439 BUSHING; LEVER,PTO 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 04.042	8-94367-367-0	01	1	0106-			●
46	04.439 BRACKET; PTO,TRANS SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) PTO TRANSMISSION SIDE(V66) (A)	8-94157-541-0	01	1	9812-0105	●	●
46	04.439 BRACKET; PTO,TRANS SIDE 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) (B)	8-97260-329-0	01	1	0106-0204			●
46	04.439 BRACKET; PTO,TRANS SIDE 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) (B)	8-97351-069-0	01	1	0205-			●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	9812-0105	●	●
64	04.439 PIN; SNAP,CONT CABLE JOINT PTO TRANSMISSION SIDE(V66) 00.833 L=27.7	8-94111-137-0	01	1	0106-			●
190	04.439 BOSS; LEVER,PTO 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 04.307	8-94366-842-1	01	1	0106-			●
191	04.439 NUT; BOSS 4JH1 ENG(RJX) PTO TRANSMISSION SIDE(V66) 00.413 M6	9-09110-506-0	02	1	0106-			●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	9812-0105	●	●
193	04.439 NUT PTO TRANSMISSION SIDE(V66) 07.347 M12	9-99111-412-0	01	1	0106-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
